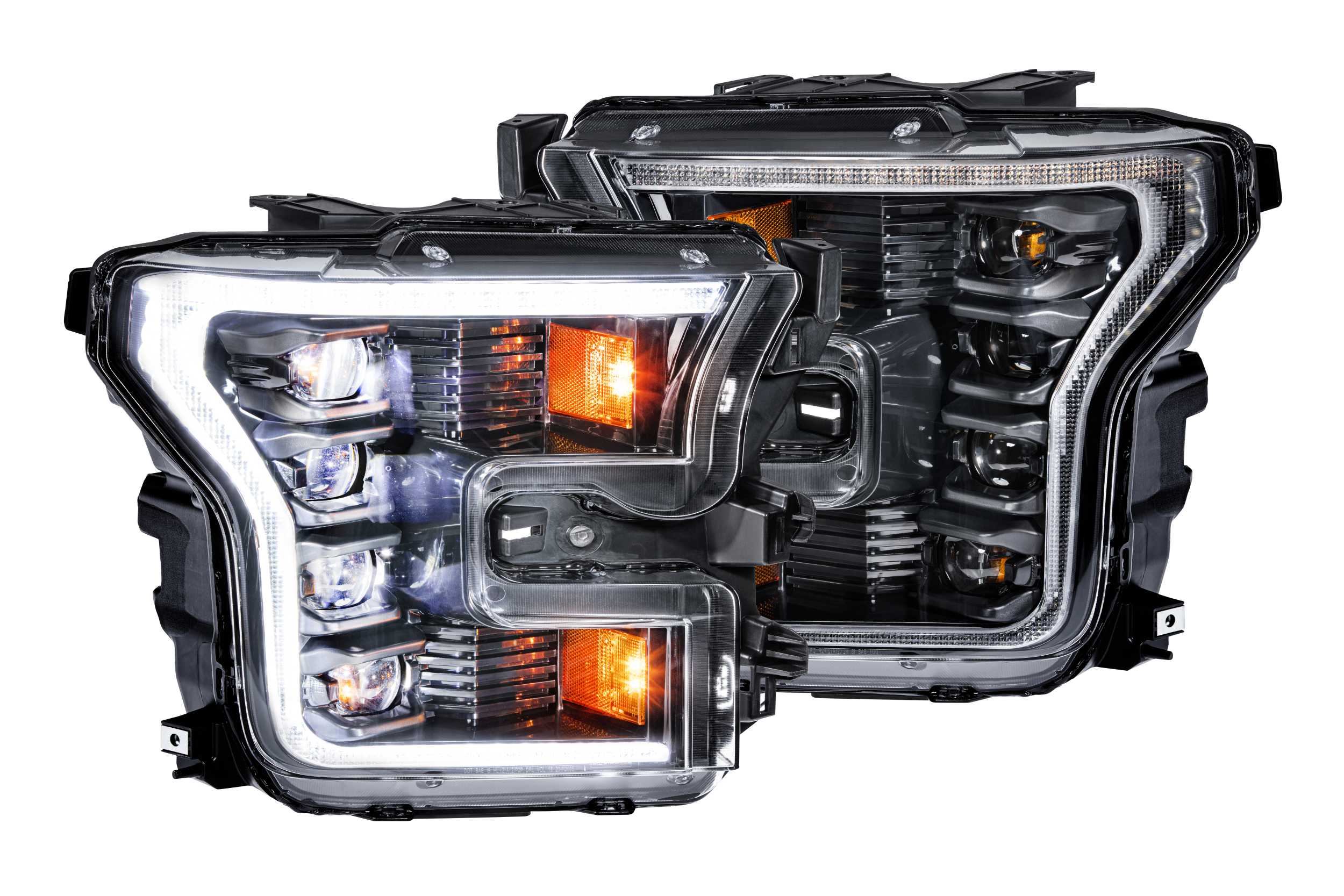

Pair of Morimoto XB LED headlights for the 2015-2017 Ford F-150, black housings with white light-tube DRL

Morimoto 5 Year Limited Warranty graphic in gold and white lettering, shown with the F-150 XB LED headlights

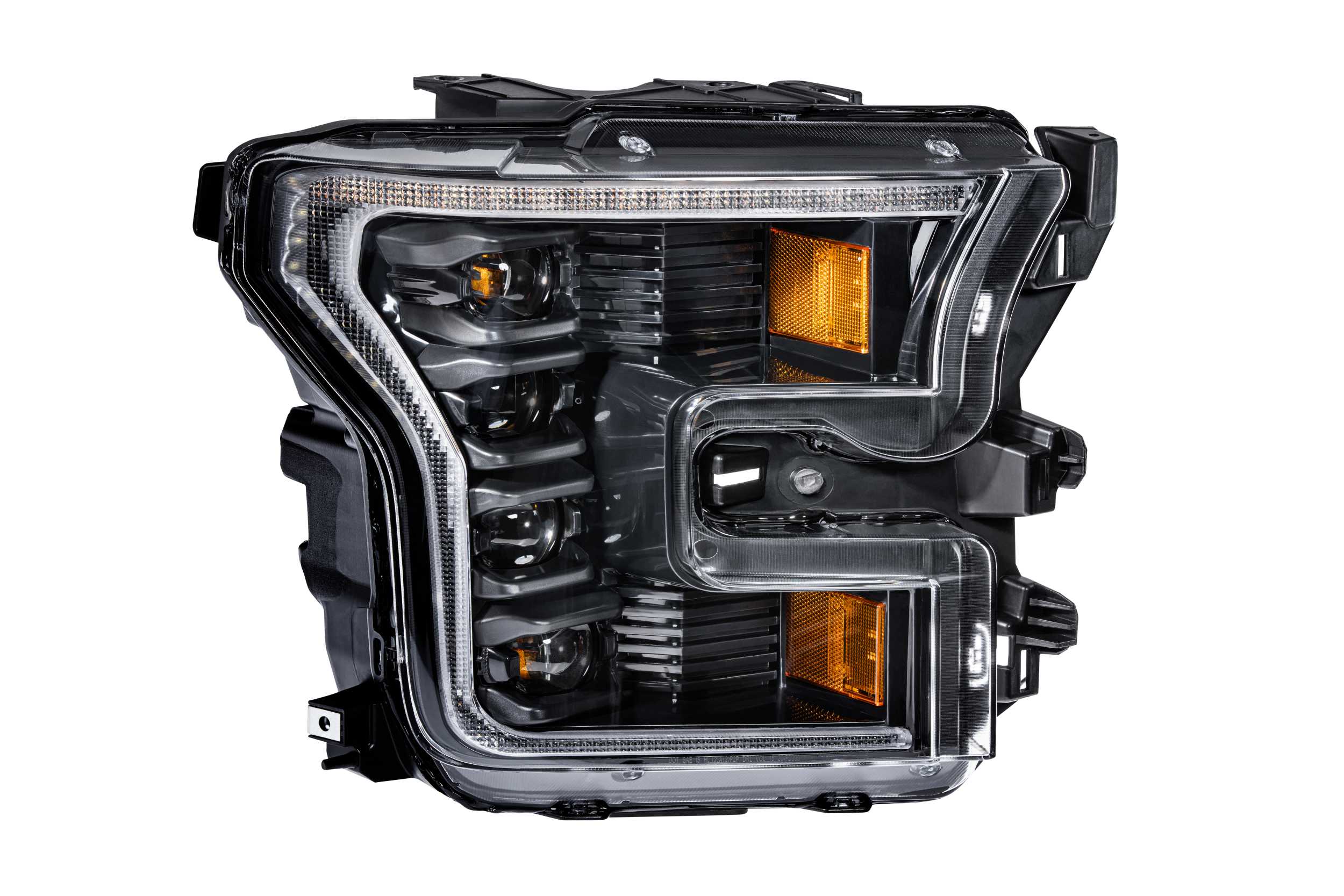

Single Morimoto XB LED F-150 headlight, front view with the DRL strip off and amber turn signal panels

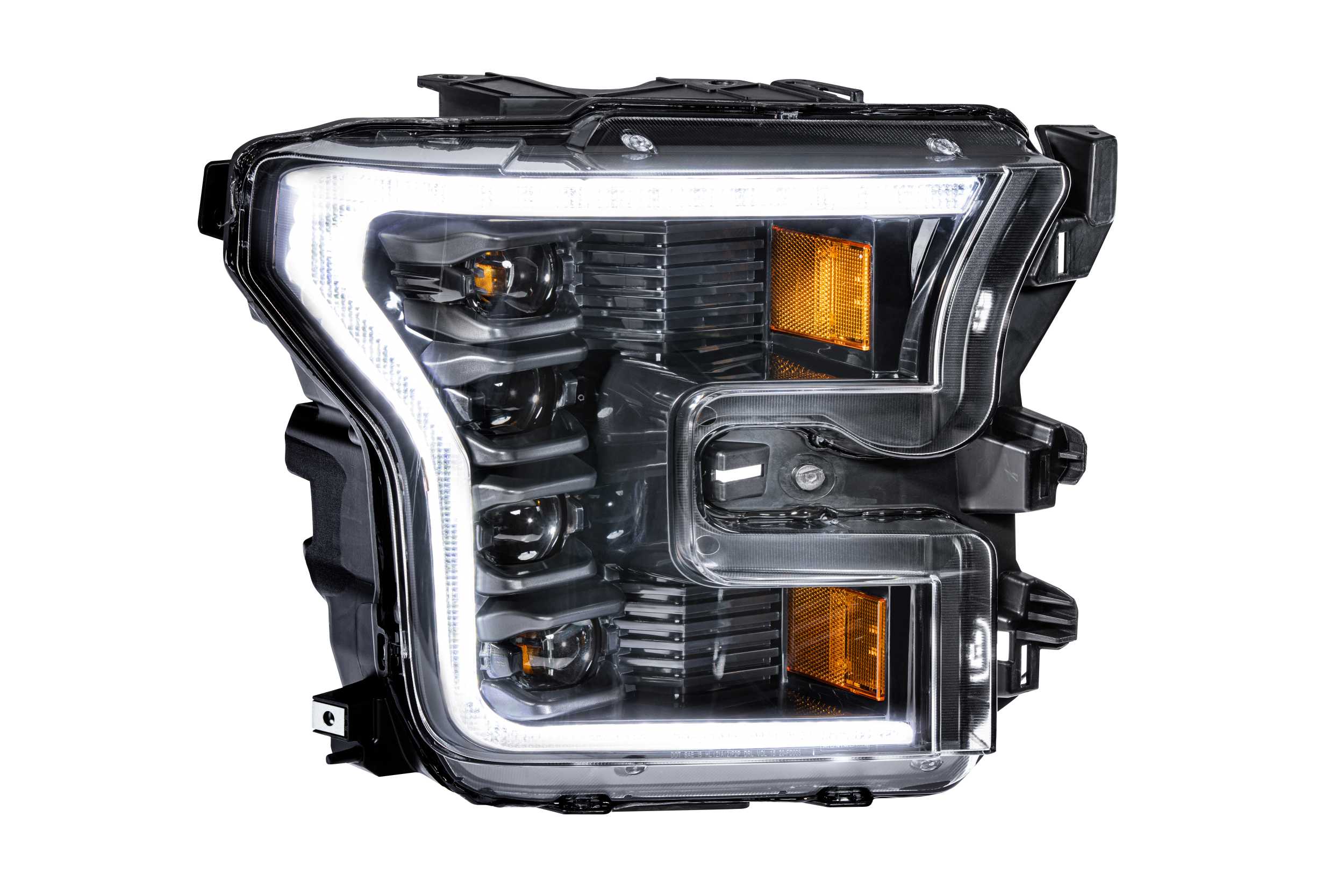

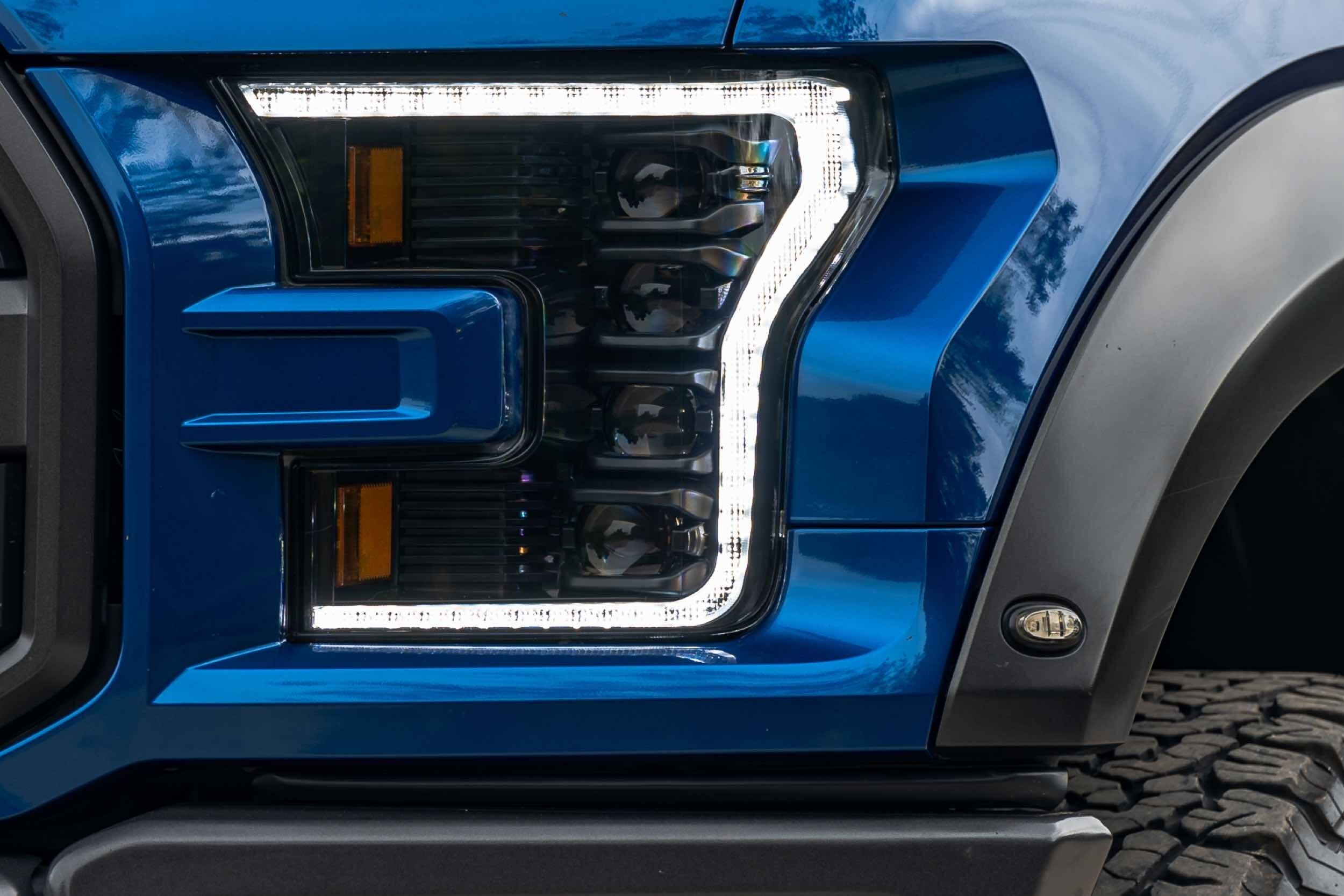

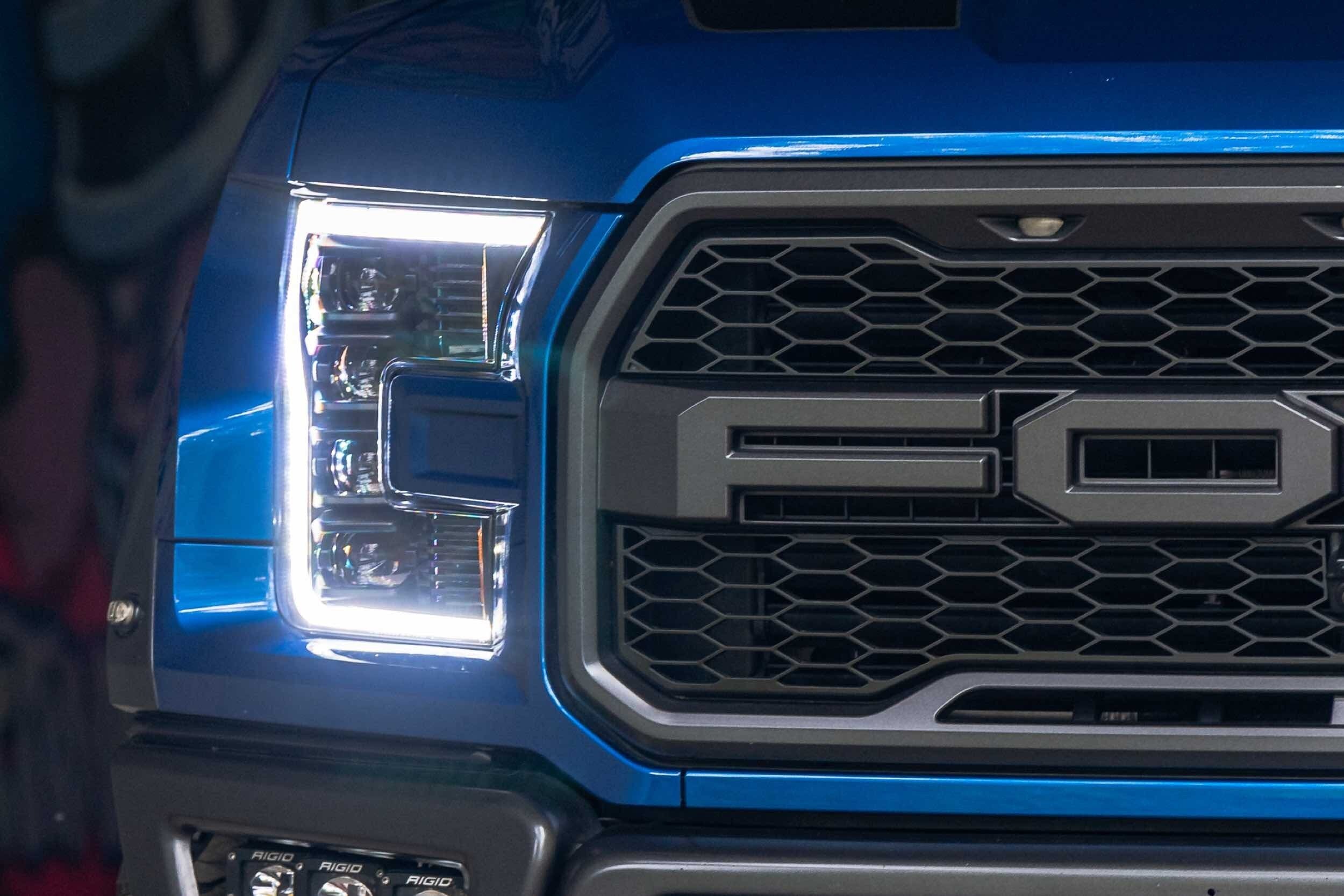

Morimoto XB LED F-150 headlight with the white DRL light tube lit around the projector housing

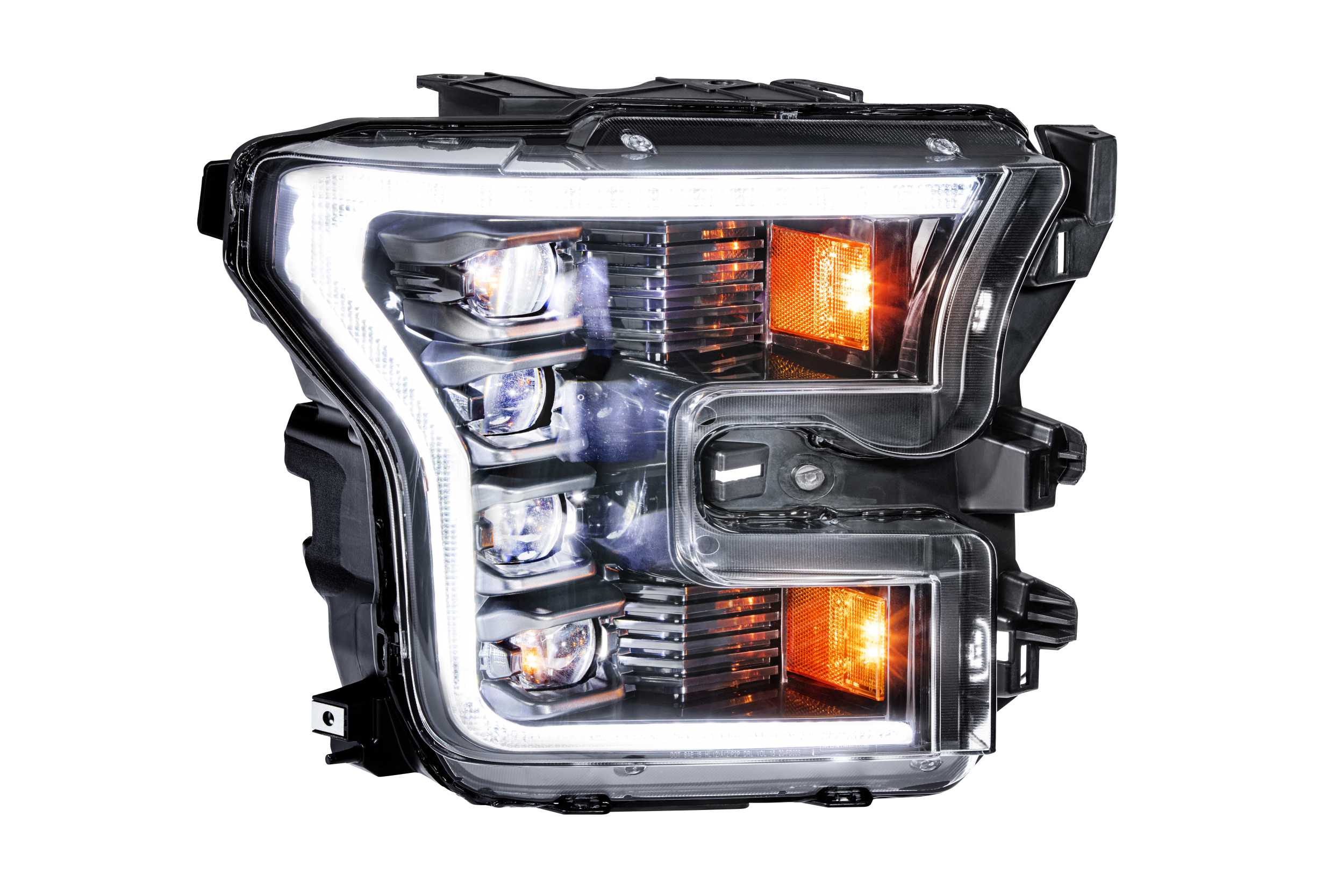

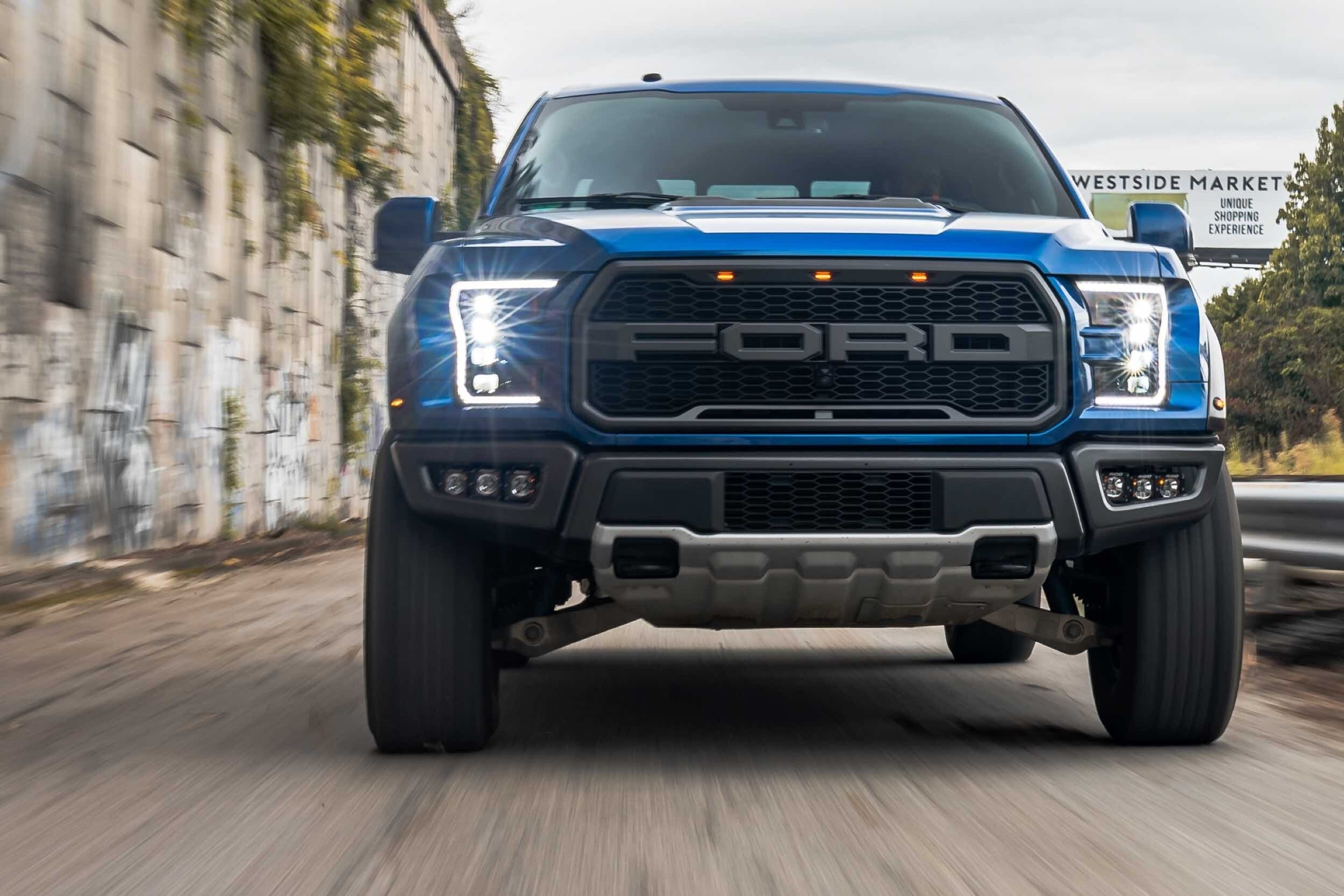

Morimoto XB LED F-150 headlight with the white DRL tube and LED projectors lit, amber signal glowing

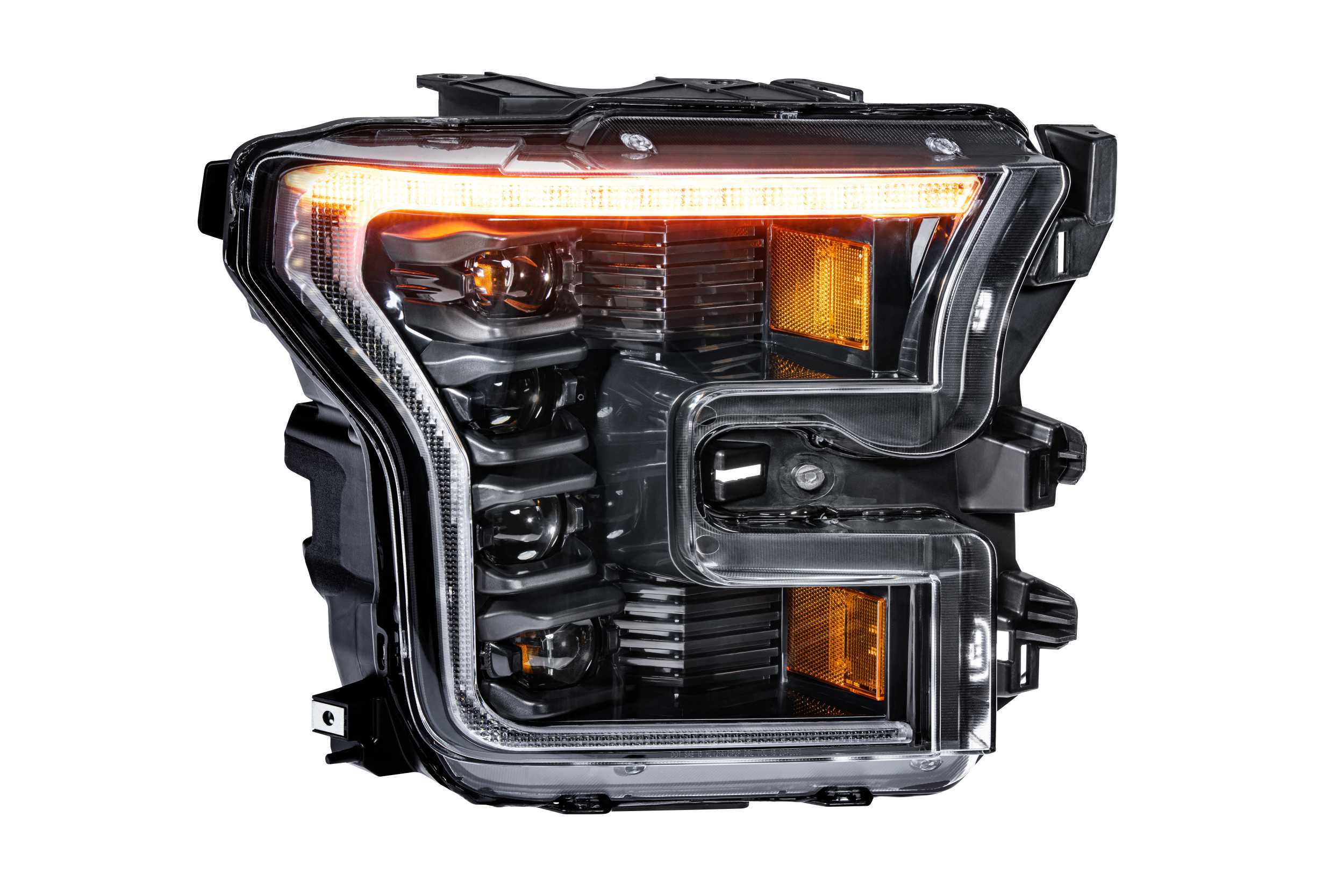

Morimoto XB LED F-150 headlight in turn-signal mode, amber DRL strip lit along the top edge

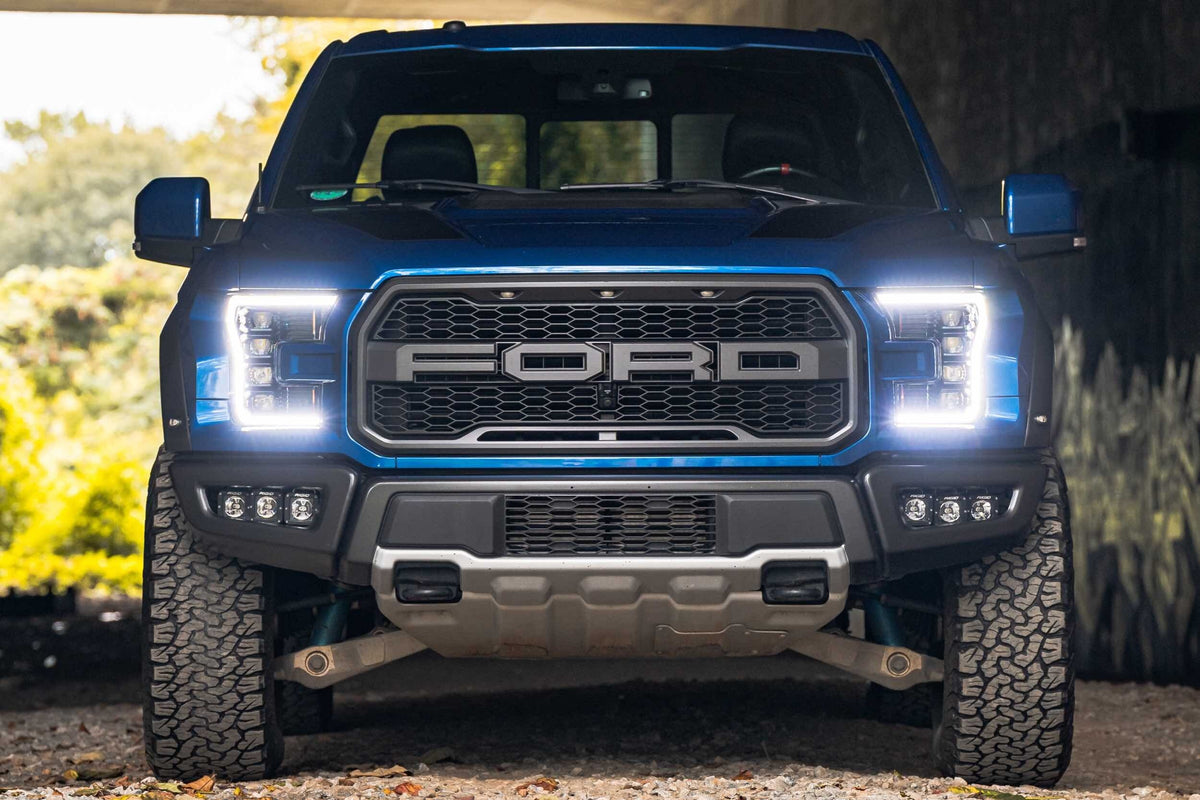

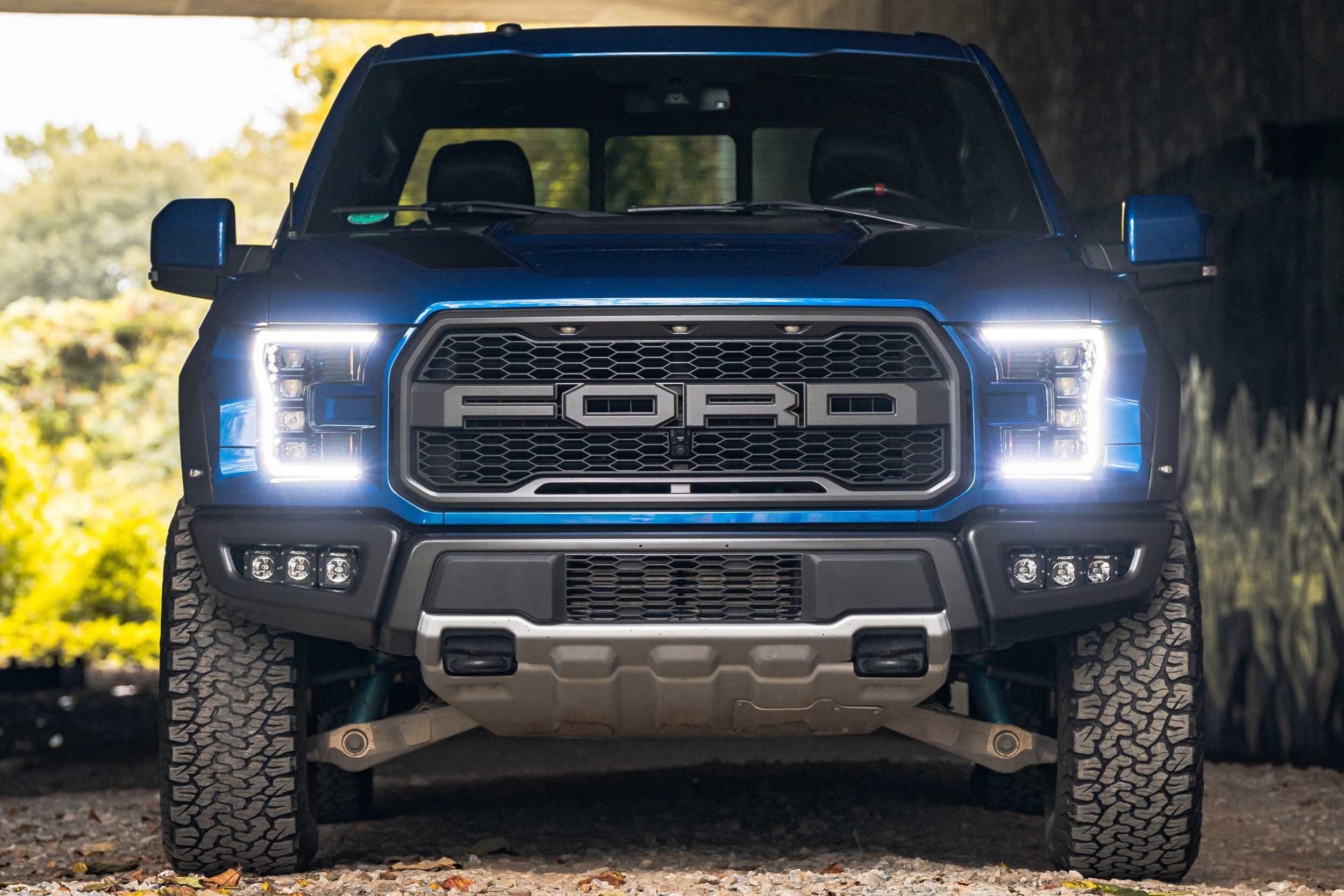

Morimoto Ford F-150 (15-17) XB LED Headlights, Sequential DRL - LF502.2-ASM

SKU: LF502.2-ASM

Morimoto Ford F-150 (15-17) XB LED Headlights, Sequential DRL - LF502.2-ASM

By Morimoto

$1,899.00

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Confirmed fit: 2015–2017 Ford F-150

Verified to fit the 2015–2017 Ford F-150.

Warranty Information

Vendor warranty summary

Morimoto Warranty

At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting

Shop Morimoto Official Morimoto policy All warranty policies

This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Headlight and tail light assemblies (e.g. XB)	5 years
Off-road lighting	Limited lifetime
2Stroke LED bulbs (per product page)	Limited lifetime

What's covered

Product failures and defects on headlights and tail lights for 5 years
Off-road lights for a limited lifetime
Products must be bought from an authorized Morimoto dealer

What's not covered

Modifications, alterations, or misuse
Products bought from unauthorized sellers
Damage or problems caused by improper installation (document issues before removing lights)

How to make a Morimoto warranty claim

If something isn't right, take photos or video of the problem before removing the lights
Contact Morimoto support by phone or email before doing anything else
Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)

Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.

Shop Morimoto at NVMOS

Morimoto Ford Super Duty (17-22) XB Evo+ LED Fog Lights

Morimoto Ford F-150 (18-20) XB Evo+ LED Fog Lights

Morimoto Ford F-150 (15-17) XB Evo+ LED Fog Lights

See all Morimoto products, lead times and FAQs →

Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Morimoto

Morimoto is an Atlanta lighting company that designs, engineers and tests its lights in-house. NVMOS carries Morimoto XB LED headlights and tail lights, fog lights, ditch light kits, Banger pods and more for Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. For owners tired of dim factory halogens.

Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Morimoto warranty: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting. Read the full summary

Shop all 621 Morimoto Warranty All brands

Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

Morimoto XB LED Headlights — Ford F-150 (2015–2017)

A full headlight system upgrade for the 2015–2017 F-150, not a bulb swap. Quad-projector optics with a dual bi-LED setup handle both high and low beam and put out 200% more light than stock, with a beam pattern that outperforms the premium OEM LED option. Sequential LED daytime running lights and a start-up sequence give the front end a distinct signature. Install is plug-and-play with no modifications or wiring work, and integrated adjusters let you aim them properly afterward.

Why it works

200% more lightQuad-projector optics with a dual bi-LED configuration for high and low beam deliver a 200% increase in output over stock for night driving.

Better than the OEM LED optionThe beam pattern demonstrates superior performance compared to the premium OEM LED headlight alternative, while meeting SAE, DOT and FMVSS108 requirements.

Sequential DRL and start-up sequenceCustomizable sequential LED daytime running lights plus a striking animated start-up sequence.

No-modification installPlug-and-play design eliminates modifications and complex wiring, and preserves warranty protection. Integrated adjusters allow precise aiming.

✓ DOT / SAE compliant — street legal

Specifications

Spec	Detail
Optics	Quad-projector with dual bi-LED configuration for high and low beam
Output	200% increase in light output over stock
Daytime running light	Customizable sequential LED DRL
Compliance	Satisfies SAE, DOT and FMVSS108 requirements
Lens	UV-coated polycarbonate
Housing	Lightweight, robust PPS plastic
Wiring	Plug-and-play, no modifications or complex wiring
Aiming	Integrated adjusters
Fitment	Ford F-150, 2015–2017

Frequently asked questions

Will these fit my 2015–2017 F-150?

Yes. These are the LF502 assemblies built for 2015–2017 Ford F-150 trucks.

Are they street legal?

Yes. The quad-projector optics satisfy SAE, DOT and FMVSS108 regulatory requirements.

Is the install complicated?

No. The plug-and-play design eliminates modifications and complex wiring, and it preserves warranty protection. Integrated adjusters let you aim the beam once installed.

How do they compare to the factory LED headlights?

The beam pattern demonstrates superior performance compared to the premium OEM LED alternative, with a 200% increase in light output.

Videos

Technical specifications

Traffic Pattern	LHD Only
Input	Ford Multi-Pin OEM
Functions	DRL (White), Turn, Parking, Low, High
Material	ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic	Kuria Quad Optics
UV Coating	Momentive UVHC3000

Compatibility

Ford F-150	2015-2017
Ford F-150 Raptor	2016-2019
Replaces Ford Part #	FL3Z-13008B, FL3Z-13008A, HL3Z-13008-A, HL3Z-13008-A, FL3Z13008B, FL3Z13008A, GL3Z13008B, GL3Z13008A, FO2502344, FO2503344, FO2502335, FO2503335, FL3Z3008M, FL3Z13008K, FL3Z13008K, FL3413006BV, FL3413006BV, FL3Z13008M, HL3V13006VC, FL3Z13008L
NOTE	These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.

In the box

Headlights	2x (One Pair) 15-17 Ford F150 White DRL XB LED
Wiring	Plug and Play Harness, Fuse Tap

Installation

Bolt-on with hand tools. Grab the manufacturer’s step-by-step instructions, or watch the install first. Stuck partway? Call real humans at (920) 249-7744.
