Morimoto Dodge Ram 1500 Classic XBG LED DRL Grille (Chrome) (19-24)
Morimoto XBG LED DRL Grille (Chrome) — Ram 1500 Classic (2019–2024)

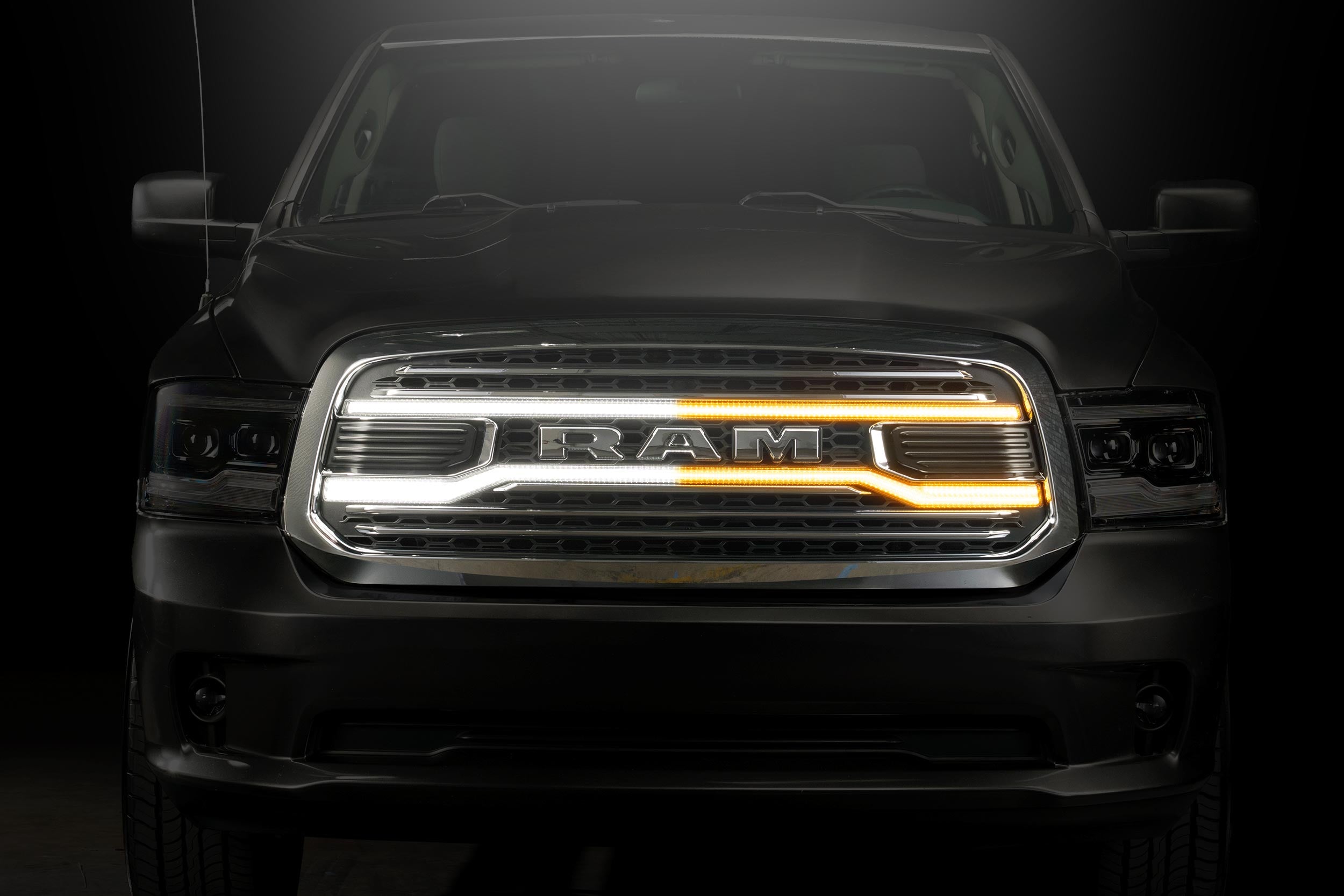

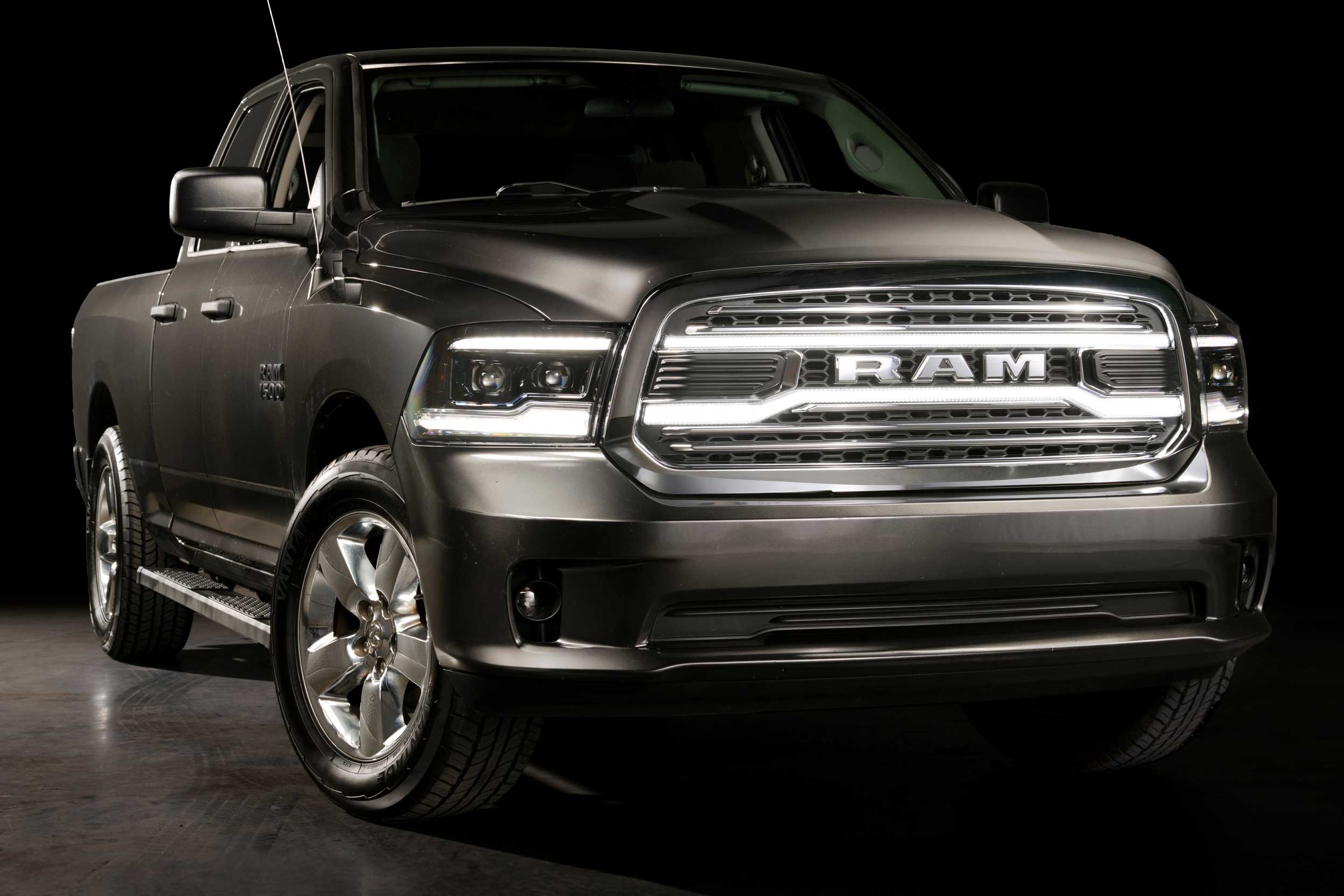

Bright daytime running lights with a refined OEM+ look for the 2019–2024 Ram 1500 Classic. Premium Osram LEDs and automotive-grade optics keep the DRL bars visible in daylight, and the lights dim automatically in parking, low, or high beam modes to minimise glare at night.
Installation runs about an hour on all the existing stock mounting points with no modifications, and the DRL bars connect straight to the truck wiring. Note that Rebel and Warlock trims are not compatible.
| Spec | Detail |
|---|---|
| Light source | Premium Osram LEDs with automotive-grade optics |

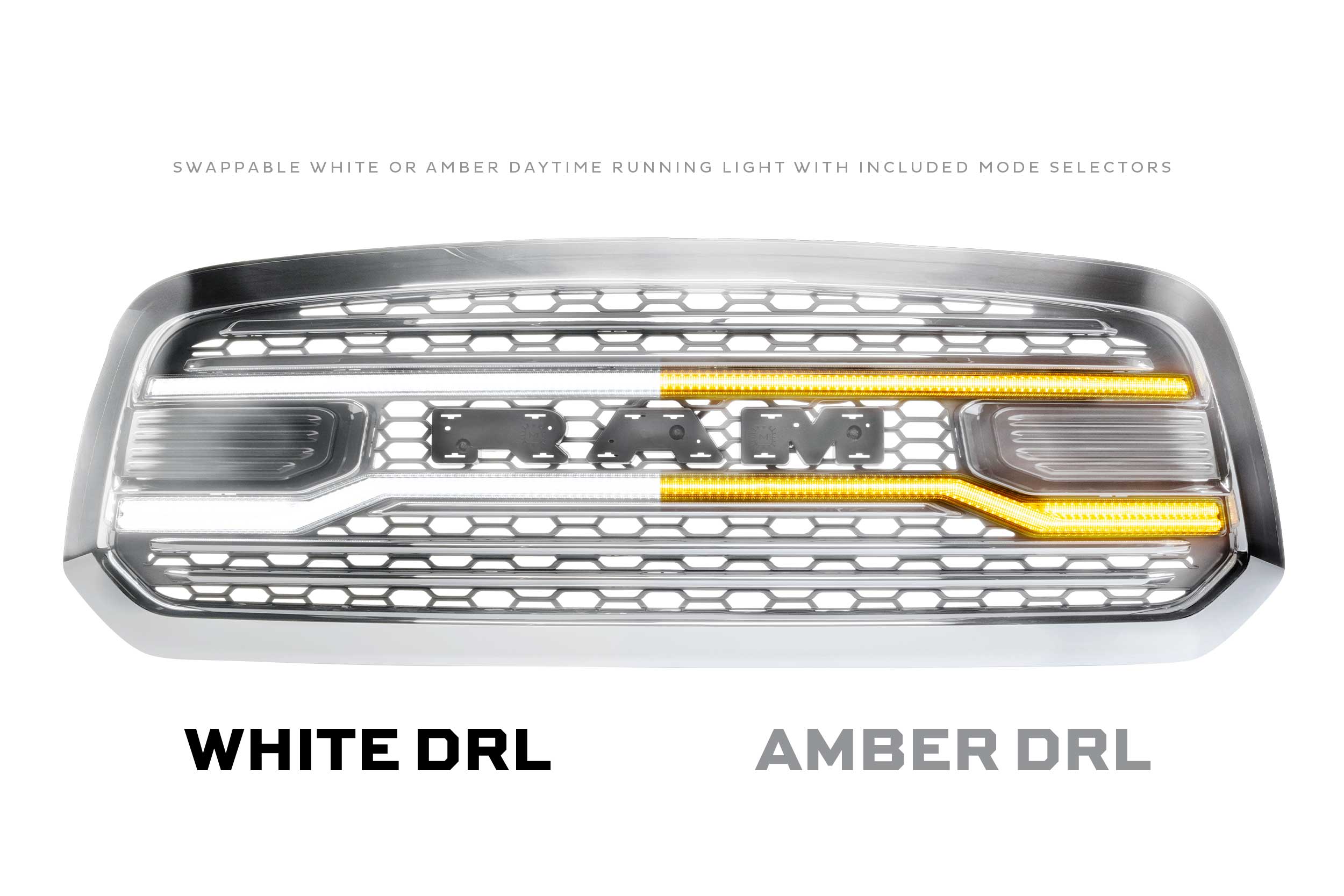

| DRL colour | White or amber |

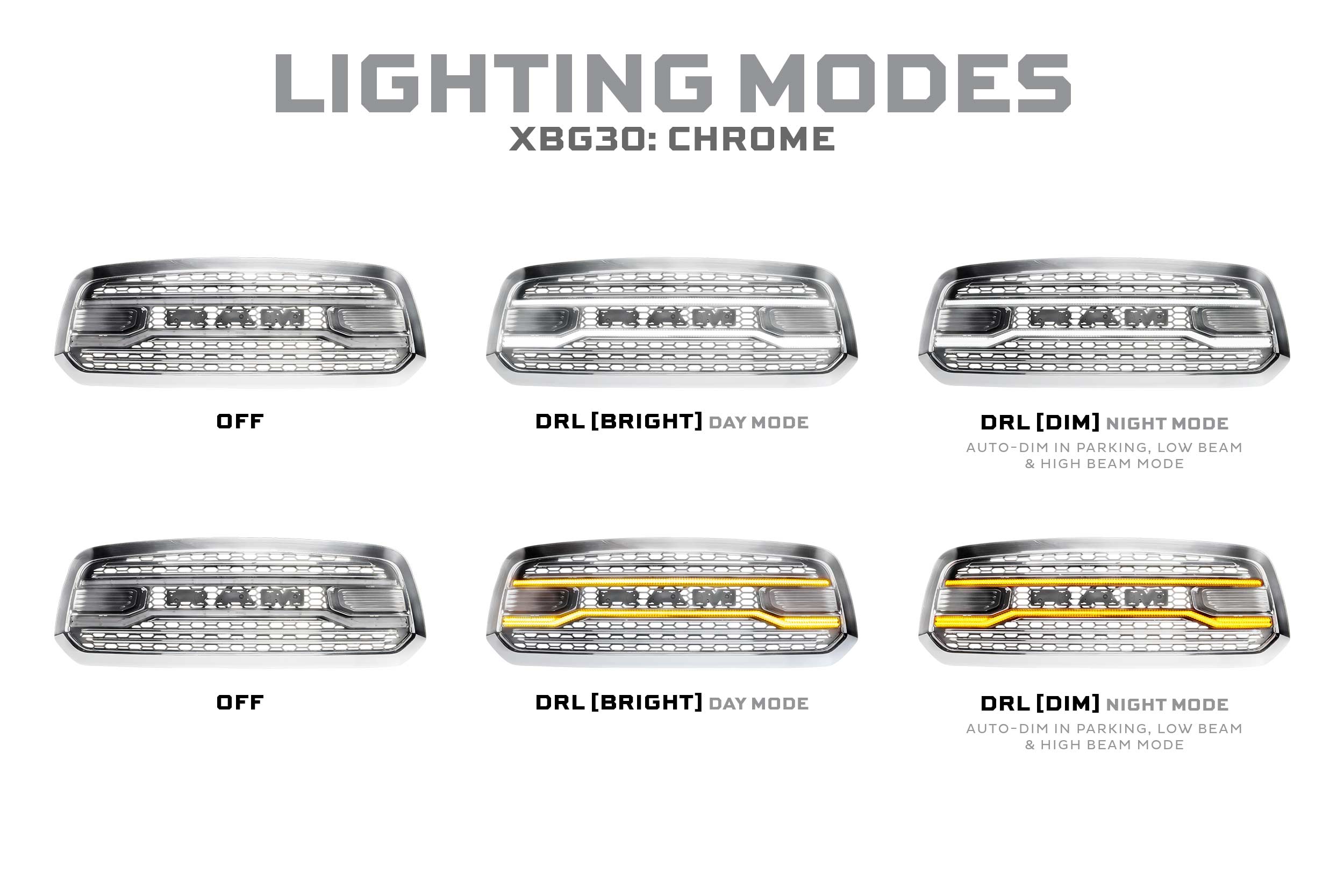

| Dimming | Automatic in parking, low, and high beam modes |
| Finish | Chrome (a gloss black version is also available) |

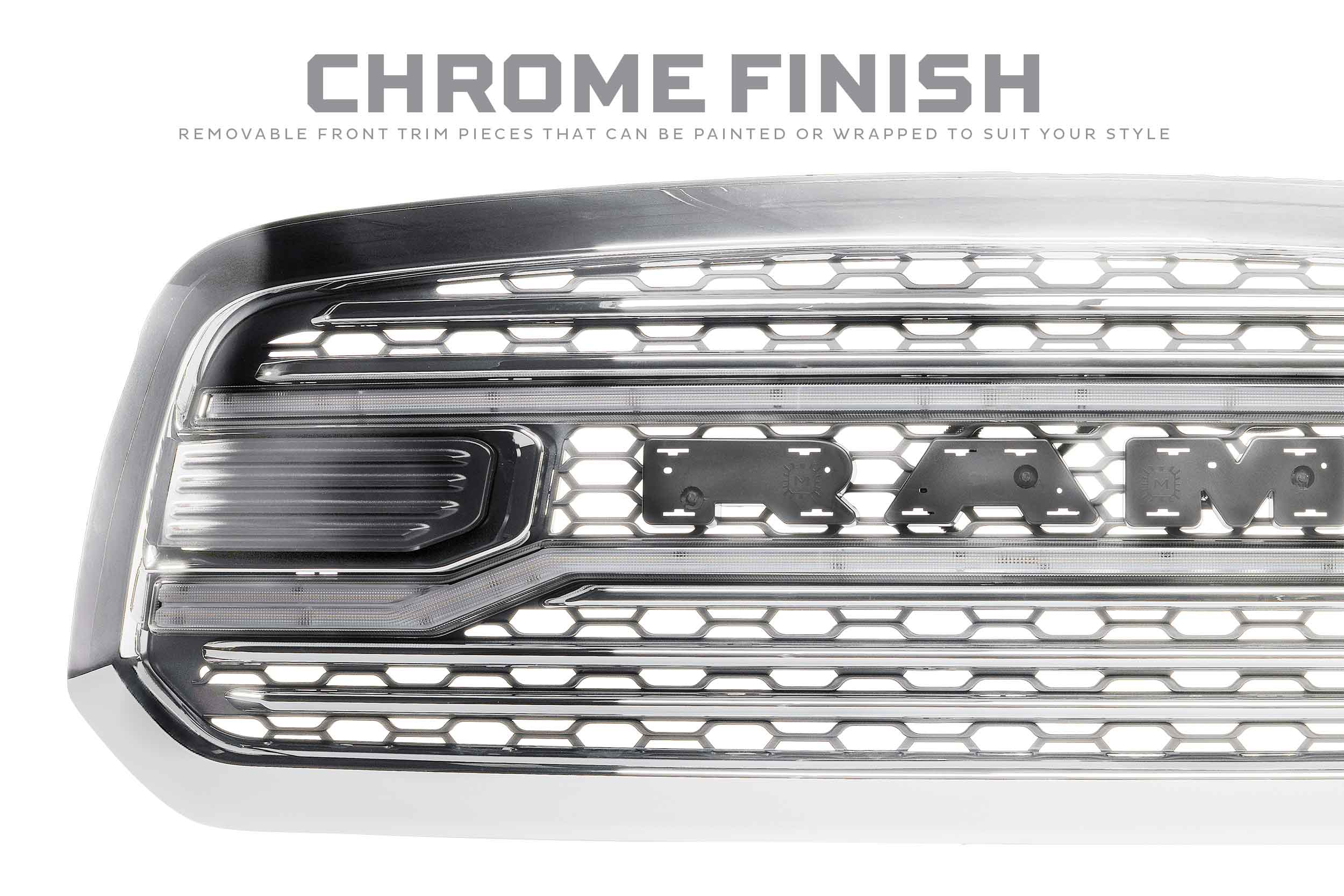

| Trim | Front trim pieces removable, paintable or wrappable, then reinstalled |

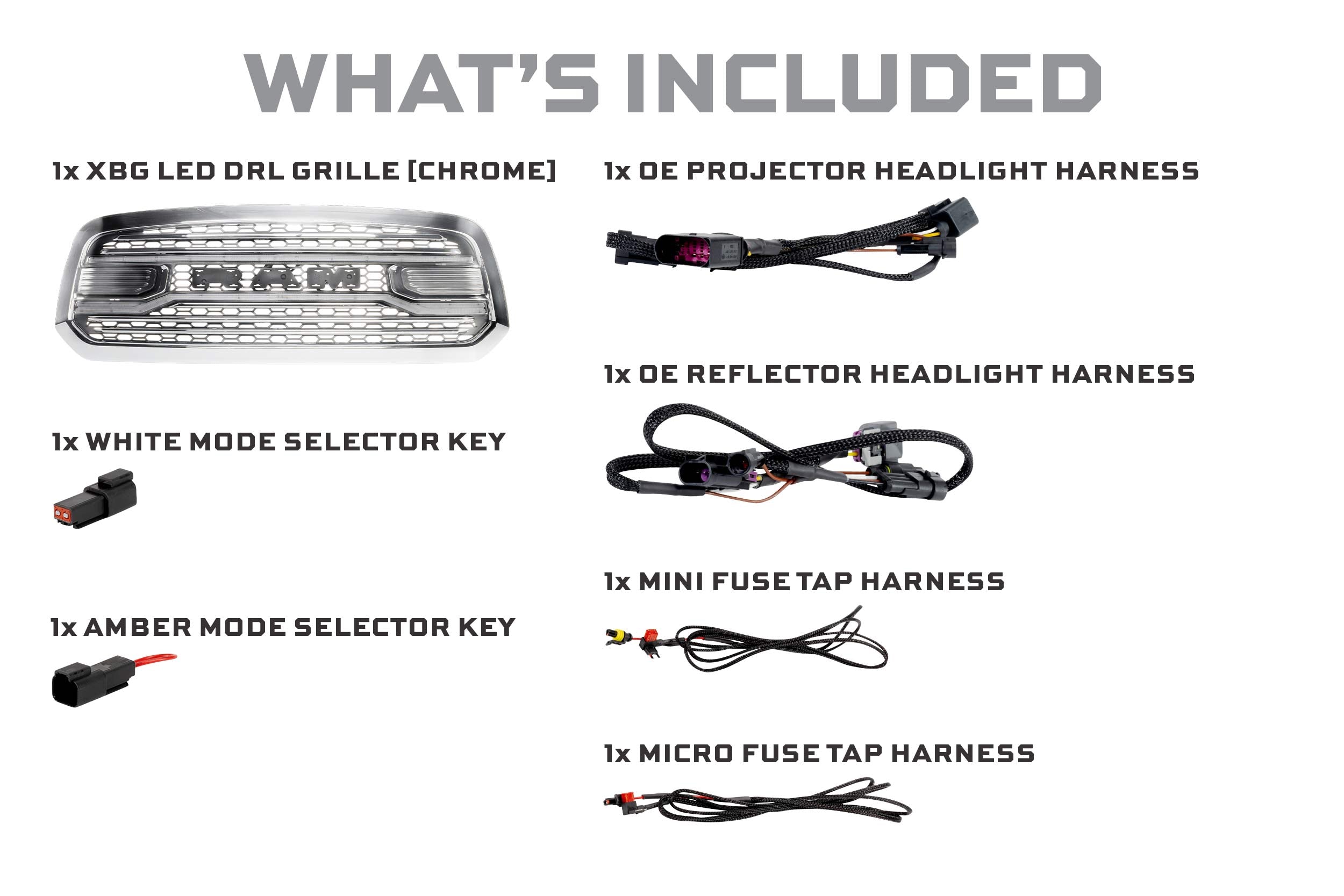

| Wiring | DRL bars connect directly to truck wiring; no electrical modifications |
| Install time | Approximately one hour using all existing stock mounting points |
| Headlight compatibility | Works with Morimoto XB headlights and coordinates with OEM or other aftermarket lighting |
| Not compatible | Rebel and Warlock trims; active grille shutters cannot transfer to the new grille |
| Fitment | Dodge Ram 1500 Classic, 2019–2024 — sold as a complete grille |
Will this fit my Ram 1500 Classic?
It fits the 2019-2024 Dodge Ram 1500 Classic. Rebel and Warlock trims are not compatible.
What about active grille shutters?
Active grille shutters cannot transfer to the new grille, though overall compatibility remains intact.
How long does installation take?
Approximately one hour using all existing stock mounting points, with no modifications required.
Can I customise the finish?
Yes. The front trim pieces can be removed, painted, or wrapped, then reinstalled. Both chrome and gloss black versions are available.
