Morimoto Bigbanger LED Pods: NCS Combo Beam
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Morimoto Warranty
At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting
This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Headlight and tail light assemblies (e.g. XB) | 5 years |
| Off-road lighting | Limited lifetime |
| 2Stroke LED bulbs (per product page) | Limited lifetime |
What's covered
- Product failures and defects on headlights and tail lights for 5 years
- Off-road lights for a limited lifetime
- Products must be bought from an authorized Morimoto dealer
What's not covered
- Modifications, alterations, or misuse
- Products bought from unauthorized sellers
- Damage or problems caused by improper installation (document issues before removing lights)
How to make a Morimoto warranty claim
- If something isn't right, take photos or video of the problem before removing the lights
- Contact Morimoto support by phone or email before doing anything else
- Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)
Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.
Shop Morimoto at NVMOS
Morimoto Ford Super Duty (17-22) XB Evo+ LED Fog Lights
Morimoto Ford F-150 (18-20) XB Evo+ LED Fog Lights
Morimoto Ford F-150 (15-17) XB Evo+ LED Fog Lights
See all Morimoto products, lead times and FAQs →
Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Morimoto headlights are why most people land here: plug-and-play XB LED headlight assemblies that replace dim factory halogens on Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. Morimoto designs, engineers and tests its lights in-house in Atlanta, and NVMOS also carries its LED headlights, tail lights, fog lights, ditch light kits and Banger pods.
Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 621 MorimotoWarrantyAll brands
Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

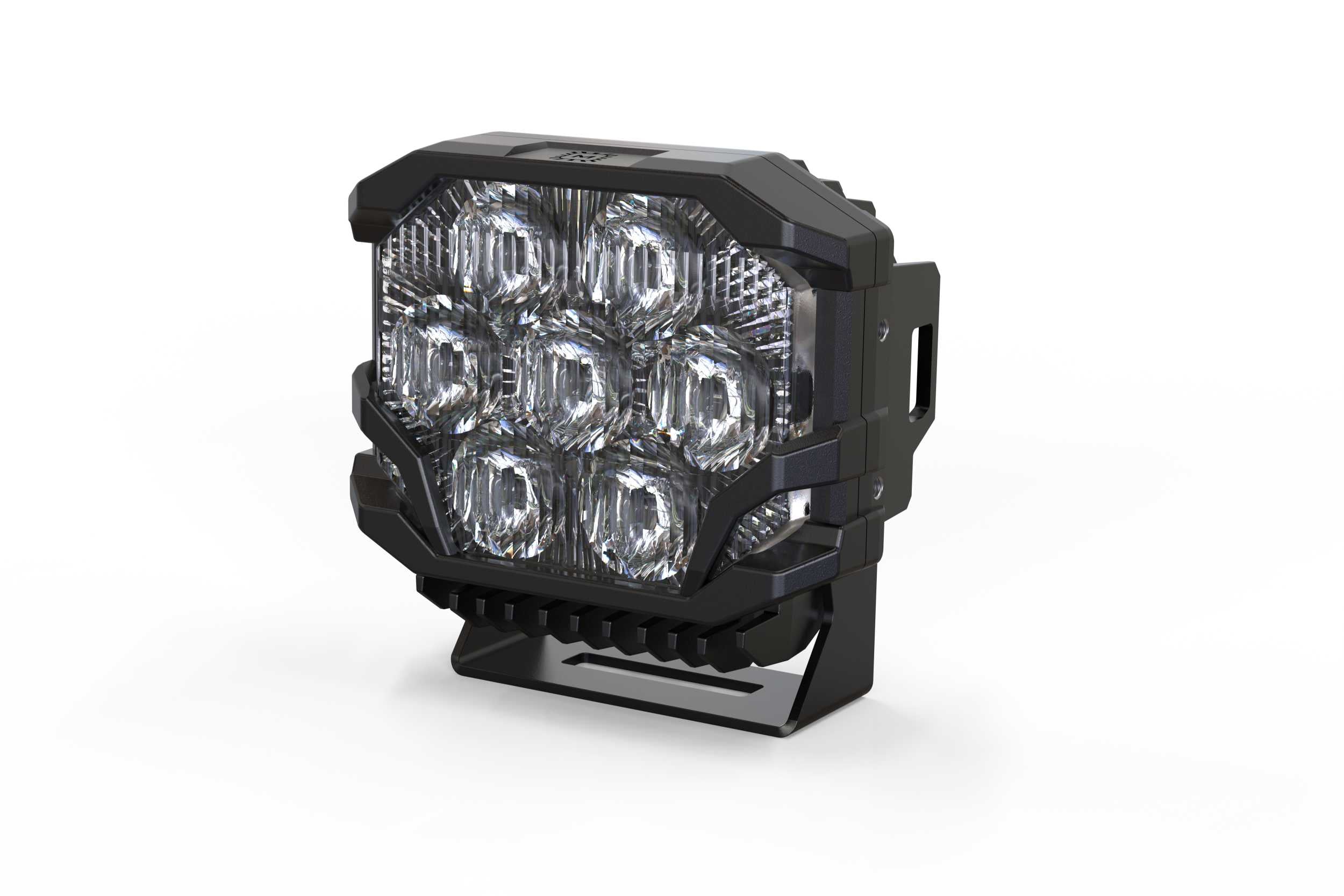

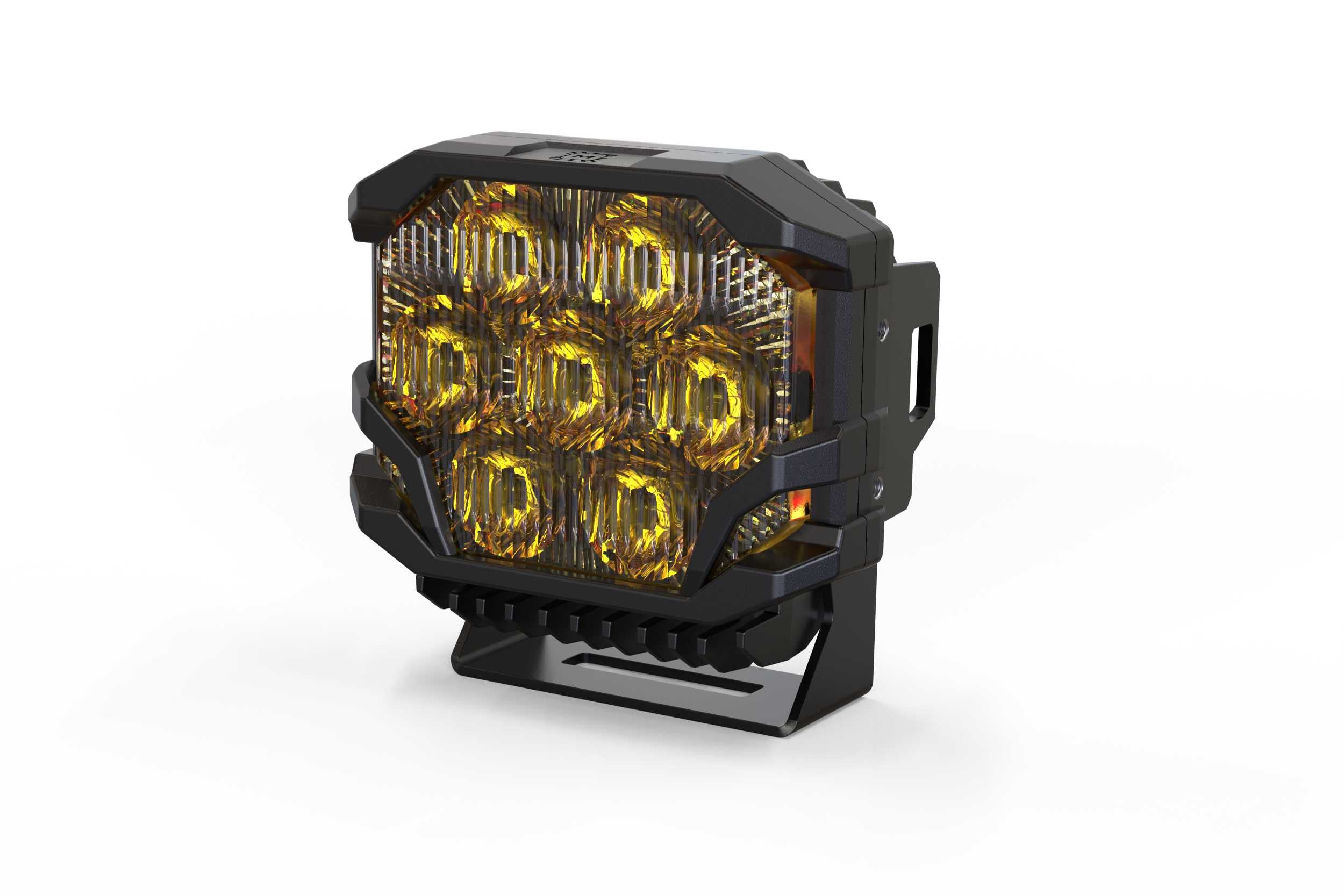

Morimoto Bigbanger LED Pods — NCS Combo Beam
The NCS Combo is the do-everything pattern in the Bigbanger range. It puts a hot spot down the trail, adds wide coverage either side of it, and layers in a vertical flood so the ground close to the truck is lit as well.
Seven Nichia LEDs make 3,150 raw lumens per pod, and the amber backlight ring dims at night so it does not dazzle oncoming traffic. All figures below are per pod.
| Spec | Detail |
|---|---|
| Light source | 7x Nichia NCSY131F or Nichia NCSW131F, plus 12x CREE XP-E2 PC Amber (backlight) |
| Peak luminosity (raw) | 3,150 lm |
| Intensity (white) | 115,000 Cd (1,150 lux @ 10m) |
| Intensity (yellow) | 82,500 Cd (825 lux @ 10m) |
| Beam pattern | NCS Combo — hotspot, wide coverage and vertical flood |
| Input voltage | 9-18V DC |
| Current | 2.74A @ 13.5V DC stabilized, 3.33A @ 13.5V DC at startup |
| Input | Integrated Deutsch DT 4-pin |
| Dimensions | 154mm W, 136.7mm H (153.5mm with bracket), 76.1mm D |
| Materials | Makrolon LED PC lens, powdercoated die-cast aluminum housing |
| Fitment | Universal — universal mounting bracket included; optional BangerBar links. All specifications listed are per pod. |
What does the combo pattern give me?
Three things at once: a hotspot for distance, wide coverage to either side, and a vertical flood for the ground near the vehicle. It is the pattern to choose if you are only running one pair.
Can I link several pods together?
Yes. Optional BangerBar links join Bigbangers into a custom light bar, and each pod also mounts on its own with the included universal bracket.
Will the amber ring bother other drivers?
No. The amber back light is sized for daytime visibility and dims automatically at night so it does not glare at oncoming traffic.
How much power does one pod need?
2.74A at 13.5V DC stabilized, with a 3.33A draw at startup, on a 9-18V DC input through an integrated Deutsch DT 4-pin connector.
Videos
Technical specifications
| Intensity | 132,100 Cd (Post Warm-Up) (1,321 lux @ 10m) |
|---|---|
| Input Voltage | 9-18V DC |
| Input | Integrated Deutsch DT 4-Pin |
| Power (Stabilized) | 36.5w, 30w (Backlight), 8w (Dim Backlight) |
| Current (@ 13.5V DC) | 2.74A (Stabilized), 3.33A (Startup), 2.2A (Backlight), 600mA (Dim Backlight) |
| Peak Luminosity (lm)(raw) | 3,150lm |
| Dimensions | 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D |
| Light Source | 7x Nichia NCSW131F, 12x CREE XP-E2 PC Amber (Backlight) |
| Material | Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing) |
| IP RATING | IP69K (Dust / High Pressure Water Resistant) |
Compatibility
| Universal | With Included U Brackets |
|---|
In the box
| LED Pod | 1x Morimoto BigBanger NCS Combo (White) (Sold Each) |
|---|---|
| Bracket | 1x Universal Bottom Mount U Bracket |
| Hardware | Complete pack (stainless steel) |
