SKU: BAF007.2

Morimoto 4Banger LED Pods: HXB Spot Beam

$569.00

Color
180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing availableAffirmPayPal CreditFor qualified buyers at checkout Secure checkoutEncrypted payment
Warranty Information

Vendor warranty summary

Morimoto Warranty

At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting

This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component Coverage
Headlight and tail light assemblies (e.g. XB) 5 years
Off-road lighting Limited lifetime
2Stroke LED bulbs (per product page) Limited lifetime

What's covered

  • Product failures and defects on headlights and tail lights for 5 years
  • Off-road lights for a limited lifetime
  • Products must be bought from an authorized Morimoto dealer

What's not covered

  • Modifications, alterations, or misuse
  • Products bought from unauthorized sellers
  • Damage or problems caused by improper installation (document issues before removing lights)

How to make a Morimoto warranty claim

  • If something isn't right, take photos or video of the problem before removing the lights
  • Contact Morimoto support by phone or email before doing anything else
  • Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)

Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.

Shop Morimoto at NVMOS

See all Morimoto products, lead times and FAQs →

Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 28, 2026. See our return policy for NVMOS's own terms.

About the brand

Morimoto

Morimoto headlights are why most people land here: plug-and-play XB LED headlight assemblies that replace dim factory halogens on Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. Morimoto designs, engineers and tests its lights in-house in Atlanta, and NVMOS also carries its LED headlights, tail lights, fog lights, ditch light kits and Banger pods.

Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Morimoto warranty: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting. Read the full summary

Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

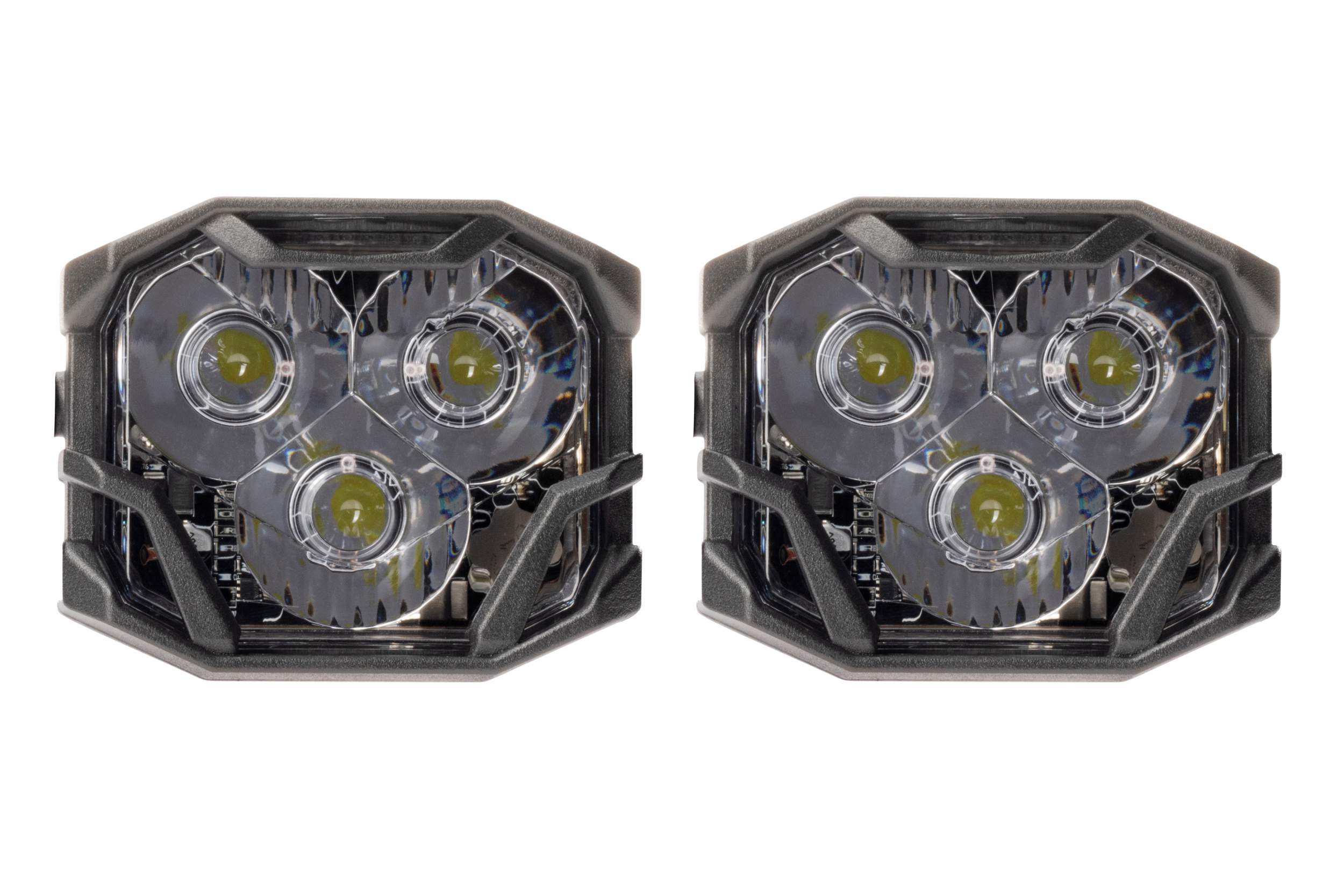

Morimoto 4Banger LED Pods — HXB Spot Beam

The HXB Spot is the far end of the 4Banger range. Three Osram HX Boost emitters push 170,000 candela of white light through spot optics that reach up to 800 meters.

It runs 42w per pod for that output, in the same 30% smaller housing that fits Morimoto's mounting kits. Morimoto states it is compliant with SAE standards for auxiliary high beams and fog lights.

Why it works
800 meters of reachOsram HX Boost emitters light up to 800 meters: 170,000 cd in white, 119,000 cd in yellow, post warm-up.
Compact and cleanA 30% smaller design fits neatly with Morimoto's mounting kits rather than hanging off the front of the vehicle.
SAE compliantCompliant with SAE standards for auxiliary high beams and fog lights, so the beam is a known quantity rather than a guess.
IP69K ratedIP69K-rated for full weather resistance, with a Makrolon LED PC lens and a powdercoated die-cast aluminum housing.
Specifications
Spec Detail
Light source 3x Osram HX Boost (5700K)
Beam pattern Spot — up to 800m
Intensity (white) 170,000 cd post warm-up (1,700 lux @ 10m)

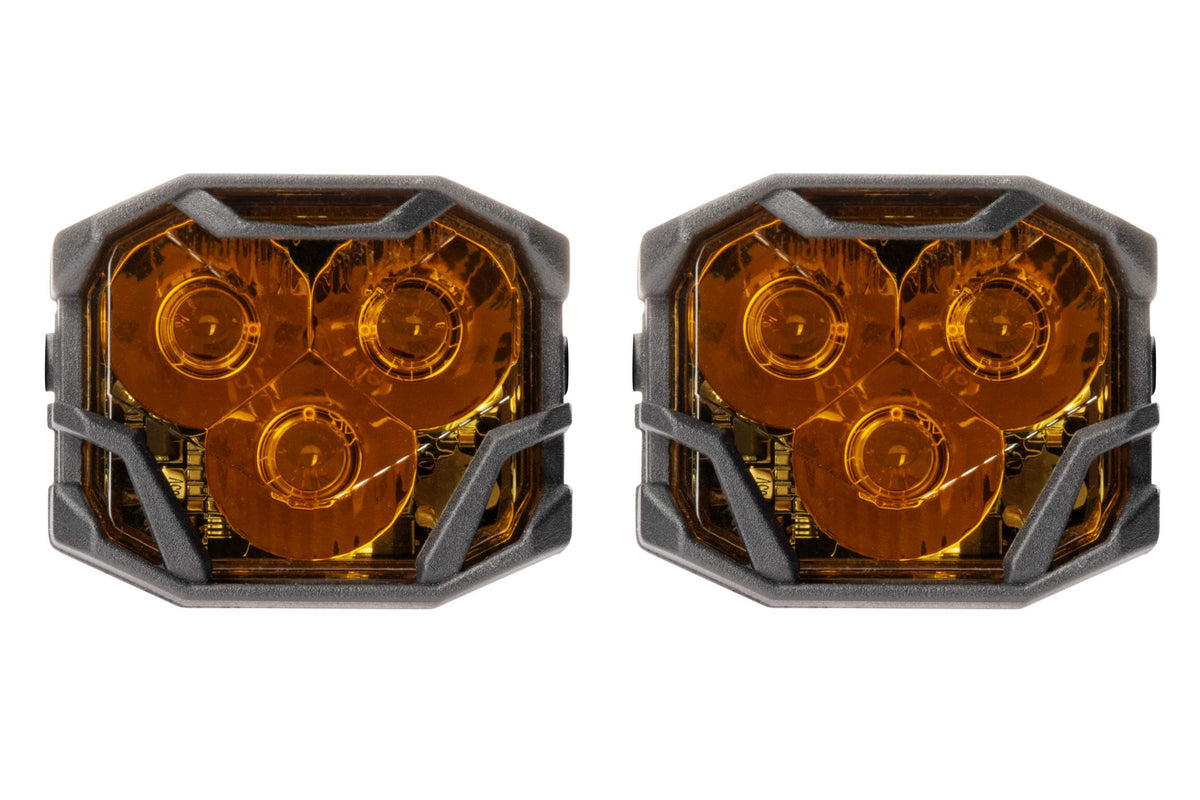

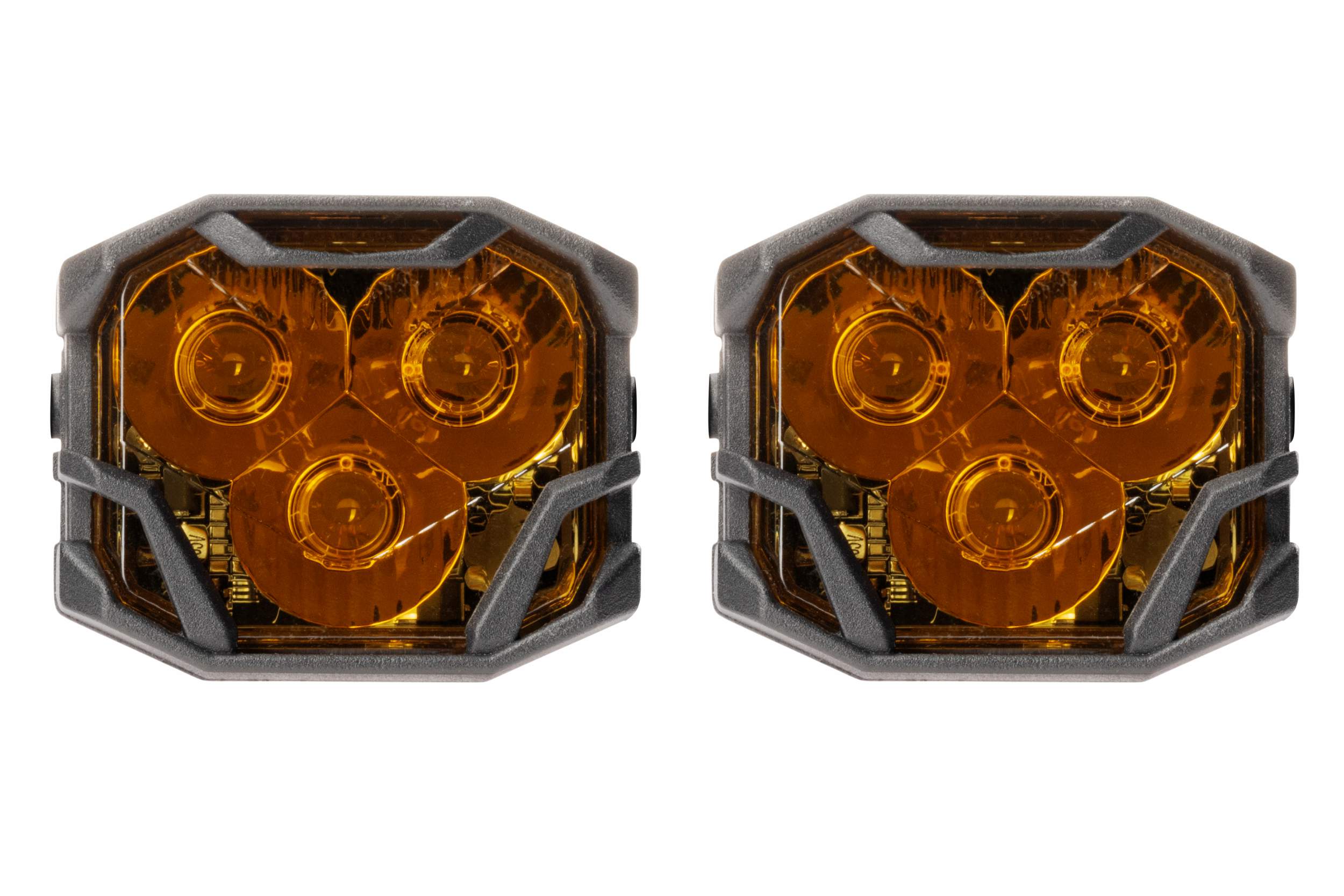

Intensity (yellow) 119,000 cd post warm-up (1,190 lux @ 10m)
Peak luminosity (raw) 3,000 lm
Power (stabilized) 42w
Current 3.2A @ 13.5V DC
Input Proprietary overmolded Deutsch DT 2-pin
Dimensions 82mm W, 67mm H, 60mm D
Hardware M6 x 1.0 x 8mm (4Banger to U-bracket), M10 x 1.5 x 20mm (U-bracket base)
Materials Makrolon LED PC lens, powdercoated die-cast aluminum housing
Compliance Compliant with SAE standards for auxiliary high beams and fog lights
Weather rating IP69K
Fitment Universal. All specifications listed are per pod / each.
Frequently asked questions
How far do these actually throw?

Morimoto rates the Osram HX Boost emitters in the HXB Spot as lighting up to 800 meters, at 170,000 cd in white.

Are these figures for one pod or a pair?

Every figure in the spec table is per pod / each. The 42w draw and 3.2A current are single-pod numbers, which matters when you size the harness.

Are they street legal?

They are compliant with SAE standards for auxiliary high beams and fog lights. Local rules on how auxiliary lighting may be wired and used still apply.

What is the difference between HXB and NCS?

HXB uses Osram HX Boost emitters at 42w and 3,000 lm raw per pod. NCS uses Nichia emitters at 15.6w and 1,350 lm raw. HXB is the higher-output, higher-draw option in the same housing.

Videos

Technical specifications

NoteThese specifications are per pod / each.
Intensity170,000 Cd (Post Warm-Up) (1,700lux @ 10m)
InputIntegrated Deutsch DT 2-Pin
Power (stabilized)42w
Current3.2A @ 13.5V DC
Peak Luminosity (raw)3,000lm
Dimensions82mm W, 67mm H, 60mm D
HardwareM6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
Light Source3x Osram HX Boost (5700K)
MaterialMakrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Compatibility

UniversalWith Included U Brackets

In the box

LED Pods2x (One Pair) Morimoto 4Banger HXB Spot (White)
BracketsNot Included, Must Purchase Separately (BAF046 or BAF047)
HardwareComplete pack (stainless steel)
