Morimoto 4Banger LED Ditch Light System - Ford Bronco 2021-2026
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Morimoto Warranty
At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting
This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Headlight and tail light assemblies (e.g. XB) | 5 years |
| Off-road lighting | Limited lifetime |
| 2Stroke LED bulbs (per product page) | Limited lifetime |
What's covered
- Product failures and defects on headlights and tail lights for 5 years
- Off-road lights for a limited lifetime
- Products must be bought from an authorized Morimoto dealer
What's not covered
- Modifications, alterations, or misuse
- Products bought from unauthorized sellers
- Damage or problems caused by improper installation (document issues before removing lights)
How to make a Morimoto warranty claim
- If something isn't right, take photos or video of the problem before removing the lights
- Contact Morimoto support by phone or email before doing anything else
- Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)
Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.
Shop Morimoto at NVMOS
Morimoto BigBanger LED Pods: HXB Spot Beam
Morimoto 4Banger LED Pods: HXB Combo Beam
Morimoto 2Banger LED Pods: NCS Combo Beam
See all Morimoto products, lead times and FAQs →
Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 28, 2026. See our return policy for NVMOS's own terms.
About the brand
Morimoto headlights are why most people land here: plug-and-play XB LED headlight assemblies that replace dim factory halogens on Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. Morimoto designs, engineers and tests its lights in-house in Atlanta, and NVMOS also carries its LED headlights, tail lights, fog lights, ditch light kits and Banger pods.
Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 877 MorimotoWarrantyAll brands
Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

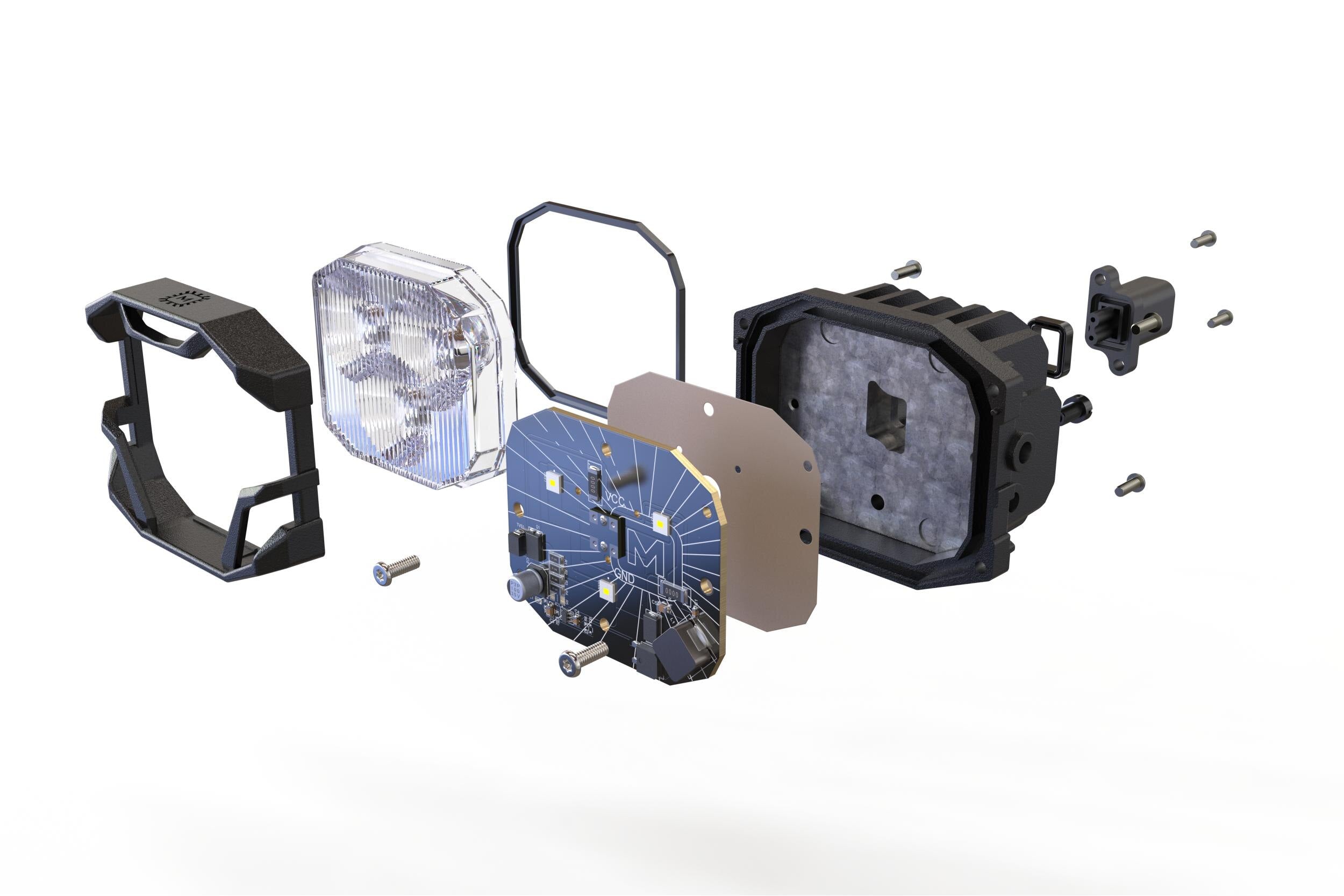

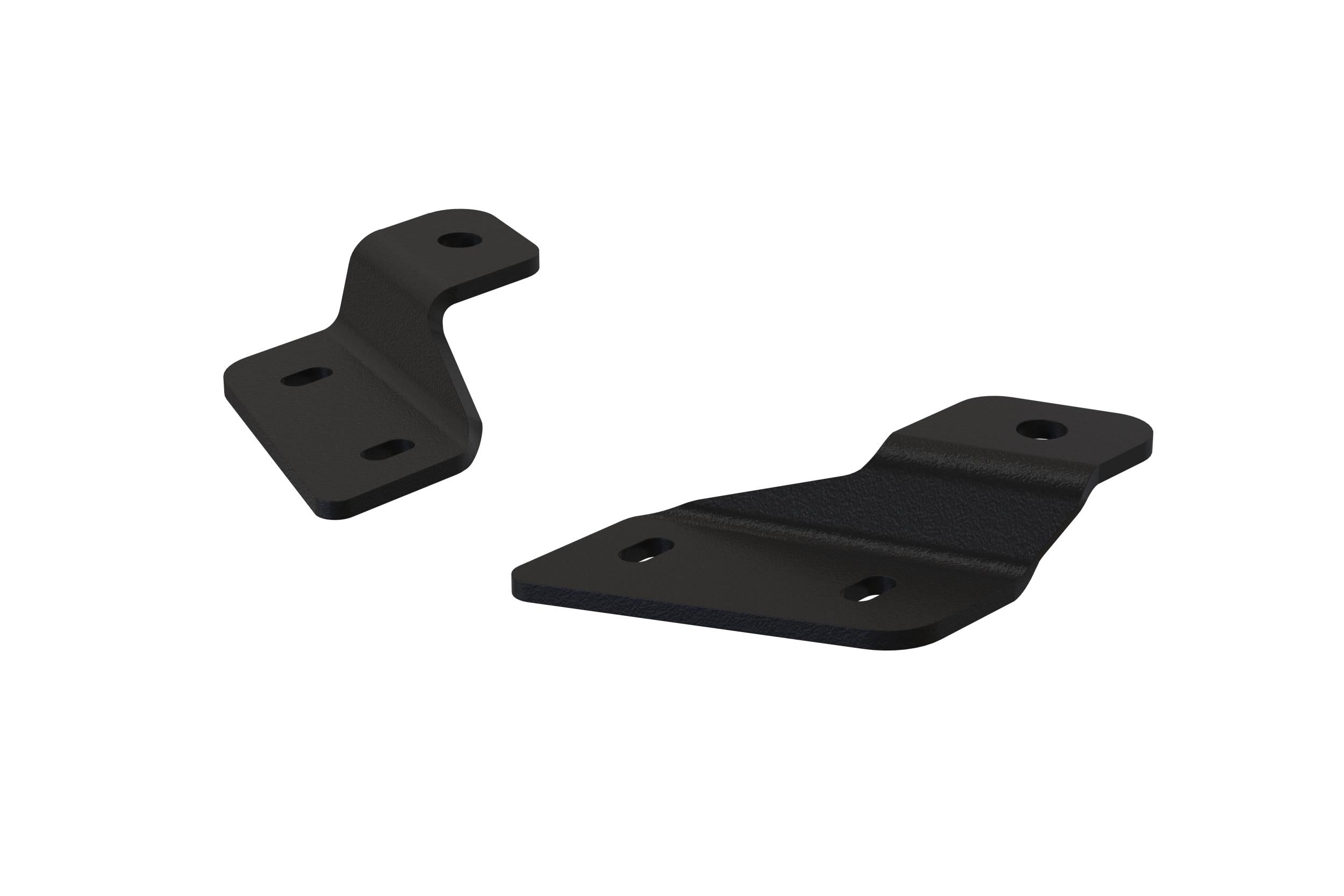

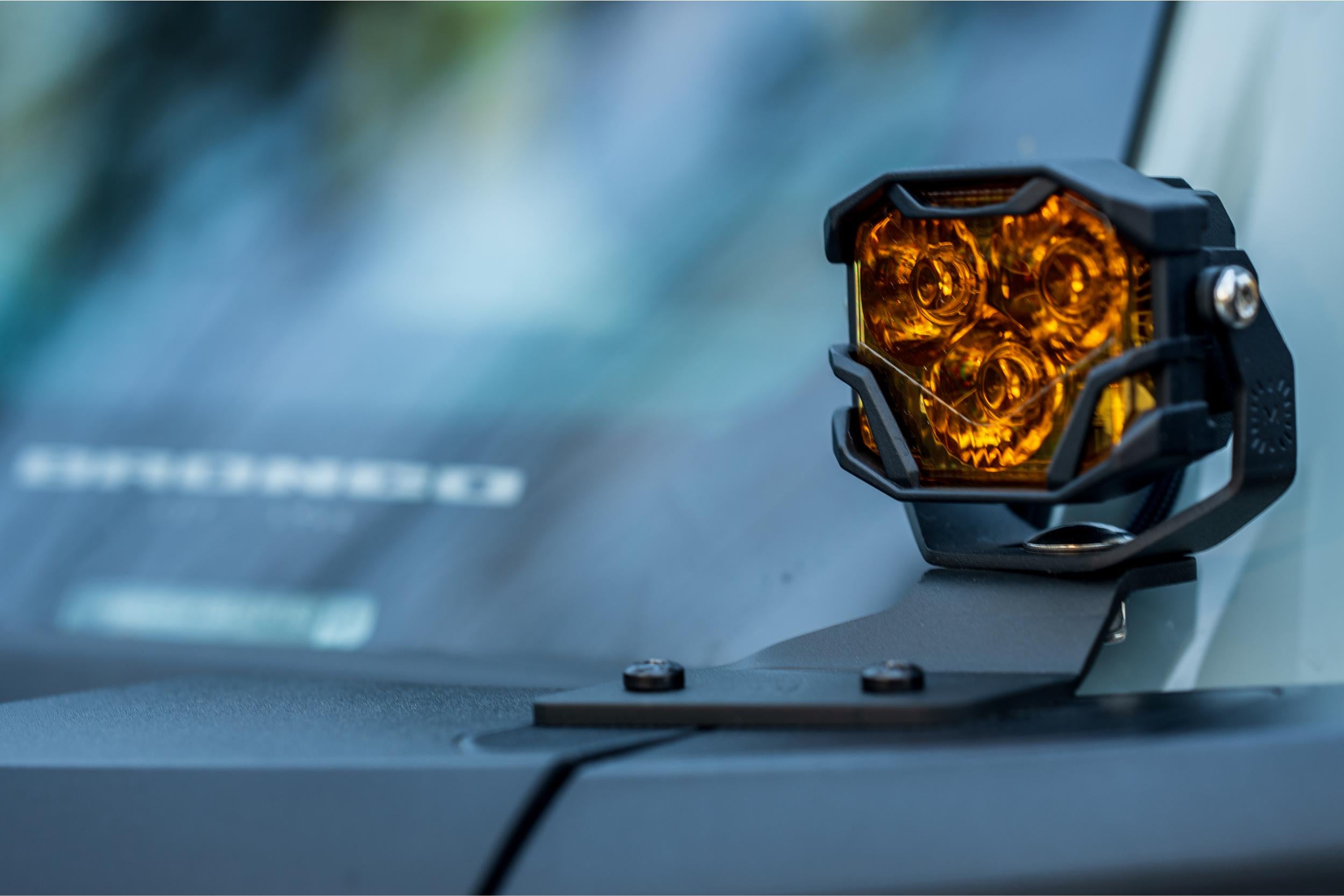

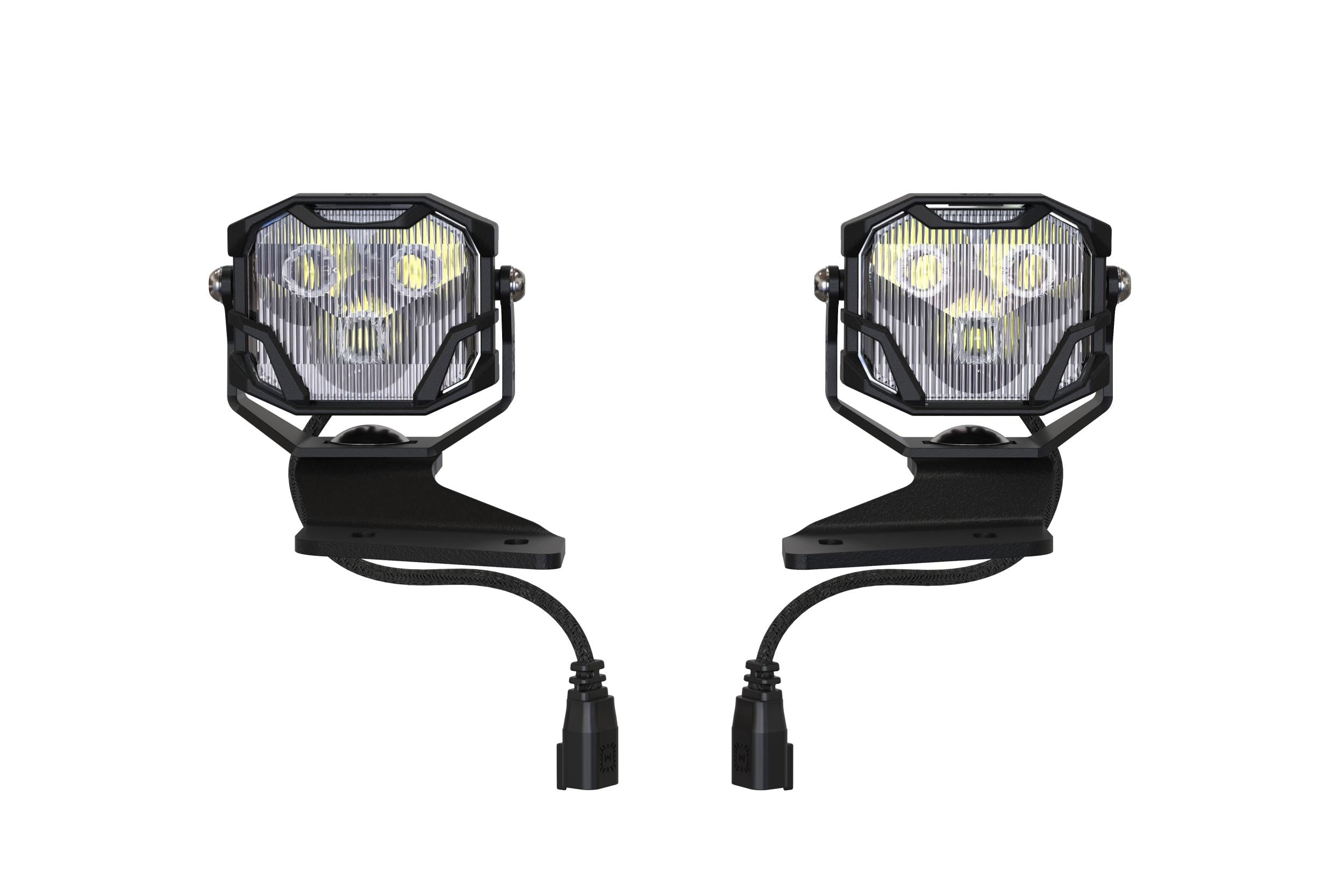

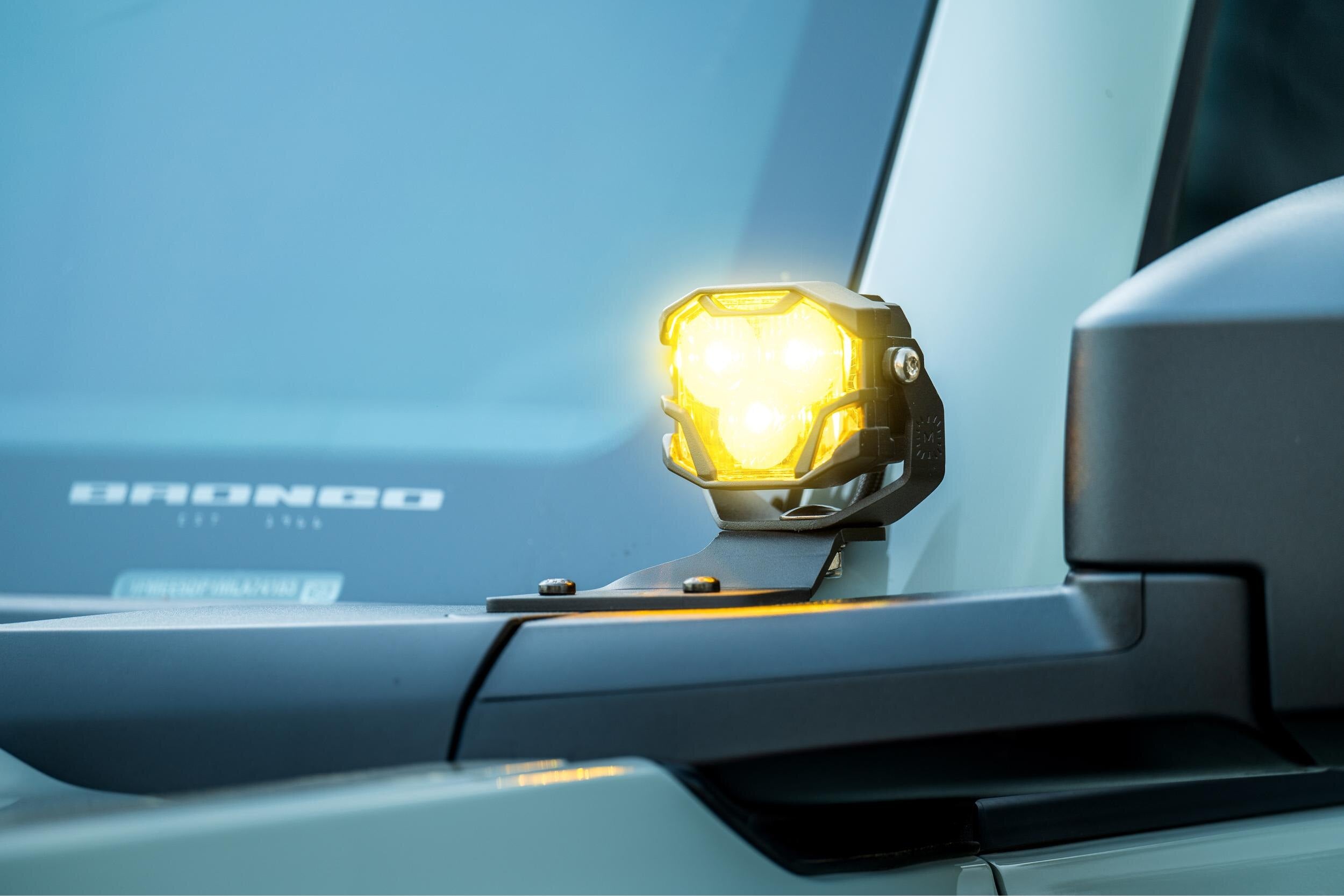

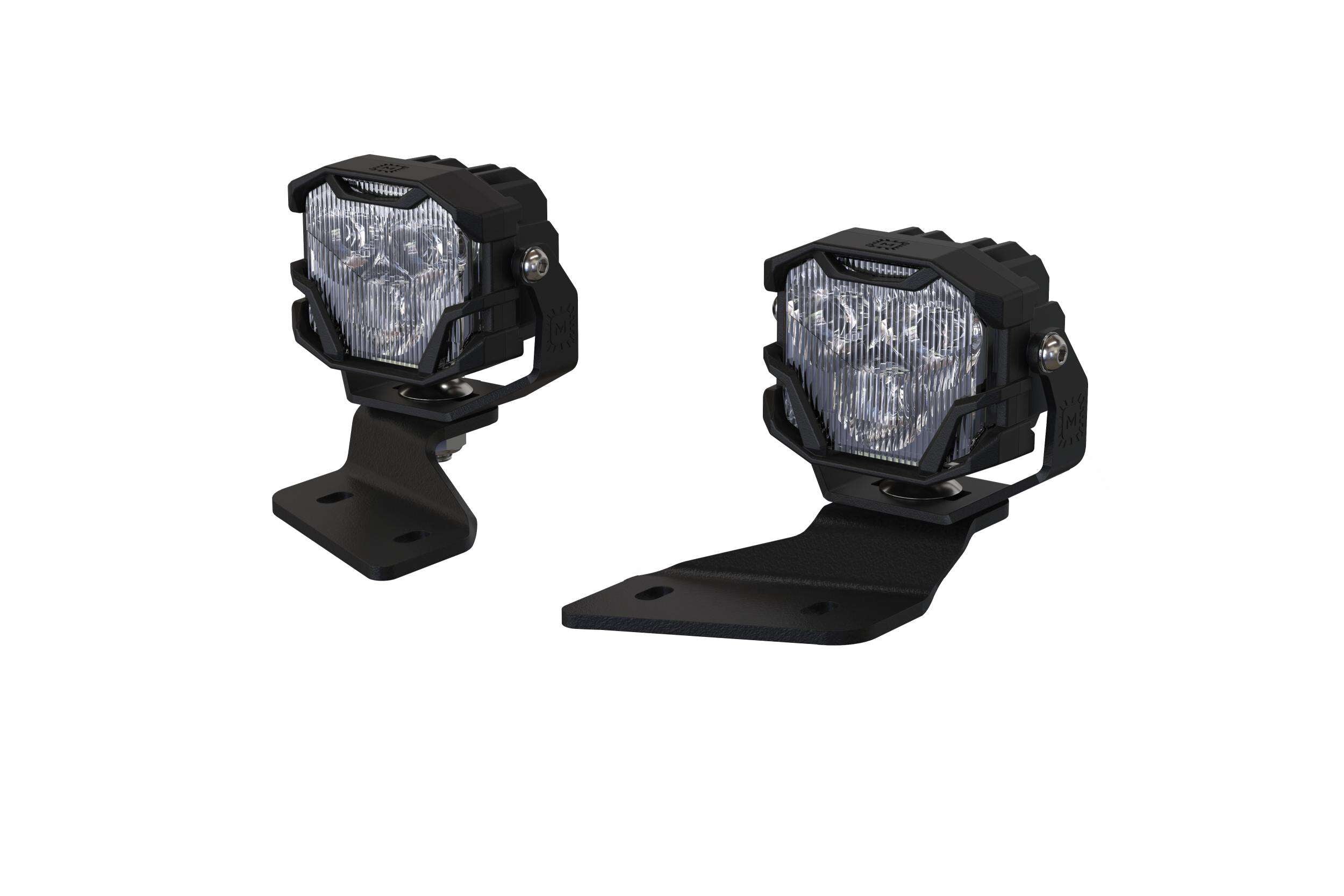

The 4Banger A-pillar kit gives the Ford Bronco a pair of ditch lights on brackets designed, engineered and tested for the 2021+ Bronco. The brackets are laser-cut, powdercoated stainless steel. The pods use a copper DTP PCB for heat transfer and are built to IP69K weather resistance.

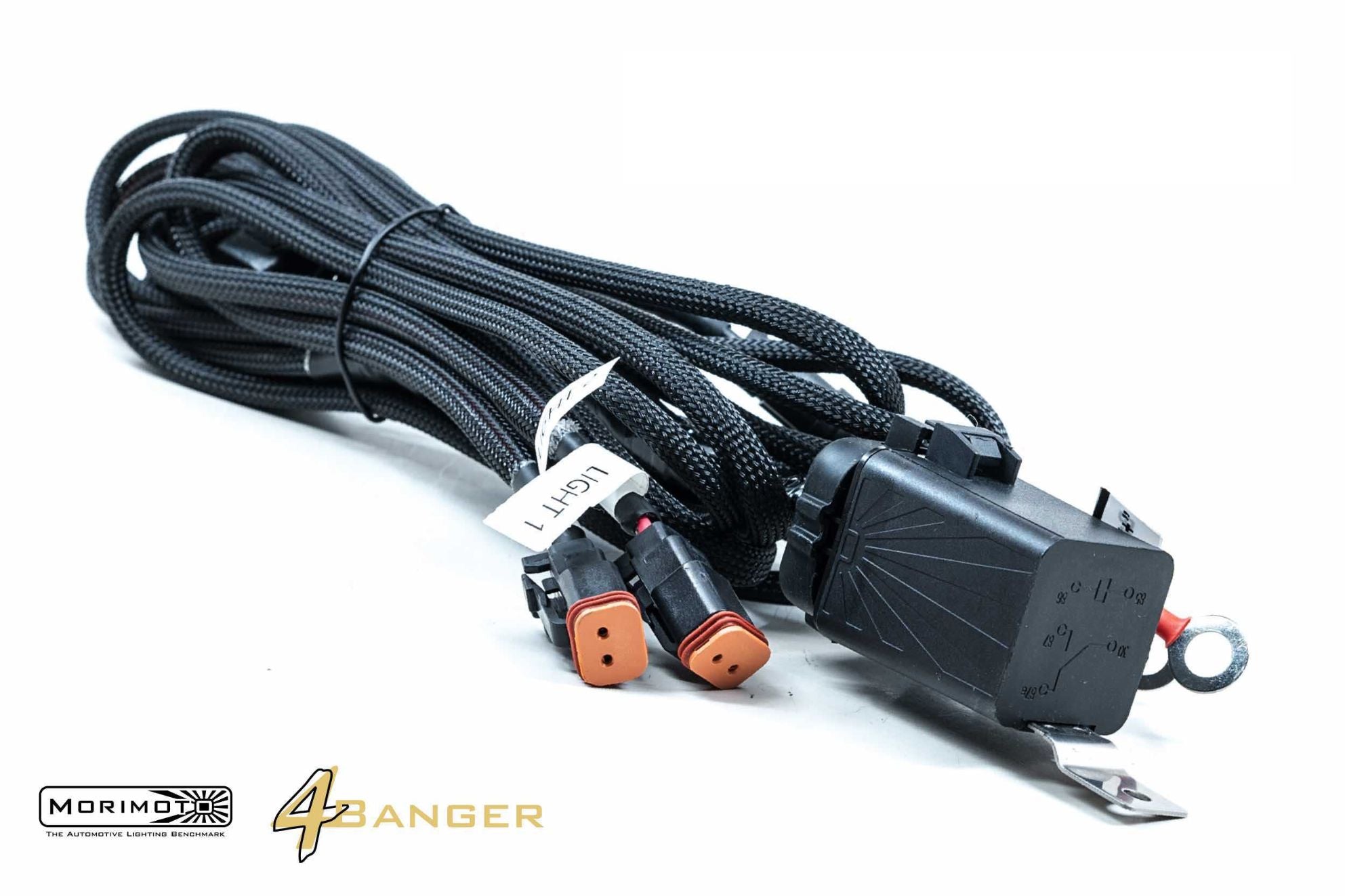

Beam options are Combo, Spot and Wide in NCS (Nichia) or HXB (Osram HX Boost). Morimoto rates the HXB Spot white at 170,000 Cd and says the HXB pods can illuminate up to 800 meters ahead, while NCS Spot white is rated at 105,000 Cd. Output is available in white or yellow. Wiring is optional: a switched relay harness or standard pigtails.
Pods measure 82 mm wide, 67 mm high and 60 mm deep, and run on 9-18V DC at 15.6 W (NCS) or 42 W (HXB), with Nichia NCS or Osram HX Boost LEDs.
Fitment
Ford Bronco, 2021 and newer. The brackets work with any LED pod, so you are not locked to 4Banger pods.
What's included
One pair of BAF070 ditch brackets, two standard bottom mount brackets, optional selections for two 4Banger pods (beam and color), a switched relay harness or two pigtails, and two rubber blackout covers.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text us at (920) 249-7744.
Why it works
Brackets made for the 2021+ Bronco
Designed, engineered and tested by Morimoto in Atlanta, GA for the 2021+ Ford Bronco.
Powder-coated stainless brackets
Laser-cut stainless steel brackets are powder-coated for durability in any environment.
Nichia NCS or Osram HX Boost LEDs
4Bangers are built around high-performance Nichia NCS or Osram HX Boost LEDs for strong output.
IP69K, white or yellow
Designed to IP69K weather resistance standards and available in white or yellow output.
Harness or pigtail wiring
Choose a plug-and-play wire harness or standard input pigtails to wire the lights as needed.
Videos
Technical specifications
| Note | These specifications are per pod / each. |
|---|---|
| NCS Wide Yellow | 8,680 Cd (Post Warm-Up) (86.8lux @ 10m) |
| NCS Wide White | 14,400 Cd (Post Warm-Up) (144lux @ 10m) |
| NCS Combo White | 55,500 Cd (Post Warm-Up) (555lux @ 10m) |
| NCS Spot Yellow | 73,500 Cd (Post Warm-Up) (735lux @ 10m) |
| NCS Spot White | 105,000 Cd (Post Warm-Up) (1,005lux @ 10m) |
| HXB Wide Yellow | 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m) |
| HXB Wide White | 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m) |
| HXB Combo Yellow | 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m) |
| HXB Combo White | 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m) |
| HXB Spot Yellow | 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m) |
| HXB Spot White | 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m) |
| Input Voltage | 9-18V DC |
| Power | 15.6w (NCS) 42w (HXB) |
| Current | 1.5A (NCS) or 3.2A (HXB) |
| Dimensions | 82mm W, 67mm H, 60mm D |
| Hardware | M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base) |
| Color | 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB) |
| Light Source | 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost |
| Input | Proprietary Overmolded Deutsch DT 2-Pin |
| Material | Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing) |
| Compliance | Wide beam photometrics are SAE F 20 compliant (HXB Report) (NCS Report), FMVSS 108· View document |
Compatibility
| Ford Bronco | 2021+ |
|---|---|
| Morimoto LED Pods | 4Banger NCS and HXB |
| Brackets | Compatible with any LED Pods |
In the box
| Ditch Brackets | 2x (One Pair) BAF070 Brackets |
|---|---|
| Optional LED Pods | 2x Morimoto 4Banger (Optional Beam Pattern / Color) |
| Bottom Mounts | 2x Standard Bottom Mount Brackets |
| Optional Wiring | 1x Morimoto Switched Relay Harness or 2x Pigtails |
| Optional Covers | 2x Rubber Blackout Covers |
Line drawings & dimensions
Frequently bought together
Installation
Bolt-on with hand tools. Grab the manufacturer’s step-by-step instructions, or watch the install first. Stuck partway? Call real humans at (920) 249-7744.
View install instructionsComplete your Bronco Parts build
More parts that fit your Bronco Parts and pair well with this one — matched and ready to install.
$512.00
$169.00
$1,369.00
$459.00
$565.00
More for your Ford Bronco
Picked from the 1157 parts we carry for the Ford Bronco, matched to 2021–2026 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Morimoto 4Banger LED Ditch Light System FAQs
Will other pods fit the brackets?
Morimoto says the brackets are compatible with any LED pods.
What wiring options are there?
A switched relay harness or two pigtails.
Which Broncos fit?
The 2021+ Ford Bronco.
Are blackout covers included?
Yes, two rubber blackout covers are listed.
