Warranty Information
Vendor warranty summary
KMC Wheels Warranty
At a glance: Structural warranty for as long as the original buyer owns the wheels; 1–2 years on finish
This is KMC Wheels's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Structure (aluminum wheels) | As long as the original retail purchaser owns them |
| Materials and workmanship | 1 year |
| Chrome finish (peeling/lifting only) | 1 year |
| Painted finish (peeling/lifting) | 1 year |
| PVD finish (peeling/lifting) | 2 years |
| Polished aluminum finish | Not covered |
| Steel wheels | 90 days |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use while the original buyer owns the wheel
- Defects in materials and workmanship for one year
- Chrome and painted finishes against peeling or lifting for one year
- PVD finishes against peeling or lifting for two years
- Approved claims are repaired or replaced
What's not covered
- Pitting on chrome
- Polished aluminum finishes
- Not following installation guidelines
- Improper care or harsh/caustic cleaners
- Accidents or road hazards
- Racing or off-road abuse
- Removal, shipping and reinstallation costs
- Second owners — warranty ends when the wheels change hands
How to make a KMC Wheels warranty claim
- Take or return the wheel to the dealer you bought it from
- Bring the original sales receipt
- KMC inspects and, if approved, repairs or replaces the wheel
KMC Wheels contact: Phone: 877-757-9222 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to KMC Wheels, and help it along either way.
Shop KMC Wheels at NVMOS
See all KMC Wheels products, lead times and FAQs →
Disclaimer: The information on this page describes KMC Wheels's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: KMC Wheels official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
KMC has been making wheels since 1982, with a range built around off-road trucks, Jeeps and SUVs. NVMOS carries KMC cast, flow-formed and forged wheels plus true beadlocks, in 15- to 20-inch diameters and 5- to 8-lug patterns, for Jeep, truck and SUV owners.
Based in: Greenwood Village, Colorado · Since: 1982 · Lead time: In stock: ships in 24–48 hours
Shop all 69 KMC WheelsWarrantyAll brands
Warranty terms are set by KMC Wheels, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.
KMC Trek Wheel
The KMC Trek is a 17 inch off-road wheel with six size and offset options. It comes in three finishes. You will find it in our off-road wheels category.
Sizes run 17x8 and 17x9, with offsets from -12mm to +38mm. It covers eight bolt patterns, including 5x108, 5x114.3, 5x150, 6x114.3 and 6x139.7. For other styles, check our non-beadlock wheels.

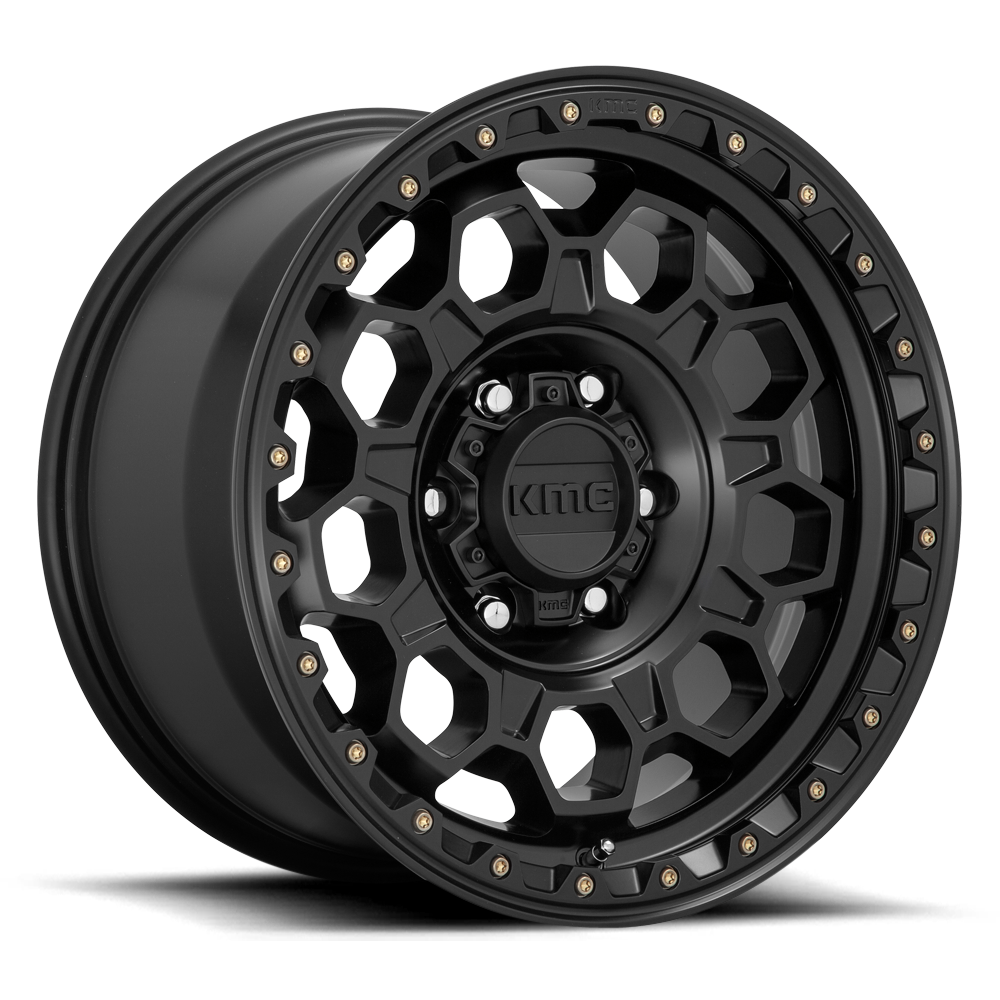

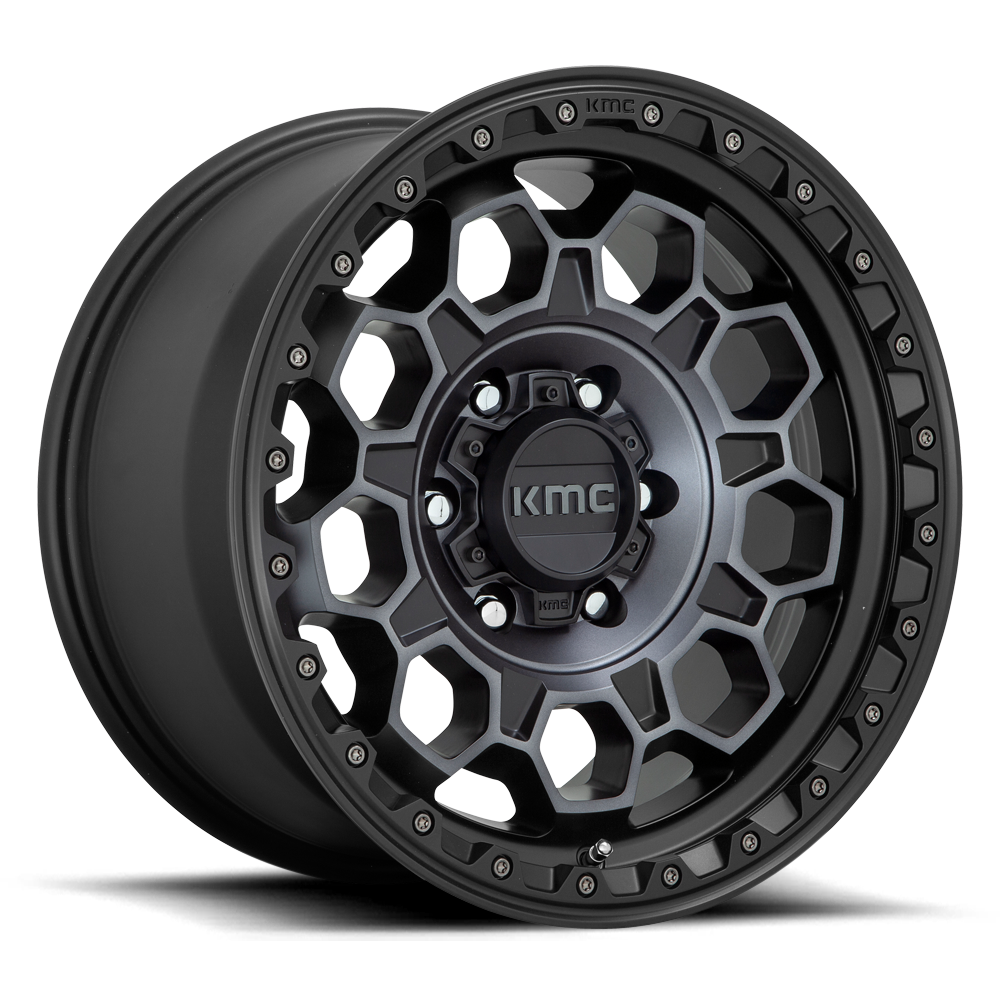

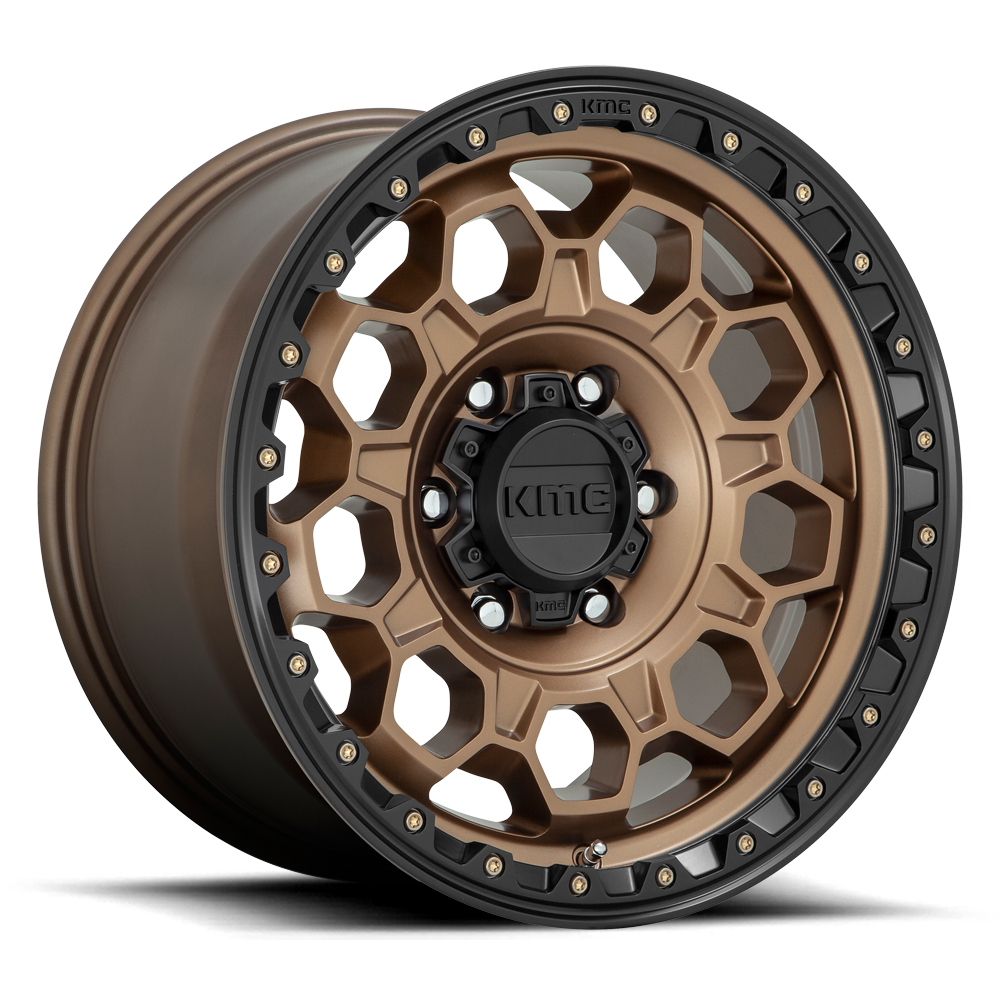

Universal fitment, chosen by bolt pattern. Sizes: 17x8 20mm, 17x9 -12mm, 17x9 0mm, 17x9 18mm, 17x8 35mm, 17x8 38mm. Bolt patterns: 6x114.3, 6x139.7, 6x120, 6x135, 5x127, 5x114.3, 5x150, 5x108. Finishes: Satin Black, Matte Bronze w/ Black Lip, Satin Black w/ Gray Tint. Check bolt pattern, offset and brake clearance against your vehicle before ordering.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| KM54578068620 | Matte Bronze w/ Black Lip | 17x8 20mm | 6x139.7 | 5.29" | 106.10mm | 2500 lbs | 26.80 lbs |
| KM54578064720 | Satin Black | 17x8 20mm | 6x114.3 | 5.29" | 66.06mm | 2500 lbs | 26.80 lbs |
| KM54578077720 | Satin Black | 17x8 20mm | 6x120 | 5.29" | 66.90mm | 2500 lbs | 26.80 lbs |
| KM54578068720 | Satin Black | 17x8 20mm | 6x139.7 | 5.29" | 106.10mm | 2500 lbs | 26.80 lbs |
| KM54578068420 | Satin Black w/ Gray Tint | 17x8 20mm | 6x139.7 | 5.29" | 106.10mm | 2500 lbs | 26.80 lbs |
| KM54578012635 | Matte Bronze w/ Black Lip | 17x8 35mm | 5x114.3 | 5.88" | 72.56mm | 2500 lbs | 26.80 lbs |
| KM54578012735 | Satin Black | 17x8 35mm | 5x114.3 | 5.88" | 72.56mm | 2500 lbs | 26.80 lbs |
| KM54578062735 | Satin Black | 17x8 35mm | 6x139.7 | 5.88" | 100.30mm | 2500 lbs | 26.80 lbs |
| KM54578012435 | Satin Black w/ Gray Tint | 17x8 35mm | 5x114.3 | 5.88" | 72.56mm | 2500 lbs | 26.80 lbs |
| KM54578045638 | Matte Bronze w/ Black Lip | 17x8 38mm | 5x108 | 6.00" | 72.56mm | 2500 lbs | 26.93 lbs |
| KM54578045738 | Satin Black | 17x8 38mm | 5x108 | 6.00" | 72.56mm | 2500 lbs | 26.93 lbs |
| KM54578045438 | Satin Black w/ Gray Tint | 17x8 38mm | 5x108 | 6.00" | 72.56mm | 2500 lbs | 26.93 lbs |
| KM54579068612N | Matte Bronze w/ Black Lip | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 29.70 lbs |
| KM54579050612N | Matte Bronze w/ Black Lip | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 29.70 lbs |
| KM54579068712N | Satin Black | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 29.70 lbs |
| KM54579050712N | Satin Black | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 29.70 lbs |
| KM54579068412N | Satin Black w/ Gray Tint | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 29.70 lbs |
| KM54579050412N | Satin Black w/ Gray Tint | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 29.70 lbs |
| KM54579050600 | Matte Bronze w/ Black Lip | 17x9 0mm | 5x127 | 5.00" | 71.50mm | 2500 lbs | 27.90 lbs |
| KM54579068600 | Matte Bronze w/ Black Lip | 17x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 27.90 lbs |
| KM54579063700 | Satin Black | 17x9 0mm | 6x135 | 5.00" | 87.10mm | 2500 lbs | 27.90 lbs |
| KM54579050700 | Satin Black | 17x9 0mm | 5x127 | 5.00" | 71.50mm | 2500 lbs | 27.90 lbs |
| KM54579068700 | Satin Black | 17x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 27.90 lbs |
| KM54579068400 | Satin Black w/ Gray Tint | 17x9 0mm | 6x139.7 | 5.00" | 106.10mm | 2500 lbs | 27.90 lbs |
| KM54579068618 | Matte Bronze w/ Black Lip | 17x9 18mm | 6x139.7 | 5.71" | 106.10mm | 2500 lbs | 27.40 lbs |
| KM54579050618 | Matte Bronze w/ Black Lip | 17x9 18mm | 5x127 | 5.71" | 71.50mm | 2500 lbs | 27.40 lbs |
| KM54579068718 | Satin Black | 17x9 18mm | 6x139.7 | 5.71" | 106.10mm | 2500 lbs | 27.40 lbs |
| KM54579050718 | Satin Black | 17x9 18mm | 5x127 | 5.71" | 71.50mm | 2500 lbs | 27.40 lbs |
| KM54579063718 | Satin Black | 17x9 18mm | 6x135 | 5.71" | 87.10mm | 2500 lbs | 27.40 lbs |
| KM54579058718 | Satin Black | 17x9 18mm | 5x150 | 5.71" | 110.10mm | 2500 lbs | 27.40 lbs |
| KM54579068418 | Satin Black w/ Gray Tint | 17x9 18mm | 6x139.7 | 5.71" | 106.10mm | 2500 lbs | 27.40 lbs |
| KM54579064418 | Satin Black w/ Gray Tint | 17x9 18mm | 6x114.3 | 5.71" | 66.06mm | 2500 lbs | 27.40 lbs |
| KM54579063418 | Satin Black w/ Gray Tint | 17x9 18mm | 6x135 | 5.71" | 87.10mm | 2500 lbs | 27.40 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$370.00
$2,149.39
$109.95
$706.99
$599.99
Specifications
KMC Trek Wheel FAQs
What sizes does the Trek come in?
17x8 20mm, 17x9 -12mm, 17x9 0mm, 17x9 18mm, 17x8 35mm and 17x8 38mm.
Which finishes are available?
Satin Black, Matte Bronze with Black Lip and Satin Black with Gray Tint.
Does it fit 5x108?
Yes, 5x108 is one of the offered patterns.
How do I confirm fitment?
Use the vehicle selector on the page or email support@nvmos.com with your year, trim and current setup and we'll confirm fitment.
