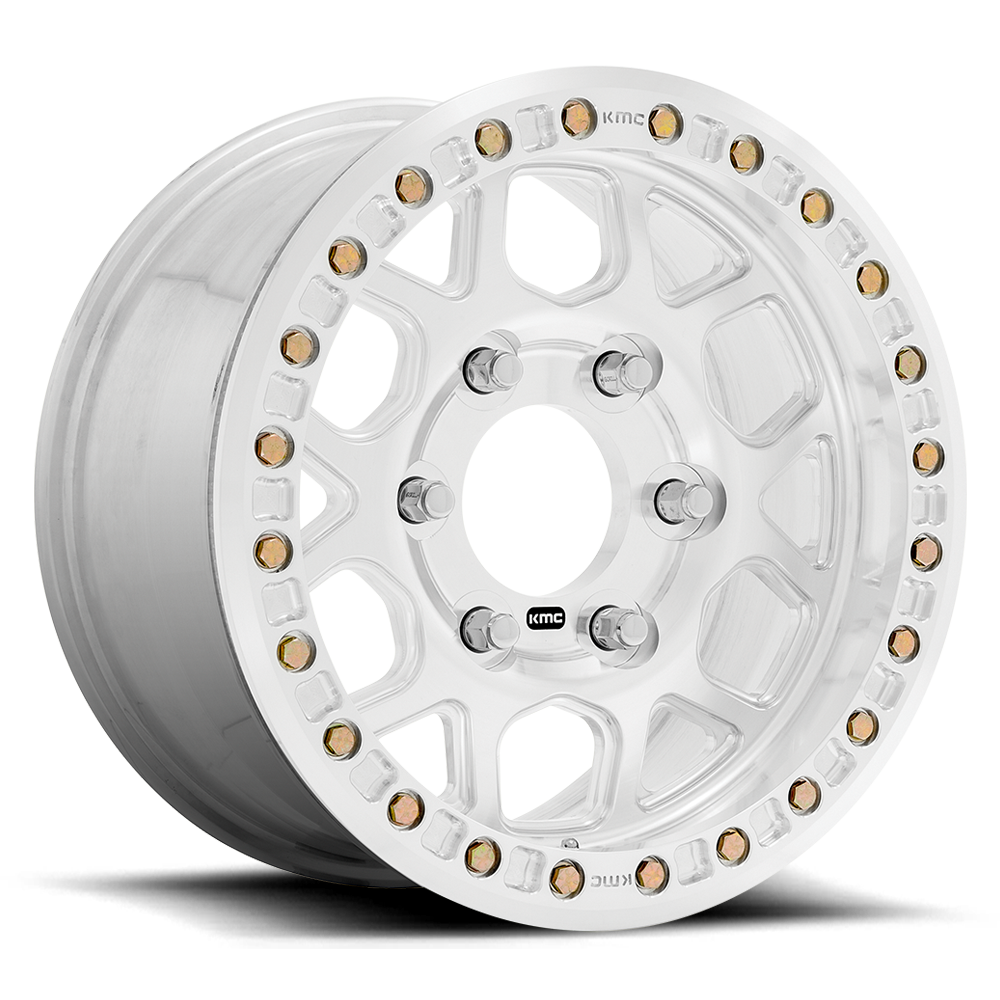

KMC Mesa Forged Beadlock Wheel
The KMC KM444 Forged Mesa Beadlock wheel is designed to withstand any terrain and outperform the elements. The Mesa Beadlock’s Raw Machined finish lends itself to the no nonsense nature of the wheel and instead showcases its performance defining capabilities. Outfit your truck or Jeep with this premiere race wheel.
Warning: Beadlock wheels are sold for Off-Road Use only. Off-Road Use only wheels are illegal on public roads in many states and provinces as they are intended only for racing and/or off-road vehicles. It is the customers’ responsibility to check state and local laws. The customer takes full responsibility for any use and/or misuse of the beadlock wheels and agrees to hold Wheel Pros, LLC and its affiliates harmless relating to such use.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| KM44479080512N | Raw Machined | 17x9 -12mm | 8x165.1 | 4.53" | 125.10mm | 3700 lbs | 29.70 lbs |
| KM44479085512N | Raw Machined | 17x9 -12mm | 5x139.7 | 4.53" | 108.00mm | 2500 lbs | 26.80 lbs |
| KM44479091512N | Raw Machined | 17x9 -12mm | 6x165.1 | 4.53" | 108.00mm | 3700 lbs | 30.10 lbs |
| KM44479060512N | Raw Machined | 17x9 -12mm | 6x139.7 | 4.53" | 108.00mm | 2500 lbs | 26.40 lbs |
| KM44479063512N | Raw Machined | 17x9 -12mm | 6x135 | 4.53" | 87.10mm | 2500 lbs | 27.42 lbs |
| KM44479085500 | Raw Machined | 17x9 0mm | 5x139.7 | 5.00" | 108.00mm | 2500 lbs | 26.40 lbs |
| KM44479060500 | Raw Machined | 17x9 0mm | 6x139.7 | 5.00" | 108.00mm | 2500 lbs | 26.20 lbs |
| KM44479091500 | Raw Machined | 17x9 0mm | 6x165.1 | 5.00" | 108.00mm | 3700 lbs | 29.00 lbs |
| KM44479063500 | Raw Machined | 17x9 0mm | 6x135 | 5.00" | 87.10mm | 2500 lbs | 26.96 lbs |
| KM44479091525 | Raw Machined | 17x9 25mm | 6x165.1 | 5.98" | 108.00mm | 3700 lbs | 29.30 lbs |
| KM44479085525 | Raw Machined | 17x9 25mm | 5x139.7 | 5.98" | 108.00mm | 2500 lbs | 26.40 lbs |
| KM44479063525 | Raw Machined | 17x9 25mm | 6x135 | 5.98" | 87.10mm | 2500 lbs | 28.21 lbs |
