KMC Impact Forged Beadlock Wheel
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
KMC Wheels Warranty
At a glance: Structural warranty for as long as the original buyer owns the wheels; 1–2 years on finish
This is KMC Wheels's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Structure (aluminum wheels) | As long as the original retail purchaser owns them |
| Materials and workmanship | 1 year |
| Chrome finish (peeling/lifting only) | 1 year |
| Painted finish (peeling/lifting) | 1 year |
| PVD finish (peeling/lifting) | 2 years |
| Polished aluminum finish | Not covered |
| Steel wheels | 90 days |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use while the original buyer owns the wheel
- Defects in materials and workmanship for one year
- Chrome and painted finishes against peeling or lifting for one year
- PVD finishes against peeling or lifting for two years
- Approved claims are repaired or replaced
What's not covered
- Pitting on chrome
- Polished aluminum finishes
- Not following installation guidelines
- Improper care or harsh/caustic cleaners
- Accidents or road hazards
- Racing or off-road abuse
- Removal, shipping and reinstallation costs
- Second owners — warranty ends when the wheels change hands
How to make a KMC Wheels warranty claim
- Take or return the wheel to the dealer you bought it from
- Bring the original sales receipt
- KMC inspects and, if approved, repairs or replaces the wheel
KMC Wheels contact: Phone: 877-757-9222 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to KMC Wheels, and help it along either way.
Shop KMC Wheels at NVMOS
See all KMC Wheels products, lead times and FAQs →
Disclaimer: The information on this page describes KMC Wheels's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: KMC Wheels official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
KMC has been making wheels since 1982, with a range built around off-road trucks, Jeeps and SUVs. NVMOS carries KMC cast, flow-formed and forged wheels plus true beadlocks, in 15- to 20-inch diameters and 5- to 8-lug patterns, for Jeep, truck and SUV owners.
Based in: Greenwood Village, Colorado · Since: 1982 · Lead time: In stock: ships in 24–48 hours
Shop all 74 KMC WheelsWarrantyAll brands
Warranty terms are set by KMC Wheels, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

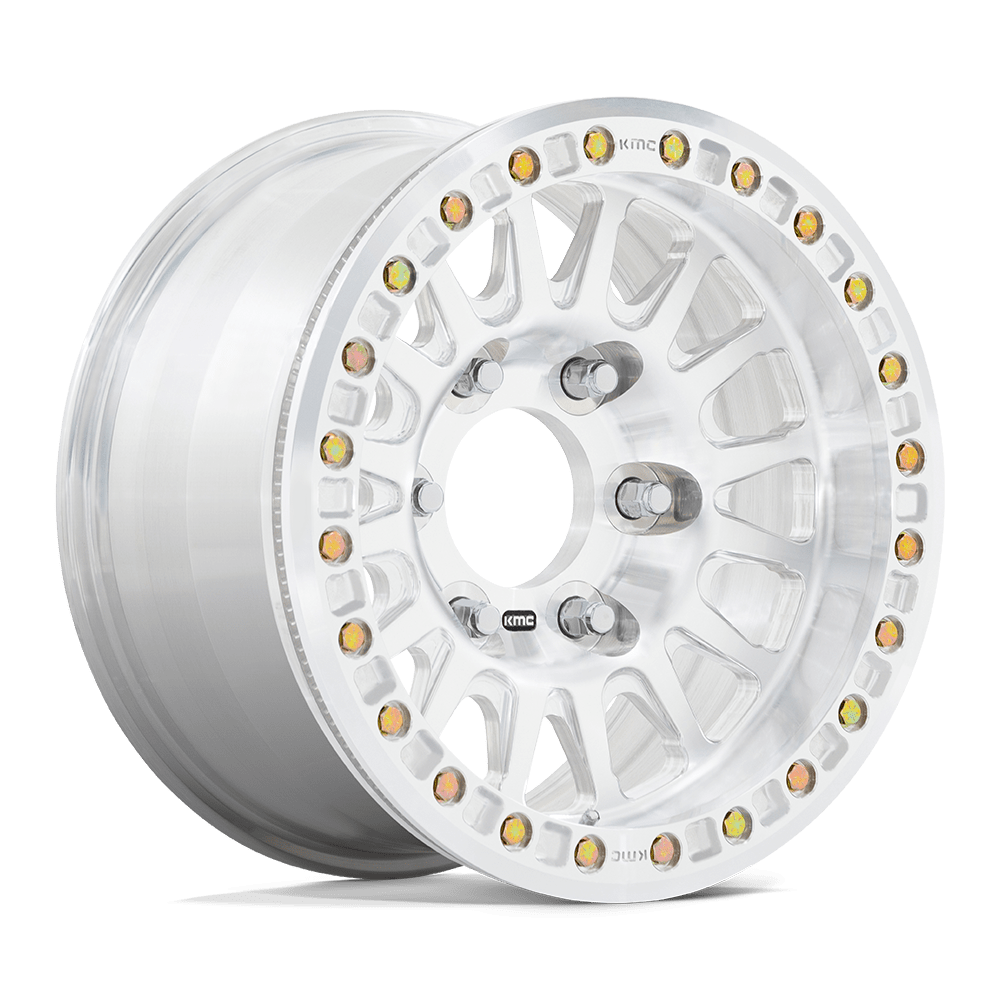

KMC Impact Forged Beadlock Wheel
The Impact Forged is a KMC beadlock wheel in a Raw Machined finish. It comes in 17x9 and 18x9 sizes with several offsets and five bolt patterns.
Choose 17x9 with +25mm, -12mm or 0mm offset, or 18x9 with +25mm or 0mm offset. Patterns are 6x165.1, 6x139.7, 5x139.7, 8x165.1 and 6x135. Beadlock wheels are for off-road use only. Browse more wheels to compare. This wheel has 12 variants in one finish, so the choice comes down to diameter, offset and bolt pattern. Both diameters are offered in a 9-inch width. Check that the bolt pattern matches your hubs, and confirm brake and suspension clearance. Email us if you want a second set of eyes on your choice. It is sold for off-road use only.
Universal. Sizes: 17x9 +25mm, -12mm, 0mm; 18x9 +25mm, 0mm. Bolt patterns: 6x165.1, 6x139.7, 5x139.7, 8x165.1, 6x135. Raw Machined. Off-road use only.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| KM445DX17906012N | Raw Machined | 17x9 -12mm | 6x139.7 | 4.53" | 108.00mm | 2500 lbs | 27.40 lbs |
| KM445DX17905512N | Raw Machined | 17x9 -12mm | 5x139.7 | 4.53" | 108.00mm | 2500 lbs | 27.50 lbs |
| KM445DX17908012N | Raw Machined | 17x9 -12mm | 8x165.1 | 4.53" | 125.10mm | 3700 lbs | 30.20 lbs |
| KM445DX17909112N | Raw Machined | 17x9 -12mm | 6x165.1 | 4.53" | 108.00mm | 3700 lbs | 30.70 lbs |
| KM445DX17906312N | Raw Machined | 17x9 -12mm | 6x135 | 4.53" | 87.10mm | 2500 lbs | 28.50 lbs |
| KM445DX17906000 | Raw Machined | 17x9 0mm | 6x139.7 | 5.00" | 108.00mm | 2500 lbs | 27.30 lbs |
| KM445DX17906300 | Raw Machined | 17x9 0mm | 6x135 | 5.00" | 87.10mm | 2500 lbs | 28.30 lbs |
| KM445DX17909125 | Raw Machined | 17x9 25mm | 6x165.1 | 5.98" | 108.00mm | 3700 lbs | 29.60 lbs |
| KM445DX17906225 | Raw Machined | 17x9 25mm | 6x139.7 | 5.98" | 95.10mm | 2500 lbs | 27.00 lbs |
| KM445DX17906325 | Raw Machined | 17x9 25mm | 6x135 | 5.98" | 87.10mm | 2500 lbs | 28.19 lbs |
| KM445DX18909100 | Raw Machined | 18x9 0mm | 6x165.1 | 5.00" | 108.00mm | 4000 lbs | 39.80 lbs |
| KM445DX18909125 | Raw Machined | 18x9 25mm | 6x165.1 | 5.98" | 108.00mm | 4000 lbs | 39.10 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$1,039.00
$270.55
$109.95
$904.50
$499.00
KMC Impact Forged Beadlock Wheel FAQs
Can I use it on the street?
Beadlock wheels are sold for off-road use only. Beadlock wheels are sold for off-road use only and can be illegal on public roads in many states and provinces. Check your state and local laws before you buy.
What sizes does it come in?
17x9 +25mm, 17x9 -12mm, 17x9 0mm, 18x9 +25mm and 18x9 0mm.
What finish is offered?
Raw Machined.
How do I choose a bolt pattern?
Match your vehicle's pattern. Email support@nvmos.com with year and trim if you want help.
