SKU: KM733MX17853825

KMC Impact FFT Wheel

$424.00

Finish: Matte Black
Size
Bolt Pattern
180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing availableAffirmPayPal CreditFor qualified buyers at checkout Secure checkoutEncrypted payment
Warranty Information

Vendor warranty summary

KMC Wheels Warranty

At a glance: Structural warranty for as long as the original buyer owns the wheels; 1–2 years on finish

This is KMC Wheels's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component Coverage
Structure (aluminum wheels) As long as the original retail purchaser owns them
Materials and workmanship 1 year
Chrome finish (peeling/lifting only) 1 year
Painted finish (peeling/lifting) 1 year
PVD finish (peeling/lifting) 2 years
Polished aluminum finish Not covered
Steel wheels 90 days
  • Original purchaser only — coverage does not transfer if you sell it.
  • Keep your NVMOS order confirmation — proof of purchase is required.

What's covered

  • Structural failure under normal, intended use while the original buyer owns the wheel
  • Defects in materials and workmanship for one year
  • Chrome and painted finishes against peeling or lifting for one year
  • PVD finishes against peeling or lifting for two years
  • Approved claims are repaired or replaced

What's not covered

  • Pitting on chrome
  • Polished aluminum finishes
  • Not following installation guidelines
  • Improper care or harsh/caustic cleaners
  • Accidents or road hazards
  • Racing or off-road abuse
  • Removal, shipping and reinstallation costs
  • Second owners — warranty ends when the wheels change hands

How to make a KMC Wheels warranty claim

  • Take or return the wheel to the dealer you bought it from
  • Bring the original sales receipt
  • KMC inspects and, if approved, repairs or replaces the wheel

KMC Wheels contact: Phone: 877-757-9222 · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to KMC Wheels, and help it along either way.

Shop KMC Wheels at NVMOS

See all KMC Wheels products, lead times and FAQs →

Disclaimer: The information on this page describes KMC Wheels's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: KMC Wheels official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

KMC Wheels

KMC has been making wheels since 1982, with a range built around off-road trucks, Jeeps and SUVs. NVMOS carries KMC cast, flow-formed and forged wheels plus true beadlocks, in 15- to 20-inch diameters and 5- to 8-lug patterns, for Jeep, truck and SUV owners.

Based in: Greenwood Village, Colorado · Since: 1982 · Lead time: In stock: ships in 24–48 hours

KMC Wheels warranty: Structural warranty for as long as the original buyer owns the wheels; 1–2 years on finish. Read the full summary

Warranty terms are set by KMC Wheels, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

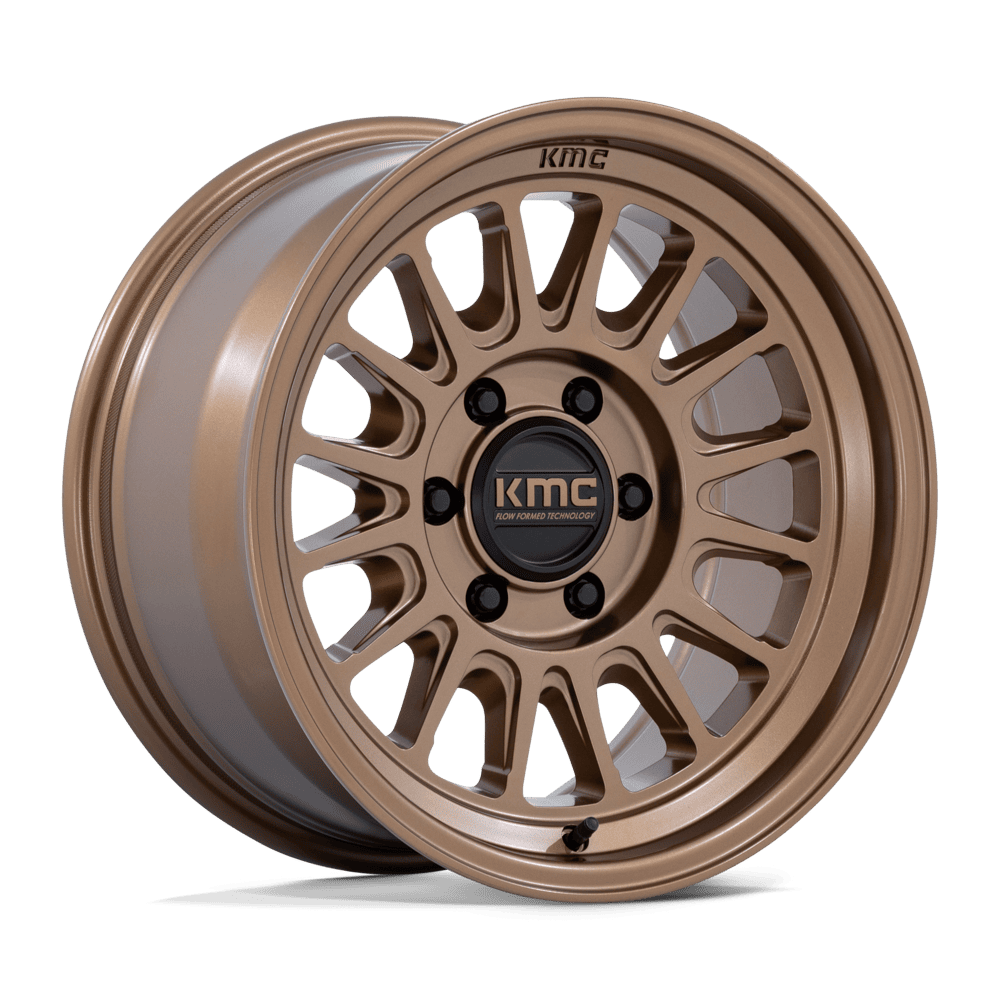

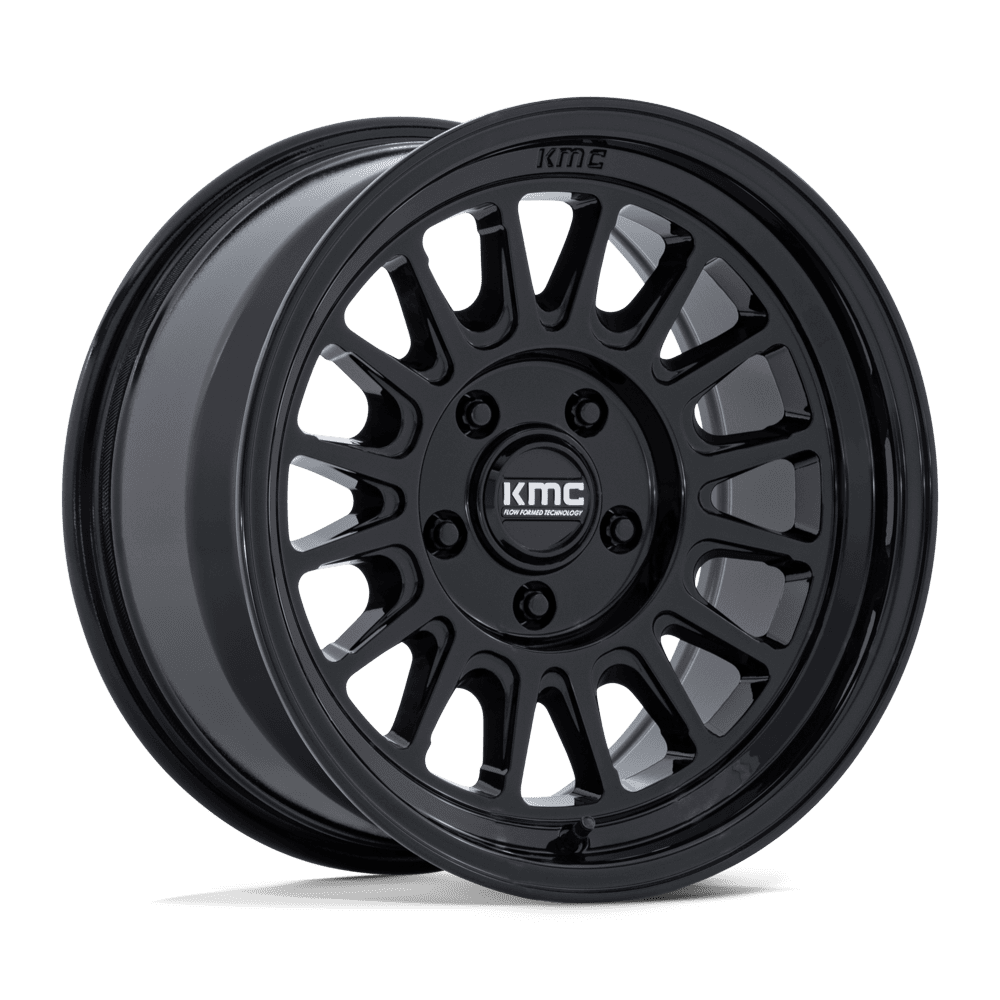

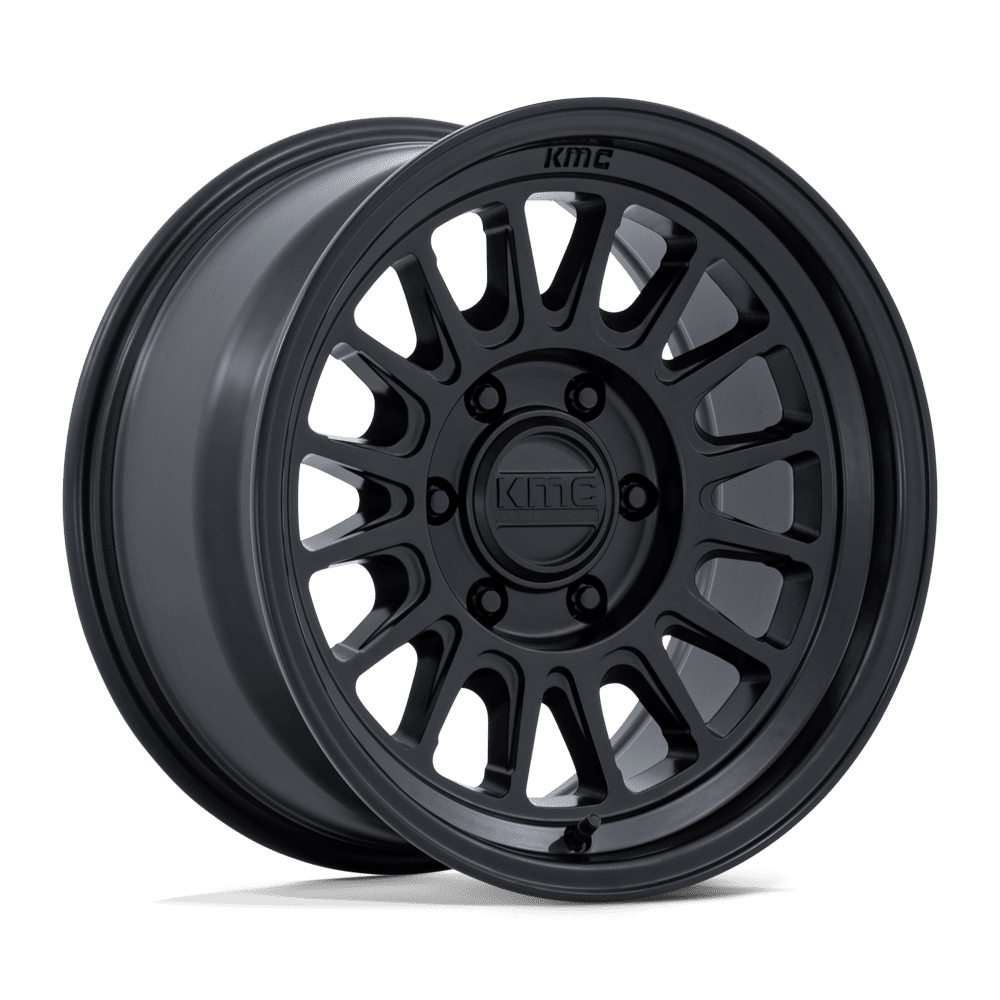

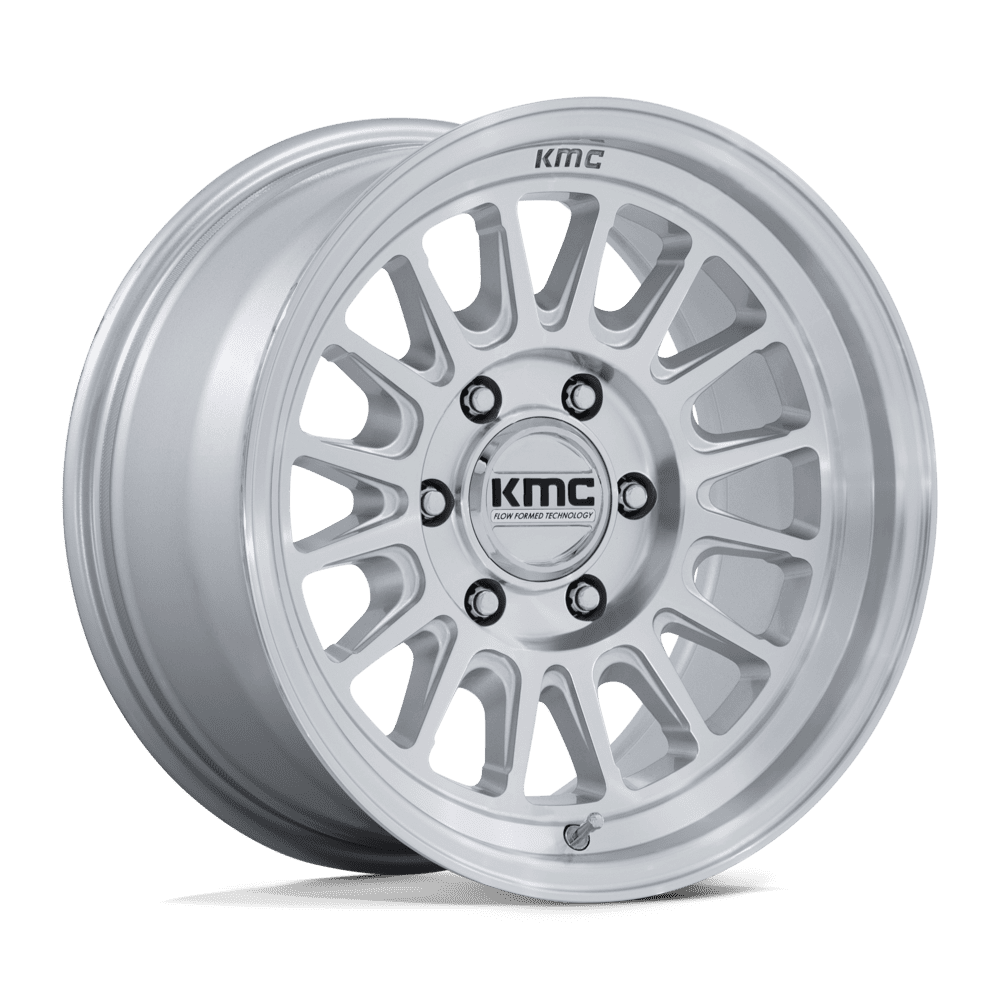

KMC Impact FFT Wheel (KM733)

The KMC KM733 Impact FFT is a lightweight, flow-formed wheel with a multi-spoke layout and an ultra-deep lip. It is built for rough use and daily driving. It is one of the most technical off-road wheels we carry.

It uses KMC's Bead Retention System (BRS). Machined grooves grip the tire bead at low PSI without a traditional beadlock, and the wheel is DOT compliant. A heavy-duty version is rated up to 4,500 lbs. See also our non-beadlock wheels.

Why it works
Bead Retention SystemMachined grooves hold the bead firm at low PSI.
DOT compliantBRS is easy to mount, with no beadlock remount hassle.
Heavy-duty ratingKMC offers a version rated up to 4,500 lbs.
Fitment

Universal fitment, chosen by bolt pattern. Sizes: 17x8.5 25mm, 18x9 18mm, 17x8.5 0mm, 18x9 0mm, 17x8 32mm, 17x8.5 35mm. Bolt patterns: 6x130, 6x135, 6x139.7, 8x165.1, 5x127, 8x170, 8x180, 6x120, 6x114.3. Finishes: Matte Black, Gloss Silver w/ Machined Face, Gloss Black, Matte Bronze. KMC lists 17x8.5 and 18x9 sizes with offsets from +0 to +25 for 5, 6 and 8-lug applications. Check bolt pattern, offset and brake clearance against your vehicle before ordering.

Specifications
Part # Finish Size / Offset Bolt Pattern Backspace Center Bore Load Rating Weight
KM733BX17803832 Gloss Black 17x8 32mm 6x130 5.76" 84.10mm 3300 lbs 28.00 lbs
KM733BX17806832 Gloss Black 17x8 32mm 6x139.7 5.76" 106.10mm 3300 lbs 27.56 lbs
KM733SD17806832 Gloss Silver w/ Machined Face 17x8 32mm 6x139.7 5.76" 106.10mm 3300 lbs 27.56 lbs
KM733SD17803832 Gloss Silver w/ Machined Face 17x8 32mm 6x130 5.76" 84.10mm 3300 lbs 28.00 lbs
KM733MX17803832 Matte Black 17x8 32mm 6x130 5.76" 84.10mm 3300 lbs 28.00 lbs
KM733MX17806832 Matte Black 17x8 32mm 6x139.7 5.76" 106.10mm 3300 lbs 27.56 lbs
KM733ZX17806832 Matte Bronze 17x8 32mm 6x139.7 5.76" 106.10mm 3300 lbs 27.56 lbs
KM733ZX17803832 Matte Bronze 17x8 32mm 6x130 5.76" 84.10mm 3300 lbs 28.00 lbs
KM733BX17856800 Gloss Black 17x8.5 0mm 6x139.7 4.75" 106.10mm 2650 lbs 25.79 lbs
KM733BX17855000 Gloss Black 17x8.5 0mm 5x127 4.75" 71.50mm 2650 lbs 26.01 lbs
KM733BX17856300 Gloss Black 17x8.5 0mm 6x135 4.75" 87.10mm 2650 lbs 26.46 lbs
KM733SD17856300 Gloss Silver w/ Machined Face 17x8.5 0mm 6x135 4.75" 87.10mm 2650 lbs 26.46 lbs
KM733SD17855000 Gloss Silver w/ Machined Face 17x8.5 0mm 5x127 4.75" 71.50mm 2650 lbs 26.01 lbs
KM733SD17856800 Gloss Silver w/ Machined Face 17x8.5 0mm 6x139.7 4.75" 106.10mm 2650 lbs 25.79 lbs
KM733MX17855000 Matte Black 17x8.5 0mm 5x127 4.75" 71.50mm 2650 lbs 26.01 lbs
KM733MX17856300 Matte Black 17x8.5 0mm 6x135 4.75" 87.10mm 2650 lbs 26.46 lbs
KM733MX17856800 Matte Black 17x8.5 0mm 6x139.7 4.75" 106.10mm 2650 lbs 25.79 lbs
KM733ZX17856800 Matte Bronze 17x8.5 0mm 6x139.7 4.75" 106.10mm 2650 lbs 25.79 lbs
KM733ZX17856300 Matte Bronze 17x8.5 0mm 6x135 4.75" 87.10mm 2650 lbs 26.46 lbs
KM733BX17856825 Gloss Black 17x8.5 25mm 6x139.7 5.73" 106.10mm 2650 lbs 25.57 lbs
KM733BX17856325 Gloss Black 17x8.5 25mm 6x135 5.73" 87.10mm 2650 lbs 26.23 lbs
KM733SD17856325 Gloss Silver w/ Machined Face 17x8.5 25mm 6x135 5.73" 87.10mm 2650 lbs 26.23 lbs
KM733SD17856825 Gloss Silver w/ Machined Face 17x8.5 25mm 6x139.7 5.73" 106.10mm 2650 lbs 25.57 lbs
KM733MX17853825 Matte Black 17x8.5 25mm 6x130 5.73" 84.10mm 2650 lbs 26.01 lbs
KM733MX17856825 Matte Black 17x8.5 25mm 6x139.7 5.73" 106.10mm 2650 lbs 25.57 lbs
KM733MX17857725 Matte Black 17x8.5 25mm 6x120 5.73" 66.90mm 2650 lbs 25.57 lbs
KM733MX17856425 Matte Black 17x8.5 25mm 6x114.3 5.73" 66.06mm 2650 lbs 25.57 lbs
KM733MX17856325 Matte Black 17x8.5 25mm 6x135 5.73" 87.10mm 2650 lbs 26.23 lbs
KM733ZX17856825 Matte Bronze 17x8.5 25mm 6x139.7 5.73" 106.10mm 2650 lbs 25.57 lbs
KM733BX17856035 Gloss Black 17x8.5 35mm 6x139.7 6.13" 108.00mm 2650 lbs 25.79 lbs
KM733SD17856035 Gloss Silver w/ Machined Face 17x8.5 35mm 6x139.7 6.13" 108.00mm 2650 lbs 25.79 lbs
KM733MX17856035 Matte Black 17x8.5 35mm 6x139.7 6.13" 108.00mm 2650 lbs 25.79 lbs
KM733ZX17856035 Matte Bronze 17x8.5 35mm 6x139.7 6.13" 108.00mm 2650 lbs 25.79 lbs
KM733BX18908700 Gloss Black 18x9 0mm 8x170 5.00" 125.10mm 4500 lbs 32.63 lbs
KM733BX18906800 Gloss Black 18x9 0mm 6x139.7 5.00" 106.10mm 2650 lbs 28.00 lbs
KM733BX18908000 Gloss Black 18x9 0mm 8x165.1 5.00" 125.10mm 4500 lbs 32.63 lbs
KM733SD18908000 Gloss Silver w/ Machined Face 18x9 0mm 8x165.1 5.00" 125.10mm 4500 lbs 32.63 lbs
KM733SD18906800 Gloss Silver w/ Machined Face 18x9 0mm 6x139.7 5.00" 106.10mm 2650 lbs 28.00 lbs
KM733SD18908700 Gloss Silver w/ Machined Face 18x9 0mm 8x170 5.00" 125.10mm 4500 lbs 32.63 lbs
KM733MX18908700 Matte Black 18x9 0mm 8x170 5.00" 125.10mm 4500 lbs 32.63 lbs
KM733MX18908000 Matte Black 18x9 0mm 8x165.1 5.00" 125.10mm 4500 lbs 32.63 lbs
KM733MX18905000 Matte Black 18x9 0mm 5x127 5.00" 71.50mm 2650 lbs 28.44 lbs
KM733MX18908800 Matte Black 18x9 0mm 8x180 5.00" 124.20mm 4500 lbs 32.63 lbs
KM733MX18906300 Matte Black 18x9 0mm 6x135 5.00" 87.10mm 2650 lbs 28.88 lbs
KM733MX18906800 Matte Black 18x9 0mm 6x139.7 5.00" 106.10mm 2650 lbs 28.00 lbs
KM733ZX18906800 Matte Bronze 18x9 0mm 6x139.7 5.00" 106.10mm 2650 lbs 28.00 lbs
KM733ZX18908700 Matte Bronze 18x9 0mm 8x170 5.00" 125.10mm 4500 lbs 32.63 lbs
KM733BX18908818 Gloss Black 18x9 18mm 8x180 5.71" 124.20mm 4500 lbs 32.63 lbs
KM733BX18906818 Gloss Black 18x9 18mm 6x139.7 5.71" 106.10mm 2650 lbs 27.56 lbs
KM733BX18908718 Gloss Black 18x9 18mm 8x170 5.71" 125.10mm 4500 lbs 32.63 lbs
KM733BX18908018 Gloss Black 18x9 18mm 8x165.1 5.71" 125.10mm 4500 lbs 32.63 lbs
KM733SD18908018 Gloss Silver w/ Machined Face 18x9 18mm 8x165.1 5.71" 125.10mm 4500 lbs 32.63 lbs
KM733SD18908818 Gloss Silver w/ Machined Face 18x9 18mm 8x180 5.71" 124.20mm 4500 lbs 32.63 lbs
KM733SD18906818 Gloss Silver w/ Machined Face 18x9 18mm 6x139.7 5.71" 106.10mm 2650 lbs 27.56 lbs
KM733SD18908718 Gloss Silver w/ Machined Face 18x9 18mm 8x170 5.71" 125.10mm 4500 lbs 32.63 lbs
KM733MX18906818 Matte Black 18x9 18mm 6x139.7 5.71" 106.10mm 2650 lbs 27.56 lbs
KM733MX18908018 Matte Black 18x9 18mm 8x165.1 5.71" 125.10mm 4500 lbs 32.63 lbs
KM733MX18908718 Matte Black 18x9 18mm 8x170 5.71" 125.10mm 4500 lbs 32.63 lbs
KM733MX18906318 Matte Black 18x9 18mm 6x135 5.71" 87.10mm 2650 lbs 28.44 lbs
KM733MX18908818 Matte Black 18x9 18mm 8x180 5.71" 124.20mm 4500 lbs 32.63 lbs
KM733ZX18908718 Matte Bronze 18x9 18mm 8x170 5.71" 125.10mm 4500 lbs 32.63 lbs
KM733ZX18906818 Matte Bronze 18x9 18mm 6x139.7 5.71" 106.10mm 2650 lbs 27.56 lbs
Finish the whole truck in one order

Complete your build

The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.

Build total (1 items)
$424.00
The complete look for your build.
Set any options above, then add them all in one click — one checkout, one shipment.

KMC Impact FFT Wheel FAQs

What does BRS do?

The Bead Retention System uses machined grooves to grip the tire bead and hold it at low PSI.

Is it a true beadlock?

No. BRS is designed to give grip without the hassle of traditional beadlocks.

Is there a heavy-duty version?

Yes. KMC offers a version rated up to 4,500 lbs.

What finishes does it come in?

Matte Black, Gloss Silver with Machined Face, Gloss Black and Matte Bronze.
