Warranty Information
Vendor warranty summary
KMC Wheels Warranty
At a glance: Structural warranty for as long as the original buyer owns the wheels; 1–2 years on finish
This is KMC Wheels's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Structure (aluminum wheels) | As long as the original retail purchaser owns them |
| Materials and workmanship | 1 year |
| Chrome finish (peeling/lifting only) | 1 year |
| Painted finish (peeling/lifting) | 1 year |
| PVD finish (peeling/lifting) | 2 years |
| Polished aluminum finish | Not covered |
| Steel wheels | 90 days |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use while the original buyer owns the wheel
- Defects in materials and workmanship for one year
- Chrome and painted finishes against peeling or lifting for one year
- PVD finishes against peeling or lifting for two years
- Approved claims are repaired or replaced
What's not covered
- Pitting on chrome
- Polished aluminum finishes
- Not following installation guidelines
- Improper care or harsh/caustic cleaners
- Accidents or road hazards
- Racing or off-road abuse
- Removal, shipping and reinstallation costs
- Second owners — warranty ends when the wheels change hands
How to make a KMC Wheels warranty claim
- Take or return the wheel to the dealer you bought it from
- Bring the original sales receipt
- KMC inspects and, if approved, repairs or replaces the wheel
KMC Wheels contact: Phone: 877-757-9222 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to KMC Wheels, and help it along either way.
Shop KMC Wheels at NVMOS
See all KMC Wheels products, lead times and FAQs →
Disclaimer: The information on this page describes KMC Wheels's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: KMC Wheels official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
KMC has been making wheels since 1982, with a range built around off-road trucks, Jeeps and SUVs. NVMOS carries KMC cast, flow-formed and forged wheels plus true beadlocks, in 15- to 20-inch diameters and 5- to 8-lug patterns, for Jeep, truck and SUV owners.
Based in: Greenwood Village, Colorado · Since: 1982 · Lead time: In stock: ships in 24–48 hours
Shop all 74 KMC WheelsWarrantyAll brands
Warranty terms are set by KMC Wheels, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

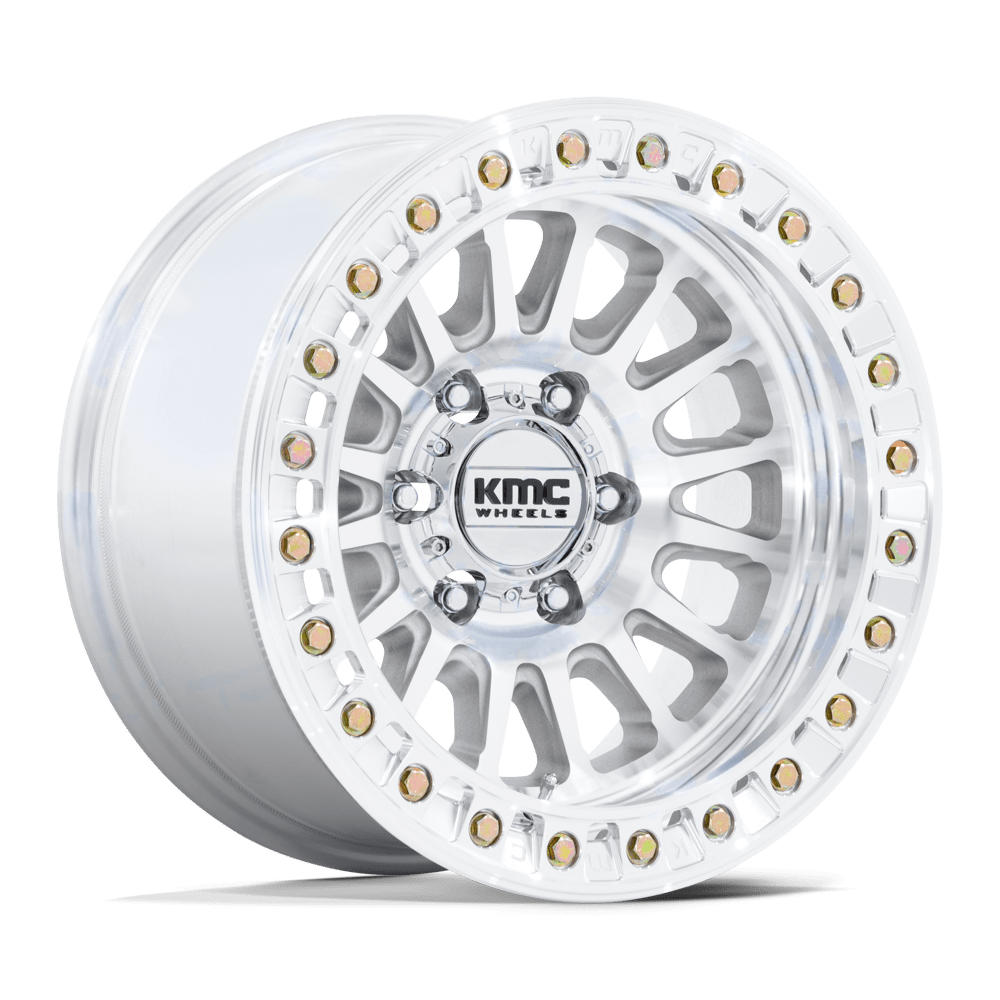

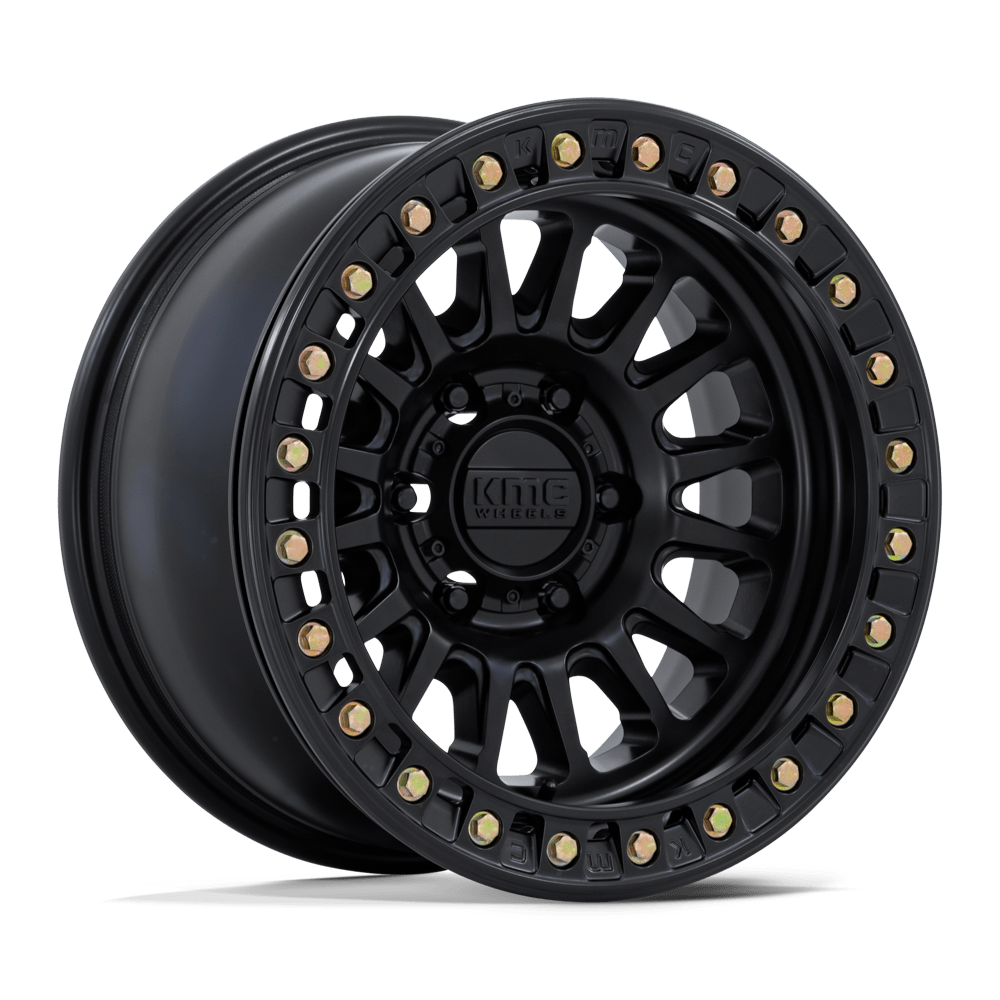

KMC Impact Beadlock Wheel
The KM239 Impact is a functional beadlock wheel made for serious off-road abuse. It keeps your tire locked in when pressure drops and the trail gets wild.
The face has tightly spaced multi-spokes, an ultra-deep lip and cutouts that shed debris fast. It is sized 17x9 with several offsets and bolts up to 5-, 6- and 8-lug applications. KMC suggests Jeep Wrangler, Ford Bronco, Toyota Tacoma and Chevy Silverado. See other wheels too. KMC lists the Impact in 17x9, with several offsets, so the choice comes down to finish, bolt pattern and how far you want the wheel to sit out. There are 16 variants. The lip and face are made for crawling over rocks or blasting through dunes, but confirm brake and suspension clearance for your build.
17x9 with -38mm, -12mm, +1mm or +25mm offset. Bolt patterns 8x165.1, 6x139.7, 5x127 and 6x135. Off-road use only.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| KM239DX17906012N | Machined | 17x9 -12mm | 6x139.7 | 4.53" | 108.00mm | 3600 lbs | 34.94 lbs |
| KM239DX17905012N | Machined | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 3600 lbs | 35.71 lbs |
| KM239MX17906012N | Matte Black | 17x9 -12mm | 6x139.7 | 4.53" | 108.00mm | 3600 lbs | 34.94 lbs |
| KM239MX17905012N | Matte Black | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 3600 lbs | 35.71 lbs |
| KM239DX17908038N | Machined | 17x9 -38mm | 8x165.1 | 3.50" | 125.10mm | 4000 lbs | 35.49 lbs |
| KM239DX17905038N | Machined | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 4000 lbs | 33.07 lbs |
| KM239MX17905038N | Matte Black | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 4000 lbs | 33.07 lbs |
| KM239MX17908038N | Matte Black | 17x9 -38mm | 8x165.1 | 3.50" | 125.10mm | 4000 lbs | 35.49 lbs |
| KM239DX17906301 | Machined | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 3600 lbs | 34.61 lbs |
| KM239DX17906001 | Machined | 17x9 1mm | 6x139.7 | 5.04" | 108.00mm | 3600 lbs | 33.73 lbs |
| KM239MX17906301 | Matte Black | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 3600 lbs | 34.61 lbs |
| KM239MX17906001 | Matte Black | 17x9 1mm | 6x139.7 | 5.04" | 108.00mm | 3600 lbs | 33.73 lbs |
| KM239DX17906025 | Machined | 17x9 25mm | 6x139.7 | 5.98" | 108.00mm | 2650 lbs | 33.51 lbs |
| KM239DX17906325 | Machined | 17x9 25mm | 6x135 | 5.98" | 87.10mm | 2650 lbs | 34.39 lbs |
| KM239MX17906025 | Matte Black | 17x9 25mm | 6x139.7 | 5.98" | 108.00mm | 2650 lbs | 33.51 lbs |
| KM239MX17906325 | Matte Black | 17x9 25mm | 6x135 | 5.98" | 87.10mm | 2650 lbs | 34.39 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$702.00
$1,728.00
$109.95
$629.99
KMC Impact Beadlock Wheel FAQs
Is it street legal?
Beadlock wheels are sold for off-road use only. Beadlock wheels are sold for off-road use only and can be illegal on public roads in many states and provinces. Check your state and local laws before you buy.
Which finishes are offered?
Machined and Matte Black.
What bolt patterns are available?
8x165.1, 6x139.7, 5x127 and 6x135.
What vehicles is it for?
KMC points to the Jeep Wrangler, Ford Bronco, Toyota Tacoma and Chevy Silverado, among 5, 6 and 8-lug applications.
