KMC Grenade Crawl Beadlock Wheel
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
KMC Wheels Warranty
At a glance: Structural warranty for as long as the original buyer owns the wheels; 1–2 years on finish
This is KMC Wheels's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Structure (aluminum wheels) | As long as the original retail purchaser owns them |
| Materials and workmanship | 1 year |
| Chrome finish (peeling/lifting only) | 1 year |
| Painted finish (peeling/lifting) | 1 year |
| PVD finish (peeling/lifting) | 2 years |
| Polished aluminum finish | Not covered |
| Steel wheels | 90 days |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use while the original buyer owns the wheel
- Defects in materials and workmanship for one year
- Chrome and painted finishes against peeling or lifting for one year
- PVD finishes against peeling or lifting for two years
- Approved claims are repaired or replaced
What's not covered
- Pitting on chrome
- Polished aluminum finishes
- Not following installation guidelines
- Improper care or harsh/caustic cleaners
- Accidents or road hazards
- Racing or off-road abuse
- Removal, shipping and reinstallation costs
- Second owners — warranty ends when the wheels change hands
How to make a KMC Wheels warranty claim
- Take or return the wheel to the dealer you bought it from
- Bring the original sales receipt
- KMC inspects and, if approved, repairs or replaces the wheel
KMC Wheels contact: Phone: 877-757-9222 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to KMC Wheels, and help it along either way.
Shop KMC Wheels at NVMOS
See all KMC Wheels products, lead times and FAQs →
Disclaimer: The information on this page describes KMC Wheels's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: KMC Wheels official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
KMC has been making wheels since 1982, with a range built around off-road trucks, Jeeps and SUVs. NVMOS carries KMC cast, flow-formed and forged wheels plus true beadlocks, in 15- to 20-inch diameters and 5- to 8-lug patterns, for Jeep, truck and SUV owners.
Based in: Greenwood Village, Colorado · Since: 1982 · Lead time: In stock: ships in 24–48 hours
Shop all 69 KMC WheelsWarrantyAll brands
Warranty terms are set by KMC Wheels, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.
KMC Grenade Crawl Beadlock Wheel

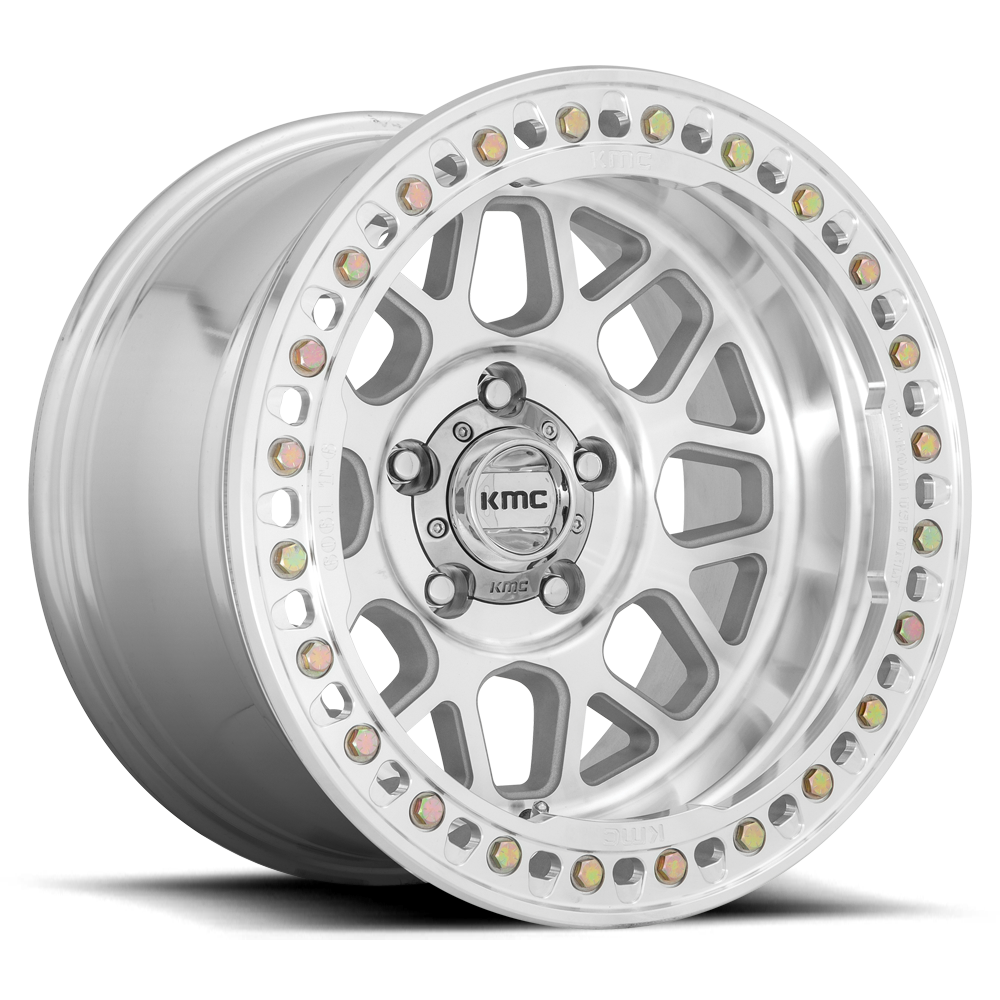

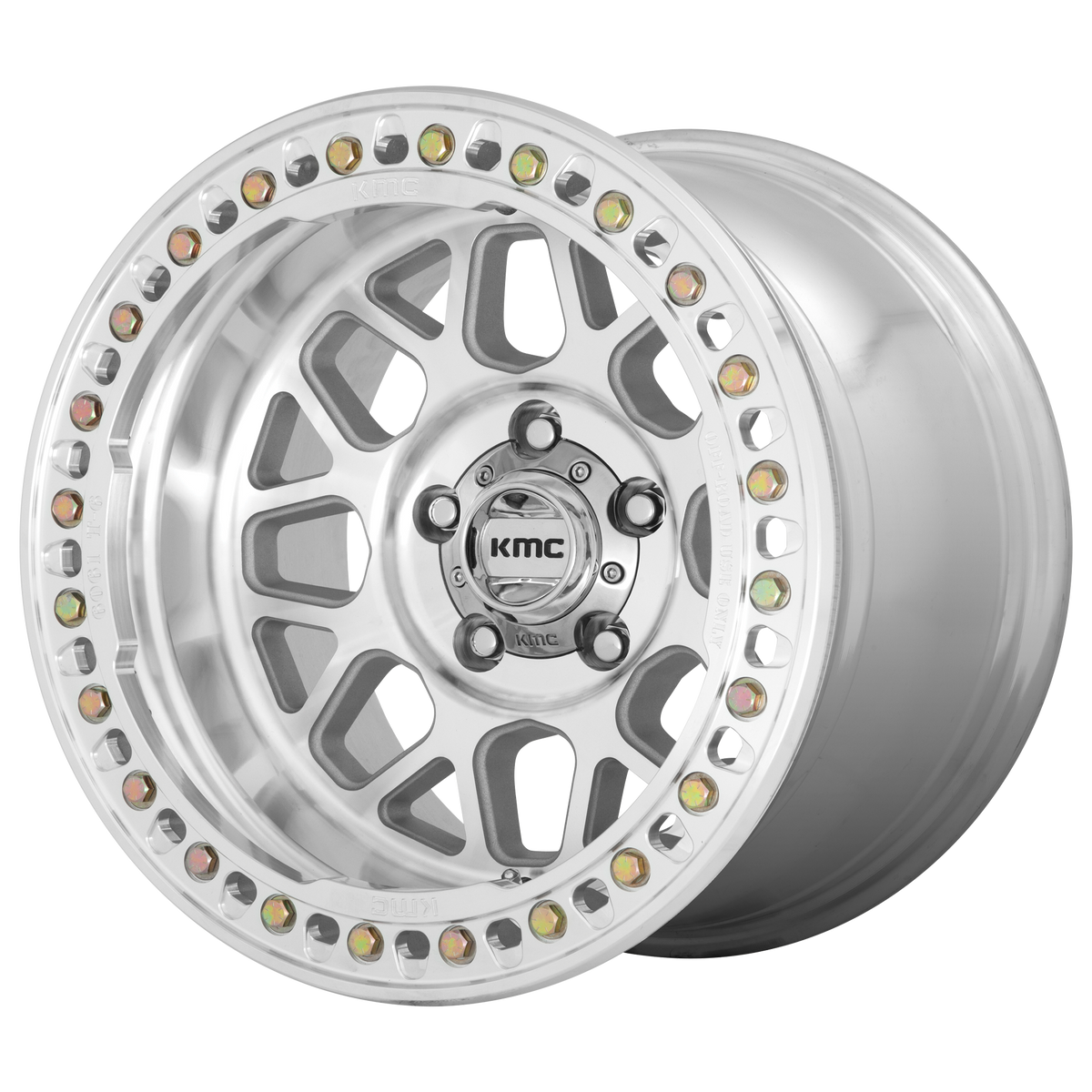

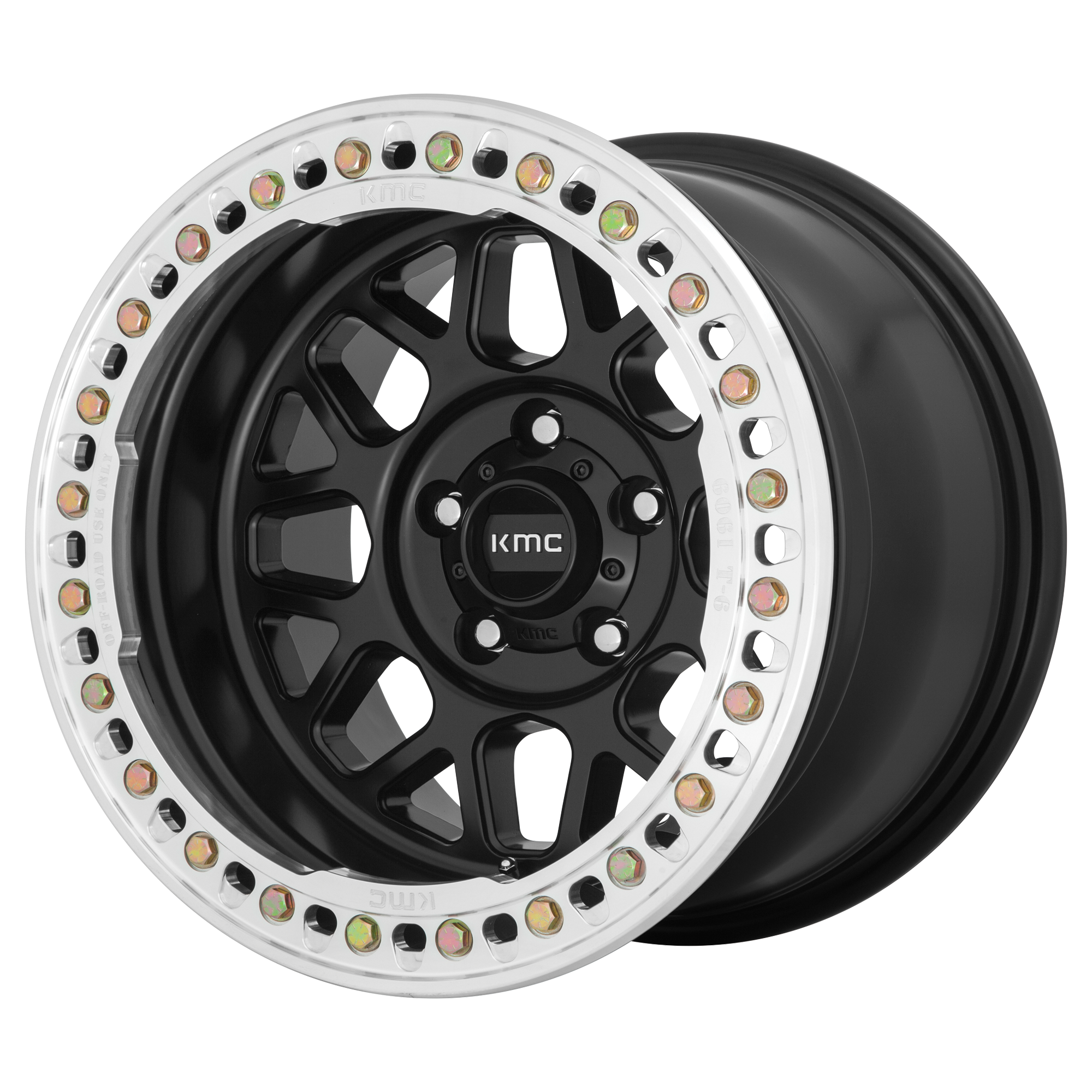

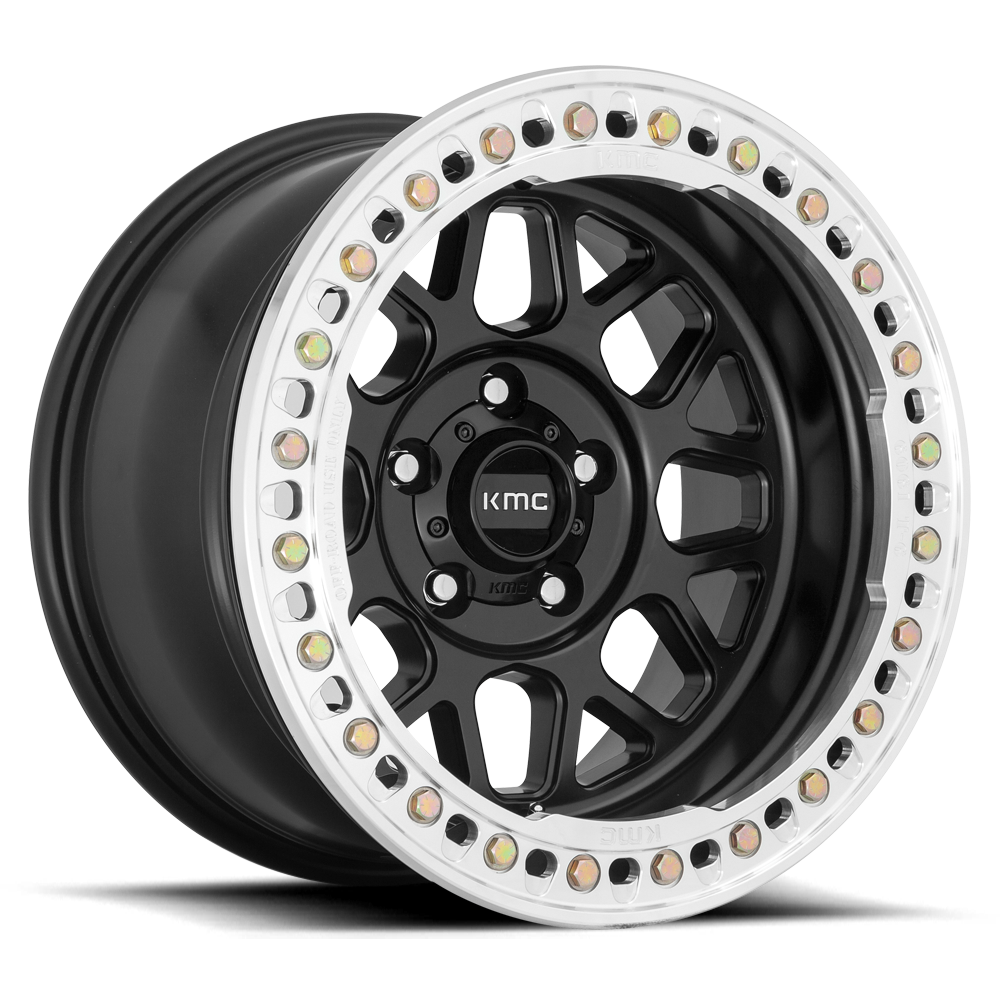

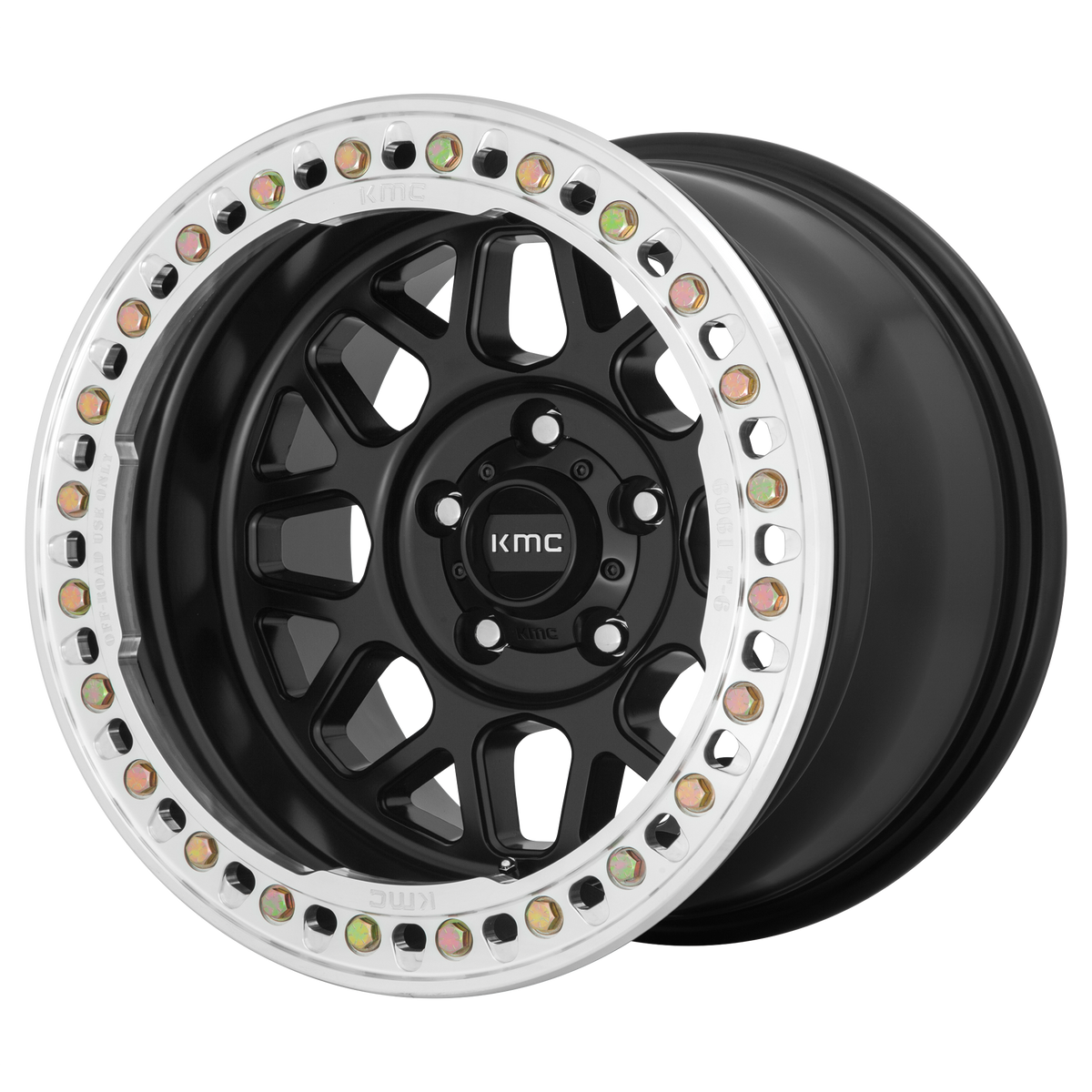

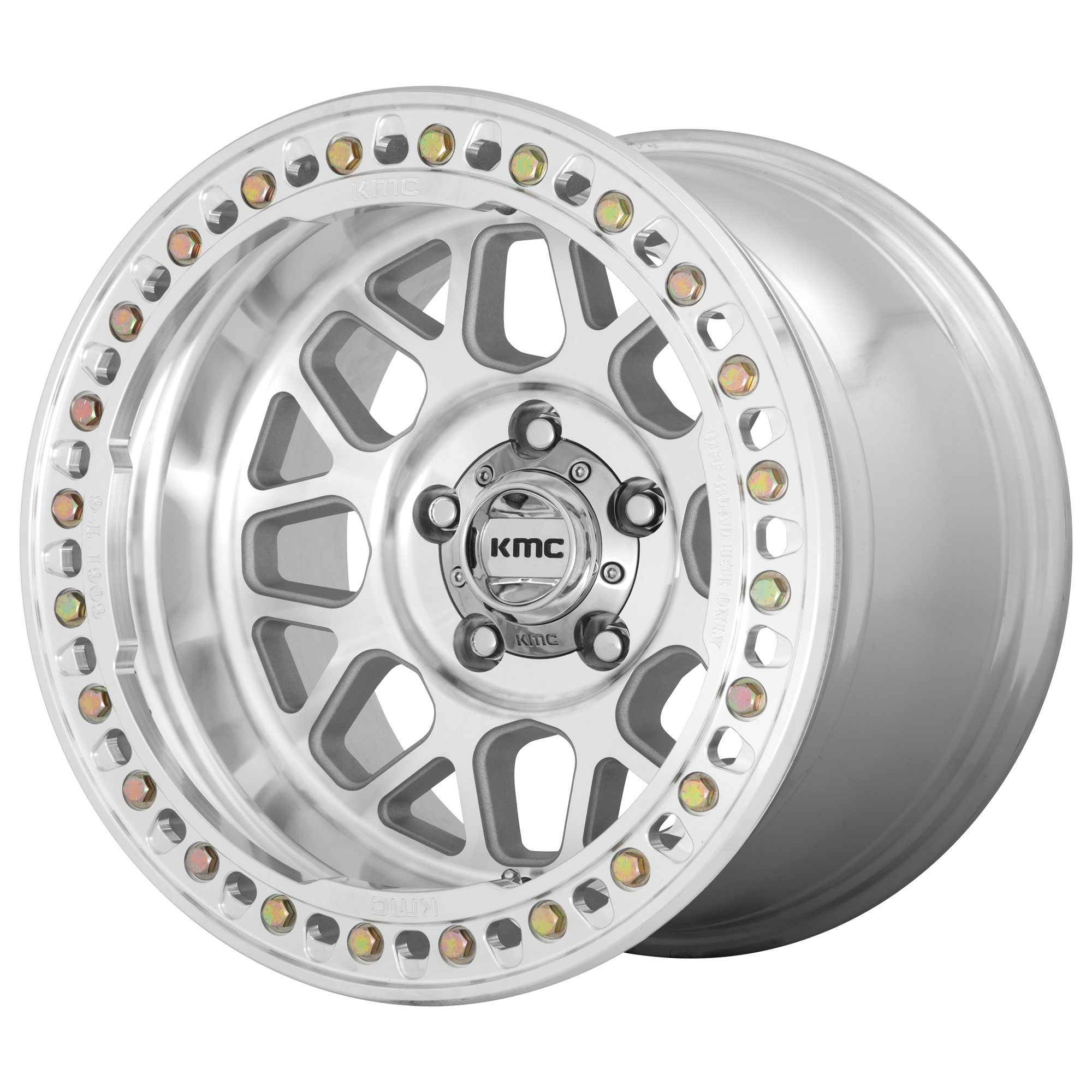

The Grenade Crawl is a beadlock wheel from KMC offered in a broad range of sizes and bolt patterns. Choose Satin Black or Machined, in 17, 18 or 20 inch diameters.
With five bolt patterns and five size and offset options, it covers a lot of off-road builds. Beadlock wheels are for off-road use only. Browse more wheels to compare other styles before you decide. The wheel has 37 variants across finish, size and bolt pattern, so work through bolt pattern first, then size and offset. A wide 20x10 at -48mm sits further out than a 17x8.5 at 0mm, so check fender and suspension clearance before ordering.
Universal. Sizes: 17x8.5 0mm, 17x9 -38mm, 18x9 -24mm, 18x9 +10mm, 20x10 -48mm. Bolt patterns: 6x139.7, 8x165.1, 6x135, 5x127, 8x170. Finishes: Satin Black or Machined. Off-road use only.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| KM23578563500 | Machined | 17x8.5 0mm | 6x135 | 4.75" | 87.10mm | 2500 lbs | 34.26 lbs |
| KM23578560500 | Machined | 17x8.5 0mm | 6x139.7 | 4.75" | 108.00mm | 2500 lbs | 34.26 lbs |
| KM23578580500 | Machined | 17x8.5 0mm | 8x165.1 | 4.75" | 125.10mm | 3640 lbs | 32.97 lbs |
| KM23578550500 | Machined | 17x8.5 0mm | 5x127 | 4.75" | 71.50mm | 2500 lbs | 34.26 lbs |
| KM23578560700 | Satin Black | 17x8.5 0mm | 6x139.7 | 4.75" | 108.00mm | 2500 lbs | 34.26 lbs |
| KM23578563700 | Satin Black | 17x8.5 0mm | 6x135 | 4.75" | 87.10mm | 2500 lbs | 34.26 lbs |
| KM23578580700 | Satin Black | 17x8.5 0mm | 8x165.1 | 4.75" | 125.10mm | 3640 lbs | 32.97 lbs |
| KM23578550700 | Satin Black | 17x8.5 0mm | 5x127 | 4.75" | 71.50mm | 2500 lbs | 32.60 lbs |
| KM23579050538N | Machined | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 2500 lbs | 34.83 lbs |
| KM23579080538N | Machined | 17x9 -38mm | 8x165.1 | 3.50" | 125.10mm | 3640 lbs | 33.81 lbs |
| KM23579060538N | Machined | 17x9 -38mm | 6x139.7 | 3.50" | 108.00mm | 2500 lbs | 34.83 lbs |
| KM23579087538N | Machined | 17x9 -38mm | 8x170 | 3.50" | 125.10mm | 3640 lbs | 33.81 lbs |
| KM23579080738N | Satin Black | 17x9 -38mm | 8x165.1 | 3.50" | 125.10mm | 3640 lbs | 33.81 lbs |
| KM23579050738N | Satin Black | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 2500 lbs | 34.83 lbs |
| KM23579060738N | Satin Black | 17x9 -38mm | 6x139.7 | 3.50" | 108.00mm | 2500 lbs | 34.83 lbs |
| KM23589087524N | Machined | 18x9 -24mm | 8x170 | 4.06" | 125.10mm | 3640 lbs | 40.92 lbs |
| KM23589060524N | Machined | 18x9 -24mm | 6x139.7 | 4.06" | 108.00mm | 2500 lbs | 38.72 lbs |
| KM23589080524N | Machined | 18x9 -24mm | 8x165.1 | 4.06" | 125.10mm | 3640 lbs | 40.92 lbs |
| KM23589050524N | Machined | 18x9 -24mm | 5x127 | 4.06" | 71.50mm | 2500 lbs | 39.82 lbs |
| KM23589063524N | Machined | 18x9 -24mm | 6x135 | 4.06" | 87.10mm | 2500 lbs | 39.38 lbs |
| KM23589063724N | Satin Black | 18x9 -24mm | 6x135 | 4.06" | 87.10mm | 2500 lbs | 39.38 lbs |
| KM23589050724N | Satin Black | 18x9 -24mm | 5x127 | 4.06" | 71.50mm | 2500 lbs | 39.82 lbs |
| KM23589060724N | Satin Black | 18x9 -24mm | 6x139.7 | 4.06" | 108.00mm | 2500 lbs | 38.72 lbs |
| KM23589087724N | Satin Black | 18x9 -24mm | 8x170 | 4.06" | 125.10mm | 3640 lbs | 40.92 lbs |
| KM23589060510 | Machined | 18x9 10mm | 6x139.7 | 5.39" | 108.00mm | 2500 lbs | 35.20 lbs |
| KM23589087510 | Machined | 18x9 10mm | 8x170 | 5.39" | 125.10mm | 3640 lbs | 34.10 lbs |
| KM23589080510 | Machined | 18x9 10mm | 8x165.1 | 5.39" | 125.10mm | 3640 lbs | 33.66 lbs |
| KM23589050510 | Machined | 18x9 10mm | 5x127 | 5.39" | 71.50mm | 2500 lbs | 35.86 lbs |
| KM23589063510 | Machined | 18x9 10mm | 6x135 | 5.39" | 87.10mm | 2500 lbs | 35.75 lbs |
| KM23589060710 | Satin Black | 18x9 10mm | 6x139.7 | 5.39" | 108.00mm | 2500 lbs | 35.20 lbs |
| KM23589080710 | Satin Black | 18x9 10mm | 8x165.1 | 5.39" | 125.10mm | 3640 lbs | 33.66 lbs |
| KM23521080548N | Machined | 20x10 -48mm | 8x165.1 | 3.61" | 125.10mm | 3640 lbs | 44.42 lbs |
| KM23521060548N | Machined | 20x10 -48mm | 6x139.7 | 3.61" | 108.00mm | 2500 lbs | 43.76 lbs |
| KM23521050548N | Machined | 20x10 -48mm | 5x127 | 3.61" | 71.50mm | 2500 lbs | 43.76 lbs |
| KM23521080748N | Satin Black | 20x10 -48mm | 8x165.1 | 3.61" | 125.10mm | 3640 lbs | 44.42 lbs |
| KM23521060748N | Satin Black | 20x10 -48mm | 6x139.7 | 3.61" | 108.00mm | 2500 lbs | 43.76 lbs |
| KM23521050748N | Satin Black | 20x10 -48mm | 5x127 | 3.61" | 71.50mm | 2500 lbs | 43.76 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$620.00
$2,070.95
$109.95
$927.99
Specifications
KMC Grenade Crawl Beadlock Wheel FAQs
Is it street legal?
Beadlock wheels are sold for off-road use only. Beadlock wheels are sold for off-road use only and can be illegal on public roads in many states and provinces. Check your state and local laws before you buy.
What sizes does it come in?
17x8.5 0mm, 17x9 -38mm, 18x9 -24mm, 18x9 +10mm and 20x10 -48mm.
What bolt patterns can I choose?
6x139.7, 8x165.1, 6x135, 5x127 and 8x170.
How do I know which fits my truck?
Match your bolt pattern and needed offset, or email support@nvmos.com with your year and trim.
