ICON Stage 9 Suspension System, Billet, CDXS - Toyota Tacoma 2005-2023
Warranty Information
Vendor warranty summary
ICON Vehicle Dynamics Warranty
At a glance: Lifetime on components, springs and weldments; shocks 12 months for defects
This is ICON Vehicle Dynamics's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Suspension components, springs, weldments | Limited lifetime, original retail purchaser |
| Shocks | 12 months from purchase, manufacturer's defect only |
| Delta Joint | 5 years from purchase (must register within 30 days) |
| Delta Joint Pro | 1 year from purchase |
| Finish | Not covered |
| Wear items (bushings etc.) once worn | Not covered |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Defects in materials and workmanship
- Covers the original retail buyer who owns the vehicle the part was first installed on
What's not covered
- Normal wear; worn wear items are not considered defective
- Finish
- Alterations, modifications, or installs that don't follow ICON's instructions
- Accidents, negligence, abuse or misuse
- Race, police, taxi, government or commercial vehicles
- Products sold outside the USA and Canada
- Delta Joints that weren't registered within 30 days (5-year term)
How to make a ICON Vehicle Dynamics warranty claim
- Gather proof of purchase
- Contact ICON or use the warranty page/form at iconvehicledynamics.com/pages/warranty-form
- Register Delta Joints at iconvehicledynamics.com/deltajointreg within 30 days to keep the 5-year term
- Ship the part to ICON for inspection when asked
- Owner pays service costs if failure came from neglect or improper installation; ICON also offers paid factory shock service
ICON Vehicle Dynamics contact: Phone: 951-689-4266 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to ICON Vehicle Dynamics, and help it along either way.
Shop ICON Vehicle Dynamics at NVMOS
ICON 1996-2004 Toyota Tacoma, 0-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir
ICON 1996-2004 Toyota Tacoma, 0-3" Lift, Front,V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir w/ CDCV, 700 lbs/in Spring Rate
ICON 2008-16 Ford F250/F350 SD 4WD Diesel, 4-6.5” Lift, Front, 2.5 VS RR Coilover Kit
See all ICON Vehicle Dynamics products, lead times and FAQs →
Disclaimer: The information on this page describes ICON Vehicle Dynamics's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: ICON Vehicle Dynamics official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
ICON Vehicle Dynamics builds performance suspension in Riverside, California, from shocks and coilovers to complete Stage systems. NVMOS carries ICON lift kits, coilover kits, upper control arms, leaf springs and parts for Toyota, Jeep, Ford, Chevy/GMC, Ram and Nissan. For drivers who want the whole suspension engineered as one system.
Based in: Riverside, California · Made in: USA (in-house in Riverside) · Lead time: In-stock items ship in 24–48 hours
Shop all 2450 ICON Vehicle DynamicsWarrantyAll brands
Warranty terms are set by ICON Vehicle Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.
The Stage 9 is a complete front and rear Tacoma system built around 2.5 Series Extended Travel coilovers with remote reservoirs and CDXS, paired with ICON-engineered coil springs.
The coilovers are vehicle specific and height adjustable. They work with the included billet aluminum upper control arm to add droop travel up front. The billet arm corrects front-end geometry, adds on-vehicle camber and caster adjustment and improves component clearance.

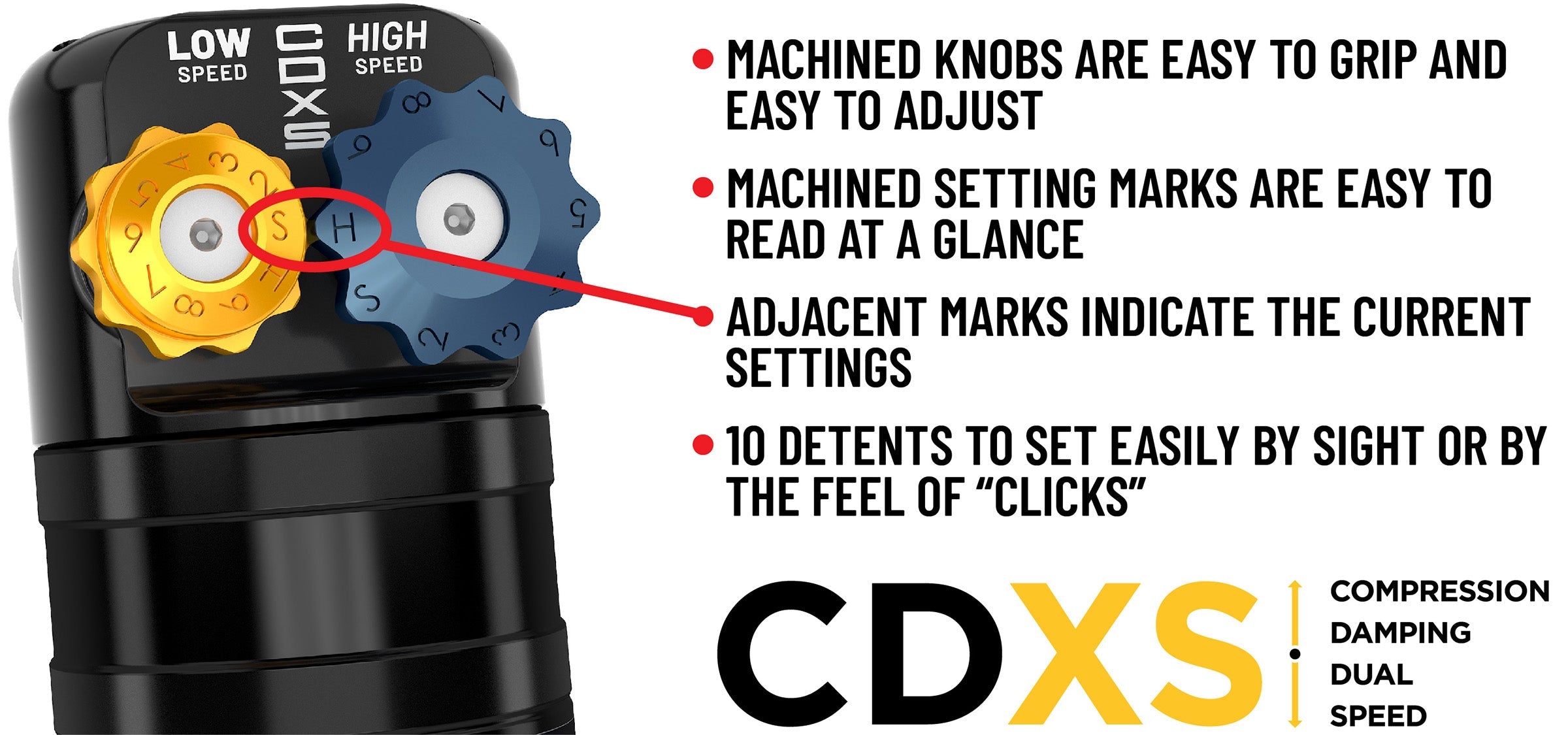

In the rear, ICON multi-rate leaf springs come with an additional leaf that can be exchanged or added to the pack for another 10-20% spring rate. The rear shock is a 2.5 Aluminum Series remote reservoir with CDXS and a side-mount eyelet, which makes it shorter when collapsed and longer at extension.
Fitment
2005-2023 Toyota Tacoma. Coilover height adjusts from 0-3.5" on 2005-2015 trucks and 0-2.75" on 2016-2023 trucks, which leaves room for larger wheel and tire combinations.
What's included

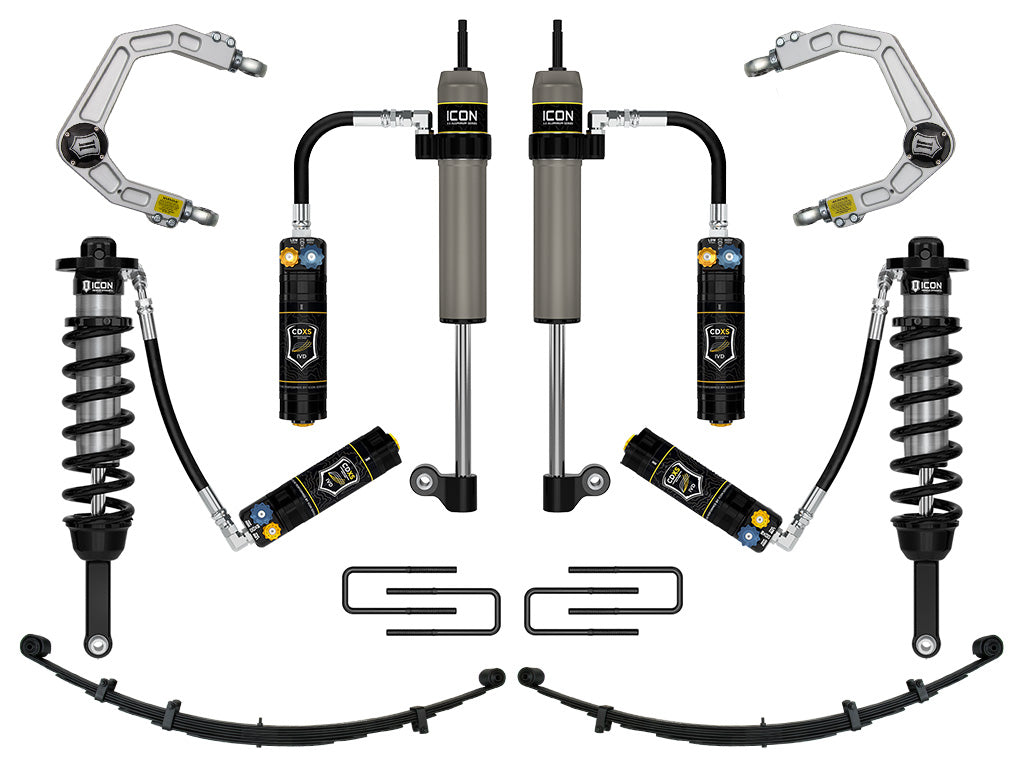

Extended travel 2.5 Series CDXS coilovers with coil springs, an ICON billet upper control arm kit, ICON multi-rate rear leaf springs with an additional leaf, and 2.5 Aluminum Series remote reservoir rear shocks with CDXS.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Complete your Toyota Tacoma build
More parts that fit your Toyota Tacoma and pair well with this one — matched and ready to install.
$6,633.42
$49.99
$20.70
$95.00
$24.99
More for your Toyota Tacoma
Picked from the 1523 parts we carry for the Toyota Tacoma, matched to 2005–2023 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
ICON Stage 9 Suspension System, Billet, CDXS FAQs
What years of Tacoma does this fit?
2005-2023 Toyota Tacoma.
How much can I adjust ride height?
The coilovers are height adjustable from 0-3.5" on 2005-2015 Tacomas and 0-2.75" on 2016-2023 Tacomas.
Billet or tubular upper control arms?
This version has billet aluminum arms with on-vehicle camber and caster adjustment. The tubular version builds in additional caster.
Can I change the rear spring rate?
Yes. The extra leaf in the kit can be swapped in or added to the pack for an additional 10-20% spring rate.
