SKU: D60117858350

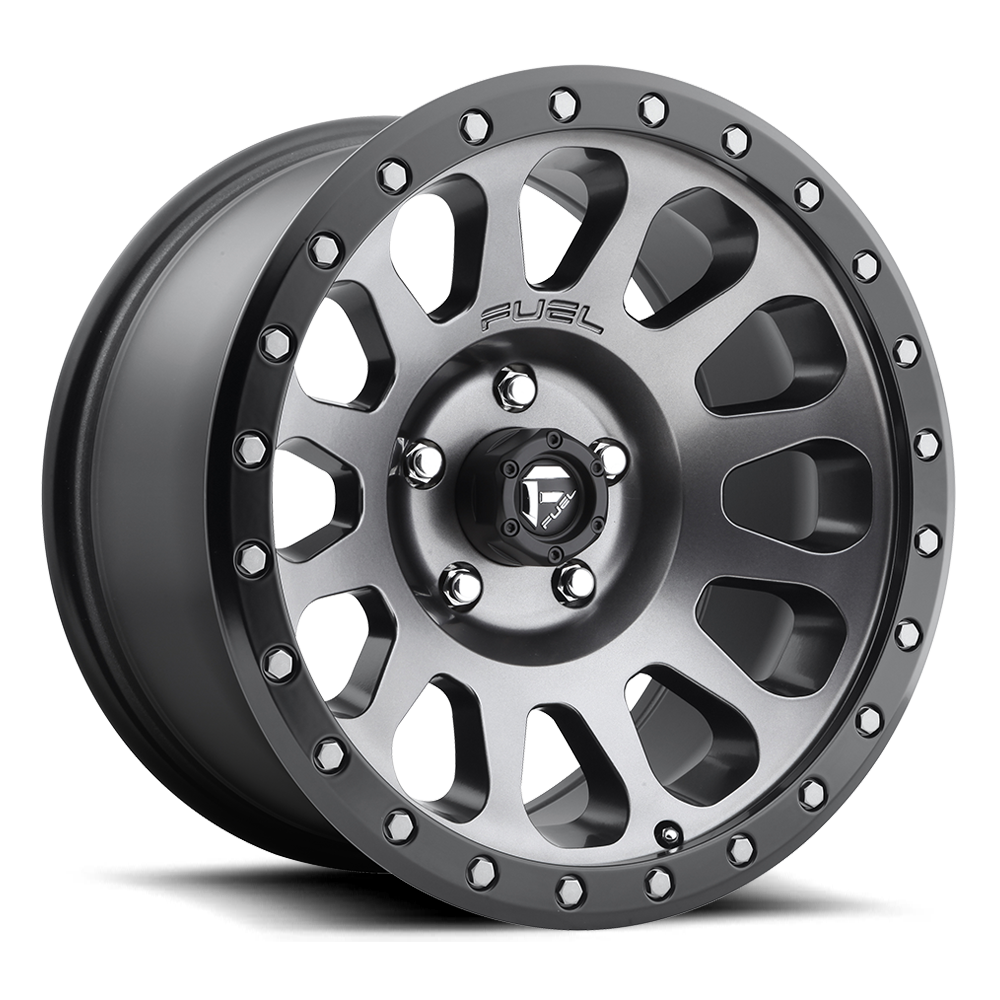

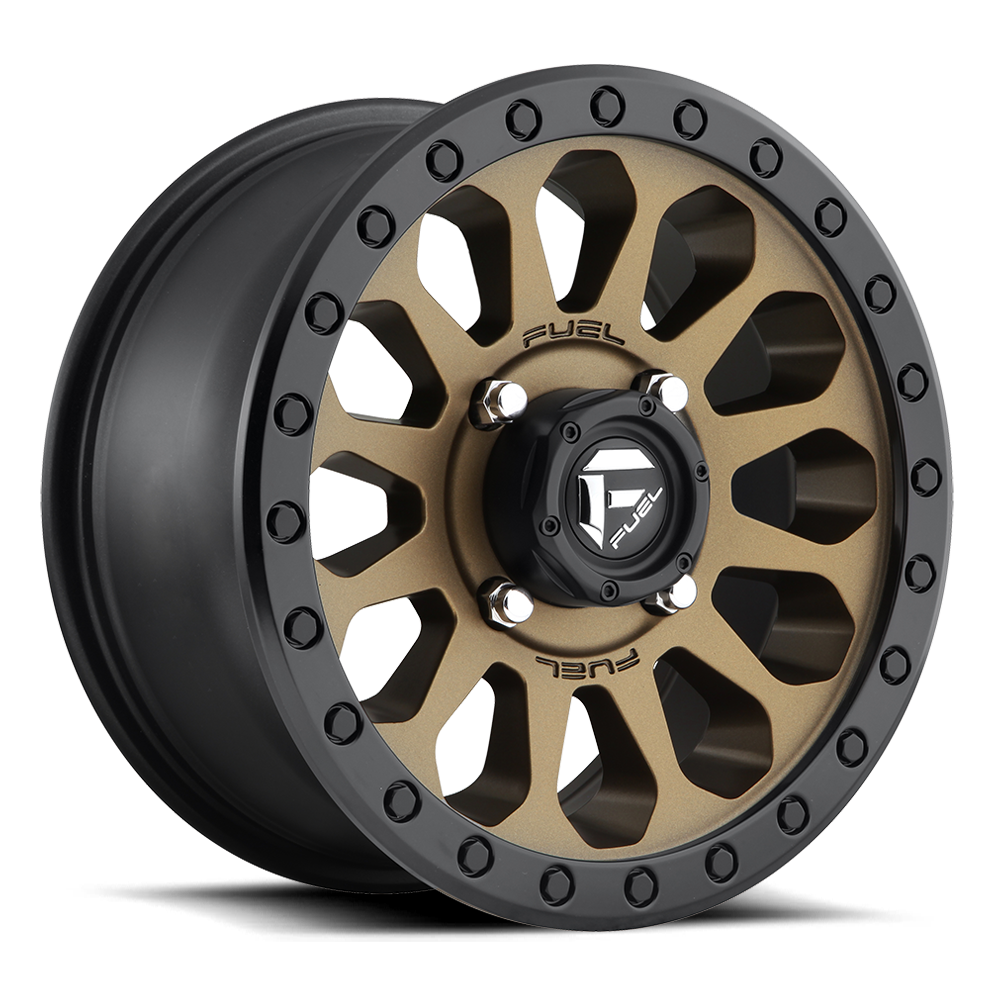

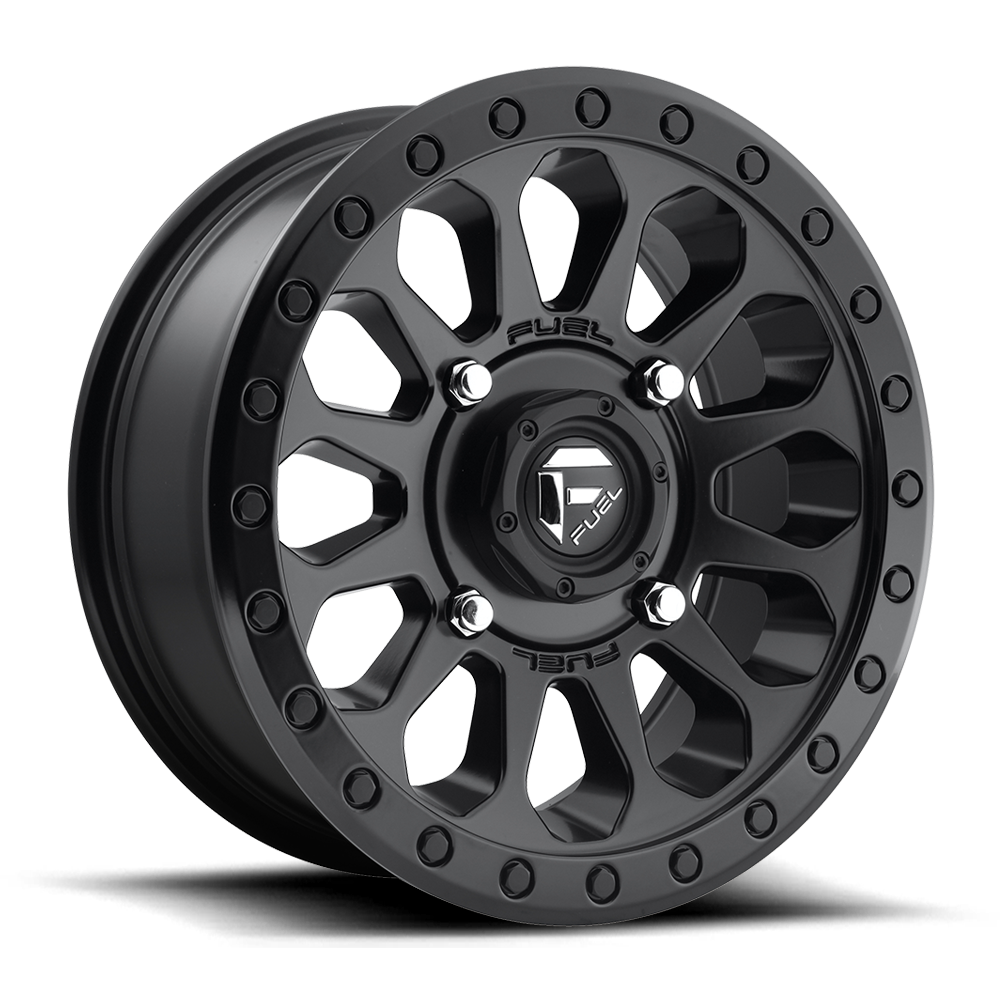

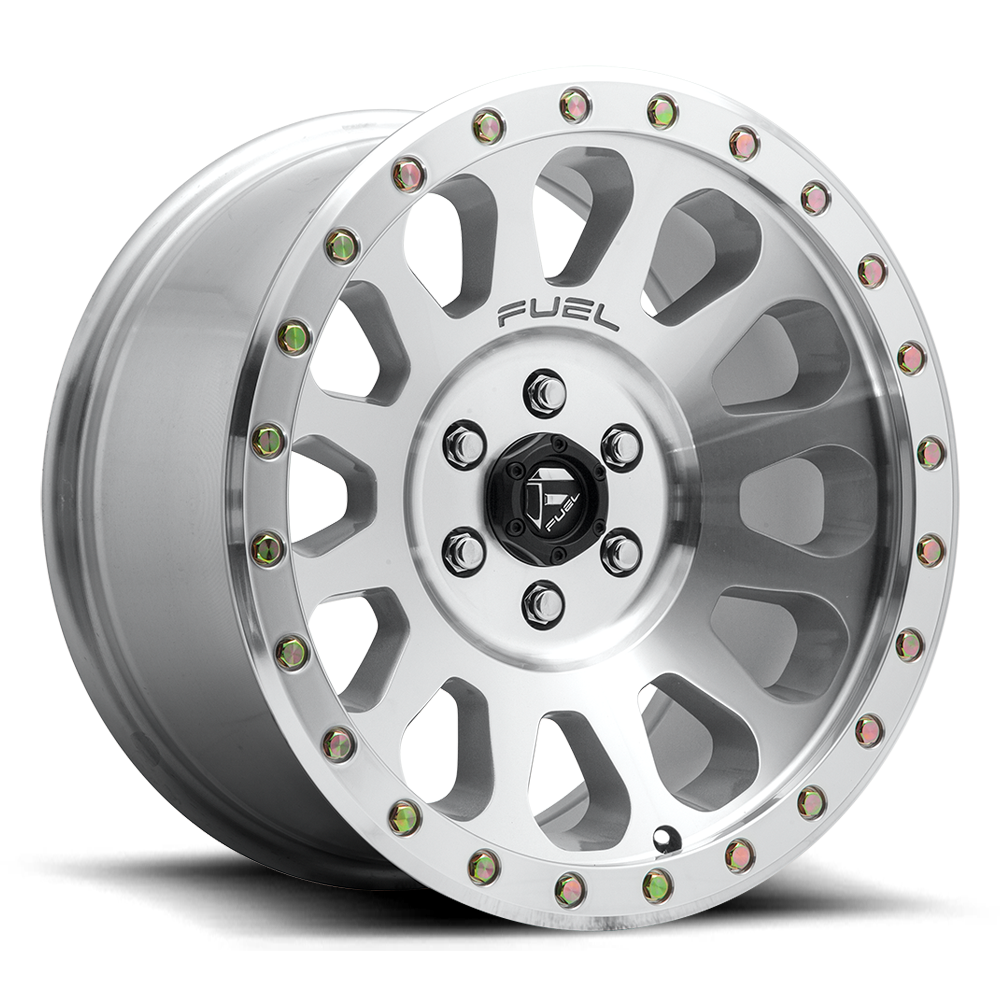

Fuel Vector Wheel
By Fuel
$320.00
Size
Bolt Pattern
180-Day ReturnsOn uninstalled, unused parts
Real humans who wheel(920) 249-7744
PayPal Credit acceptedFinancing option at checkout
Secure checkoutEncrypted payment
Meet the wheel built to get down and dirty. The Fuel Vector shines on the trail and the street with its simple multi-spoke design, mild concave profile, and rugged attitude. Its removable rock guard ring protects the lip from scuffs and scrapes, keeping your wheels in top shape after a hard day on the trails. Available in 16", 17", 18", and 20" diameters with offsets from -18mm to +20mm, the Vector comes in 5-lug, 6-lug, and 8-lug configurations to fit everything from Jeep Wranglers and Toyota Tacomas to Ford F-150s and heavy-duty trucks like the RAM 3500 and Silverado 3500.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D57916808345 | Matte Black | 16x8 1mm | 6x139.7 | 4.54" | 108.00mm | 2100 lbs | 27.00 lbs |
| D57916808750 | Matte Black | 16x8 15mm | 6x114.3 | 5.09" | 66.06mm | 2100 lbs | 27.00 lbs |
| D57916808352 | Matte Black | 16x8 20mm | 6x139.7 | 5.29" | 108.00mm | 2100 lbs | 27.00 lbs |
| D57916806552 | Matte Black | 16x8 20mm | 5x114.3 | 5.29" | 72.56mm | 2100 lbs | 27.00 lbs |
| D64717858345 | Diamond Cut Machined | 17x8.5 -6mm | 6x139.7 | 4.51" | 108.00mm | 2500 lbs | 31.00 lbs |
| D57917858345 | Matte Black | 17x8.5 -6mm | 6x139.7 | 4.51" | 108.00mm | 2500 lbs | 31.00 lbs |
| D64717858350 | Diamond Cut Machined | 17x8.5 7mm | 6x139.7 | 5.03" | 108.00mm | 2500 lbs | 31.00 lbs |
| D57917858950 | Matte Black | 17x8.5 7mm | 6x135 | 5.03" | 87.10mm | 2500 lbs | 31.00 lbs |
| D57917859450 | Matte Black | 17x8.5 7mm | 6x120 | 5.03" | 67.06mm | 2500 lbs | 31.00 lbs |
| D57917858350 | Matte Black | 17x8.5 7mm | 6x139.7 | 5.03" | 108.00mm | 2500 lbs | 31.00 lbs |
| D60017858350 | Matte Bronze Black Bead Ring | 17x8.5 7mm | 6x139.7 | 5.03" | 108.00mm | 2500 lbs | 31.00 lbs |
| D60117858350 | Matte Gunmetal Black Bead Ring | 17x8.5 7mm | 6x139.7 | 5.03" | 108.00mm | 2500 lbs | 31.00 lbs |
| D64717907345 | Diamond Cut Machined | 17x9 -12mm | 5x127 | 4.53" | 78.10mm | 2500 lbs | 32.00 lbs |
| D57917907345 | Matte Black | 17x9 -12mm | 5x127 | 4.53" | 78.10mm | 2500 lbs | 32.00 lbs |
| D57917908945 | Matte Black | 17x9 -12mm | 6x135 | 4.53" | 87.10mm | 2500 lbs | 32.00 lbs |
| D57917908345 | Matte Black | 17x9 -12mm | 6x139.7 | 4.53" | 108.00mm | 2500 lbs | 32.00 lbs |
| D60017908345 | Matte Bronze Black Bead Ring | 17x9 -12mm | 6x139.7 | 4.53" | 108.00mm | 2500 lbs | 32.00 lbs |
| D60017907345 | Matte Bronze Black Bead Ring | 17x9 -12mm | 5x127 | 4.53" | 78.10mm | 2500 lbs | 32.00 lbs |
| D60117907345 | Matte Gunmetal Black Bead Ring | 17x9 -12mm | 5x127 | 4.53" | 78.10mm | 2500 lbs | 32.00 lbs |
| D60117908345 | Matte Gunmetal Black Bead Ring | 17x9 -12mm | 6x139.7 | 4.53" | 108.00mm | 2500 lbs | 32.00 lbs |
| D64718908450 | Diamond Cut Machined | 18x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 41.00 lbs |
| D57918901750 | Matte Black | 18x9 1mm | 8x170 | 5.04" | 125.10mm | 3500 lbs | 42.00 lbs |
| D57918908350 | Matte Black | 18x9 1mm | 6x139.7 | 5.04" | 108.00mm | 2500 lbs | 41.00 lbs |
| D57918908950 | Matte Black | 18x9 1mm | 6x135 | 5.04" | 87.10mm | 2500 lbs | 41.00 lbs |
| D57918907350 | Matte Black | 18x9 1mm | 5x127 | 5.04" | 78.10mm | 2500 lbs | 41.00 lbs |
| D57918908250 | Matte Black | 18x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3500 lbs | 42.00 lbs |
| D57918905650 | Matte Black | 18x9 1mm | 5x150 | 5.04" | 110.10mm | 2500 lbs | 41.00 lbs |
| D60118908950 | Matte Gunmetal Black Bead Ring | 18x9 1mm | 6x135 | 5.04" | 87.10mm | 2500 lbs | 41.00 lbs |
| D60118908250 | Matte Gunmetal Black Bead Ring | 18x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3500 lbs | 41.00 lbs |
| D60118908350 | Matte Gunmetal Black Bead Ring | 18x9 1mm | 6x139.7 | 5.04" | 108.00mm | 2500 lbs | 41.00 lbs |
| D57918909452 | Matte Black | 18x9 6mm | 6x120 | 5.24" | 67.06mm | 2500 lbs | 41.00 lbs |
| D57918908456 | Matte Black | 18x9 19mm | 6x139.7 | 5.75" | 106.10mm | 2500 lbs | 41.00 lbs |
| D57918908957 | Matte Black | 18x9 20mm | 6x135 | 5.79" | 87.10mm | 2500 lbs | 41.00 lbs |
| D57918905657 | Matte Black | 18x9 20mm | 5x150 | 5.79" | 110.10mm | 2500 lbs | 41.00 lbs |
| D57918908257 | Matte Black | 18x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3500 lbs | 42.00 lbs |
| D57920908950 | Matte Black | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2500 lbs | 40.00 lbs |
| D57920908350 | Matte Black | 20x9 1mm | 6x139.7 | 5.04" | 108.00mm | 2500 lbs | 40.00 lbs |
| D57920908250 | Matte Black | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3500 lbs | 47.00 lbs |
| D57920905650 | Matte Black | 20x9 1mm | 5x150 | 5.04" | 110.10mm | 2500 lbs | 40.00 lbs |
| D57920907350 | Matte Black | 20x9 1mm | 5x127 | 5.04" | 78.10mm | 2500 lbs | 40.00 lbs |
| D57920901750 | Matte Black | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3500 lbs | 47.00 lbs |
| D57920908456 | Matte Black | 20x9 19mm | 6x139.7 | 5.75" | 106.10mm | 2500 lbs | 40.00 lbs |
| D57920905657 | Matte Black | 20x9 20mm | 5x150 | 5.79" | 110.10mm | 2500 lbs | 40.00 lbs |
| D57920901857 | Matte Black | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3500 lbs | 47.00 lbs |
| D57920908957 | Matte Black | 20x9 20mm | 6x135 | 5.79" | 87.10mm | 2500 lbs | 40.00 lbs |
| D64720007347 | Diamond Cut Machined | 20x10 -18mm | 5x127 | 4.79" | 78.10mm | 2500 lbs | 44.00 lbs |
| D57920001747 | Matte Black | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 52.00 lbs |
| D57920008347 | Matte Black | 20x10 -18mm | 6x139.7 | 4.79" | 108.00mm | 2500 lbs | 44.00 lbs |
| D57920007347 | Matte Black | 20x10 -18mm | 5x127 | 4.79" | 78.10mm | 2500 lbs | 44.00 lbs |
| D57920008247 | Matte Black | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 52.00 lbs |
