SKU: D56020901757
Fuel Vapor Wheel - 20"
By Fuel
$435.00
Size
Bolt Pattern
180-Day ReturnsOn uninstalled, unused parts
Real humans who wheel(920) 249-7744
PayPal Credit acceptedFinancing option at checkout
Secure checkoutEncrypted payment

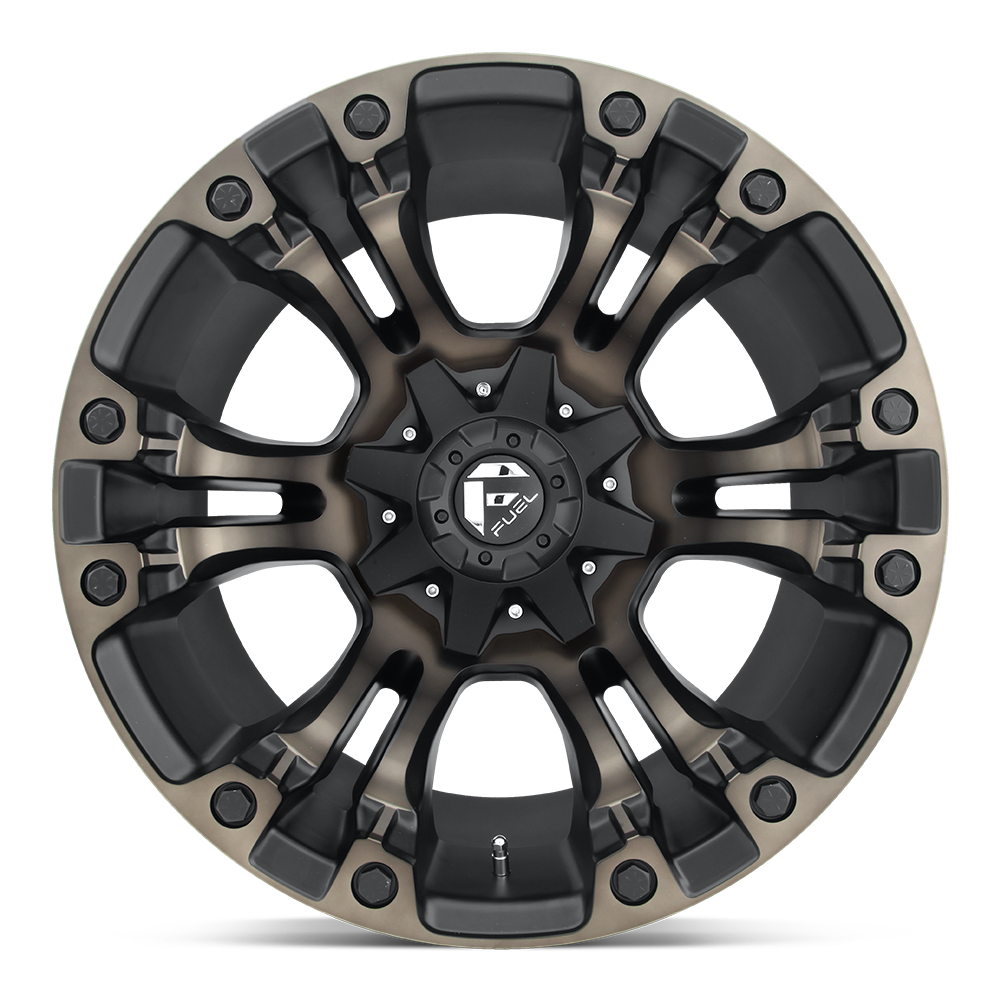

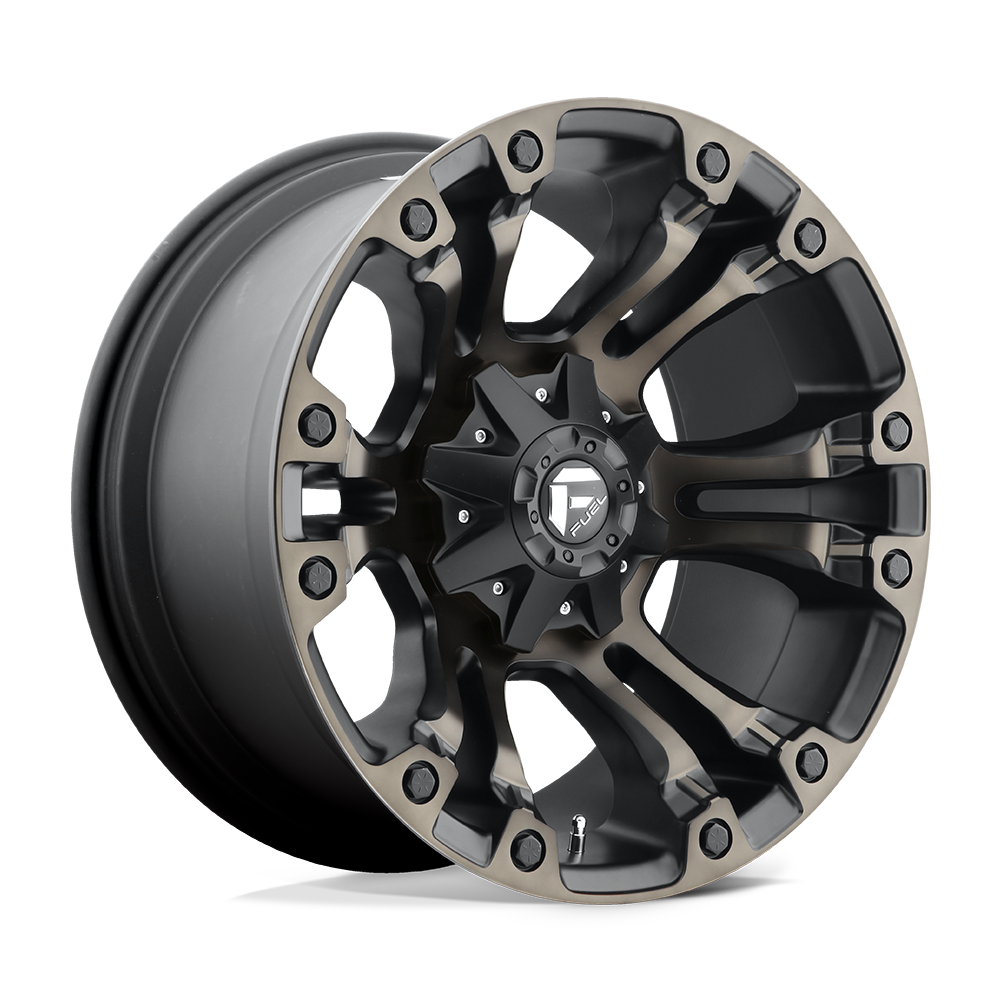

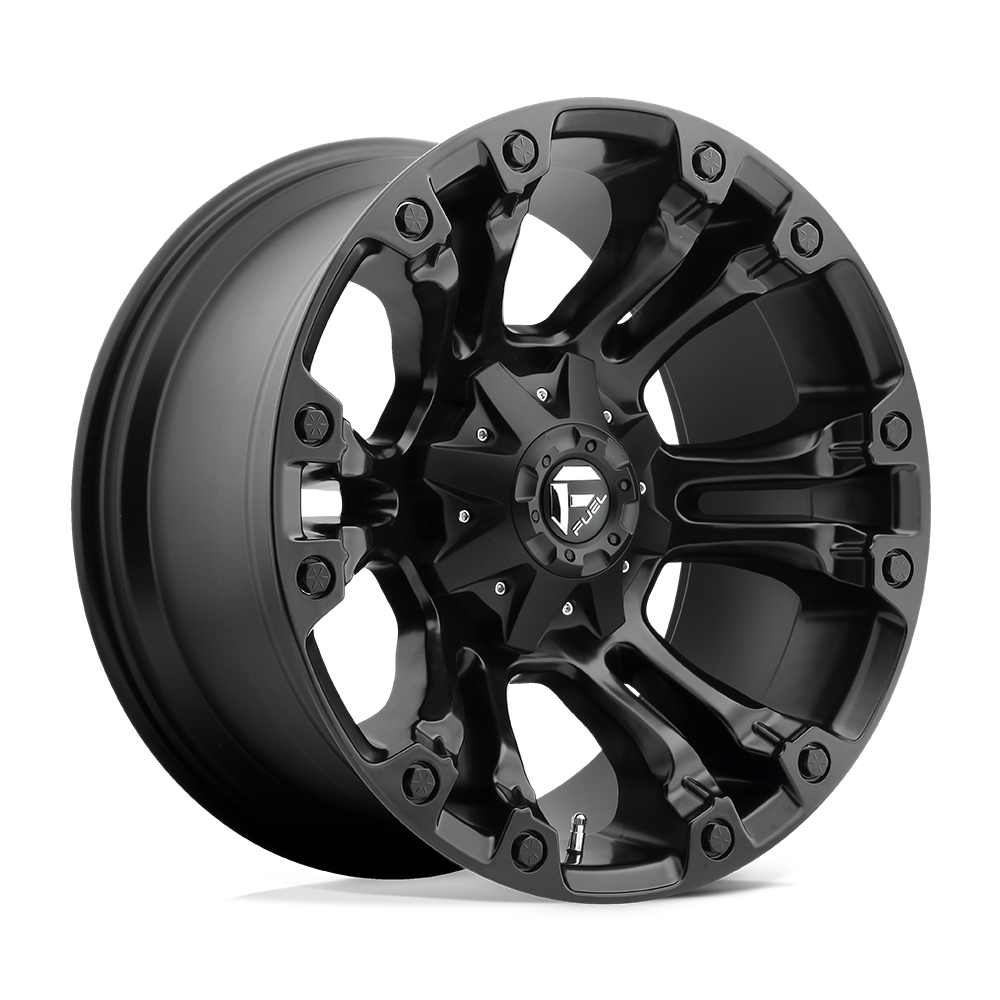

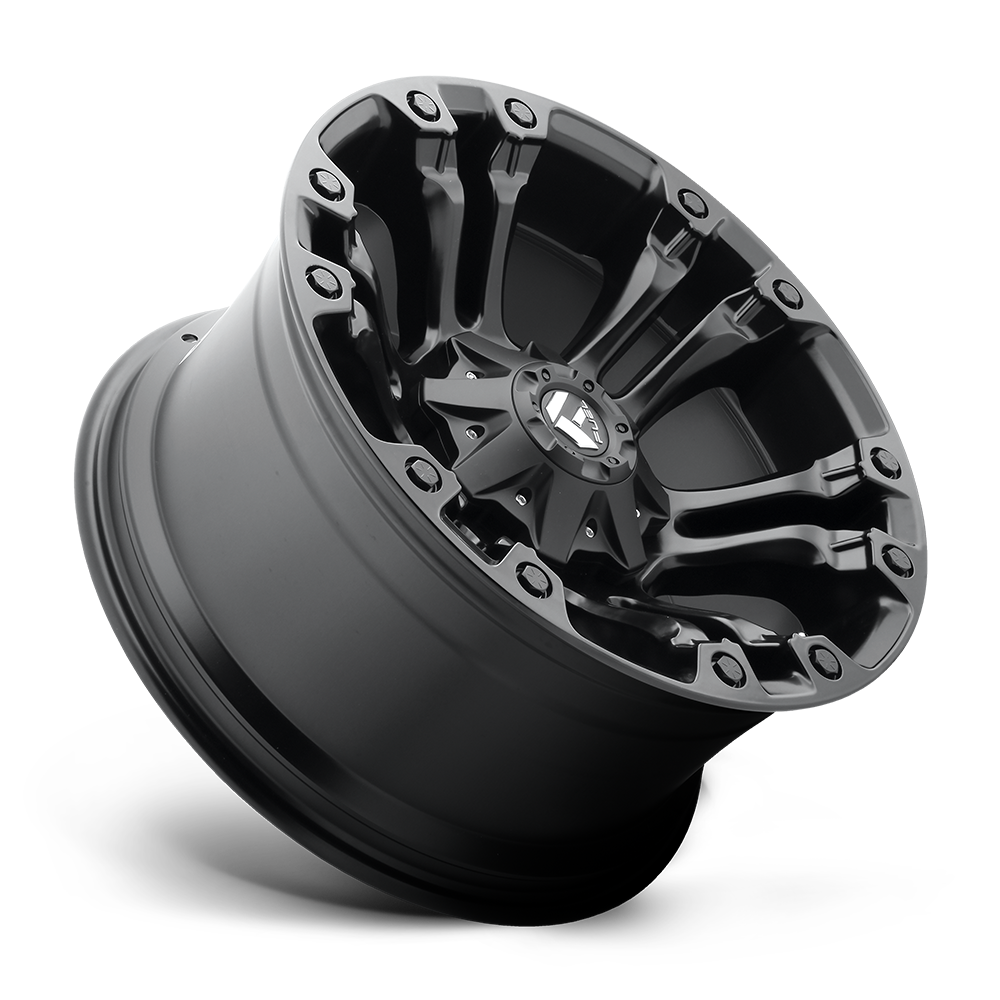

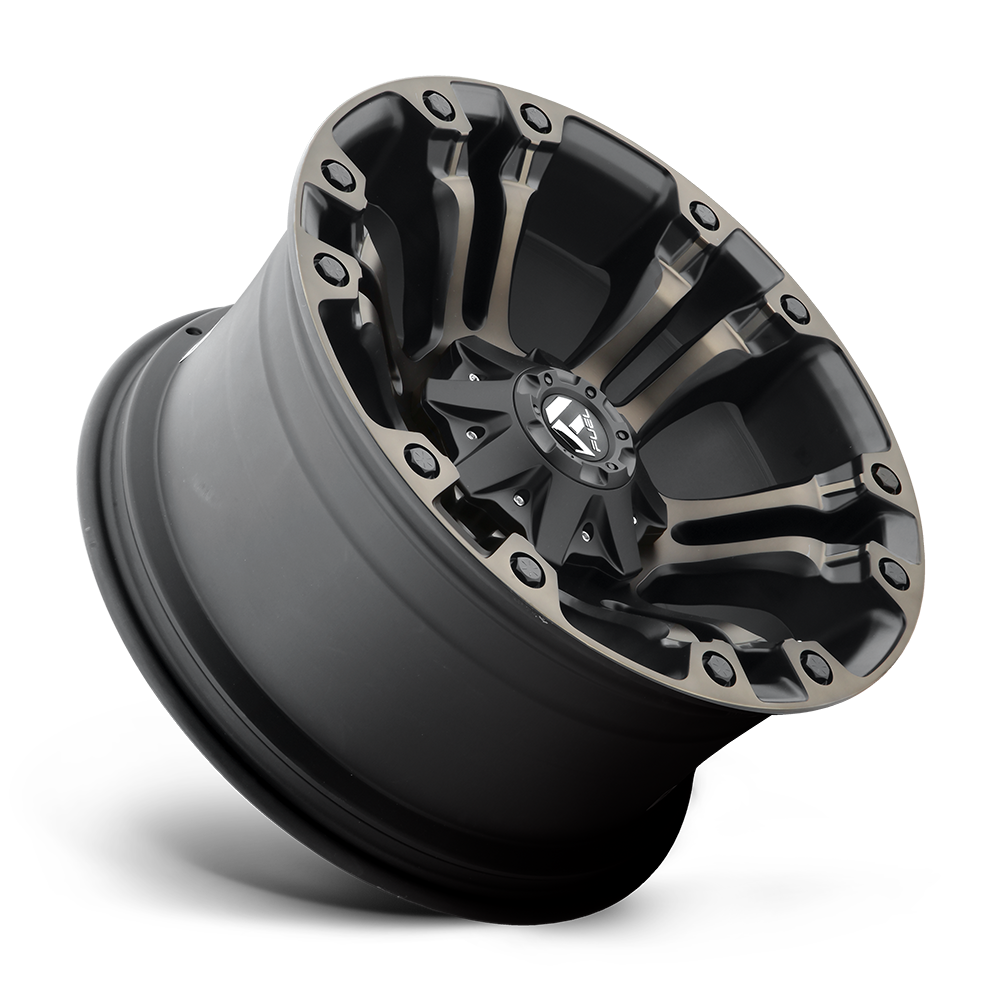

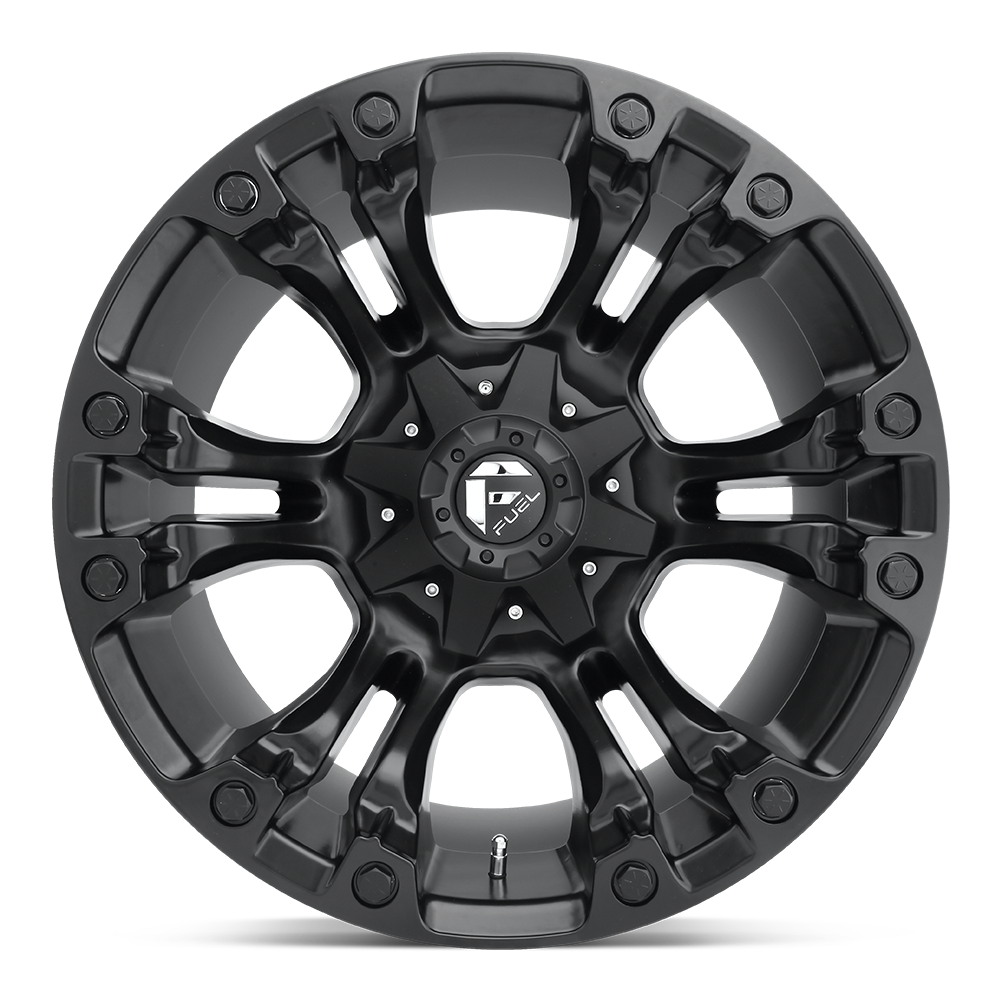

The Fuel Vapor makes a bold statement with its thick, concave spoke design and rugged attitude, built to handle serious off-road challenges. This one-piece cast wheel combines strength and style, with load ratings up to 3,700 lbs to back up its looks. Available in 5-lug, 6-lug, and 8-lug configurations, the Vapor is a solid choice for everything from Jeep Wranglers and Toyota Tacomas to Ford F-150s and heavy-duty trucks like the Silverado 3500 and RAM 3500.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D56020908250 | Matte Black | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 46.00 lbs |
| D56020907050 | Matte Black | 20x9 1mm | 5x139.7/5x150 | 5.04" | 110.10mm | 2500 lbs | 46.00 lbs |
| D56020901750 | Matte Black | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 46.00 lbs |
| D56020901850 | Matte Black | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 46.00 lbs |
| D56020902650 | Matte Black | 20x9 1mm | 5x114.3/5x127 | 5.04" | 78.10mm | 2500 lbs | 46.00 lbs |
| D56920901850A | Matte Black Double Dark Tint | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 46.00 lbs |
| D56920902650A | Matte Black Double Dark Tint | 20x9 1mm | 5x114.3/5x127 | 5.04" | 78.10mm | 2500 lbs | 46.00 lbs |
| D56920907050A | Matte Black Double Dark Tint | 20x9 1mm | 5x139.7/5x150 | 5.04" | 110.10mm | 2500 lbs | 46.00 lbs |
| D85120908250A | Matte Black Gray Tint | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 46.00 lbs |
| D85120901850A | Matte Black Gray Tint | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 46.00 lbs |
| D56020909849 | Matte Black | 20x9 2mm | 6x135/6x139.7 | 5.08" | 106.10mm | 2500 lbs | 44.00 lbs |
| D56920909849A | Matte Black Double Dark Tint | 20x9 2mm | 6x135/6x139.7 | 5.08" | 106.10mm | 2500 lbs | 44.00 lbs |
| D85120909849A | Matte Black Gray Tint | 20x9 2mm | 6x135/6x139.7 | 5.08" | 106.10mm | 2500 lbs | 44.00 lbs |
| D56020909856 | Matte Black | 20x9 19mm | 6x135/6x139.7 | 5.75" | 106.10mm | 2500 lbs | 45.41 lbs |
| D56920909856A | Matte Black Double Dark Tint | 20x9 19mm | 6x135/6x139.7 | 5.75" | 106.10mm | 2500 lbs | 45.41 lbs |
| D85120909856A | Matte Black Gray Tint | 20x9 19mm | 6x135/6x139.7 | 5.75" | 106.10mm | 2500 lbs | 45.41 lbs |
| D56020901757 | Matte Black | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3700 lbs | 47.00 lbs |
| D56020908257 | Matte Black | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 47.00 lbs |
| D56020907057 | Matte Black | 20x9 20mm | 5x139.7/5x150 | 5.79" | 110.10mm | 2500 lbs | 47.00 lbs |
| D56020901857 | Matte Black | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 47.00 lbs |
| D56020900557 | Matte Black | 20x9 20mm | 5x127/5x135 | 5.79" | 87.10mm | 2500 lbs | 47.00 lbs |
| D56920901857A | Matte Black Double Dark Tint | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 47.00 lbs |
| D56920908257A | Matte Black Double Dark Tint | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 47.00 lbs |
| D56920901757A | Matte Black Double Dark Tint | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3700 lbs | 47.00 lbs |
| D56920907057A | Matte Black Double Dark Tint | 20x9 20mm | 5x139.7/5x150 | 5.79" | 110.10mm | 2500 lbs | 47.00 lbs |
| D85120901757A | Matte Black Gray Tint | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3700 lbs | 47.00 lbs |
| D85120901857A | Matte Black Gray Tint | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 47.00 lbs |
| D85120908257A | Matte Black Gray Tint | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 47.00 lbs |
| D85120907057A | Matte Black Gray Tint | 20x9 20mm | 5x139.7/5x150 | 5.79" | 110.10mm | 2500 lbs | 47.00 lbs |
| D56020905263 | Matte Black | 20x9 35mm | 5x114.3/5x120 | 6.38" | 72.56mm | 2500 lbs | 44.75 lbs |
| D56020905663 | Matte Black | 20x9 35mm | 5x150 | 6.38" | 110.10mm | 2500 lbs | 44.31 lbs |
| D85120905263A | Matte Black Gray Tint | 20x9 35mm | 5x114.3/5x120 | 6.38" | 72.56mm | 2500 lbs | 44.75 lbs |
| D56020001847 | Matte Black | 20x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 47.00 lbs |
| D56020009846 | Matte Black | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2500 lbs | 47.00 lbs |
| D56020007047 | Matte Black | 20x10 -18mm | 5x139.7/5x150 | 4.79" | 110.10mm | 2500 lbs | 47.00 lbs |
| D56020001747 | Matte Black | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 47.00 lbs |
| D56020008247 | Matte Black | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 47.00 lbs |
| D56020002647 | Matte Black | 20x10 -18mm | 5x114.3/5x127 | 4.79" | 78.10mm | 2500 lbs | 47.00 lbs |
| D56920007047A | Matte Black Double Dark Tint | 20x10 -18mm | 5x139.7/5x150 | 4.79" | 110.10mm | 2500 lbs | 47.00 lbs |
| D56920009846A | Matte Black Double Dark Tint | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2500 lbs | 47.00 lbs |
| D56920002647A | Matte Black Double Dark Tint | 20x10 -18mm | 5x114.3/5x127 | ||||
| D85120001747A | Matte Black Gray Tint | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 47.00 lbs |
| D85120009846A | Matte Black Gray Tint | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2500 lbs | 47.00 lbs |
| D85120002647A | Matte Black Gray Tint | 20x10 -18mm | 5x114.3/5x127 | 4.79" | 78.10mm | 2500 lbs | 47.00 lbs |
