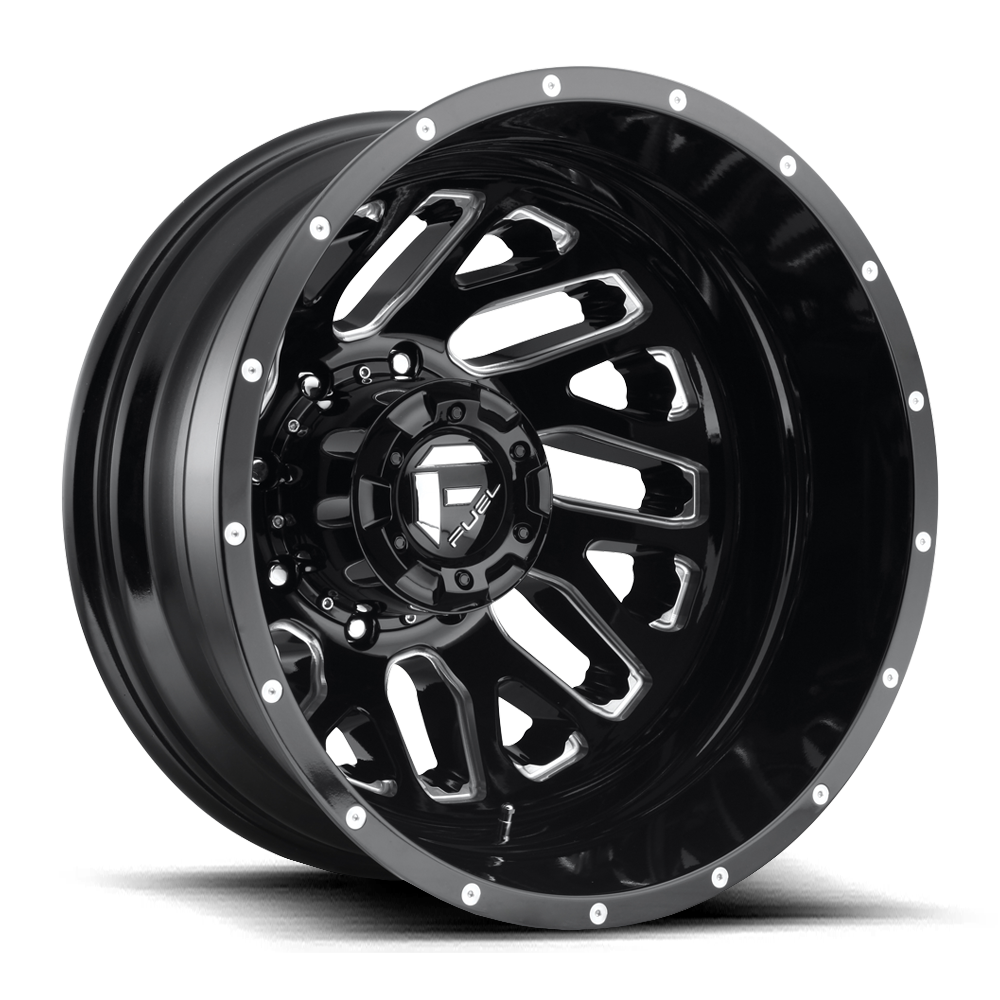

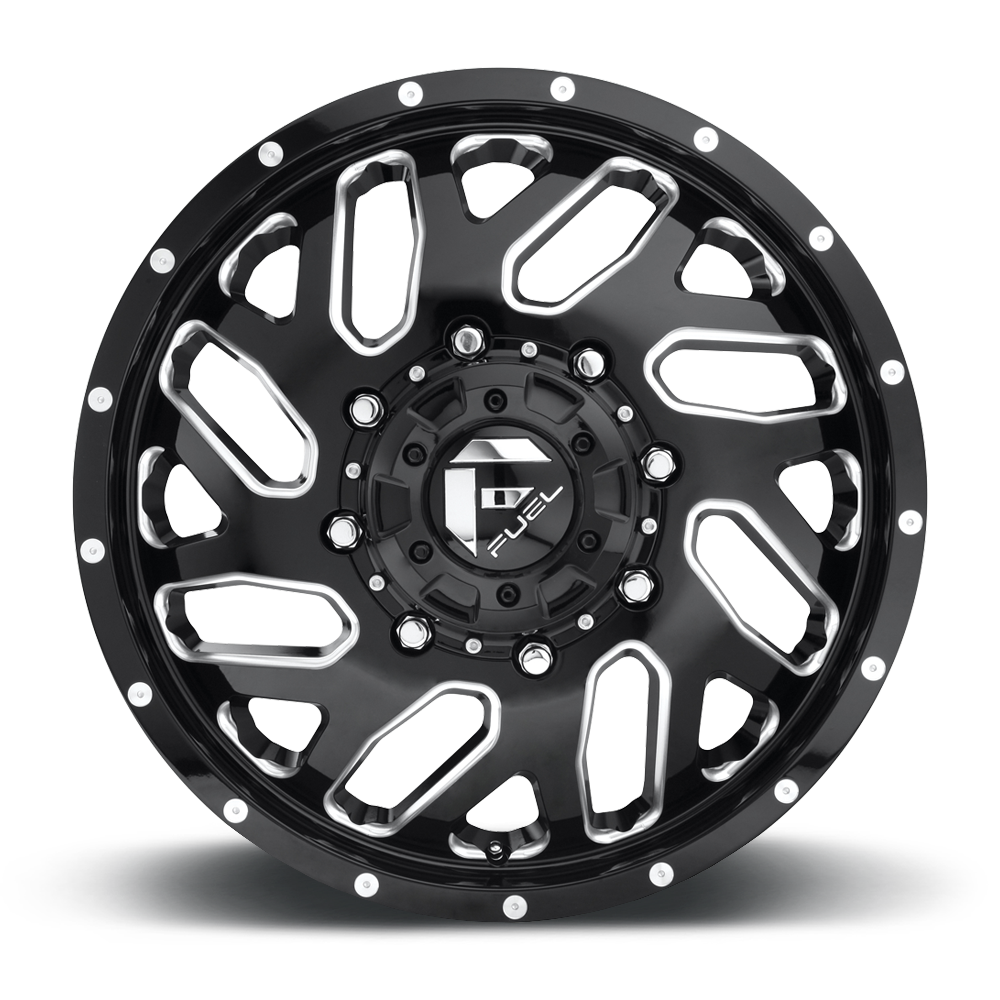

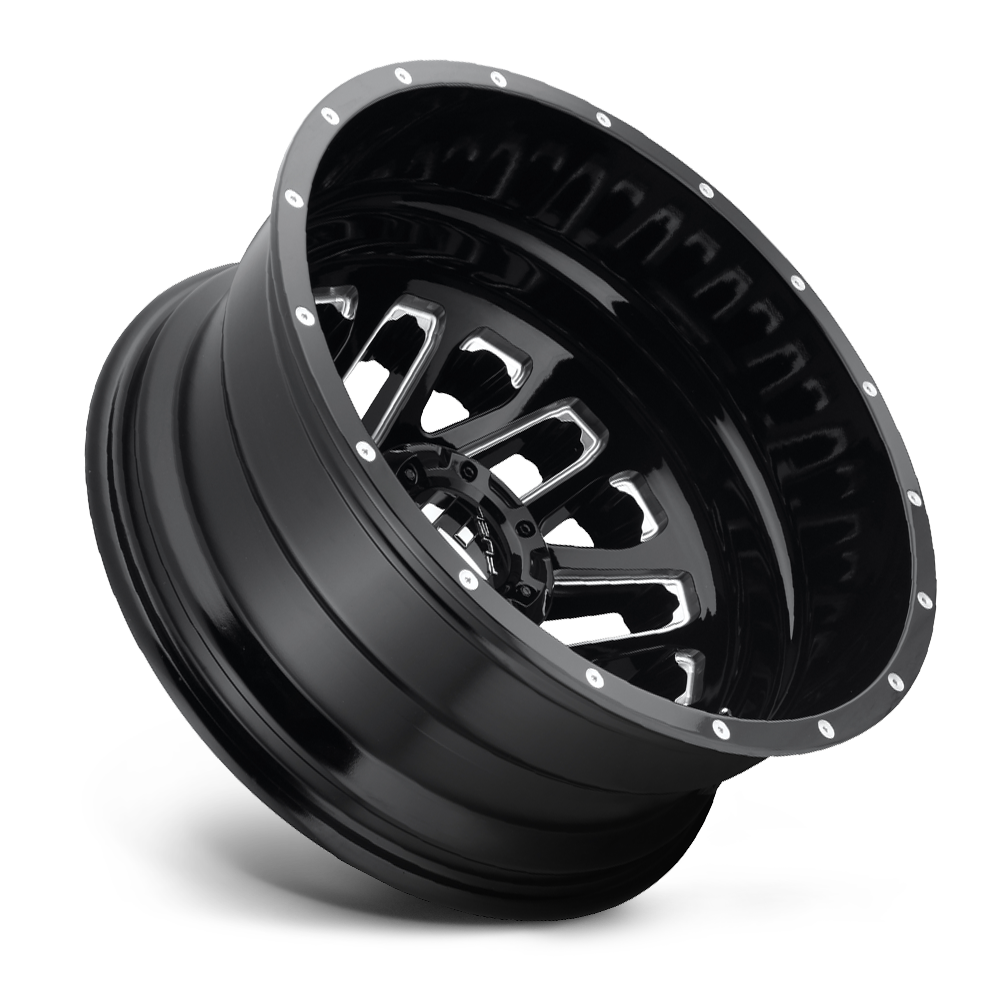

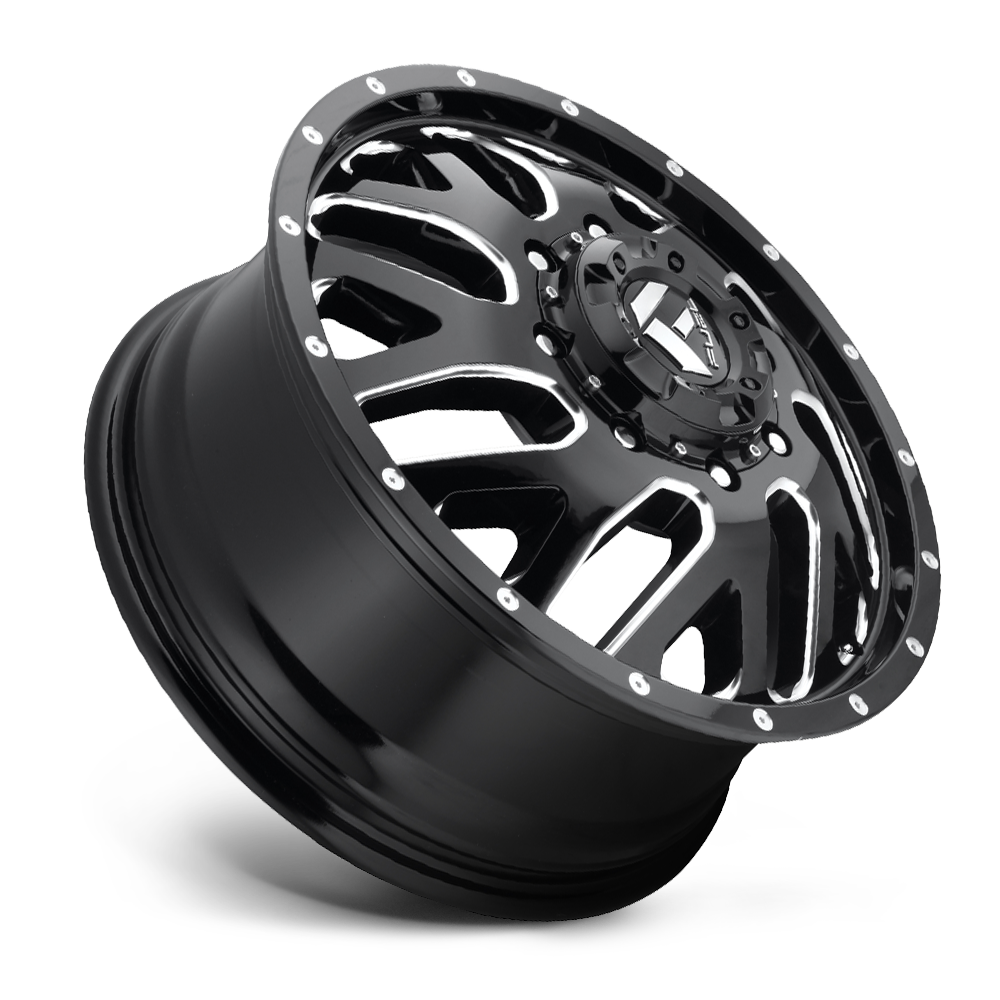

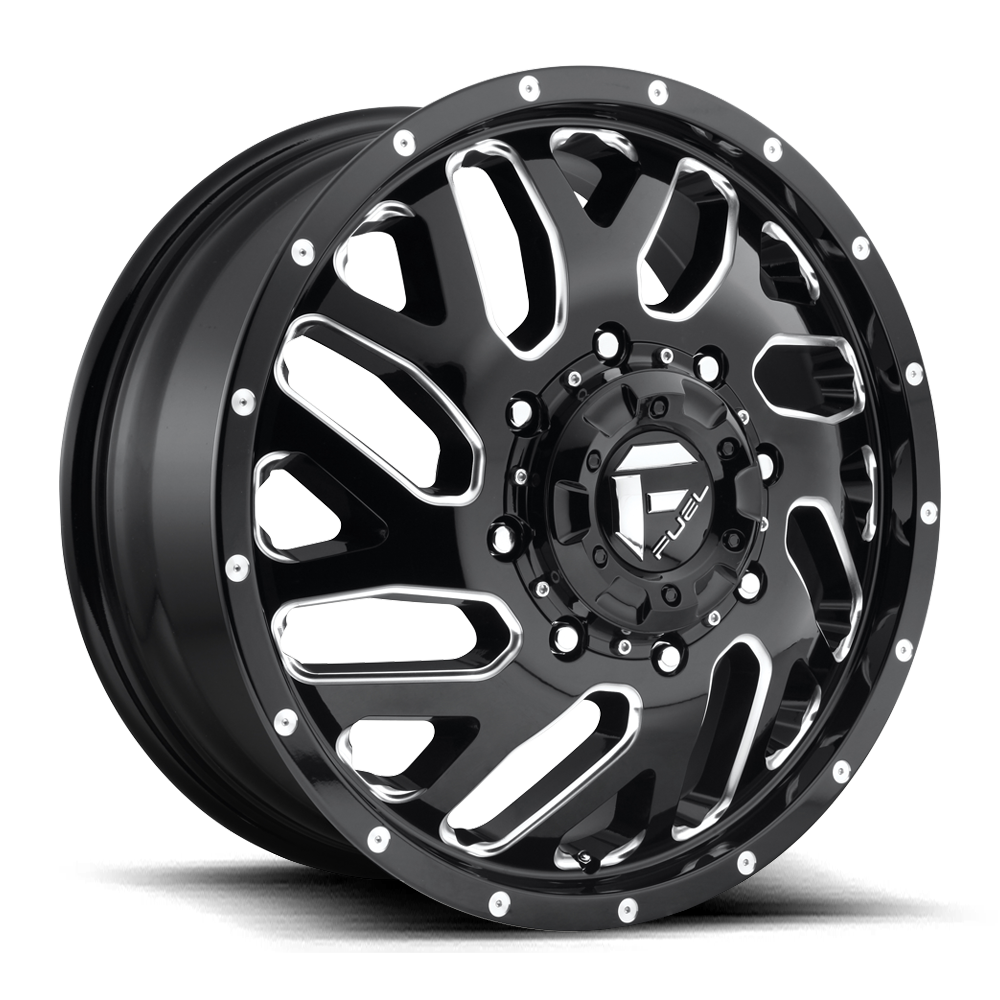

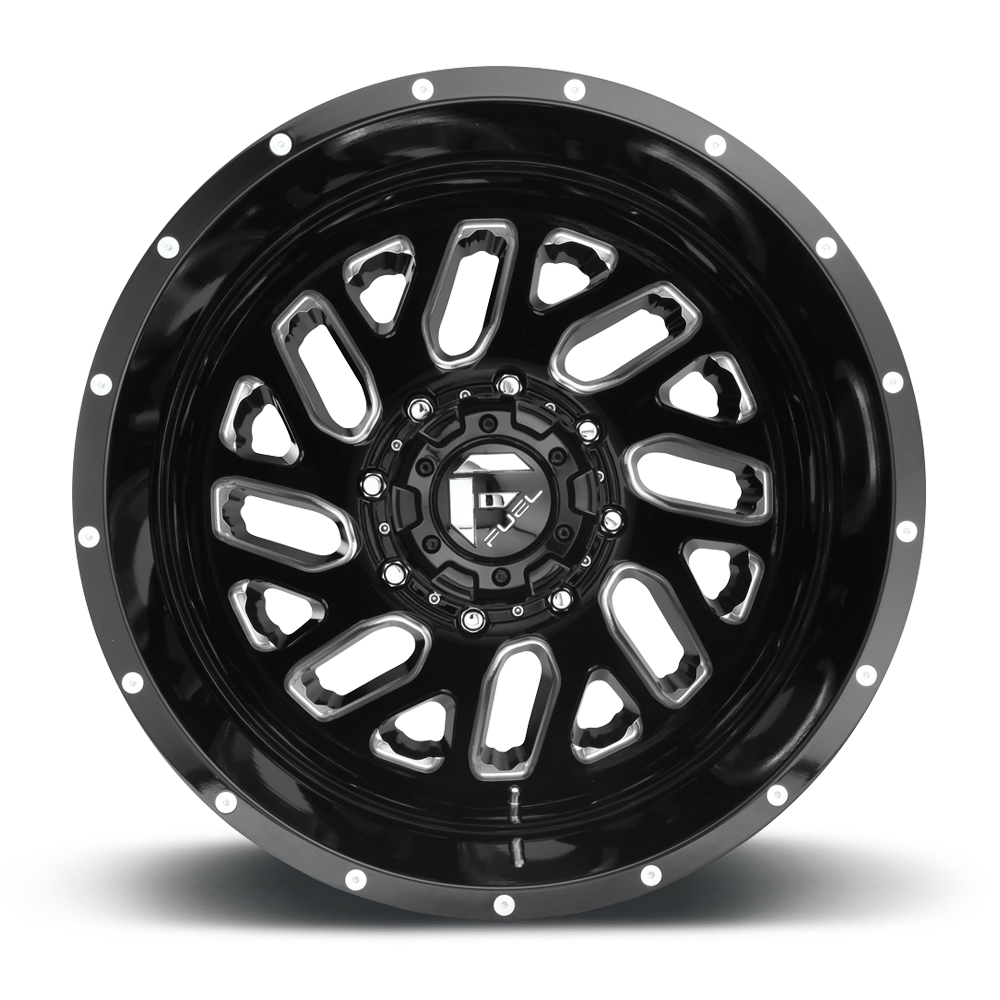

Fuel Triton Dually Wheel
Go big with the Fuel Off-Road Triton Dually. Built specifically for heavy-duty dually trucks, the Triton Dually combines a rugged swept split-spoke design with a deep lip for a bold, aggressive stance. Engineered to handle the demands of towing, hauling, and hard work, it brings show-stopping style to rigs like the Ford F-350, RAM 3500, and Silverado 3500HD. Available in 20" and 22" diameters with dually-specific offsets from -240mm to +105mm, the Triton Dually is the ultimate upgrade for serious 8-lug builds.
Fuel Dually wheels do not need adaptors and are available for stock and lifted applications. 3 rear outer wheels available with offsets for street, mid level lift kit, and large lift kits with wider M/T Tires. Standard 1pc. Triton with a lip available for front end conversions.
Street - 2.5” spacing for street and A/T tires as wide as 275 mm
Lifted - 3.5” spacing for street and A/T tires 285 - 325 mm wide and 12.50” wide M/T tires.
Extreme - 4.5” spacing for 13.50” wide M/T tires.
Patent # D817843 / D818410
Product image shown not representative of all configurations. Vehicle specific fitment will change offset, dish and center profile. Please consult your salesperson for application-specific details.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D58120829325 | Gloss Black Milled | 20x8.25 -195mm | 8x210 | -3.05" | 154.30mm | 2500 lbs | 43.00 lbs |
| D58120829235 | Gloss Black Milled | 20x8.25 -201mm | 8x200 | -3.29" | 142.00mm | 2500 lbs | 49.00 lbs |
| D58120829335 | Gloss Black Milled | 20x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 2500 lbs | 49.00 lbs |
| D58120828D35 | Gloss Black Milled | 20x8.25 -240mm | 8x165.1 | -4.82" | 121.50mm | 2500 lbs | 49.00 lbs |
| D58120828D | Gloss Black Milled | 20x8.25 105mm | 8x165.1 | 8.76" | 121.50mm | 3000 lbs | 41.00 lbs |
| D581208292 | Gloss Black Milled | 20x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3000 lbs | 41.00 lbs |
| D581208293 | Gloss Black Milled | 20x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3000 lbs | 41.00 lbs |
| D58122829235 | Gloss Black Milled | 22x8.25 -201mm | 8x200 | -3.29" | 142.00mm | 2500 lbs | 50.00 lbs |
| D58122829335 | Gloss Black Milled | 22x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 2500 lbs | 50.00 lbs |
| D58122828D | Gloss Black Milled | 22x8.25 105mm | 8x165.1 | 8.76" | 121.50mm | 3000 lbs | 45.00 lbs |
| D581228292 | Gloss Black Milled | 22x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3000 lbs | 45.00 lbs |
| D581228293 | Gloss Black Milled | 22x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3000 lbs | 45.00 lbs |
