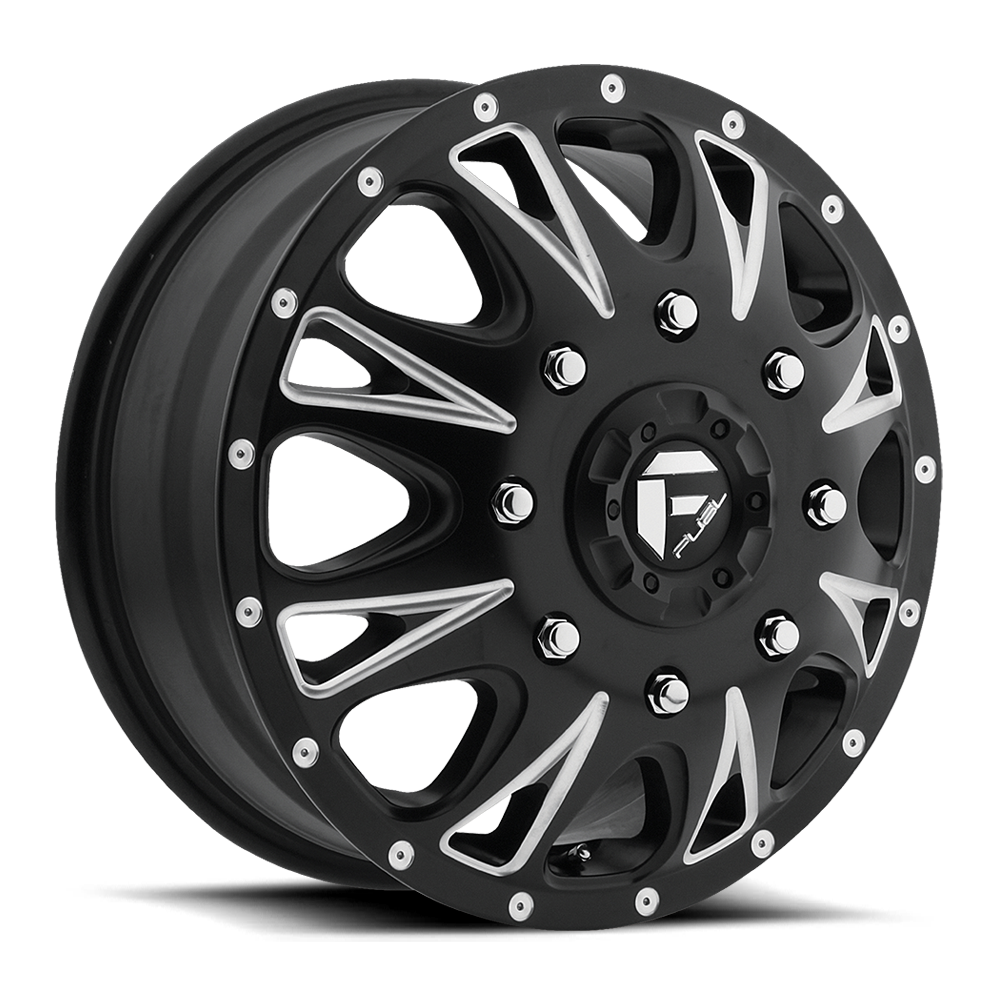

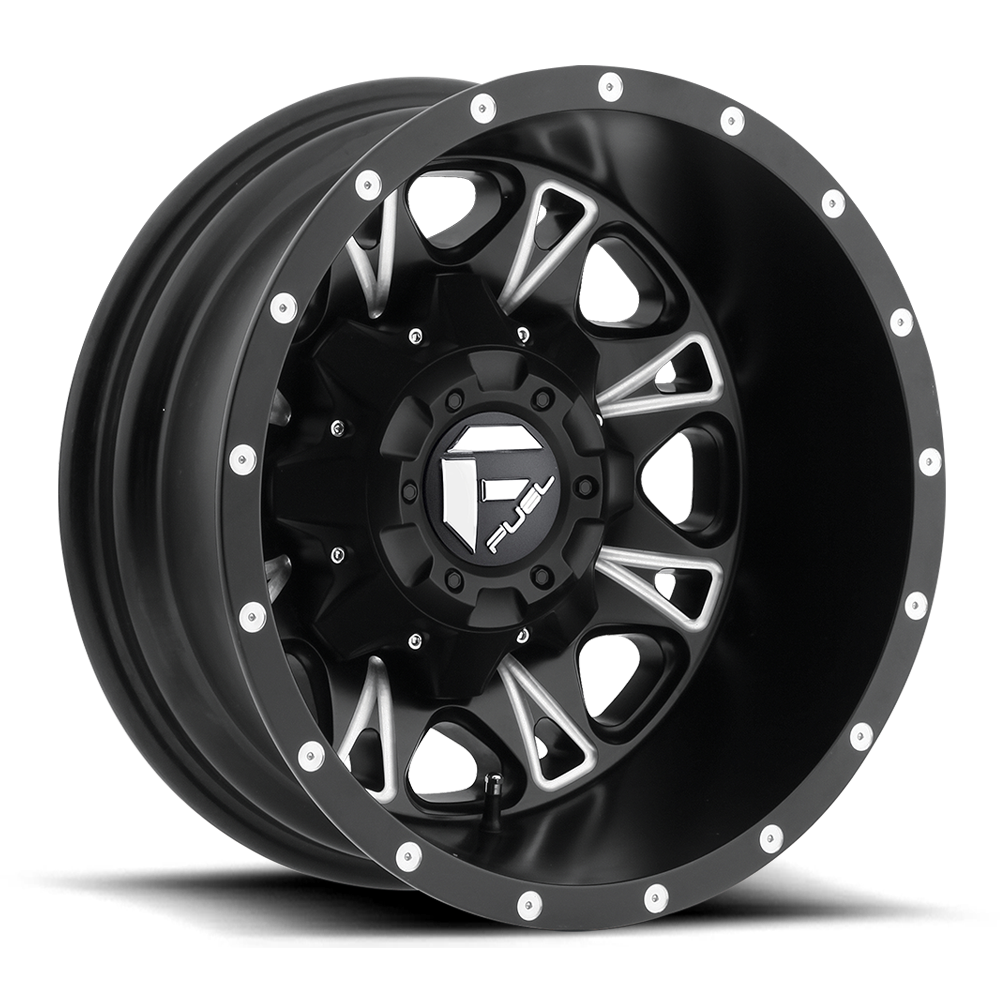

Fuel Throttle Dually Wheel
Purpose-built for hardworking dually trucks, the Fuel Off-Road Throttle Dually is designed to handle big payloads and serious towing while looking just as good as it performs. Featuring a convex front and deep concave rear, plus milled spoke accents for added detail, the Throttle Dually blends rugged functionality with iconic Fuel styling. Available exclusively in a 17x6.5" size with dually-specific offsets from -140mm to +129mm, it’s the ultimate upgrade for heavy-duty dual-rear-wheel trucks that need strength, style, and load ready performance.
Available for stock ride height applications only.
Patent # D649107, RE45446
Product image shown not representative of all configurations. Vehicle specific fitment will change offset, dish and center profile. Please consult your salesperson for application-specific details.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D513176582R | Matte Black Milled | 17x6.5 -140mm | 8x165.1 | -1.76" | 125.10mm | 2500 lbs | 31.00 lbs |
| D513176592R | Matte Black Milled | 17x6.5 -140mm | 8x200 | -1.76" | 142.00mm | 2500 lbs | 31.00 lbs |
| D513176593R | Matte Black Milled | 17x6.5 -140mm | 8x210 | -1.76" | 154.30mm | 2500 lbs | 31.00 lbs |
| D513176582F | Matte Black Milled | 17x6.5 129mm | 8x165.1 | 8.83" | 125.10mm | 3000 lbs | 31.00 lbs |
| D513176592F | Matte Black Milled | 17x6.5 129mm | 8x200 | 8.83" | 142.00mm | 3000 lbs | 31.00 lbs |
| D513176593F | Matte Black Milled | 17x6.5 129mm | 8x210 | 8.83" | 154.30mm | 3000 lbs | 31.00 lbs |
