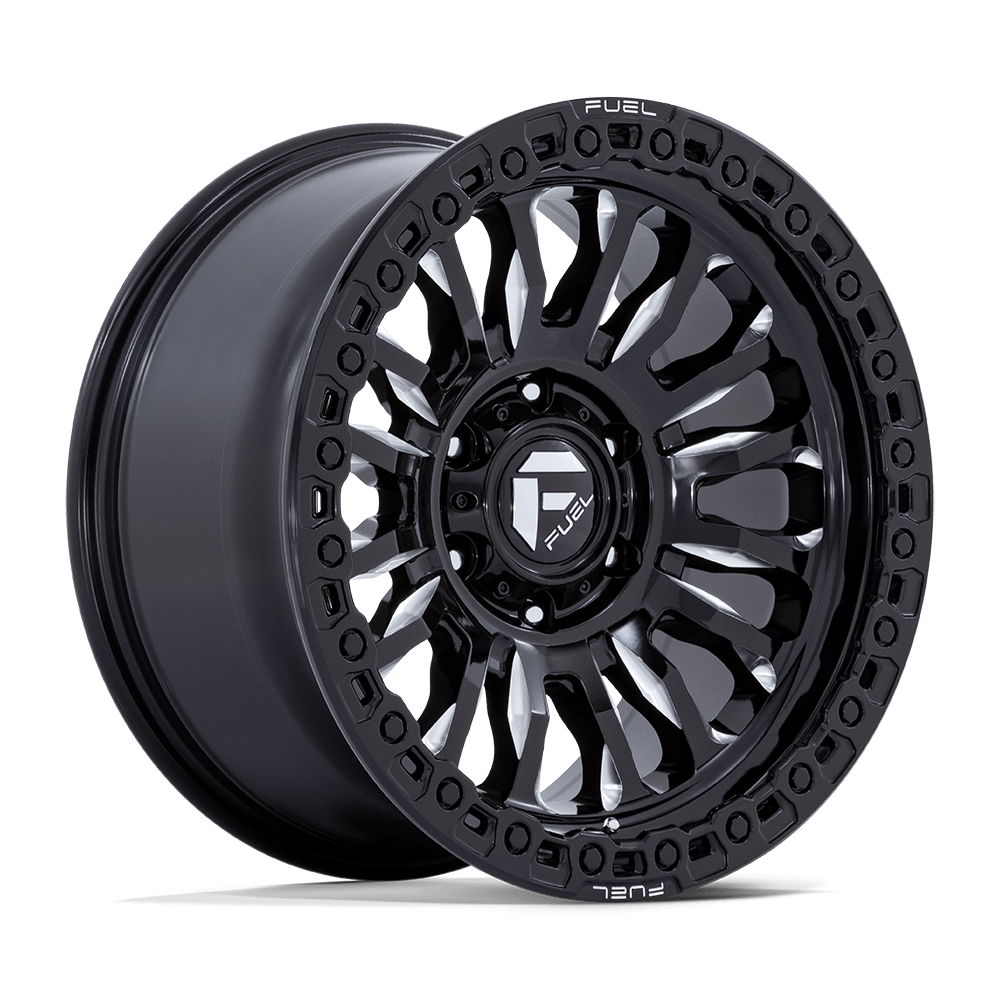

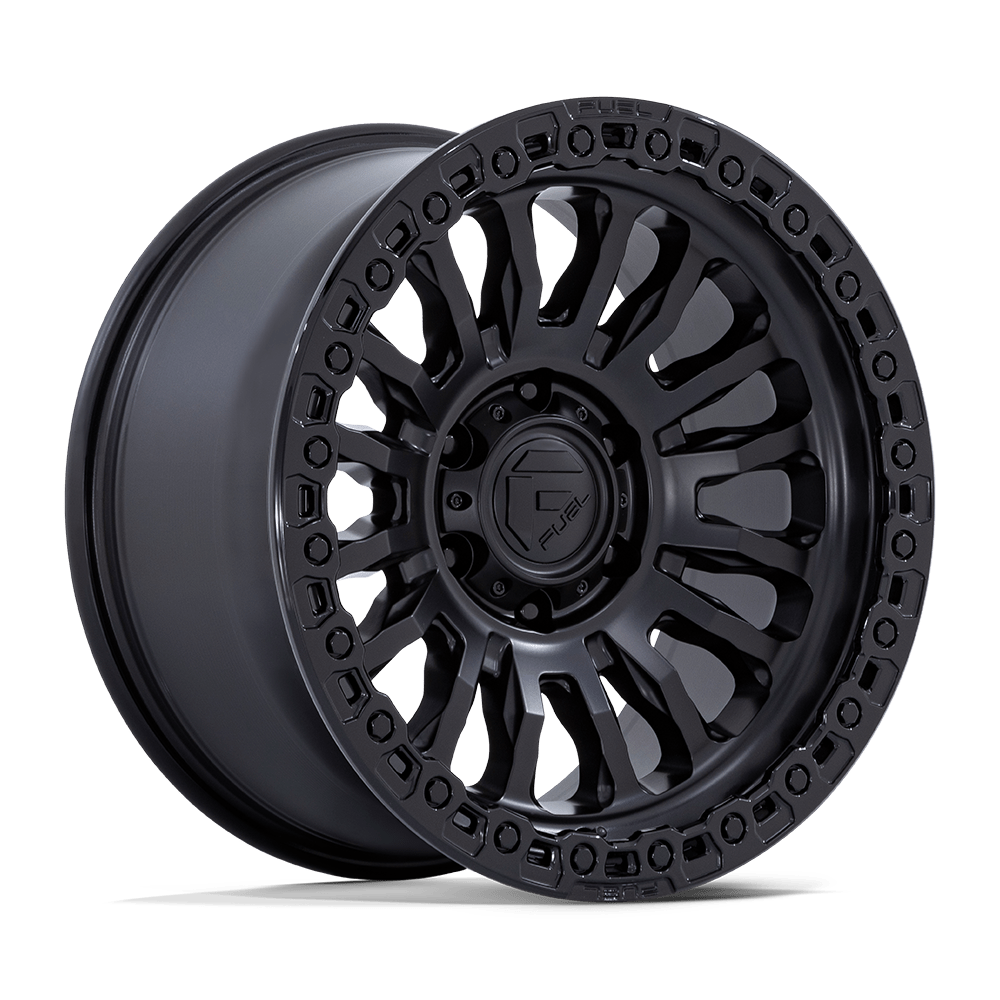

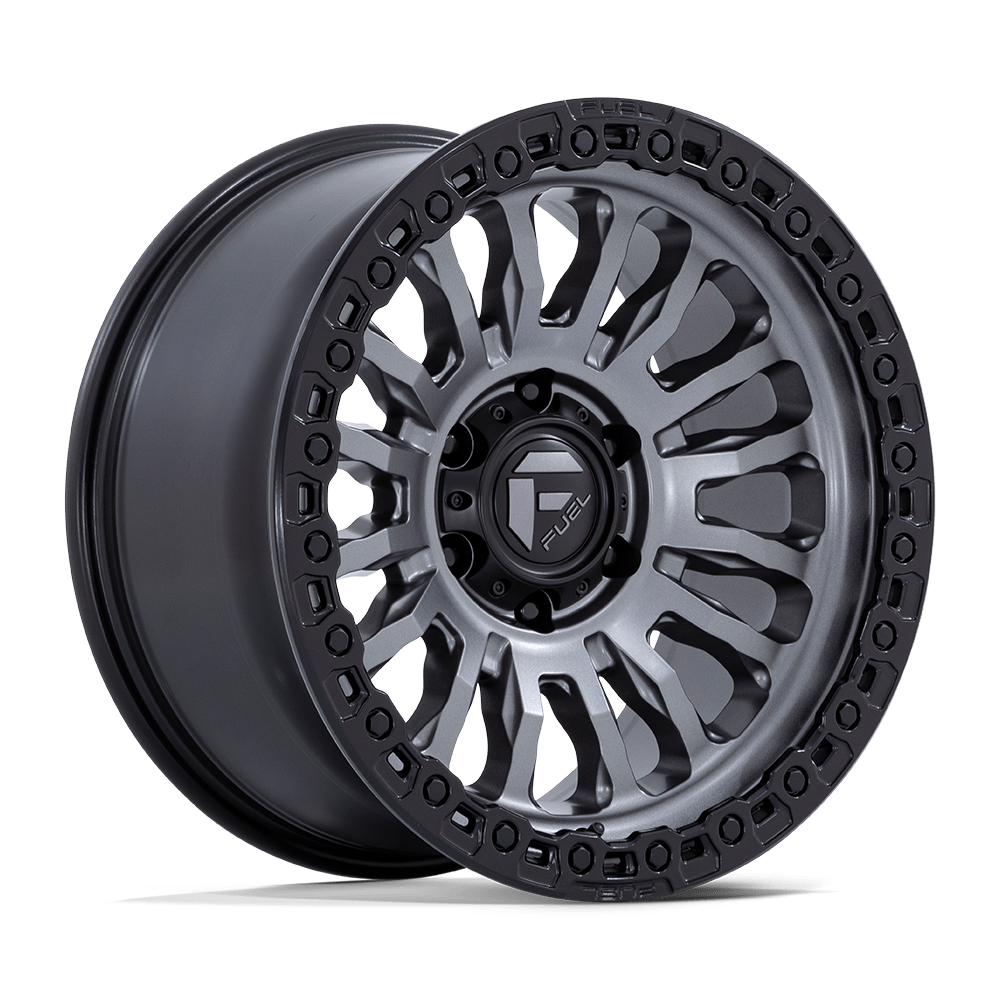

Fuel Rincon Wheel - 17"
The Fuel Off-Road Rincon is a rugged cast monoblock wheel that brings bold design and off-road attitude to any build. Its concave profile and split 8-spoke face are accented with a simulated beadlock ring featuring debris release slots and removable bolts for that trailbred look. Offered in 17", 18", and 20" sizes, the Rincon comes in 5, 6, and 8-lug applications to fit everything from Jeep Wranglers and Toyota Tacomas to Ford F-150s, F-250s, and even one-ton trucks. Finished off with a bolt-on center cap and removable top for easy hub access, the Rincon makes a statement wherever you take it.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| FC857BE17856801N | Gloss Black Milled | 17x8.5 -1mm | 6x139.7 | 4.71" | 106.10mm | 2500 lbs | 30.92 lbs |
| FC857BE17855001N | Gloss Black Milled | 17x8.5 -1mm | 5x127 | 4.71" | 71.50mm | 2500 lbs | 31.80 lbs |
| FC857MB17856801N | Matte Black w/ Gloss Black Lip | 17x8.5 -1mm | 6x139.7 | 4.71" | 106.10mm | 2500 lbs | 30.92 lbs |
| FC857MB17855001N | Matte Black w/ Gloss Black Lip | 17x8.5 -1mm | 5x127 | 4.71" | 71.50mm | 2500 lbs | 31.80 lbs |
| FC857MB17856301N | Matte Black w/ Gloss Black Lip | 17x8.5 -1mm | 6x135 | 4.71" | 87.10mm | 2500 lbs | 31.58 lbs |
| FC857AB17855001N | Matte Gunmetal w/ Matte Black Lip | 17x8.5 -1mm | 5x127 | 4.71" | 71.50mm | 2500 lbs | 31.80 lbs |
| FC857AB17856801N | Matte Gunmetal w/ Matte Black Lip | 17x8.5 -1mm | 6x139.7 | 4.71" | 106.10mm | 2500 lbs | 30.92 lbs |
| FC857BE17905012N | Gloss Black Milled | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 32.88 lbs |
| FC857BE17908012N | Gloss Black Milled | 17x9 -12mm | 8x165.1 | 4.53" | 125.10mm | 3700 lbs | 36.20 lbs |
| FC857MB17908012N | Matte Black w/ Gloss Black Lip | 17x9 -12mm | 8x165.1 | 4.53" | 125.10mm | 3700 lbs | 36.20 lbs |
| FC857MB17905012N | Matte Black w/ Gloss Black Lip | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 32.88 lbs |
| FC857MB17906812N | Matte Black w/ Gloss Black Lip | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 32.22 lbs |
| FC857AB17905012N | Matte Gunmetal w/ Matte Black Lip | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 32.88 lbs |
| FC857AB17906812N | Matte Gunmetal w/ Matte Black Lip | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2500 lbs | 32.22 lbs |
| FC857BE17908001 | Gloss Black Milled | 17x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 34.66 lbs |
| FC857BE17906801 | Gloss Black Milled | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 31.56 lbs |
| FC857BE17905001 | Gloss Black Milled | 17x9 1mm | 5x127 | 5.04" | 71.50mm | 2500 lbs | 32.44 lbs |
| FC857MB17905001 | Matte Black w/ Gloss Black Lip | 17x9 1mm | 5x127 | 5.04" | 71.50mm | 2500 lbs | 32.44 lbs |
| FC857MB17906801 | Matte Black w/ Gloss Black Lip | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 31.56 lbs |
| FC857MB17908701 | Matte Black w/ Gloss Black Lip | 17x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 34.66 lbs |
| FC857MB17908001 | Matte Black w/ Gloss Black Lip | 17x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 34.66 lbs |
| FC857AB17906801 | Matte Gunmetal w/ Matte Black Lip | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 31.56 lbs |
| FC857AB17905001 | Matte Gunmetal w/ Matte Black Lip | 17x9 1mm | 5x127 | 5.04" | 71.50mm | 2500 lbs | 32.44 lbs |
| FC857MB17908820 | Matte Black w/ Gloss Black Lip | 17x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 33.70 lbs |
| FC857AB17908820 | Matte Gunmetal w/ Matte Black Lip | 17x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 33.70 lbs |
| FC857BE17906825 | Gloss Black Milled | 17x9 25mm | 6x139.7 | 5.98" | 106.10mm | 3700 lbs | 32.40 lbs |
| FC857MB17906825 | Matte Black w/ Gloss Black Lip | 17x9 25mm | 6x139.7 | 5.98" | 106.10mm | 3700 lbs | 32.40 lbs |
| FC857AB17906825 | Matte Gunmetal w/ Matte Black Lip | 17x9 25mm | 6x139.7 | 5.98" | 106.10mm | 3700 lbs | 32.40 lbs |
