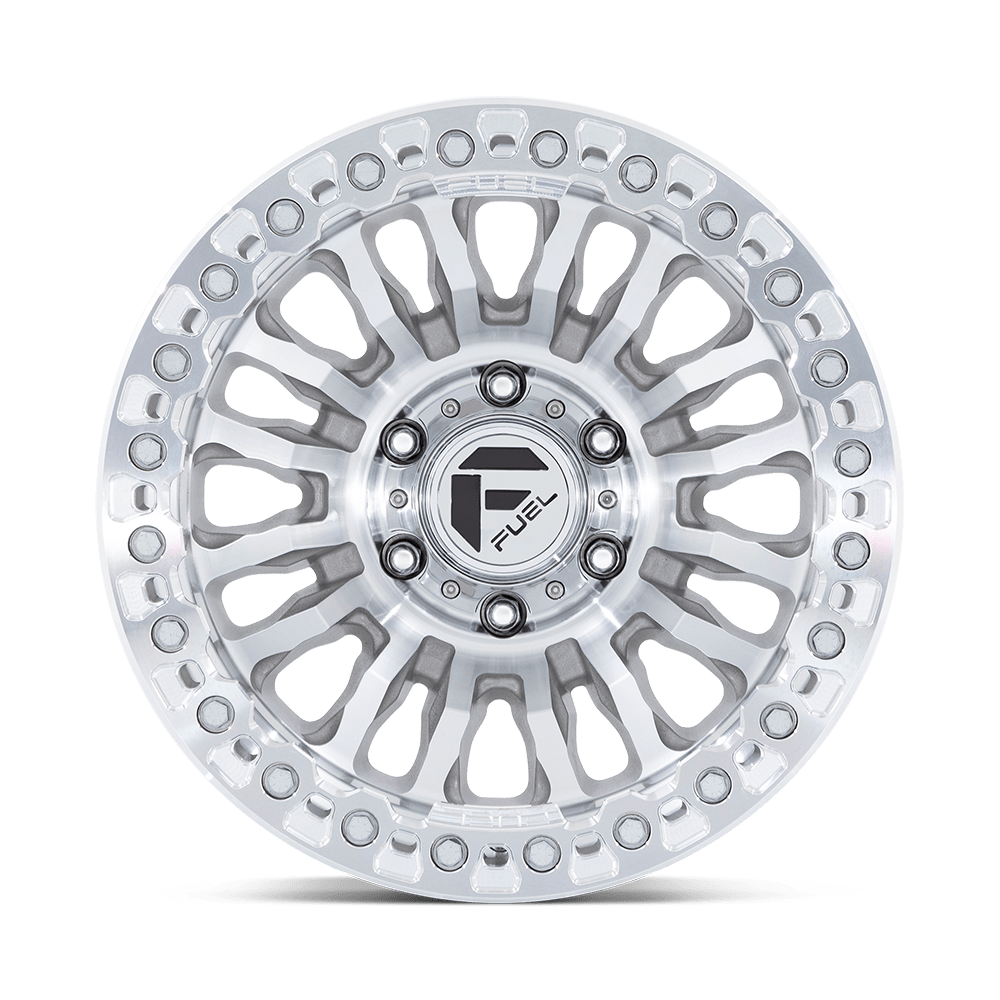

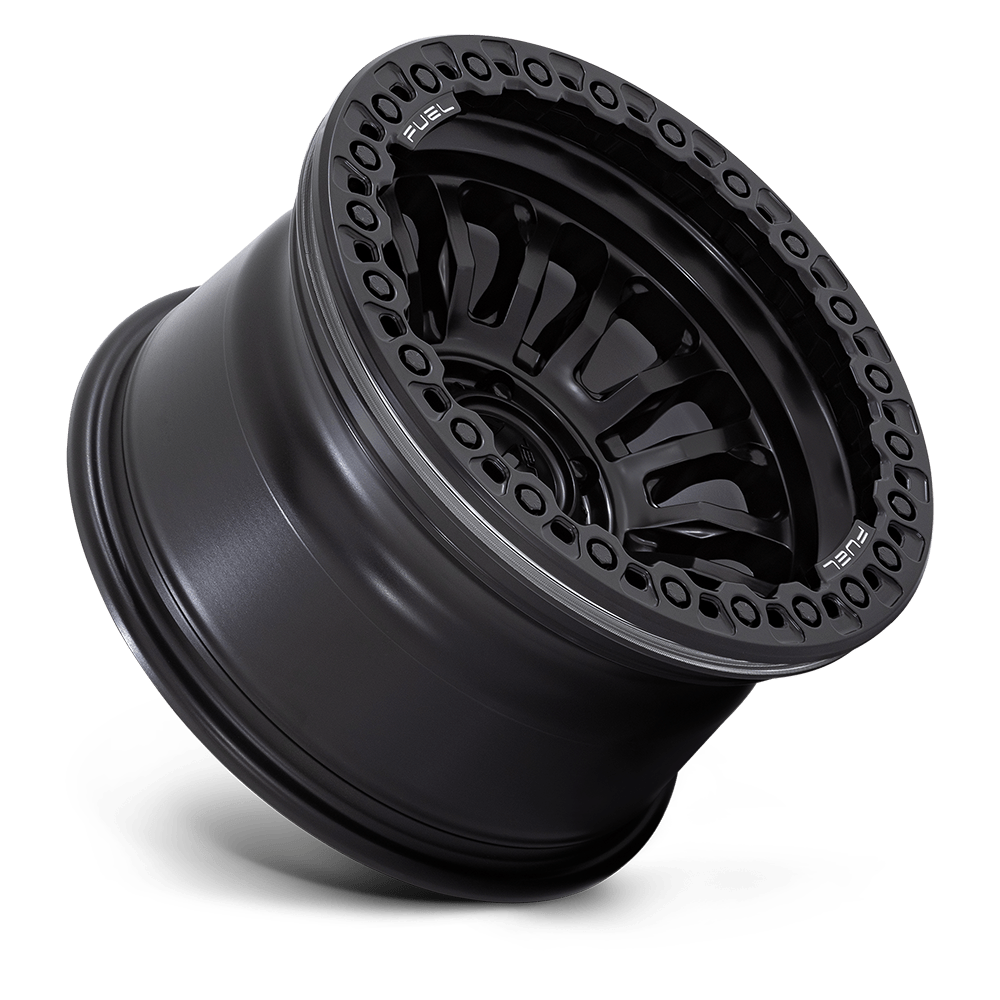

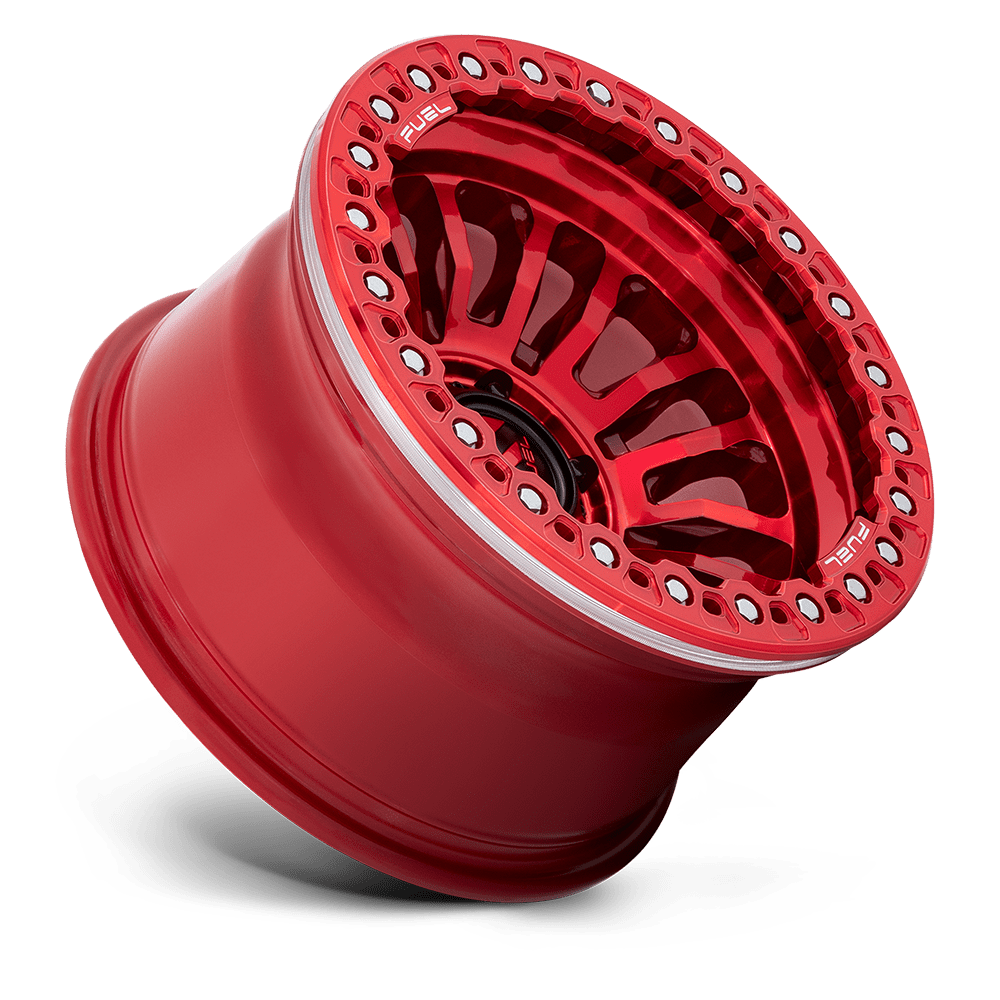

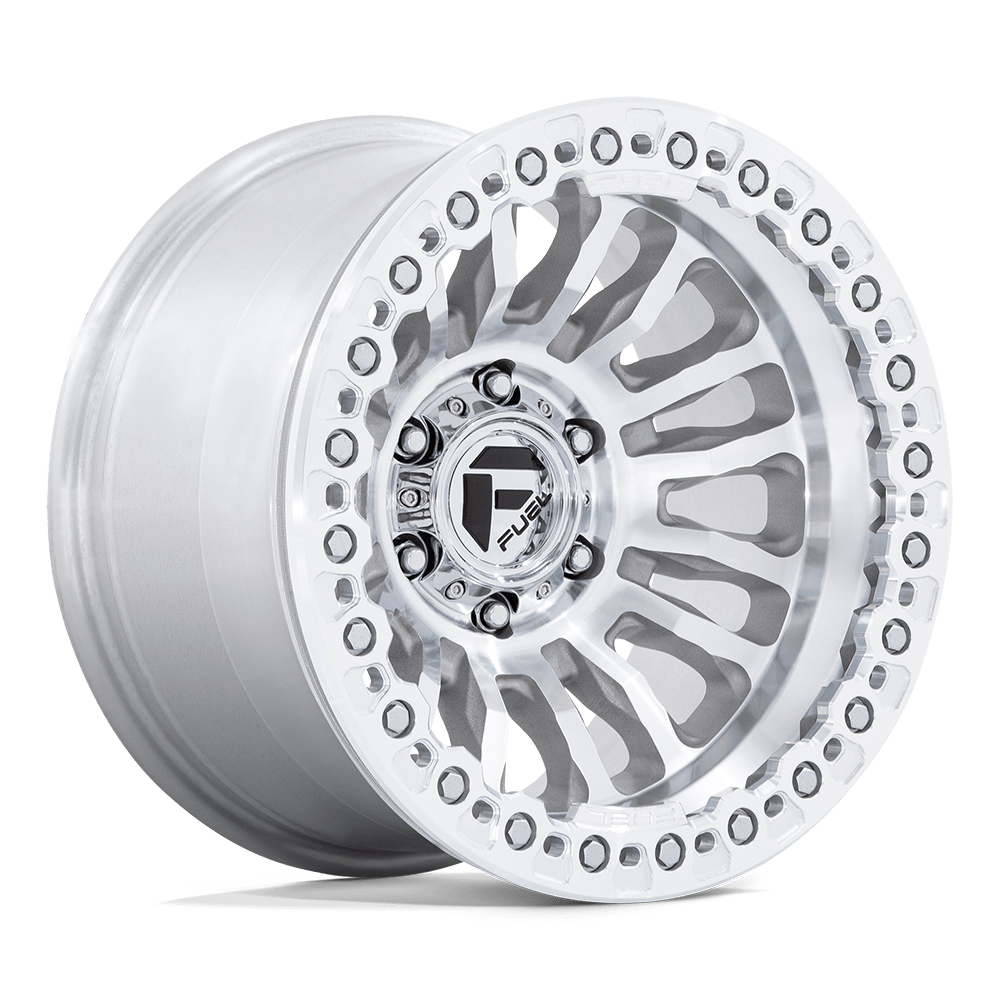

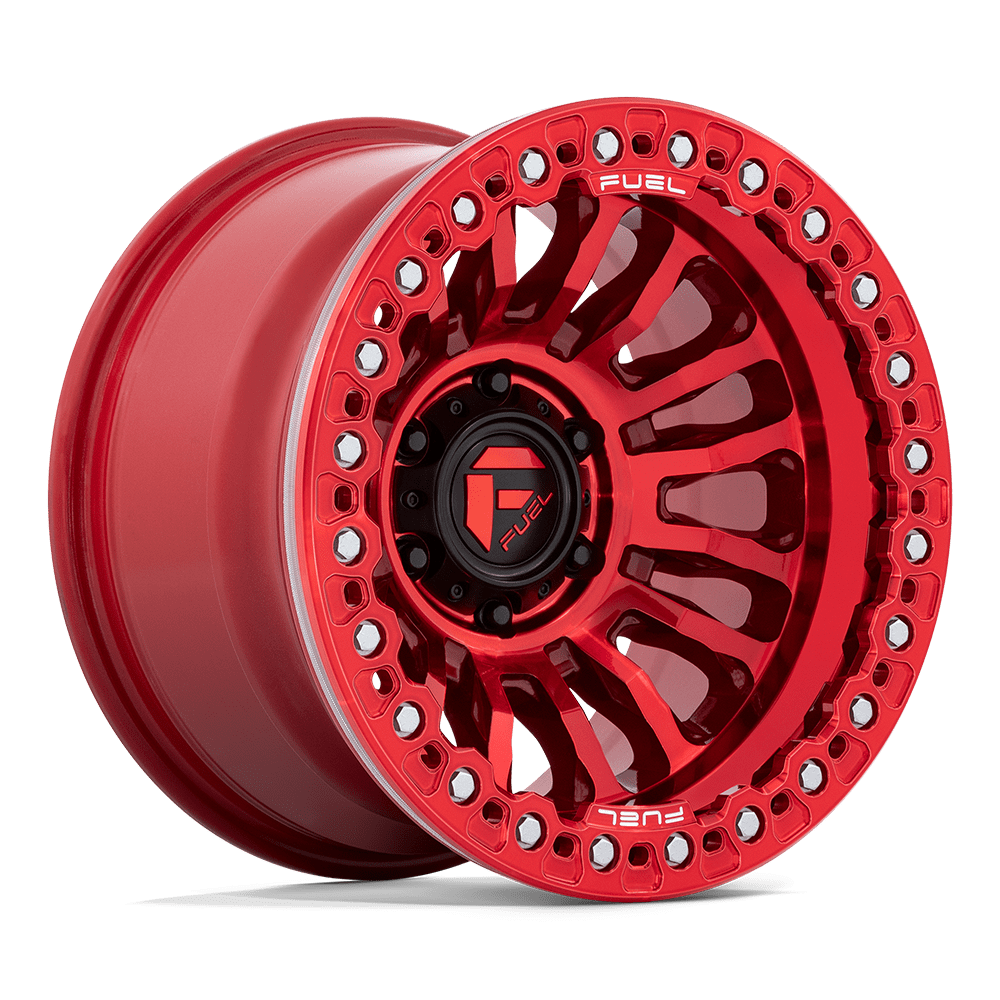

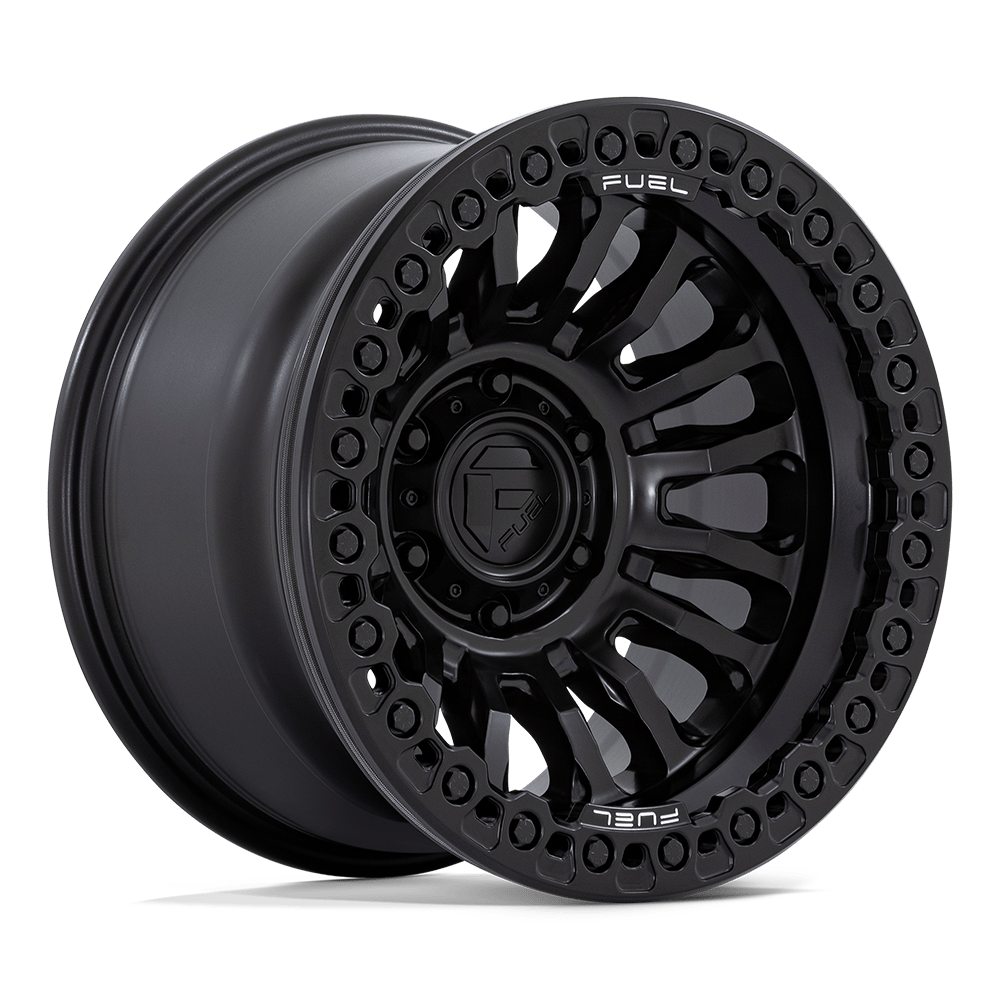

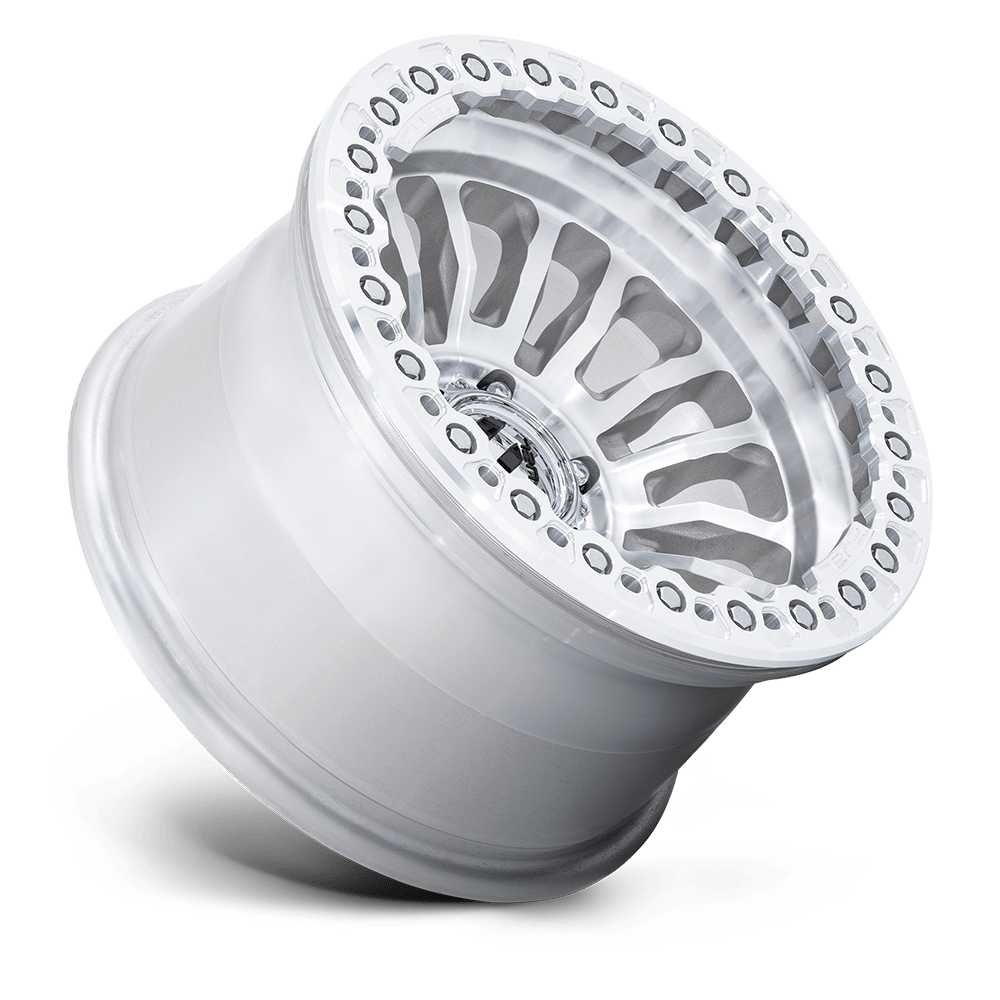

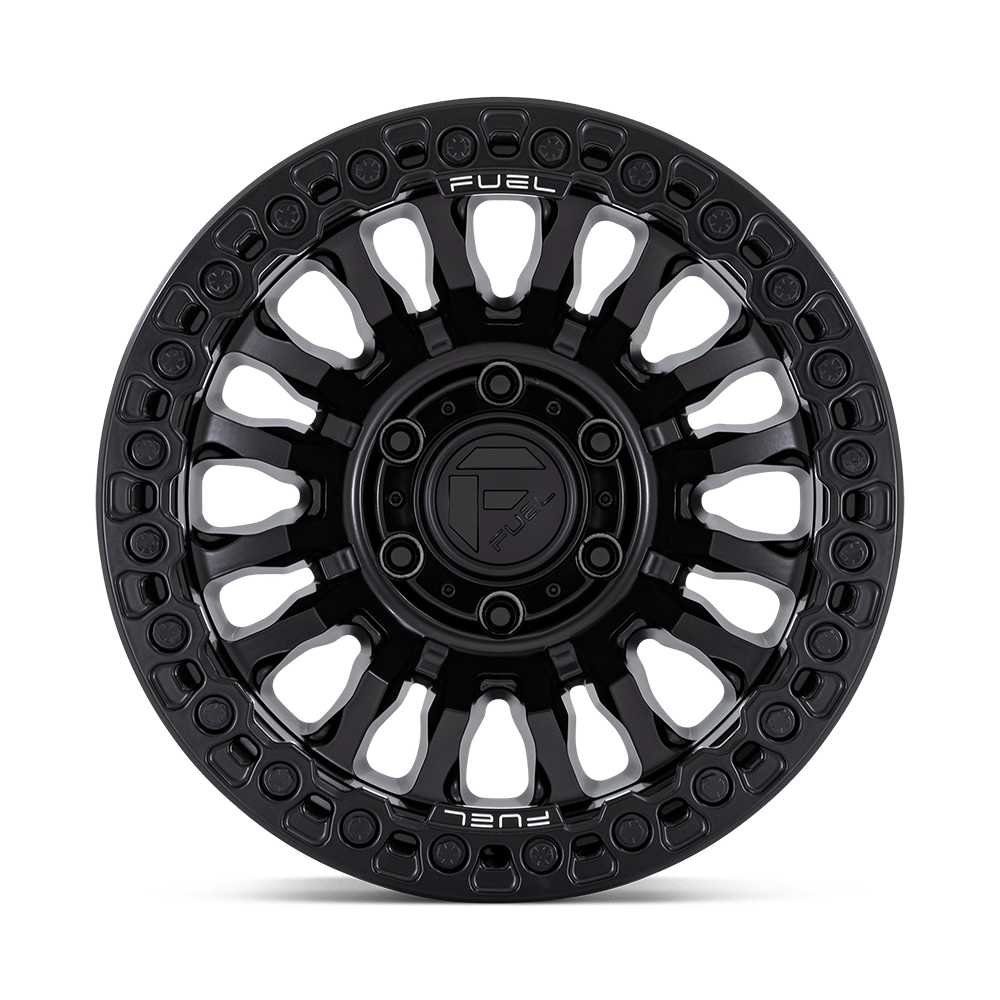

Fuel Rincon Beadlock Wheel
The wheel that embodies true off-road function and form. We took the Fuel Off-Road Rincon to the next level with the Rincon Beadlock, built to conquer the toughest terrain without sacrificing style. Featuring the same aggressive split 8-spoke design and concave profile, the Rincon Beadlock adds a forged beadlock ring with debris release slots so you can air down and tackle climbs, crawls, and descents with confidence. Available in 17" and 18" sizes with offsets from -38mm to -48mm, it’s offered in 5, 6, and 8-lug configurations to fit everything from Wranglers and Tacomas to F-250s and 3500-series trucks. Built for hardcore off-roaders who demand performance and strength.
Warning: Beadlock wheels are sold for Off-Road Use only. Off-Road Use only wheels are illegal on public roads in many states and provinces as they are intended only for racing and/or off-road vehicles. It is the customers’ responsibility to check state and local laws. The customer takes full responsibility for any use and/or misuse of the beadlock wheels and agrees to hold Wheel Pros, LLC and its affiliates harmless relating to such use.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| FC125MX17905038N | Blackout | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 2500 lbs | 35.10 lbs |
| FC125MX17908038N | Blackout | 17x9 -38mm | 8x165.1 | 3.50" | 125.10mm | 3700 lbs | 35.60 lbs |
| FC125MX17906838N | Blackout | 17x9 -38mm | 6x139.7 | 3.50" | 106.10mm | 2500 lbs | 34.33 lbs |
| FC125QX17906838N | Candy Red | 17x9 -38mm | 6x139.7 | 3.50" | 106.10mm | 2500 lbs | 34.33 lbs |
| FC125DX17905038N | Machined | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 2500 lbs | 35.10 lbs |
| FC125DX17906838N | Machined | 17x9 -38mm | 6x139.7 | 3.50" | 106.10mm | 2500 lbs | 34.33 lbs |
| FC125MX20108048N | Blackout | 20x10 -48mm | 8x165.1 | 3.61" | 125.10mm | 3700 lbs | 45.60 lbs |
| FC125MX20105048N | Blackout | 20x10 -48mm | 5x127 | 3.61" | 71.50mm | 2500 lbs | 44.30 lbs |
| FC125QX20105048N | Candy Red | 20x10 -48mm | 5x127 | 3.61" | 71.50mm | 2500 lbs | 44.30 lbs |
| FC125QX20108048N | Candy Red | 20x10 -48mm | 8x165.1 | 3.61" | 125.10mm | 3700 lbs | 45.60 lbs |
| FC125DX20105048N | Machined | 20x10 -48mm | 5x127 | 3.61" | 71.50mm | 2500 lbs | 44.30 lbs |
