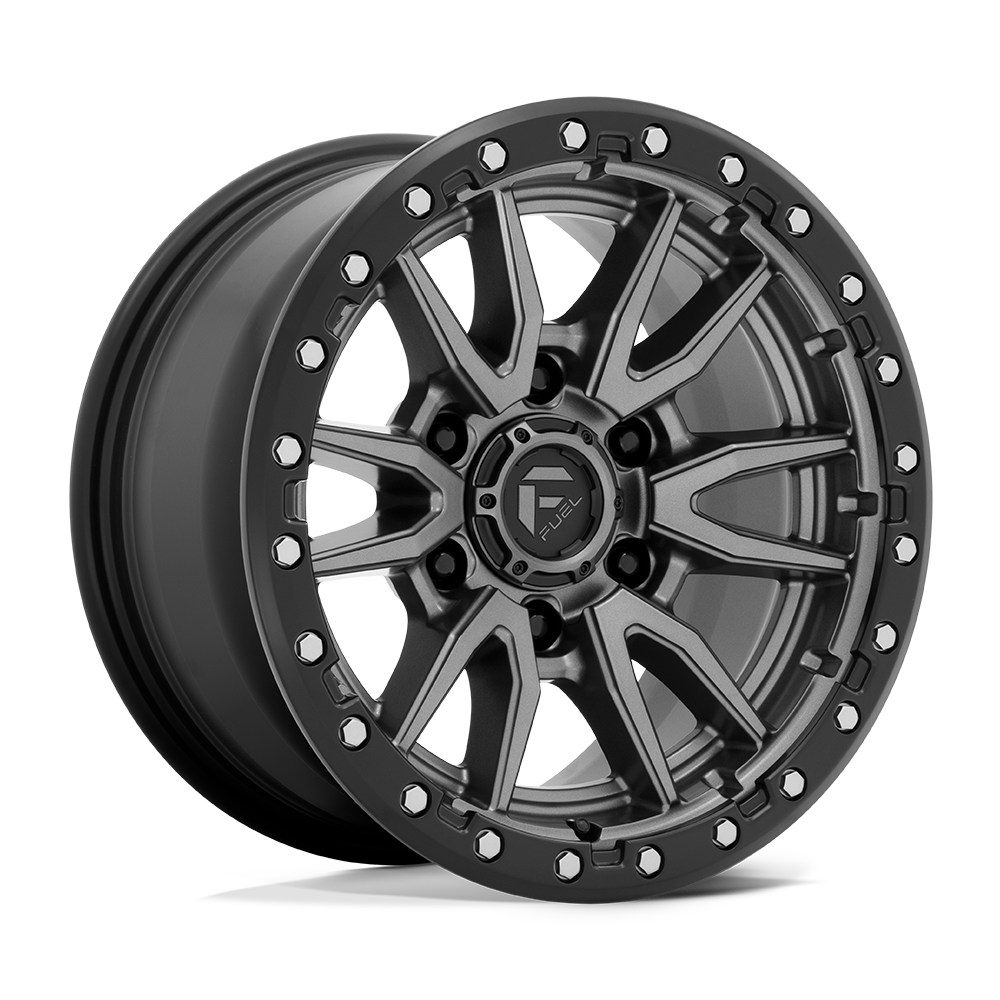

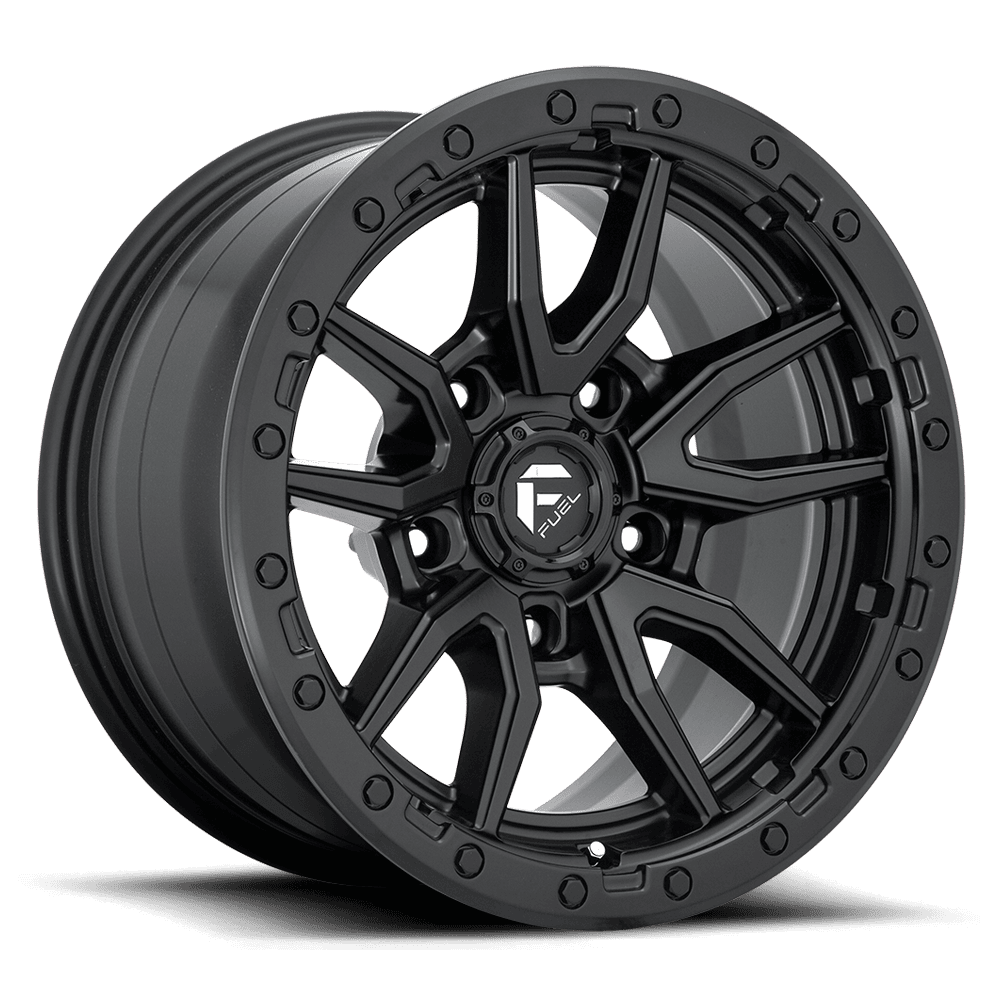

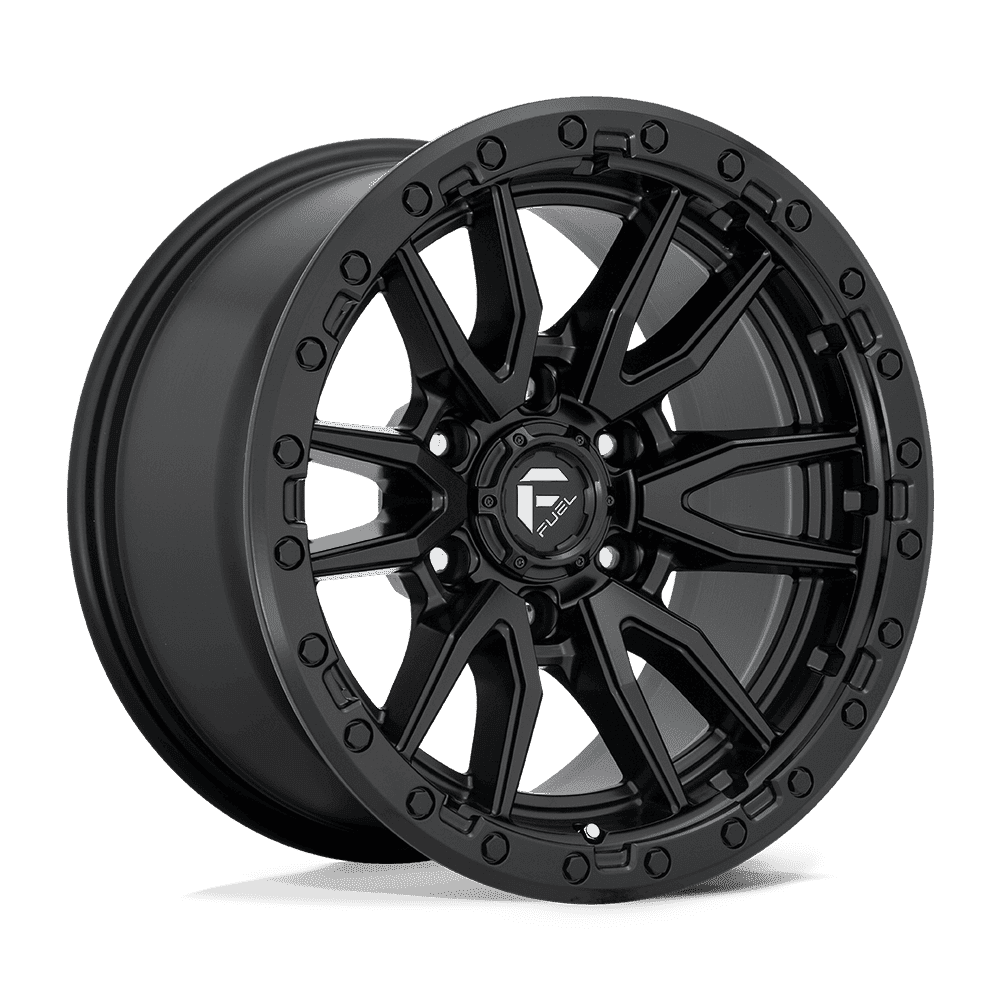

Fuel Rebel Wheel - 17"
The Fuel Off-Road Rebel is built for drivers who push the limits of both style and performance. Its rugged multi-spoke design and simulated beadlock ring bring the right mix of trail-ready function and show-stopping looks. Available in 16", 17", 18", and 20" diameters with offsets from -44mm to +20mm, the Rebel comes in 5, 6, and 8-lug patterns to fit a full range of rigs — from Jeep Wranglers and Toyota Tacomas to Ford F-150s, F-250s, and even one-ton builds like the Silverado 2500 and RAM 2500. When you want a wheel that looks tough and backs it up, the Rebel delivers.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D67917907545 | Matte Black | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 36.00 lbs |
| D67917908445 | Matte Black | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2300 lbs | 34.00 lbs |
| D67917908945 | Matte Black | 17x9 -12mm | 6x135 | 4.53" | 87.10mm | 2300 lbs | 34.00 lbs |

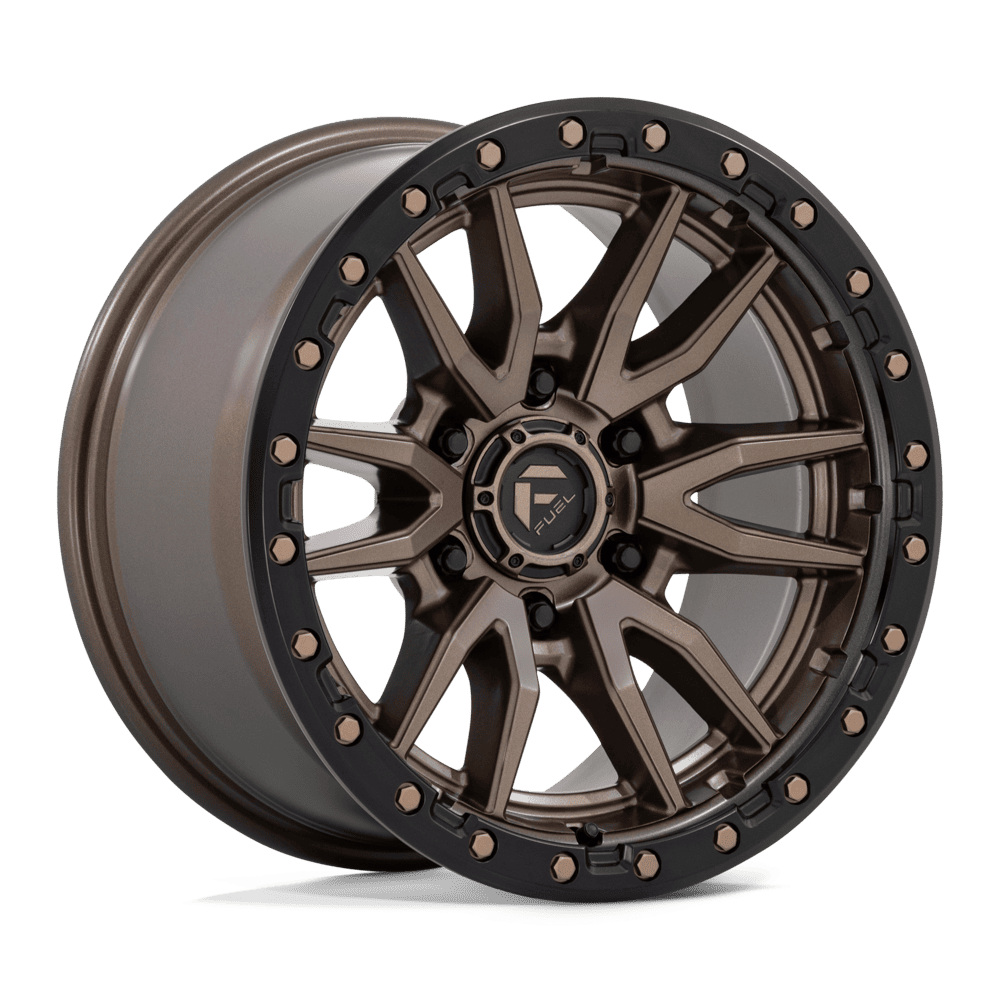

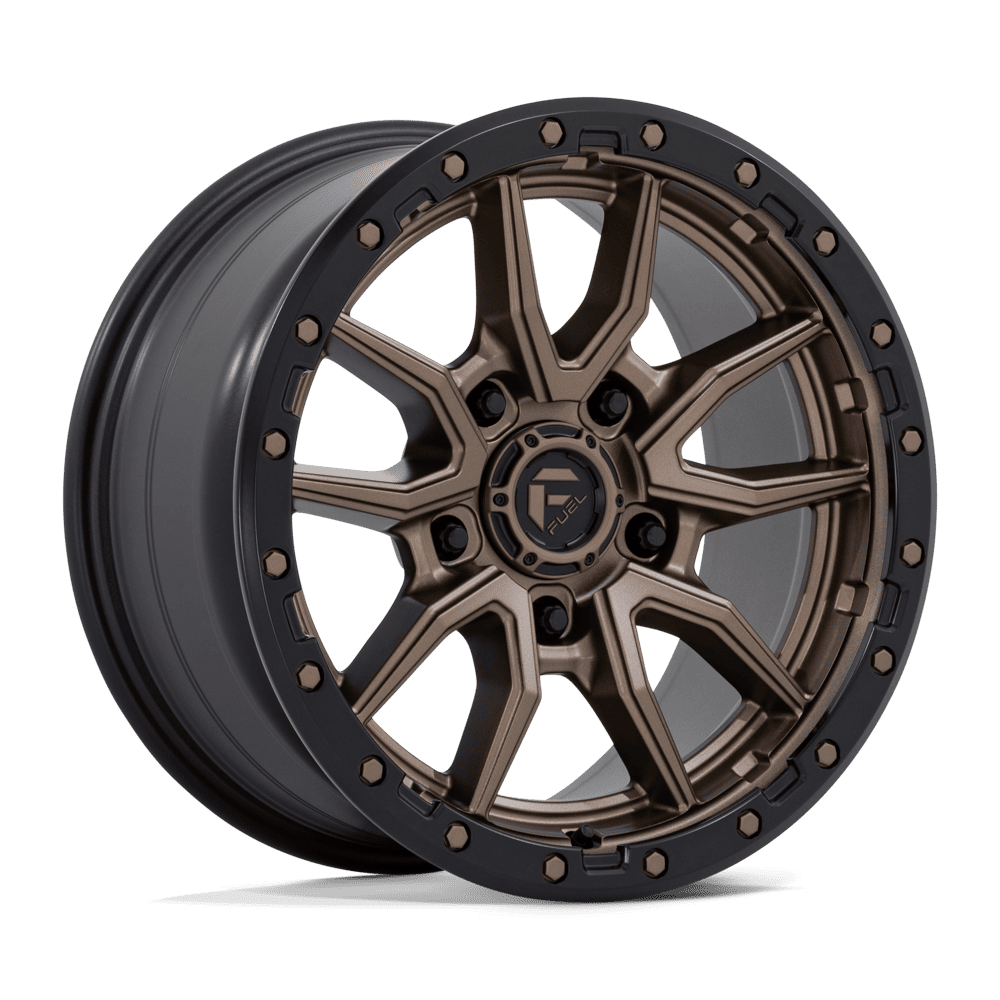

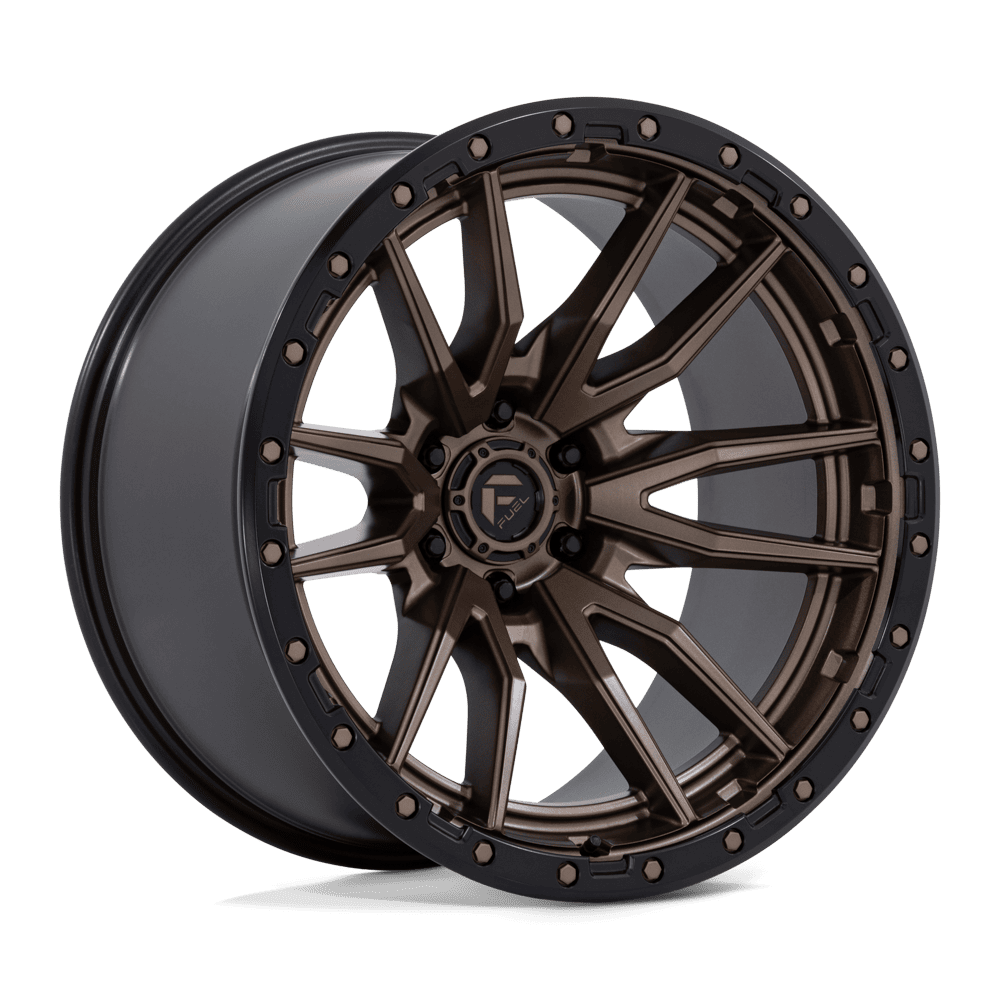

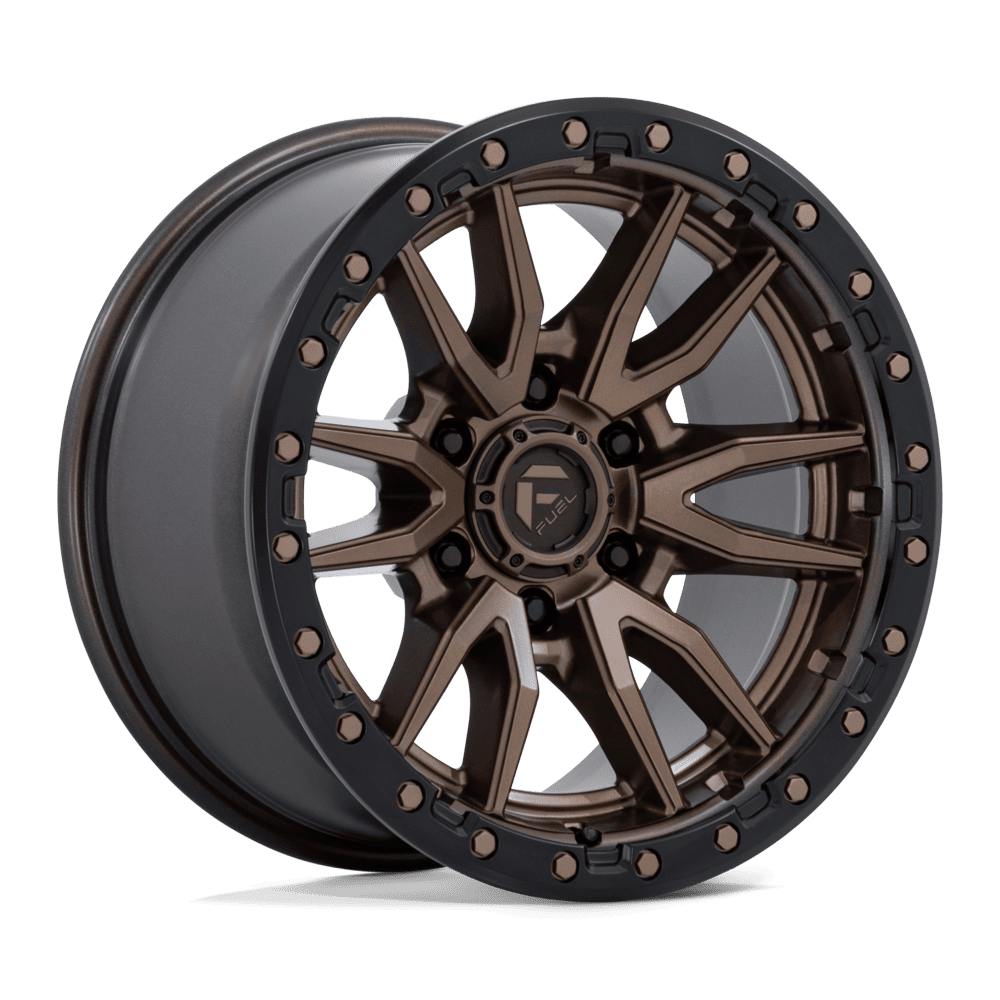

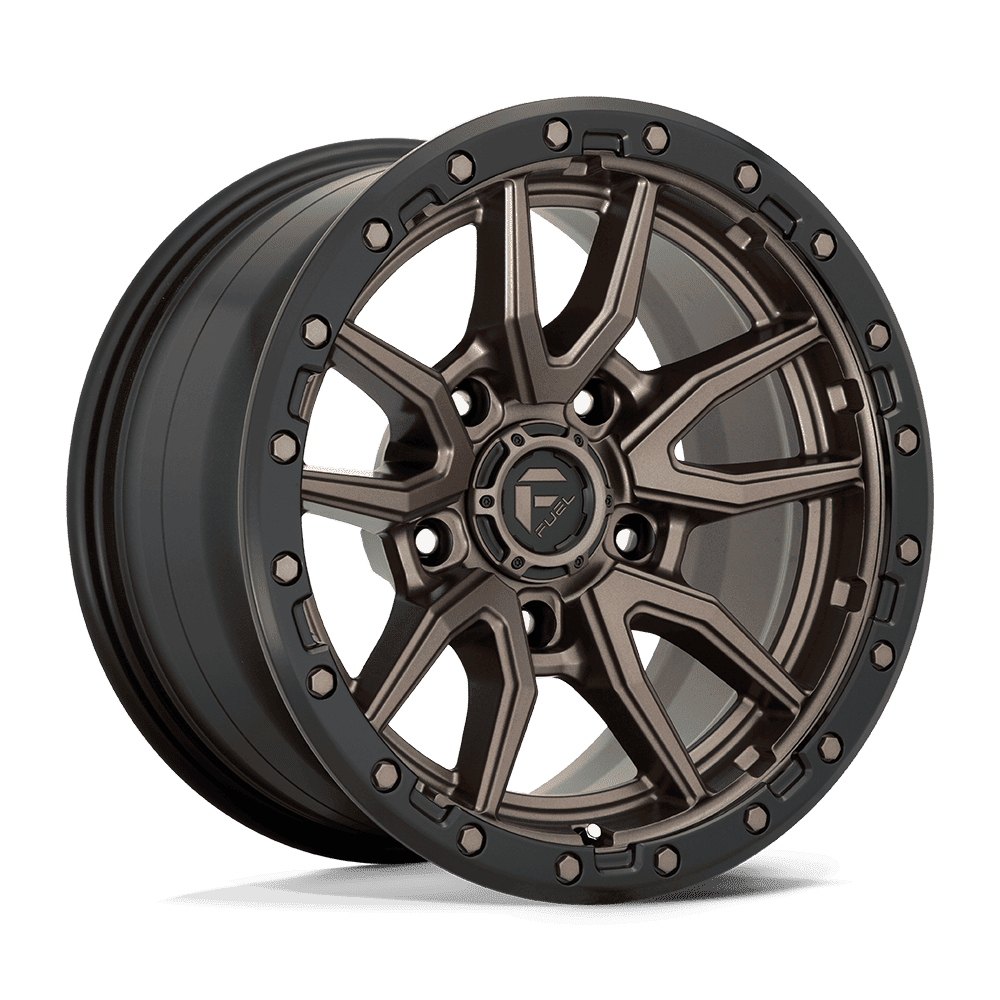

| D68117908445 | Matte Bronze Black Bead Ring | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2300 lbs | 34.00 lbs |
| D68117908945 | Matte Bronze Black Bead Ring | 17x9 -12mm | 6x135 | 4.53" | 87.10mm | 2300 lbs | 34.00 lbs |
| D68117907545 | Matte Bronze Black Bead Ring | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 36.00 lbs |

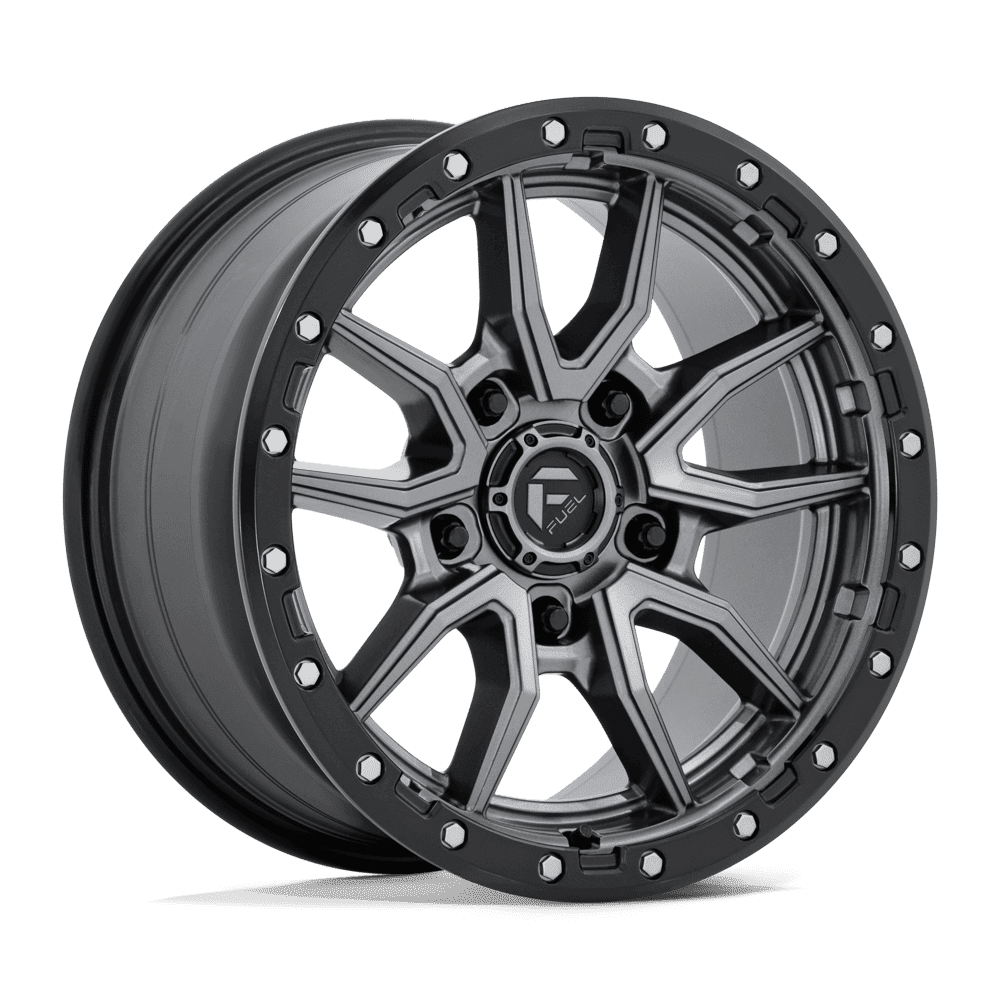

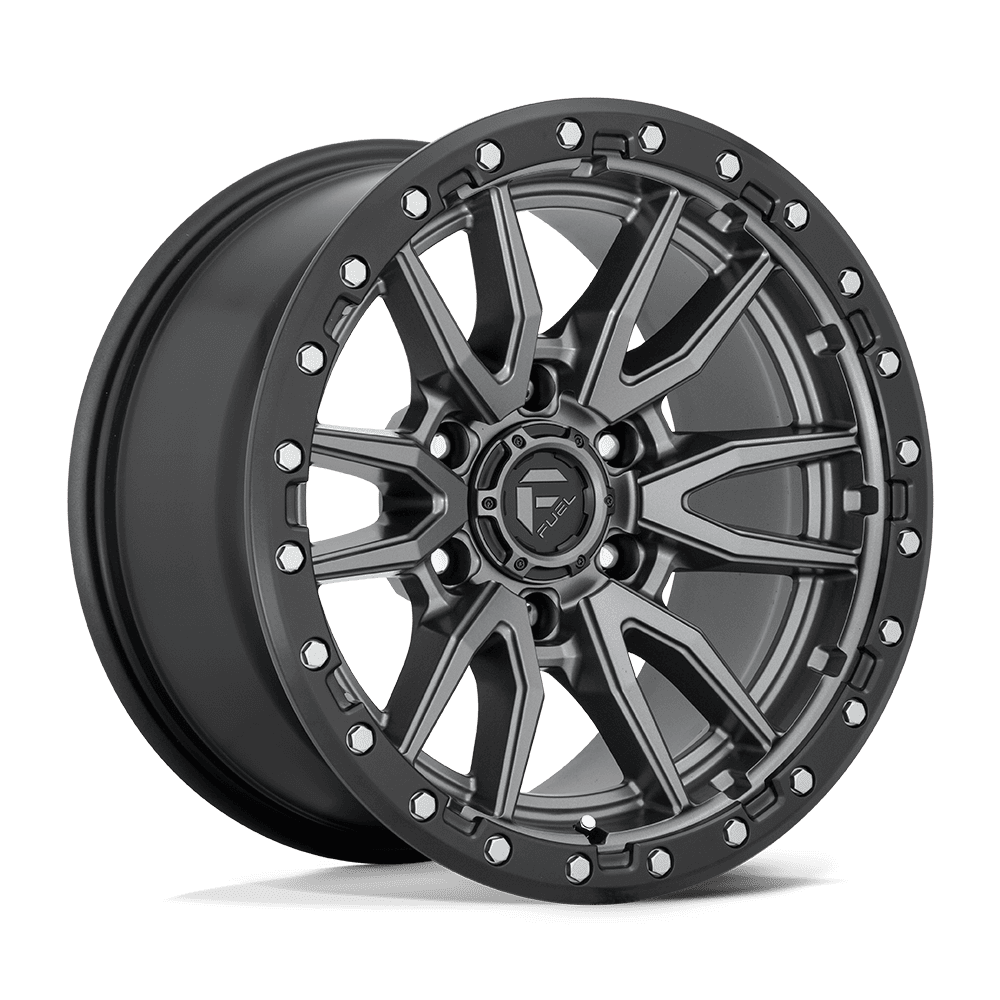

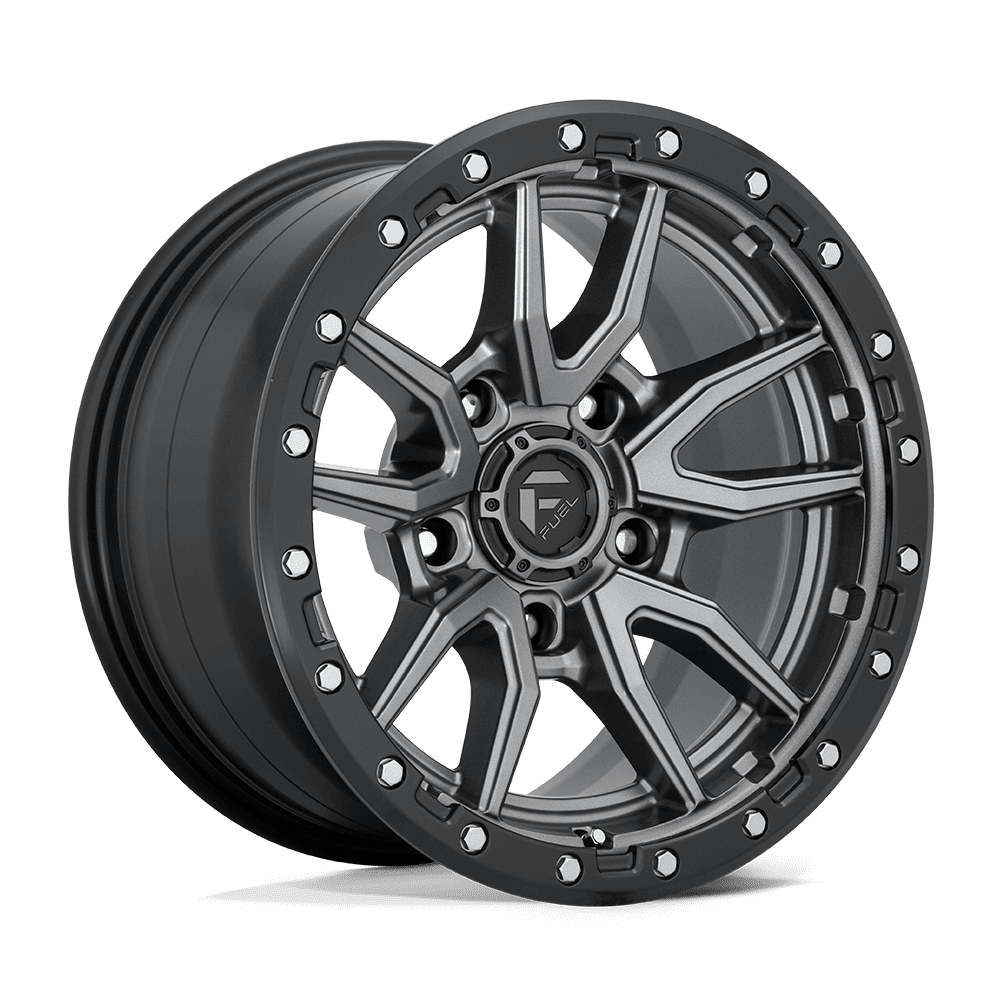

| D68017908445 | Matte Gunmetal Black Bead Ring | 17x9 -12mm | 6x139.7 | 4.53" | 106.10mm | 2300 lbs | 34.00 lbs |
| D68017908945 | Matte Gunmetal Black Bead Ring | 17x9 -12mm | 6x135 | 4.53" | 87.10mm | 2300 lbs | 34.00 lbs |
| D68017907545 | Matte Gunmetal Black Bead Ring | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2500 lbs | 36.00 lbs |
| D67917905650 | Matte Black | 17x9 1mm | 5x150 | 5.04" | 110.10mm | 2500 lbs | 36.00 lbs |
| D67917908950 | Matte Black | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 2300 lbs | 34.00 lbs |
| D67917907550 | Matte Black | 17x9 1mm | 5x127 | 5.04" | 71.50mm | 2500 lbs | 36.00 lbs |
| D67917909450 | Matte Black | 17x9 1mm | 6x120 | 5.04" | 67.06mm | 2300 lbs | 34.00 lbs |
| D67917908450 | Matte Black | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2300 lbs | 34.00 lbs |
| D68117908950 | Matte Bronze Black Bead Ring | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 2300 lbs | 34.00 lbs |
| D68117909450 | Matte Bronze Black Bead Ring | 17x9 1mm | 6x120 | 5.04" | 67.06mm | 2300 lbs | 34.00 lbs |
| D68117907550 | Matte Bronze Black Bead Ring | 17x9 1mm | 5x127 | 5.04" | 71.50mm | 2500 lbs | 36.00 lbs |
| D68117908450 | Matte Bronze Black Bead Ring | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2300 lbs | 34.00 lbs |
| D68017907550 | Matte Gunmetal Black Bead Ring | 17x9 1mm | 5x127 | 5.04" | 71.50mm | 2500 lbs | 36.00 lbs |
| D68017908950 | Matte Gunmetal Black Bead Ring | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 2300 lbs | 34.00 lbs |
| D68017909450 | Matte Gunmetal Black Bead Ring | 17x9 1mm | 6x120 | 5.04" | 67.06mm | 2300 lbs | 34.00 lbs |
| D68017908450 | Matte Gunmetal Black Bead Ring | 17x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2300 lbs | 34.00 lbs |
