Fuel Halo Wheel

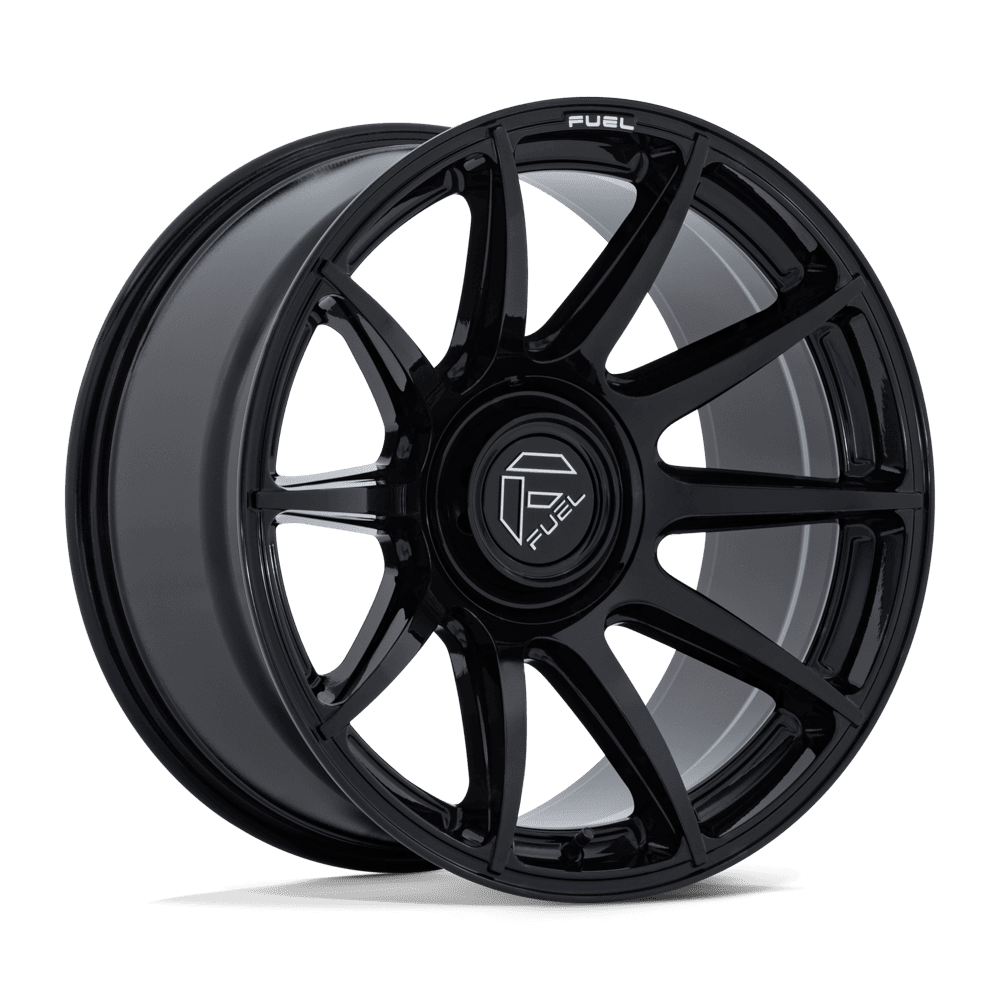

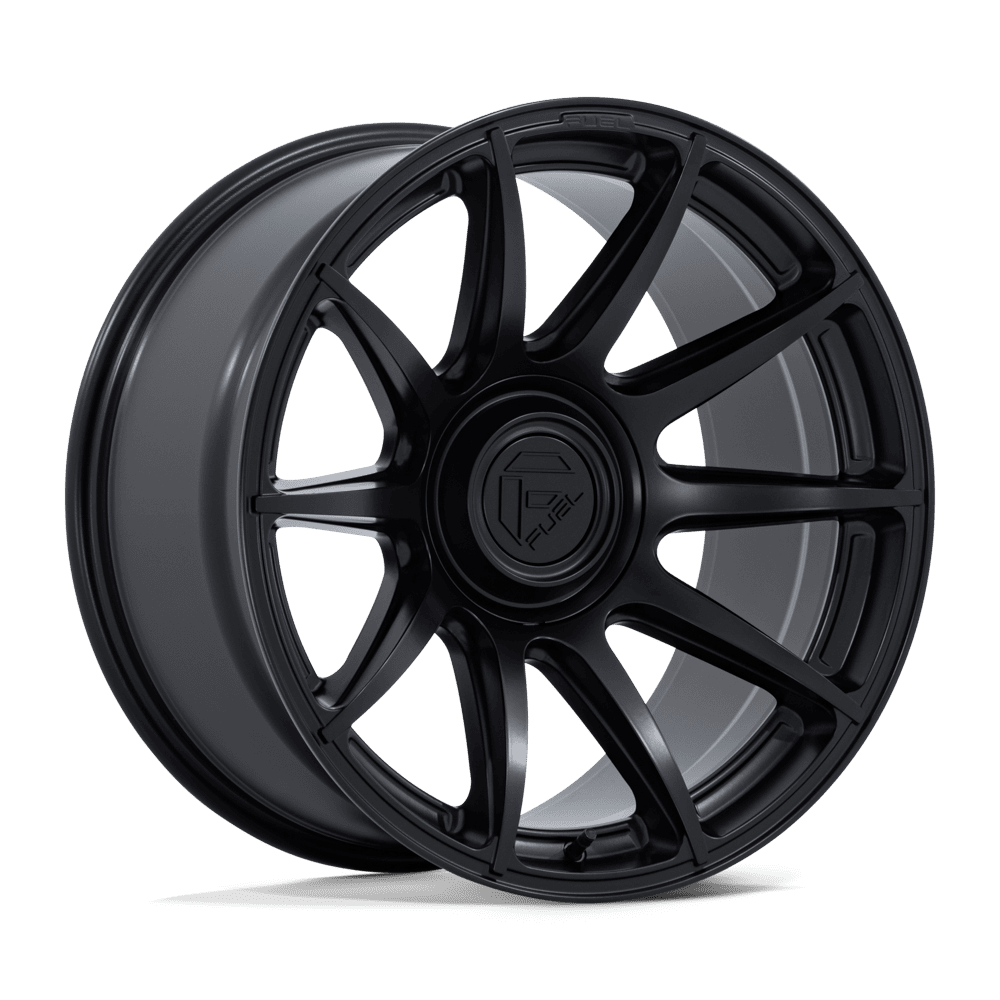

The Fuel HC906 Halo is a clean and aggressive 10-spoke wheel designed to level up your truck’s performance and style, featuring a robust cast construction for high-impact strength. This design features an intricate face, dual-drilled bolt patterns, and a covered-lug floating center that keeps the logo upright and stationary as the wheel spins. Available exclusively in 20-inch sizing with 9-inch ET1 and 10-inch ET-18 widths, it is an ideal upgrade for trucks like the Silverado, F-150, Ram 1500, and Tundra, with custom blank-to-drill options available for specialized applications.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| FC906MX20903501 | Blackout | 20x9 1mm | 5x127/5x139.7 | 5.04" | 78.10mm | 2650 lbs | 35.05 lbs |
| FC906MX20906701 | Blackout | 20x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2650 lbs | 34.39 lbs |
| FC906BX20903501 | Gloss Black | 20x9 1mm | 5x127/5x139.7 | 5.04" | 78.10mm | 2650 lbs | 35.05 lbs |
| FC906BX20906701 | Gloss Black | 20x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2650 lbs | 34.39 lbs |
| FC906MX20103518N | Blackout | 20x10 -18mm | 5x127/5x139.7 | 4.79" | 78.10mm | 2650 lbs | 37.26 lbs |
| FC906MX20106718N | Blackout | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2650 lbs | 36.60 lbs |
| FC906BX20106718N | Gloss Black | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2650 lbs | 36.60 lbs |
| FC906BX20103518N | Gloss Black | 20x10 -18mm | 5x127/5x139.7 | 4.79" | 78.10mm | 2650 lbs | 37.26 lbs |
