Fuel Flux Wheel - 22"
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Fuel Off-Road Warranty
At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish
This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Wheel structure | Lifetime (original retail purchaser) |
| PVD finishes (peeling/lifting) | 2 years |
| Chrome aluminum finish (peeling/lifting; pitting excluded) | 1 year |
| Painted aluminum finish (peeling/lifting) | 1 year |
| Steel wheel paint or plating | 90 days (surface rust/corrosion excluded) |
| Uncoated polished aluminum | Not covered |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use for as long as the original buyer owns the wheels
- Finish peeling or lifting within the finish's coverage period
- Approved wheels are repaired or replaced
What's not covered
- Wheels not installed per Fuel's installation guidelines
- Damage from poor maintenance or harsh cleaning chemicals
- Structural damage from accidents or road hazards
- Racing or improper vehicle use
- Use of unapproved accessories or adapters
- Removal, mounting, installation and shipping costs
How to make a Fuel Off-Road warranty claim
- Return the wheel with the original sales receipt to the retailer you bought it from
- The wheel is inspected; approved claims are repaired or replaced
- You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense
Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.
Shop Fuel Off-Road at NVMOS
See all Fuel Off-Road products, lead times and FAQs →
Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.
Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 293 Fuel Off-RoadWarrantyAll brands
Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.
Fuel Flux Wheel, 22"
The 22-inch Fuel Flux pairs a split-spoke design with a concave profile and angular accents. See more off-road wheels.
Sizes are 22x10 -18mm, 22x12 -44mm and 22x9.5 20mm, with six bolt patterns from 5 to 8-lug. Five finishes are offered. Compare non-beadlock wheels. Confirm the offset against your fender clearance and tire size before ordering. Compare it with the other Flux diameters if you are still choosing.

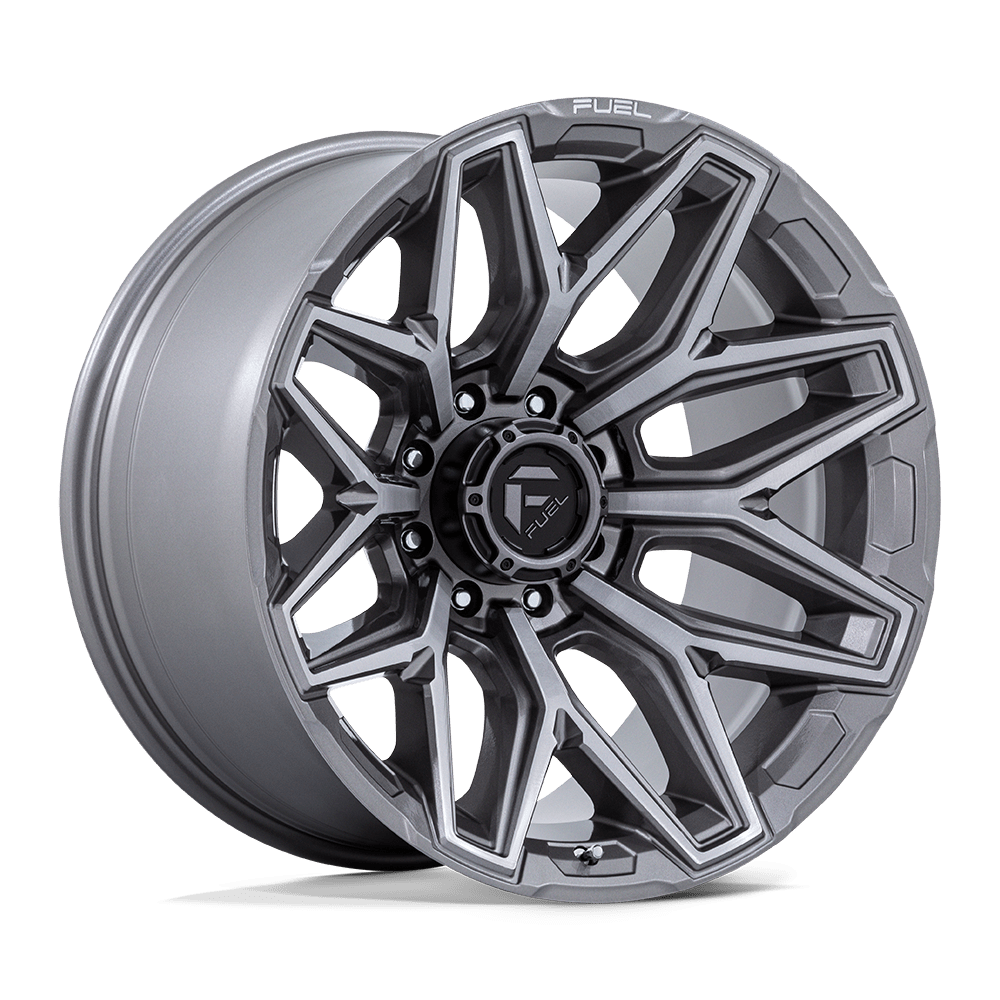

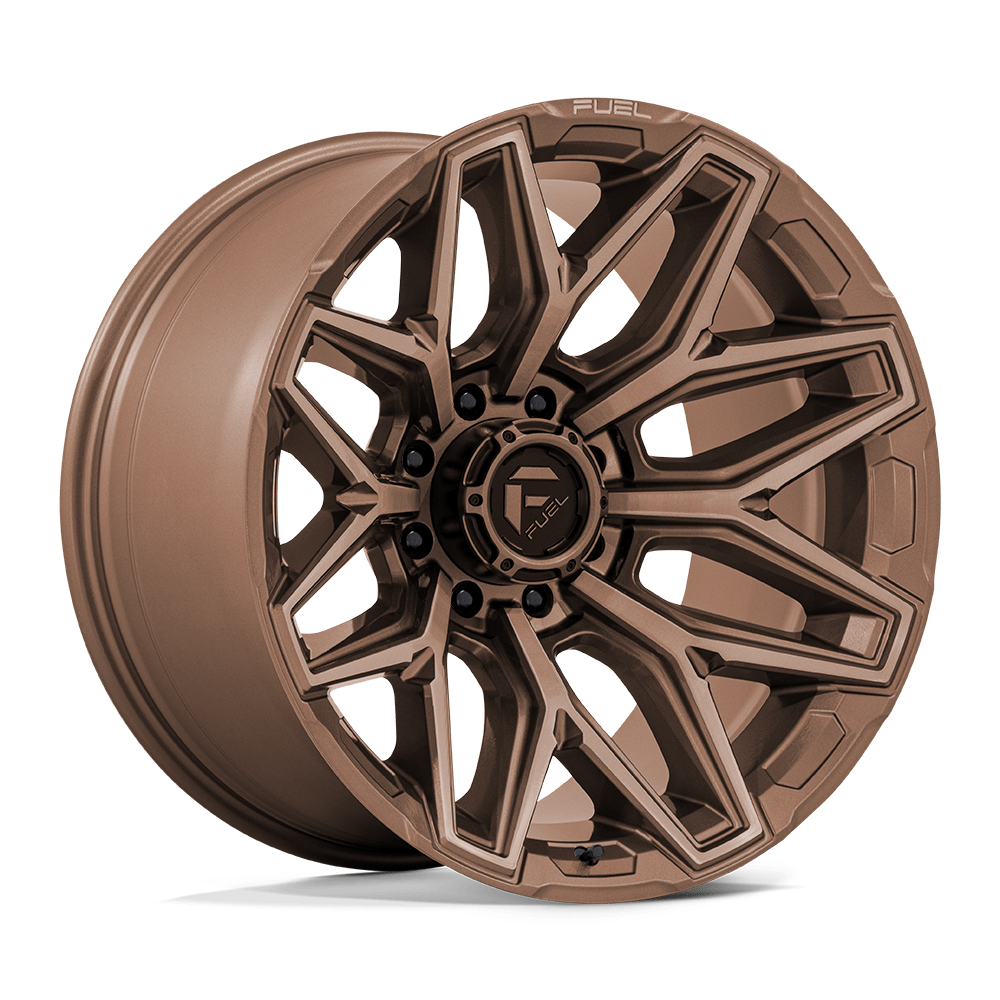

Finishes: Platinum, Platinum Bronze, Blackout, Gloss Black Brushed Face Gray DDDT, Gloss Black. Sizes (diameter x width, offset): 22x10 -18mm, 22x12 -44mm, 22x9.5 20mm. Bolt patterns: 6x139.7, 6x135, 8x165.1, 8x170, 8x180, 5x127.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| FC854MX22956820 | Blackout | 22x9.5 20mm | 6x139.7 | 6.04" | 106.10mm | 2500 lbs | 43.21 lbs |
| FC854MX22956320 | Blackout | 22x9.5 20mm | 6x135 | 6.04" | 87.10mm | 2500 lbs | 42.77 lbs |
| FC854BX22956820 | Gloss Black | 22x9.5 20mm | 6x139.7 | 6.04" | 106.10mm | 2500 lbs | 43.21 lbs |
| FC854BX22956320 | Gloss Black | 22x9.5 20mm | 6x135 | 6.04" | 87.10mm | 2500 lbs | 42.77 lbs |
| FC854BT22956820 | Gloss Black Brushed Face Gray DDDT | 22x9.5 20mm | 6x139.7 | 6.04" | 106.10mm | 2500 lbs | 43.21 lbs |
| FC854BT22956320 | Gloss Black Brushed Face Gray DDDT | 22x9.5 20mm | 6x135 | 6.04" | 87.10mm | 2500 lbs | 42.77 lbs |
| FC854AX22956820 | Platinum | 22x9.5 20mm | 6x139.7 | 6.04" | 106.10mm | 2500 lbs | 43.21 lbs |
| FC854AX22956320 | Platinum | 22x9.5 20mm | 6x135 | 6.04" | 87.10mm | 2500 lbs | 42.77 lbs |
| FC854ZR22956320 | Platinum Bronze | 22x9.5 20mm | 6x135 | 6.04" | 87.10mm | 2500 lbs | 42.77 lbs |
| FC854ZR22956820 | Platinum Bronze | 22x9.5 20mm | 6x139.7 | 6.04" | 106.10mm | 2500 lbs | 43.21 lbs |
| FC854MX22106318N | Blackout | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 44.70 lbs |
| FC854MX22106818N | Blackout | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 44.26 lbs |
| FC854MX22108818N | Blackout | 22x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 54.20 lbs |
| FC854MX22108718N | Blackout | 22x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 54.20 lbs |
| FC854BX22106318N | Gloss Black | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 44.70 lbs |
| FC854BX22106818N | Gloss Black | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 44.26 lbs |
| FC854BX22108818N | Gloss Black | 22x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 54.20 lbs |
| FC854BX22108718N | Gloss Black | 22x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 54.20 lbs |
| FC854BX22108018N | Gloss Black | 22x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 54.20 lbs |
| FC854BT22106318N | Gloss Black Brushed Face Gray DDDT | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 44.70 lbs |
| FC854BT22106818N | Gloss Black Brushed Face Gray DDDT | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 44.26 lbs |
| FC854BT22108718N | Gloss Black Brushed Face Gray DDDT | 22x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 54.20 lbs |
| FC854BT22108818N | Gloss Black Brushed Face Gray DDDT | 22x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 54.20 lbs |
| FC854AX22106818N | Platinum | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 44.26 lbs |
| FC854AX22106318N | Platinum | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 44.70 lbs |
| FC854AX22108018N | Platinum | 22x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 54.20 lbs |
| FC854AX22108718N | Platinum | 22x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 54.20 lbs |
| FC854AX22108818N | Platinum | 22x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 54.20 lbs |
| FC854ZR22106318N | Platinum Bronze | 22x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 44.70 lbs |
| FC854ZR22106818N | Platinum Bronze | 22x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 44.26 lbs |
| FC854ZR22108718N | Platinum Bronze | 22x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 54.20 lbs |
| FC854MX22126344N | Blackout | 22x12 -44mm | 6x135 | 4.77" | 87.10mm | 2500 lbs | 50.40 lbs |
| FC854MX22126844N | Blackout | 22x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 49.96 lbs |
| FC854MX22128744N | Blackout | 22x12 -44mm | 8x170 | 4.77" | 125.10mm | 3700 lbs | 58.78 lbs |
| FC854MX22128044N | Blackout | 22x12 -44mm | 8x165.1 | 4.77" | 125.10mm | 3700 lbs | 58.78 lbs |
| FC854MX22125044N | Blackout | 22x12 -44mm | 5x127 | 4.77" | 71.50mm | 2500 lbs | 47.60 lbs |
| FC854BX22128744N | Gloss Black | 22x12 -44mm | 8x170 | 4.77" | 125.10mm | 3700 lbs | 58.78 lbs |
| FC854BX22128044N | Gloss Black | 22x12 -44mm | 8x165.1 | 4.77" | 125.10mm | 3700 lbs | 58.78 lbs |
| FC854BT22126344N | Gloss Black Brushed Face Gray DDDT | 22x12 -44mm | 6x135 | 4.77" | 87.10mm | 2500 lbs | 50.40 lbs |
| FC854BT22126844N | Gloss Black Brushed Face Gray DDDT | 22x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 49.96 lbs |
| FC854BT22128044N | Gloss Black Brushed Face Gray DDDT | 22x12 -44mm | 8x165.1 | 4.77" | 125.10mm | 3700 lbs | 58.78 lbs |
| FC854AX22126844N | Platinum | 22x12 -44mm | 6x139.7 | 4.77" | 106.10mm | 2500 lbs | 49.96 lbs |
| FC854AX22126344N | Platinum | 22x12 -44mm | 6x135 | 4.77" | 87.10mm | 2500 lbs | 50.40 lbs |
| FC854AX22128744N | Platinum | 22x12 -44mm | 8x170 | 4.77" | 125.10mm | 3700 lbs | 58.78 lbs |
| FC854AX22128044N | Platinum | 22x12 -44mm | 8x165.1 | 4.77" | 125.10mm | 3700 lbs | 58.78 lbs |
| FC854AX22125044N | Platinum | 22x12 -44mm | 5x127 | 4.77" | 71.50mm | 2500 lbs | 47.60 lbs |
| FC854ZR22126344N | Platinum Bronze | 22x12 -44mm | 6x135 | 4.77" | 87.10mm | 2500 lbs | 50.40 lbs |
| FC854ZR22128744N | Platinum Bronze | 22x12 -44mm | 8x170 | 4.77" | 125.10mm | 3700 lbs | 58.78 lbs |
| FC854ZR22125044N | Platinum Bronze | 22x12 -44mm | 5x127 | 4.77" | 71.50mm | 2500 lbs | 47.60 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$474.00
$649.95
$109.95
$124.21
$373.00
Specifications
Fuel Flux Wheel FAQs
What sizes?
22x10 -18mm, 22x12 -44mm and 22x9.5 20mm.
What bolt patterns?
6x139.7, 6x135, 8x165.1, 8x170, 8x180 and 5x127.
What finishes?
Platinum, Platinum Bronze, Blackout, Gloss Black Brushed Face Gray DDDT and Gloss Black.
Is it a cast wheel?
Fuel's listing does not state the build method. Email support@nvmos.com if you need it.
