SKU: D501248293

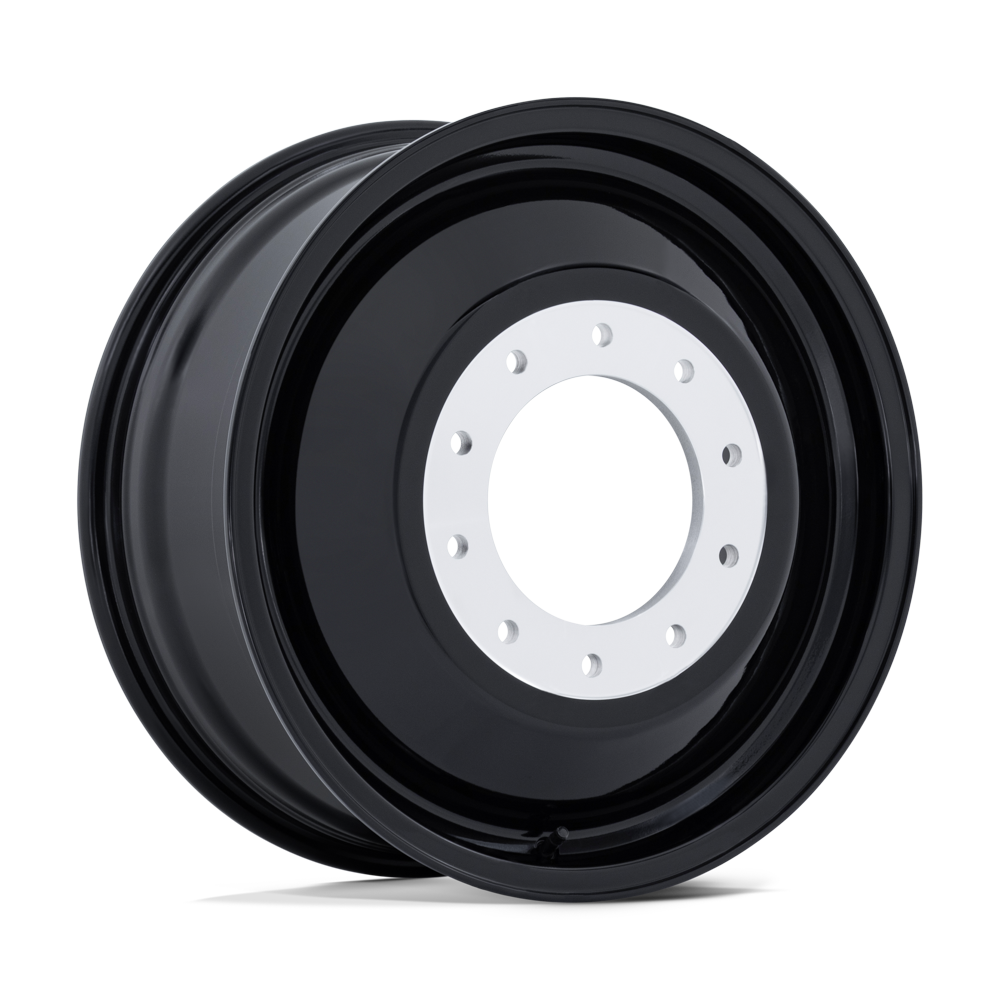

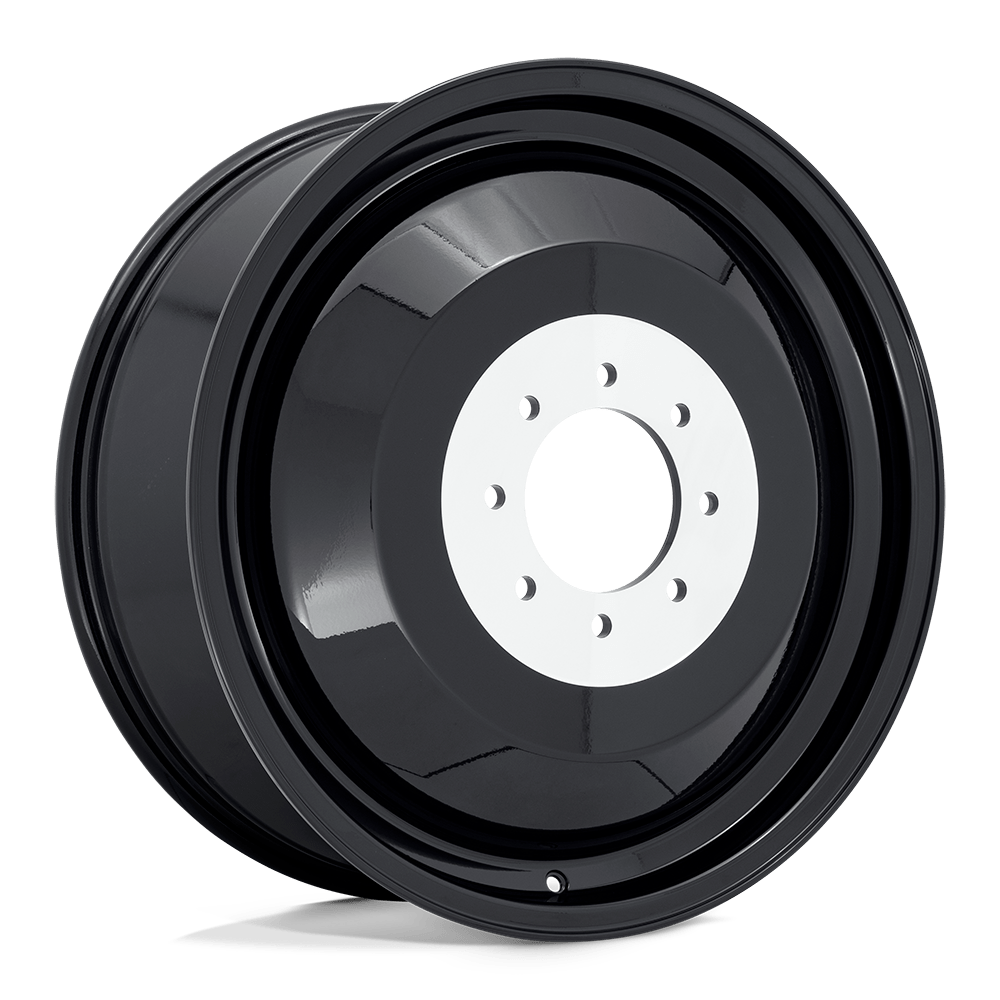

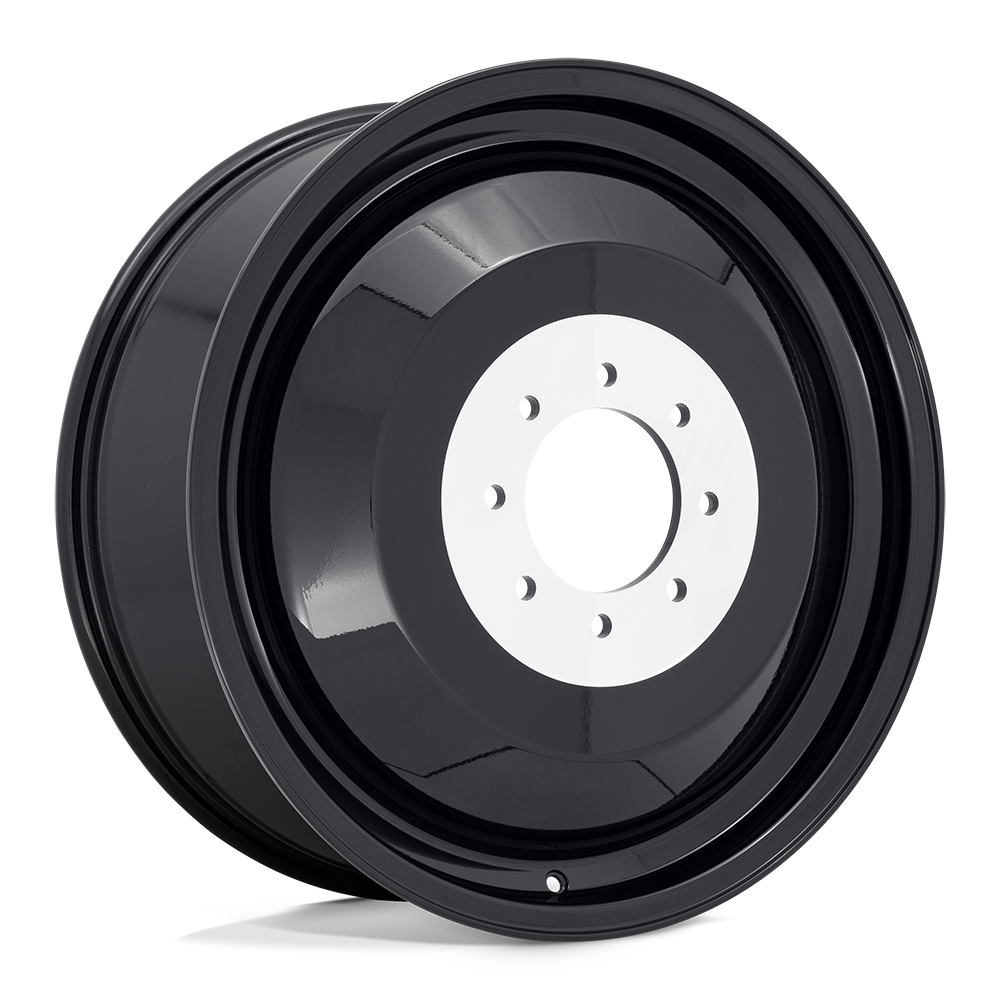

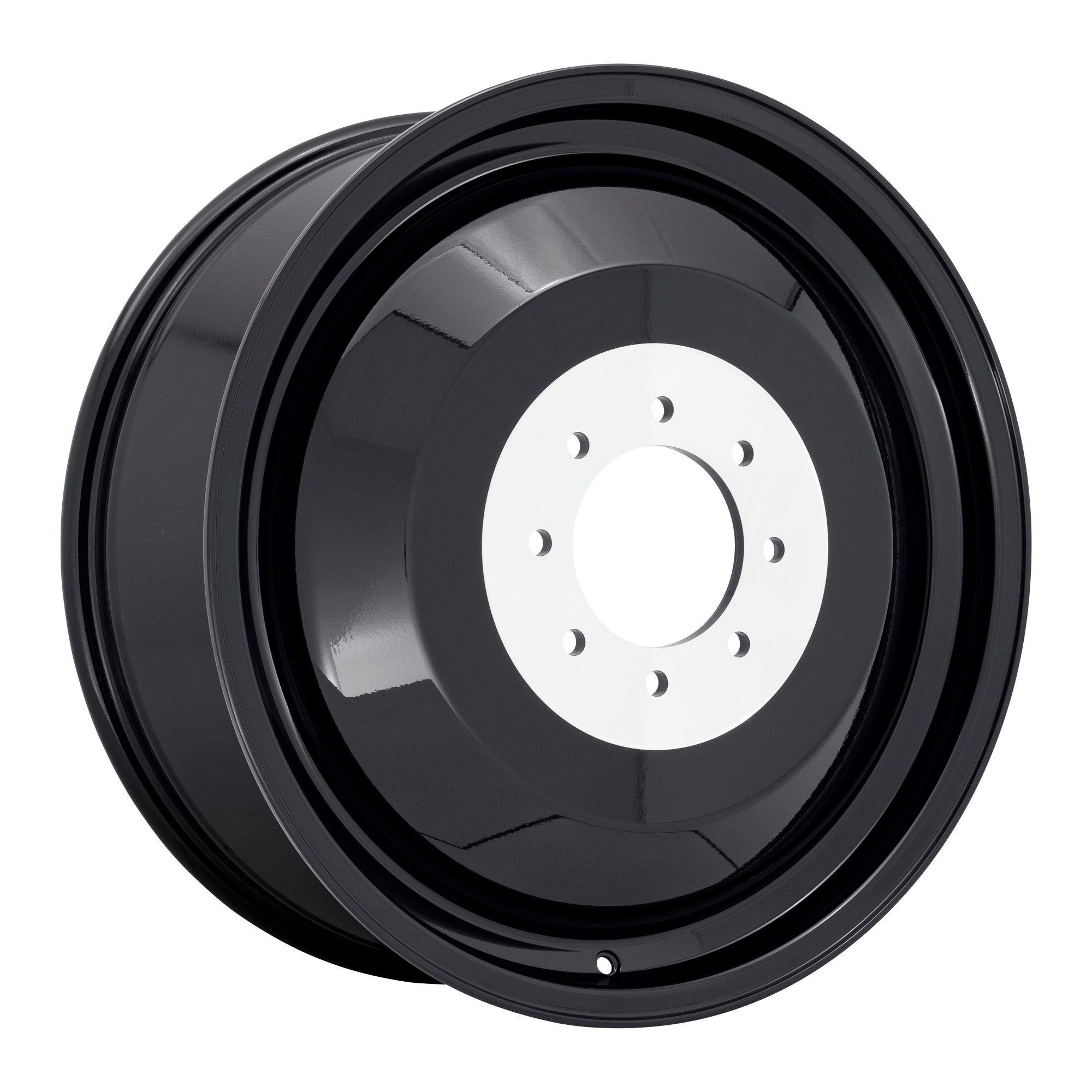

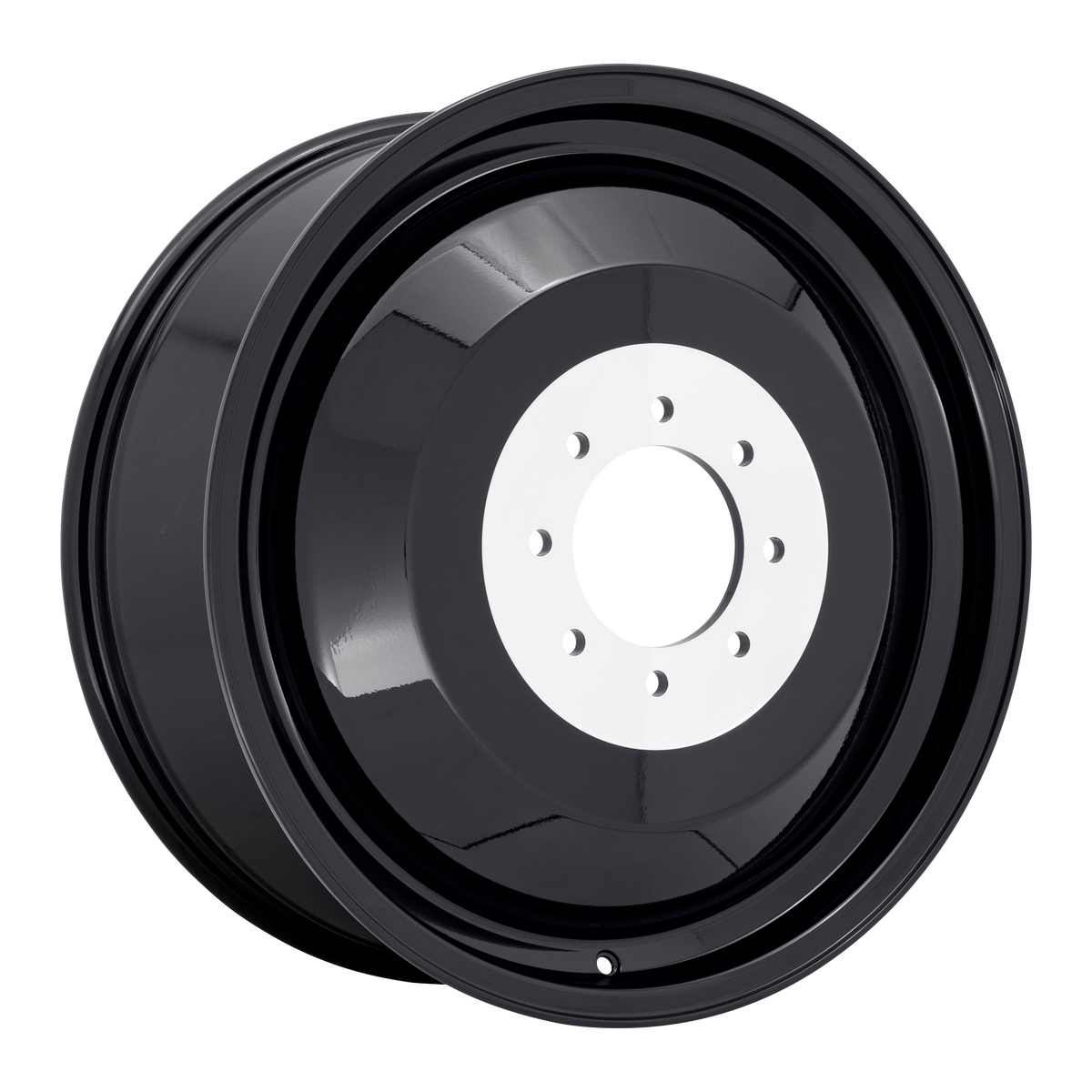

Fuel Dually Inner Wheel
By Fuel
$575.00
Size
Bolt Pattern
180-Day ReturnsOn uninstalled, unused parts
Real humans who wheel(920) 249-7744
PayPal Credit acceptedFinancing option at checkout
Secure checkoutEncrypted payment
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D50120828D | Gloss Black | 20x8.25 78mm | 8x165.1 | 7.70" | 121.50mm | 2500 lbs | 31.00 lbs |
| D501208272 | Gloss Black | 20x8.25 97mm | 8x165.1 | 8.44" | 117.00mm | 2500 lbs | 31.00 lbs |
| D501208293 | Gloss Black | 20x8.25 97mm | 8x210 | 8.44" | 154.30mm | 2500 lbs | 31.00 lbs |
| D5032082A9 | Gloss Black | 20x8.25 114mm | 10x225 | 9.11" | 170.10mm | 3750 lbs | 33.20 lbs |
| D50020828F | Gloss Black | 20x8.25 115mm | 8x165.1 | 9.15" | 125.10mm | 2500 lbs | 32.00 lbs |
| D50020829D | Gloss Black | 20x8.25 115mm | 8x200 | 9.15" | 141.00mm | 2500 lbs | 32.00 lbs |
| D50122828D | Gloss Black | 22x8.25 78mm | 8x165.1 | 7.70" | 121.50mm | 2500 lbs | 38.00 lbs |
| D501228293 | Gloss Black | 22x8.25 97mm | 8x210 | 8.44" | 154.30mm | 2500 lbs | 38.00 lbs |
| D501228272 | Gloss Black | 22x8.25 97mm | 8x165.1 | 8.44" | 117.00mm | 2500 lbs | 38.00 lbs |
| D501228217 | Gloss Black | 22x8.25 116mm | 8x170 | 9.19" | 125.10mm | 2500 lbs | 38.00 lbs |
| D50122829D | Gloss Black | 22x8.25 116mm | 8x200 | 9.19" | 141.00mm | 2500 lbs | 38.00 lbs |
| D5032282A9 | Gloss Black | 22x8.25 116mm | 10x225 | 9.19" | 170.10mm | 3750 lbs | 38.10 lbs |
| D50124828D | Gloss Black | 24x8.25 78mm | 8x165.1 | 7.70" | 121.50mm | 2500 lbs | 41.00 lbs |
| D501248293 | Gloss Black | 24x8.25 97mm | 8x210 | 8.44" | 154.30mm | 2500 lbs | 41.00 lbs |
| D501248272 | Gloss Black | 24x8.25 97mm | 8x165.1 | 8.44" | 117.00mm | 2500 lbs | 41.00 lbs |
| D50124828F | Gloss Black | 24x8.25 118mm | 8x165.1 | 9.27" | 125.10mm | 2500 lbs | 45.00 lbs |
| D50124829D | Gloss Black | 24x8.25 118mm | 8x200 | 9.27" | 141.00mm | 2500 lbs | 45.00 lbs |
| D5032482A9 | Gloss Black | 24x8.25 118mm | 10x225 | 9.27" | 170.10mm | 3750 lbs | 46.50 lbs |
