SKU: D55620909850

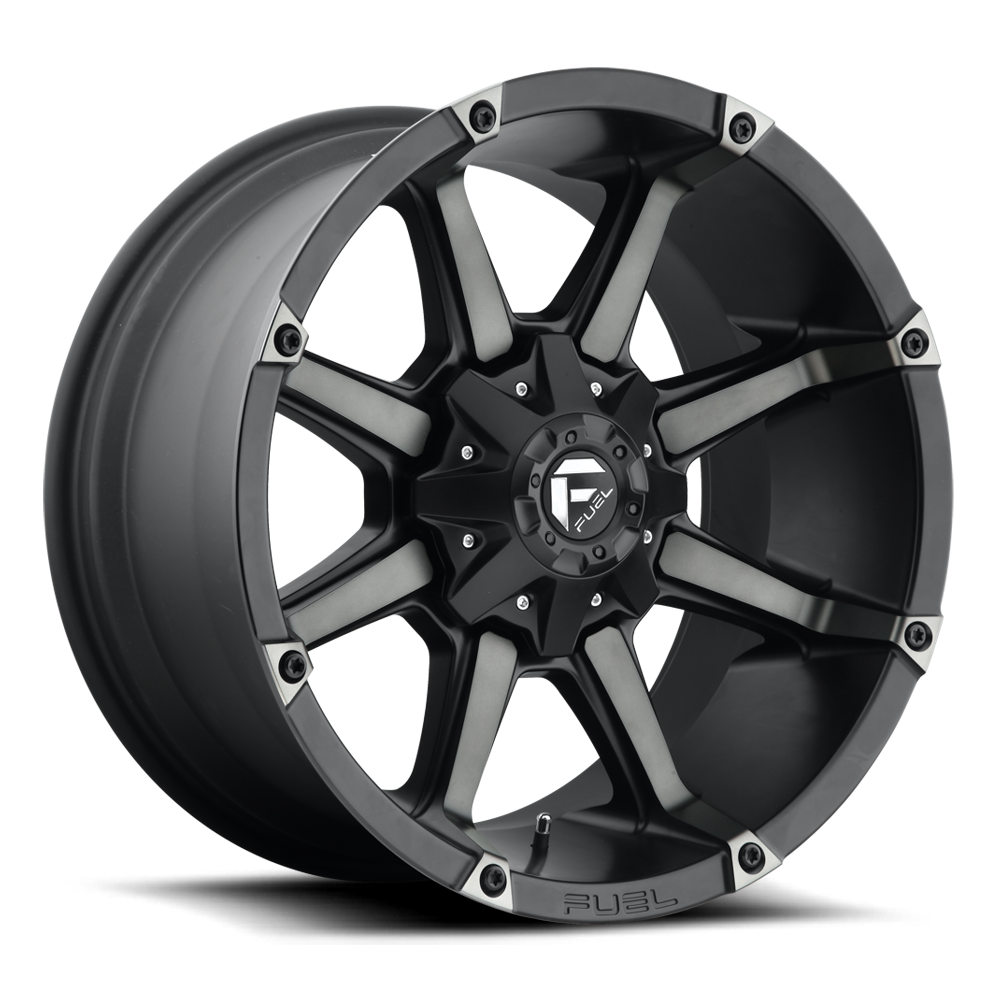

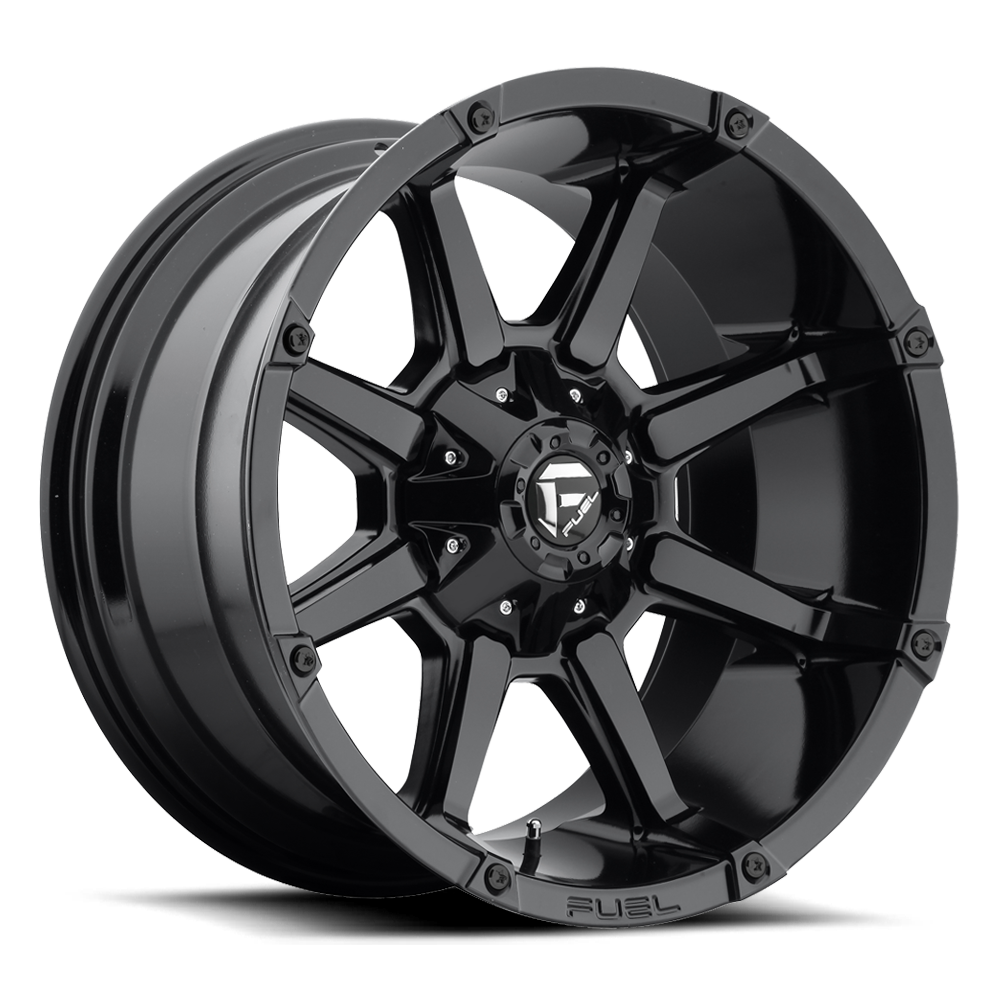

Fuel Coupler Wheel
By Fuel
$435.00
Size
Bolt Pattern
180-Day ReturnsOn uninstalled, unused parts
Real humans who wheel(920) 249-7744
PayPal Credit acceptedFinancing option at checkout
Secure checkoutEncrypted payment
The Fuel Off-Road Coupler o^ers versatility with its robust monoblock construction and bold lip design. Available in 5, 6, and 8-lug bolt patterns, it fits a wide range of vehicles including light-duty setups like the Toyota Tacoma and Ford F-150, as well as heavy-duty trucks like the RAM 2500 and 3500, Ford F-250 and F-350, and Chevrolet/GMC 2500 and 3500. With diameters from 17" to 20" and o^sets from -24mm to +20mm, the Coupler is a highly adaptable choice for any off-road rig.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D57517909845 | Gloss Black | 17x9 -12mm | 6x135/6x139.7 | 4.53" | 106.10mm | 2500 lbs | 33.00 lbs |
| D57518909845 | Gloss Black | 18x9 -12mm | 6x135/6x139.7 | 4.53" | 106.10mm | 2500 lbs | 34.00 lbs |
| D57518902645 | Gloss Black | 18x9 -12mm | 5x114.3/5x127 | 4.53" | 78.10mm | 2500 lbs | 34.00 lbs |
| D57518909850 | Gloss Black | 18x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 36.00 lbs |
| D55618909850 | Matte Black Double Dark Tint | 18x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 36.00 lbs |
| D57518909856 | Gloss Black | 18x9 19mm | 6x135/6x139.7 | 5.75" | 106.10mm | 2500 lbs | 36.00 lbs |
| D57520908250 | Gloss Black | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3500 lbs | 40.00 lbs |
| D57520901750 | Gloss Black | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3500 lbs | 40.00 lbs |
| D57520909850 | Gloss Black | 20x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 40.00 lbs |
| D55620909850 | Matte Black Double Dark Tint | 20x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 40.00 lbs |
| D55620908250 | Matte Black Double Dark Tint | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3500 lbs | 40.00 lbs |
| D57520907057 | Gloss Black | 20x9 20mm | 5x139.7/5x150 | 5.79" | 110.10mm | 2500 lbs | 40.00 lbs |
| D57520901857 | Gloss Black | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3500 lbs | 40.00 lbs |
| D57520909857 | Gloss Black | 20x9 20mm | 6x135/6x139.7 | 5.79" | 106.10mm | 2500 lbs | 40.00 lbs |
| D55620901857 | Matte Black Double Dark Tint | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3500 lbs | 40.00 lbs |
| D55620909857 | Matte Black Double Dark Tint | 20x9 20mm | 6x135/6x139.7 | 5.79" | 106.10mm | 2500 lbs | 40.00 lbs |
| D57520001850 | Gloss Black | 20x10 -12mm | 8x180 | 5.03" | 124.20mm | 3500 lbs | 38.00 lbs |
| D57520008250 | Gloss Black | 20x10 -12mm | 8x165.1 | 5.03" | 125.10mm | 3500 lbs | 38.00 lbs |
| D55620002650 | Matte Black Double Dark Tint | 20x10 -12mm | 5x114.3/5x127 | 5.03" | 78.10mm | 2500 lbs | 38.00 lbs |
| D57520009847 | Gloss Black | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2500 lbs | 38.00 lbs |
| D55620009847 | Matte Black Double Dark Tint | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2500 lbs | 38.00 lbs |
