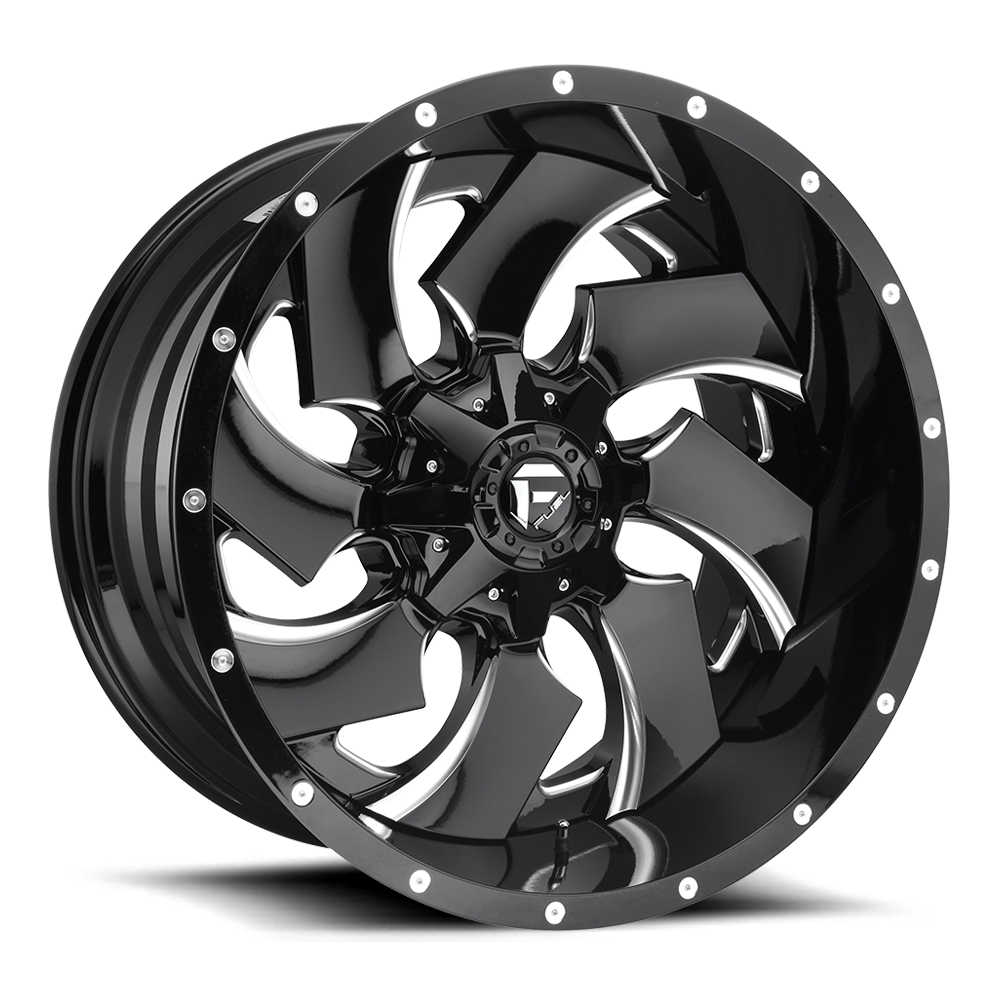

Fuel Cleaver Wheel
The Fuel Off-Road Cleaver features bold styling and rugged durability for off-road enthusiasts. Its unique split-spoke pattern and aggressive design make it a standout choice for trucks that demand both performance and style. Available in 5, 6, and 8-lug bolt patterns, the Cleaver fits everything from Jeep Wranglers and Toyota Tacomas to ½-ton trucks like the Ford F-150, RAM 1500, and Silverado 1500. It’s also compatible with ¾-ton and 1-ton trucks such as the RAM 2500 and 3500, Ford F-250 and F-350, and Silverado 2500 and 3500. With sizes ranging from 17" to 24" and offsets from -44mm to +20mm, the Cleaver is built to handle tough terrains while enhancing your off-road build’s appearance.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D57417902645 | Gloss Black Milled | 17x9 -12mm | 5x114.3/5x127 | 4.53" | 78.10mm | 2500 lbs | 34.00 lbs |
| D57417909850 | Gloss Black Milled | 17x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 34.00 lbs |
| D57417908250 | Gloss Black Milled | 17x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3500 lbs | 34.00 lbs |
| D57418902645 | Gloss Black Milled | 18x9 -12mm | 5x114.3/5x127 | 4.53" | 78.10mm | 2500 lbs | 37.00 lbs |
| D57418909845 | Gloss Black Milled | 18x9 -12mm | 6x135/6x139.7 | 4.53" | 106.10mm | 2500 lbs | 37.00 lbs |
| D57418902650 | Gloss Black Milled | 18x9 1mm | 5x114.3/5x127 | 5.04" | 78.10mm | 2500 lbs | 37.00 lbs |
| D57418909850 | Gloss Black Milled | 18x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 37.00 lbs |
| D57418901857 | Gloss Black Milled | 18x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 37.00 lbs |
| D57418909857 | Gloss Black Milled | 18x9 20mm | 6x135/6x139.7 | 5.79" | 106.10mm | 2500 lbs | 37.00 lbs |
| D57420901850 | Gloss Black Milled | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3500 lbs | 44.00 lbs |
| D57420908250 | Gloss Black Milled | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3500 lbs | 44.00 lbs |
| D57420909850 | Gloss Black Milled | 20x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 44.00 lbs |
| D57420901750 | Gloss Black Milled | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3500 lbs | 44.00 lbs |
| D57420907050 | Gloss Black Milled | 20x9 1mm | 5x139.7/5x150 | 5.04" | 110.10mm | 2500 lbs | 44.00 lbs |
| D57420909857 | Gloss Black Milled | 20x9 20mm | 6x135/6x139.7 | 5.79" | 106.10mm | 2500 lbs | 44.00 lbs |
| D57420901757 | Gloss Black Milled | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3500 lbs | 44.00 lbs |
| D57420907057 | Gloss Black Milled | 20x9 20mm | 5x139.7/5x150 | 5.79" | 110.10mm | 2500 lbs | 44.00 lbs |
| D57420901857 | Gloss Black Milled | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3500 lbs | 44.00 lbs |
| D57420001747 | Gloss Black Milled | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 44.00 lbs |
| D57420002647 | Gloss Black Milled | 20x10 -18mm | 5x114.3/5x127 | 4.79" | 78.10mm | 2500 lbs | 44.00 lbs |
| D57420008247 | Gloss Black Milled | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 44.00 lbs |
| D57420009847 | Gloss Black Milled | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2500 lbs | 44.00 lbs |
| D57420007047 | Gloss Black Milled | 20x10 -18mm | 5x139.7/5x150 | 4.79" | 110.10mm | 2500 lbs | 44.00 lbs |
| D57420001847 | Gloss Black Milled | 20x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 44.00 lbs |
| D57420208247 | Gloss Black Milled | 20x12 -44mm | 8x165.1 | 4.77" | 125.10mm | 3500 lbs | 46.00 lbs |
| D57420201747 | Gloss Black Milled | 20x12 -44mm | 8x170 | 4.77" | 125.10mm | 3500 lbs | 46.00 lbs |
| D57420209847 | Gloss Black Milled | 20x12 -44mm | 6x135/6x139.7 | 4.77" | 106.10mm | 2500 lbs | 46.00 lbs |
| D57422009847 | Gloss Black Milled | 22x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2500 lbs | 50.00 lbs |
