SKU: D9122482A9
Fuel Circuit Dually Wheel
By Fuel
$825.00
Size
Bolt Pattern
180-Day ReturnsOn uninstalled, unused parts
Real humans who wheel(920) 249-7744
PayPal Credit acceptedFinancing option at checkout
Secure checkoutEncrypted payment

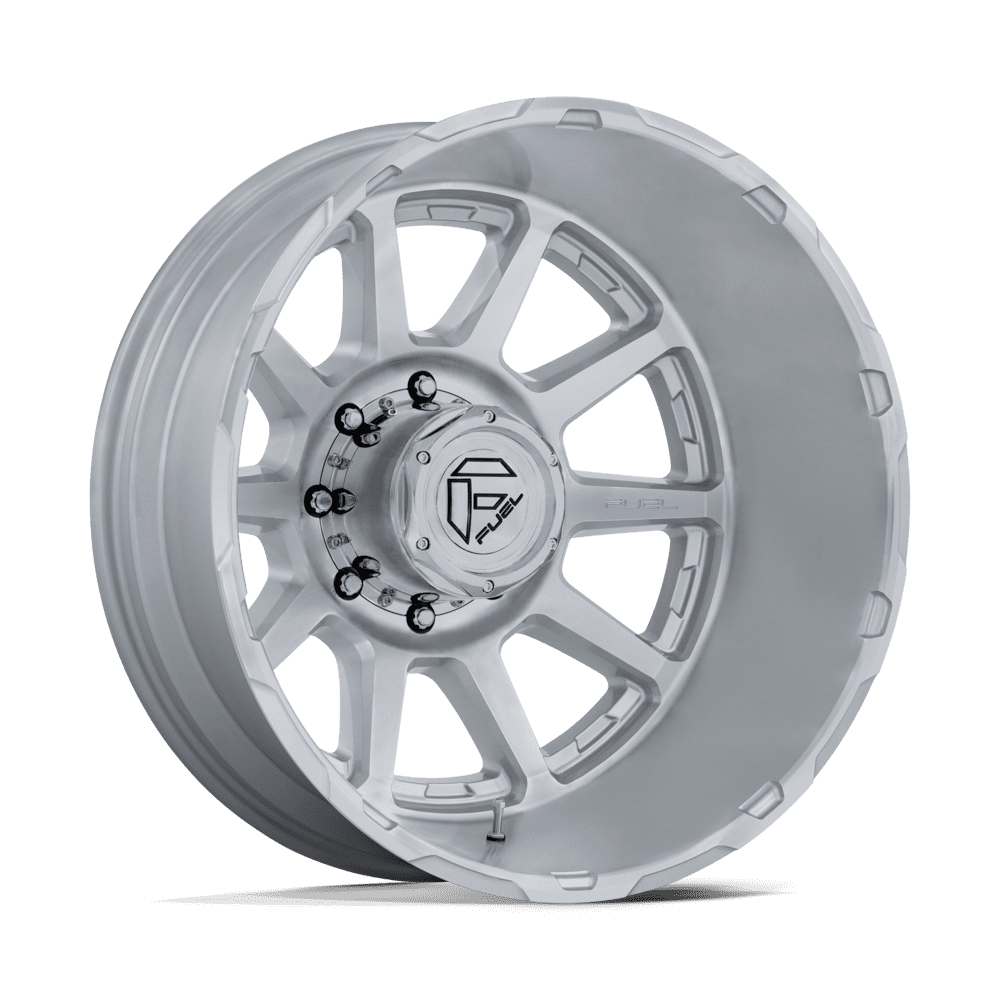

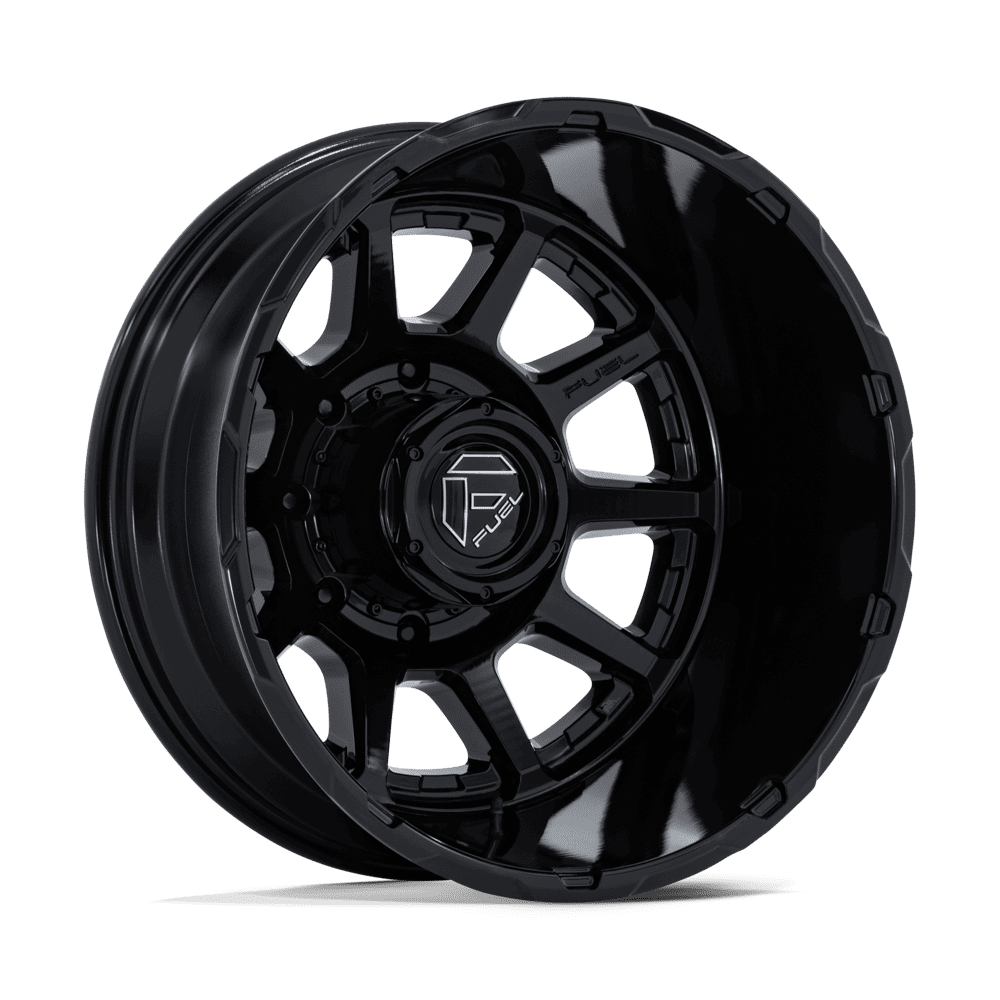

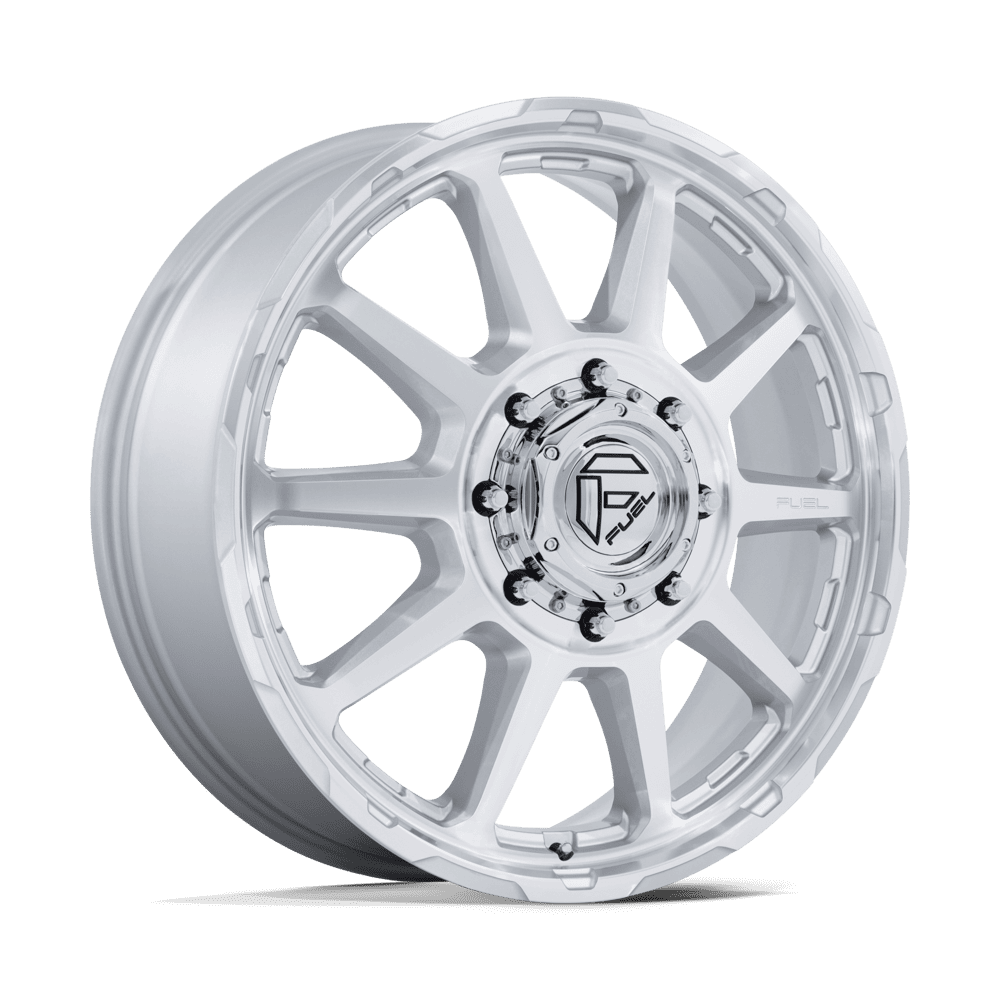

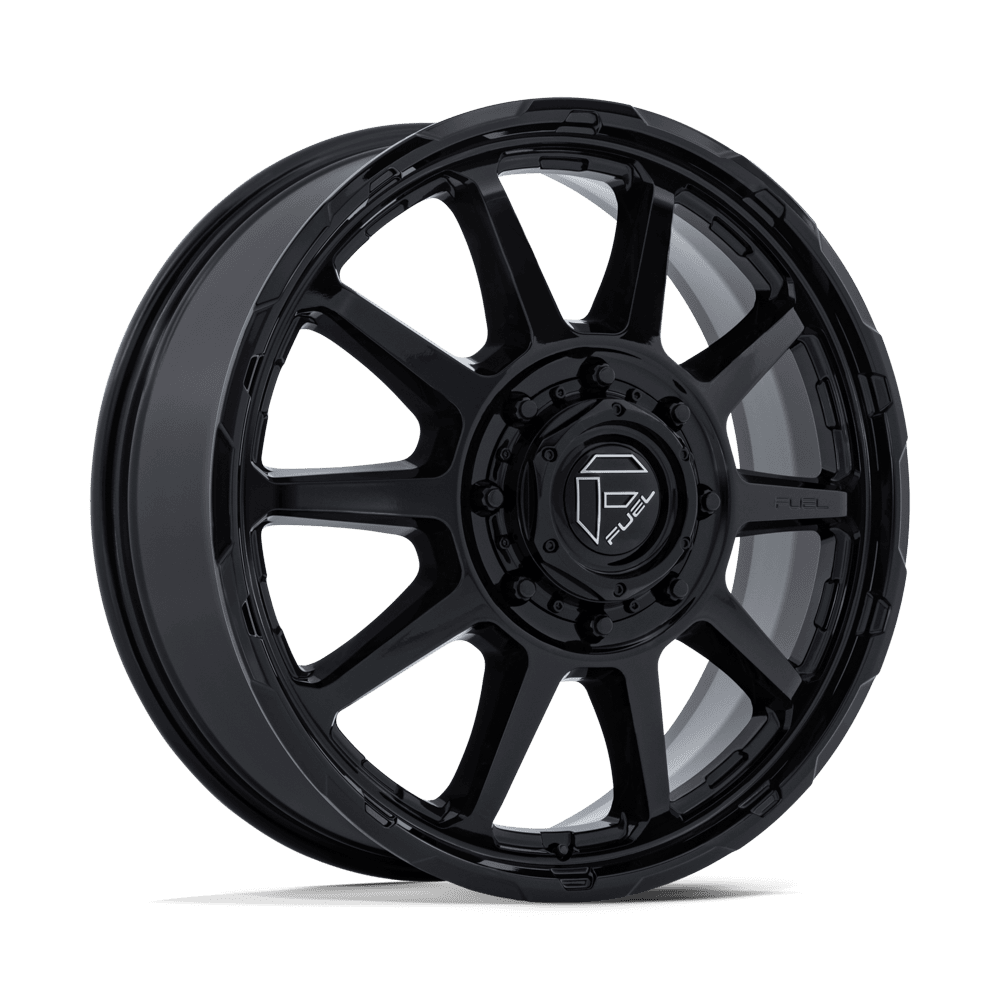

Bring a show-ready attitude to your heavy-duty rig with the Fuel Circuit Dually. We build the Circuit to turn heads while still pulling weight with a ten-spoke design and robust cast construction load rated up to 3750 lbs. Available in 20”-24” sizes and Gloss Black or Gloss Silver with Machined Face finishes, it’s for drivers chasing a big style upgrade for their F-350, RAM 3500, or Silverado 3500.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D91120829235 | Gloss Black | 20x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3750 lbs | 48.28 lbs |
| D9112082A935 | Gloss Black | 20x8.25 -202mm | 10x225 | -3.33" | 170.10mm | 3750 lbs | 46.74 lbs |
| D91220829235 | Gloss Silver w/ Machined Face | 20x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3750 lbs | 48.28 lbs |
| D9122082A935 | Gloss Silver w/ Machined Face | 20x8.25 -202mm | 10x225 | -3.33" | 170.10mm | 3750 lbs | 46.74 lbs |
| D91120829335 | Gloss Black | 20x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3750 lbs | 50.00 lbs |
| D91220829335 | Gloss Silver w/ Machined Face | 20x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3750 lbs | 50.00 lbs |
| D911208293 | Gloss Black | 20x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3750 lbs | 41.01 lbs |
| D9112082A9 | Gloss Black | 20x8.25 105mm | 10x225 | 8.76" | 170.10mm | 3750 lbs | 39.90 lbs |
| D911208292 | Gloss Black | 20x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3750 lbs | 41.70 lbs |
| D912208293 | Gloss Silver w/ Machined Face | 20x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3750 lbs | 41.01 lbs |
| D912208292 | Gloss Silver w/ Machined Face | 20x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3750 lbs | 41.70 lbs |
| D9122082A9 | Gloss Silver w/ Machined Face | 20x8.25 105mm | 10x225 | 8.76" | 170.10mm | 3750 lbs | 39.90 lbs |
| D9112282A935 | Gloss Black | 22x8.25 -202mm | 10x225 | -3.33" | 170.10mm | 3750 lbs | 52.25 lbs |
| D91122829235 | Gloss Black | 22x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3750 lbs | 53.79 lbs |
| D9122282A935 | Gloss Silver w/ Machined Face | 22x8.25 -202mm | 10x225 | -3.33" | 170.10mm | 3750 lbs | 52.25 lbs |
| D91222829235 | Gloss Silver w/ Machined Face | 22x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3750 lbs | 53.79 lbs |
| D91122829335 | Gloss Black | 22x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3750 lbs | 55.60 lbs |
| D91222829335 | Gloss Silver w/ Machined Face | 22x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3750 lbs | 55.60 lbs |
| D911228293 | Gloss Black | 22x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3750 lbs | 46.30 lbs |
| D911228292 | Gloss Black | 22x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3750 lbs | 47.00 lbs |
| D9112282A9 | Gloss Black | 22x8.25 105mm | 10x225 | 8.76" | 170.10mm | 3750 lbs | 45.19 lbs |
| D9122282A9 | Gloss Silver w/ Machined Face | 22x8.25 105mm | 10x225 | 8.76" | 170.10mm | 3750 lbs | 45.19 lbs |
| D912228293 | Gloss Silver w/ Machined Face | 22x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3750 lbs | 46.30 lbs |
| D912228292 | Gloss Silver w/ Machined Face | 22x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3750 lbs | 47.00 lbs |
| D91124829235 | Gloss Black | 24x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3750 lbs | 59.52 lbs |
| D9112482A935 | Gloss Black | 24x8.25 -202mm | 10x225 | -3.33" | 170.10mm | 3750 lbs | 58.20 lbs |
| D9122482A935 | Gloss Silver w/ Machined Face | 24x8.25 -202mm | 10x225 | -3.33" | 170.10mm | 3750 lbs | 58.20 lbs |
| D91224829235 | Gloss Silver w/ Machined Face | 24x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3750 lbs | 59.52 lbs |
| D91124829335 | Gloss Black | 24x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3750 lbs | 61.50 lbs |
| D91224829335 | Gloss Silver w/ Machined Face | 24x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3750 lbs | 61.50 lbs |
| D911248293 | Gloss Black | 24x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3750 lbs | 53.13 lbs |
| D9112482A9 | Gloss Black | 24x8.25 105mm | 10x225 | 8.76" | 170.10mm | 3750 lbs | 52.03 lbs |
| D911248292 | Gloss Black | 24x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3750 lbs | 53.80 lbs |
| D9122482A9 | Gloss Silver w/ Machined Face | 24x8.25 105mm | 10x225 | 8.76" | 170.10mm | 3750 lbs | 52.03 lbs |
| D912248292 | Gloss Silver w/ Machined Face | 24x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3750 lbs | 53.80 lbs |
| D912248293 | Gloss Silver w/ Machined Face | 24x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3750 lbs | 53.13 lbs |
