Fuel Assault Wheel - 20"
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Fuel Off-Road Warranty
At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish
This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Wheel structure | Lifetime (original retail purchaser) |
| PVD finishes (peeling/lifting) | 2 years |
| Chrome aluminum finish (peeling/lifting; pitting excluded) | 1 year |
| Painted aluminum finish (peeling/lifting) | 1 year |
| Steel wheel paint or plating | 90 days (surface rust/corrosion excluded) |
| Uncoated polished aluminum | Not covered |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use for as long as the original buyer owns the wheels
- Finish peeling or lifting within the finish's coverage period
- Approved wheels are repaired or replaced
What's not covered
- Wheels not installed per Fuel's installation guidelines
- Damage from poor maintenance or harsh cleaning chemicals
- Structural damage from accidents or road hazards
- Racing or improper vehicle use
- Use of unapproved accessories or adapters
- Removal, mounting, installation and shipping costs
How to make a Fuel Off-Road warranty claim
- Return the wheel with the original sales receipt to the retailer you bought it from
- The wheel is inspected; approved claims are repaired or replaced
- You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense
Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.
Shop Fuel Off-Road at NVMOS
See all Fuel Off-Road products, lead times and FAQs →
Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.
Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 293 Fuel Off-RoadWarrantyAll brands
Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

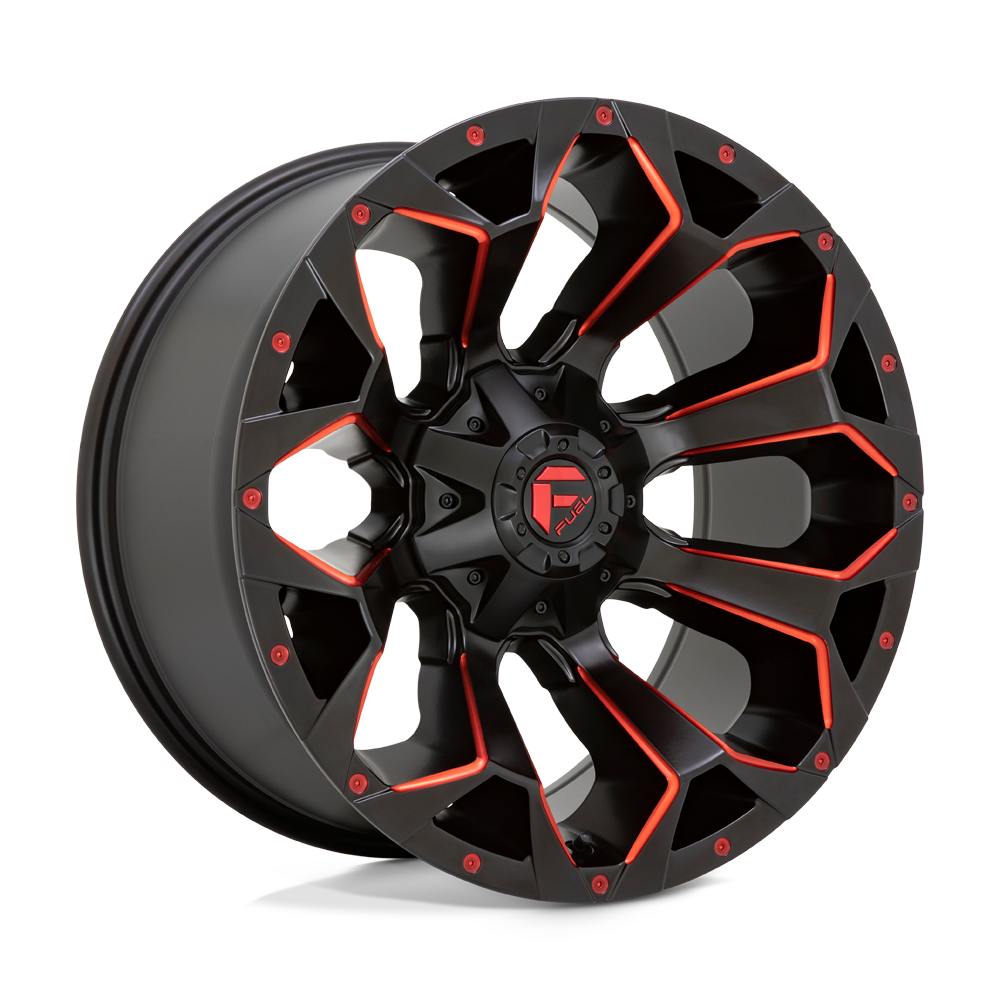

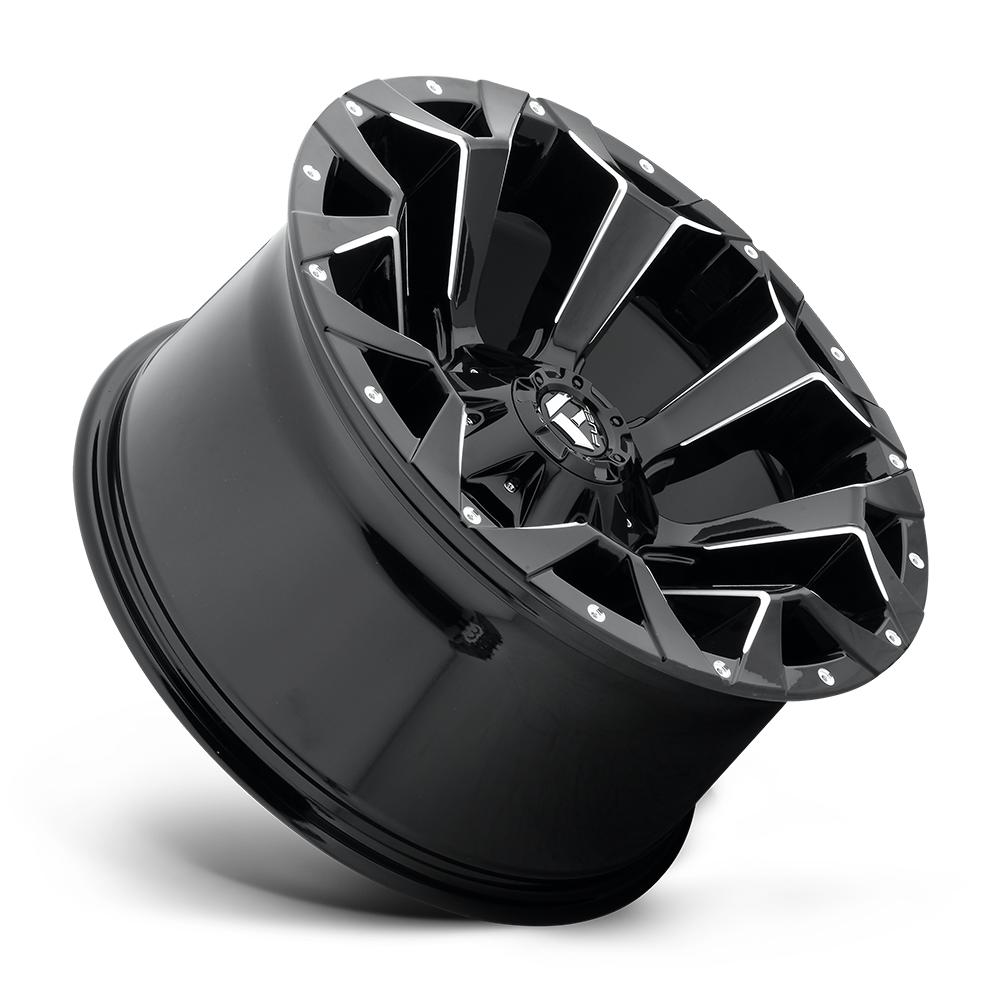

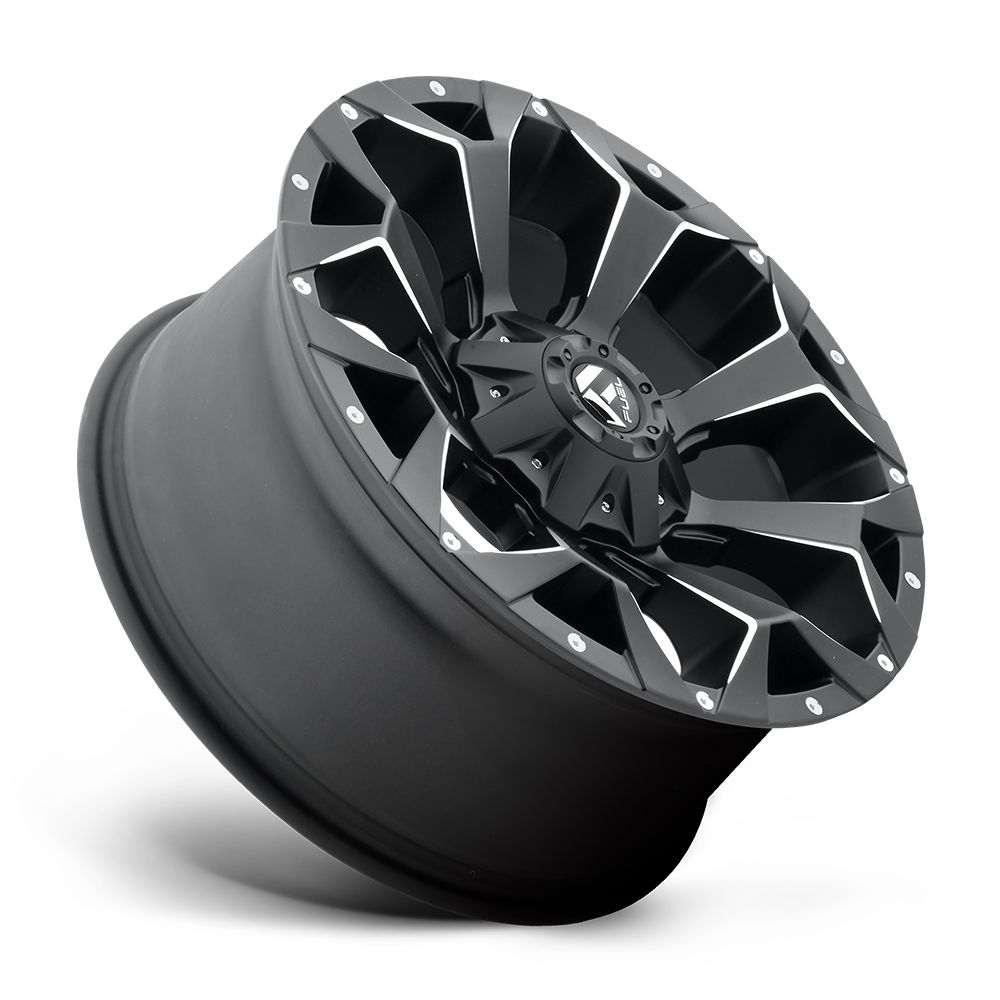

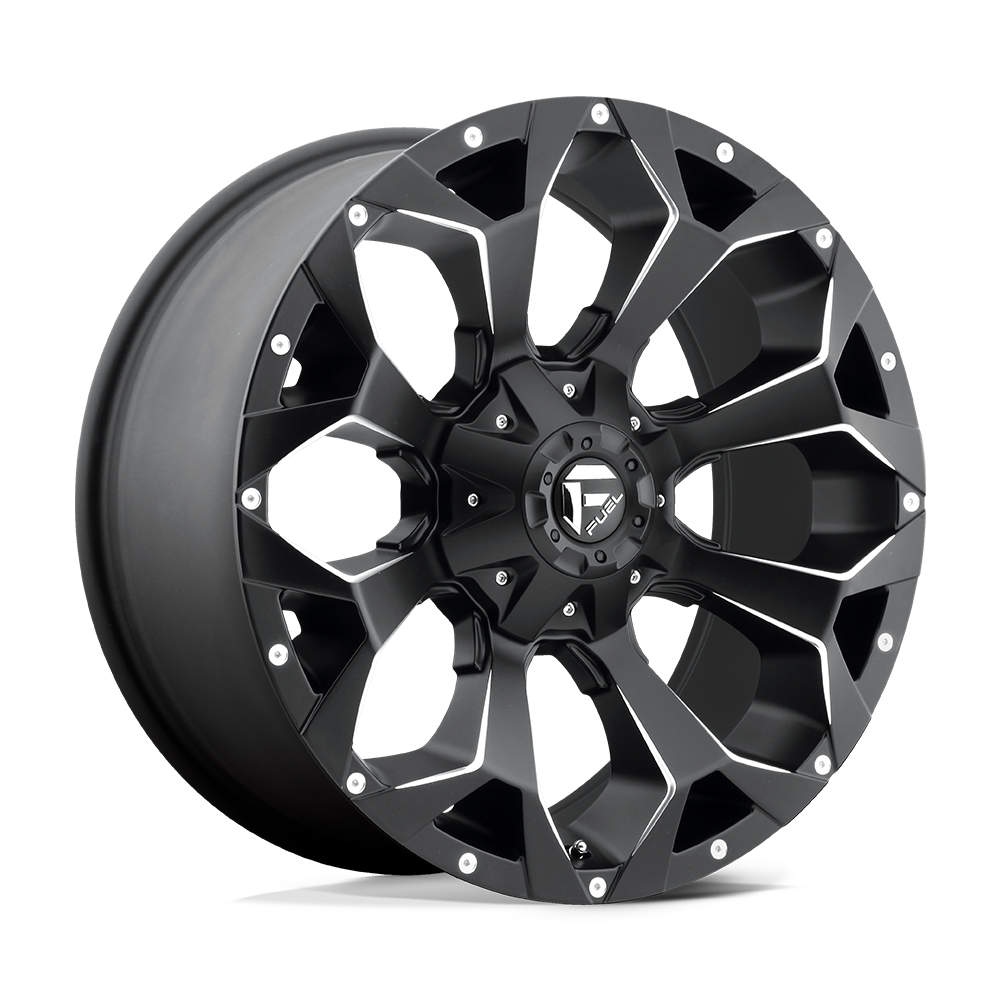

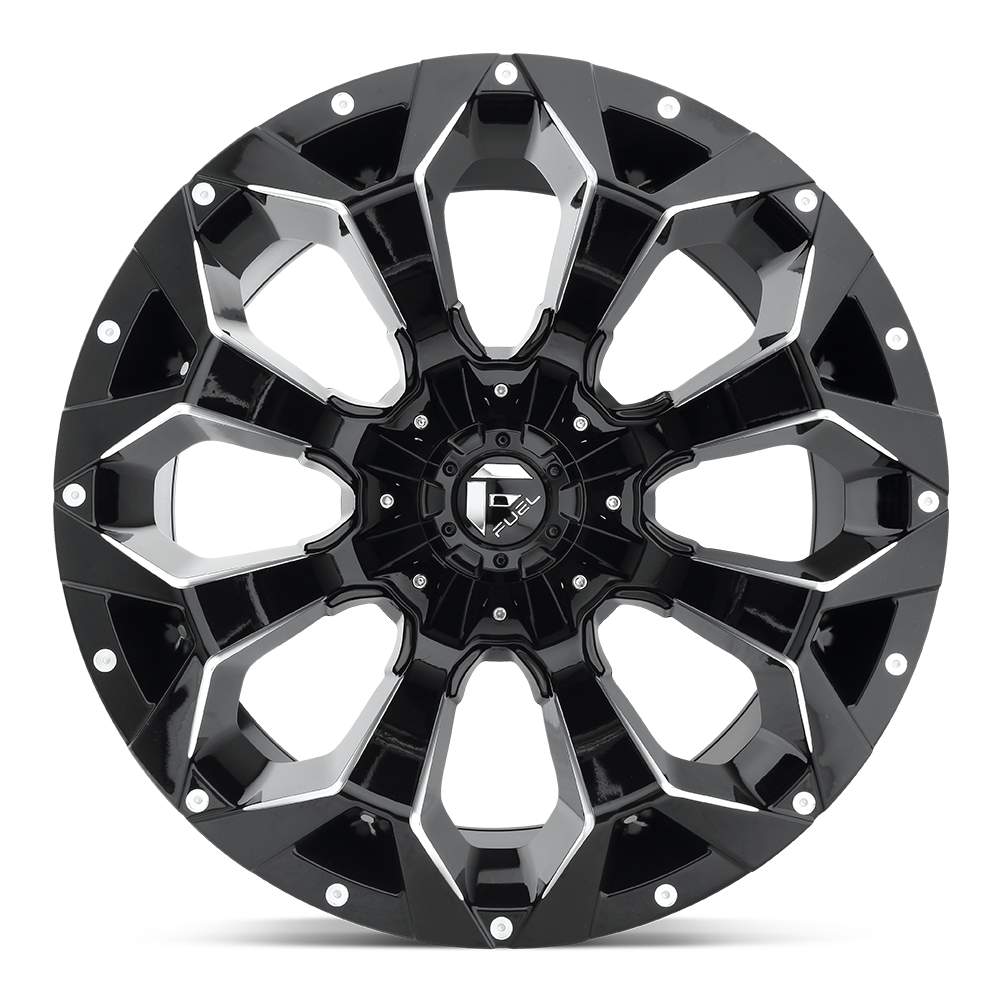

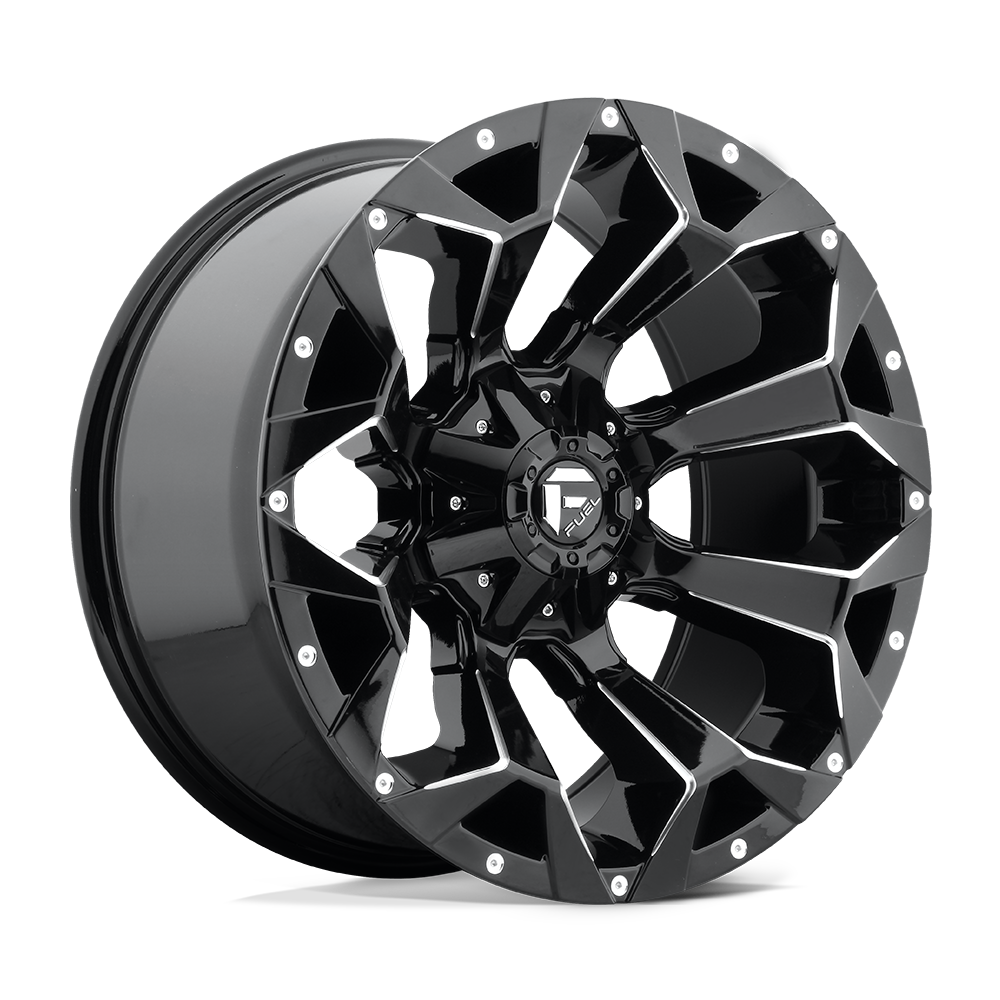

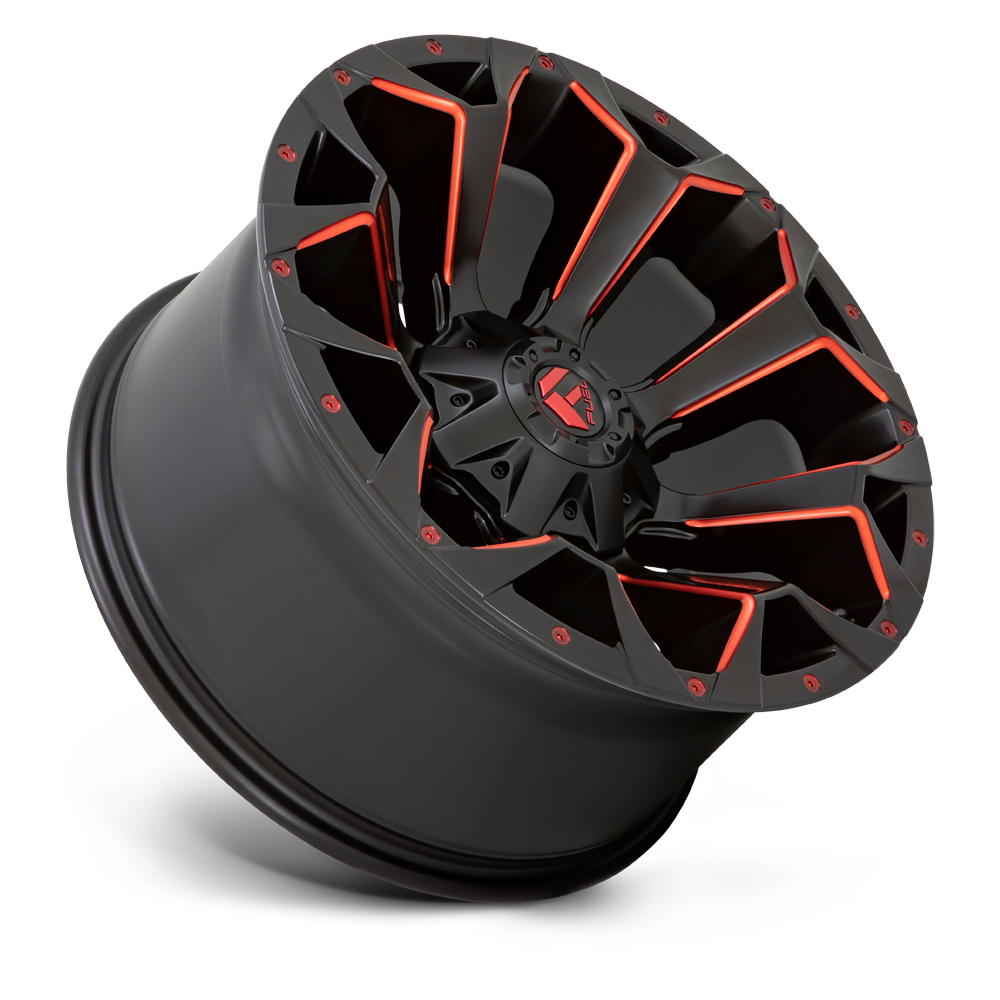

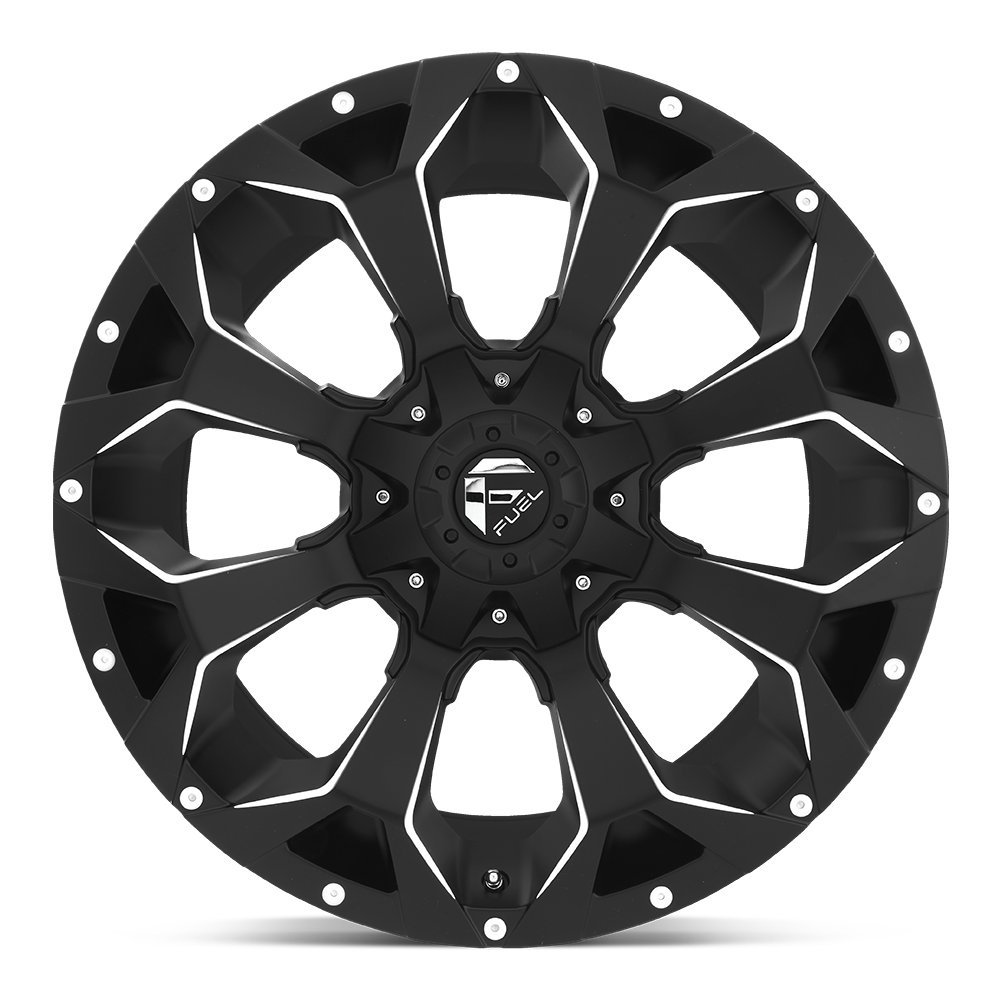

Fuel Assault Wheel, 20"
The 20-inch Fuel Assault is a deep concave monoblock with plenty of attitude. It is built for performance, whether trail riding or towing heavy. See more off-road wheels.
This listing has the most size choices, from 20x9 to 20x12 with offsets from -43mm to 35mm. Bolt patterns cover 5, 6 and 8-lug trucks like the Tacoma, F-150, Silverado 3500, RAM 3500 and F-350. Compare non-beadlock wheels.
Finishes: Matte Black Milled, Gloss Black Milled, Matte Black Red Milled. Sizes (diameter x width, offset): 20x9 7mm, 20x9 1mm, 20x10 -18mm, 20x9 35mm, 20x12 -43mm, 20x9 30mm, 20x10 -22mm, 20x9 19mm, 20x9 20mm. Bolt patterns: 6x120, 8x180, 5x139.7/5x150, 5x114.3/5x127, 8x165.1, 8x170, 5x114.3/5x120, 6x135/6x139.7, 5x108/5x127.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D57620902650 | Gloss Black Milled | 20x9 1mm | 5x114.3/5x127 | 5.04" | 78.10mm | 2500 lbs | 49.00 lbs |
| D57620901750 | Gloss Black Milled | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 49.00 lbs |
| D57620901850 | Gloss Black Milled | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 49.00 lbs |
| D57620908250 | Gloss Black Milled | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 49.00 lbs |
| D57620907050 | Gloss Black Milled | 20x9 1mm | 5x139.7/5x150 | 5.04" | 110.10mm | 2500 lbs | 49.00 lbs |
| D57620909850 | Gloss Black Milled | 20x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 49.00 lbs |
| D54620901850 | Matte Black Milled | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 49.00 lbs |
| D54620901750 | Matte Black Milled | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 49.00 lbs |
| D54620909850 | Matte Black Milled | 20x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 49.00 lbs |
| D54620907050 | Matte Black Milled | 20x9 1mm | 5x139.7/5x150 | 5.04" | 110.10mm | 2500 lbs | 49.00 lbs |
| D54620908250 | Matte Black Milled | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 49.00 lbs |
| D78720902650 | Matte Black Red Milled | 20x9 1mm | 5x114.3/5x127 | 5.04" | 78.10mm | 2500 lbs | 47.00 lbs |
| D78720909850 | Matte Black Red Milled | 20x9 1mm | 6x135/6x139.7 | 5.04" | 106.10mm | 2500 lbs | 47.00 lbs |
| D54620909452 | Matte Black Milled | 20x9 7mm | 6x120 | 5.28" | 67.06mm | 2500 lbs | 49.00 lbs |
| D57620909856 | Gloss Black Milled | 20x9 19mm | 6x135/6x139.7 | 5.75" | 106.10mm | 2500 lbs | 49.00 lbs |
| D54620909856 | Matte Black Milled | 20x9 19mm | 6x135/6x139.7 | 5.75" | 106.10mm | 2500 lbs | 49.00 lbs |
| D78720909856 | Matte Black Red Milled | 20x9 19mm | 6x135/6x139.7 | 5.75" | 106.10mm | 2500 lbs | 47.00 lbs |
| D57620901757 | Gloss Black Milled | 20x9 20mm | 8x170 | 5.79" | 125.10mm | 3700 lbs | 49.00 lbs |
| D57620908257 | Gloss Black Milled | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 49.00 lbs |
| D57620907057 | Gloss Black Milled | 20x9 20mm | 5x139.7/5x150 | 5.79" | 110.10mm | 2500 lbs | 49.00 lbs |
| D57620901857 | Gloss Black Milled | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 49.00 lbs |
| D54620907057 | Matte Black Milled | 20x9 20mm | 5x139.7/5x150 | 5.79" | 110.10mm | 2500 lbs | 49.00 lbs |
| D54620908257 | Matte Black Milled | 20x9 20mm | 8x165.1 | 5.79" | 125.10mm | 3700 lbs | 49.00 lbs |
| D54620901857 | Matte Black Milled | 20x9 20mm | 8x180 | 5.79" | 124.20mm | 3700 lbs | 49.00 lbs |
| D5462090G162 | Matte Black Milled | 20x9 30mm | 5x108/5x127 | 6.18" | 71.50mm | 2500 lbs | 44.10 lbs |
| D54620905263 | Matte Black Milled | 20x9 35mm | 5x114.3/5x120 | 6.38" | 72.56mm | 2500 lbs | 42.00 lbs |
| D57620008247 | Gloss Black Milled | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 49.00 lbs |
| D57620001747 | Gloss Black Milled | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 49.00 lbs |
| D57620001847 | Gloss Black Milled | 20x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 49.00 lbs |
| D57620007047 | Gloss Black Milled | 20x10 -18mm | 5x139.7/5x150 | 4.79" | 110.10mm | 2500 lbs | 49.00 lbs |
| D57620002647 | Gloss Black Milled | 20x10 -18mm | 5x114.3/5x127 | 4.79" | 78.10mm | 2500 lbs | 49.00 lbs |
| D54620007047 | Matte Black Milled | 20x10 -18mm | 5x139.7/5x150 | 4.79" | 110.10mm | 2500 lbs | 49.00 lbs |
| D54620008247 | Matte Black Milled | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 49.00 lbs |
| D54620001847 | Matte Black Milled | 20x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 49.00 lbs |
| D54620002647 | Matte Black Milled | 20x10 -18mm | 5x114.3/5x127 | 4.79" | 78.10mm | 2500 lbs | 49.00 lbs |
| D54620001747 | Matte Black Milled | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 49.00 lbs |
| D78720002647 | Matte Black Red Milled | 20x10 -18mm | 5x114.3/5x127 | 4.79" | 78.10mm | 2500 lbs | 49.20 lbs |
| D57620009846 | Gloss Black Milled | 20x10 -22mm | 6x135/6x139.7 | 4.63" | 106.10mm | 2500 lbs | 49.00 lbs |
| D54620009846 | Matte Black Milled | 20x10 -22mm | 6x135/6x139.7 | 4.63" | 106.10mm | 2500 lbs | 49.00 lbs |
| D78720009846 | Matte Black Red Milled | 20x10 -22mm | 6x135/6x139.7 | 4.63" | 106.10mm | 2500 lbs | 49.20 lbs |
| D54620202647 | Matte Black Milled | 20x12 -43mm | 5x114.3/5x127 | 4.81" | 78.10mm | 2500 lbs | 57.00 lbs |
| D54620209847 | Matte Black Milled | 20x12 -43mm | 6x135/6x139.7 | 4.81" | 106.10mm | 2500 lbs | 57.00 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$325.00
$789.95
$506.95
$1,599.00
Fuel Assault Wheel FAQs
How many sizes are offered?
Nine, from 20x9 to 20x12, offsets from -43mm to 35mm.
What bolt patterns?
6x120, 8x180, 5x139.7/5x150, 5x114.3/5x127, 8x165.1, 8x170, 5x114.3/5x120, 6x135/6x139.7 and 5x108/5x127.
Which finishes?
Matte Black Milled, Gloss Black Milled and Matte Black Red Milled.
Is it for heavy-duty trucks?
Fuel lists the Silverado 3500, RAM 3500 and Ford F-350 among its fitments.
