SKU: D867228293

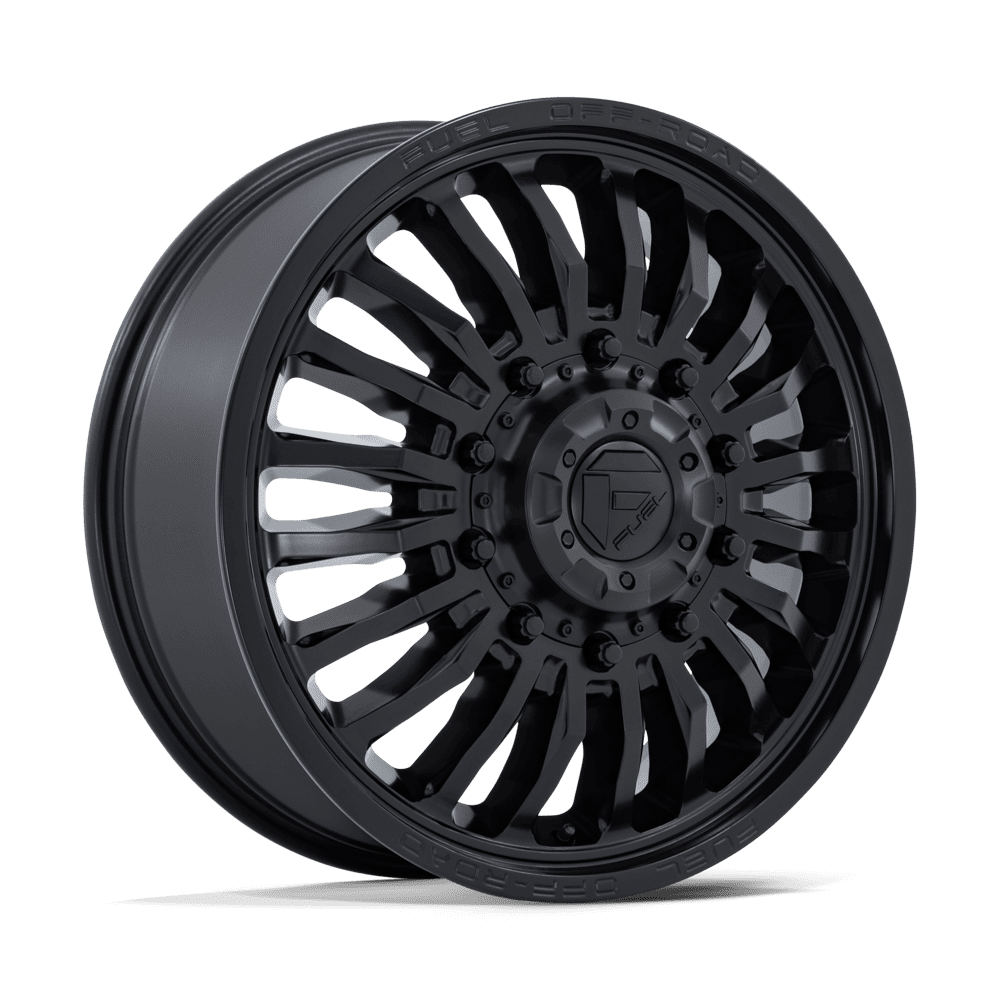

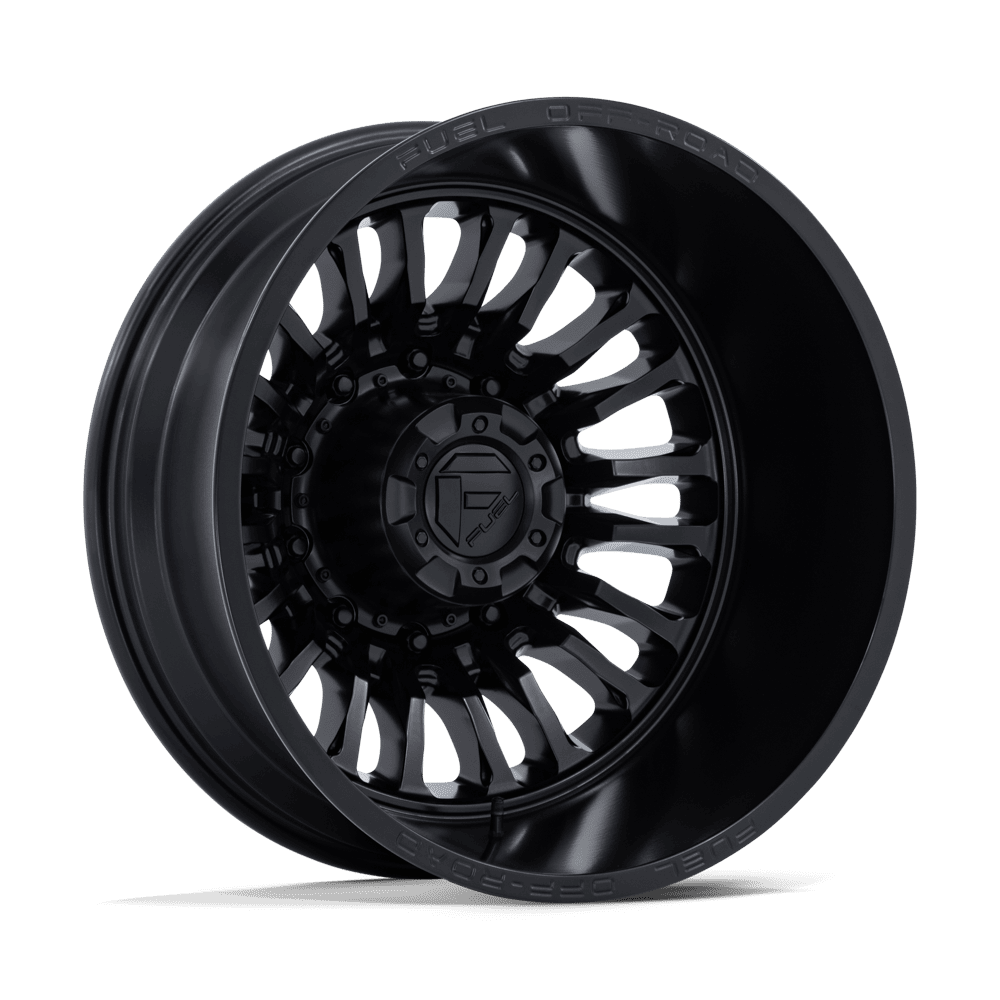

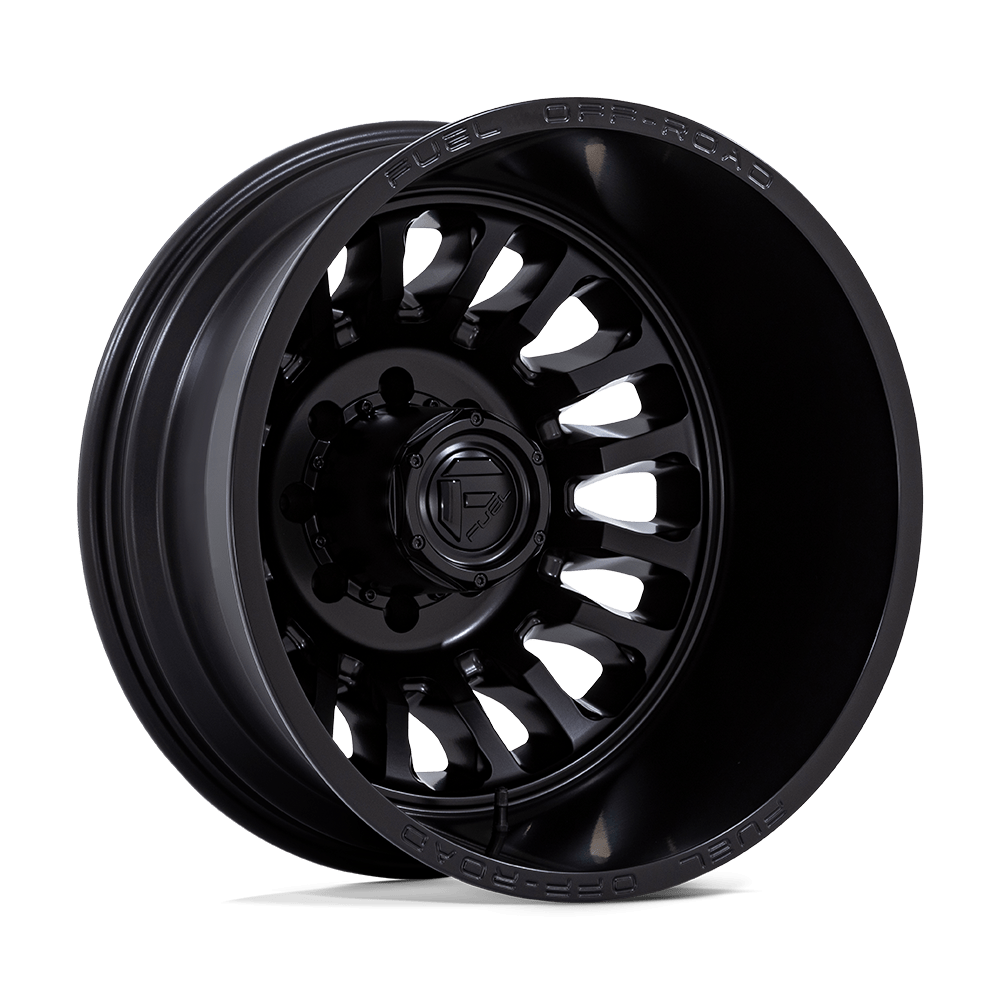

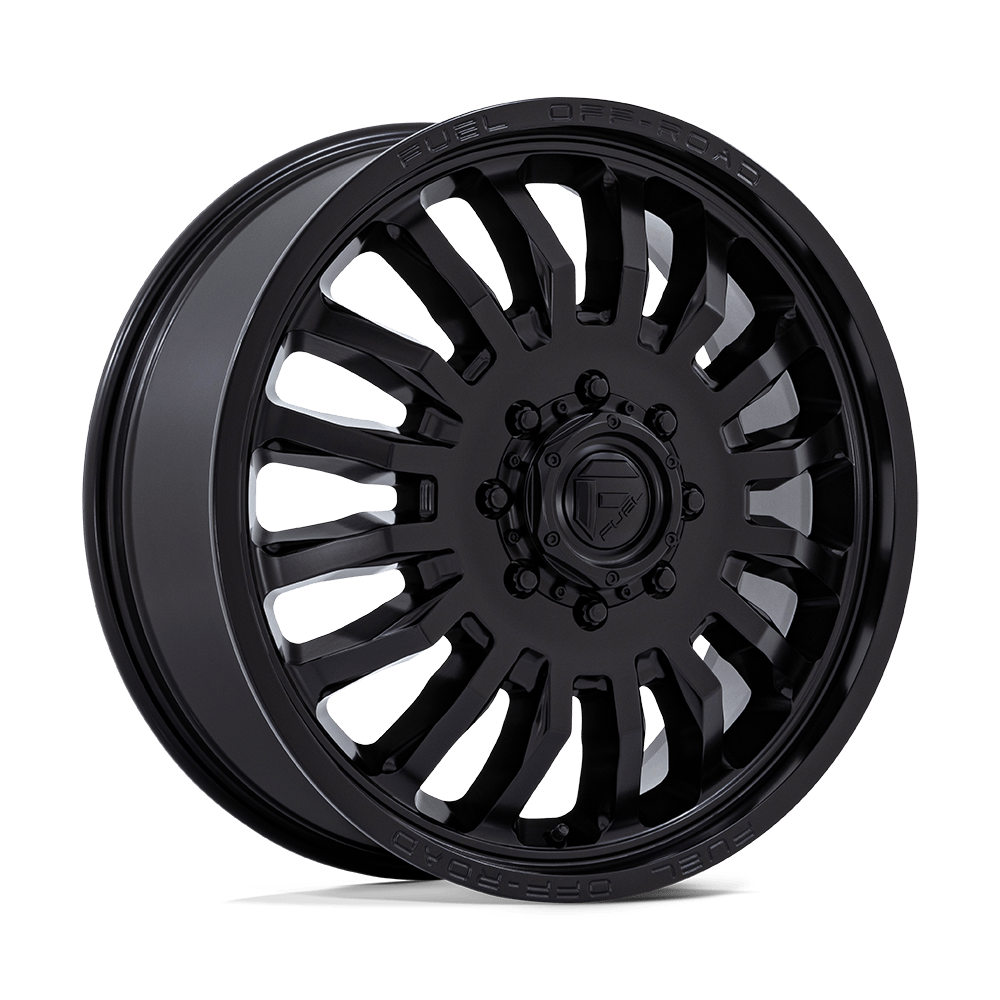

Fuel Arc Dually Wheel - 22"

By Fuel Off-Road

$610.00

Finish: Blackout

Size

Bolt Pattern

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Warranty Information

Vendor warranty summary

Fuel Off-Road Warranty

At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish

Shop Fuel Off-Road Official Fuel Off-Road policy All warranty policies

This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Wheel structure	Lifetime (original retail purchaser)
PVD finishes (peeling/lifting)	2 years
Chrome aluminum finish (peeling/lifting; pitting excluded)	1 year
Painted aluminum finish (peeling/lifting)	1 year
Steel wheel paint or plating	90 days (surface rust/corrosion excluded)
Uncoated polished aluminum	Not covered

Original purchaser only — coverage does not transfer if you sell it.
Keep your NVMOS order confirmation — proof of purchase is required.

What's covered

Structural failure under normal, intended use for as long as the original buyer owns the wheels
Finish peeling or lifting within the finish's coverage period
Approved wheels are repaired or replaced

What's not covered

Wheels not installed per Fuel's installation guidelines
Damage from poor maintenance or harsh cleaning chemicals
Structural damage from accidents or road hazards
Racing or improper vehicle use
Use of unapproved accessories or adapters
Removal, mounting, installation and shipping costs

How to make a Fuel Off-Road warranty claim

Return the wheel with the original sales receipt to the retailer you bought it from
The wheel is inspected; approved claims are repaired or replaced
You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense

Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.

Shop Fuel Off-Road at NVMOS

Fuel Catalyst Wheel - 17"

Fuel Rebar Wheel - 22"

Fuel Cleaver Dually Wheel

See all Fuel Off-Road products, lead times and FAQs →

Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Fuel Off-Road

Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.

Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Fuel Off-Road warranty: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish. Read the full summary

Shop all 309 Fuel Off-Road Warranty All brands

Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

Fuel Arc Dually Wheel, 22"

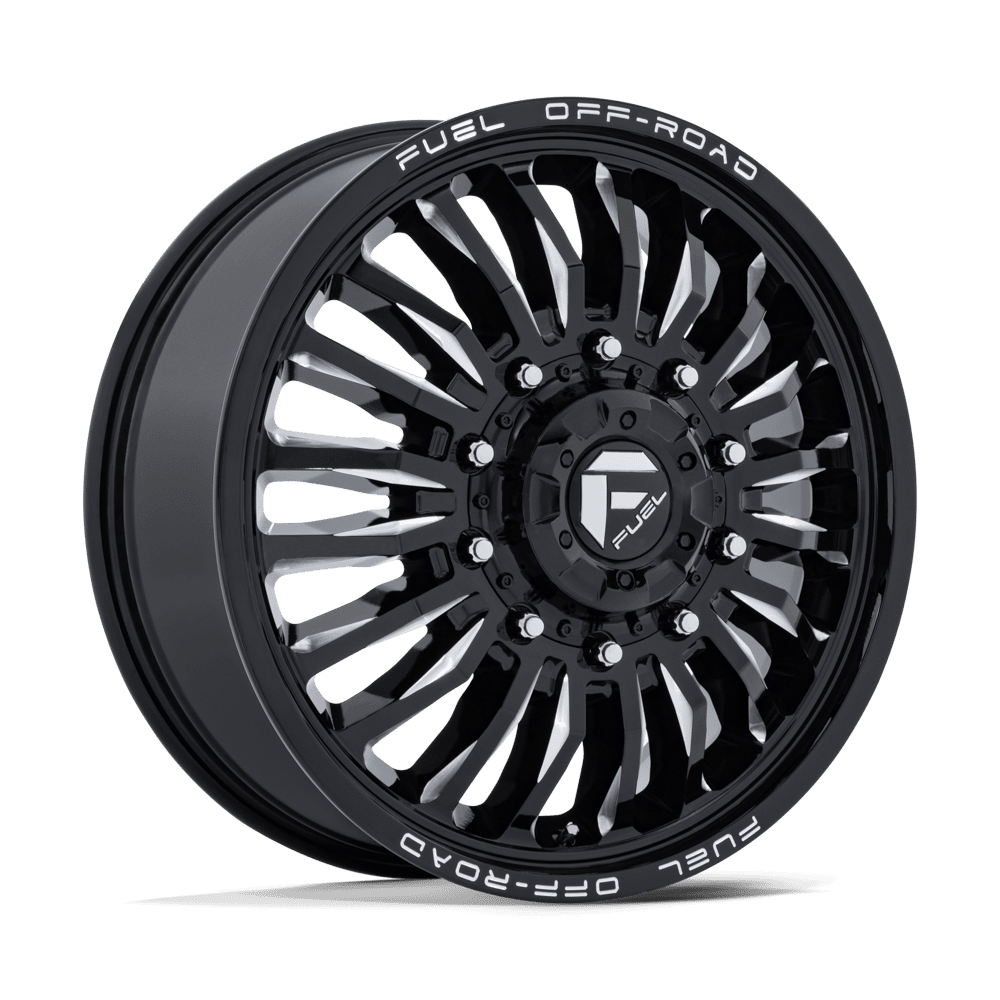

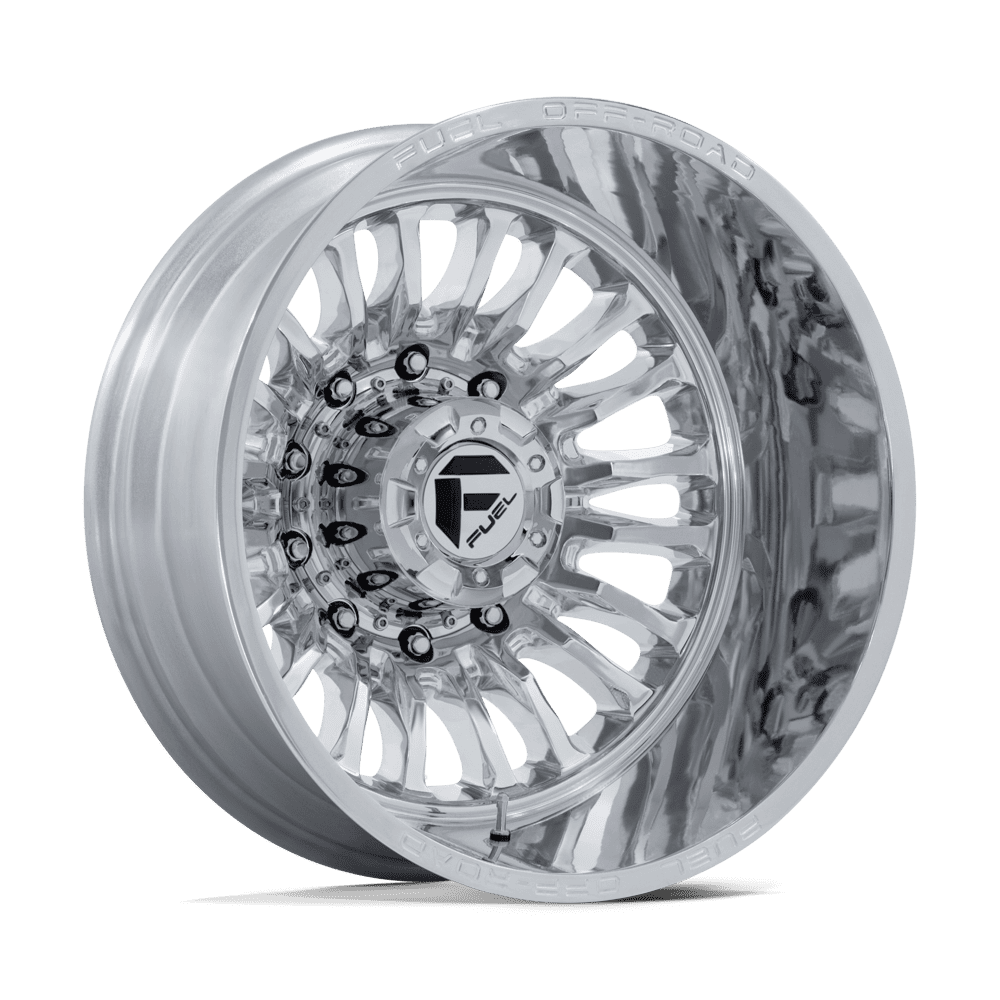

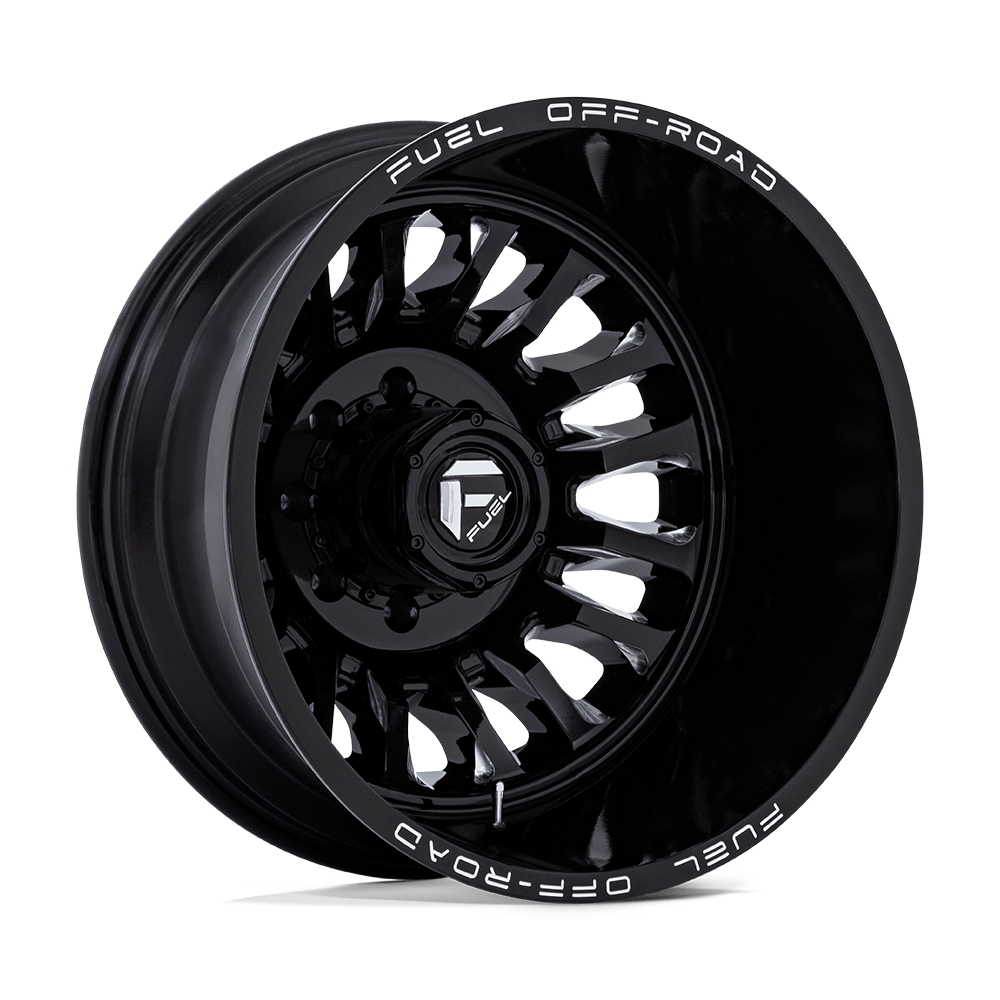

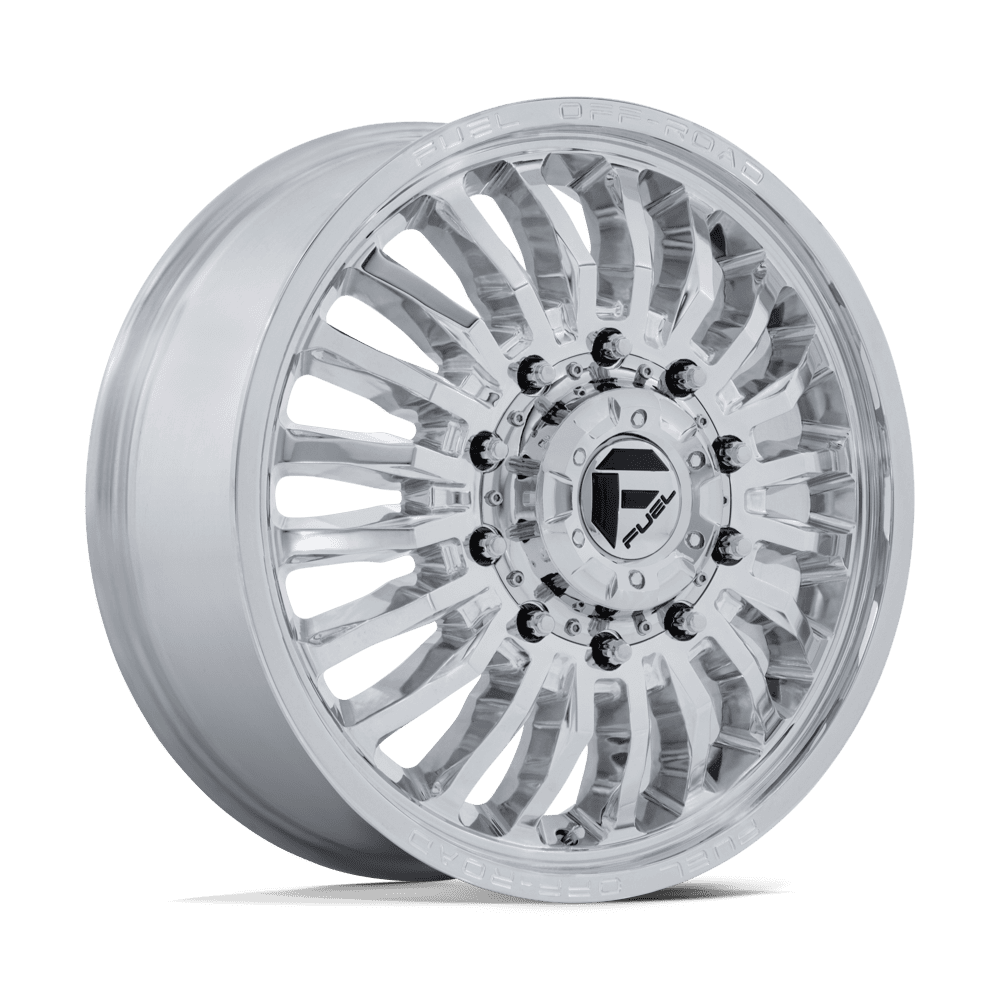

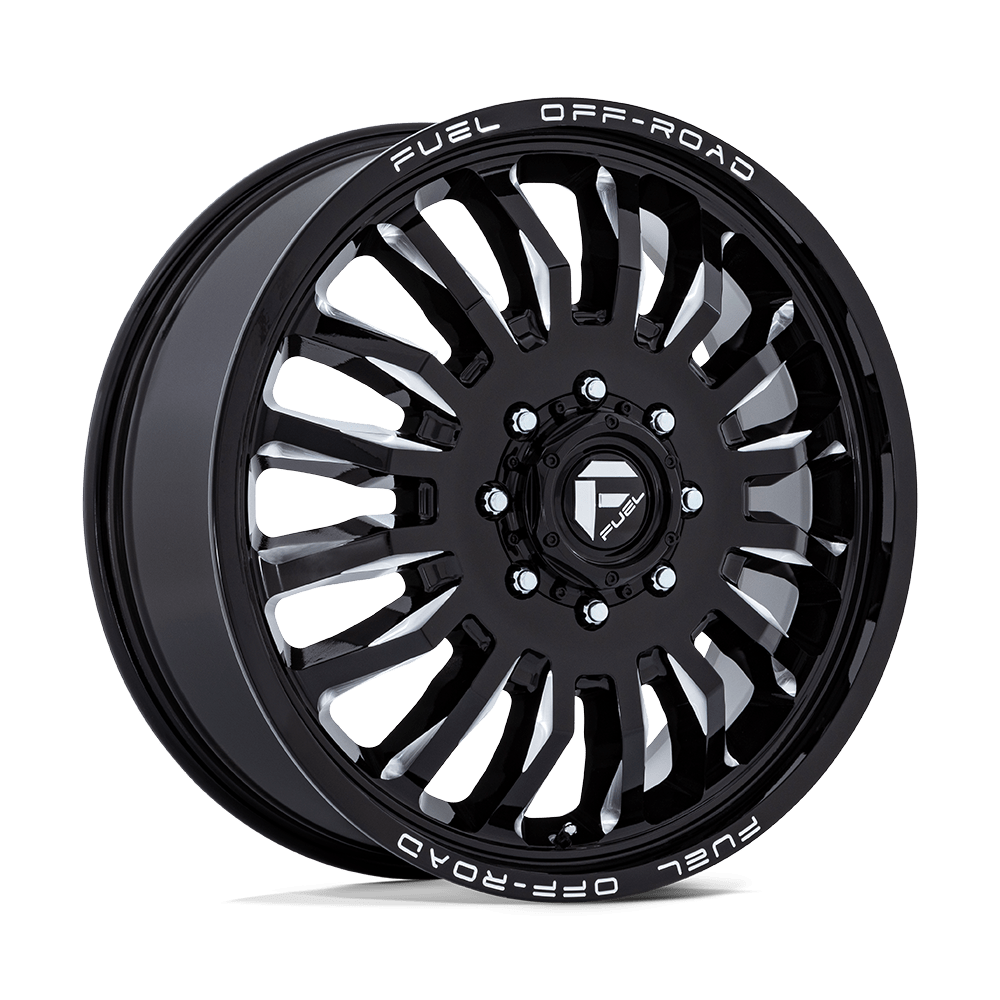

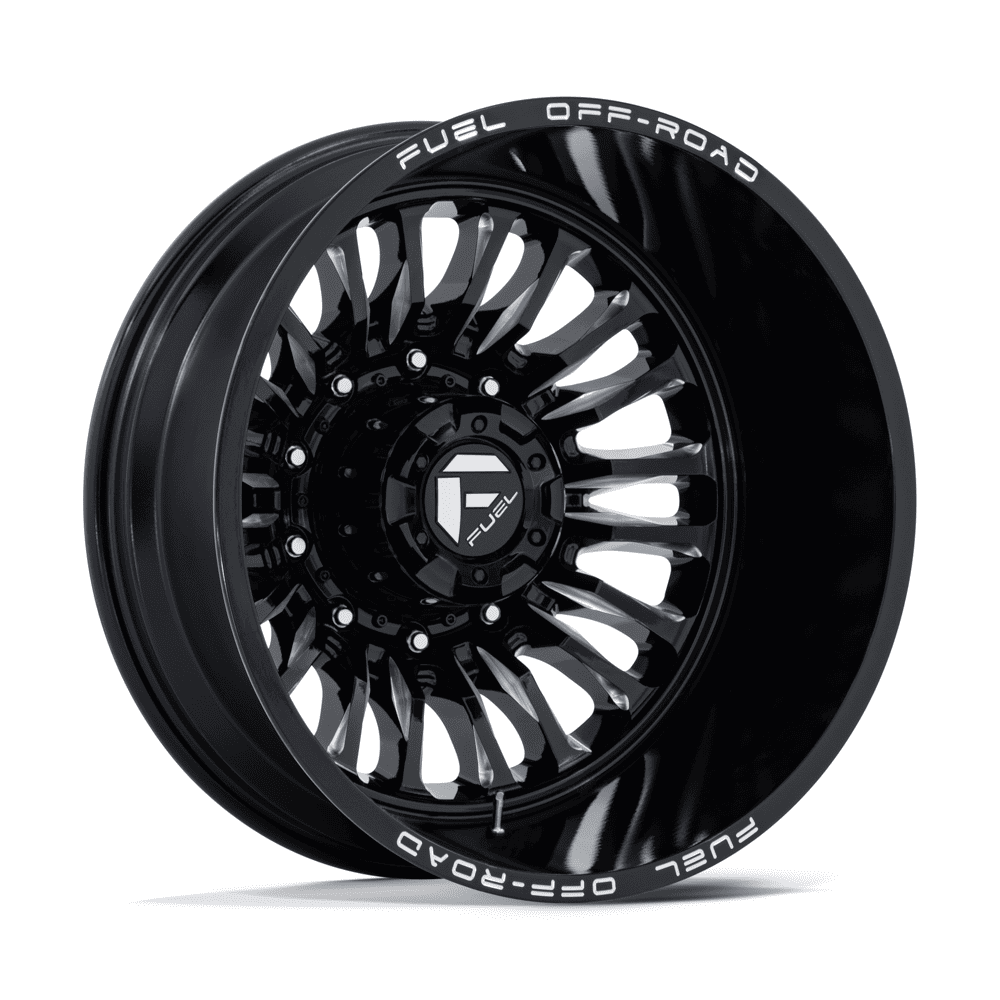

The 22-inch Fuel Arc Dually is made for dual-rear-wheel trucks. It pairs a convex front wheel with a deep concave rear wheel and emphasizes heavy-duty load capacity. Browse more dually wheels.

Fuel designed the Arc Dually for the heavier payloads and towing of trucks like the Chevy Silverado 3500HD, GMC Sierra 3500HD, RAM 3500 and Ford F-350 Super Duty. This listing covers the 22x8.25 sizes. See more off-road wheels.

Why it works

Dually-specific layoutA convex front wheel and a deep concave rear wheel.

Built for loadThe series emphasizes heavy-duty load capacity.

Six offsets22x8.25 sizes from 104mm to -265mm cover different dually setups.

Fitment

Finishes: Blackout, Gloss Black Milled, Polished. Sizes (diameter x width, offset): 22x8.25 104mm, 22x8.25 -201mm, 22x8.25 -227mm, 22x8.25 -240mm, 22x8.25 -246mm, 22x8.25 -265mm. Bolt patterns: 8x210, 8x200, 8x165.1, 10x225, 8x170.

Specifications

Part #	Finish	Size / Offset	Bolt Pattern	Backspace	Center Bore	Load Rating	Weight
D86722829235	Blackout	22x8.25 -201mm	8x200	-3.29"	142.00mm	3000 lbs	52.91 lbs
D86722827225	Blackout	22x8.25 -201mm	8x165.1	-3.29"	117.00mm	3000 lbs	54.23 lbs
D86722829325	Blackout	22x8.25 -201mm	8x210	-3.29"	154.30mm	3000 lbs	52.02 lbs
D8672282A935	Blackout	22x8.25 -201mm	10x225	-3.29"	170.10mm	3750 lbs	51.42 lbs
D86822829235	Gloss Black Milled	22x8.25 -201mm	8x200	-3.29"	142.00mm	3000 lbs	52.91 lbs
D86822827225	Gloss Black Milled	22x8.25 -201mm	8x165.1	-3.29"	117.00mm	3000 lbs	54.23 lbs
D86822829325	Gloss Black Milled	22x8.25 -201mm	8x210	-3.29"	154.30mm	3000 lbs	52.02 lbs
D8682282A935	Gloss Black Milled	22x8.25 -201mm	10x225	-3.29"	170.10mm	3750 lbs	51.42 lbs
D89122829235	Polished	22x8.25 -201mm	8x200	-3.29"	142.00mm	3000 lbs	52.91 lbs
D89122821735	Polished	22x8.25 -201mm	8x170	-3.29"	125.10mm	3000 lbs	53.79 lbs
D89122827225	Polished	22x8.25 -201mm	8x165.1	-3.29"	117.00mm	3000 lbs	54.23 lbs
D89122829325	Polished	22x8.25 -201mm	8x210	-3.29"	154.30mm	3000 lbs	52.02 lbs
D8912282A935	Polished	22x8.25 -201mm	10x225	-3.29"	170.10mm	3750 lbs	51.42 lbs
D86722827235	Blackout	22x8.25 -227mm	8x165.1	-4.31"	117.00mm	3000 lbs	59.30 lbs
D86722829245	Blackout	22x8.25 -227mm	8x200	-4.31"	142.00mm	3000 lbs	57.10 lbs
D86722829335	Blackout	22x8.25 -227mm	8x210	-4.31"	154.30mm	3000 lbs	55.99 lbs
D86822829335	Gloss Black Milled	22x8.25 -227mm	8x210	-4.31"	154.30mm	3000 lbs	55.99 lbs
D86822827235	Gloss Black Milled	22x8.25 -227mm	8x165.1	-4.31"	117.00mm	3000 lbs	59.30 lbs
D86822829245	Gloss Black Milled	22x8.25 -227mm	8x200	-4.31"	142.00mm	3000 lbs	57.10 lbs
D89122829245	Polished	22x8.25 -227mm	8x200	-4.31"	142.00mm	3000 lbs	57.10 lbs
D89122827235	Polished	22x8.25 -227mm	8x165.1	-4.31"	117.00mm	3000 lbs	59.30 lbs
D89122829335	Polished	22x8.25 -227mm	8x210	-4.31"	154.30mm	3000 lbs	55.99 lbs
D89122821745	Polished	22x8.25 -227mm	8x170	-4.31"	125.10mm	3000 lbs	58.64 lbs
D86722828D35	Blackout	22x8.25 -240mm	8x165.1	-4.82"	121.50mm	3000 lbs	56.76 lbs
D86822828D35	Gloss Black Milled	22x8.25 -240mm	8x165.1	-4.82"	121.50mm	3000 lbs	56.76 lbs
D89122828D35	Polished	22x8.25 -240mm	8x165.1	-4.82"	121.50mm	3000 lbs	56.20 lbs
D89122829345	Polished	22x8.25 -246mm	8x210	-5.06"	154.30mm	3000 lbs	54.22 lbs
D89122827245	Polished	22x8.25 -246mm	8x165.1	-5.06"	117.00mm	3000 lbs	57.30 lbs
D89122828D45	Polished	22x8.25 -265mm	8x165.1	-5.81"	121.50mm	3000 lbs	60.60 lbs
D867228293	Blackout	22x8.25 104mm	8x210	8.72"	154.30mm	3000 lbs	49.00 lbs
D867228292	Blackout	22x8.25 104mm	8x200	8.72"	142.00mm	3000 lbs	49.40 lbs
D86722828D	Blackout	22x8.25 104mm	8x165.1	8.72"	121.50mm	3000 lbs	50.30 lbs
D8672282A9	Blackout	22x8.25 104mm	10x225	8.72"	170.10mm	3750 lbs	51.80 lbs
D868228293	Gloss Black Milled	22x8.25 104mm	8x210	8.72"	154.30mm	3000 lbs	49.00 lbs
D868228292	Gloss Black Milled	22x8.25 104mm	8x200	8.72"	142.00mm	3000 lbs	49.40 lbs
D868228272	Gloss Black Milled	22x8.25 104mm	8x165.1	8.72"	117.00mm	3000 lbs	50.50 lbs
D8682282A9	Gloss Black Milled	22x8.25 104mm	10x225	8.72"	170.10mm	3750 lbs	51.80 lbs
D89122828D	Polished	22x8.25 104mm	8x165.1	8.72"	121.50mm	3000 lbs	50.30 lbs
D891228217	Polished	22x8.25 104mm	8x170	8.72"	125.10mm	3000 lbs	50.10 lbs
D891228293	Polished	22x8.25 104mm	8x210	8.72"	154.30mm	3000 lbs	49.00 lbs
D8912282A9	Polished	22x8.25 104mm	10x225	8.72"	170.10mm	3750 lbs	51.80 lbs
D891228292	Polished	22x8.25 104mm	8x200	8.72"	142.00mm	3000 lbs	49.40 lbs

Finish the whole truck in one order

Complete your build

The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.

Fuel Arc Dually Wheel - 22" (this item) What you’re viewing $610.00

✓

ReadyLIFT 6" Lift Kit - GM Silverado / Sierra 2500HD/3500HD W/ Falcon 1.1 Shocks 2020-2024 $2,839.95

✓

Morimoto Chevrolet Silverado HD (15-19) XB LED License Plate Lights $39.00

✓

Morimoto Ram HD (19-24) 2Banger LED Ditch Light System Finish $472.00

Build total (1 items)

$610.00

The complete look for your build.

Set any options above, then add them all in one click — one checkout, one shipment.

Specifications

Part numbers: one Fuel part number per finish, size and bolt pattern (listed in the size table below)
Design: Convex front, deep concave rear (dually)
Finishes: Blackout, Gloss Black Milled, Polished
Sizes (diameter x width, offset): 22x8.25 -201mm, 22x8.25 -227mm, 22x8.25 -240mm, 22x8.25 -246mm, 22x8.25 -265mm, 22x8.25 104mm
Bolt patterns: 8x200, 8x165.1, 8x210, 10x225, 8x170
Backspace: -5.81 to 8.72"
Center bore: 117.00 to 170.10 mm
Load rating: 3,000 to 3,750 lbs per wheel, depending on size and bolt pattern
Weight: 49.00 to 60.60 lbs per wheel, depending on size
