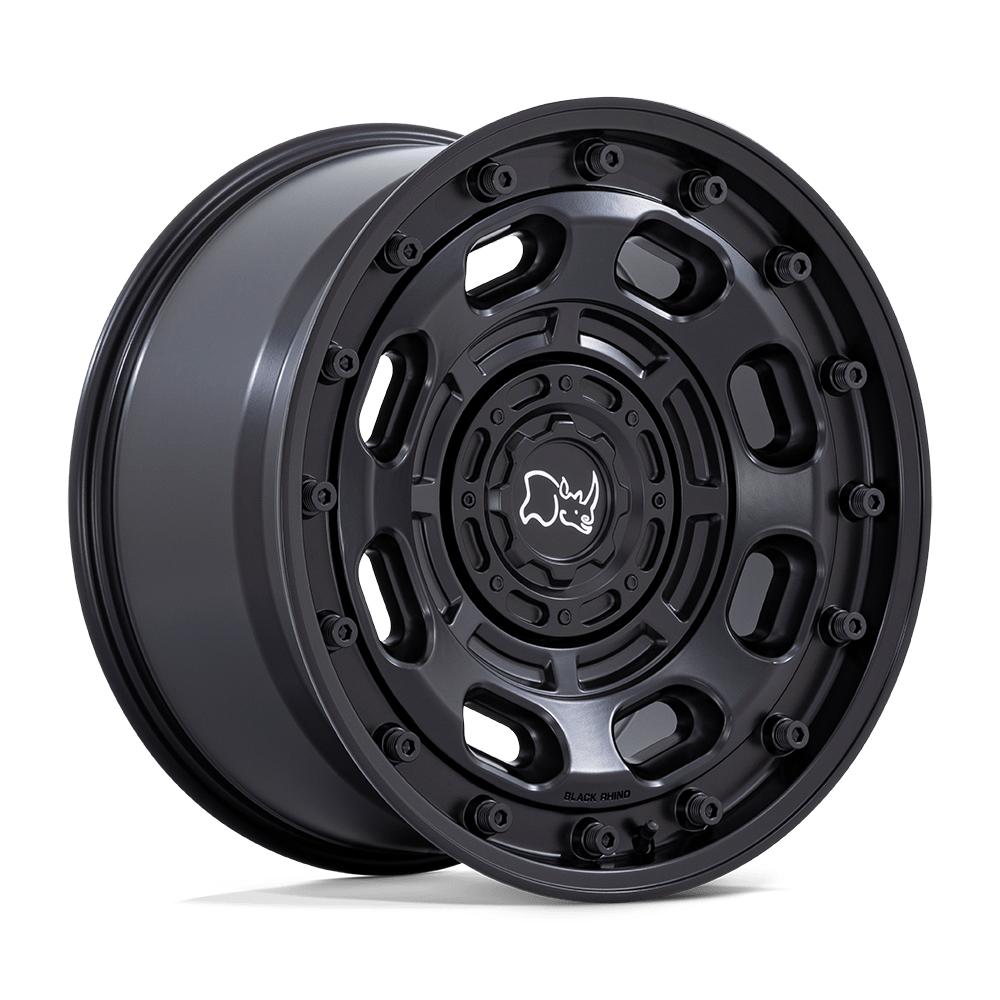

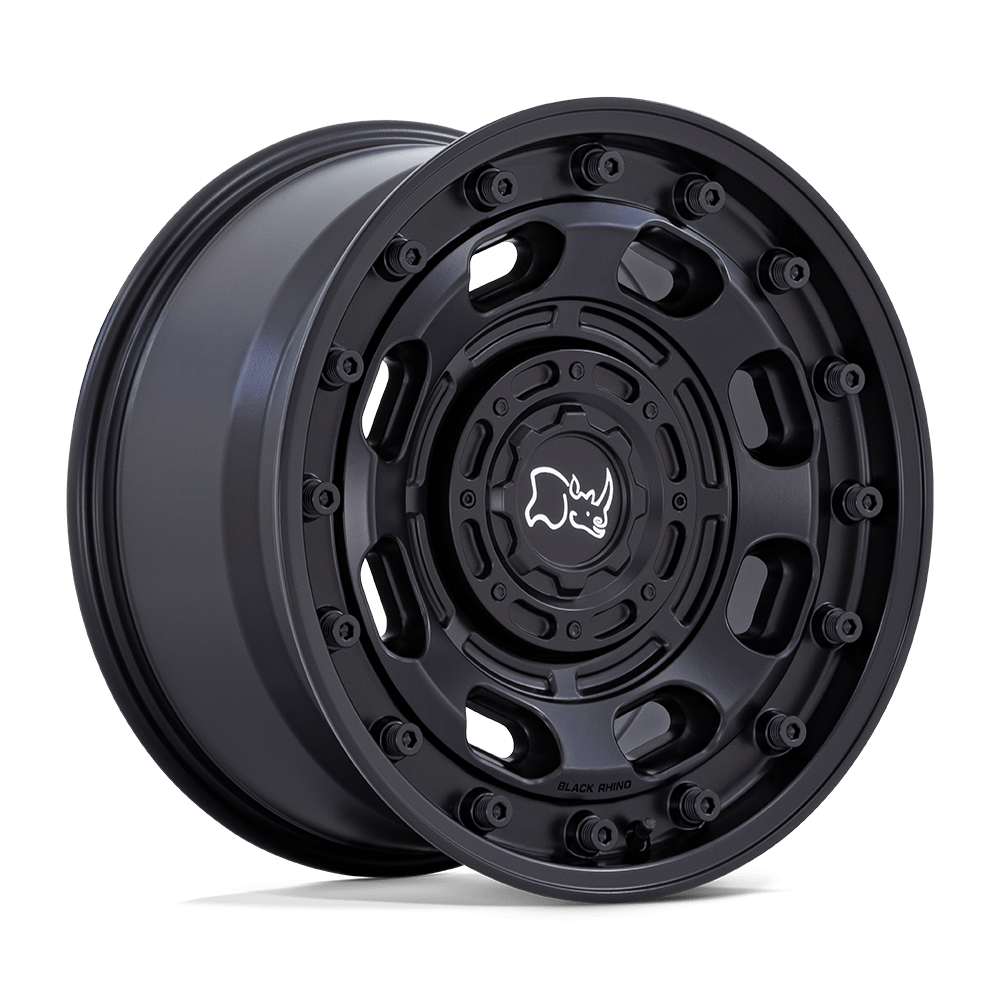

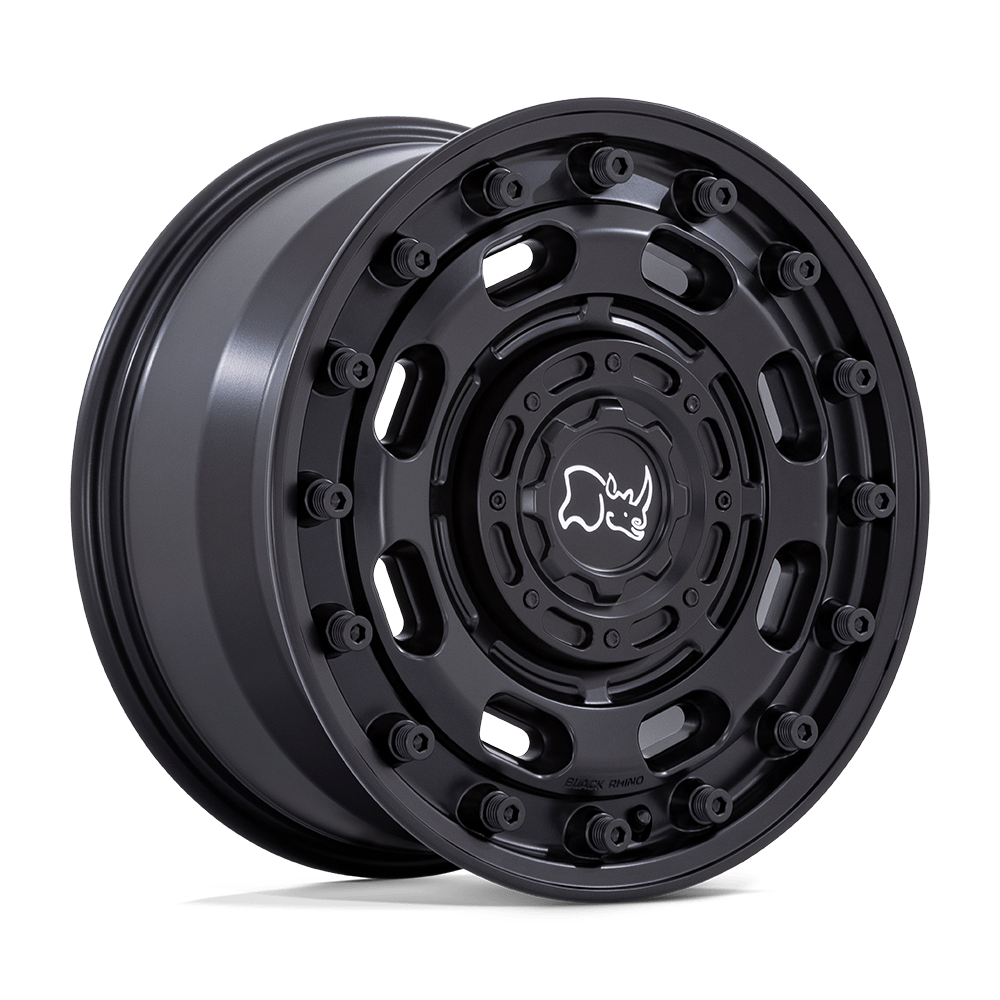

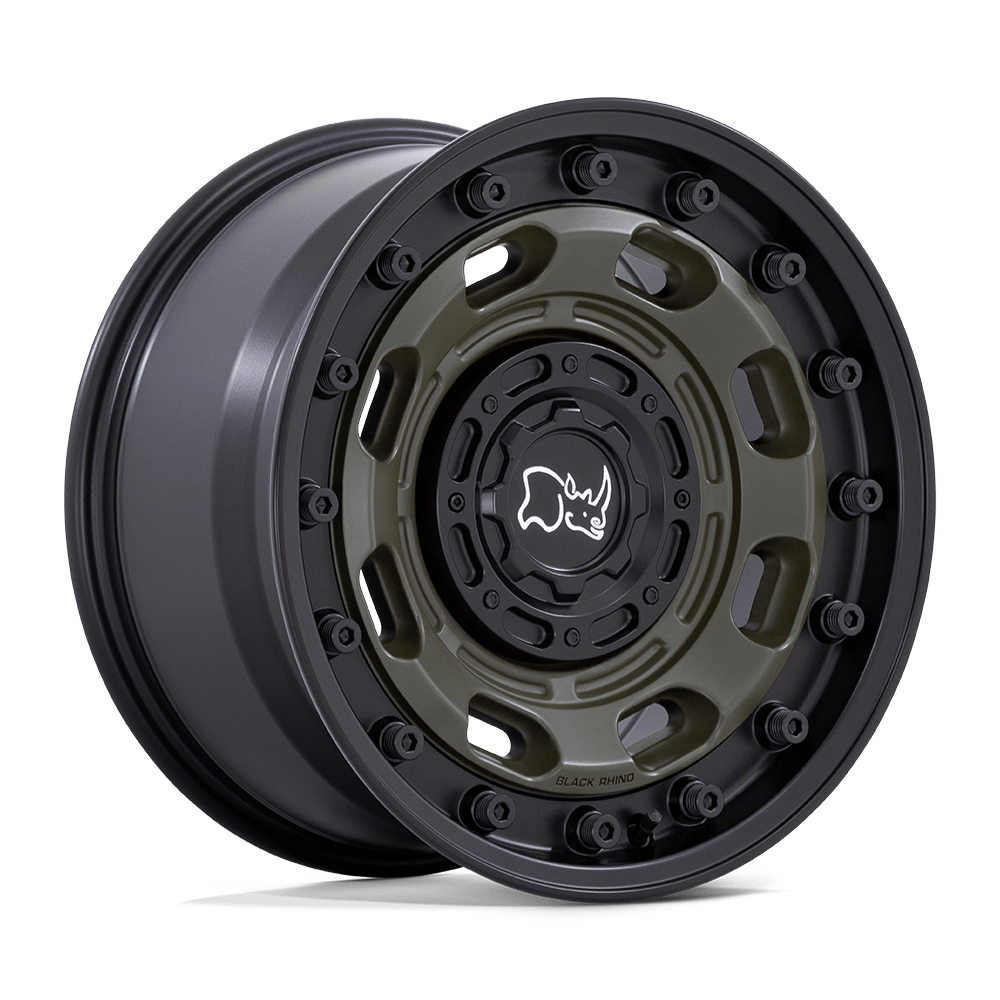

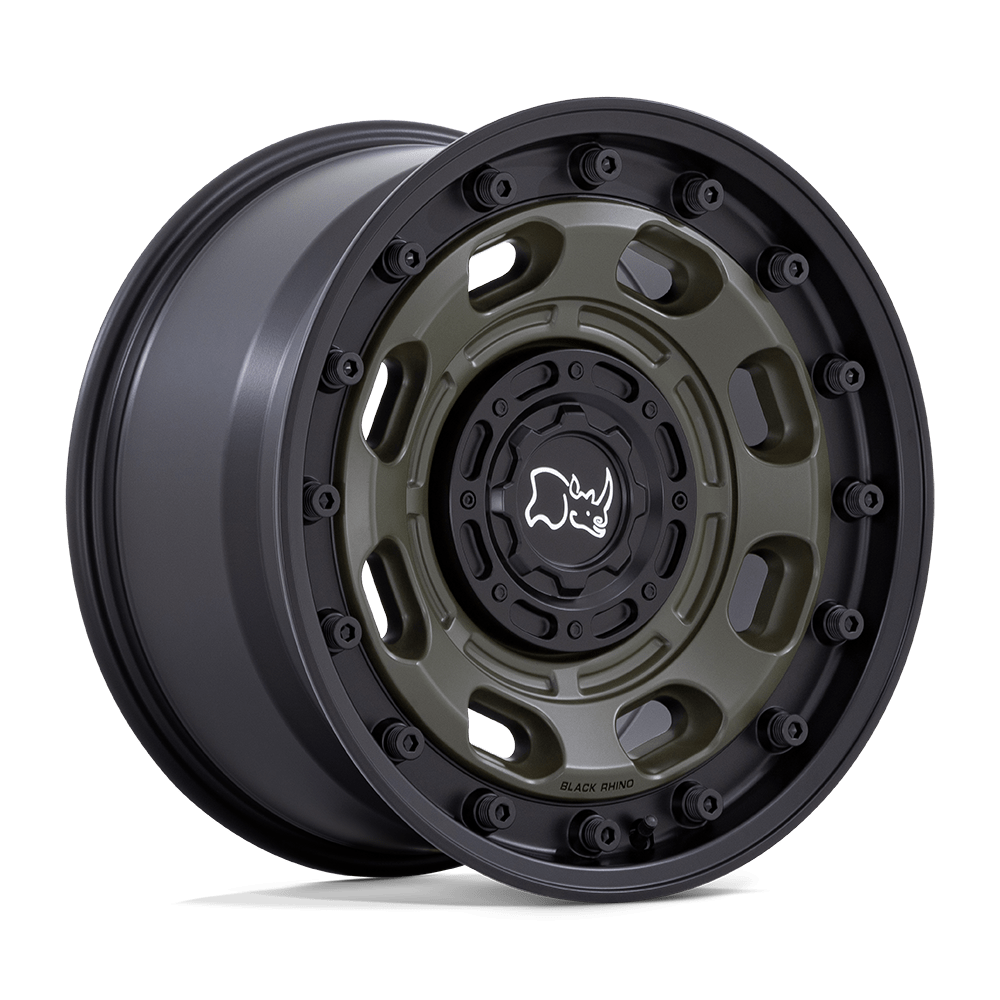

Black Rhino Atlas Wheel
The Black Rhino Atlas wheel is designed from the ground up to assert itself in any off-road situation. This all-new Black Rhino overlanding Atlas wheel is engineered specifically for endless adventure and fatigue tested as one of Black Rhino's most durable wheel designs ever. We know proper fitment is crucial, so we made the Atlas available in 16x8, 17x8, 17x8.5, 18x9, and 20x10 sizes with offsets ranging between -18mm and +38mm. In addition to the ability to offer custom bolt patterns with blank PCD wheels, the Atlas wheel is offered in the standard 5-lug and 6-lug patterns for a wide range of fitments catered towards trucks, SUVs, crossovers, and vans. Standard finishes for the Atlas off-road wheel are Olive Drab Green with Black Lip and Matte Black.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR007MX16806810N | Matte Black | 16x8 -10mm | 6x139.7 | 4.11" | 106.10mm | 2500 lbs | 28.20 lbs |
| BR007EB16806810N | Olive Drab Green w/ Black Lip | 16x8 -10mm | 6x139.7 | 4.11" | 106.10mm | 2500 lbs | 28.20 lbs |
| BR007MX16803838 | Matte Black | 16x8 38mm | 6x130 | 6.00" | 84.10mm | 3300 lbs | 29.90 lbs |
| BR007MX16801638 | Matte Black | 16x8 38mm | 5x160 | 6.00" | 65.07mm | 3300 lbs | 29.90 lbs |
| BR007MX17803838 | Matte Black | 17x8 38mm | 6x130 | 6.00" | 84.10mm | 3300 lbs | 33.66 lbs |
| BR007MX17801738 | Matte Black | 17x8 38mm | 5x114.3/5x120 | 6.00" | 74.10mm | 2700 lbs | 33.66 lbs |
| BR007MX17805438 | Matte Black | 17x8 38mm | 5x114.3/5x127 | 6.00" | 72.56mm | 2700 lbs | 33.66 lbs |
| BR007EB17801738 | Olive Drab Green w/ Black Lip | 17x8 38mm | 5x114.3/5x120 | 6.00" | 74.10mm | 2700 lbs | 33.66 lbs |
| BR007EB17803838 | Olive Drab Green w/ Black Lip | 17x8 38mm | 6x130 | 6.00" | 84.10mm | 3300 lbs | 33.66 lbs |
| BR007MX17856710N | Matte Black | 17x8.5 -10mm | 6x135/6x139.7 | 4.36" | 106.10mm | 2500 lbs | 34.30 lbs |
| BR007MX17853510N | Matte Black | 17x8.5 -10mm | 5x127/5x139.7 | 4.36" | 78.10mm | 2500 lbs | 34.30 lbs |
| BR007EB17856710N | Olive Drab Green w/ Black Lip | 17x8.5 -10mm | 6x135/6x139.7 | 4.36" | 106.10mm | 2500 lbs | 34.30 lbs |
| BR007MX18906700 | Matte Black | 18x9 0mm | 6x135/6x139.7 | 5.00" | 106.10mm | 2500 lbs | 37.40 lbs |
| BR007MX18903500 | Matte Black | 18x9 0mm | 5x127/5x139.7 | 5.00" | 78.10mm | 2500 lbs | 37.40 lbs |
| BR007EB18906700 | Olive Drab Green w/ Black Lip | 18x9 0mm | 6x135/6x139.7 | 5.00" | 106.10mm | 2500 lbs | 37.40 lbs |
| BR007MX20103518N | Matte Black | 20x10 -18mm | 5x127/5x139.7 | 4.79" | 78.10mm | 2500 lbs | 48.00 lbs |
| BR007MX20106718N | Matte Black | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2500 lbs | 48.00 lbs |
| BR007EB20106718N | Olive Drab Green w/ Black Lip | 20x10 -18mm | 6x135/6x139.7 | 4.79" | 106.10mm | 2500 lbs | 48.00 lbs |
