Baja Designs Ford OnX6+ 20 Inch Grille Light Bar Kit - Ford 2019-2023 Ranger
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Baja Designs Warranty
At a glance: Limited lifetime (or 49,930 hours) on lights for recreational use; 5 years for commercial use
This is Baja Designs's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Light bars & auxiliary lights (recreational use) | Limited lifetime or 49,930 hours of operation, whichever comes first |
| Lights in commercial use (agriculture, industrial, mining, public safety) | 5 years or 49,930 hours, whichever comes first |
| sPOD electronics (bought after 4/1/23) | 5 years limited |
| Third-party brackets, harnesses, switches | Original manufacturer's warranty only |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Defects in design and manufacturing only
- Baja Designs pays return freight if the defective item is sent back within 90 days of delivery
What's not covered
- Installation errors and installation labor
- Wear and tear, accidents, collisions, acts of God
- Misuse, abuse, or modifications not done by Baja Designs
- sPOD: water damage, reverse polarity, improper install
- Full warranty does not apply to items bought from unauthorized Amazon, eBay or Walmart resellers
- After 90 days from delivery, customer prepays freight to Baja Designs
How to make a Baja Designs warranty claim
- Call Baja Designs technical support to troubleshoot
- If inspection is needed, Baja issues an RMA form and number
- Ship the item marked with the RMA# to Baja Designs - Warranty, 2950 Norman Strasse Rd., San Marcos, CA 92069
Baja Designs contact: Phone: (760) 560-2252 · Email: bdwarranty@bajadesigns.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Baja Designs, and help it along either way.
Shop Baja Designs at NVMOS
Baja Designs Ford Bull Bar Light Kit - Ford 2023-2026 F-250/350 Super Duty
Baja Designs 7XL Linkable Bumper Light Kit - Ford 2023-2026 F-250/350 Super Duty
Baja Designs Ford XL Linkable Bumper Light Kit - Ford 2021-2026 Bronco; 2022-2026 Bronco Raptor; NOTE: w/ OE Steel Bumper
See all Baja Designs products, lead times and FAQs →
Disclaimer: The information on this page describes Baja Designs's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Baja Designs official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Baja Designs is the San Marcos, California lighting company that built the first forward-projecting LED light bar. NVMOS carries their pods, light bars and vehicle-specific bumper, fog and reverse kits for Ford, Toyota, Jeep, RAM and GM trucks, for drivers who want to actually see the trail at night.
Based in: San Marcos, California · Founded: 1992 · Lead time: In-stock ships in 24–48 hrs
Shop all 552 Baja DesignsWarrantyAll brands
Warranty terms are set by Baja Designs, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

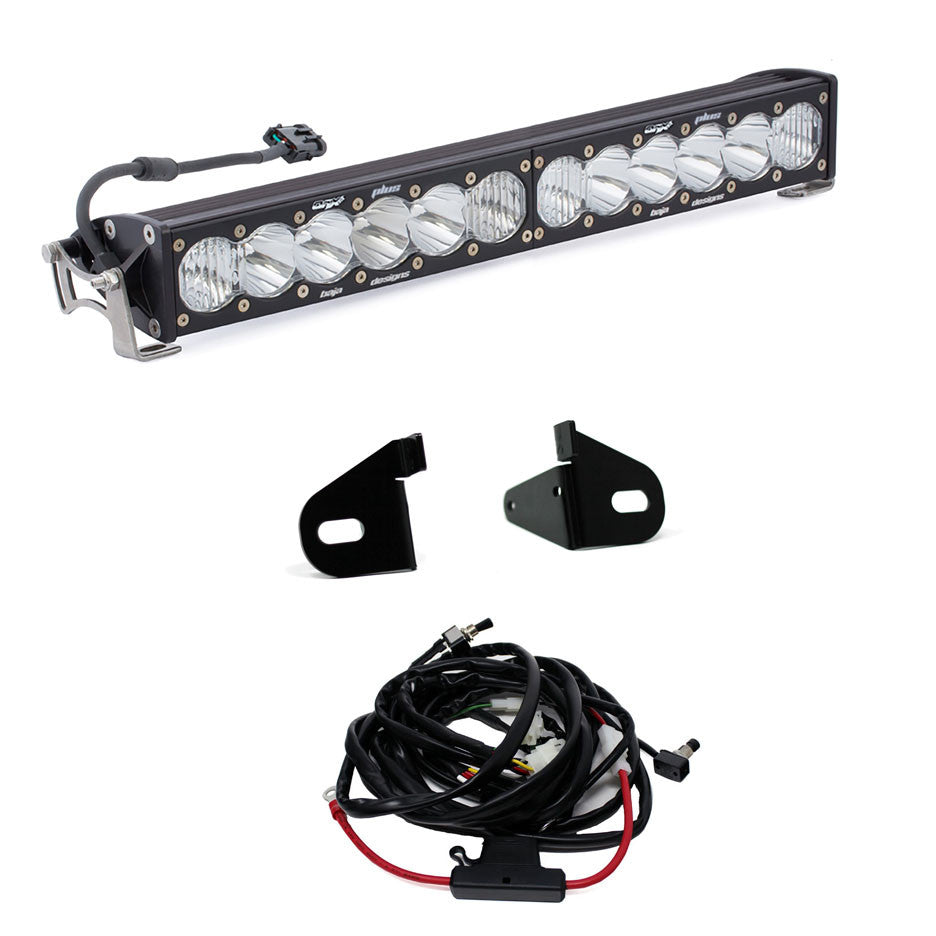

Baja Designs OnX6+ 20 Inch Grille Light Bar Kit for 2019-2023 Ford Ranger
This lower grille kit mounts a 20 inch OnX6+ bar on the 2019-2023 Ford Ranger. It makes 24,920 raw lumens on high and 18,460 on low, lighting zones 1 through 4. No drilling or modifications are needed. See auxiliary lights for related options. It suits drivers who want a strong light bar without altering the truck.
The mil-spec aluminum housing is race proven, and MoistureBlock keeps it waterproof and dustproof. The kit comes with everything for a clean installation. To use the Hi/Low function you need harness 640119. A Baja Designs kit with a limited lifetime warranty.
| Spec | Detail |
|---|---|
| Lumens (high) | 24,920 |
| Lumens (low) | 18,460 |
| Power | 216W high / 160W low |
| Hi/Low harness | 640119, sold separately |
| Pattern | Driving/Combo, clear |
| Housing | Mil-spec aluminum, waterproof and dustproof |
| Light color | 5000K daylight |
| Install | No drilling |
2019-2023 Ford Ranger.
Technical specifications
| Depth (in.) | 4.29 |
|---|---|
| Height (in.) | 2.69 |
| Length (in.) | 20 |
| Weight (lbs.) | 7.85 |
| Amperage Rating (A) | 16.6 (High); 12.0 (Low) |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 24,920 (High); 18,460 (Low) |
| Description | Straight; Driving/Combo; Clear |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 12 |
| Lighting Technology | LED |
| Mounting Hardware Description | Mounting Brackets |
| Product Type | OnX6+ 20 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 216 (High); 160 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Install guides & documents
Complete your Ranger build
The pieces owners run with this one — matched to your Ranger and to each other. Do the whole truck in one order instead of three.
$1,070.95
$97.00
$39.99
$139.99
$159.95
More for your Ford Ranger
Picked from the 444 parts we carry for the Ford Ranger, matched to 2019–2023 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Baja Designs Ford OnX6+ 20 Inch Grille Light Bar Kit FAQs
Do I need to drill?
No. Mounting needs no drilling or modifications.
What do I need for Hi/Low?
Harness 640119.
How bright is it?
24,920 raw lumens on high.
Which Rangers fit?
2019-2023.
