AEV Crestone DualSport Wheel for Toyota and Lexus
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
AEV (American Expedition Vehicles) Warranty
At a glance: Limited lifetime parts warranty for the original purchaser against material and manufacturing defects; finish defects get one year
This is AEV's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 27, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| AEV accessories: bumpers, tire carriers, DualSport suspension, wheels, skid plates, snorkels, flares, lighting mounts and recovery gear | Limited lifetime |
| Original AEV paint, powder coat or dip finishes | 1 year |
| Wear items: bushings, bump stops, heim joints, beadlock rings | Not covered |
What's covered
- Material and manufacturing defects in AEV accessories
- Original purchaser only, with proof of purchase
- AEV may repair the part, replace it, or reimburse the purchase price, at its discretion
What's not covered
- Second owners
- Labor to diagnose, remove or install parts
- Abuse, misuse, modification, improper installation or poor maintenance
- Vehicles used in racing, competition or commercial activity
- Trail and weather finish damage such as rock chips, scratches, sap, salt and sun
- Incidental costs, damage to non-AEV parts, counterfeit parts, and shipping back to AEV
How to make an AEV warranty claim
- Gather your proof of purchase and photos of the defect
- Contact AEV's warranty department to get a return merchandise authorization (RMA)
- AEV usually asks for the part back for inspection; if a replacement ships first, AEV may charge for it and refund once the defect is confirmed
AEV warranty contact: Email warranty@aev-conversions.com · Phone 248-926-0256
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to AEV, and help it along either way.
See all AEV products at NVMOS →
Disclaimer: The information on this page describes AEV's (American Expedition Vehicles) own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: AEV official parts warranty. Last updated on nvmos.com: October 27, 2026. See our return policy for NVMOS's own terms.
About the brand
AEV (American Expedition Vehicles)
AEV (American Expedition Vehicles) builds OE-quality bumpers, suspension, wheels and armor for Jeep Wrangler and Gladiator, Ram HD, Ford Super Duty, Chevy and GMC trucks. NVMOS carries AEV's EX and RX bumpers, DualSport RT, XP and SC suspension systems, Borah, Katmai and Crestone DualSport wheels, skid plates, snorkels, HighMark flares and the AEV recovery gear line.
Based in: Wixom, Michigan (founded in Missoula, Montana in 1997) · Made in: USA, most parts within 200 miles of Detroit · Lead time: Ships from AEV; bumpers and suspension systems ship freight or oversize
Shop all 272 AEV (American Expedition Vehicles)WarrantyAll brands
Warranty terms are set by AEV (American Expedition Vehicles), not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.
AEV Crestone DualSport Wheel for Toyota and Lexus
The AEV Crestone DualSport Wheel is designed specifically for late-model Tacoma, 4-Runner, FJ Cruiser and Lexus GX460/470. Available in Onyx finish, the Crestone's split 6-spoke design gives it an ultra-modern look while providing drivers with the flexibility and versatility that AEV's line of DualSport Wheels are known for. This wheel can be purchased with a fully functional Beadlock Ring for running very low air pressure off-road or a Protection Ring for street use and added protection off-road or no ring with silver hardware for a more simplistic look.
The DOT-compliant AEV Crestone DualSport wheel is made from heat-treated A356 T6 cast aluminum for maximum strength and has been thoroughly tested to stringent SAE J2530 standards. This wheel is also Tire Pressure Monitoring System (TPMS) compatible and features AEV's signature valve stem recess to protect the tire valve from being damaged while you are out on the trail.
AEV's Crestone wheel measures 17×8 w/ 4.69" backspacing and will work without having to remove the axle dust cap commonly found on many Toyota trucks and SUV's. This wheel is available in an Onyx finish.
The Crestone was designed specifically for late model, 6-lug Toyota applications, such as Tacoma, 4-Runner, FJ Cruiser but it may also fit other makes and models. Please refer to the tech specs for additional information and specifications about this wheel. A 13/16" ET style lug nut will be required for most Toyota applications (see image below).
Available Configuration Options:
There are three options available when configuring your Crestone DualSport wheel. The optional Beadlock ring and Protection ring are both available in a Silver, Onyx, or a Satin Black that can easily be painted for a truly customized appearance.

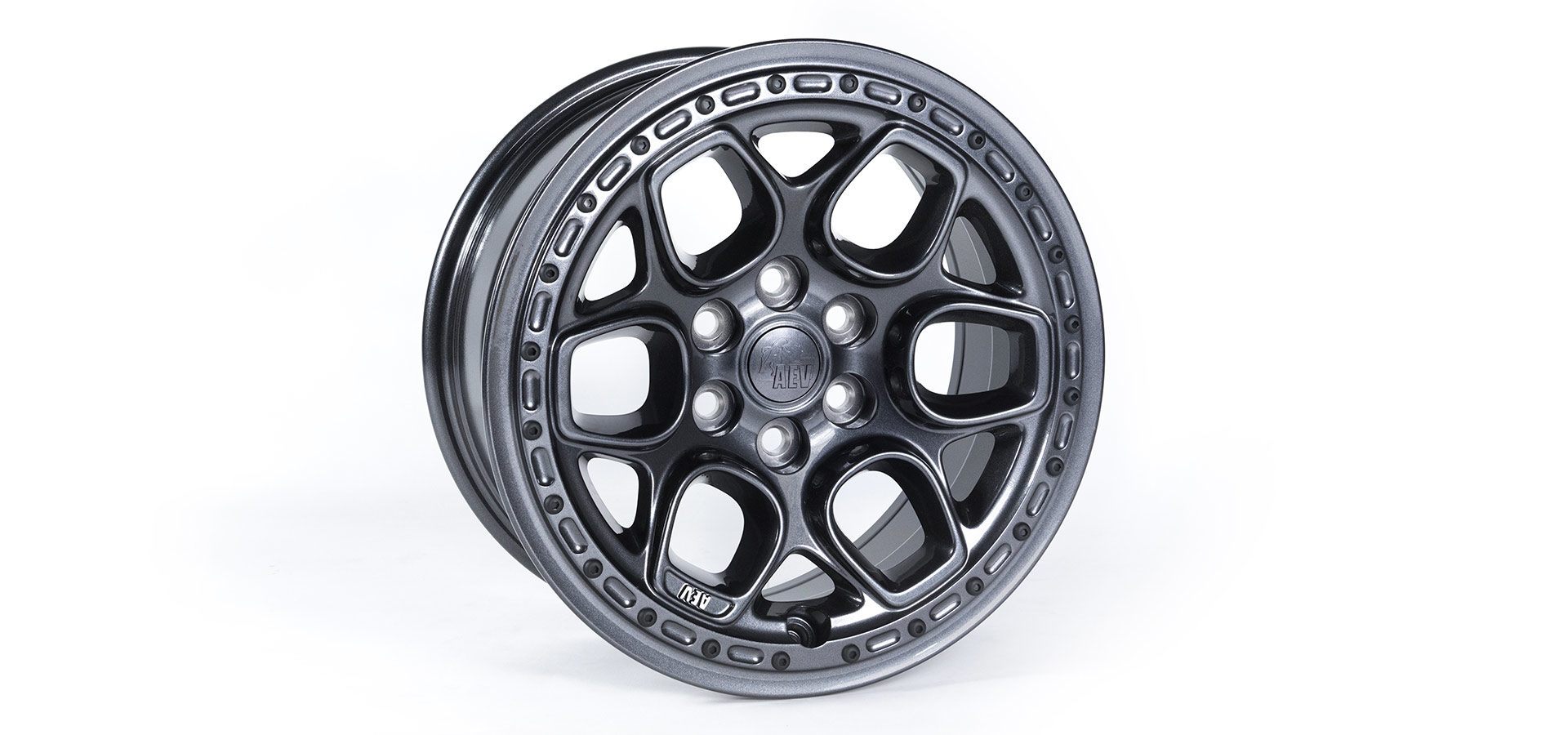

- No Ring - The Crestone wheel can be installed without a ring for a simple one-color look. The Hardware Kit, which includes black nylon hardware, helps prevent dirt and debris from building up inside the threaded bolt holes.

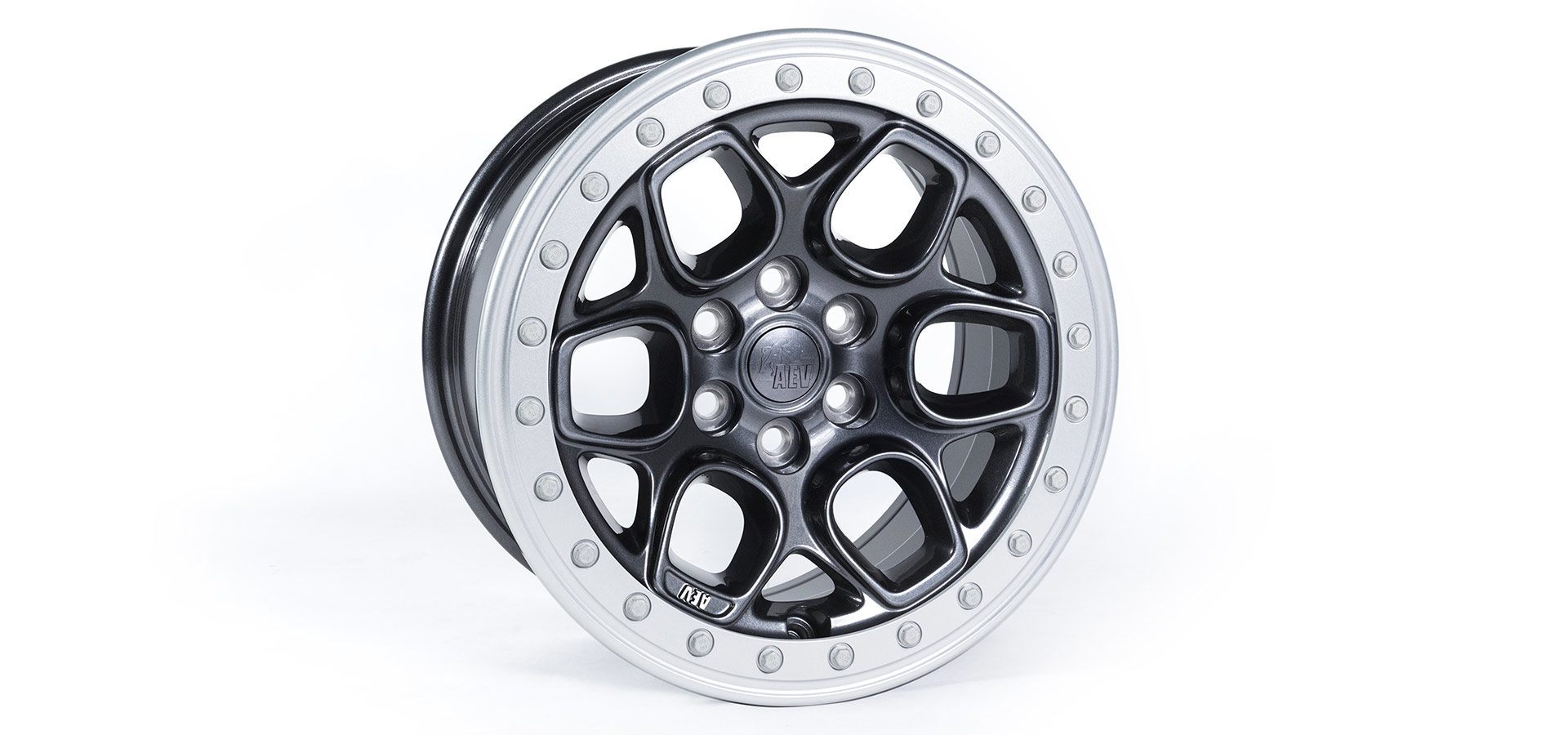

- Protection Ring - The Protection Ring is a non-functional cast aluminum ring, designed as a sacrificial part to protect the wheel from trail scratches while also providing the same look as the Beadlock Ring.

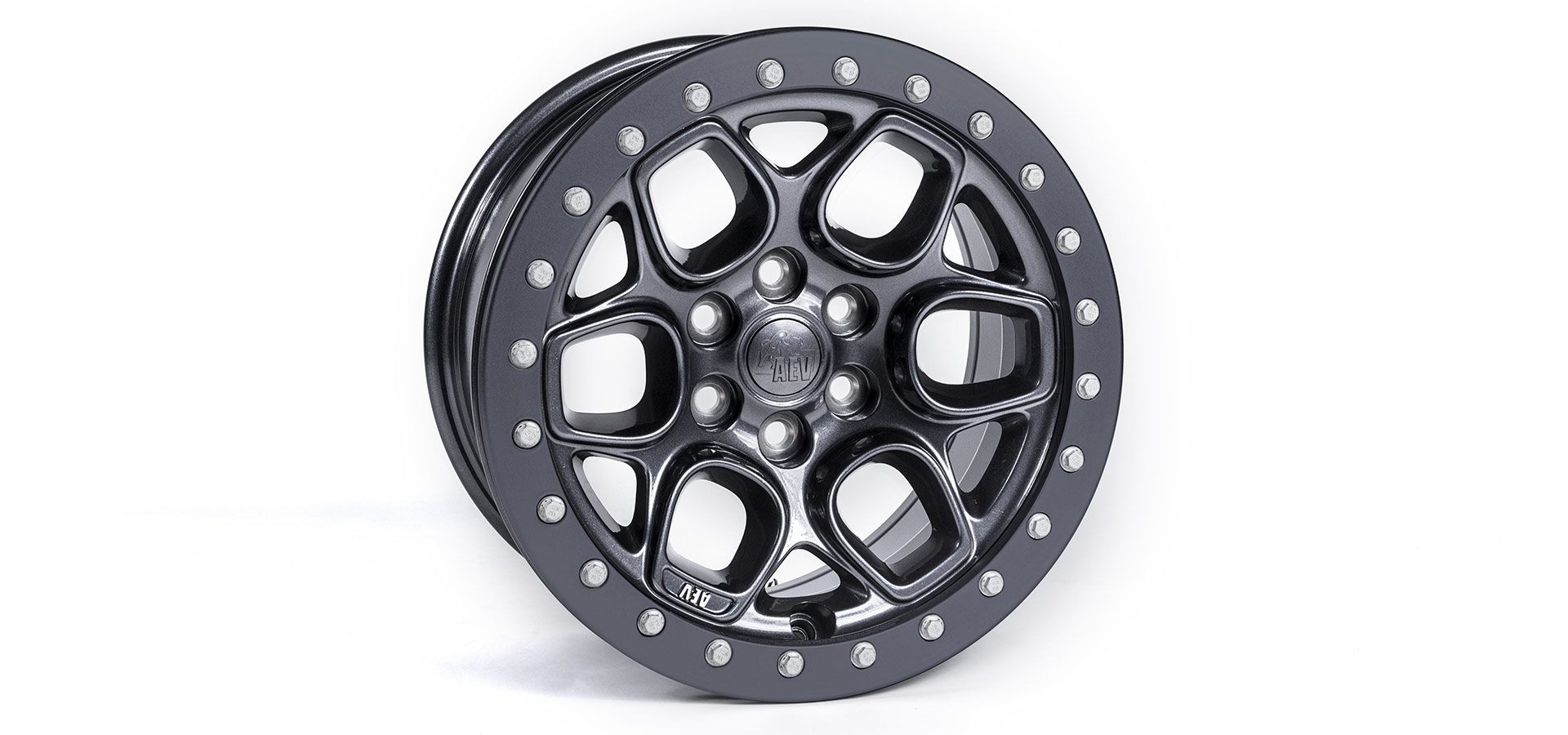

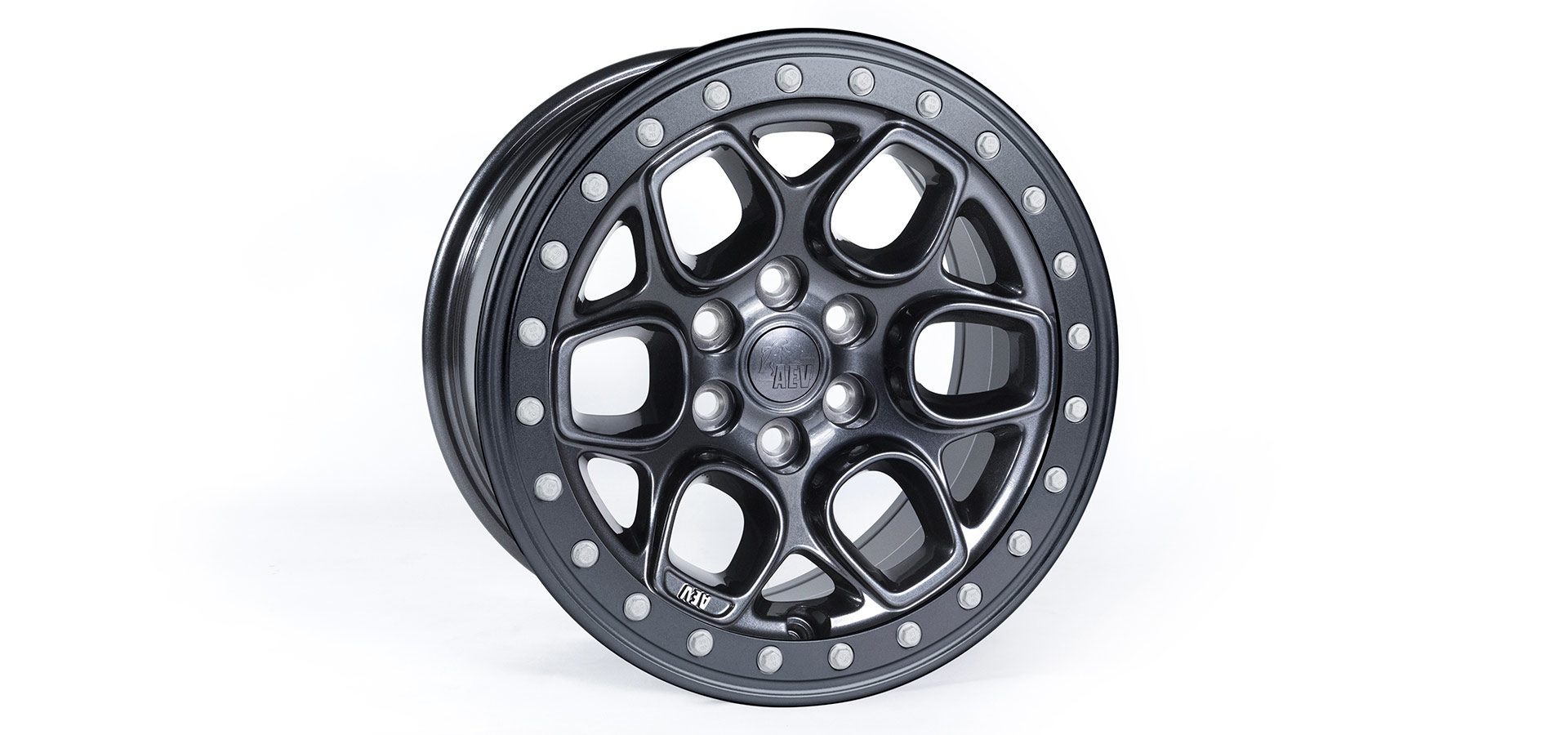

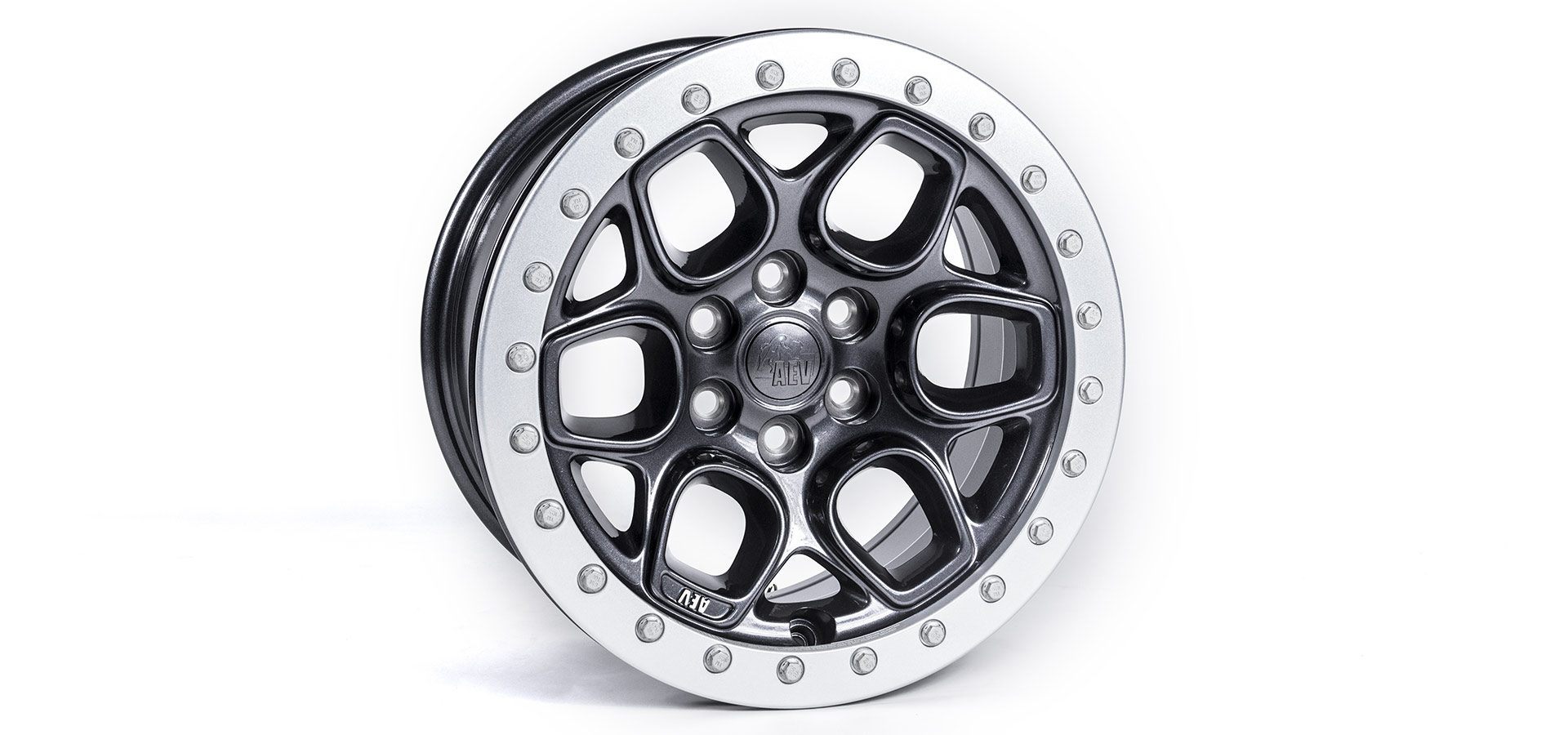

- Beadlock Ring - The Beadlock Ring is designed with maximum strength and off-road durability in mind by utilizing a 16mm thick, forged aluminum beadlock ring and supplied with hardware in a Silver finish. AEV recommends that the Beadlock Ring be used for off-road purposes only.
| Brand | Model | Size |
|---|---|---|
| BFGoodrich | All-Terrain KO2 | LT285/70R17 |
| BFGoodrich | All-Terrain KO2 | LT315/70R17 |
| BFGoodrich | All-Terrain KO2 | 34x10.50R17 |
| BFGoodrich | All-Terrain KO2 | 35x12.50R17 |
| BFGoodrich | All-Terrain KO2 | 37x12.50R17 |
| BFGoodrich | Mud-Terrain KM2 | LT285/70R17 |
| BFGoodrich | Mud-Terrain KM2 | 35x12.50R17 |
| BFGoodrich | Mud-Terrain KM2 | 37x12.50R17 |
| BFGoodrich | Mud-Terrain KM3 | LT285/70R17 |
| BFGoodrich | Mud-Terrain KM3 | LT295/70R17 |
| BFGoodrich | Mud-Terrain KM3 | 35x12.50R17 |
| BFGoodrich | Mud-Terrain KM3 | 37x12.50R17 |
| General | Grabber X3 | 37x12.50R17 |
| Nitto | Ridge Grappler | 37x12.50R17 |
| Toyo | Open Country M/T | 35x12.50R17 |
| Toyo | Open Country M/T | 37x12.50R17 |
| Yokohama | Geolander MT G003 | LT285/70R17 |
- 1995-2026 Toyota Tacoma
Fitment is per AEV. Confirm your model year, trim and options before ordering.
| Spec | Detail |
|---|---|
| Brand | AEV (American Expedition Vehicles) |
| Part number | 28401103AA |
| Warranty | AEV limited lifetime parts warranty |
Not sure which version fits your build? Call or text us at (920) 249-7744.
