Winnebago Revel 2017-2020 - Side x Side Base Drawer System
Please allow 7-8 weeks for fulfillment. This product is made to order and is non-refundable.
Warranty Information
Vendor warranty summary
Goose Gear Warranty
At a glance: No written warranty published — we handle defects with the brand for you
This is Goose Gear's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
What to expect
Goose Gear doesn't publish a written warranty that we could find. In practice, parts that arrive damaged or show a manufacturing defect are handled between us and Goose Gear — you don't have to chase the brand on your own.
What Goose Gear does publish
- Contact Goose Gear directly with proof of purchase and a description/photos of the defect
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Goose Gear, and help it along either way.
Shop Goose Gear at NVMOS
Scout Tuktut Offset Plate Drivers Side
Toyota Tacoma 2005-2023 2nd and 3rd Gen Double Cab Version 2 - Second Row Seat Delete Plate System
Jeep Wrangler 2007-2018 JKU 4 Door - Second Row Seat Delete Plate System - V2
See all Goose Gear products, lead times and FAQs →
Disclaimer: The information on this page describes Goose Gear's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Goose Gear builds modular storage and sleep systems in Colorado, starting with a vehicle-specific plate and stacking drawers, kitchens and sleeping platforms on top. NVMOS carries plate systems, drawer modules, packages and camper interiors for Toyota, Lexus, Jeep, Ford, Ram, Ineos, Rivian and Winnebago Revel builds.
Based in: Grand Junction, Colorado · Made in: USA (Colorado) · Lead time: Built to order, about 10 weeks typical
Shop all 504 Goose GearWarrantyAll brands
Warranty terms are set by Goose Gear, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

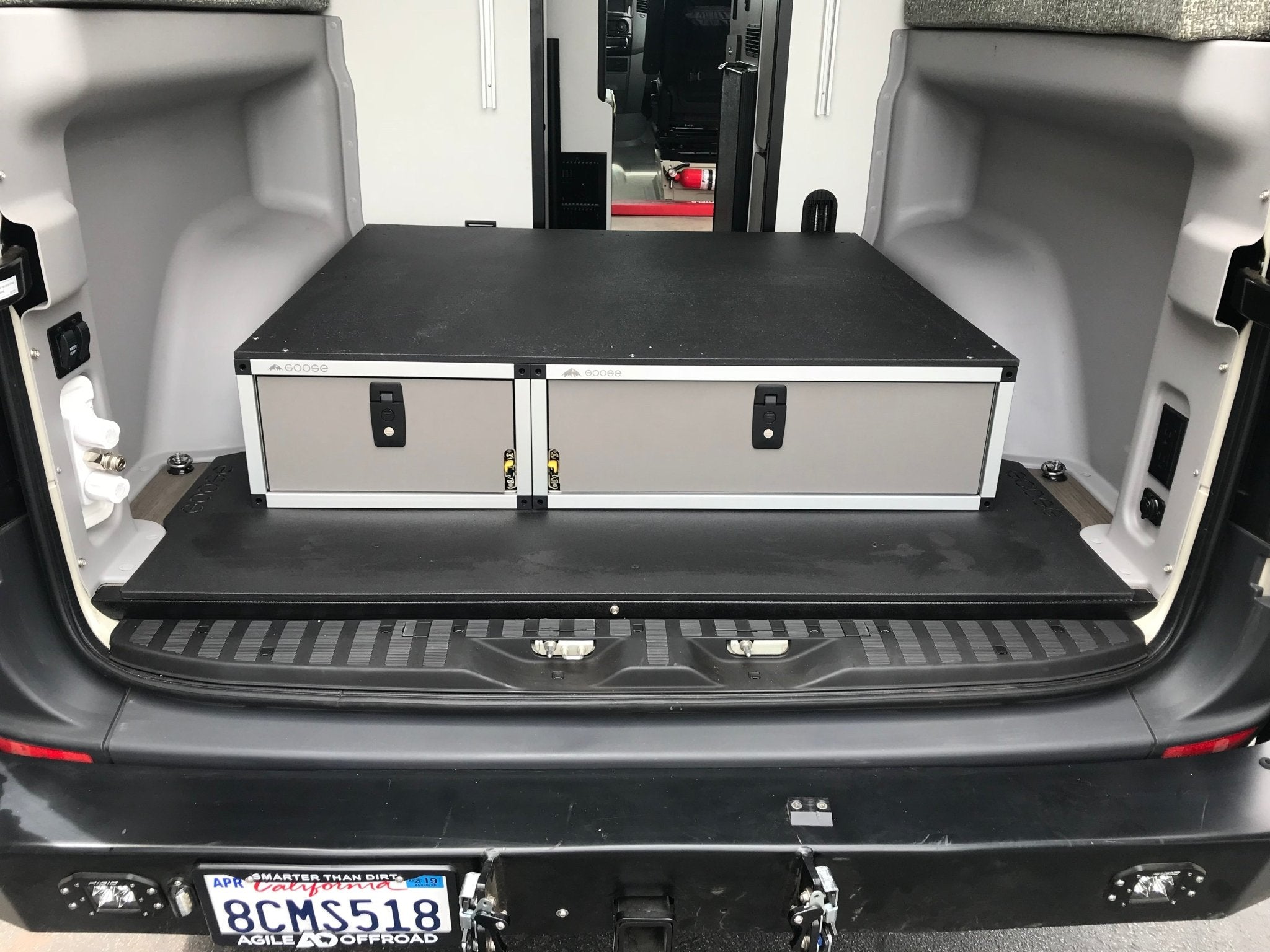

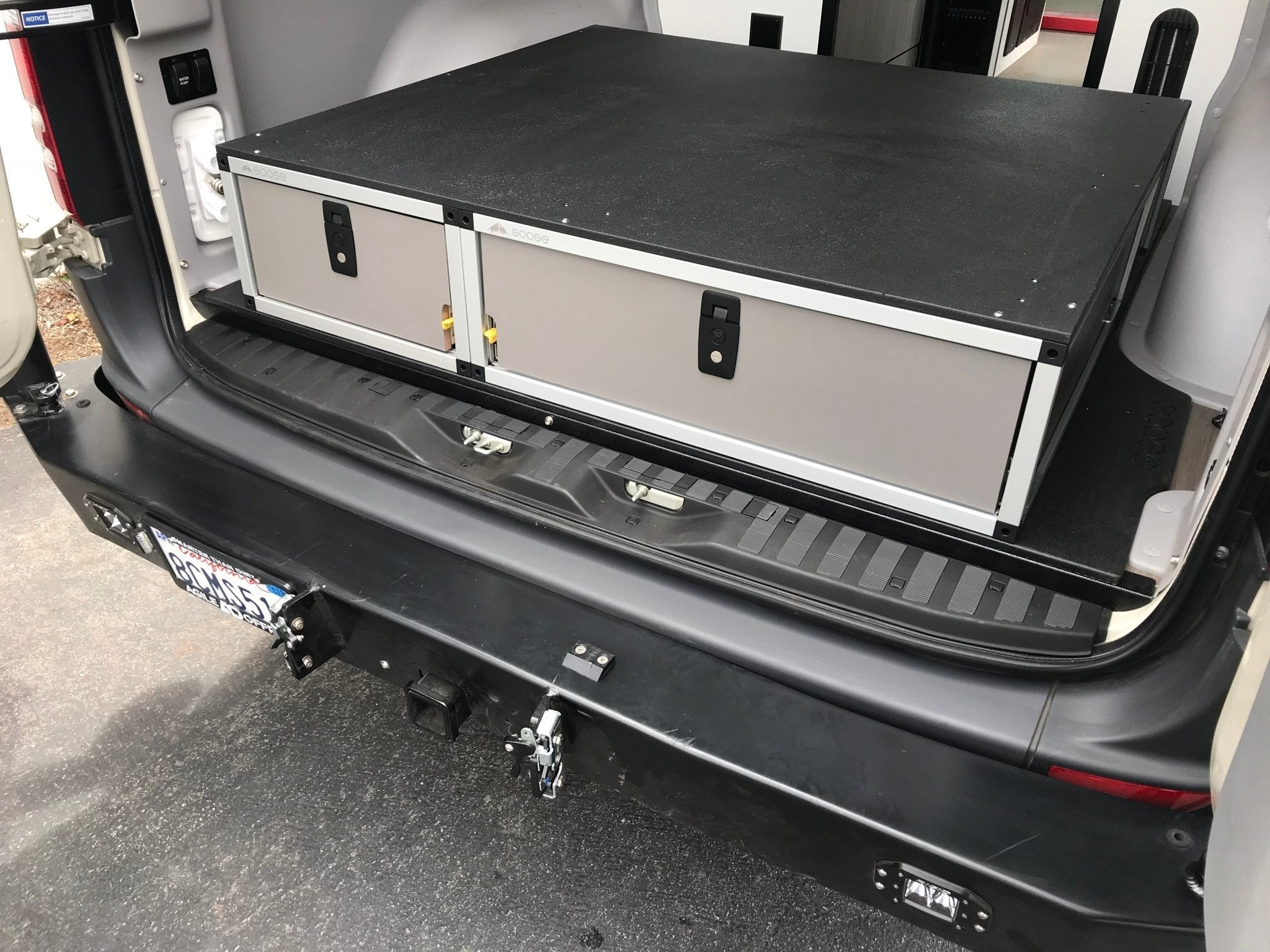

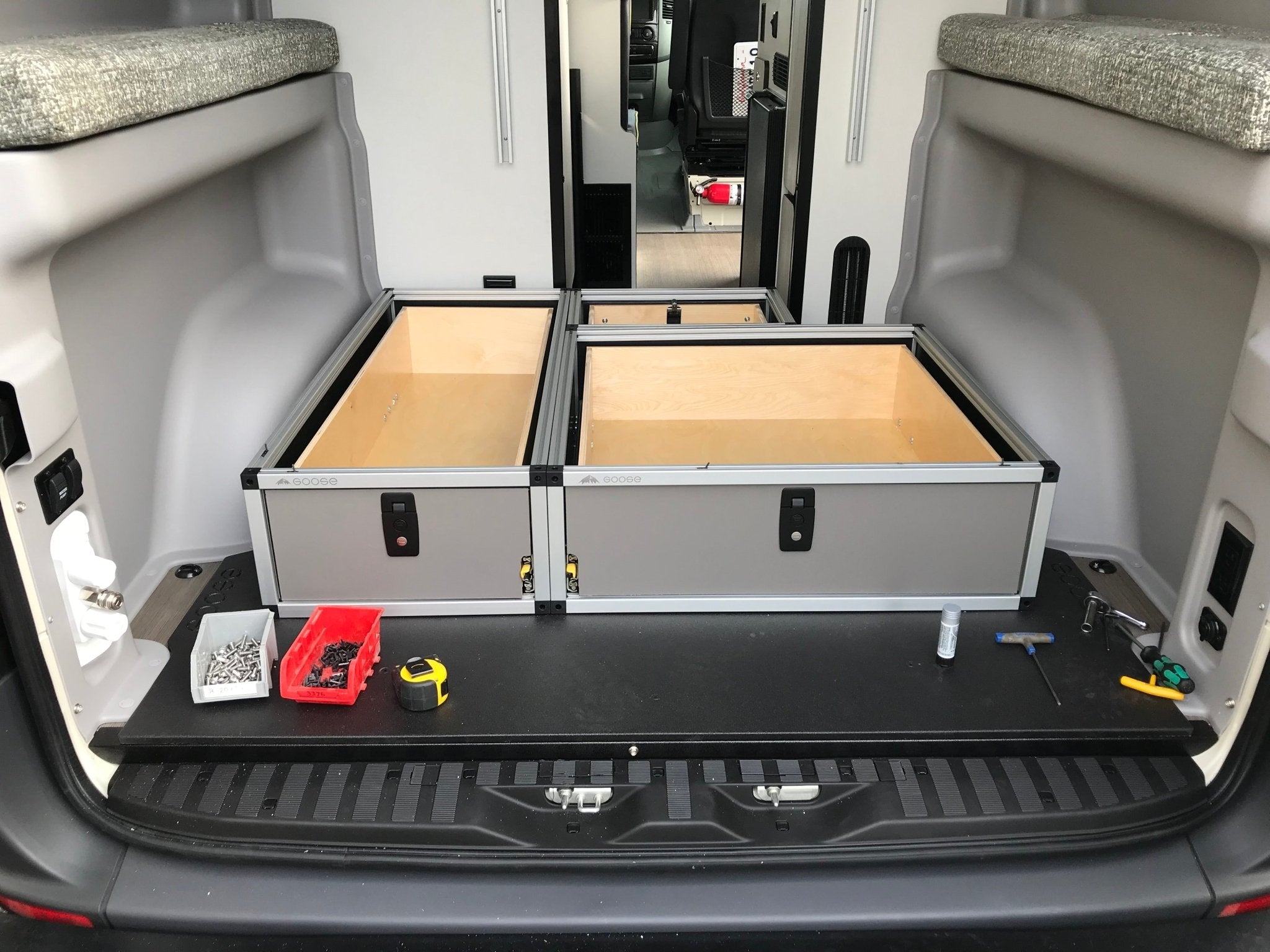

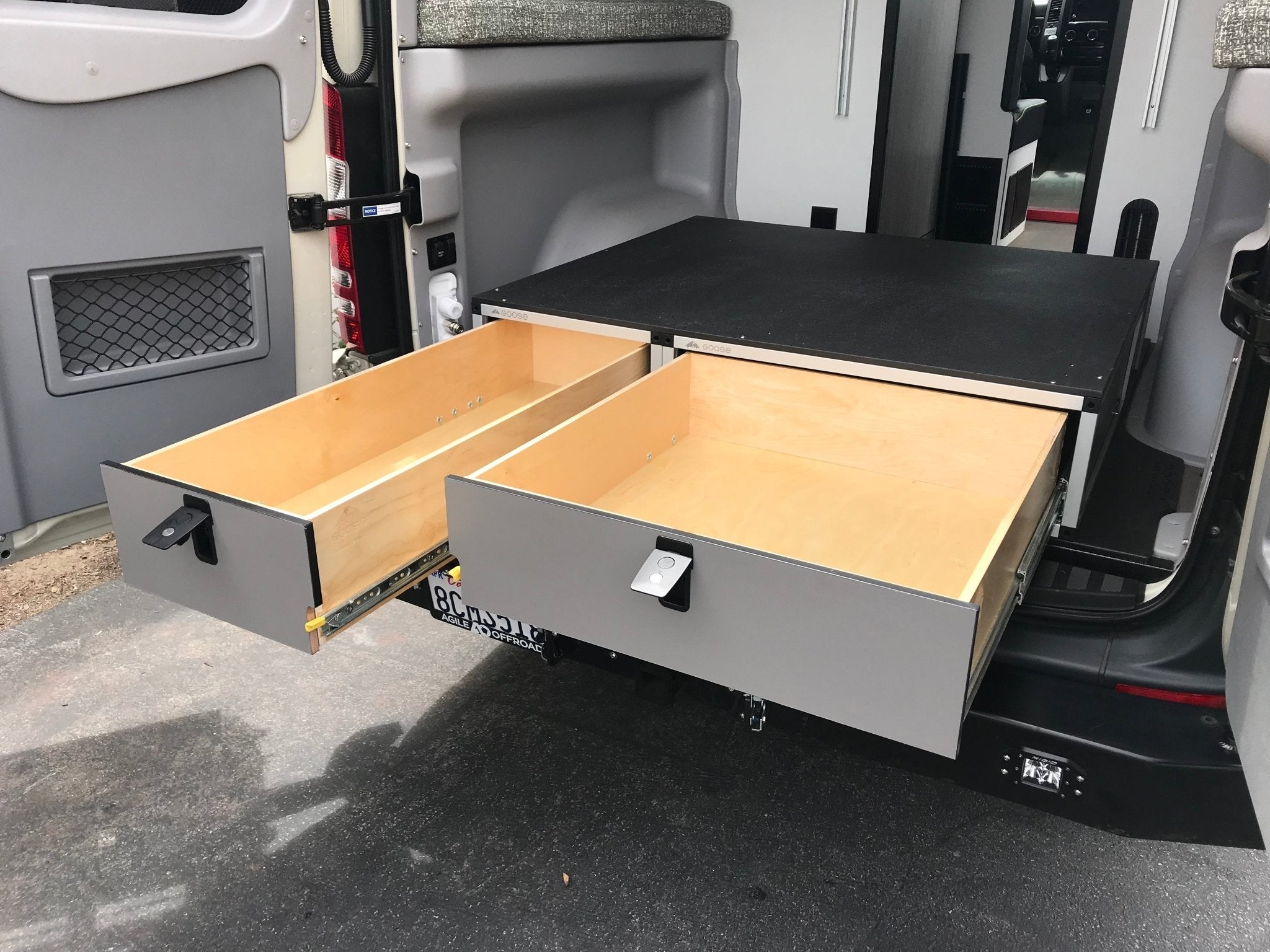

The Winnebago Revel Base Drawer System includes 3 drawer modules and a top plate.
The system is available in two lengths: Short and Long. The short system allows for a flat area of approximately 11" behind the drawers just in front of the rear cargo doors. The long system runs from the bulkhead behind the shower and all the way to the rear cargo doors.
Short System - Measures 48-3/4" wide x 43" deep and is 10-1/2" tall.
Long System - Measures 48-3/4" wide x 54" deep and is 10-1/2" tall.
Short System Specifications:

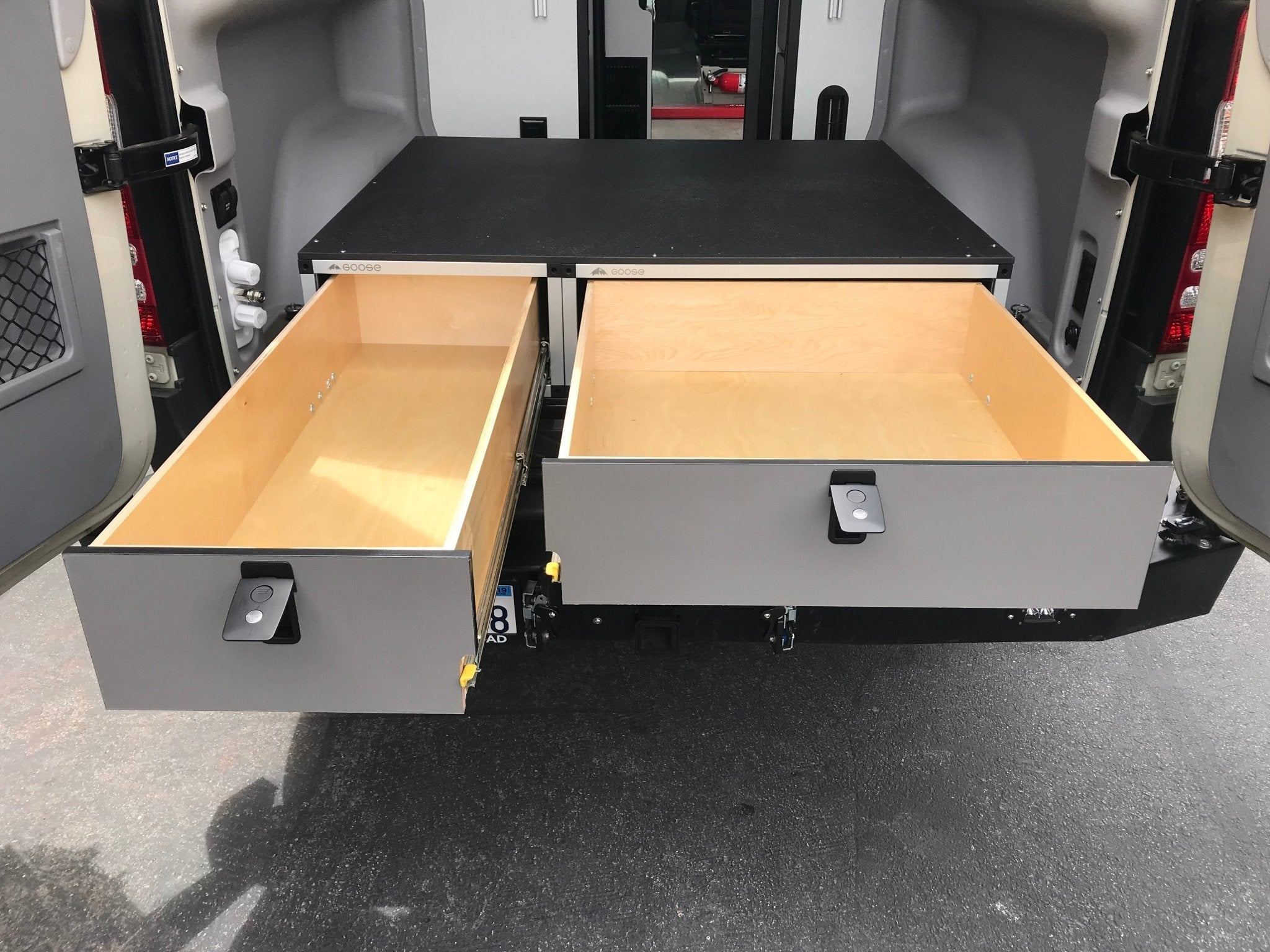

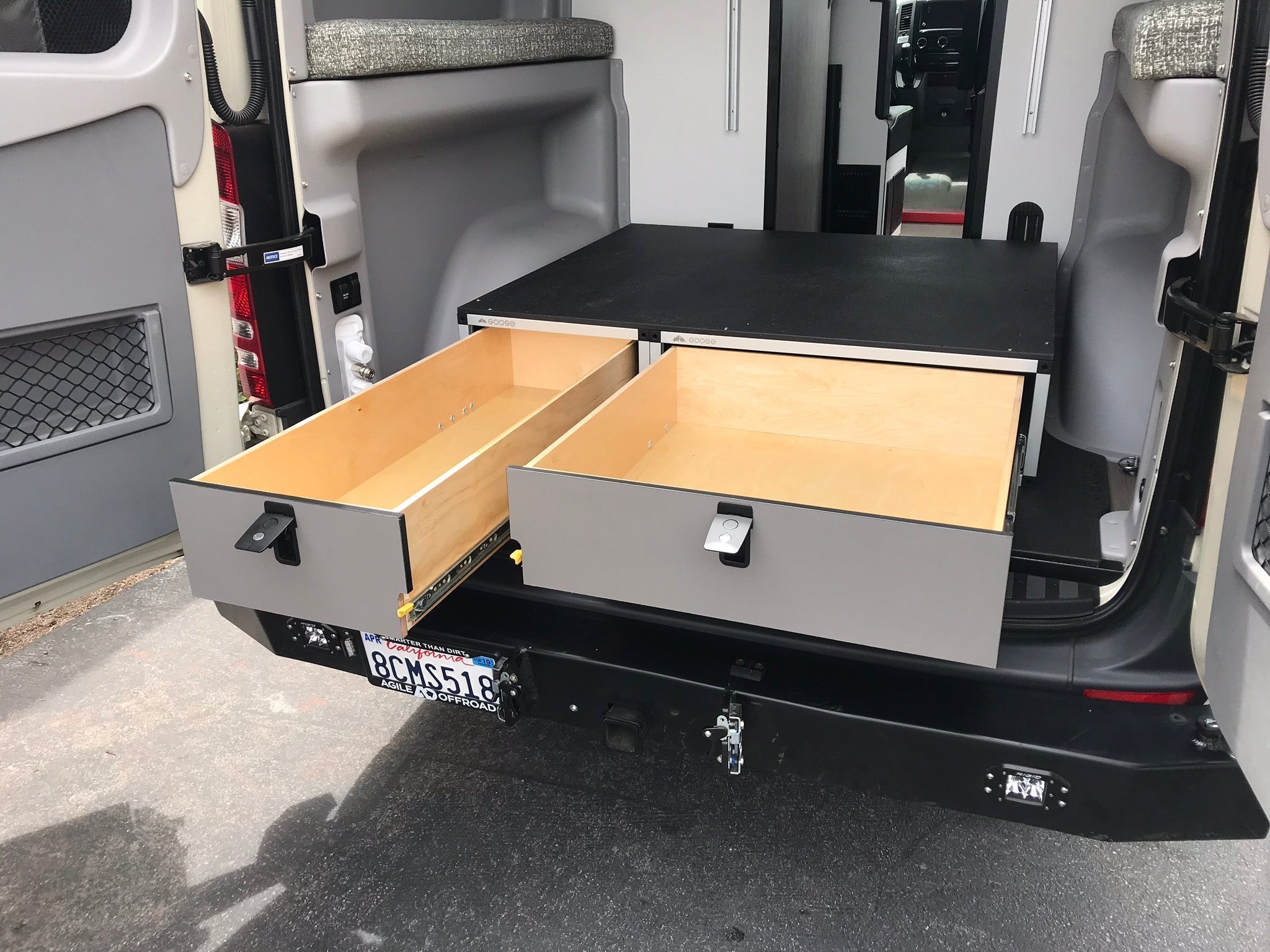

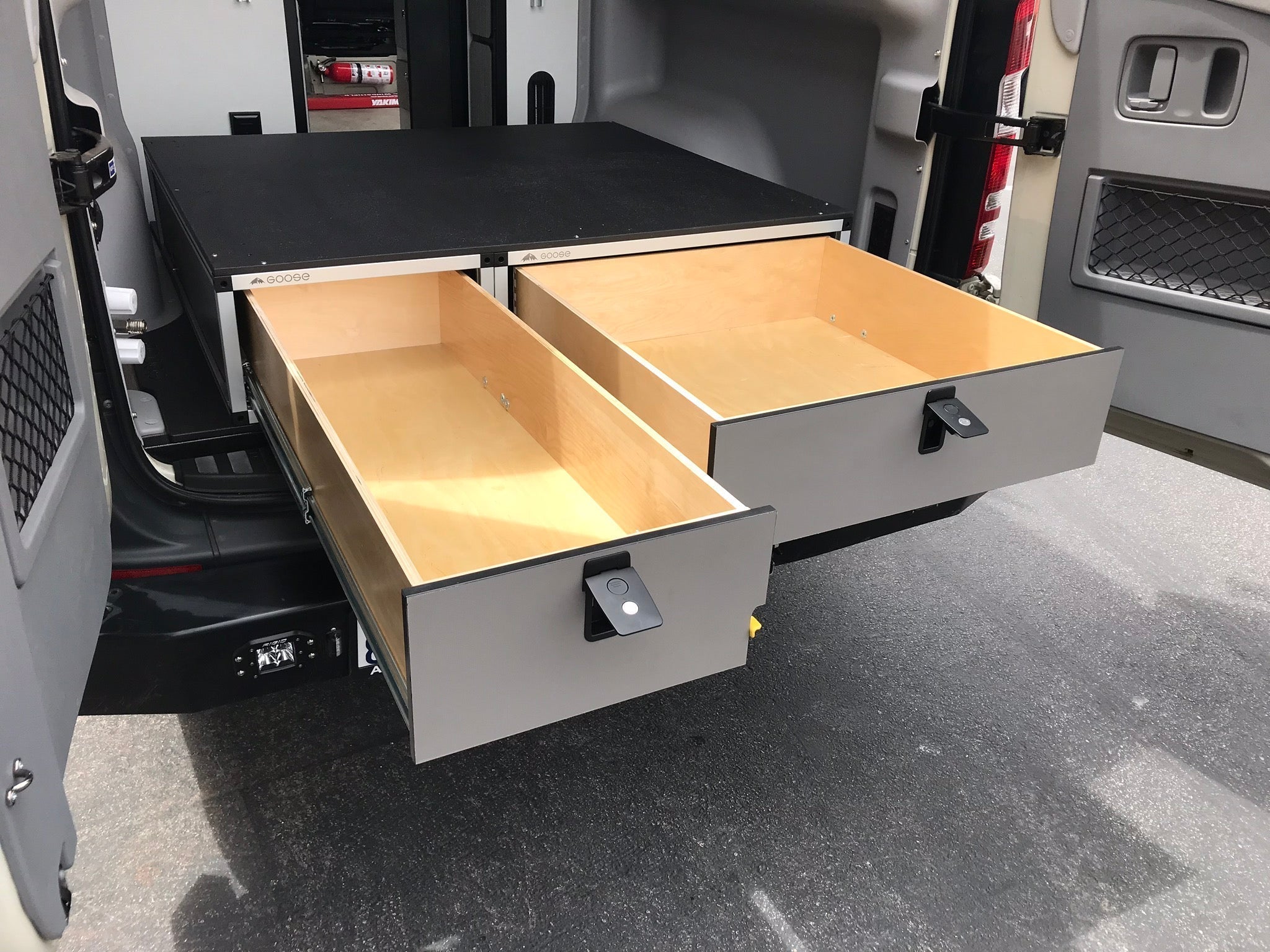

On the drivers side rear there is a drawer featuring 36" lock in / lock out drawer guides as well as a lockable compression latch. This unit measures 18"w x 43"l x 10"h Weight is 51#
On the passengers side rear there is a drawer featuring 28" lock in / lock out drawer guides as well as a lockable compression latch. This unit measures 30-3/4"w x 30"d x 10"h Weight is 49#

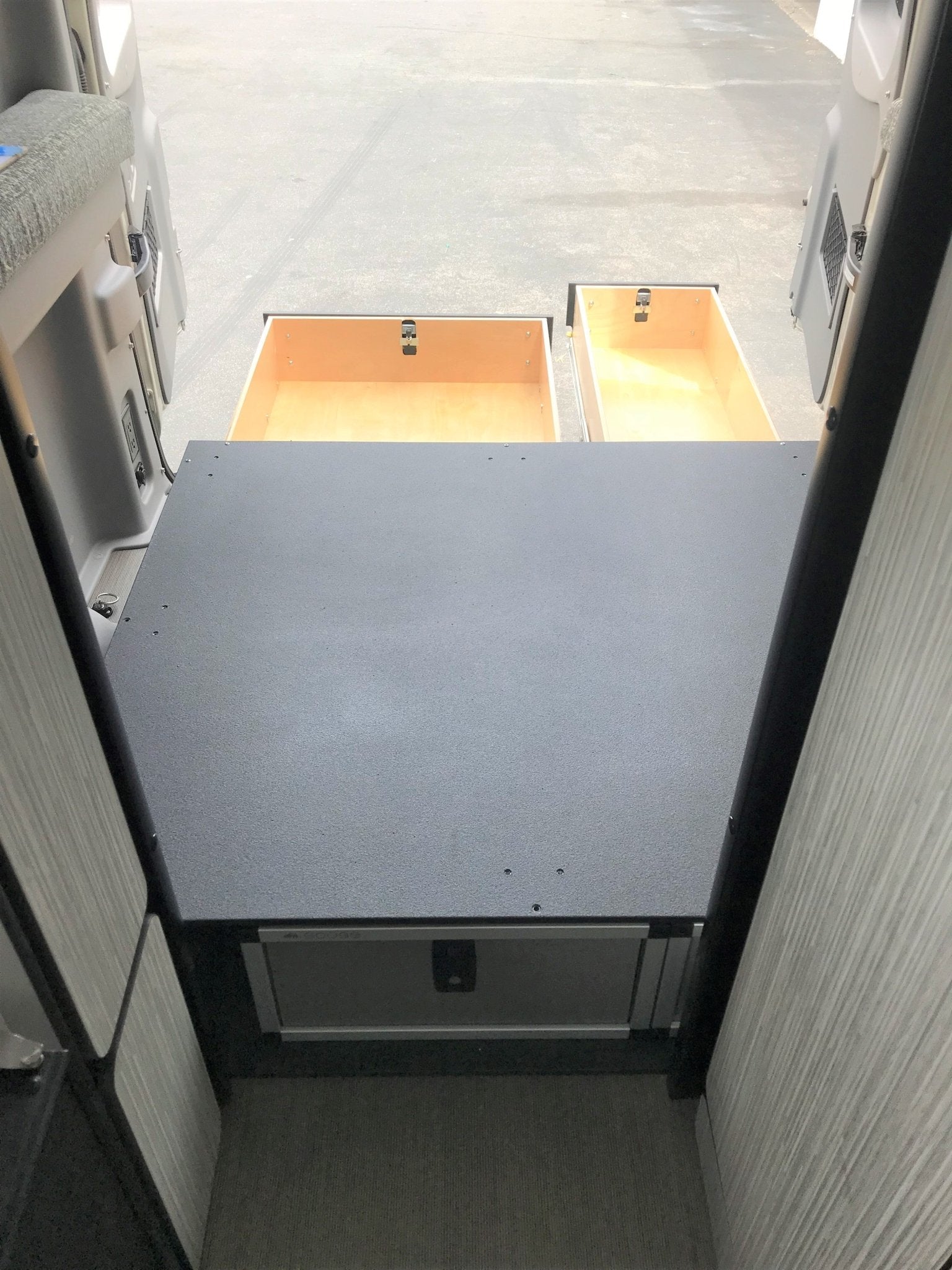

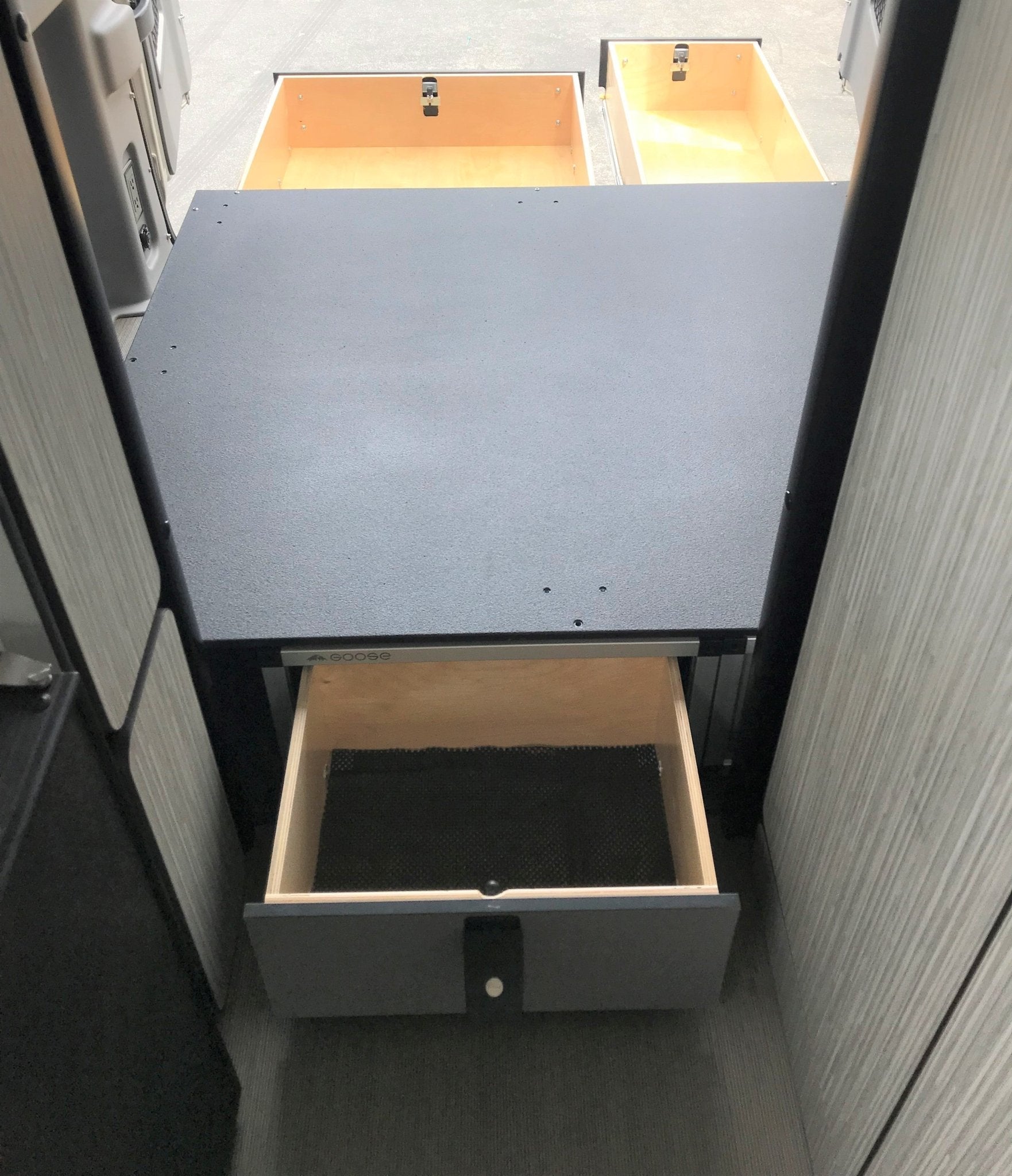

In the middle of the unit, facing forward towards the drivers seat is a drawer featuring 12" heavy duty drawer guides as well as a lockable compression latch. This unit measures 20"w x 13"d x 10"h Weight is 24#
Top Plate weight is 32#
Long System Specifications:
On the drivers side rear there is a drawer 48" featuring lock in / lock out drawer guides as well as a lockable compression latch. This unit measures 18"w x 54"l x 10"h Weight is 58#
On the passengers side rear there is a drawer featuring 36" lock in / lock out drawer guides as well as a lockable compression latch. This unit measures 30-3/4"w x 41"d x 10"h Weight is 56#
In the middle of the unit, facing forward towards the drivers seat is a drawer featuring 12" heavy duty drawer guides as well as a lockable compression latch. This unit measures 20"w x 13"d x 10"h Weight is 24#
Top Plate is 37#
Both systems have a small area that is not encompassed by a drawer to allow for proper heater ventilation.
Both systems are sold as a complete set only and are not open for customization.
Select Black or Gray Drawer Face
This item requires truck freight shipping due to its size. shipping quotes will be provided. Shipping to a residential address can incur a lift gate fee of $125.00. We recommend shipping to a commercial location with a loading dock or forklift.
*Winnebago and Winnebago Revel are Trademarks of Winnebago
