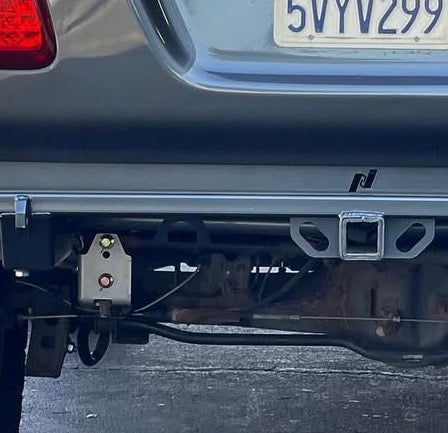

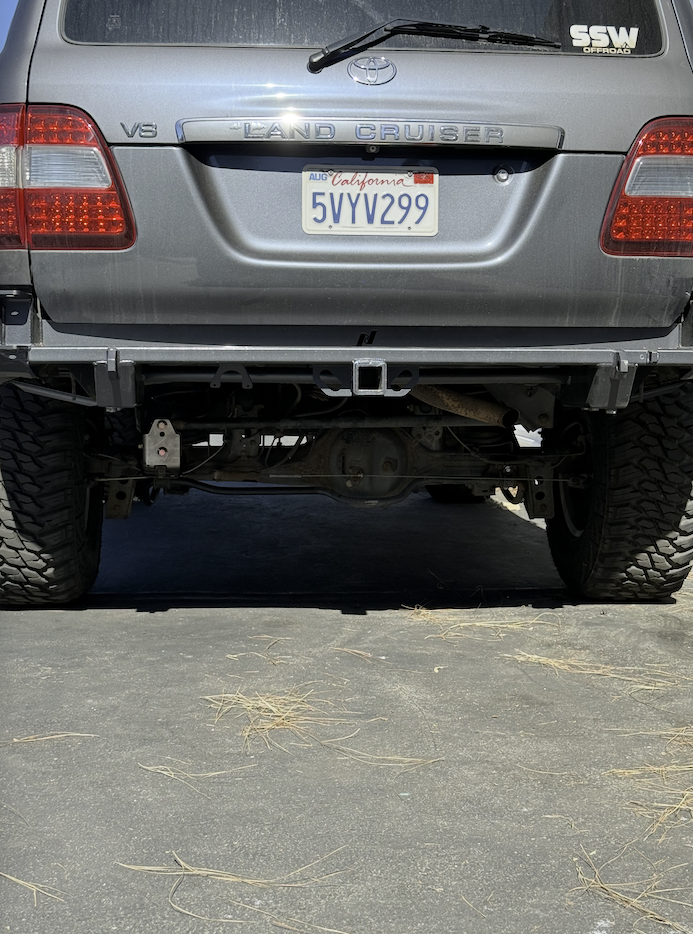

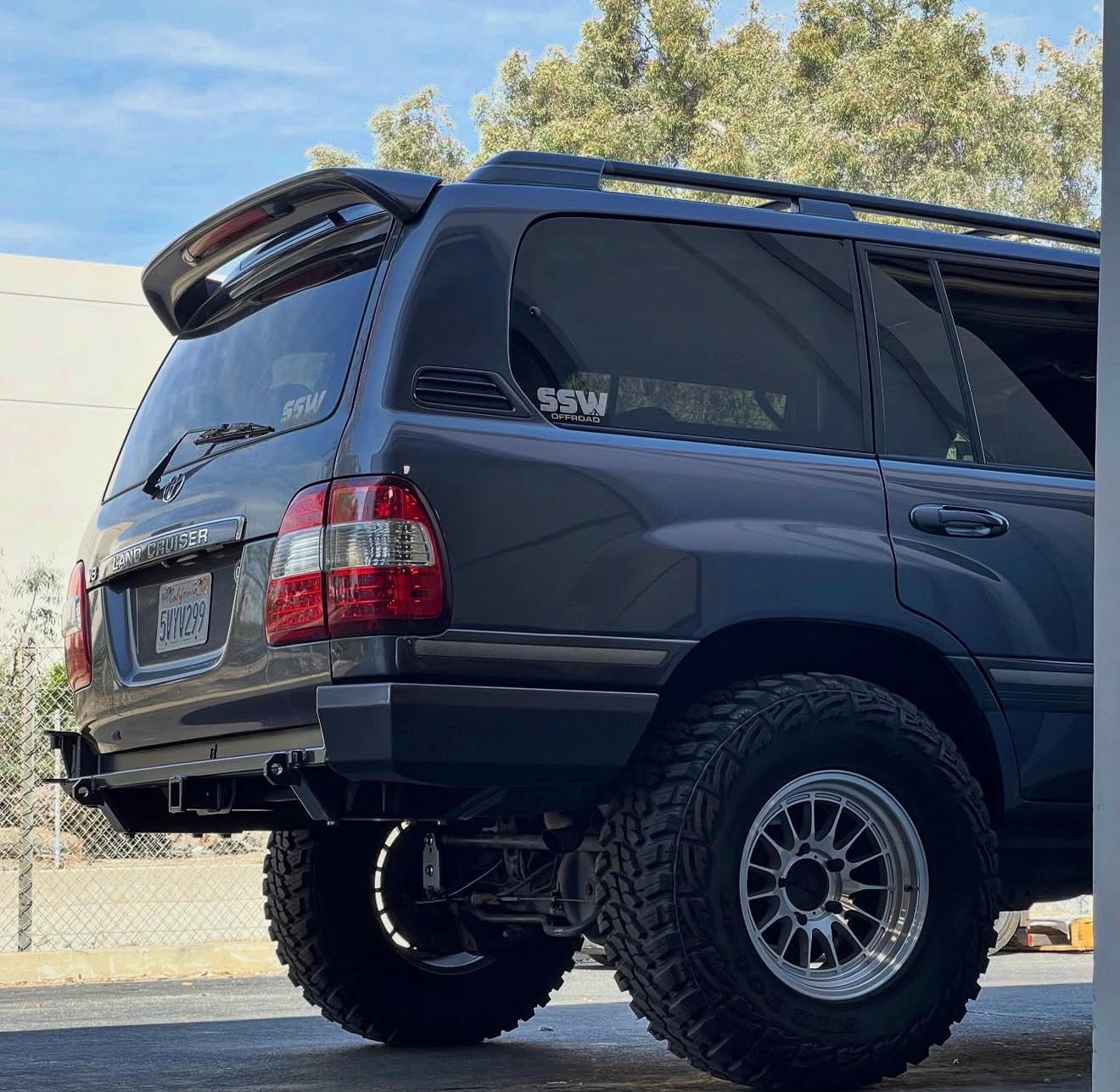

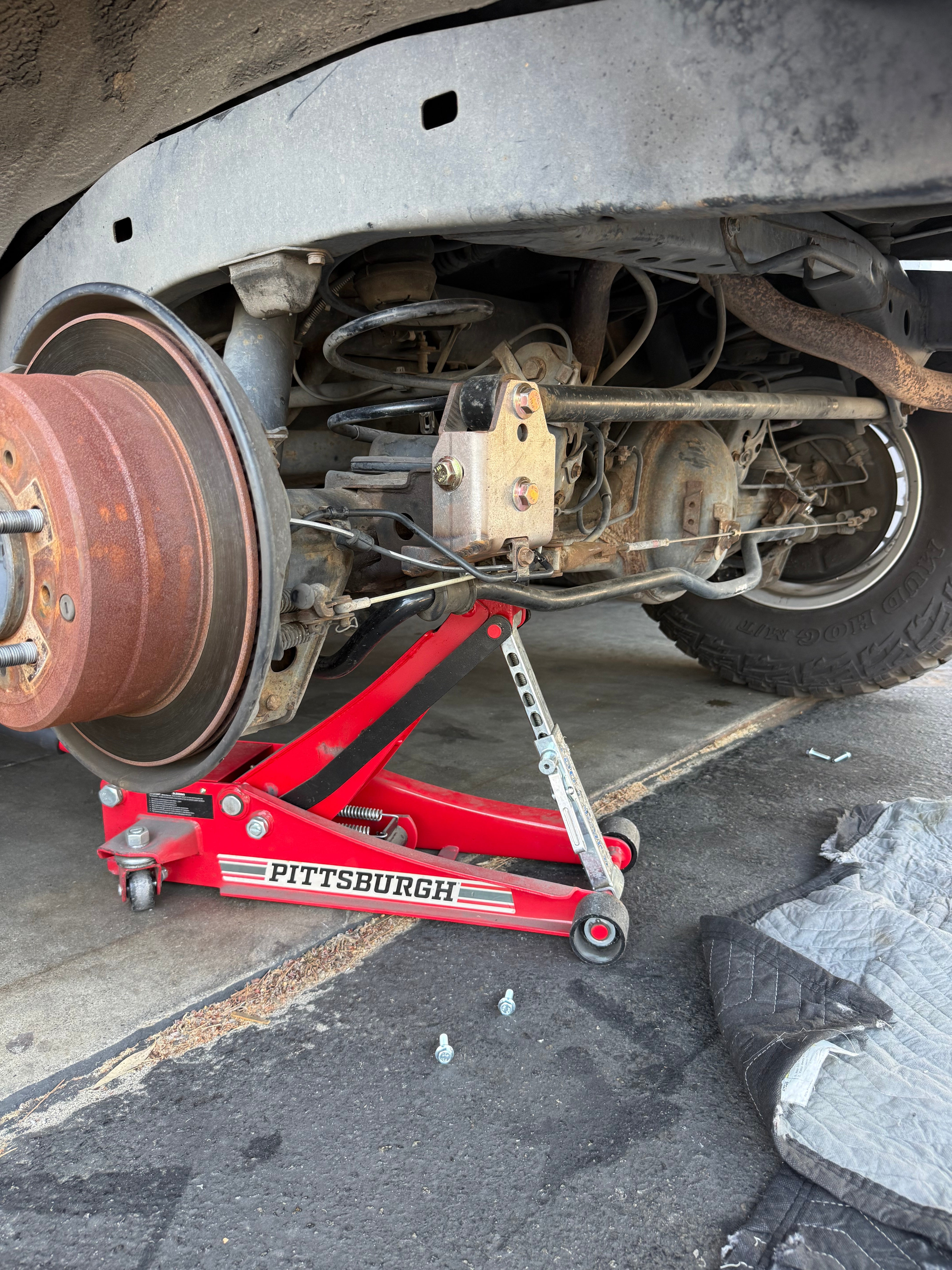

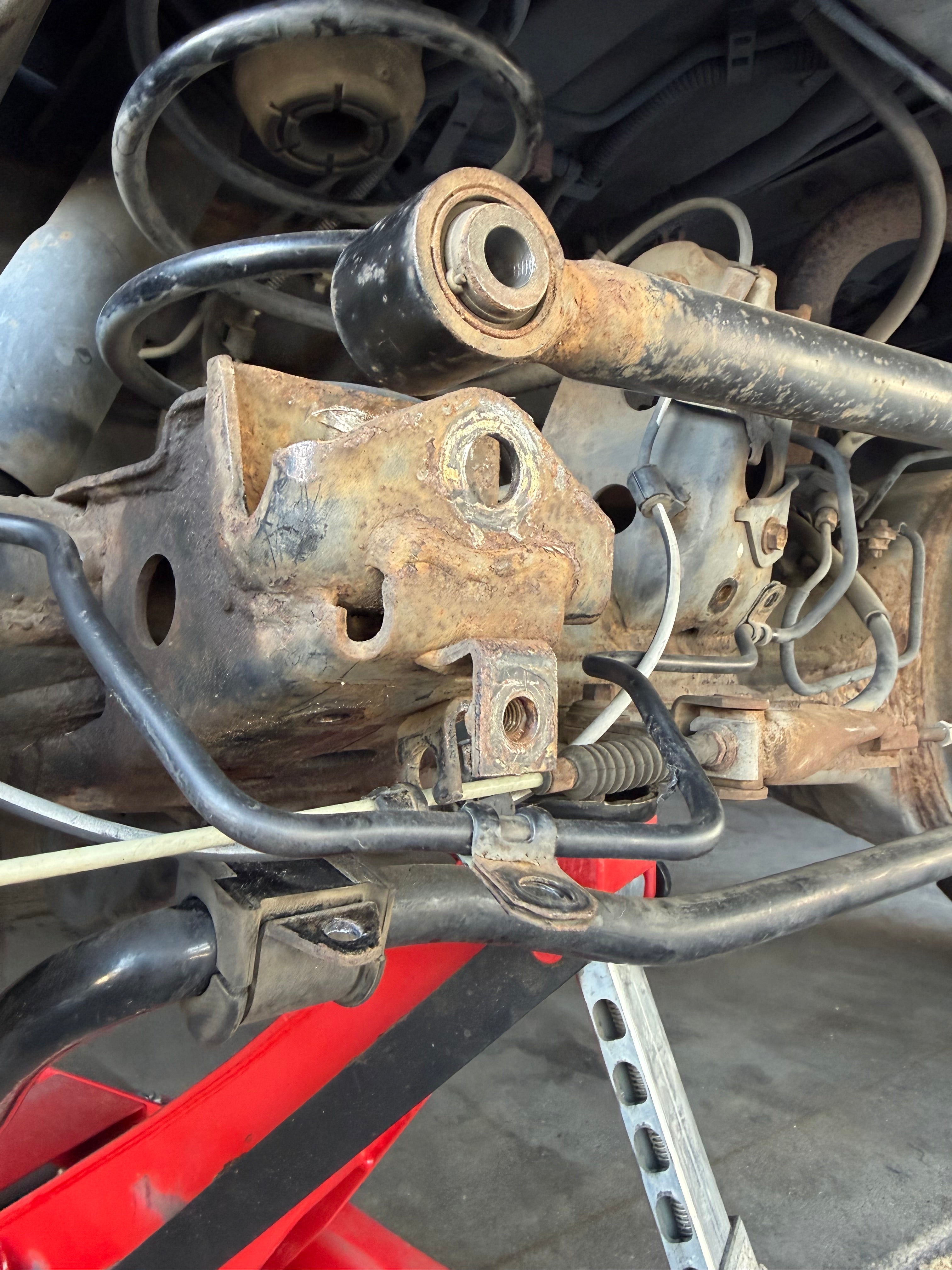

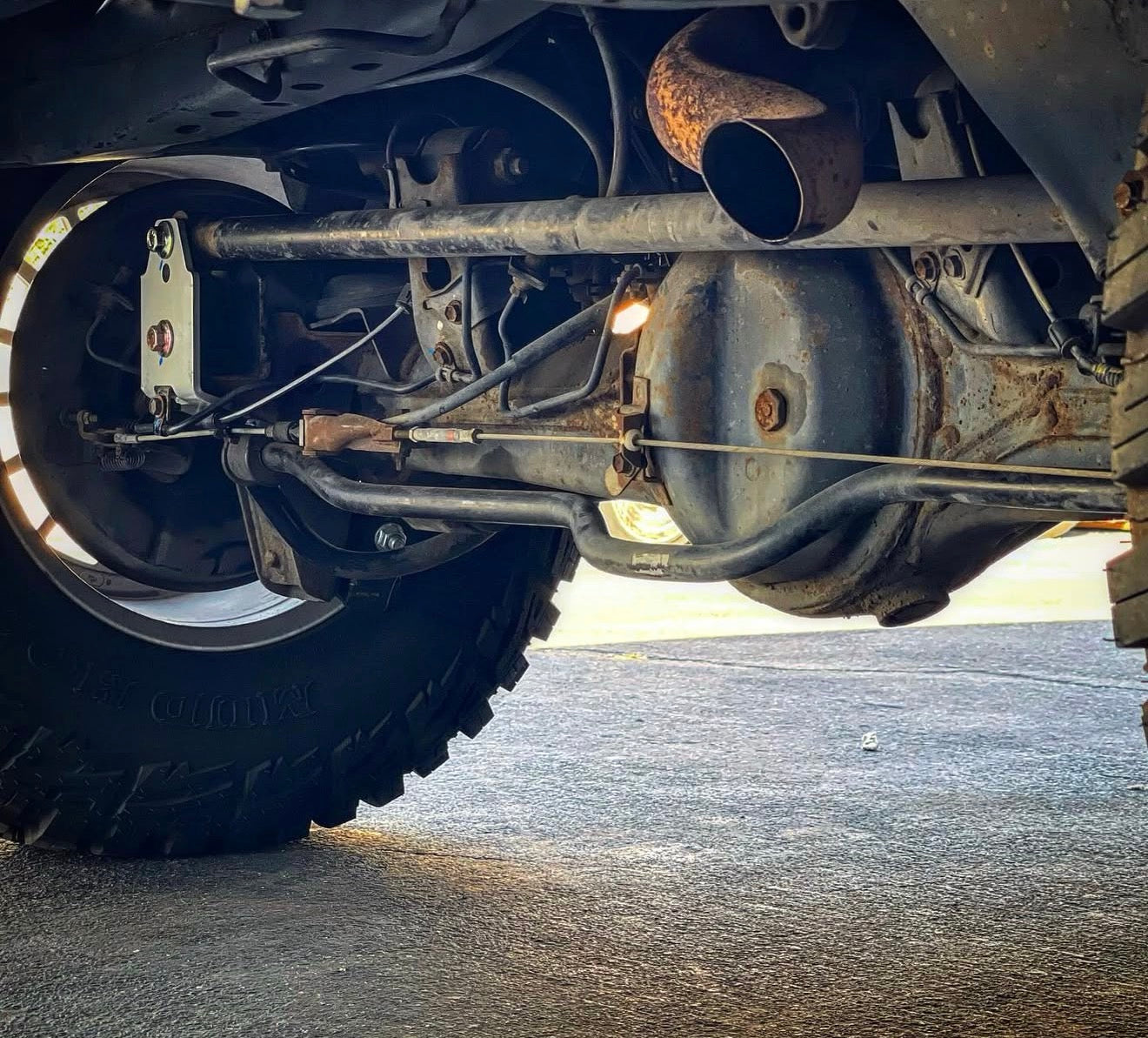

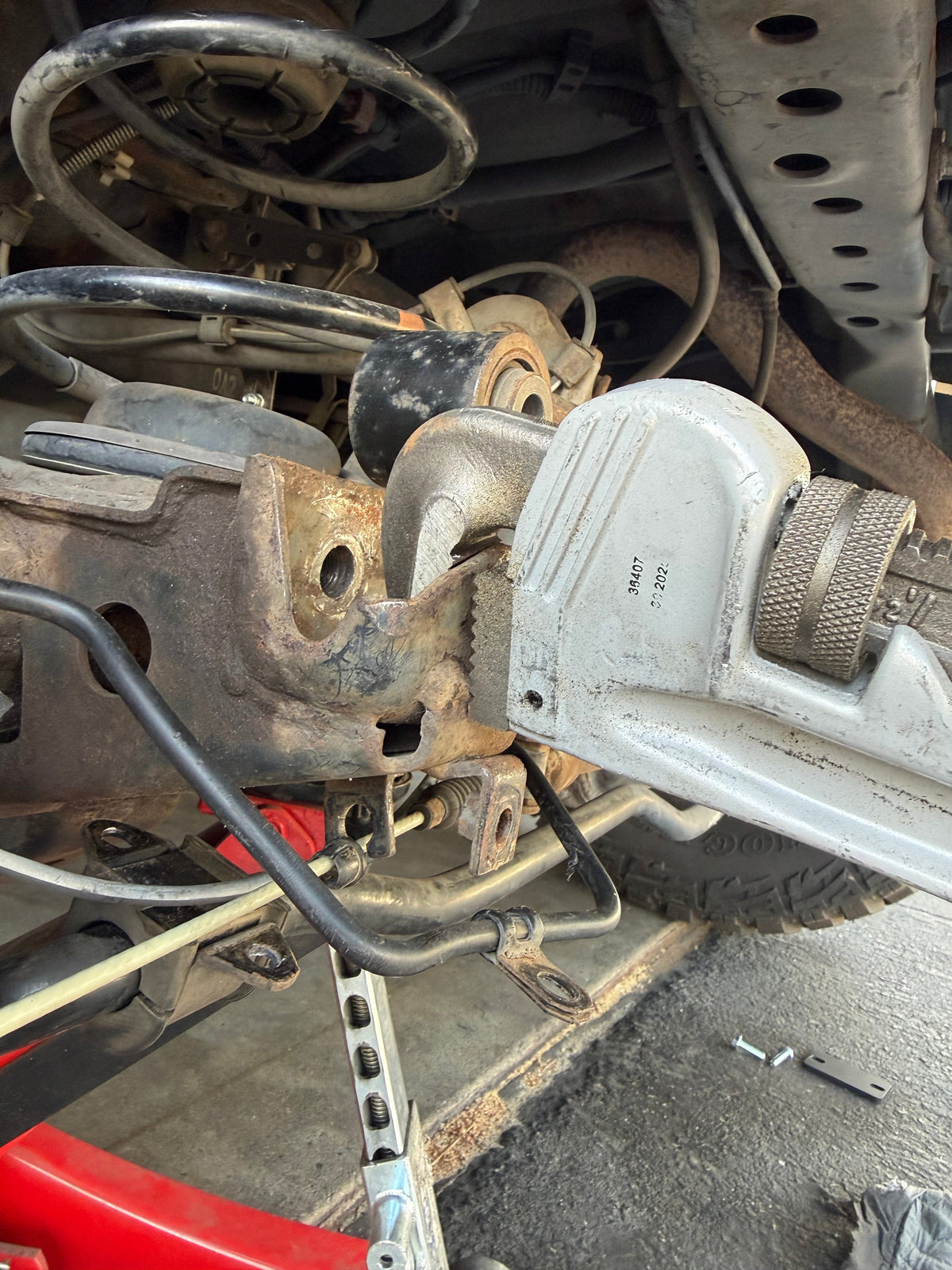

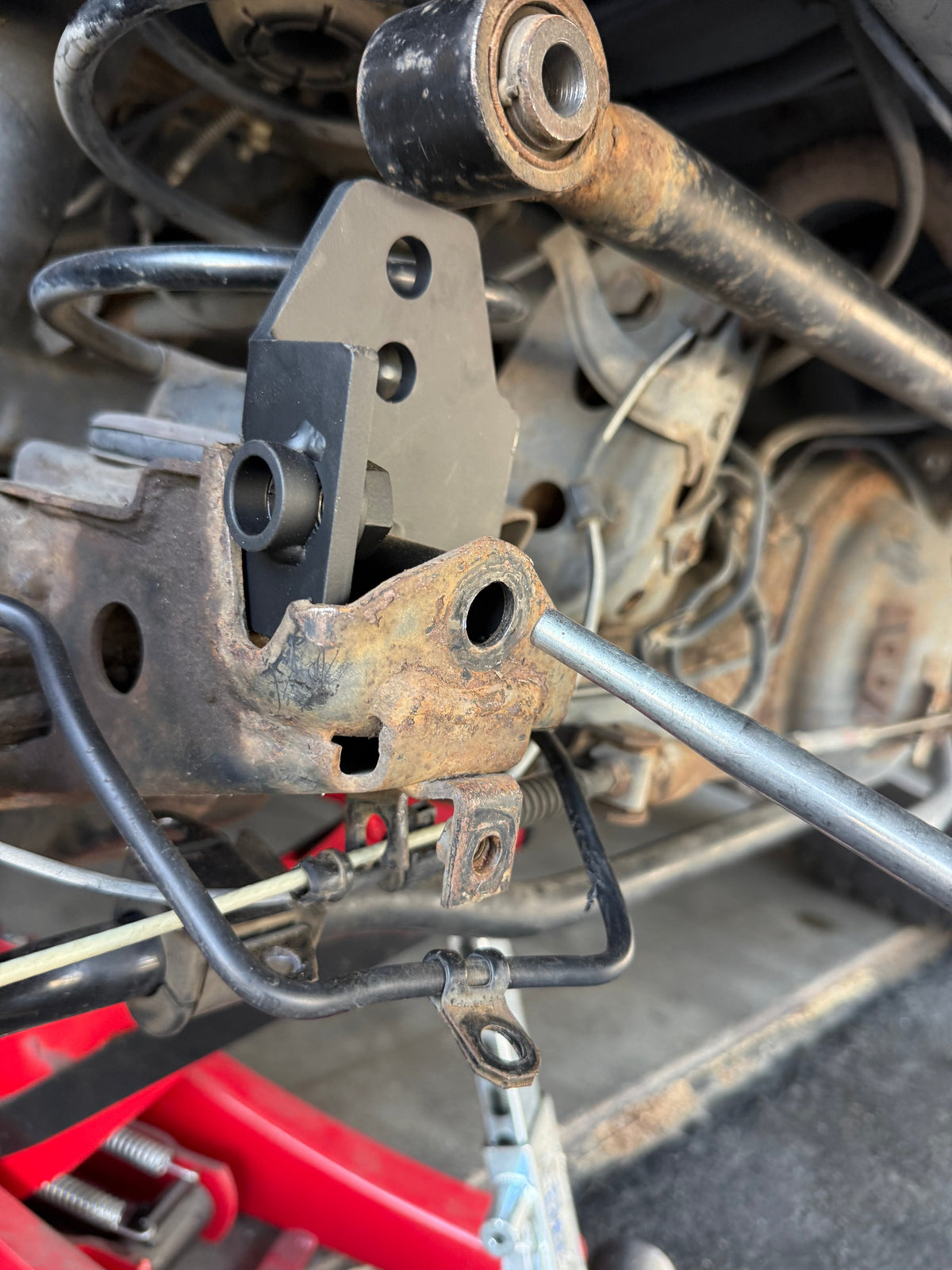

The B.O.T.C.K. (Bolt-On TrackBar Correction Kit) from Dr. KDSS is for lifted Toyota Land Cruiser 100 Series and Lexus LX 470 models whose track bar has gone steep. Once the body is raised, a steep bar makes the axle shift side to side through its travel instead of moving straight up and down, and the rear end feels vague. The kit raises the axle-side pivot so the bar sits closer to level, which restores predictable tracking on the road and the trail. It bolts on, with no welding.
Fitment
The vendor lists this kit for the Toyota Land Cruiser 100 Series and Lexus LX 470, and calls it a proven design. KDSS or non-KDSS does not matter; the kit works with both. Standard-height brackets can contact the frame at full suspension cycle, and a Shorty bracket is not offered for every model.

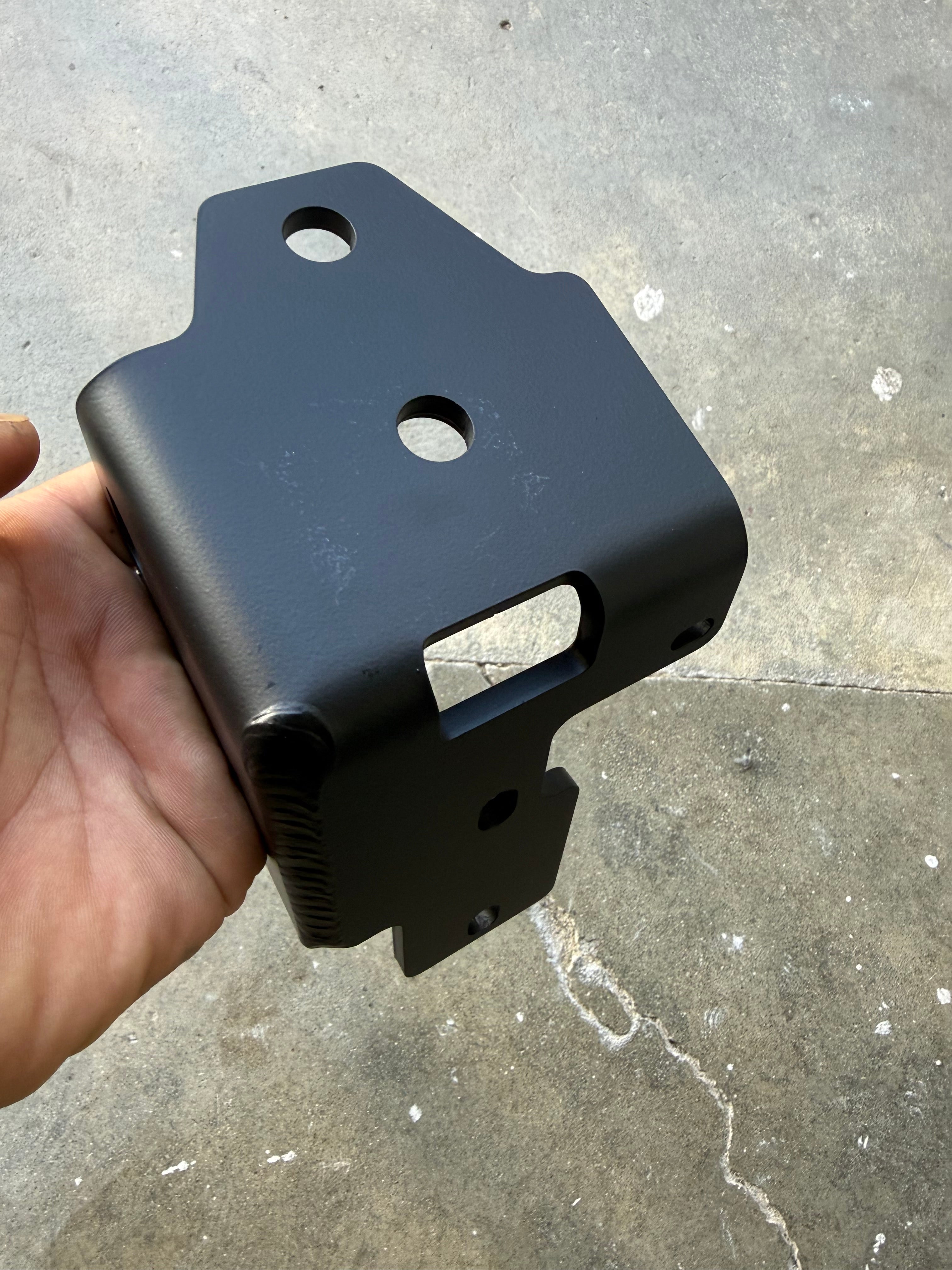

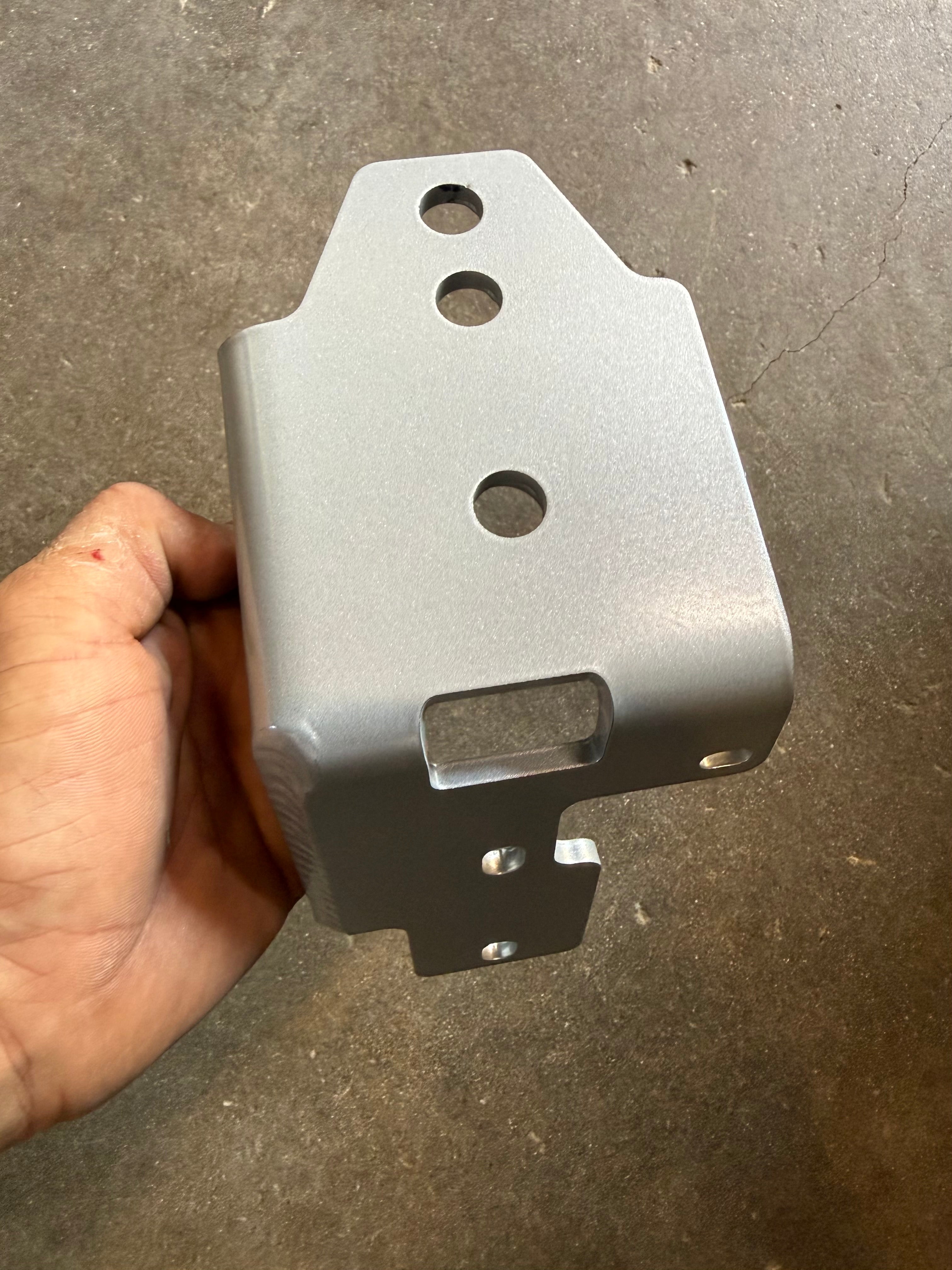

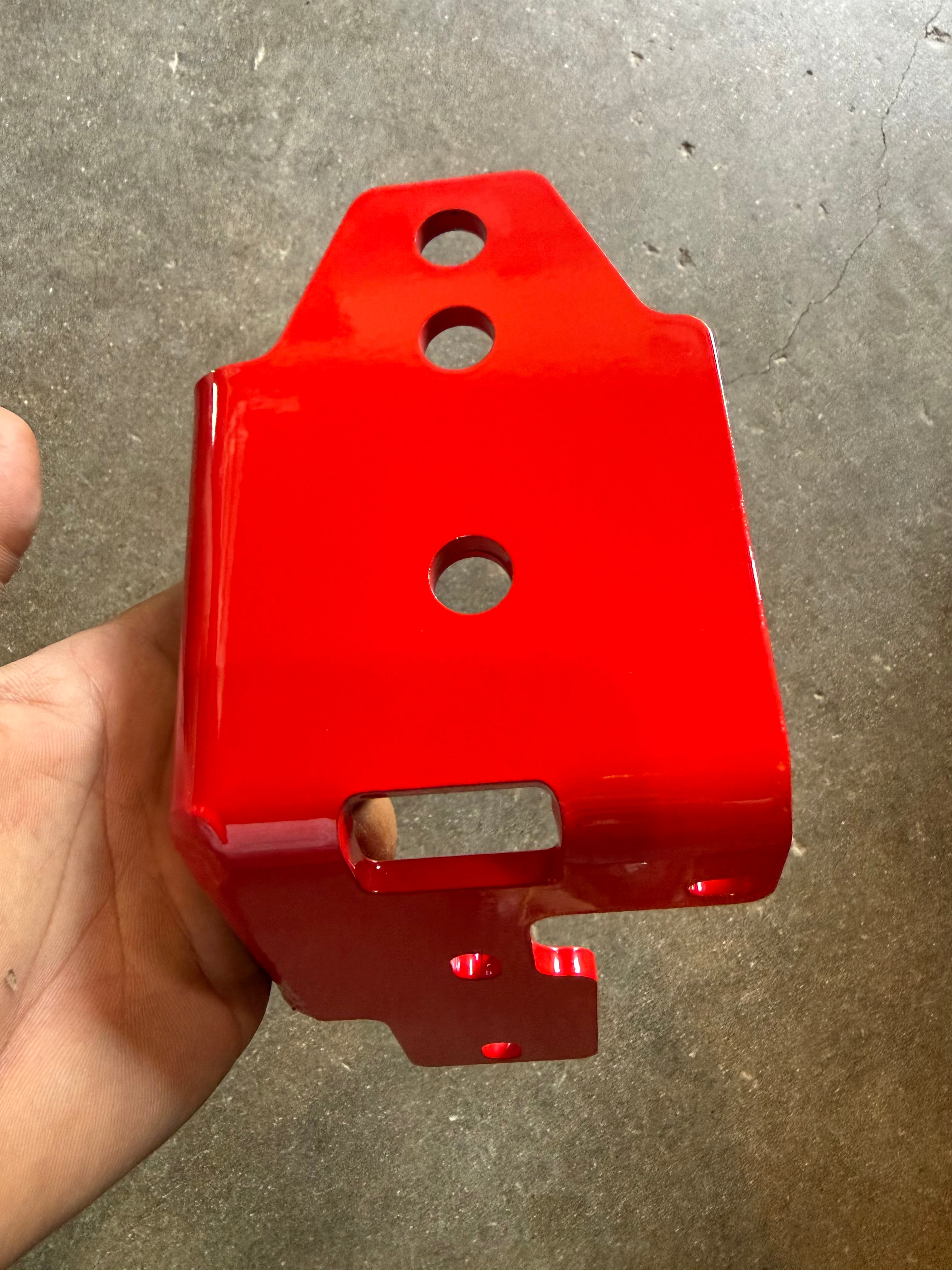

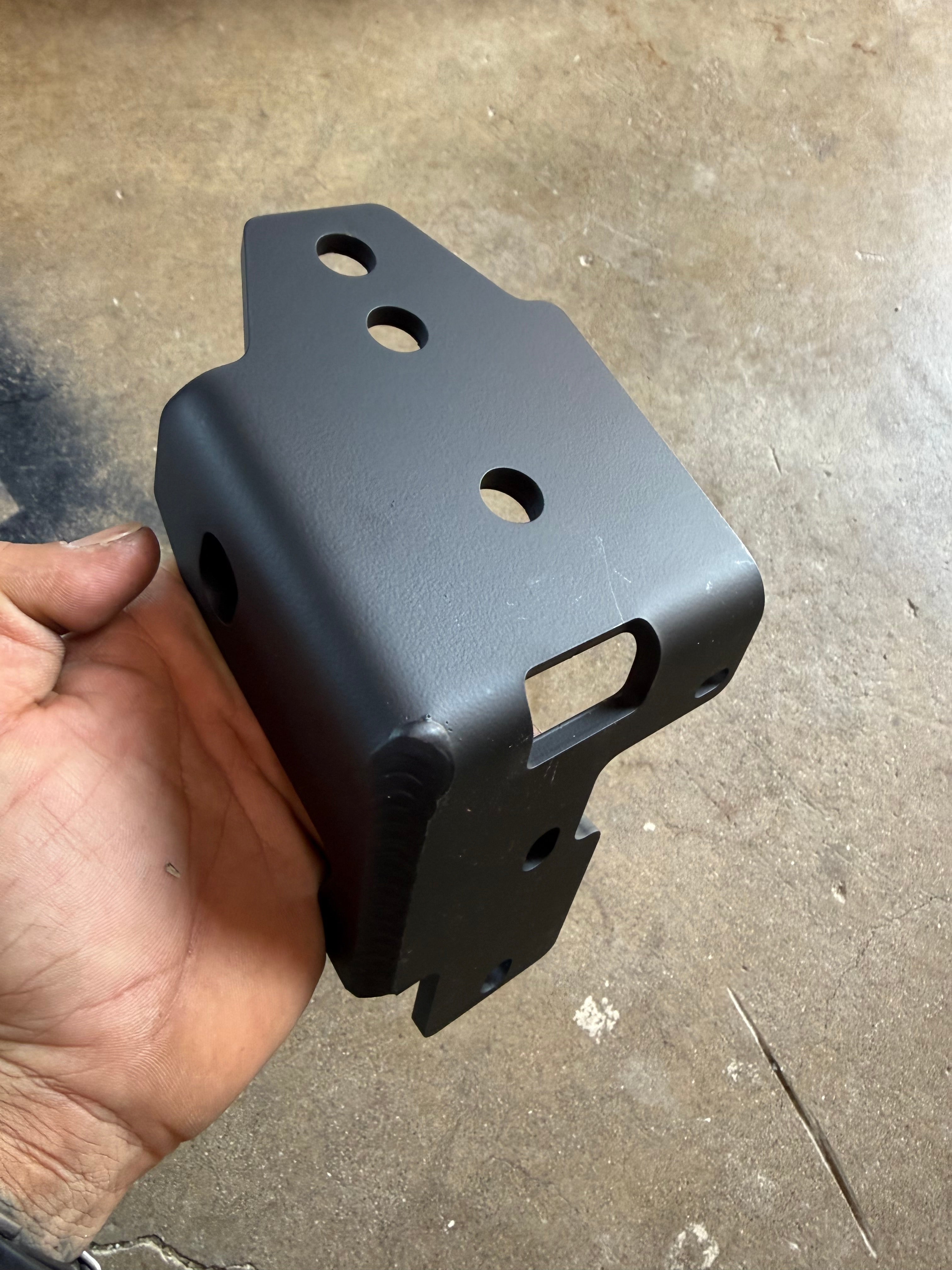

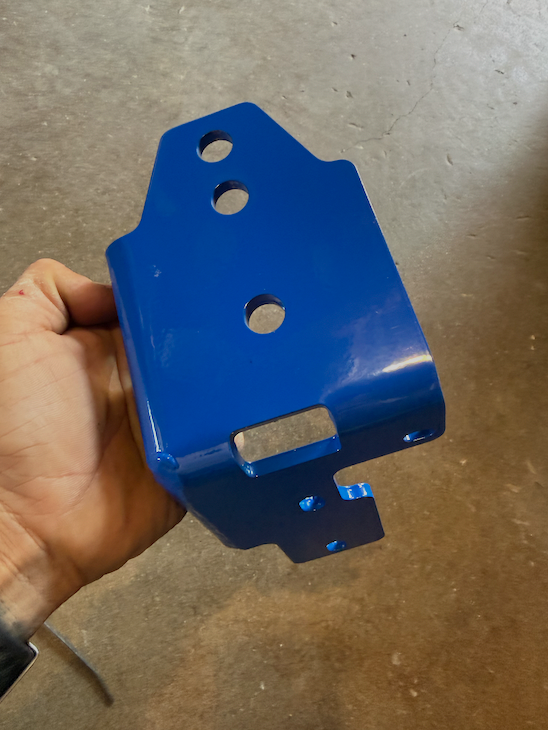

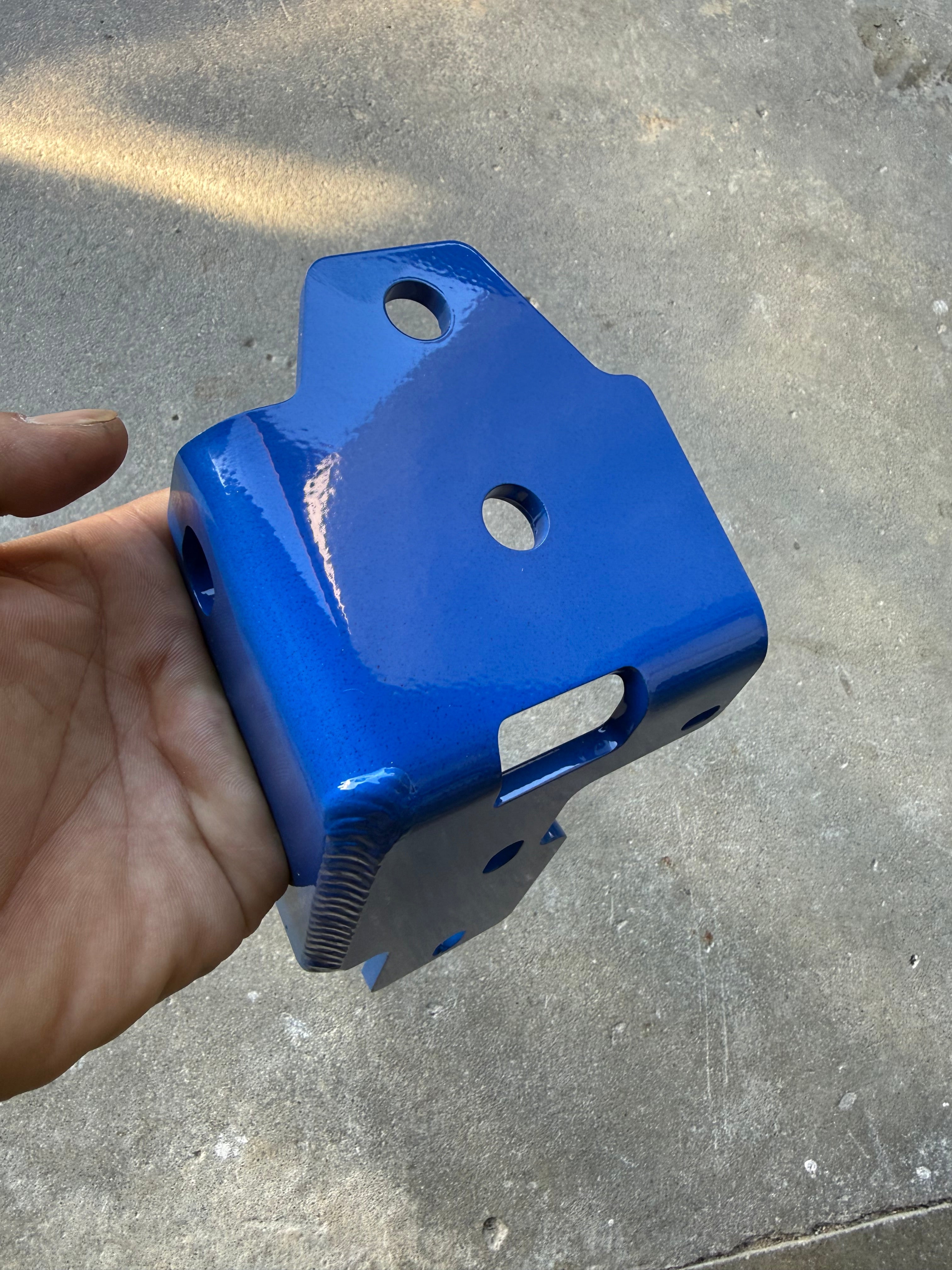

Picking standard or Shorty
Park on level ground and measure from the ground to the center of the frame-side track bar bolt, then to the center of the axle-side bolt. Subtract the two. A difference of 1.5 to 2.99 inches points to the Shorty version, or the bottom hole on the Standard bracket. A difference of 3 inches or more points to the Standard version and its top hole. If you may lift higher later, Standard leaves more mounting options.

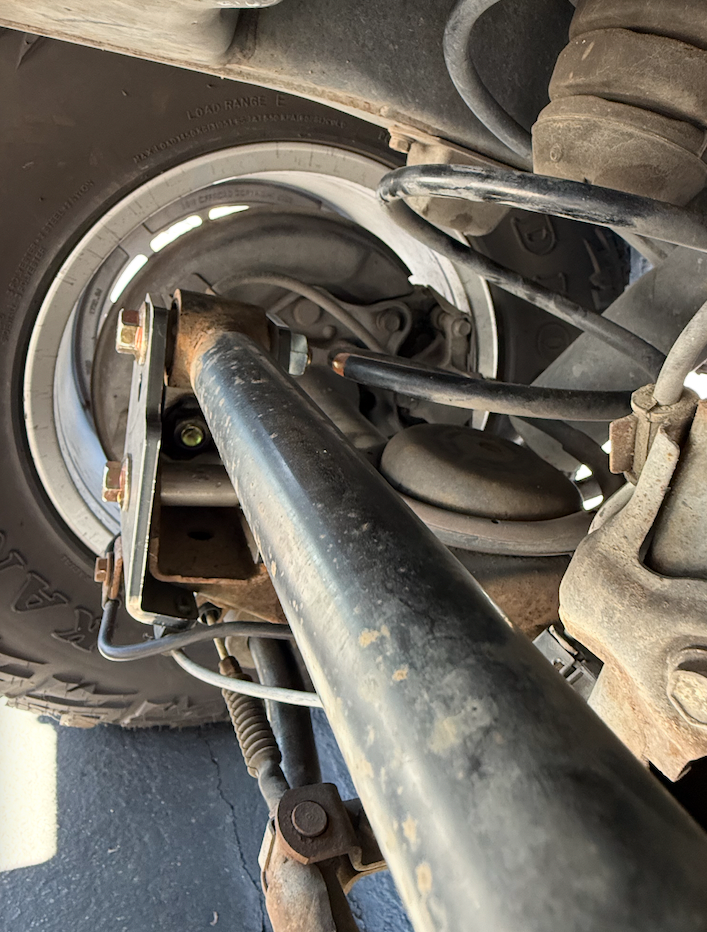

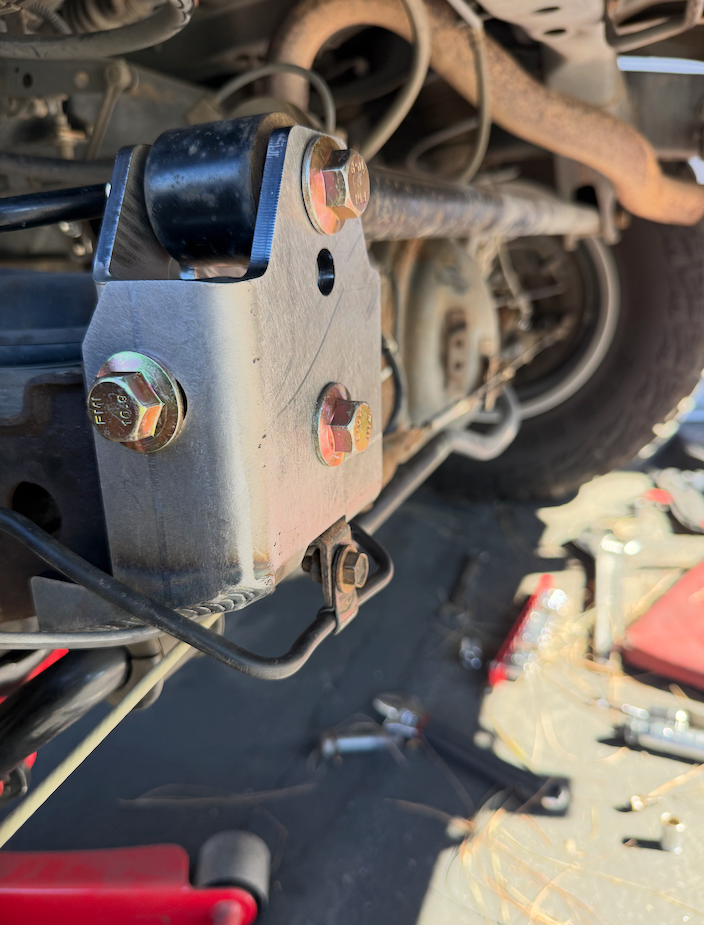

Install notes
Torque is 105 ft-lbs on the 80 mm bolt at the factory location, 125 ft-lbs on the other M14 bolts and 30 to 35 ft-lbs on the M8 bolts, with plenty of blue Loctite (or a little red). Hardware is now standard hex nuts, and the side bolt washer is no longer needed.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Specifications
Dr. KDSS B.O.T.C.K. Track Bar Correction Kit FAQs
Which vehicles does this kit fit?
Toyota Land Cruiser 100 Series (1998-2007) and Lexus LX 470 (1998-2007).
How do I pick Standard or Shorty?
Measure the ground-to-bolt-center height at the frame-side and axle-side track bar bolts, then subtract. 1.5 to 2.99 inches means Shorty (or the bottom hole on the Standard bracket); 3 inches or more means Standard using the top hole.
What torque values apply?
105 ft-lbs on the 80 mm bolt at the factory location, 125 ft-lbs on other M14 bolts and 30 to 35 ft-lbs on the M8 bolts, with blue Loctite (or a little red).
Does it work with KDSS and non-KDSS?
Yes. The vendor says it works with both.
