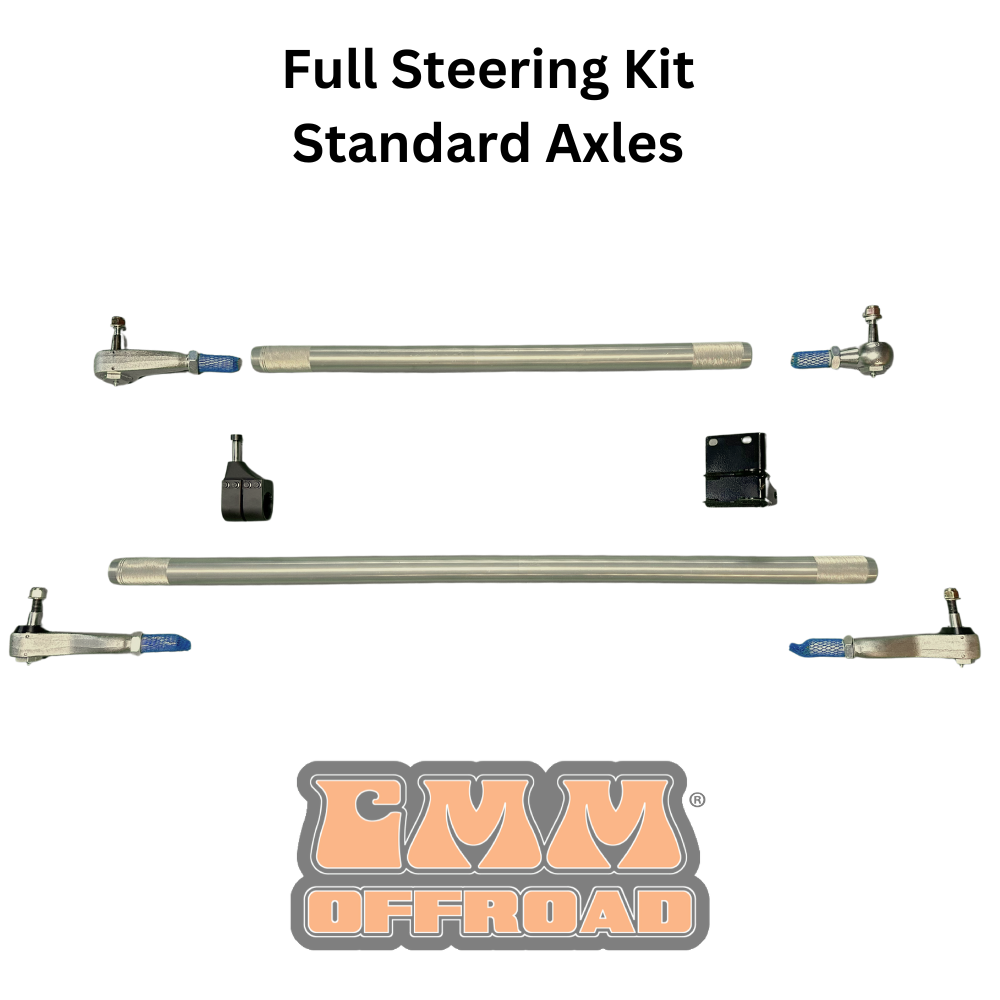

CMM Offroad JL / JLU Standard Full Steering Kit

$1,180.97


SKU: sku-44509134192855

Description

Direct replacement steering. No modification to factory components required.

Package Includes a Tie Rod, a  Drag-Link & a Steering Stabilizer Mounting Brackets. Product information -

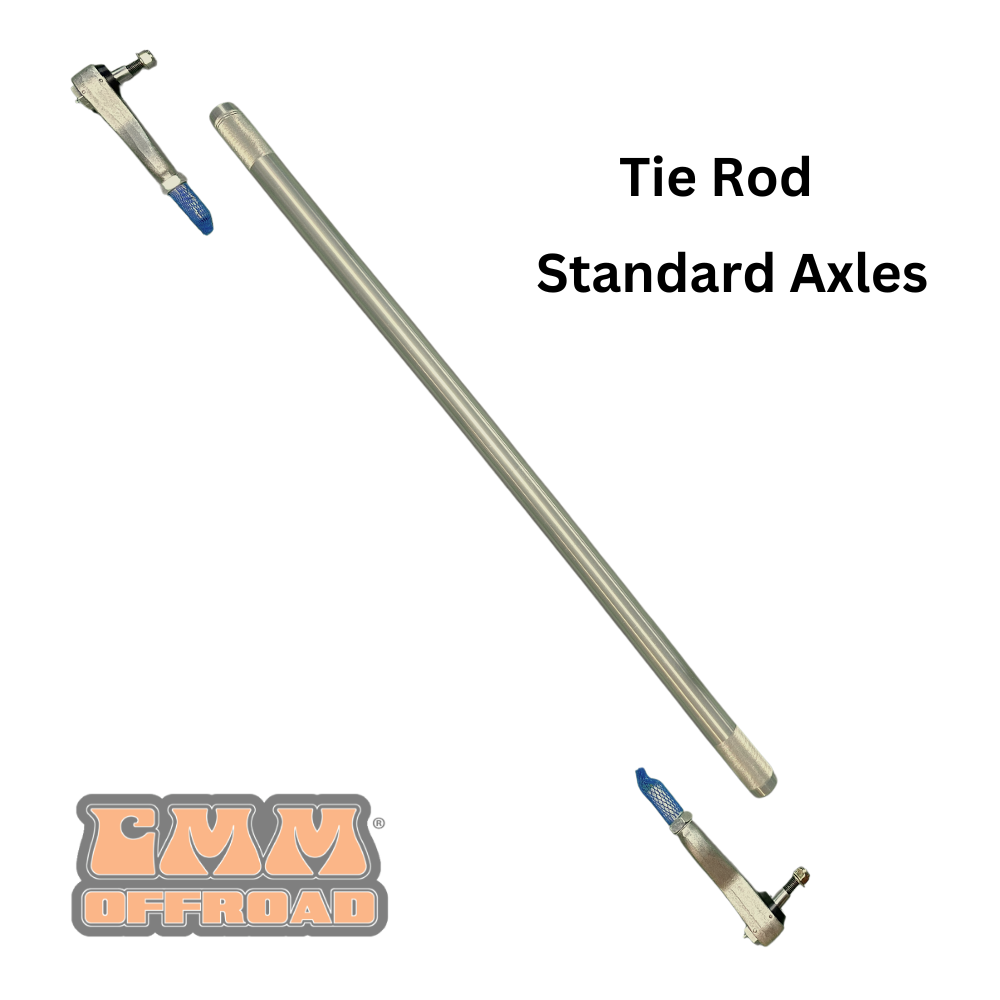

JL Tie-Rod:

  • Fits:
    • Wrangler JL/JLU
    • Years : 2018 - Current
    • Models : Sport, Sahara, Overland with Standard Width OEM Axles
  • Machined in house from solid 7075-T6511 aluminum with Left and Right hand 1"-14 thread
  • Designed to withstand deflection
  • Engineered to use our bracket while keeping the stabilizer in the factory location.
  • Forged Chromoly, Heat Treated Steel ends, completely greaseable and rebuildable



JL Drag-Link:

  • Fits:
    • Wrangler JL/JLU
    • Years : 2018 - Current
    • Models : Sport, Sahara, Overland with Standard Width OEM Axles
  • Machined in house from solid 7075-T6511 aluminum with Left and Right hand 1"-14 thread
  • Designed to withstand deflection
  • Mounts in standard lower position (Under Knuckle,Under Pitman Arm)
  • Forged Chromoly, Heat Treated Steel ends, completely greaseable and rebuildable

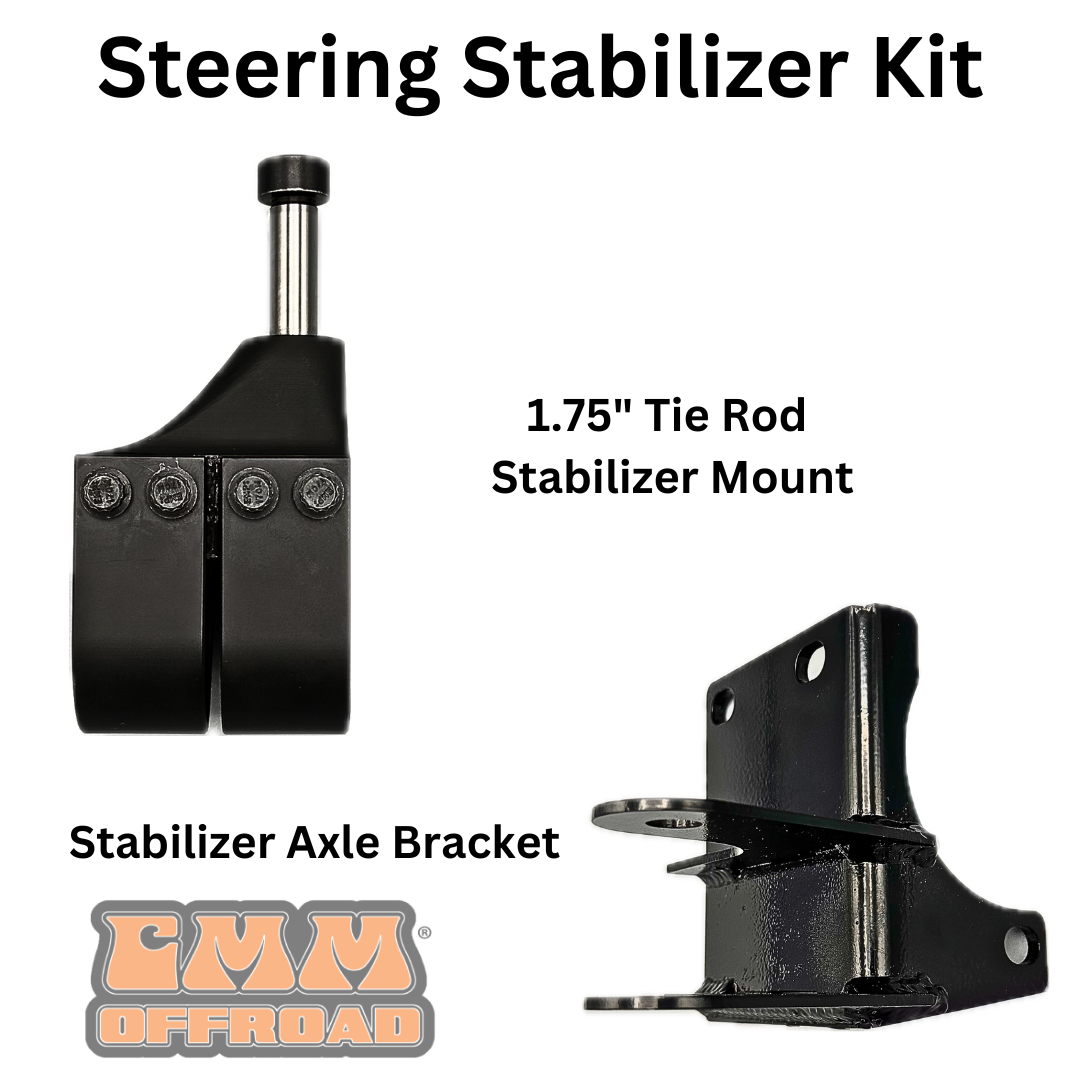

Steering Stabilizer Mounting Brackets:

  • Axle Side:
    • Welded steel construction, powedercoated
    • Bolts to axle with factory hardware
    • Includes stabilizer through bolt
  • Tie Rod Side:
    • Billet aluminum construction
    • All hardware included
    • Shouldered stabilizer through bolt for maximum strength



Includes:

JL Tie-Rod:

  • (2) - Forged Chromoly Heat Treated Steel Ends (Completely greaseable and rebuildable)
  • (1) - 1.75" Solid Aluminum Tie Rod



JL Drag-Link:

  • (2) - Forged Chromoly Heat Treated Steel Ends (Completely greaseable and rebuildable)
  • (1) - 1.75" Solid Aluminum Drag-Link



JL Steering Stabilizer Mounting Brackets:

  • (1) - Billet Aluminum Clamp
  • (1) - Steering Stabilizer Mount
  • (1) - Hardware Pack



Requirements In order to use this steering :

  • Steering Requires at minimum of 17" Diameter Wheels with Maximum 4.75" Backspace
  • 18" Diameter Wheels with Maximum 5.00" Backspace
