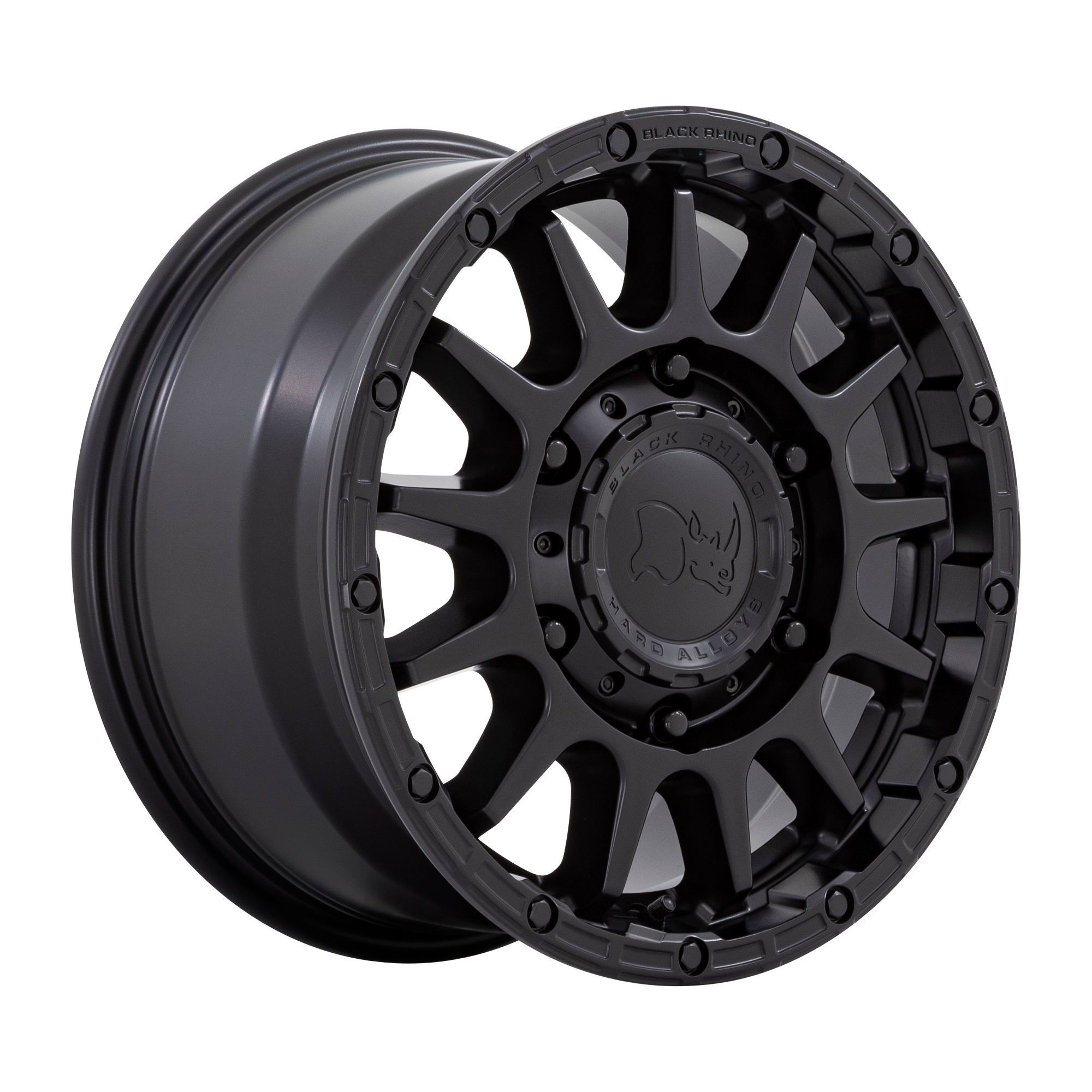

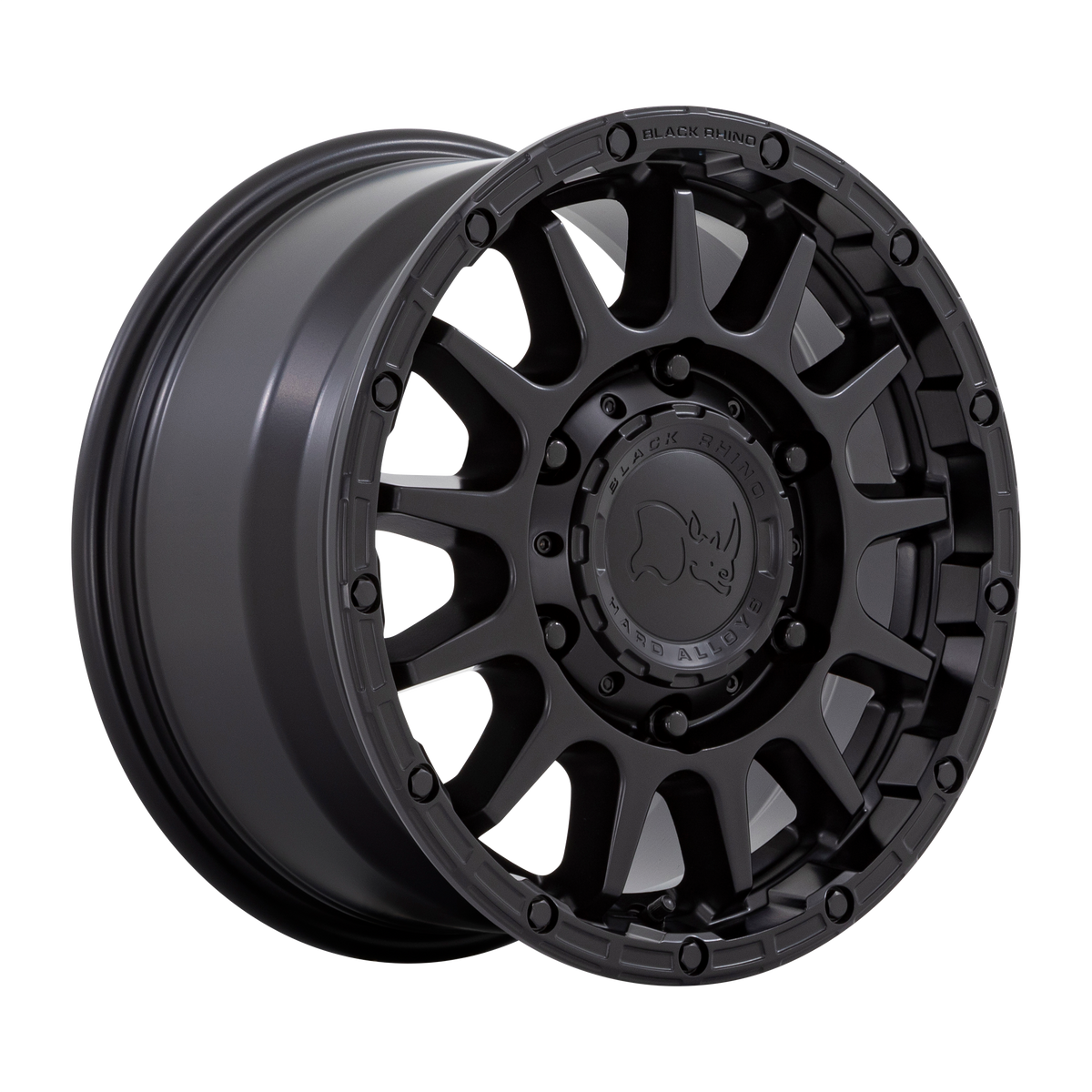

Black Rhino Sequoia Wheel
The Black Rhino Sequoia wheel is designed and engineered with off-road conversion camper vans in mind. The BR003 Sequoia features a clean multi-spoke design enclosed within a rugged simulated beadlock style construction. Sequoia wheels are manufactured in 16x8 with +38mm and +60mm wheel offsets catered towards specific van applications. As with all heavy-duty Black Rhino van wheels, the Sequoia is load rated to 3,300 lbs/wheel. In addition to our usual Mercedes-Sprinter van wheel fitment, Ford Transit wheels, and RAM ProMaster wheels, the Black Rhino Sequoia is also offered for lifted 2020+ AWD Ford Transit wheel fitment (6x180 wheels).
AWD Ford Transit Wheels: The Sequoia wheel is Black Rhino's first offering for the 2020+ AWD Transit and is intended to be an aggressive 16x8 +60 fitment. Black Rhino Sequoia for Ford Transit AWD requires a 2” lift, minor trimming, and a 245/75R16 tire is recommended. For a direct bolt-on wheel that does not require suspension or fender modifications, check out the Black Rhino Arsenal AT.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR003MX16803838 | Matte Black | 16x8 38mm | 6x130 | 6.00" | 84.10mm | 3300 lbs | 28.40 lbs |
| BR003MX16803638 | Matte Black | 16x8 38mm | 5x130 | 6.00" | 84.10mm | 3300 lbs | 28.40 lbs |
| BR003MX16801638 | Matte Black | 16x8 38mm | 5x160 | 6.00" | 65.07mm | 3300 lbs | 30.10 lbs |
| BR003MX16806C60 | Matte Black | 16x8 60mm | 6x180 | 6.86" | 138.80mm | 3300 lbs | 26.80 lbs |
