AEV 2.5" XT DualSport Suspension for JK Wrangler
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
AEV (American Expedition Vehicles) Warranty
At a glance: Limited lifetime parts warranty for the original purchaser against material and manufacturing defects; finish defects get one year
This is AEV's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 27, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| AEV accessories: bumpers, tire carriers, DualSport suspension, wheels, skid plates, snorkels, flares, lighting mounts and recovery gear | Limited lifetime |
| Original AEV paint, powder coat or dip finishes | 1 year |
| Wear items: bushings, bump stops, heim joints, beadlock rings | Not covered |
What's covered
- Material and manufacturing defects in AEV accessories
- Original purchaser only, with proof of purchase
- AEV may repair the part, replace it, or reimburse the purchase price, at its discretion
What's not covered
- Second owners
- Labor to diagnose, remove or install parts
- Abuse, misuse, modification, improper installation or poor maintenance
- Vehicles used in racing, competition or commercial activity
- Trail and weather finish damage such as rock chips, scratches, sap, salt and sun
- Incidental costs, damage to non-AEV parts, counterfeit parts, and shipping back to AEV
How to make an AEV warranty claim
- Gather your proof of purchase and photos of the defect
- Contact AEV's warranty department to get a return merchandise authorization (RMA)
- AEV usually asks for the part back for inspection; if a replacement ships first, AEV may charge for it and refund once the defect is confirmed
AEV warranty contact: Email warranty@aev-conversions.com · Phone 248-926-0256
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to AEV, and help it along either way.
See all AEV products at NVMOS →
Disclaimer: The information on this page describes AEV's (American Expedition Vehicles) own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: AEV official parts warranty. Last updated on nvmos.com: October 27, 2026. See our return policy for NVMOS's own terms.
About the brand
AEV (American Expedition Vehicles)
AEV (American Expedition Vehicles) builds OE-quality bumpers, suspension, wheels and armor for Jeep Wrangler and Gladiator, Ram HD, Ford Super Duty, Chevy and GMC trucks. NVMOS carries AEV's EX and RX bumpers, DualSport RT, XP and SC suspension systems, Borah, Katmai and Crestone DualSport wheels, skid plates, snorkels, HighMark flares and the AEV recovery gear line.
Based in: Wixom, Michigan (founded in Missoula, Montana in 1997) · Made in: USA, most parts within 200 miles of Detroit · Lead time: Ships from AEV; bumpers and suspension systems ship freight or oversize
Shop all 272 AEV (American Expedition Vehicles)WarrantyAll brands
Warranty terms are set by AEV (American Expedition Vehicles), not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.
AEV 2.5" XT DualSport Suspension for JK Wrangler
AEV's JK 2.5-Inch DualSport XT Suspension System was designed to appeal to Jeep JK Wrangler owners who want the added highway and trail performance of AEV's taller 3.5 and 4.5-inch DualSport Systems, but with a reduced lift height.
As with AEV's 3.5 and 4.5-inch systems, painstaking attention was paid to tuning and geometry in the new system. Not content to simply borrow the same spring rates and shock valving of the taller systems, AEV set out to specially tune coils and shocks that are unique to the needs of the new, lower system. The result is new frequency-tuned, triple-rate coils at all four corners and custom-tuned Bilstein shocks matched to the coils. Additionally, AEV evaluated the new system for cornering and braking and determined that a new, geometry-corrected rear Track-Arm Tower would be needed to help create the kind of handling AEV suspension systems are expected to have.
As with all of AEV's expedition-ready suspension systems, the DualSport Suspension for the Jeep Wrangler JK is FMVSS No. 126 Compliant. FMVSS No. 126 is a rigorous standard set by the National Highway Traffic Safety Administration (NHTSA) that tests new electronic stability control (ESC) systems by subjecting it to various maneuvers designed to evaluate its effectiveness in preventing loss of control and skidding, including evasive lane-changing maneuvers at highways speeds.

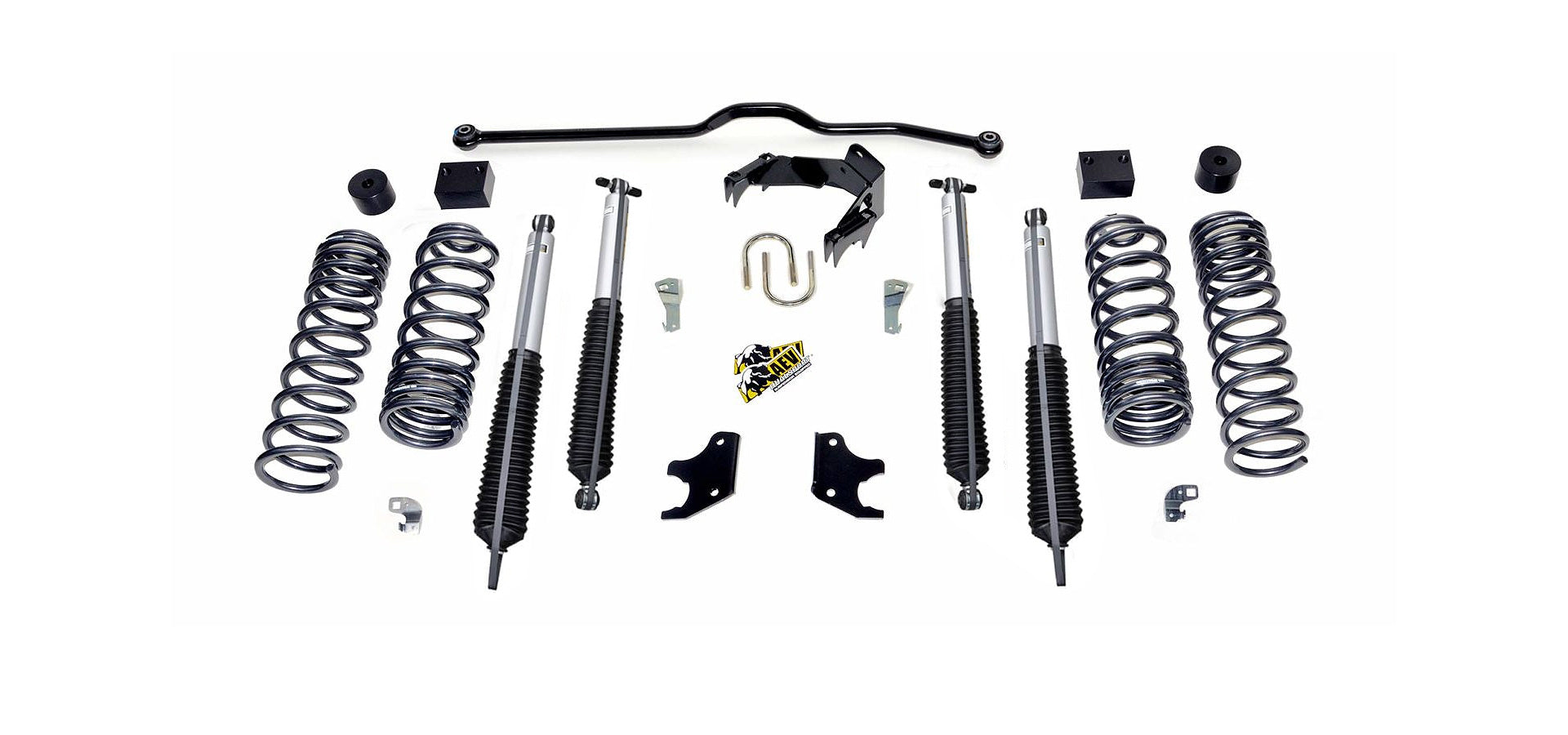

The new system is rounded out with everything else needed to complete the package. This includes a custom rear track-arm, front stabilizer end link relocation brackets, bump-stop extensions and brake line relocation brackets. Combined with the springs and shocks, these components allow AEV's JK 2.5-Inch DualSport XT Suspension System to deliver classic AEV on and off-highway performance, exceptional reliability and a lower, more user-friendly lift height.
Key Features
- Same ride quality as 3.5″ and 4.5″ lifts with reduced height
- Coils and shocks tuned to the needs of the lower lift height
- Reliability and durability you expect from AEV DualSport Systems
- No exhaust modifications required
- Accommodates 33″ and 35″ tires
- 2007-2018 Jeep Wrangler JK
Fitment is per AEV. Confirm your model year, trim and options before ordering.
| Spec | Detail |
|---|---|
| Brand | AEV (American Expedition Vehicles) |
| Part numbers | N0222000AA, N0224000AA |
| Warranty | AEV limited lifetime parts warranty |
Not sure which version fits your build? Call or text us at (920) 249-7744.
