AEV Flat Tow Recovery Points for EX/RX Front Bumper

AEV Flat Tow Recovery Points for EX/RX Front Bumper - image 2

AEV Flat Tow Recovery Points for EX/RX Front Bumper - image 3

SKU: 12060004AA

AEV Flat Tow Recovery Points for EX/RX Front Bumper

Name: AEV Flat Tow Recovery Points for EX/RX Front Bumper
Brand: AEV (American Expedition Vehicles)
SKU: 12060004AA
Price: 249.00 USD
Availability: InStock

By AEV (American Expedition Vehicles)

$249.00

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Confirmed fit: Jeep Gladiator

Verified to fit the Jeep Gladiator.

Warranty Information

Vendor warranty summary

AEV (American Expedition Vehicles) Warranty

At a glance: Limited lifetime parts warranty for the original purchaser against material and manufacturing defects; finish defects get one year

Shop AEV Official AEV policy All warranty policies

This is AEV's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 27, 2026.

Coverage by product

Product or component	Coverage
AEV accessories: bumpers, tire carriers, DualSport suspension, wheels, skid plates, snorkels, flares, lighting mounts and recovery gear	Limited lifetime
Original AEV paint, powder coat or dip finishes	1 year
Wear items: bushings, bump stops, heim joints, beadlock rings	Not covered

What's covered

Material and manufacturing defects in AEV accessories
Original purchaser only, with proof of purchase
AEV may repair the part, replace it, or reimburse the purchase price, at its discretion

What's not covered

Second owners
Labor to diagnose, remove or install parts
Abuse, misuse, modification, improper installation or poor maintenance
Vehicles used in racing, competition or commercial activity
Trail and weather finish damage such as rock chips, scratches, sap, salt and sun
Incidental costs, damage to non-AEV parts, counterfeit parts, and shipping back to AEV

How to make an AEV warranty claim

Gather your proof of purchase and photos of the defect
Contact AEV's warranty department to get a return merchandise authorization (RMA)
AEV usually asks for the part back for inspection; if a replacement ships first, AEV may charge for it and refund once the defect is confirmed

AEV warranty contact: Email warranty@aev-conversions.com · Phone 248-926-0256

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to AEV, and help it along either way.

See all AEV products at NVMOS →

Disclaimer: The information on this page describes AEV's (American Expedition Vehicles) own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: AEV official parts warranty. Last updated on nvmos.com: October 27, 2026. See our return policy for NVMOS's own terms.

About the brand

AEV (American Expedition Vehicles)

AEV (American Expedition Vehicles) builds OE-quality bumpers, suspension, wheels and armor for Jeep Wrangler and Gladiator, Ram HD, Ford Super Duty, Chevy and GMC trucks. NVMOS carries AEV's EX and RX bumpers, DualSport RT, XP and SC suspension systems, Borah, Katmai and Crestone DualSport wheels, skid plates, snorkels, HighMark flares and the AEV recovery gear line.

Based in: Wixom, Michigan (founded in Missoula, Montana in 1997) · Made in: USA, most parts within 200 miles of Detroit · Lead time: Ships from AEV; bumpers and suspension systems ship freight or oversize

AEV (American Expedition Vehicles) warranty: Limited lifetime parts warranty for the original purchaser; 1 year on finish; wear items excluded. Read the full summary

Shop all 272 AEV (American Expedition Vehicles)Warranty All brands

Warranty terms are set by AEV (American Expedition Vehicles), not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

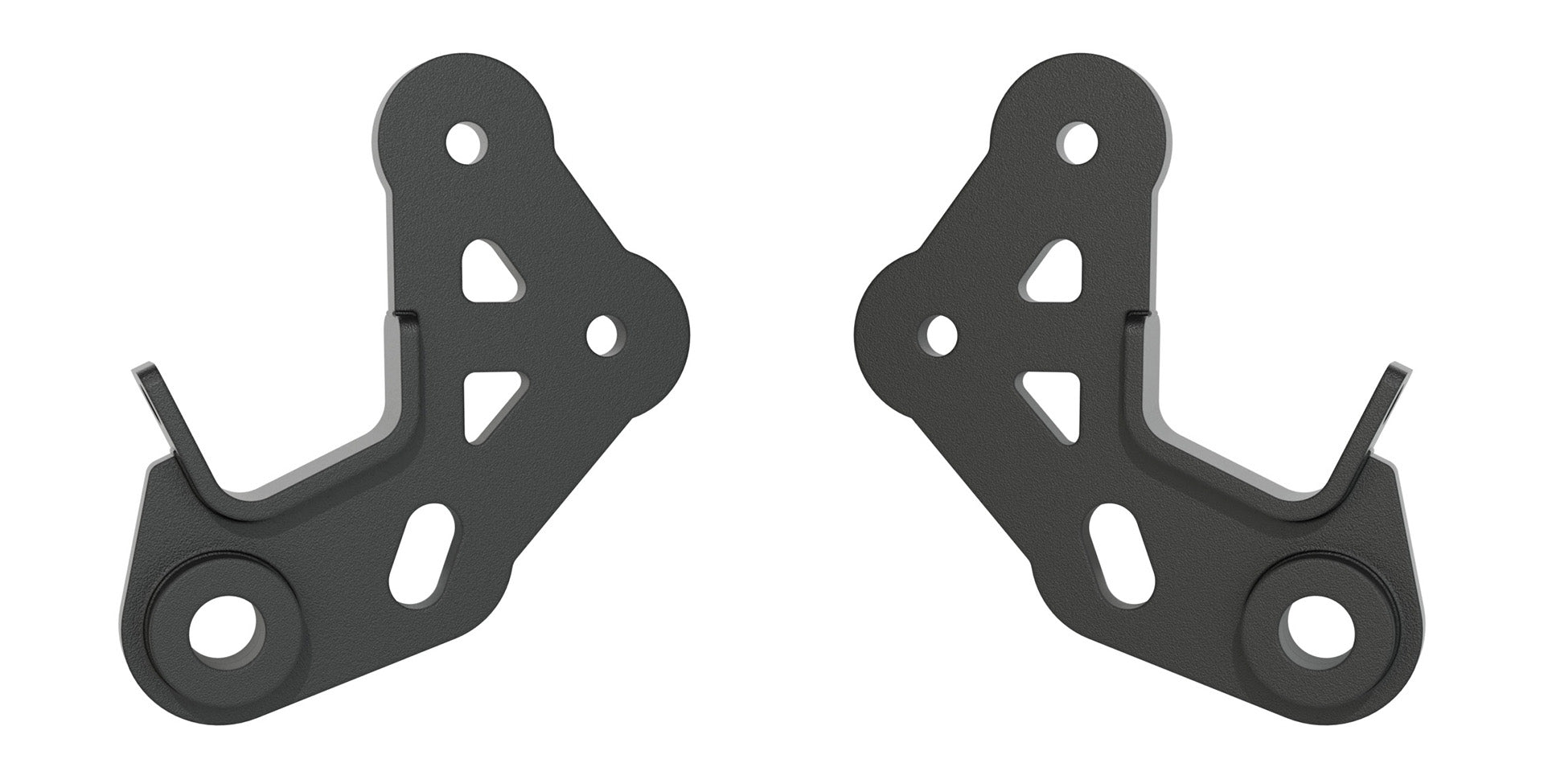

AEV Flat Tow Recovery Points for EX/RX Front Bumper

Flat tow your Jeep without giving up a true recovery point.

For JL Wrangler and Gladiator owners running an AEV EX or RX Front Bumper, the AEV Flat Tow Recovery Points provide an engineered way to connect a compatible tow bar directly to the bumper—without custom fabrication, drilling, or sacrificing off-road recovery capability.

Designed as a direct replacement for the standard EX/RX recovery points, these components reposition the attachment interface farther outward to provide the clearance and articulation required for flat towing behind an RV or motorhome. Once you arrive, disconnect the tow bar and hit the trail with fully functional recovery points still in place.

One Attachment Point. Two Jobs.

The AEV Flat Tow Recovery Points combine tow-bar attachment and off-road recovery functionality in a single, application-specific component. Integrated safety-chain attachment points further simplify the setup, creating a clean, purpose-built system without adding brackets below the bumper or compromising ground clearance.

Rather than adapting a universal solution to an AEV bumper, these recovery points were engineered specifically around the EX/RX Front Bumper and the requirements of JL Wrangler and JT Gladiator applications.

Retrofit Your Existing AEV Bumper

Already have an EX or RX Front Bumper? You do not need to replace it.

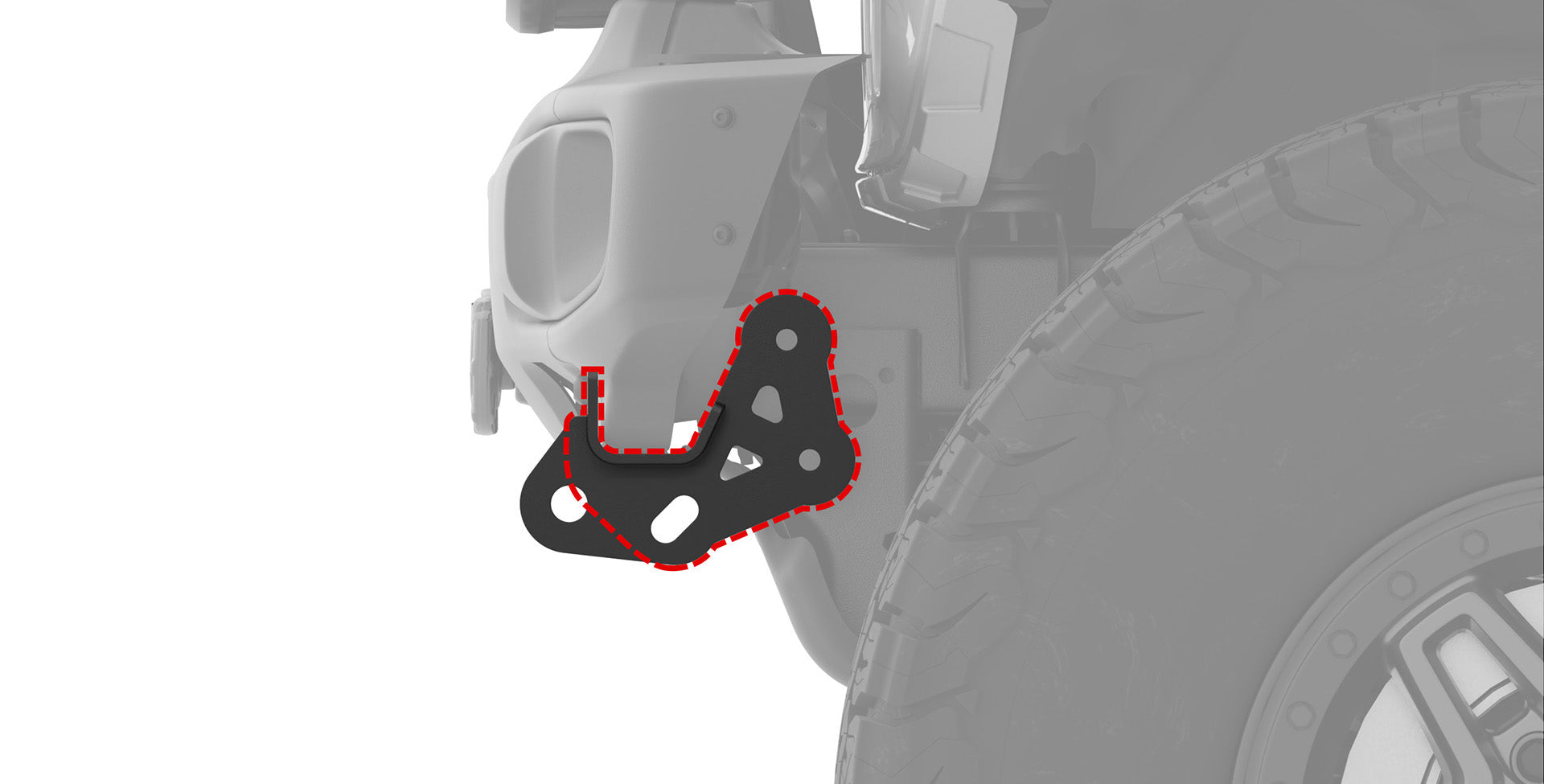

The Flat Tow Recovery Points bolt into the location of the original recovery points using the existing mounting arrangement. No cutting. No drilling. No custom fabrication. No additional mounting hardware.

It is a straightforward way to add flat-tow capability to an existing AEV-equipped Jeep while preserving the integrated design and recovery functionality of the bumper system.

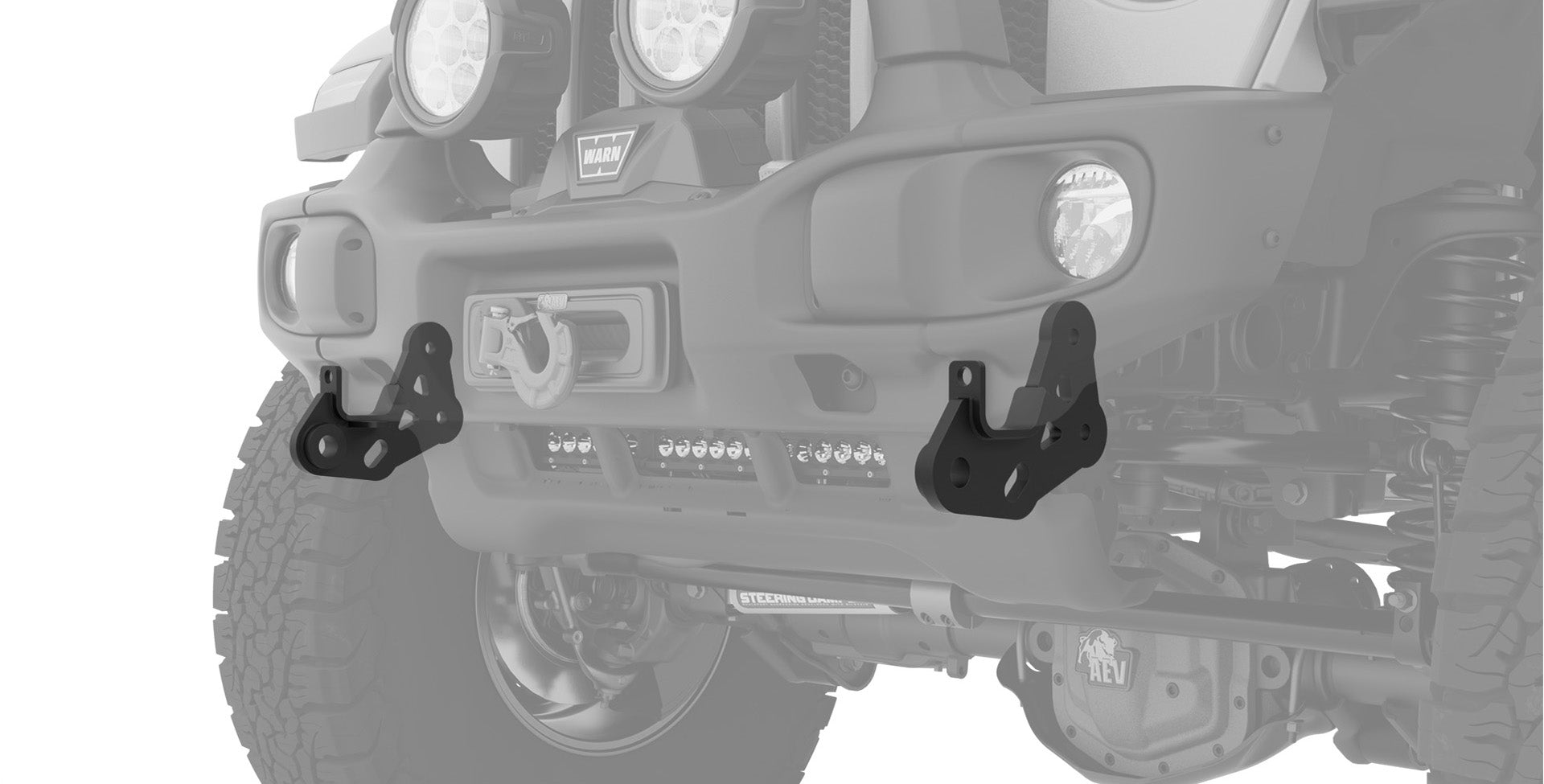

Engineered for Tow-Bar Clearance

The standard EX/RX recovery points are positioned to maximize off-road clearance and approach angle. That location, however, limits the upward articulation required by a flat-tow system.

AEV’s Flat Tow Recovery Points move the attachment location outward just enough to provide the necessary tow-bar movement while retaining excellent front-end clearance. Approach angle changes from approximately 58.7° with the standard recovery points to 54.13° with the Flat Tow Recovery Points, while ground clearance remains uncompromised.

Compatible by Design

The recovery points are designed for tow-bar adapters with a:

1-inch inner width
7/8-inch attachment pin

Compatible adapter options include:

Blue Ox Off Road Bumper Adapter Kit — Part #BX88357
Roadmaster Off Road Bumper Kit — Item #035-1 (1-inch-thick “D” tab)

These adapter options allow the recovery points to interface with compatible Blue Ox and Roadmaster flat-tow systems. Always confirm the dimensions and compatibility of the specific towing equipment before use and follow the tow-bar manufacturer’s installation and operating instructions.

Built for the Highway—and What Comes After It

Flat towing is only part of the trip. AEV designed these recovery points for the vehicle you intend to drive once you get there.

Each recovery point retains full off-road recovery functionality and features a durable corrosion-resistant finish system consisting of zinc coating, E-coat, and textured black powder coat for long-term protection in demanding environments.

Key Features

Flat-tow attachment and off-road recovery functionality in one component
Direct replacement for standard AEV EX/RX Front Bumper recovery points
No drilling, cutting, fabrication, or bumper modification required
Integrated safety-chain attachment points
Retains full recovery-point functionality
Maintains ground clearance with only a modest change in approach angle
Designed for adapters using a 1-inch inner width and 7/8-inch pin
Application-specific geometry for JL Wrangler and JT Gladiator
Zinc-coated, E-coated, and textured black powder-coated for corrosion resistance

Make Your AEV-Equipped Jeep Flat-Tow Ready

Upgrade the recovery points you already have with a solution engineered for the way you travel—from the miles behind the motorhome to the trail waiting at the destination.

Fitment
