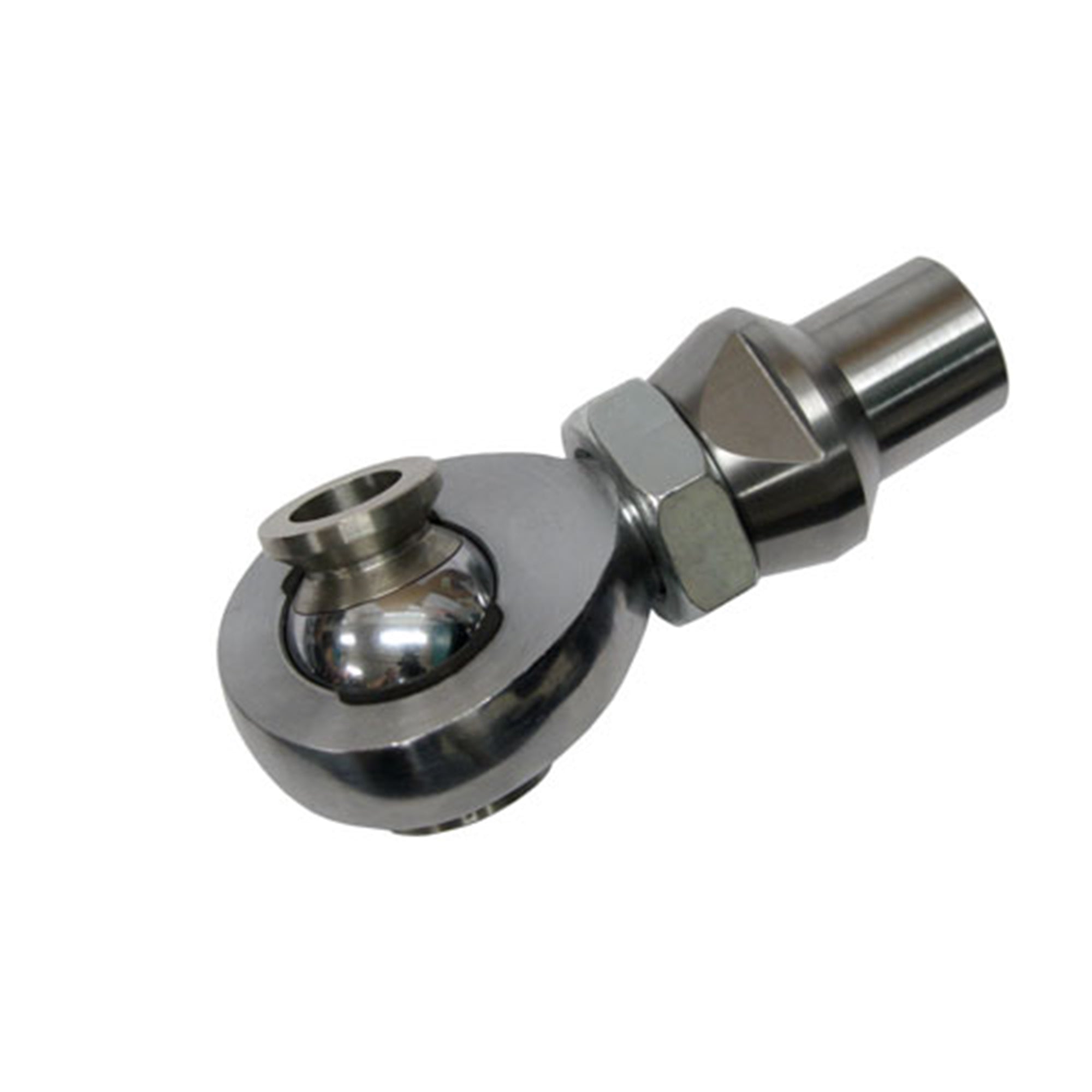

This kit includes one 3/4" -16tpi Chromoly rod end with 3/4" bore, one jam nut, one WRENCH FLAT tube adapter for 1.0 ID -1.5 OD tubing, and two stainless steel 9/16" or 5/8"- 3/4" high misalignment spacers. The mounting width with the spacer is 1.75" with a choice of 9/16" or 5/8" hole.
Great for the builder on a budget. These rod ends from Midwest Control Products Corp are a great way to add strength, reliability, and flexibility to any situation that requires use of a rod end such as in suspension or steering applications. The -12 series utilizes a high strength Chromoly body with a polished chrome finish sure to impress. The ball is made from heat treated bearing steel for strength and hard chrome polished for a smooth surface. The race is injection molded nylon which keeps the joint quiet and tight for years and years of usability.
3/4" -16 tpi thread with 3/4" bore. Ultimate Radial Static Load (lbs) 27019.

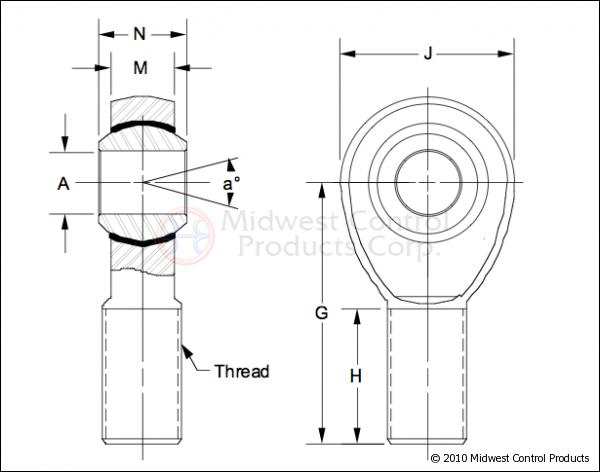

Part Number |
System |
Thread |
A |
G |
H |
J |
M |
N |
a° |
Ultimate Radial Static Load (lbs) |
Material |
RE120x |
Inch |
3/4-16 RH |
0.751 |
2.875 |
1.750 |
1.755 |
0.593 |
0.875 |
36 |
27019 |
Chrome Moly |
