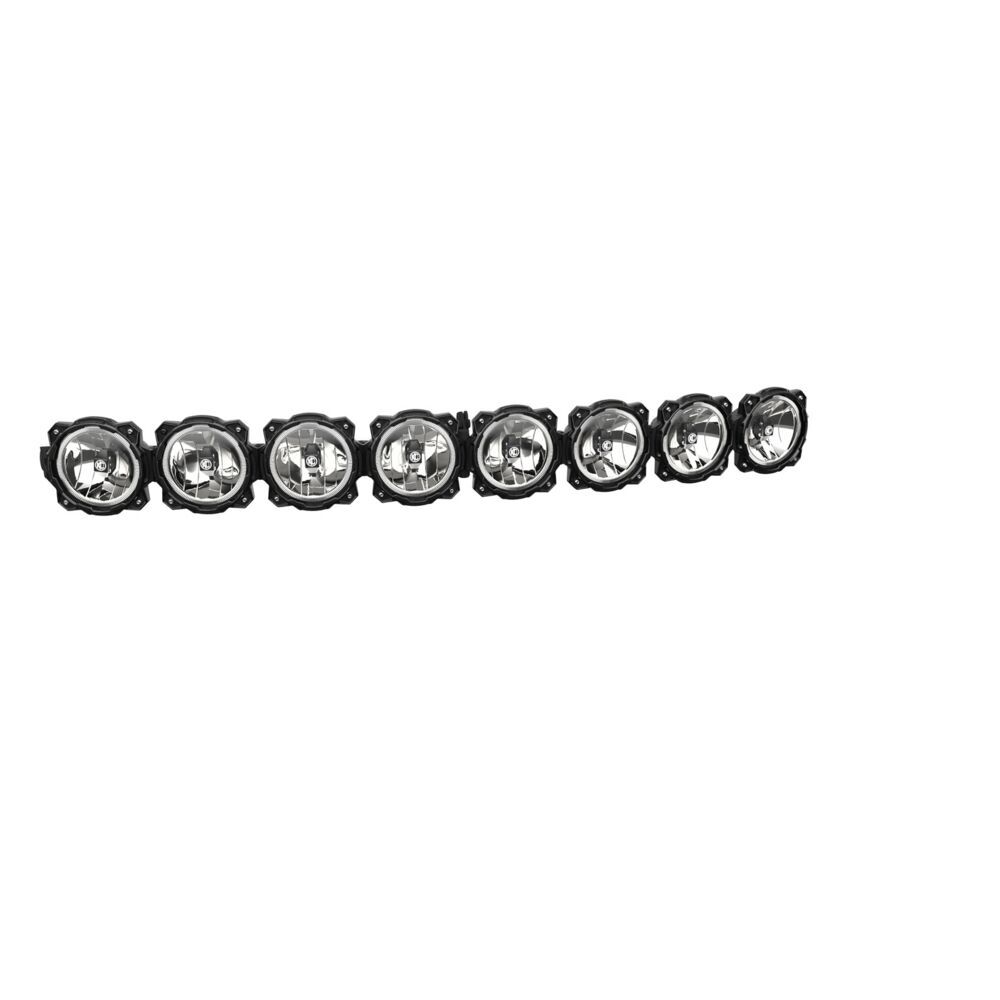

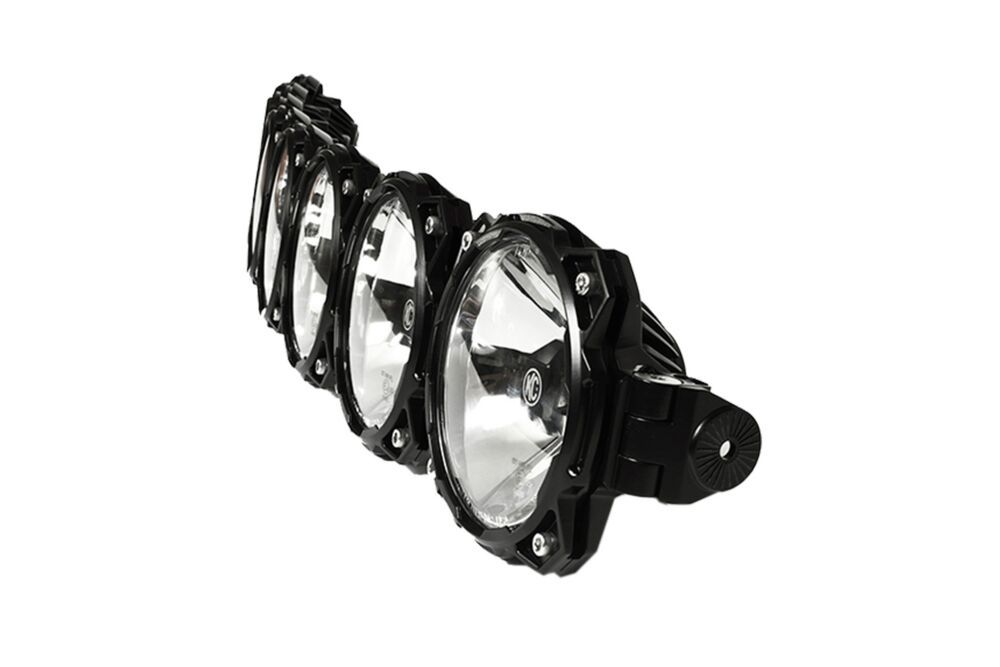

KC HiLiTES Gravity® Pro6 LED - 8-Light - Curved Light Bar System - 160W Combo Beam

Own wide-open nights with KC’s original modular round bar. The Gravity Pro6 50" (8-light) Radius links eight 6" G6 optics using the Infinity Ring™ system, blending Spot + Wide-40 beams for long-range punch with shoulder-to-shoulder fill. Built IP68 tough with serviceable sections, it ships ready to wire with a premium harness and classic KC covers—perfect for racks and bumpers on trucks, SUVs, vans, and UTVs.

Why drivers choose it

• Real trail coverage: Factory Combo layout (Spot + Wide-40) throws distance down-trail and lights the edges where hazards hide.
• Modular, curvable, serviceable: Infinity Ring™ links let you run it curved or straight, expand later, and service sections without replacing the whole bar.
• High output, efficient draw: Rated at ~18,400 raw lumens with ~160W total consumption and a measured 1,637 m beam distance (1 lx).
• Built for weather: IP68 sealing and robust housings handle dust, water, wash-downs, and vibration.

What’s in the box

• (1) Pro6 LED 8-Light Radius Light Bar (50")

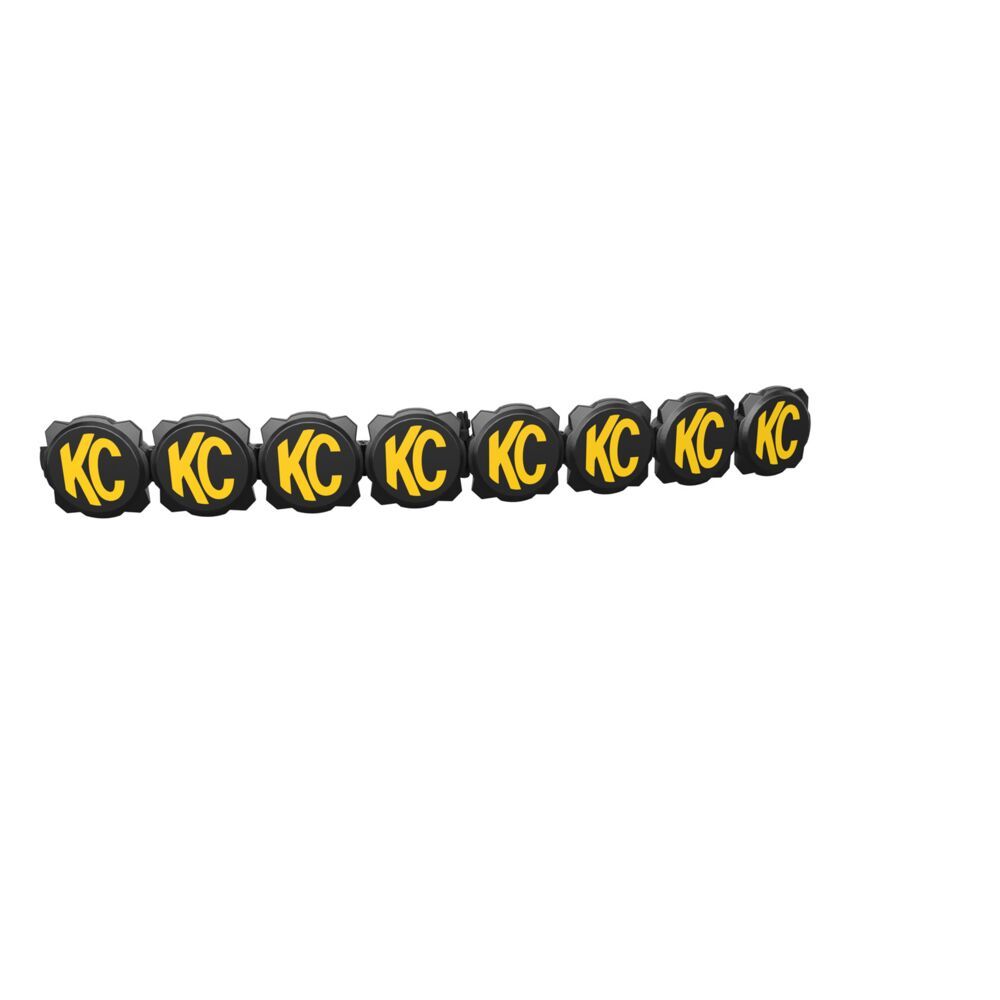

• (8) KC black light covers (yellow KC logo)
• Performance plug-and-play wiring harness & LED switch
  Kit contents as listed by KC dealers for part 91398.

Performance & key specs

• Raw lumens: 18,400 lm • Lux @10 m: 6,700 lx • Candela: 670,000 cd • Beam distance: 1,637 m (Combo)
• Power / draw: 160W total, approx. 13.04A @ 12V • Voltage: 9–32V • CCT: ~5000K
• Ingress: IP68 • Approx. dimensions: H 6.06" × D 3.33" × W ~51.1" (bar width including links)

Ideal uses

• High-speed desert / open backroads: keep the Spot cores for reach while Wide-40 fills the shoulders.
• Overlanding & mixed terrain: balanced forward light that reduces eye strain and improves terrain reading.

Install notes

Mount to your rack or bumper, connect the plug-and-play harness, then aim and tighten per KC’s guide. The Pro6 system allows radius or straight orientation during install. Check local regulations—this Combo bar is intended for off-road use.
