Curious whether the Jackery Solar Generator 2000 Plus Kit (4kWh or 6kWh) includes all the essential cables and connectors? Or maybe you’re looking into the 4kWh kit specifically and want to know exactly what’s included—and whether you’ll need to purchase anything extra? This comprehensive Jackery cable guide breaks it all down for you. For even more detail, be sure to review the connector user manual.
In most cases, the Jackery Solar Generator 2000 Plus Kits come with all the essential cables—no additional connectors or accessories are needed unless you choose to expand your setup. If you purchase the Jackery Explorer 2000 Plus and solar panels separately, the panels will include the necessary cables for basic use. However, if you're buying 4 to 6 solar panels individually, you’ll also need to purchase a connector separately to complete the setup.
Whether you need to purchase an additional cable or connector depends on how you place your order. Below are the key scenarios to consider:

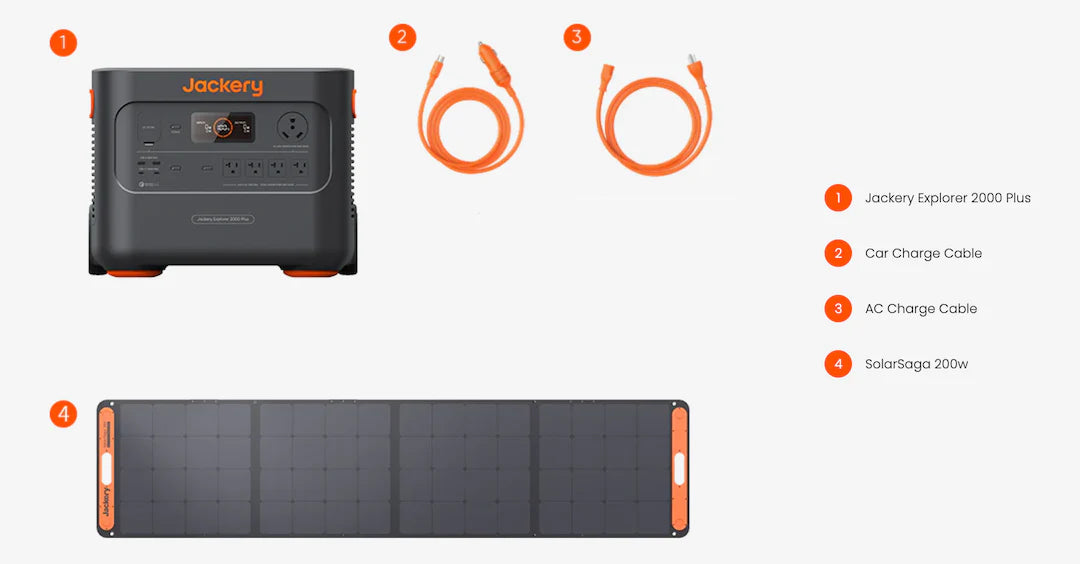

Bundled Solar Generator Kit: If you purchase a complete kit—such as the Jackery Solar Generator 2000 Plus, which includes the Explorer 2000 Plus Portable Power Station and two SolarSaga 200W Solar Panels—it will come with all the necessary cables. No extra cables or connectors are required unless you have unique setup needs.
Purchased Separately: When you buy the Explorer 2000 Plus and Jackery Solar Panels as separate items, the solar panel order will still include the required cables to connect to the power station.
Connector Requirements: If you order a Solar Generator bundle that includes 4 to 6 solar panels, the connector needed to support that setup is included in the box.
Connector Not Included in Panel-Only Orders: However, if you purchase 4 to 6 solar panels on their own (not in a generator bundle), you will need to buy the solar panel connector separately to complete the installation.
The Jackery DC Extension Cable for Solar Panels is a 16.4-foot power cable designed to extend the connection between your solar panels and portable power station, offering greater flexibility for outdoor use.
This extension cable allows you to position your Jackery Portable Power Station indoors while keeping your SolarSaga Solar Panels outside for optimal sun exposure. It's the perfect solution for off-grid setups, including RVs, campers, and motorhomes, where space and positioning flexibility are essential.
Adaptability:
Note: The DC extension cable is not compatible with Jackery SolarSaga 40W solar panels.
If you plan to connect multiple solar panels to your portable power station, you'll need a solar connector. The Jackery Solar Panel Connector allows you to link up to three solar panels in series to a single DC input on your power station.
Note: Compatible solar panels include the Jackery SolarSaga 60W, 100W, and 200W models. Be sure to confirm compatibility before setting up your system.
2 Solar Panels: A connector is not required. You can either connect each panel directly to separate input ports (if available), or use one connector to combine both panels and plug into a single DC input as shown in the setup diagram.
3 Solar Panels: One solar panel connector is needed. Connect all three panels to the connector, then plug the connector into one DC input port on the power station.
4 Solar Panels: Two solar panel connectors are required. Connect two panels to each connector, then plug each into its own DC input port on the portable power station.
5 Solar Panels: Jackery does not support connecting five solar panels to the power station or through the solar panel connector.
Caution: When using both DC input ports at the same time, always use the same type and number of solar panels on each side to prevent potential damage. For instance, if you're charging with four panels, connect two panels to each input port. Avoid the following connection methods when charging the power station:
Adaptability:
The Jackery Car Charging Cable allows you to recharge your portable power station directly from your vehicle’s 12V cigarette lighter port. If you’re traveling to remote areas and need a convenient way to power up your Jackery Portable Power Station on the go, this 12V car charging cable is an essential accessory.
Adaptability
Note: This cable is also compatible with the Jackery Explorer 300 Plus and Explorer 240 v2 Portable Power Stations, but requires a DC8020 to USB-C adapter for proper connection.
If you're camping in a remote area with no access to power and need to charge your car battery, the Jackery 12V Automobile Battery Charging Cable is a reliable solution. Designed to support 12V/10A lead-acid batteries, it can be used to charge most car batteries (excluding electric vehicles). Unlike traditional jump starters, this cable delivers a slower, more controlled charge to ensure your car battery receives a proper and safe recharge.
Adaptability:
The Jackery Explorer 2000 Plus Portable Power Station features expandable capacity, allowing you to boost your power by connecting two units together. That’s where the Jackery Connector proves essential—it enables you to link two Explorer 2000 Plus stations in parallel, delivering a combined 240V output for higher-powered applications.
Adaptability
All Jackery Solar Panels now come upgraded with a DC7909 to DC8020 adapter included. However, if you purchased a solar panel that did not include this adapter, you can buy it separately and connect it to the DC8020 female input on your Jackery Portable Power Station.
Adaptability:
The Jackery DC8020 to DC7909 Adapter is designed for connecting 8mm-diameter solar panels to the DC input port of a Jackery Portable Power Station. It features a high-quality copper core for low resistance and fast, efficient power transfer.
Adaptability:
To charge the Jackery Explorer 100 Plus using the SolarSaga 100W Solar Panel, or the Explorer 300 Plus with the SolarSaga 40W Mini Solar Panel, you’ll need the Jackery DC8020 to USB-C Adapter.
The USB-C end of the adapter plugs into the USB-C input port on your compatible Jackery Portable Power Station, while the DC8020 female end connects to the DC8020 male end of the solar panel cable for efficient solar recharging
Adaptability:
The Jackery Anderson Connector & Cable is designed to help connect SolarSaga 100 Prime Solar Panels to various Jackery Portable Power Stations. It allows you to increase the system’s voltage or current based on your setup needs. To connect two panels, simply plug the male end of each solar panel into the corresponding female ends of the Anderson Y Series Connector. For connecting four panels, use two Y Series Connectors linked to an Anderson Y Parallel Connector.
Adaptability:
Ideal for pairing the Jackery SolarSaga 100 Prime Solar Panel with a wide range of Jackery Portable Power Stations.
|
Product |
Compatible Number of Jackery SolarSaga 100 Prime Solar Panel |
|
Jackery Explorer 600 Plus |
2 |
|
Jackery Explorer 1000 v2 |
4 |
|
Jackery Explorer 1000 Plus |
8 |
|
Jackery Explorer 1500 |
4 |
|
Jackery Explorer 2000 Plus |
12 |
|
Jackery Explorer 2000 Pro |
12 |
|
Jackery Explorer 3000 Pro |
12 |
Jackery provides a variety of cables and connectors engineered for reliable and efficient power generation. When you purchase a Jackery Solar Generator bundle, most essential cables are included. However, for individual product purchases or expanded solar setups, additional connectors may be necessary. Always consult the user manual to confirm compatibility and setup requirements before ordering. Have questions about Jackery cables or connectors? Contact us—we're here to help!
Disclaimer:
The appliance runtimes provided for Jackery products are for reference purposes only. Actual performance may vary based on usage conditions. For the most accurate results, please refer to real-world operating conditions.
