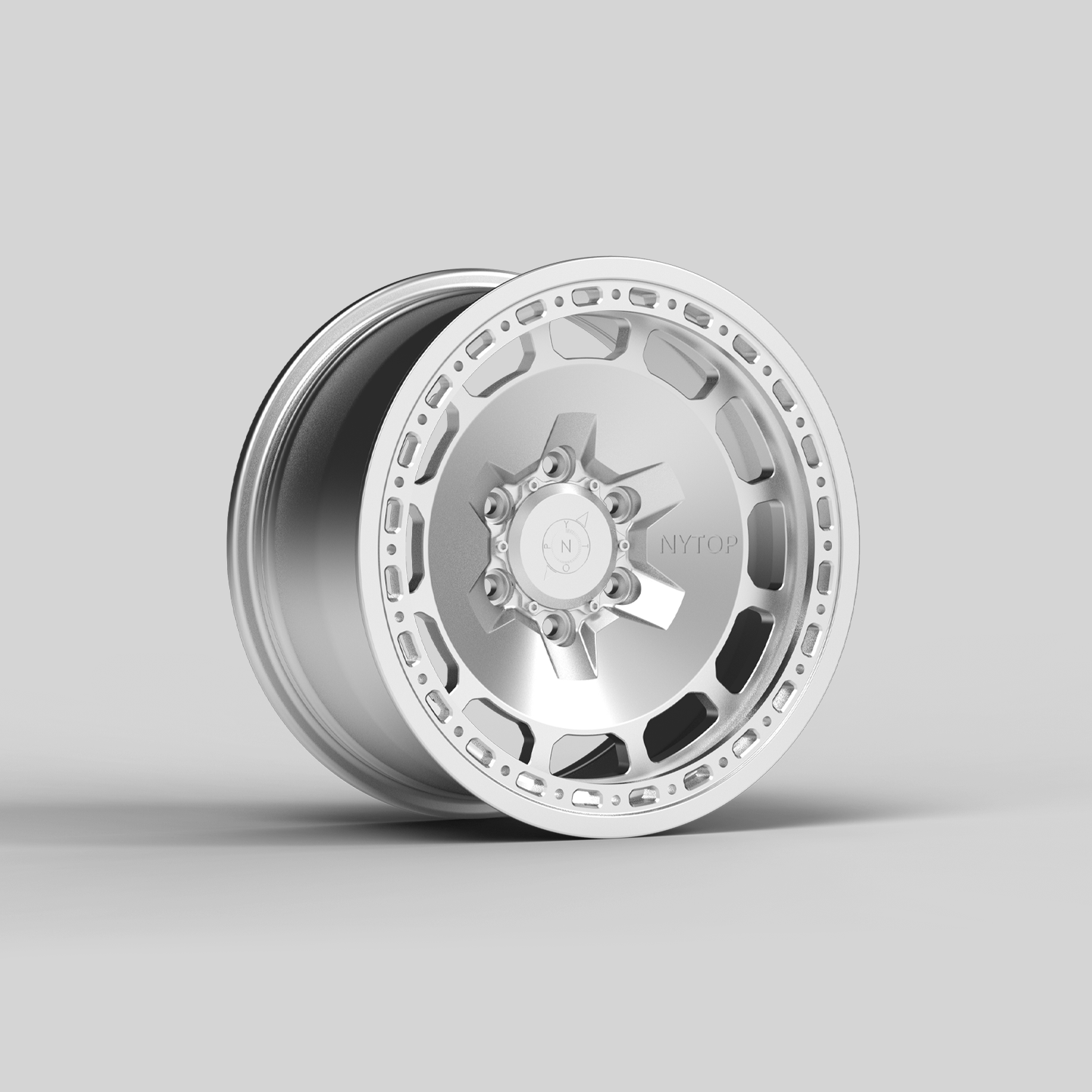

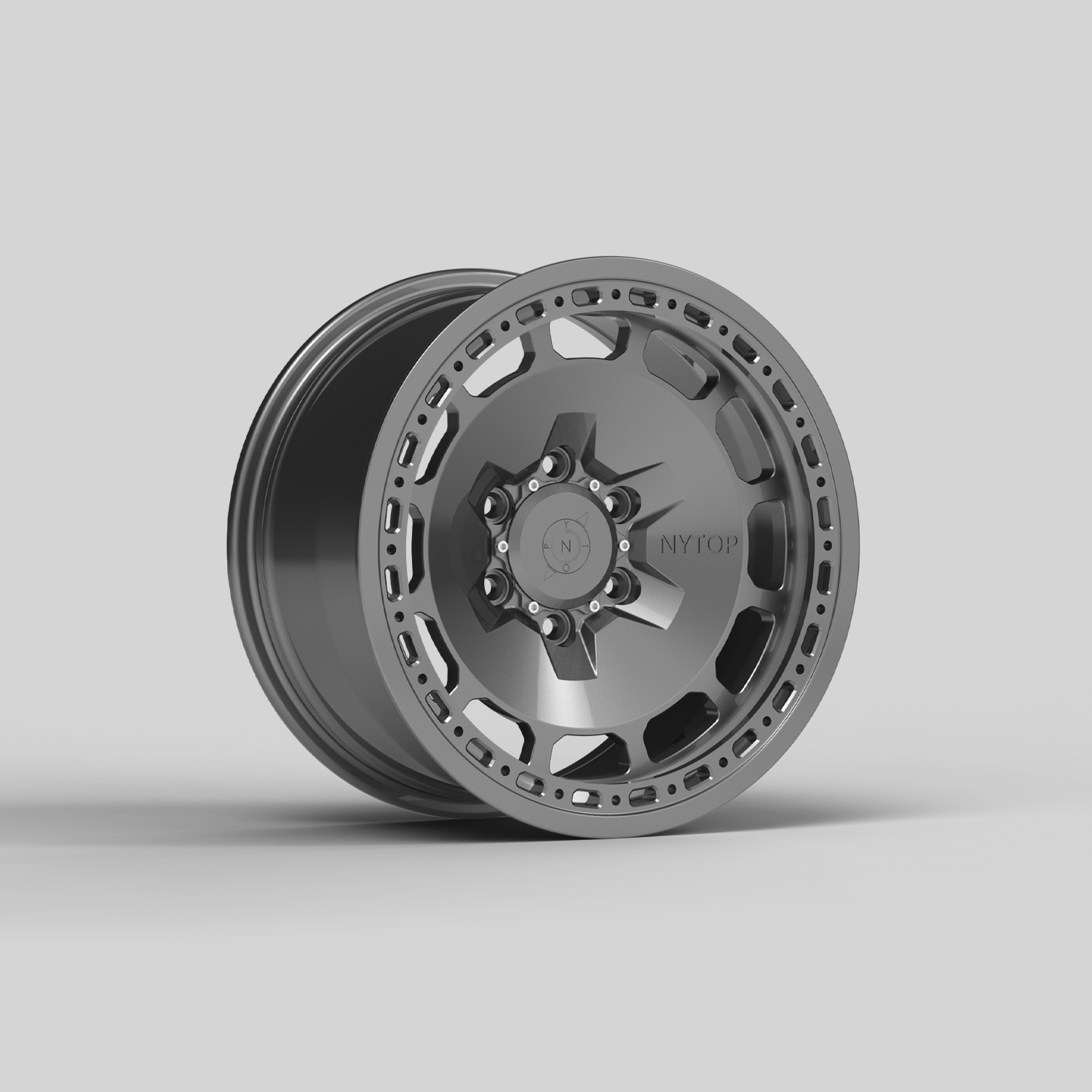

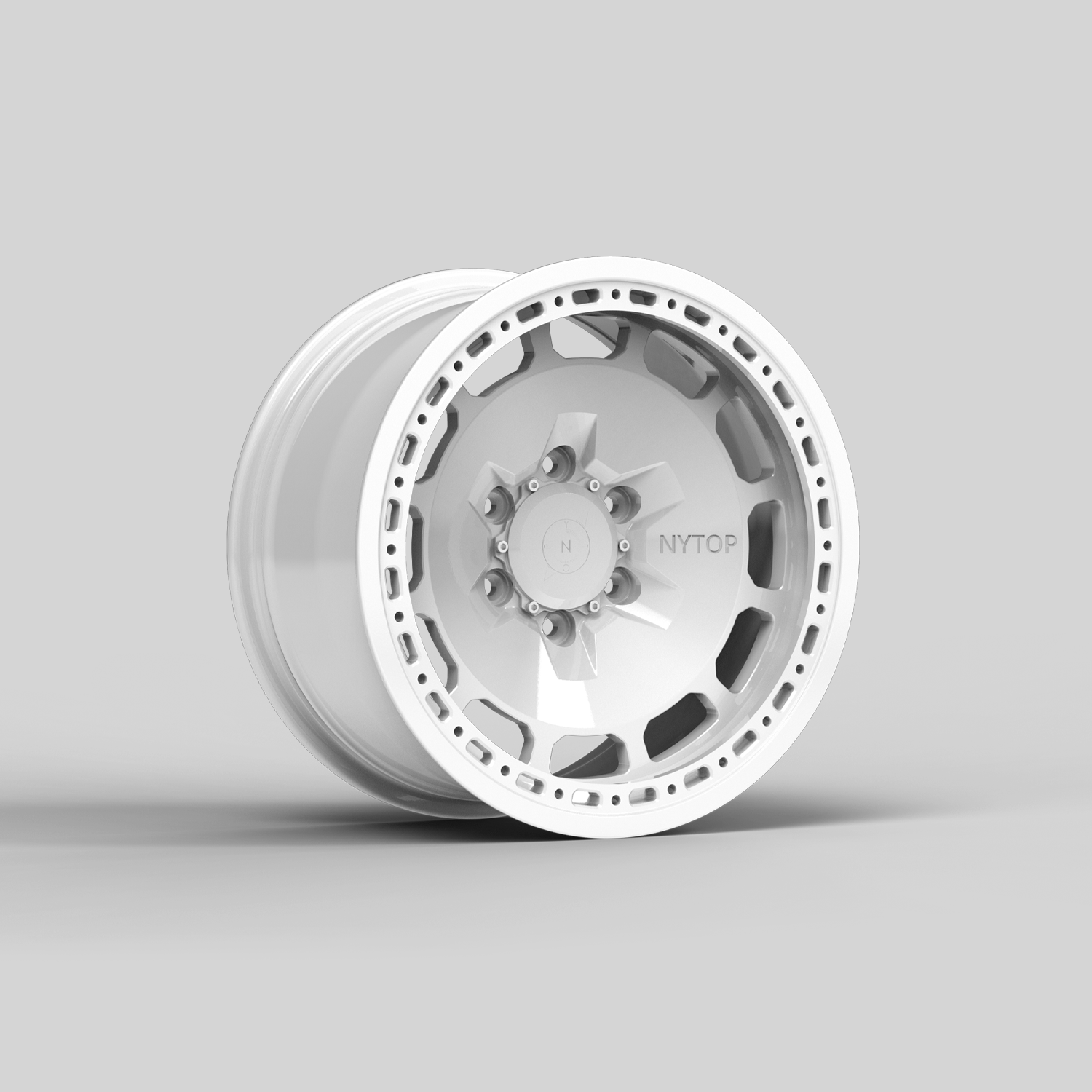

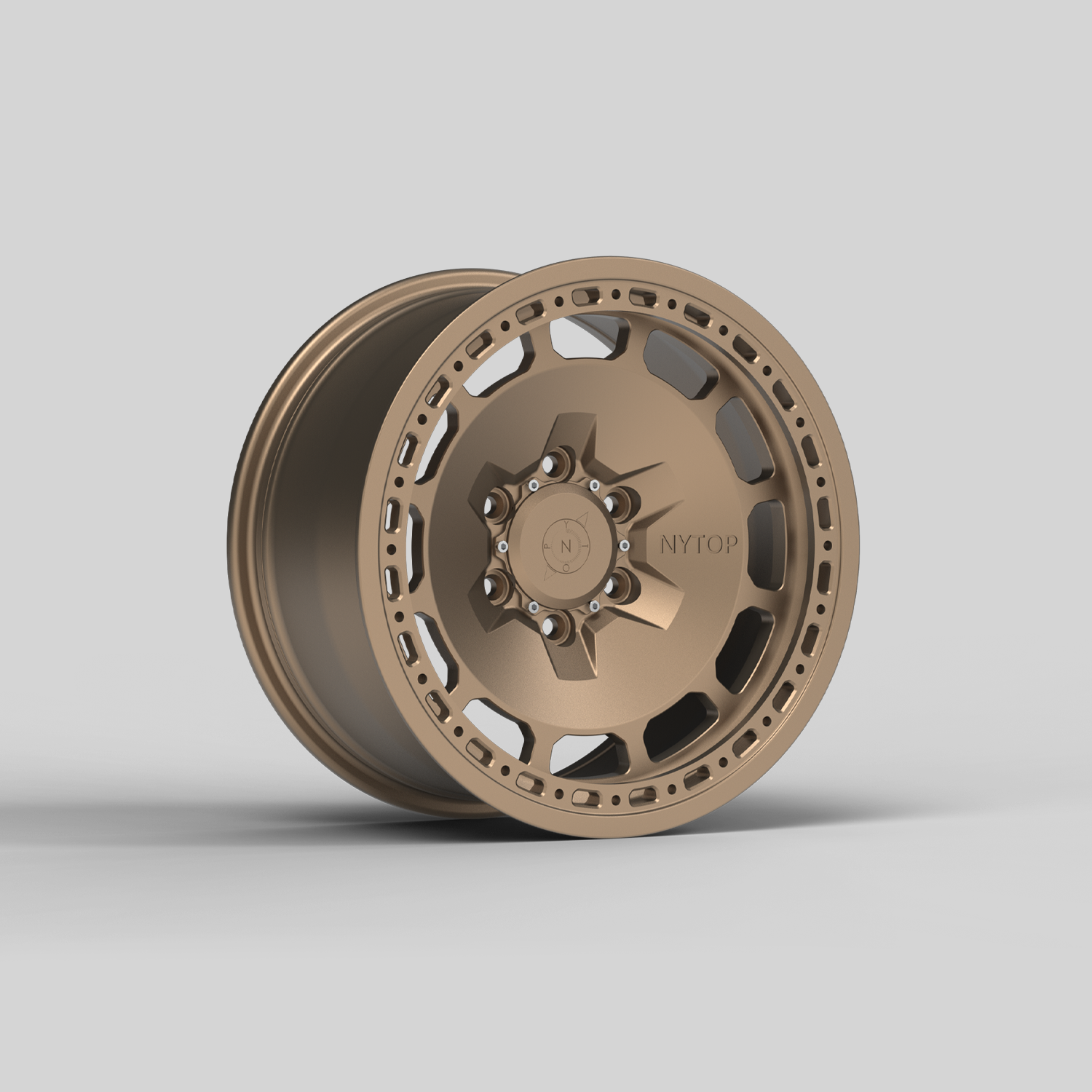

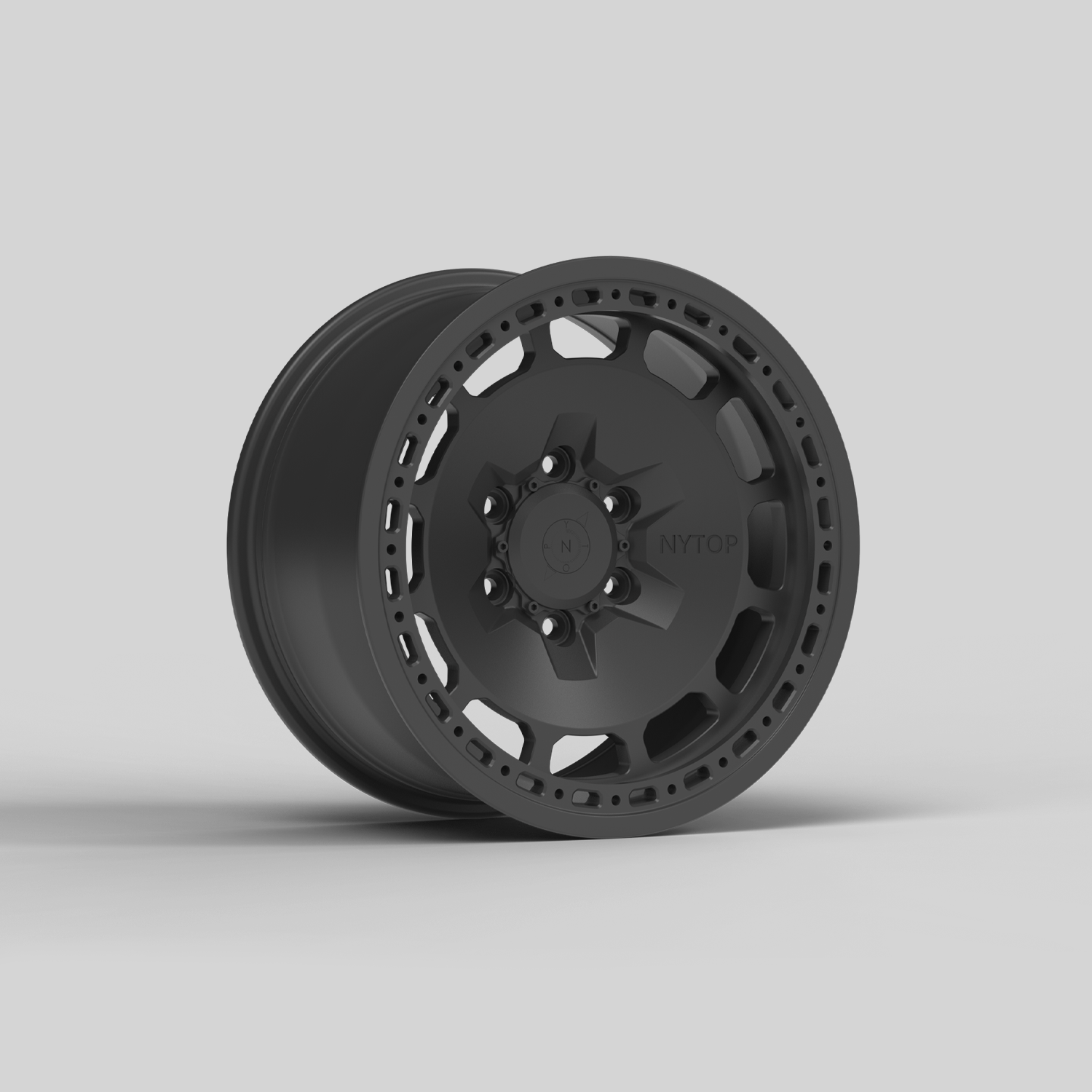

ADV-Classic Beadlock 17 inch 6x135 (Ford F150)

Priced per wheel. Beadlock rings sold separately.

Our Adventure Series Beadlock Wheels are CNC machined forged 6061-T6 aerospace-grade aluminum with screw-on type CNC machined billet aluminum center caps. These wheels allow you to mount tires with or without a beadlock ring.

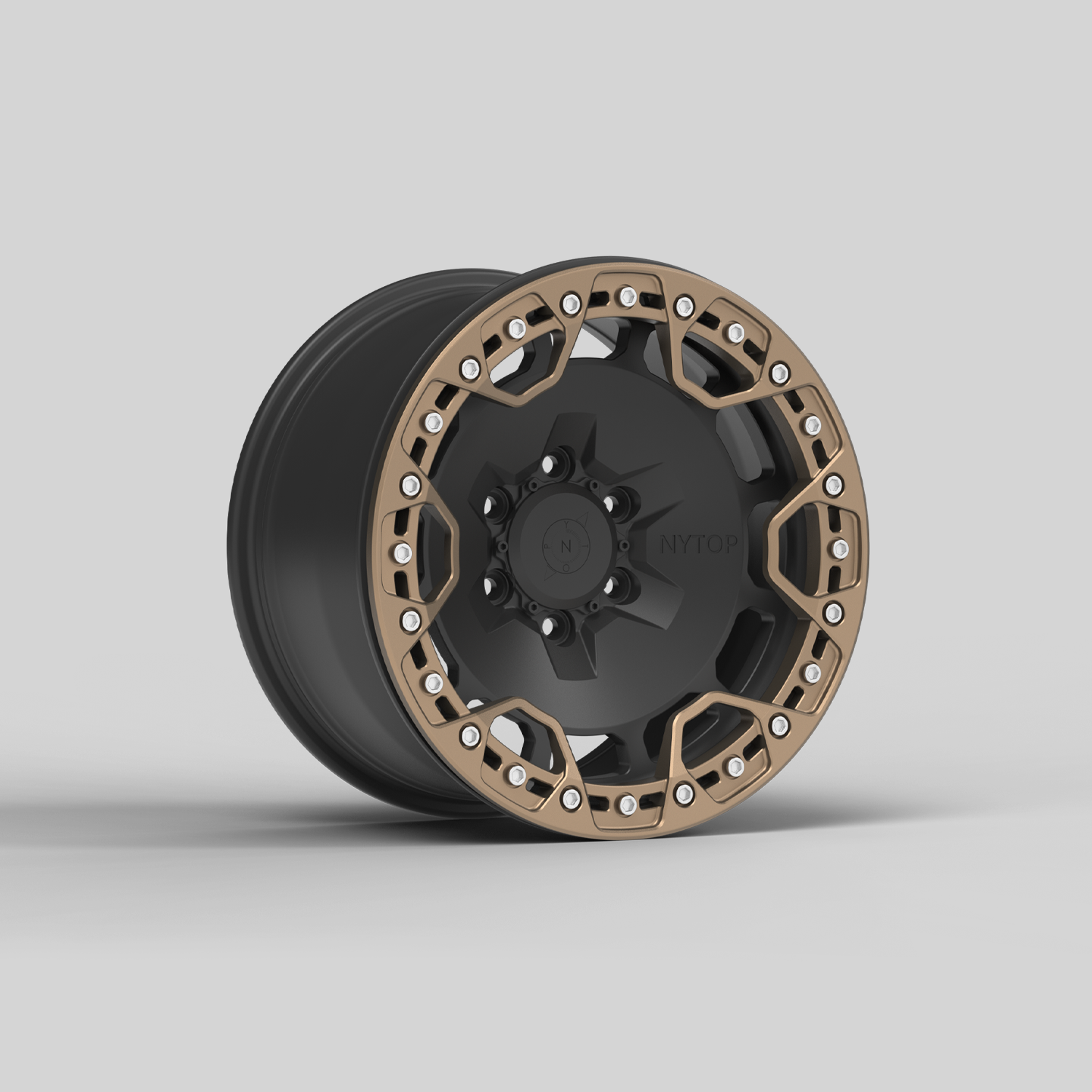

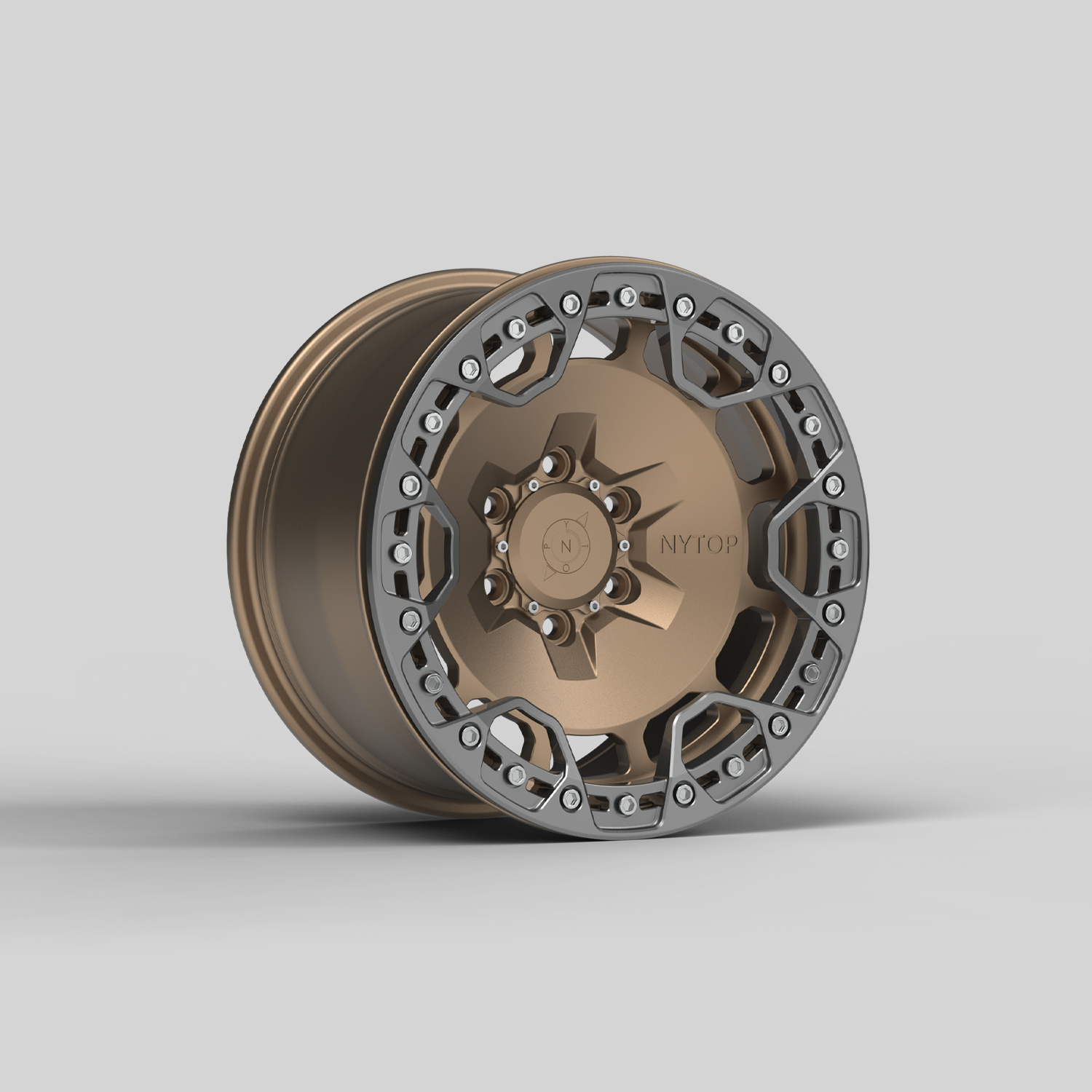

Our proprietary beadlock ring design is engineered for a smoother, more efficient mounting process. Unlike traditional setups that require pry bars to seat the tire bead into the wheel face, our rings feature a self-guiding profile that gradually draws the bead into place as you tighten the bolts.

Available in a 17x8.5 in size with 0 mm offset. The lug pattern is 6x135. The hub bore size is 87.1 mm.

This spec fits the following vehicles:

• 2004-current Ford F150/Raptor

• 2004-current Ford Expedition

• 2004-current Lincoln Navigator

• 2022-current Ford Bronco Raptor

Our ADV Series Off-road Beadlock Wheels are both lug centric and hub centric. Do NOT use extended lugs.

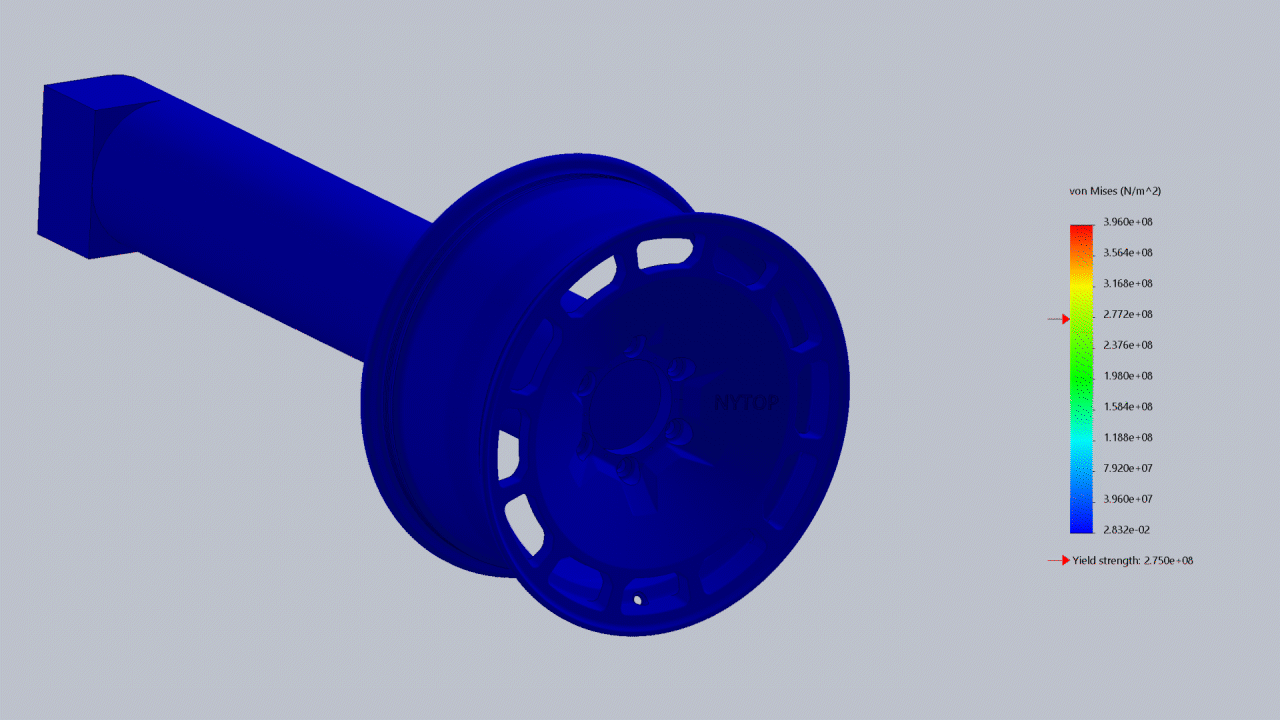

Max load rating 2,850 lbs. per wheel.

Wheel weight is around 23.5 lbs. per wheel.

Please email contact@nytop.com for custom offset and custom decal requests.
