库存单位: S5235-001

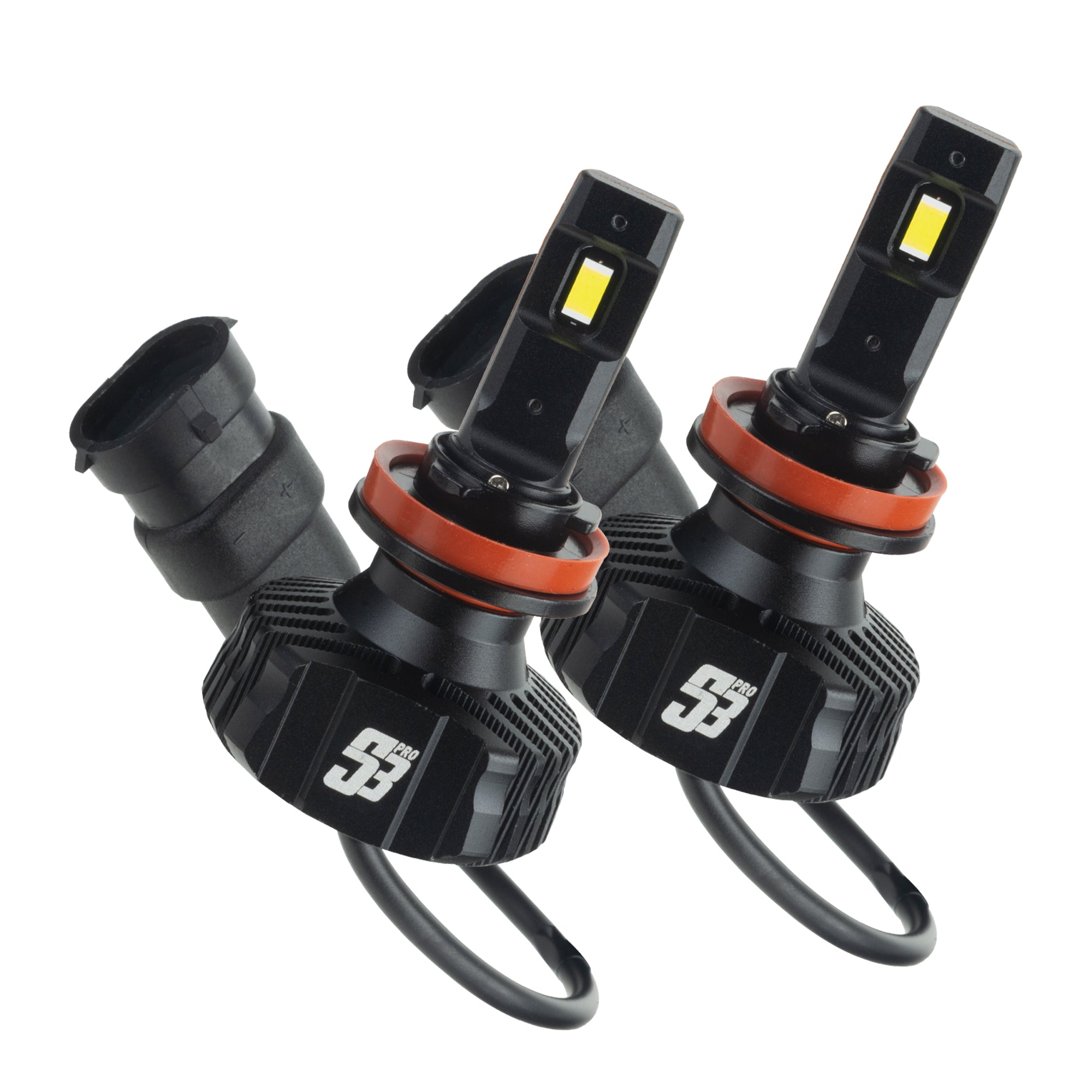

ORACLE Lighting H11 - S3 PRO LED Light Bulb Conversion Kit High/Low Beam (Projector)

$90.95


Upgrade your projector headlights with ORACLE's S3 Pro LED Conversion Bulbs - delivering 4,860 lumens of crystal clear 6000K light in a sealed waterproof heatsink design that eliminates external drivers and cooling fans. Optimized for projector-style housings. True plug & play H11 fitment.

Part Number: S5235-001
✓ 4,860 Lumens ✓ 6000K Crystal White ✓ Plug & Play H11 ✓ Projector Optimized ✓ Waterproof Heatsink ✓ CSP LED Chip ✓ No External Drivers ✓ 3-Year Warranty
Bulb Fitment: H11  |  Application: High/Low Beam - Projector Housing
Product Overview

ORACLE Lighting S3 Pro LED Conversion Bulbs instantly upgrade your projector headlights with 4,860 lumens of crystal clear 6000K output. The electronic components are housed in a sealed waterproof heatsink design, eliminating the need for external drivers and cooling fans.

The CSP (Chip Scale Package) LED Chip delivers a small form factor with high-intensity output and lower heat value - resulting in an industry-leading 130 lm/W luminous efficacy ratio. The low-profile design is particularly well-suited for projector housings where precise light placement is critical for optimal beam pattern performance.

ORACLE S3 Pro LED Integrated Heatsink Design
Why Choose the ORACLE S3 Pro LED Bulbs?
  • 4,860 Lumens of Output - dramatically brighter than stock halogen; see farther, react faster
  • 6000K Crystal White - clean, modern HID-like color temperature that improves road contrast
  • Projector-Optimized Design - low-profile CSP chip placement works with projector beam optics for a clean, focused output
  • Sealed Waterproof Heatsink - integrated design eliminates external drivers and cooling fans
  • True Plug & Play - direct H11 fitment, no wiring, no cutting, installs in minutes
  • CSP LED Technology - industry-leading 130 lm/W efficacy; maximum output with lower heat value
  • 3-Year Limited Warranty - backed by ORACLE Lighting's quality guarantee
Performance & Technical Specifications
Part NumberS5235-001
Bulb FitmentH11
ApplicationHigh/Low Beam - Projector Housing (Universal)
Brightness4,860 Lumens per bulb
Color Temperature6000K (Crystal White)
Power Draw18W per bulb
Current Demand1.5 Amp
Operating Voltage12V / 24V
Luminous Efficacy130 lm/W*
LED Chip TypeCSP (Chip Scale Package)
Housing Material6160 Aluminum Alloy
PCBDouble Layer Copper
Waterproof RatingSealed / Waterproof Heatsink
Warranty3-Year Limited

*Industry-Leading Efficacy Ratio

⚠️ CAN-BUS Note: Dodge, Chrysler, Jeep, or later-model EU vehicles (Mercedes, BMW, Audi, etc.) may require additional CAN-BUS decoder harnesses if flashing, strobing, or shutoff occurs with engine on.
Key Features & Benefits
  • CSP Chip Scale Package LED - small form factor, high-intensity output with lower heat value
  • Integrated Sealed Waterproof Heatsink - no external drivers or fans needed
  • Projector-Optimized Low-Profile Design - precise chip placement for clean beam pattern in projector housings
  • Industry-Leading 130 lm/W luminous efficacy ratio
  • 12V/24V Dual-Voltage compatibility
  • Direct Plug & Play H11 replacement - no modifications required
  • 3-Year Limited Warranty backed by ORACLE Lighting
Fitment

This kit fits any vehicle using an H11 bulb in a projector-style headlight housing for high or low beam. Verify your vehicle's headlight bulb size and housing type before ordering.

💡 Not sure if H11 is the correct size or if your housing is a projector type? Check your owner's manual or a bulb fitment guide before ordering.
What's Included
  • (2) H11 S3 Pro LED Headlight Bulbs
  • Installation Guide
  • ORACLE Lighting Warranty Card
3-Year Warranty
Installation Guide & Resources
Estimated Install Time: Under 30 minutes
Tools Needed: None - true plug & play
Skill Level: Beginner DIY friendly
Under 30 Min Install TimeDownload Install Guide
Warranty, Shipping & Returns

ORACLE Lighting S3 Pro LED Bulbs are covered by a 3-Year Limited Warranty against defects in materials and workmanship.

Certifications & Downloads
Under 30 Min Install TimeDownload Install Guide3-Year Warranty
