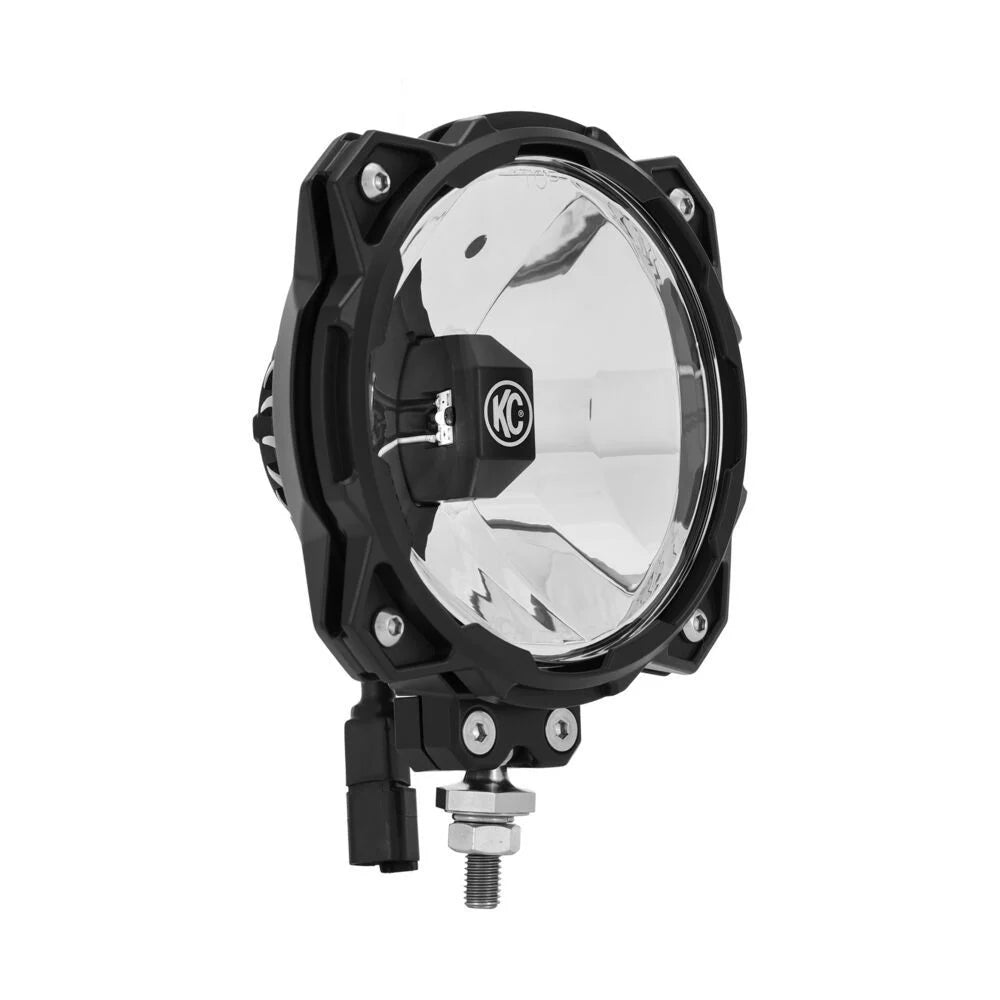

KC HiLiTES Gravity® Pro6 LED Single Pair Pack System

Classic round look, real modern reach. The Pro6 Single Pair uses KC’s G6 Gravity® optics inside the rugged Infinity Ring™ housing and a highly adjustable ball mount, so you can put light exactly where you need it—on bumpers, A-pillars/ditch mounts, racks, or brush guards. Choose Spot, SAE/ECE Driving, or Wide-40 to match your terrain and speed. IP68 sealing and low-draw efficiency make them a smart upgrade for any off-road build.

Why drivers choose it

• Three proven beam options — Pick Spot for max throw, Driving (SAE/ECE) for street-friendly forward light, or Wide-40 for shoulder-to-shoulder flood.

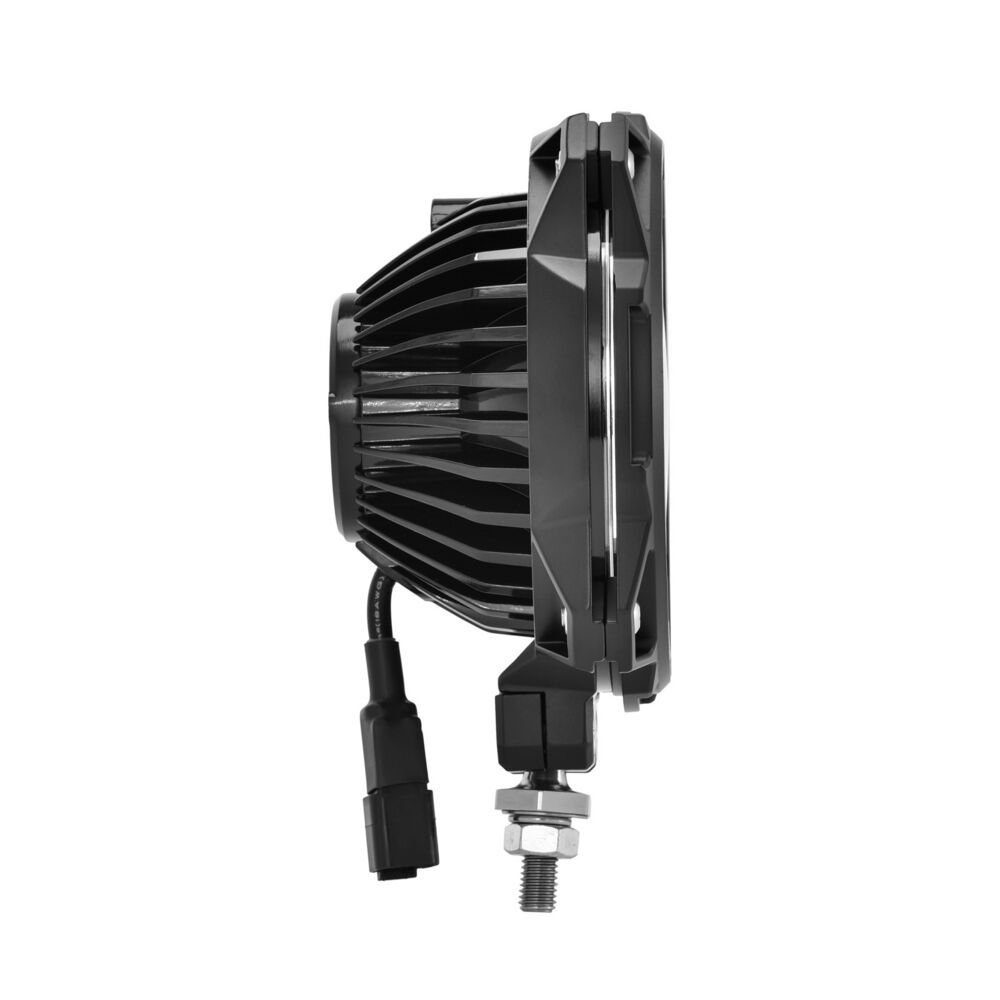

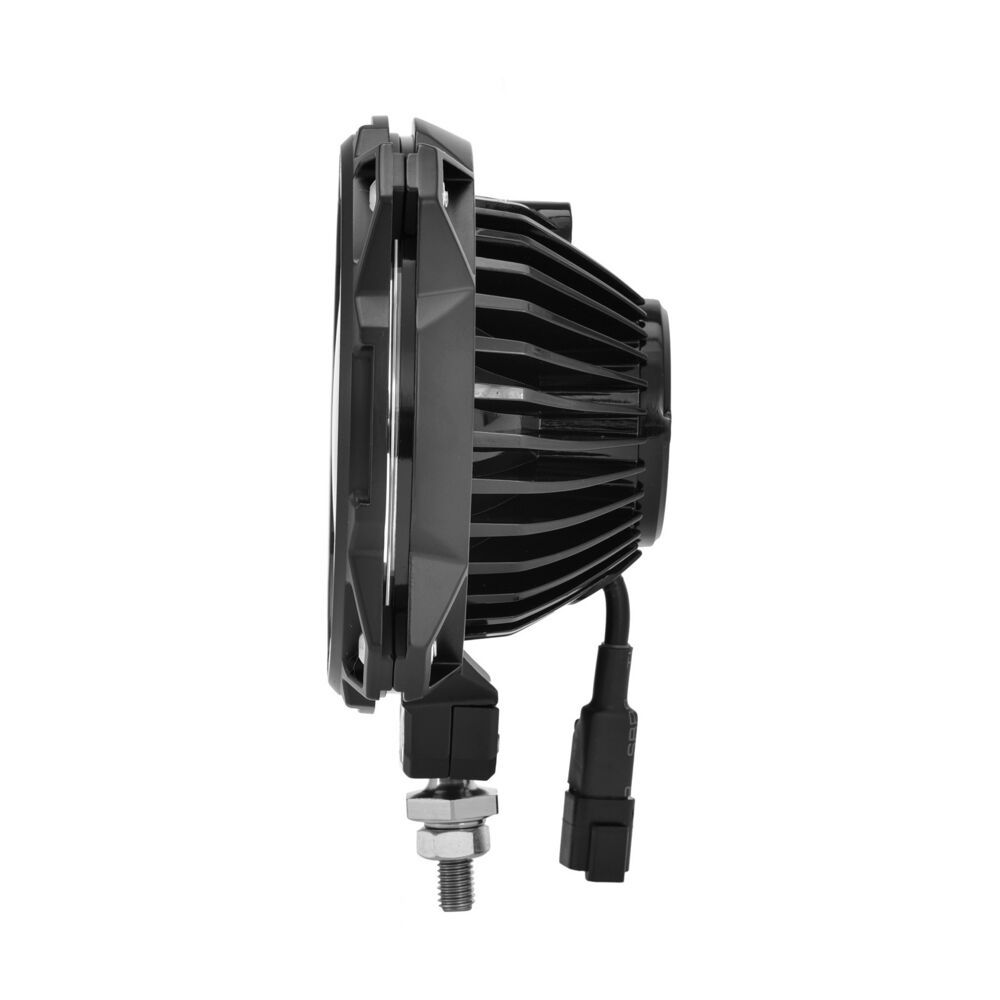

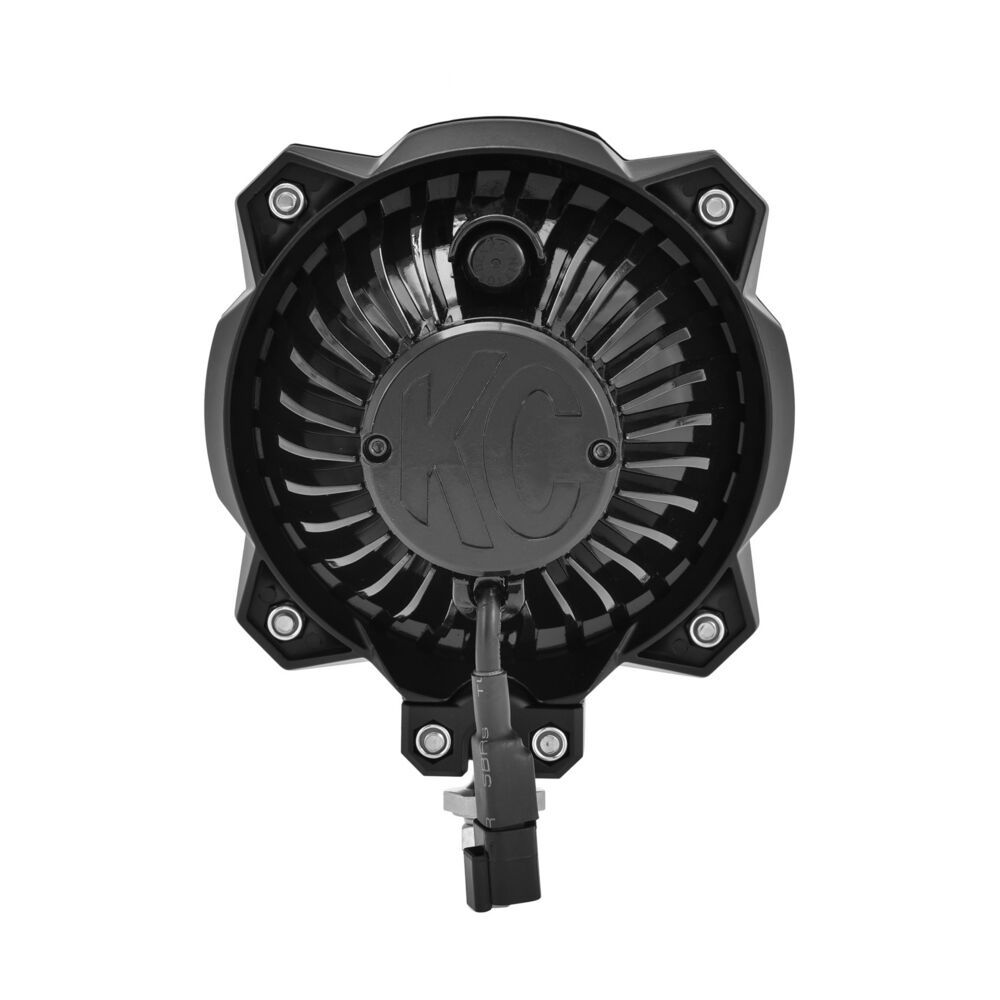

• Universal, precise aiming — The Infinity Ring™ + ball mount combo makes placement simple and aiming rock-solid on flat surfaces across trucks, SUVs, UTVs, and vans.
• Trail-ready durability — IP68 weather sealing in an aluminum housing stands up to dust, water and washdowns.
• High output, low draw — Efficient G6 optics deliver strong lumen-per-watt performance, keeping electrical load in check for multi-accessory rigs.

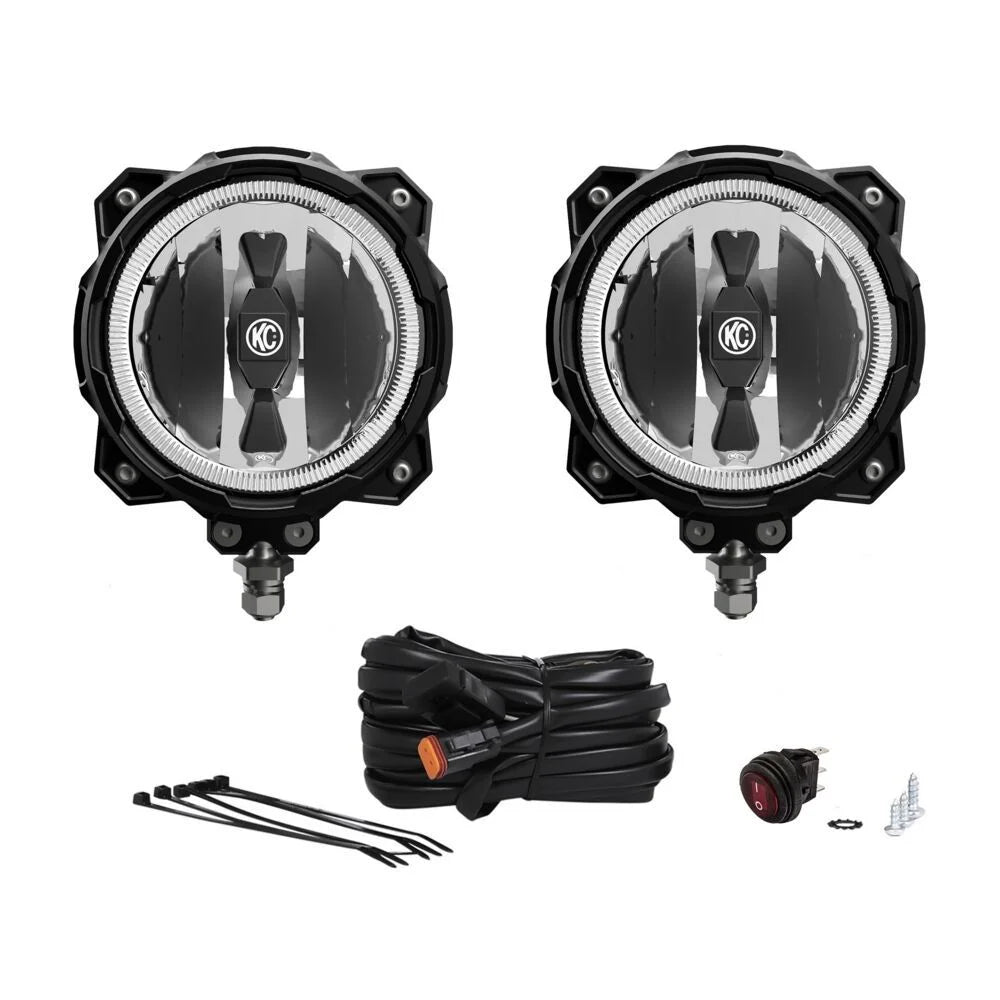

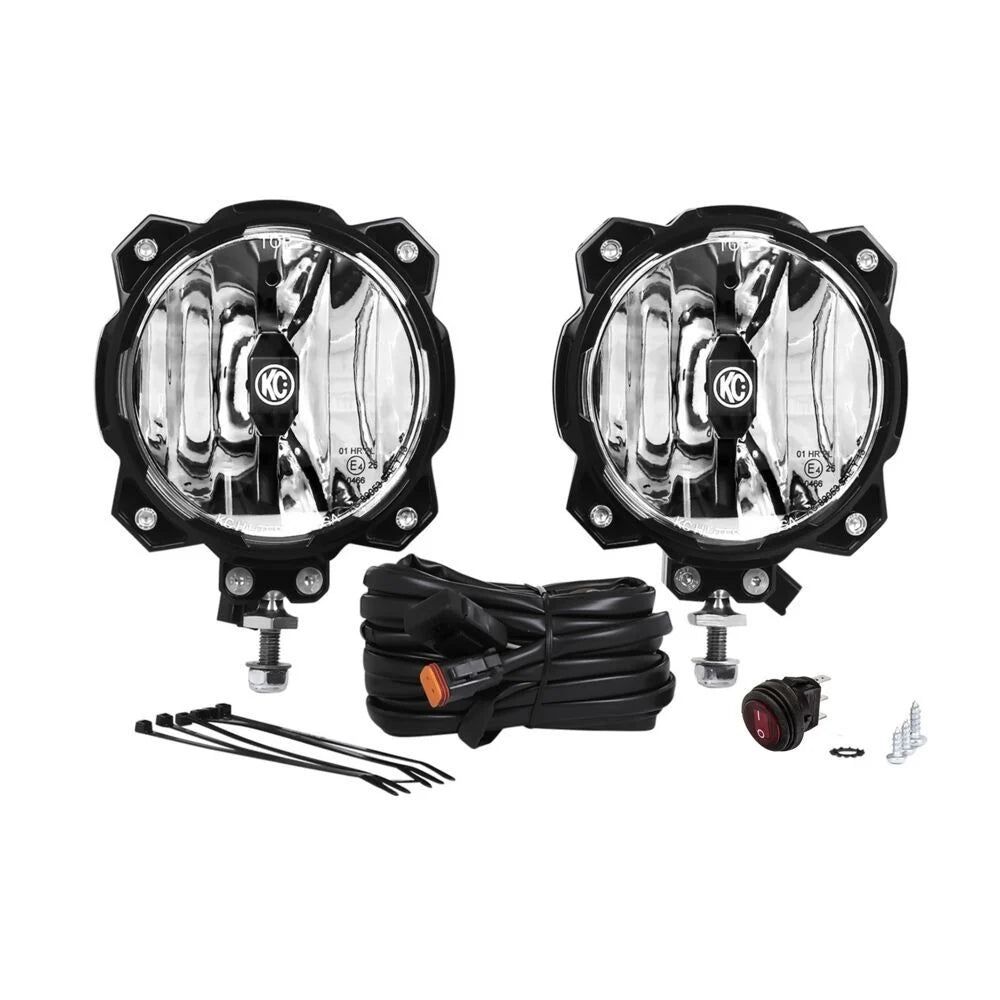

What’s in the box

• (2) Gravity® Pro6 6" single lights (choose beam pattern)

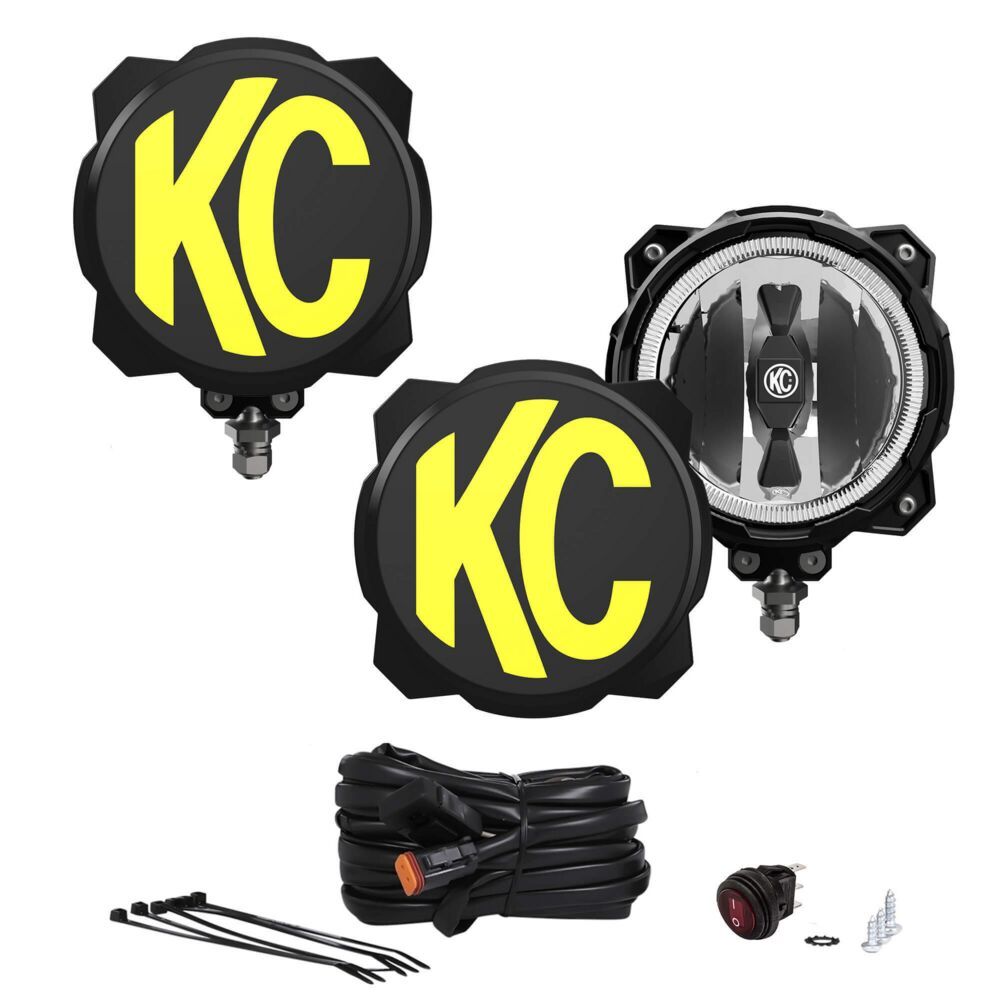

• (2) Black KC light covers (yellow KC logo)
• Mounting hardware
• Complete plug-and-play wiring harness with LED switch
  (Kit contents may vary slightly by bundle; pair packs include harness and covers.)

Performance at a glance (per light)

• Spot: ~2,300 lm, 972 m (1 lx), 215,000 cd; ~20W / 1.63A @ 12V. Best for high-speed distance.
• Driving (SAE/ECE): ~2,538 lm, 364 m (1 lx), 66,280 cd; ~22.6W. Balanced reach + width; compliant for on-road use where permitted.
• Wide-40: ~2,508 lm, 249 m (1 lx), 30,891 cd; ~21.4W. Broad, even near-to-midrange fill.
• Color temp: ~5000K • Voltage: 9–36V • Ingress: IP68 • Size: 6.0" W × 7.0" H × 3.125" D.

Ideal uses

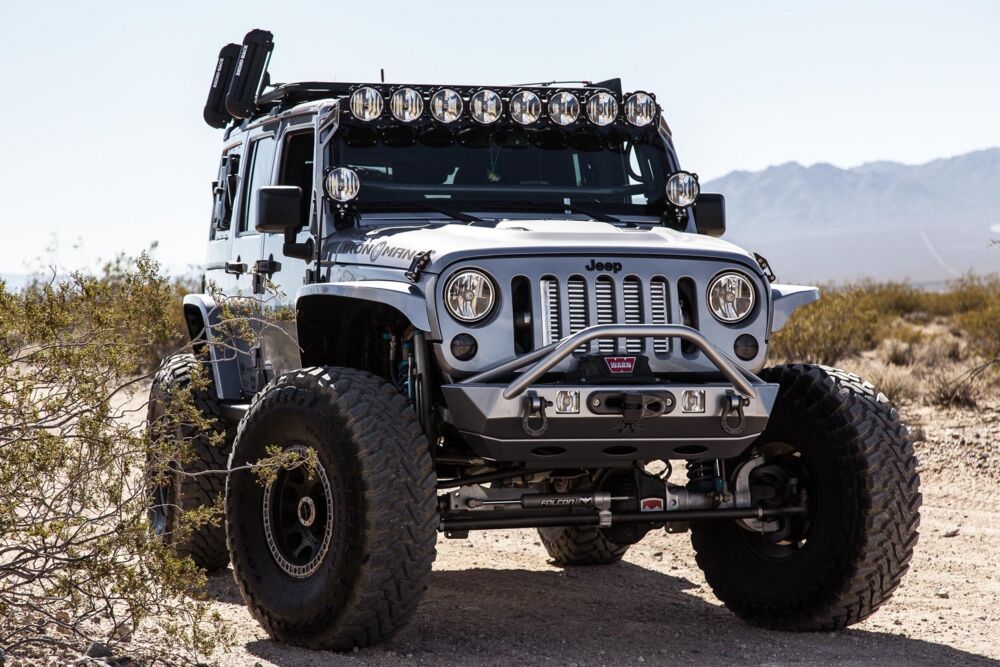

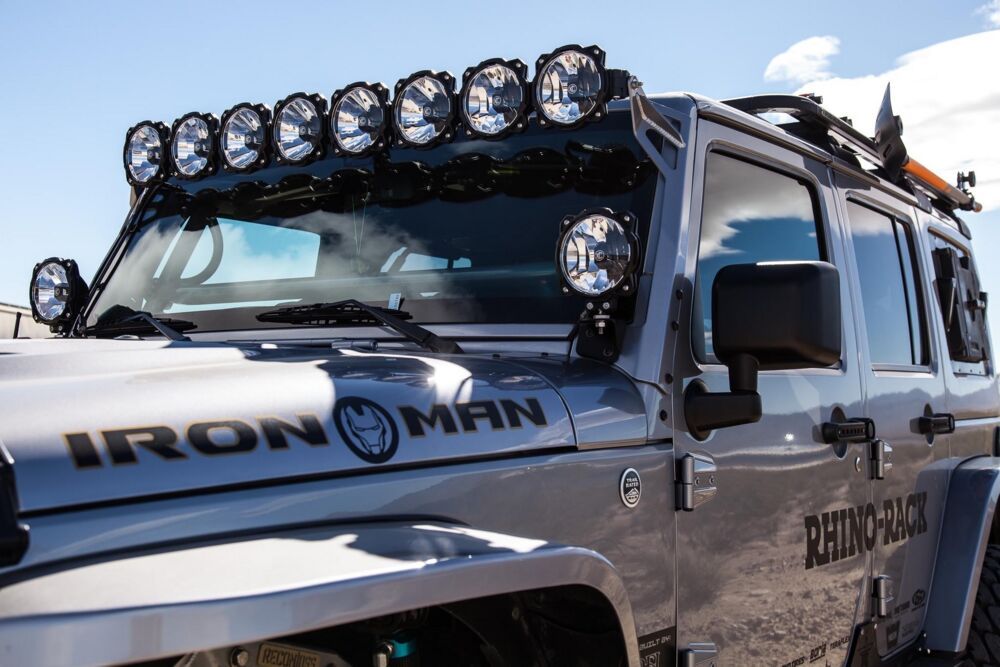

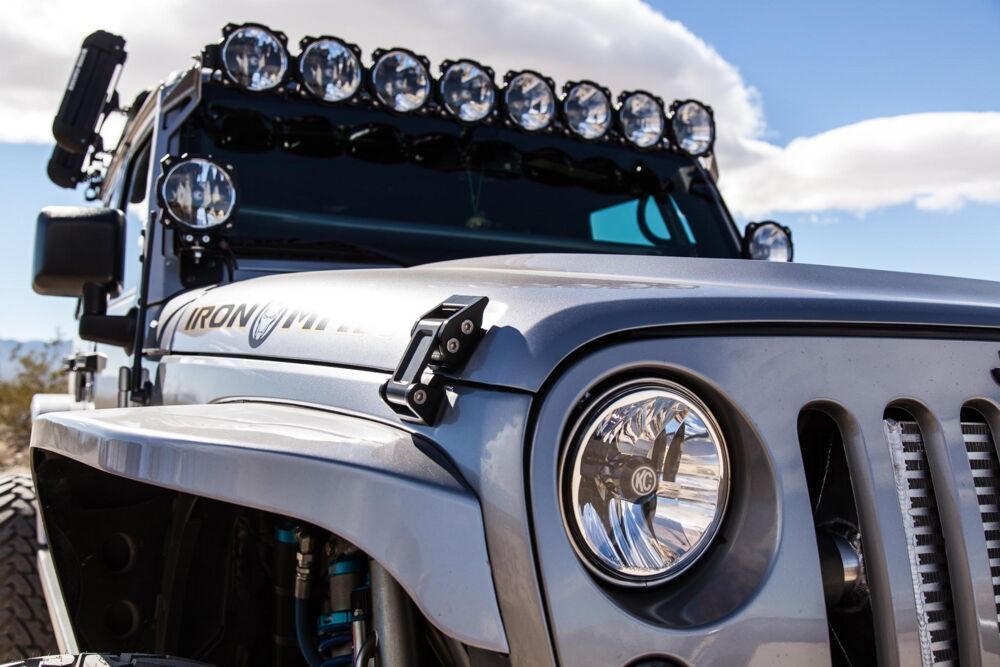

• A-pillar/ditch lights to open up the trail edges

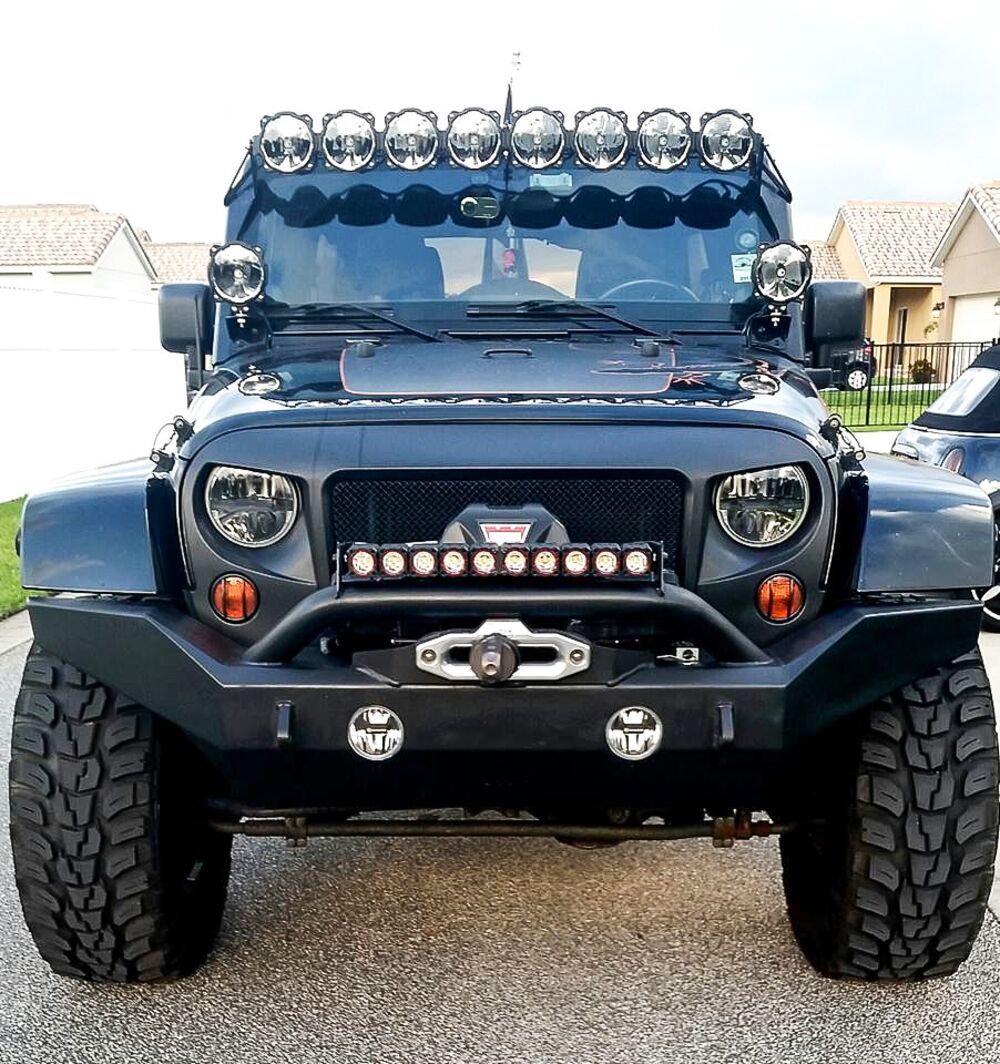

• Front bumpers/brush guards for long-range punch or compliant Driving beams

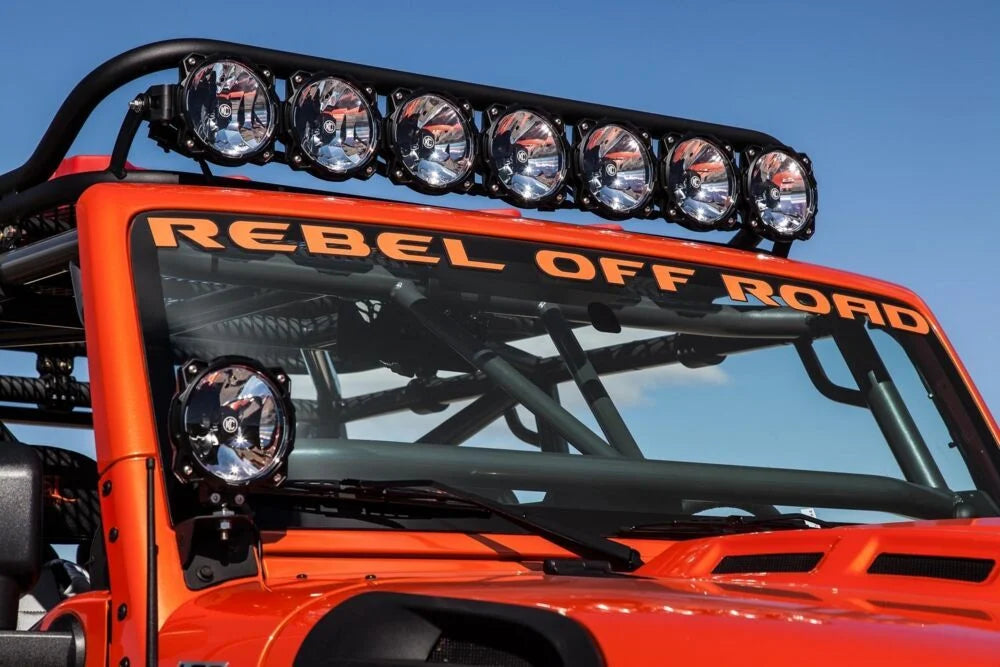

• Roof/rack pods to blend distance and wide, low-glare fill

Install notes

Mount via the included ball mounts, route the plug-and-play harness, then aim and tighten per KC’s guide. Run Driving on-road where legal; keep Spot/Wide-40 for off-road use. Always verify local auxiliary-lighting regulations.
