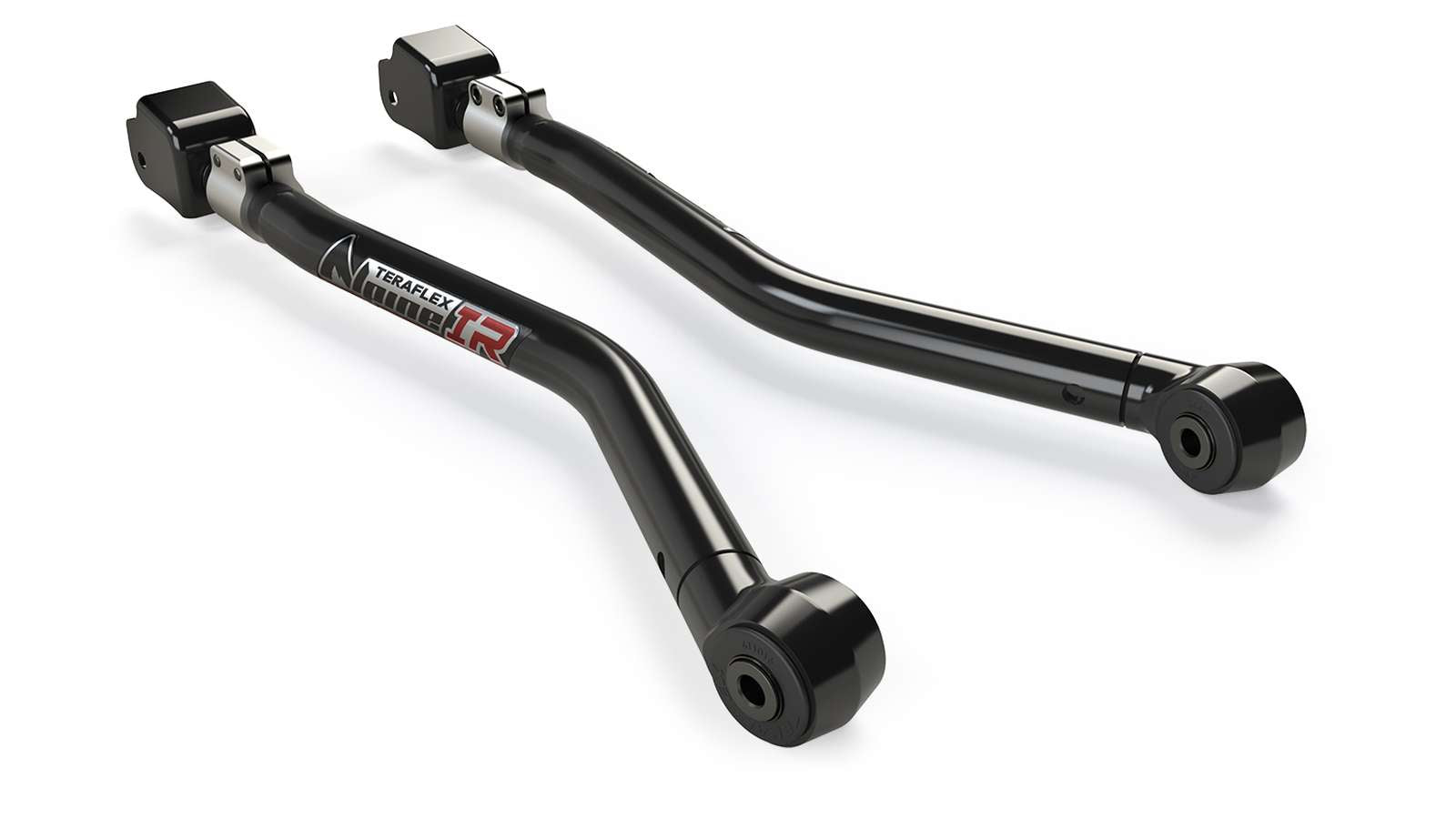

Teraflex Alpine IR Front Upper Adjustable Long Control Arm Kit for 2007-2018 Jeep Wrangler JK 4WD w/3-6" lift

Features & Highlights:

• Adjustable Alpine IR Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–6" lift kits
• Alpine IR Long Control Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
• On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the Alpine IR Long Control Arms
• Bolt-on Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduce NVH compared to other long arm kits JL Alpine IR Control Arms (all):
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
• Maintenance-free IR Bushings improve on- and off-road ride quality and performance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating on tube and forged rod end housing provides superior durability and
• corrosion resistance
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• Install and drive simple bolt-on installation – no welding required
• TeraFlex Lifetime Warranty against defects

More Information:

TeraFlex JL: Alpine IR Long Control Arms and Alpine Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3–6" lifts. Can be added to any existing suspension lift. Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping. These maintenance-free bushings improve on- and off-road ride quality and performance. Must be used with Alpine Long Arm Bracket Kit (JL 2-Door: 1958002 or JL 4-Door: # 1958000) – NOT INCLUDED.

Fitment Notes from the Manufacturer:

• JL Wrangler (2-door)
• JL Wrangler Unlimited (4-door)
• 3-6" LiftControl Arm Specs:
• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 20.185"
• Min. Length = 27-3/8"
• Max. Length = 28-7/8
• Axle End = 7/16" (12mm) Bolt
• Frame End = 9/16" (14mm) Bolt
