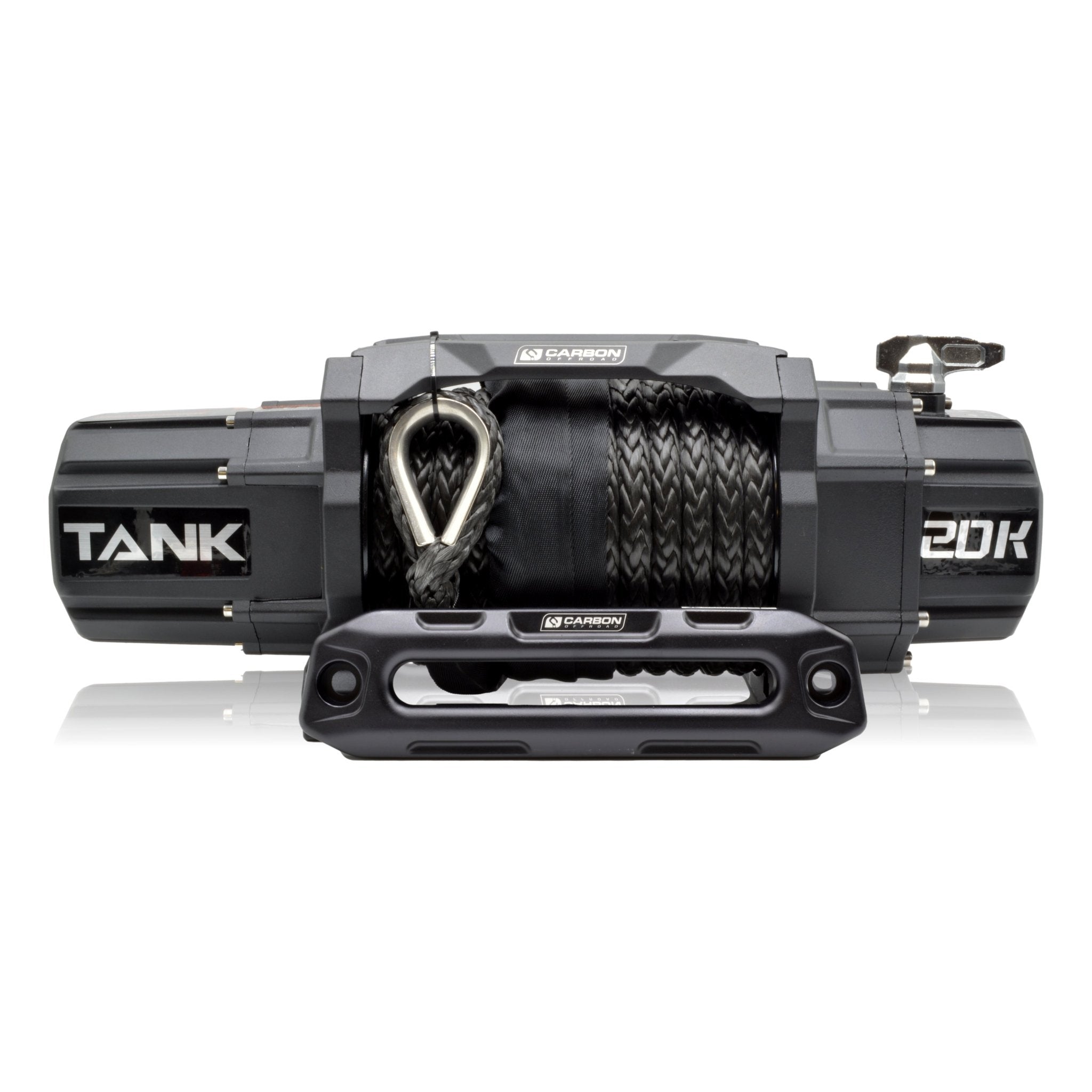

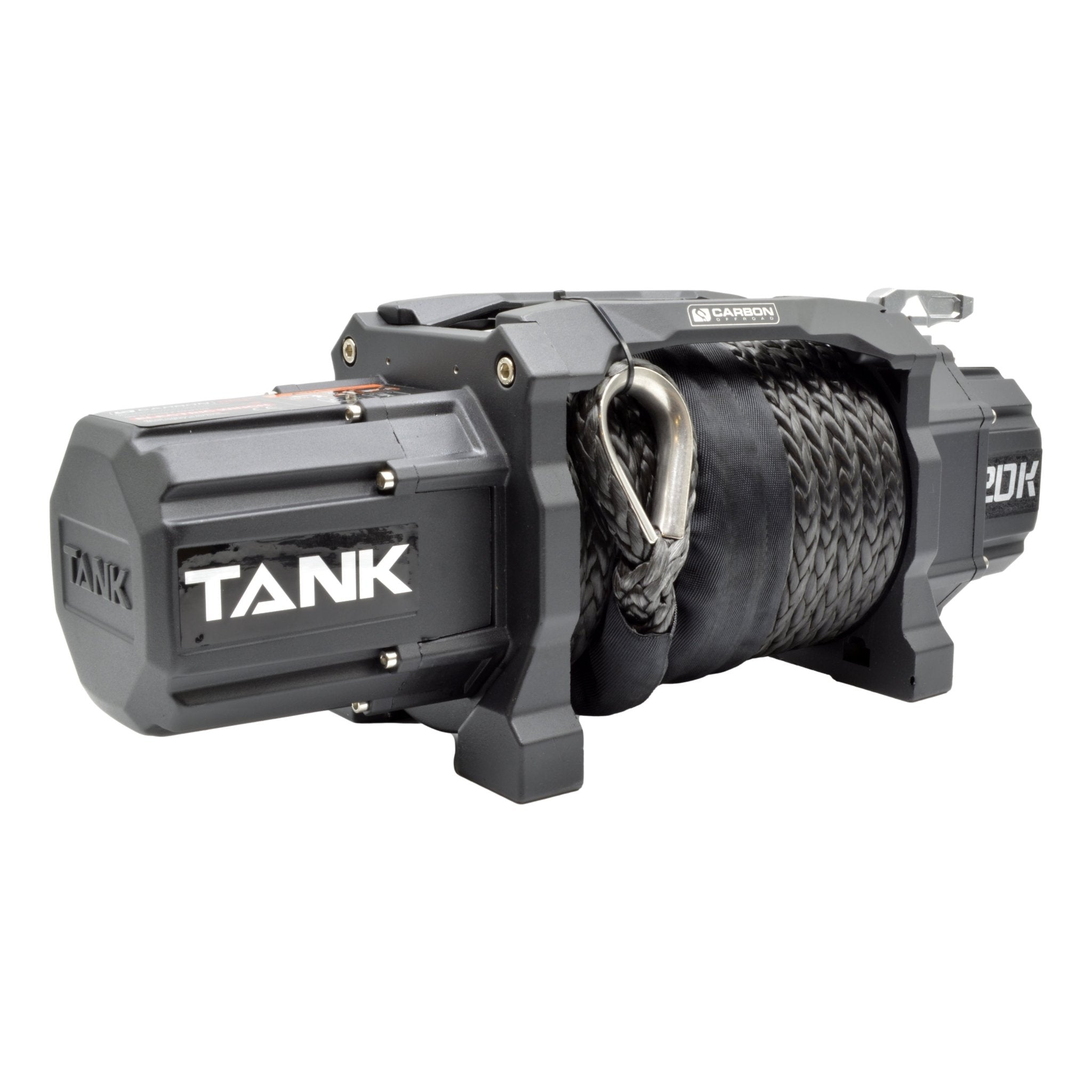

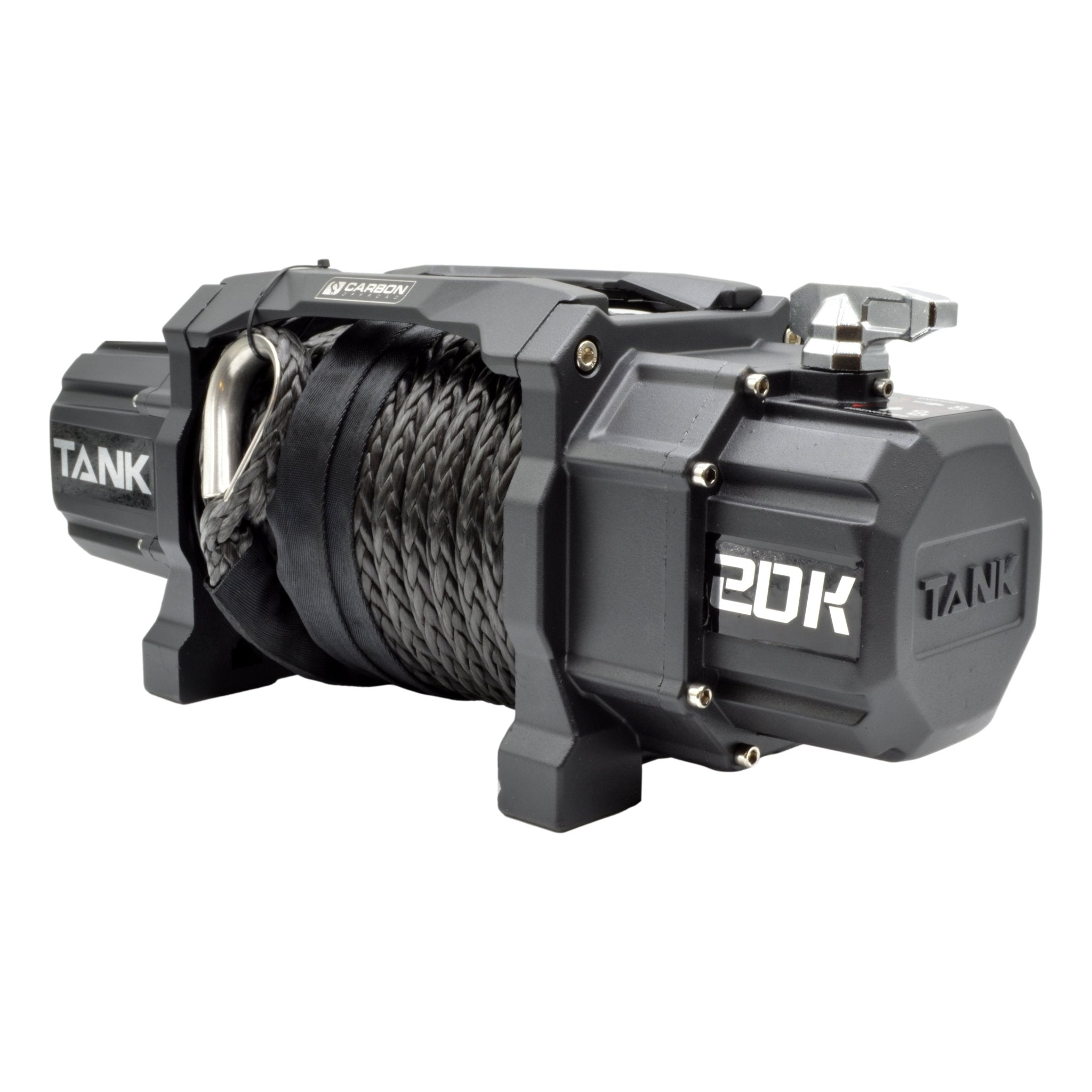

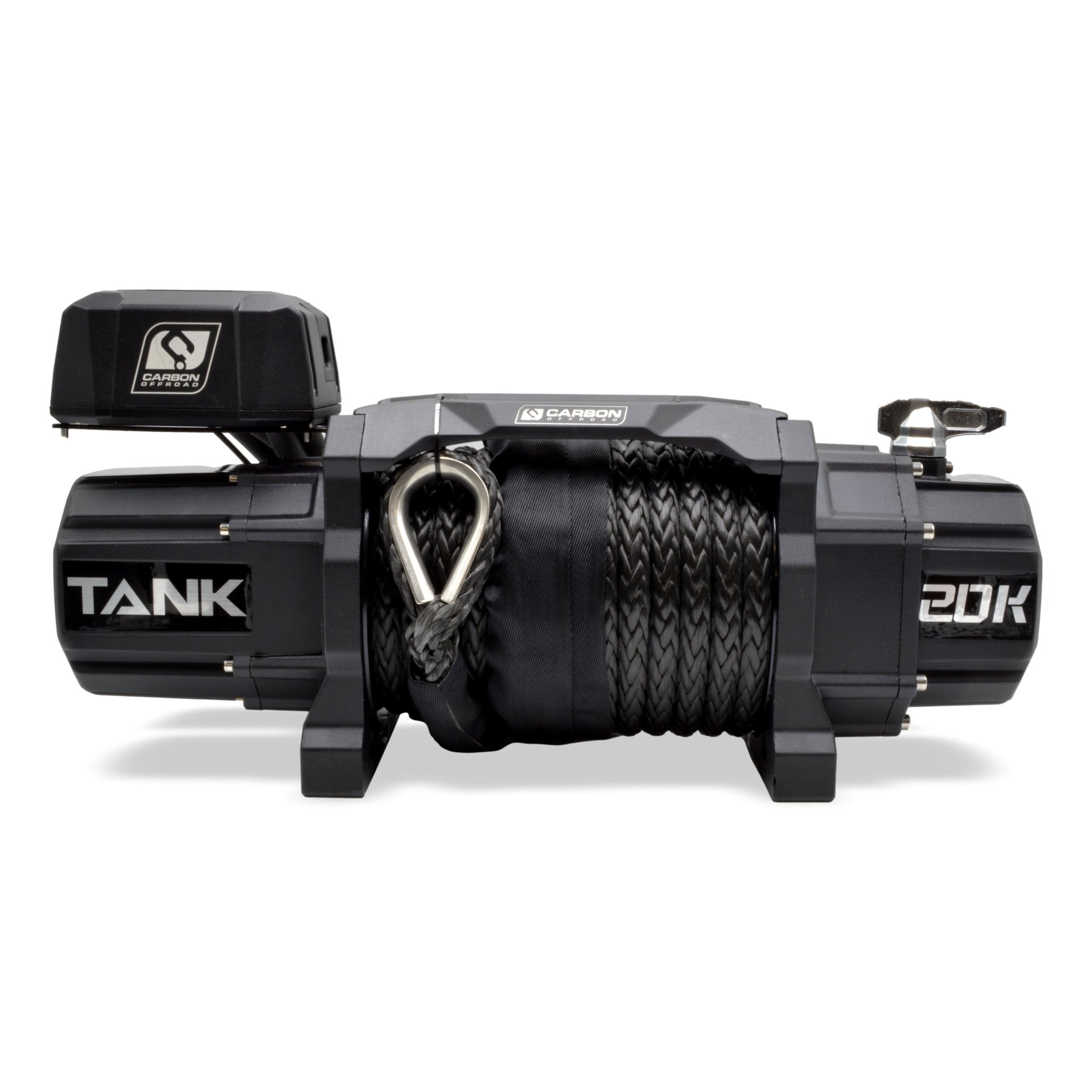

Carbon TANK - 20000lb Winch 24V [Clearance]

Carbon TANK - 20000lb Winch 24V Recovery Winch

The Carbon Offroad TANK 20000lb Winch is a true powerhouse — engineered to deliver unmatched strength, precision, and water protection.

Designed for serious off-roaders, overlanders, and recovery professionals, the TANK represents a new generation of winch design: lighter, stronger, smarter.

Key Features

• The Carbon Offroad TANK 20000lb Winch is a true powerhouse — engineered to deliver unmatched strength, precision, and water protection

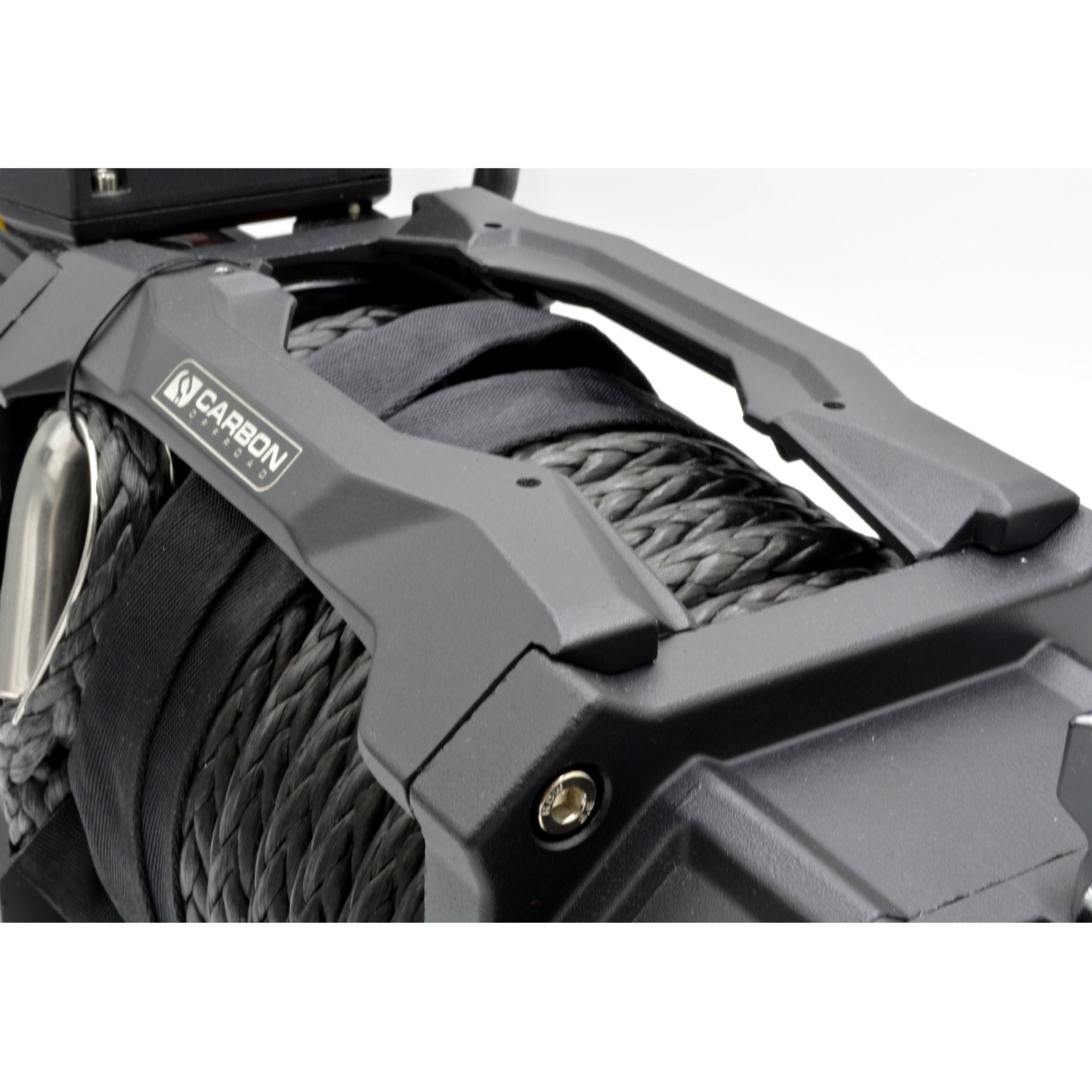

• Engineering & Construction The TANK’s frame and gearbox housings are CNC-machined from billet and cast aluminium alloys for maximum strength with minimum weight

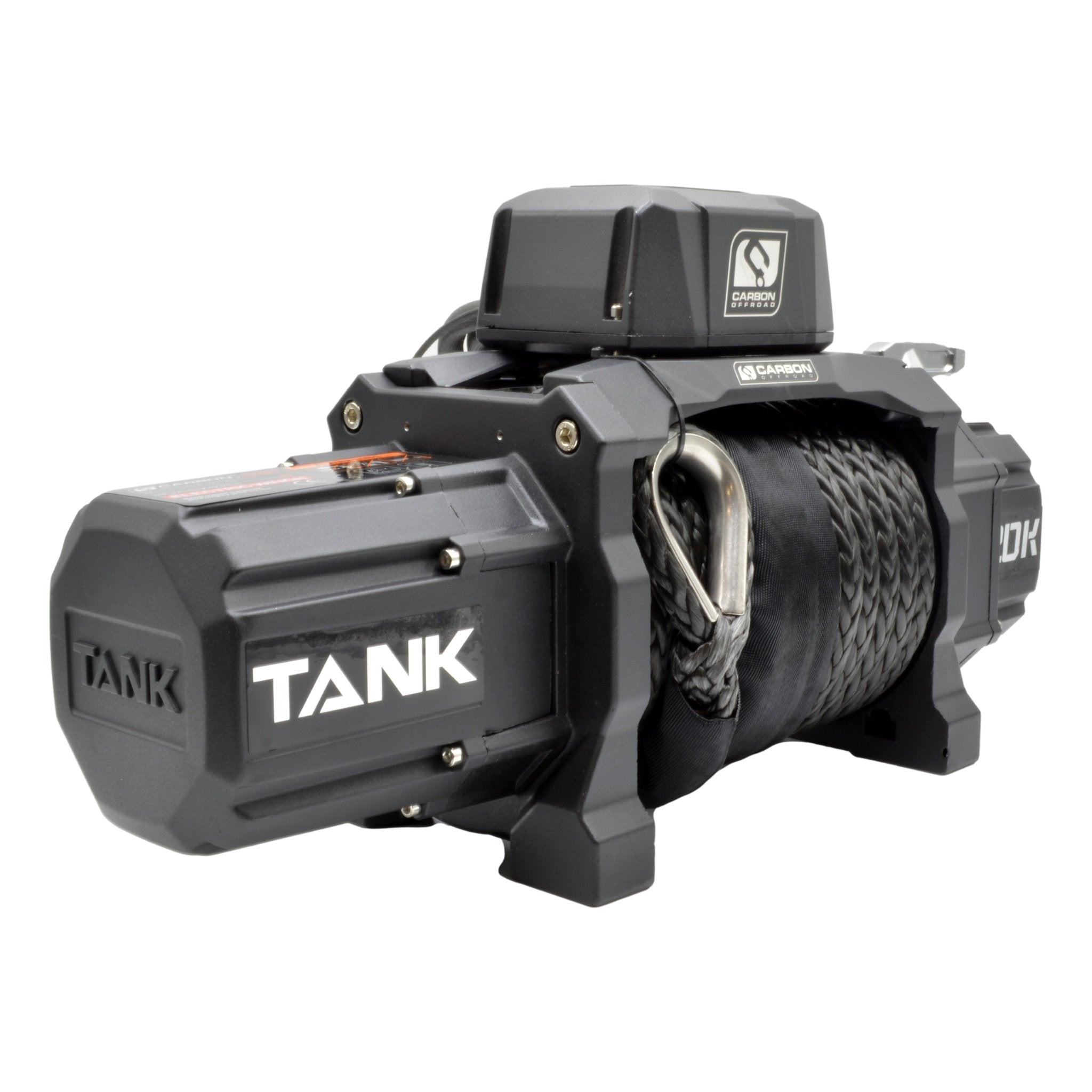

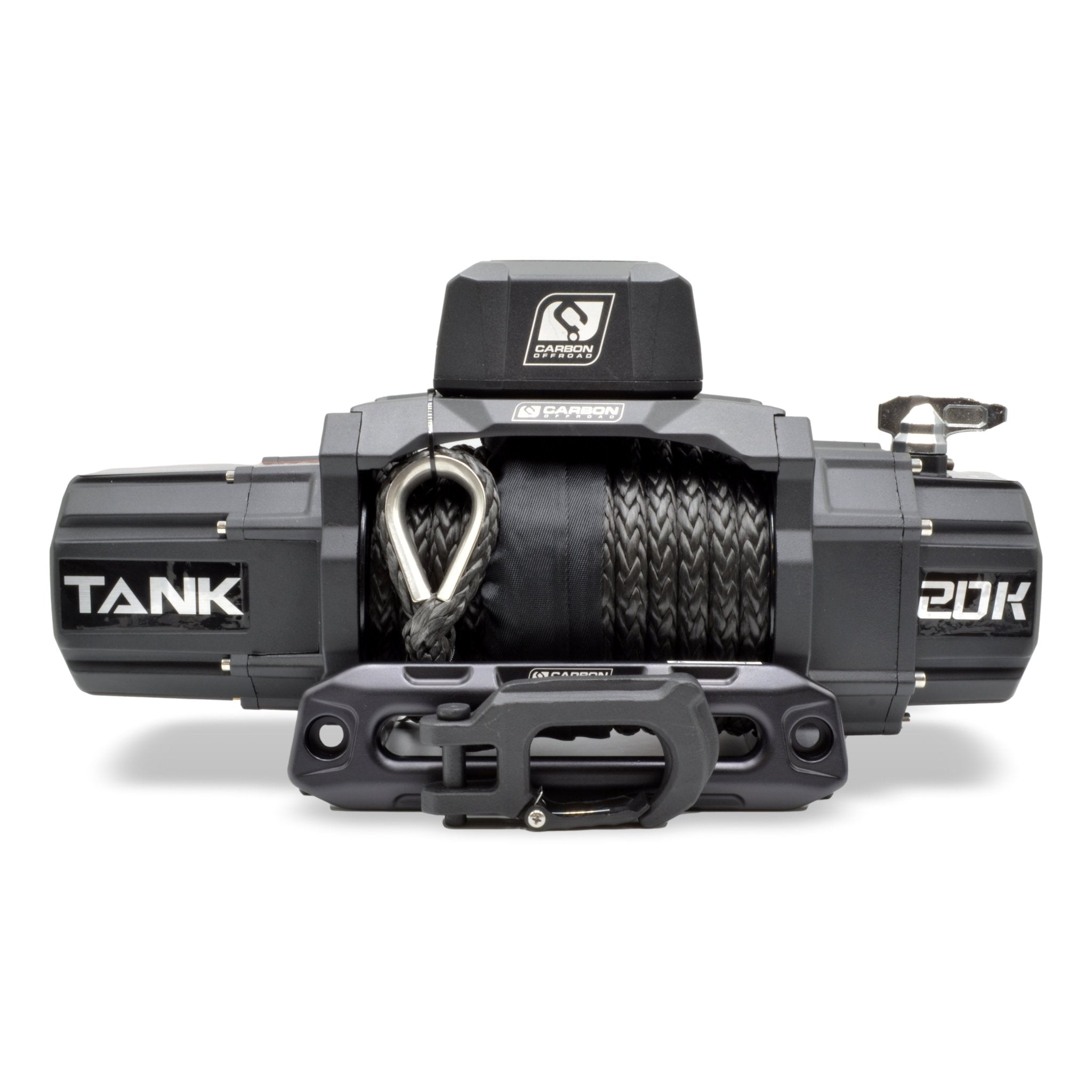

• Key structural components such as the winch drum remain steel for durability, while the cast-alloy control box and solid alloy fairlead add both toughness and refined design

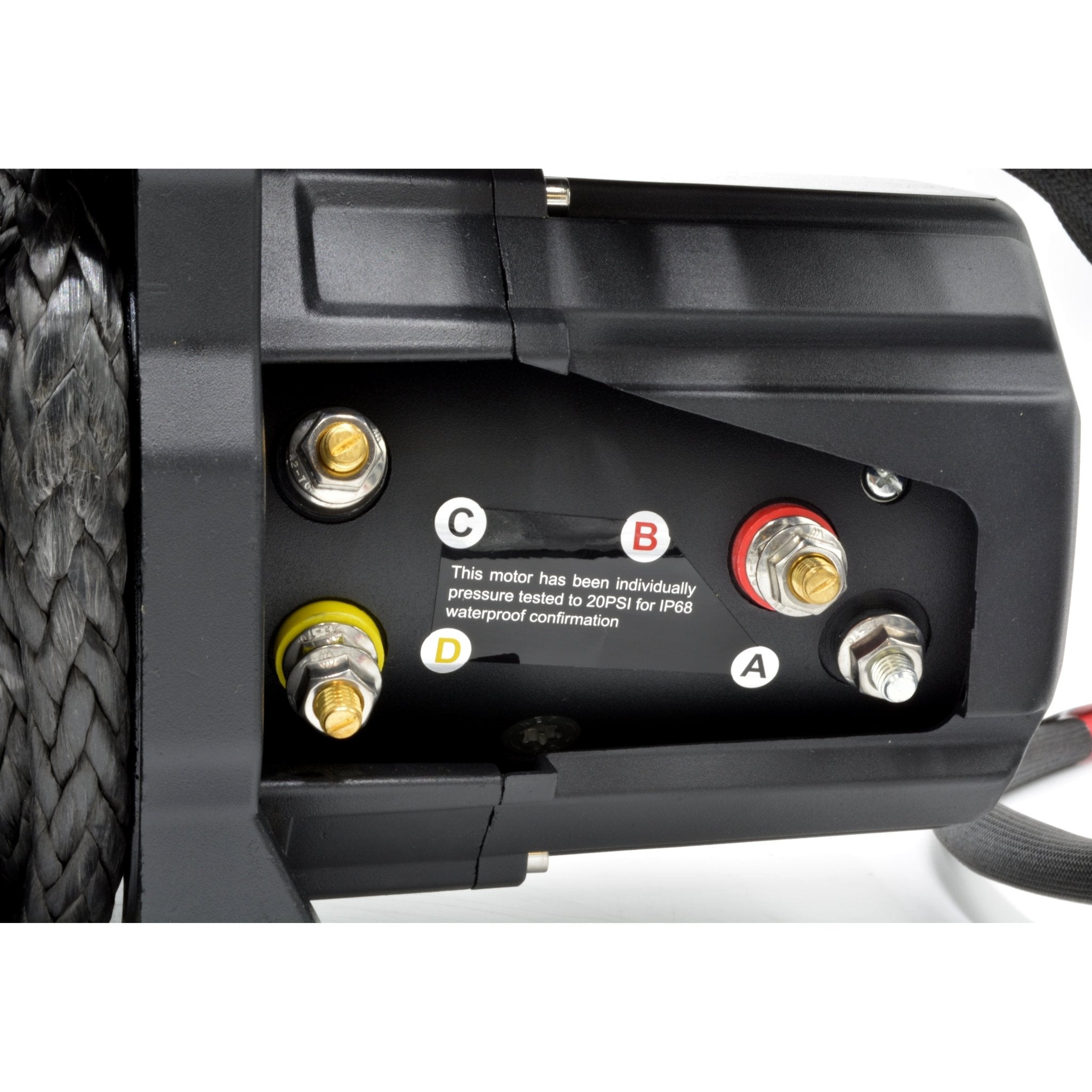

• Sealing & Waterproofing Every TANK winch motor and drum frame mount is assembled and pressure-tested at the factory to 20 PSI — equivalent to 14 m underwater — guaranteeing a watertight seal before it leaves the line
• The gearbox housing features a two-stage mechanical and O-ring sealing system, achieving IP69K-level protection from water ingress

Why Choose This Product

Choose Carbon TANK - 20000lb Winch 24V when you need proven pulling power, dependable recovery performance, and hardware built for off-road, overland, and heavy-duty use.

Perfect For

Trucks, Jeeps, SUVs, overland rigs, trailers, farm vehicles, work vehicles, and off-road recovery setups.

Product Details

• The Carbon Offroad TANK 20000lb Winch is a true powerhouse — engineered to deliver unmatched strength, precision, and water protection
• Engineering & Construction The TANK’s frame and gearbox housings are CNC-machined from billet and cast aluminium alloys for maximum strength with minimum weight
• Key structural components such as the winch drum remain steel for durability, while the cast-alloy control box and solid alloy fairlead add both toughness and refined design
• Sealing & Waterproofing Every TANK winch motor and drum frame mount is assembled and pressure-tested at the factory to 20 PSI — equivalent to 14 m underwater — guaranteeing a watertight seal before it leaves the line
• The gearbox housing features a two-stage mechanical and O-ring sealing system, achieving IP69K-level protection from water ingress
• Specifications Rated pulling power: 20,000 lb (9072 kg) Power: 24 V DC (also available in 12 V) Motor: 7.8 HP series-wound, intermittent duty cycle Cabling: 25 mm² conduited cable with terminated lugs Hand control: 2-in-1 rechargeable wireless or plug-in wired loom (spare battery included) IP rating: IP68 — motor unit pressure-tested to 20 PSI Hook: high-strength forged alloy, wide-gate style Control box: premium cast-alloy design with 600 amp solenoid and inbuilt wireless receiver Isolator: heavy-duty marine rotary switch with mounting bracket Winch housing: cast and precision-machined alloy Gear train: 440:1 ratio 4-stage planetary gearset Clutch: rotating ring-gear clutch, easy to engage/disengage Synthetic rope: 21 m × 14 mm UHMWPE fibre Drum diameter: 88 mm Battery: 650 CCA minimum Weight: 37 kg (shipping), 33.4 kg (as fitted) Performance & Control A 7.8 HP series-wound motor, 440:1 four-stage planetary gearset, and rotating ring-gear clutch combine for smooth power delivery and easy free-spooling
