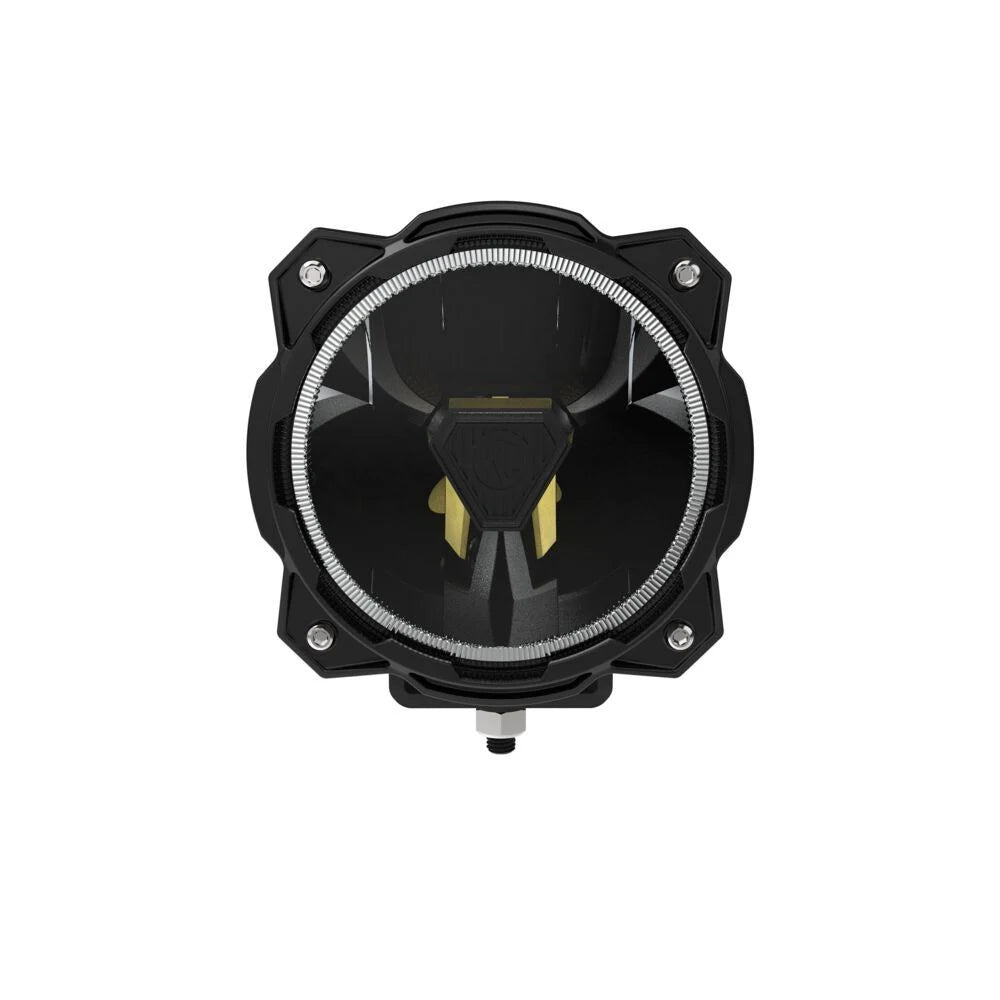

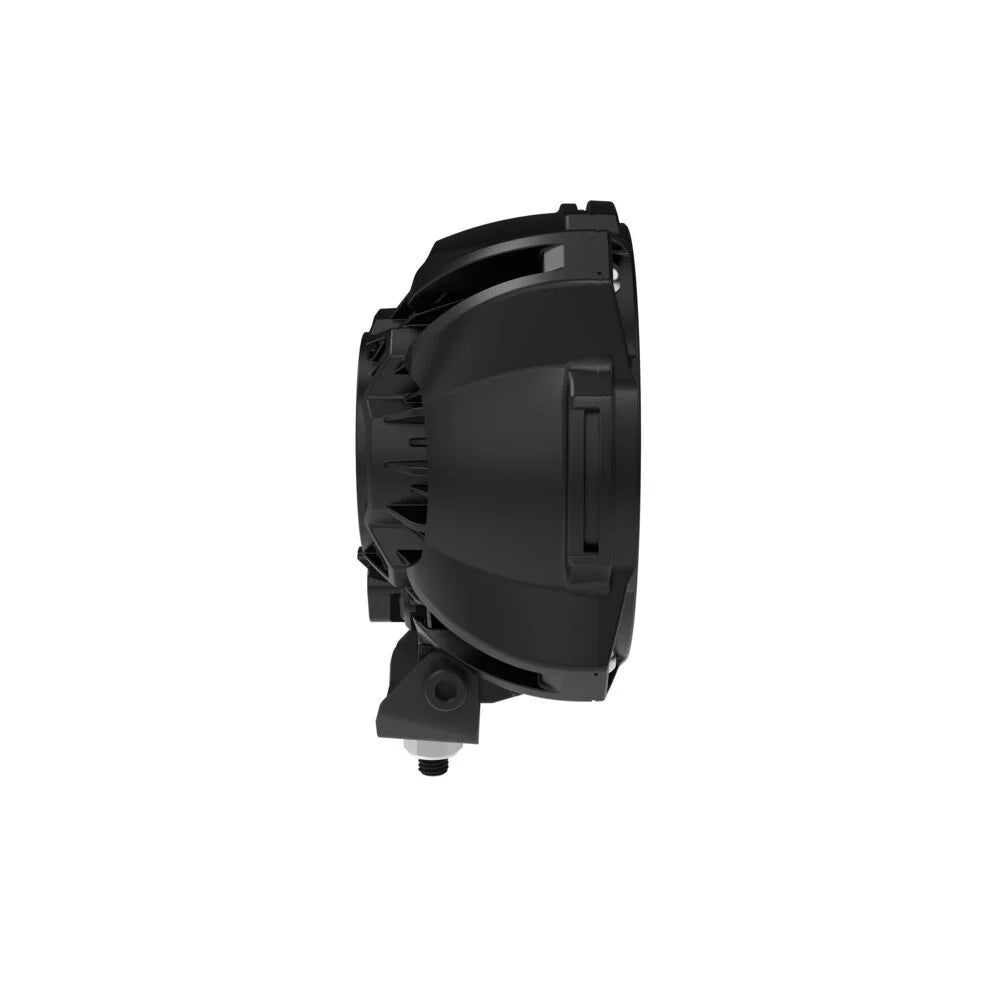

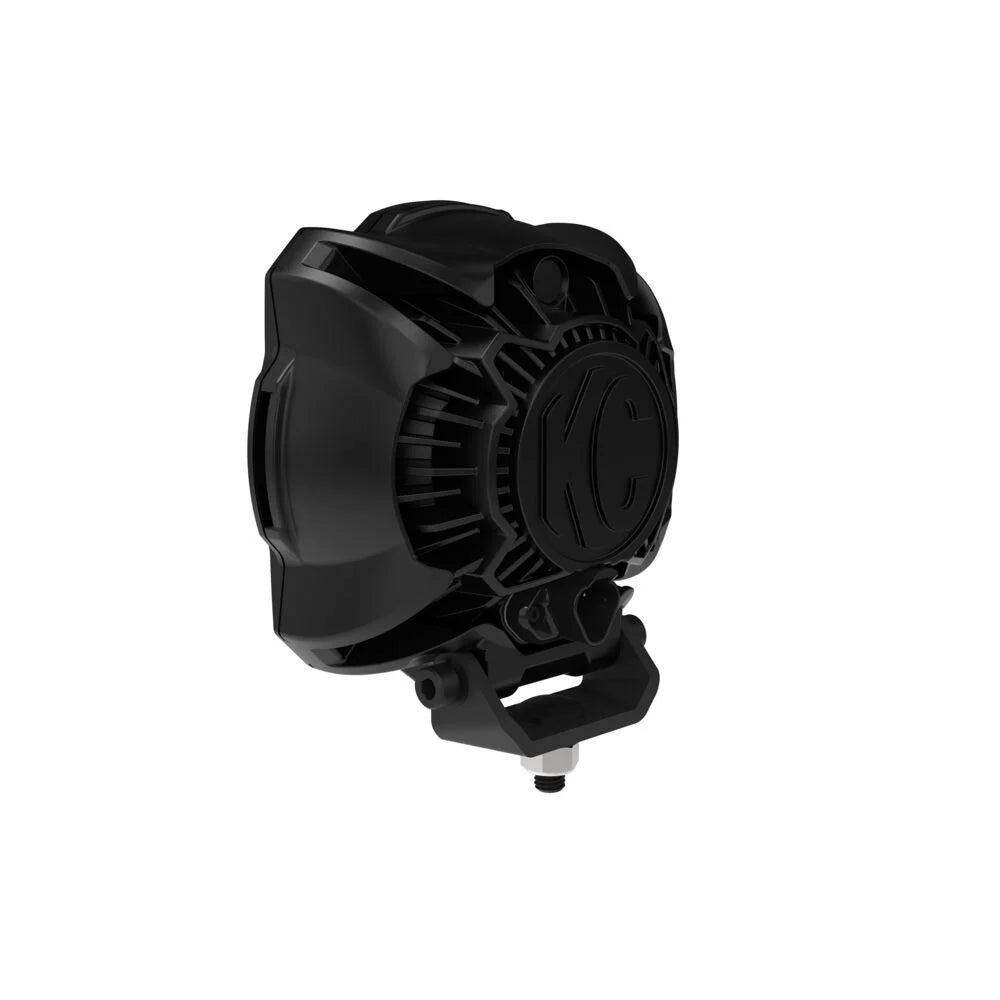

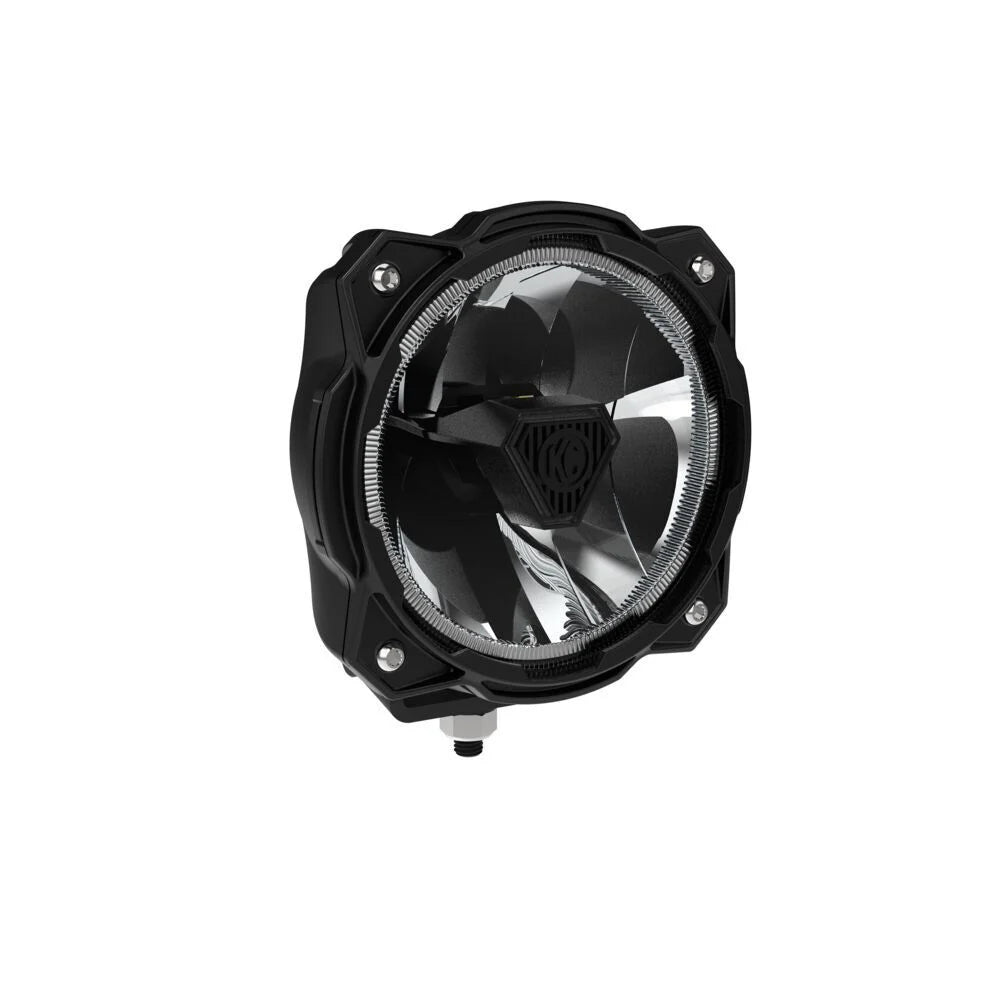

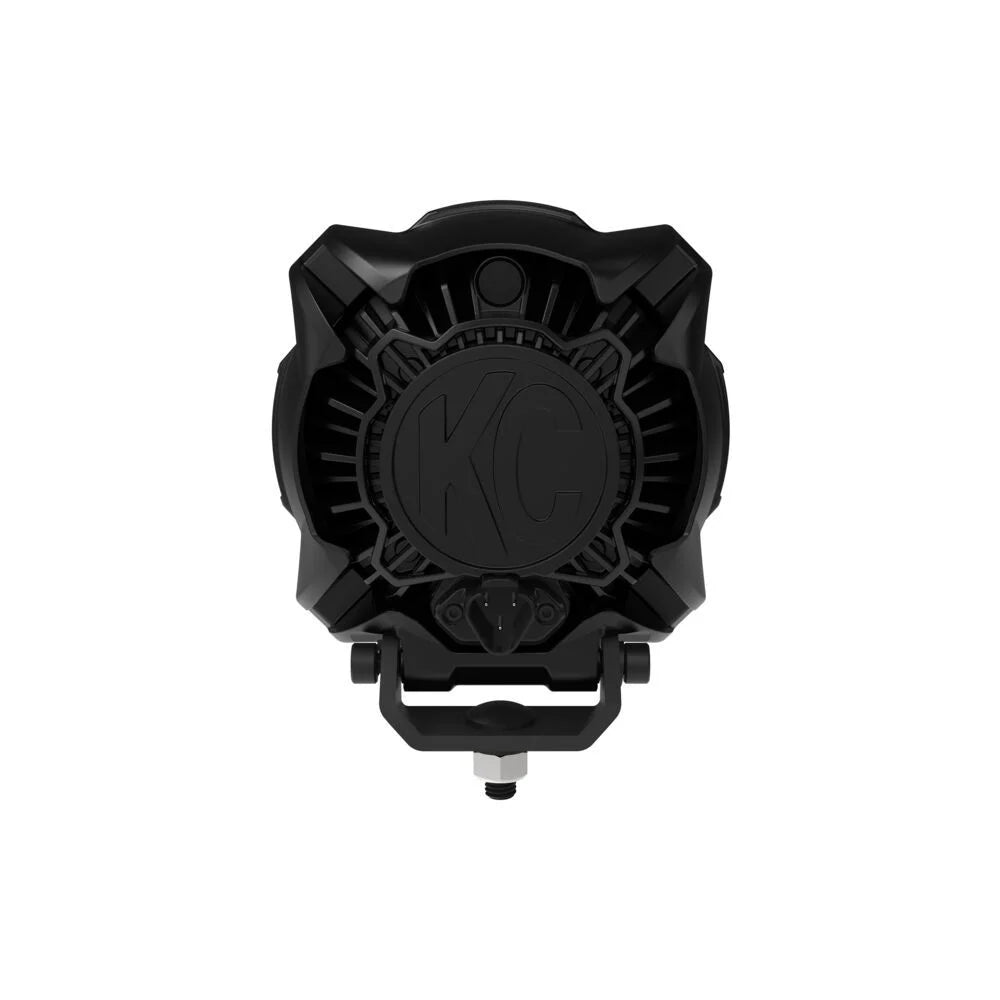

KC HiLiTES Gravity® Titan™ LED Light Pods — Pair Pack

Own the night with the newest round from KC’s Titan family. This 6" LED pair delivers real trail performance with 3-Source optics, Gravity® Reflective Diode (GRD) tech, and dual power modes: a high-output forward beam for speed and an integrated Amber Dust Light to keep you visible in silt, snow, or convoy conditions. IP68 sealing and Pass-Through Front Cooling keep output steady when the weather or pace gets spicy.

Why drivers choose it

• Serious, usable output — 2,972 raw lumens per light with optics that blend short, mid, and long-range coverage for confidence at speed and on technical trails.

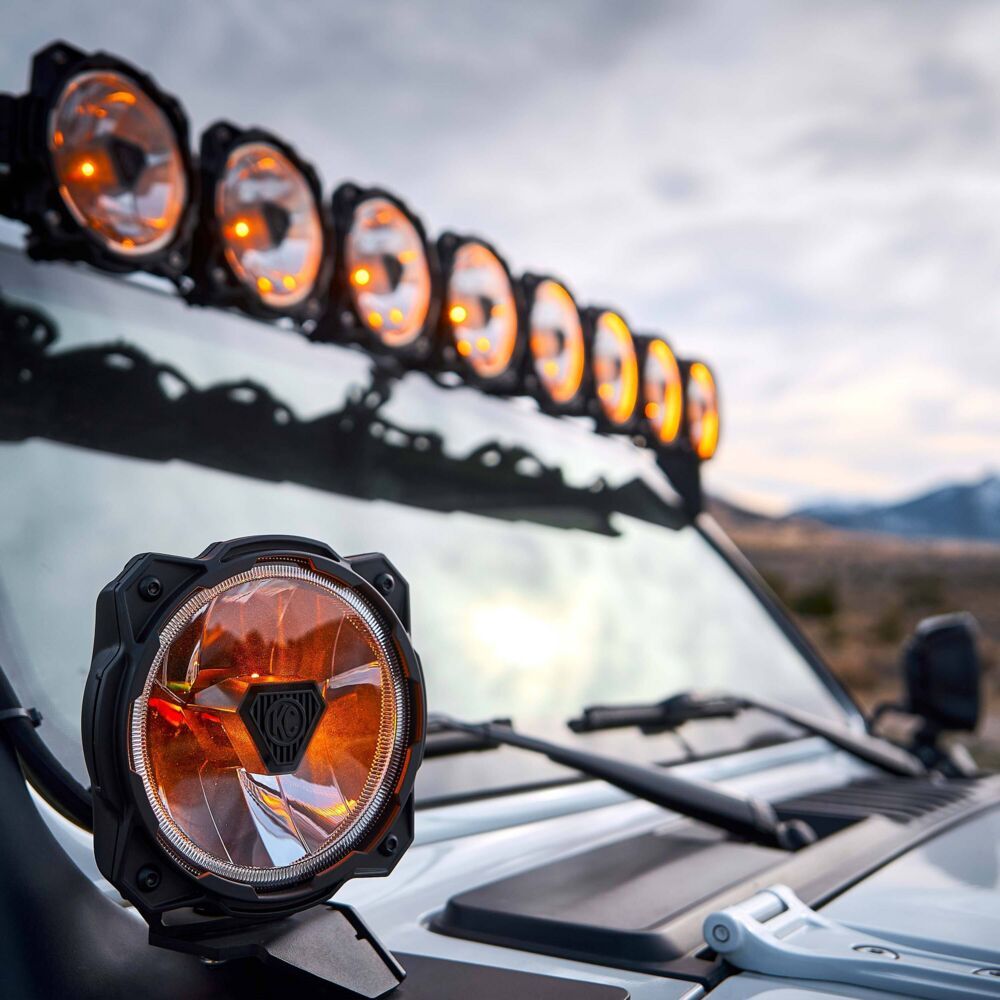

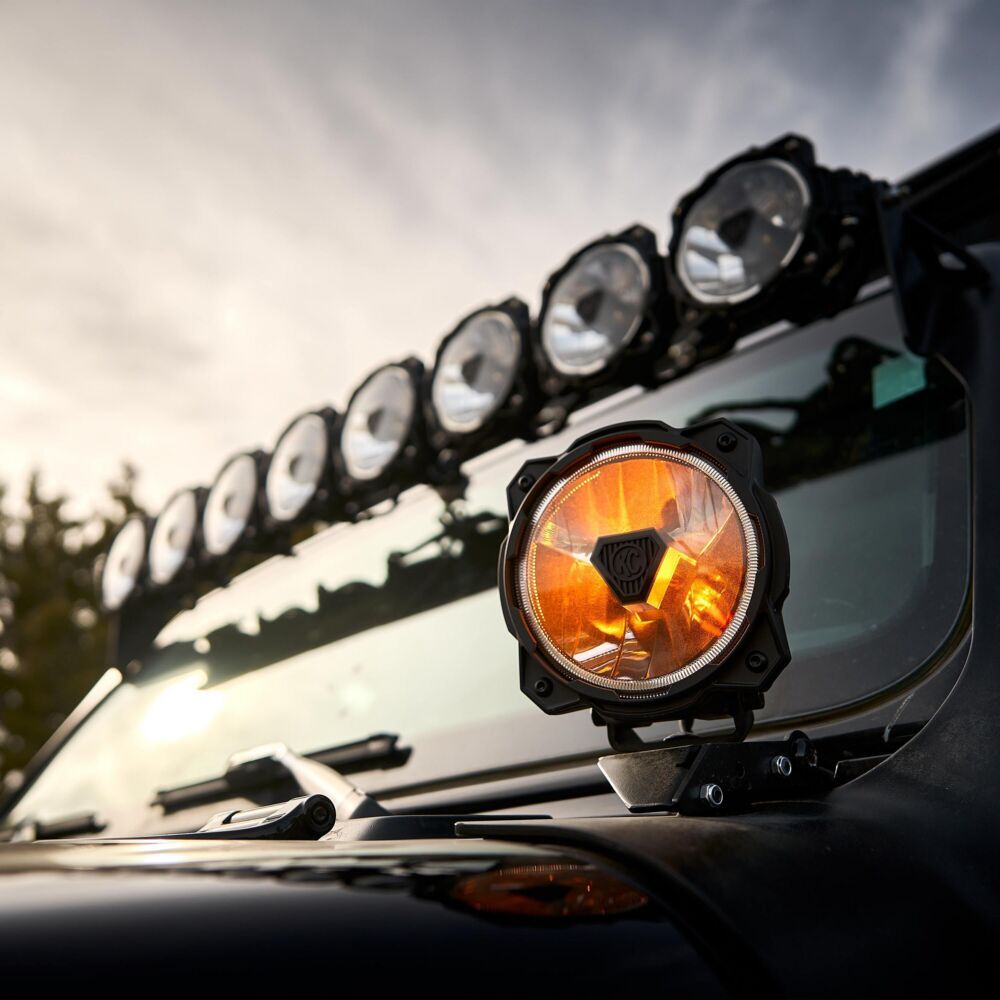

• Dual-mode control — Flip between High-Power and the built-in Amber Dust Light for low-visibility travel and pack awareness.
• Built to survive — IP68, MoistureBlock® sealed plug, and Pass-Through Front Cooling for thermal stability and water/dust resistance.
• Plug-and-play install — Includes a premium wiring harness with 3-position switch and KC 6" black covers.

Choose your beam pattern

• Spot — maximum reach: 537 m, 144,250 cd per light. Best for high-speed desert and long sightlines.
• Wide-40 — broad shoulder-to-shoulder spread: 394 m, 77,500 cd per light. Ideal for backroads and technical trails.
• SAE Driving — on-road friendly driving pattern: 341 m, 58,023 cd per light. Check local regulations; SAE Driving is the compliant option.

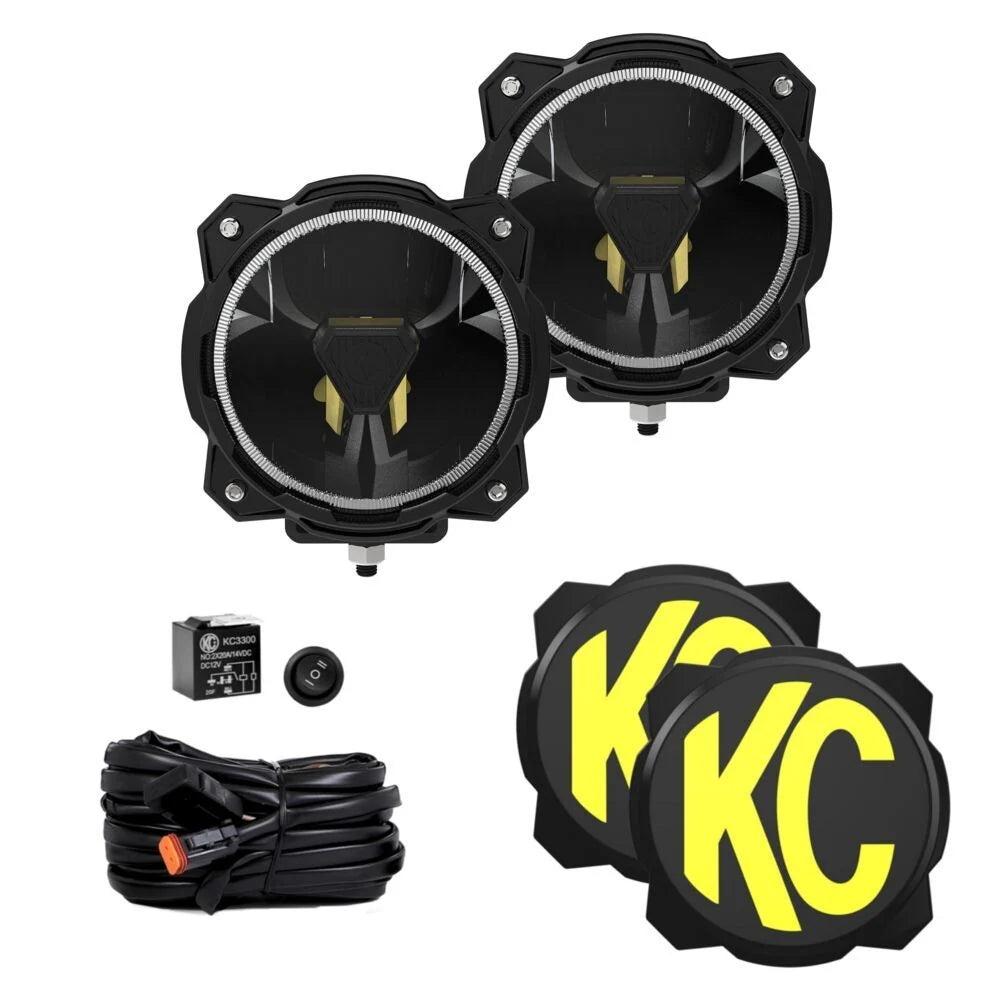

What’s in the box

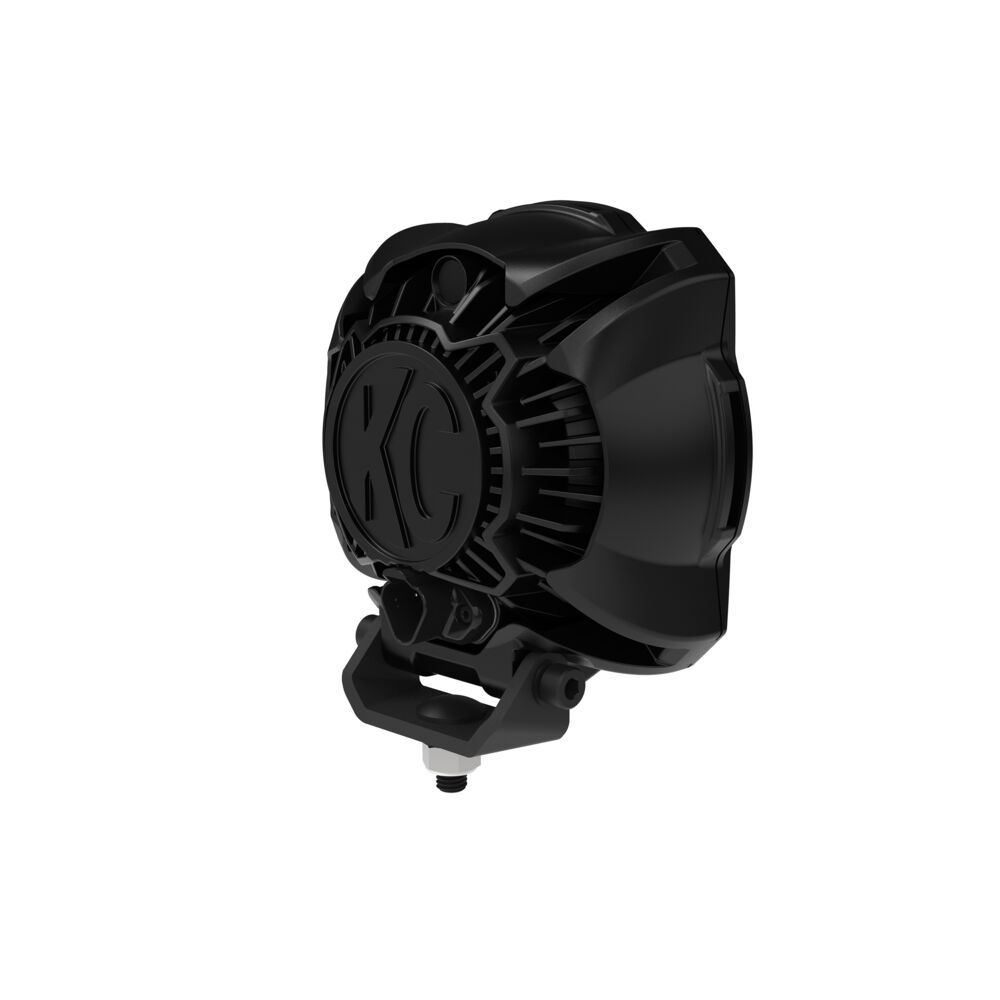

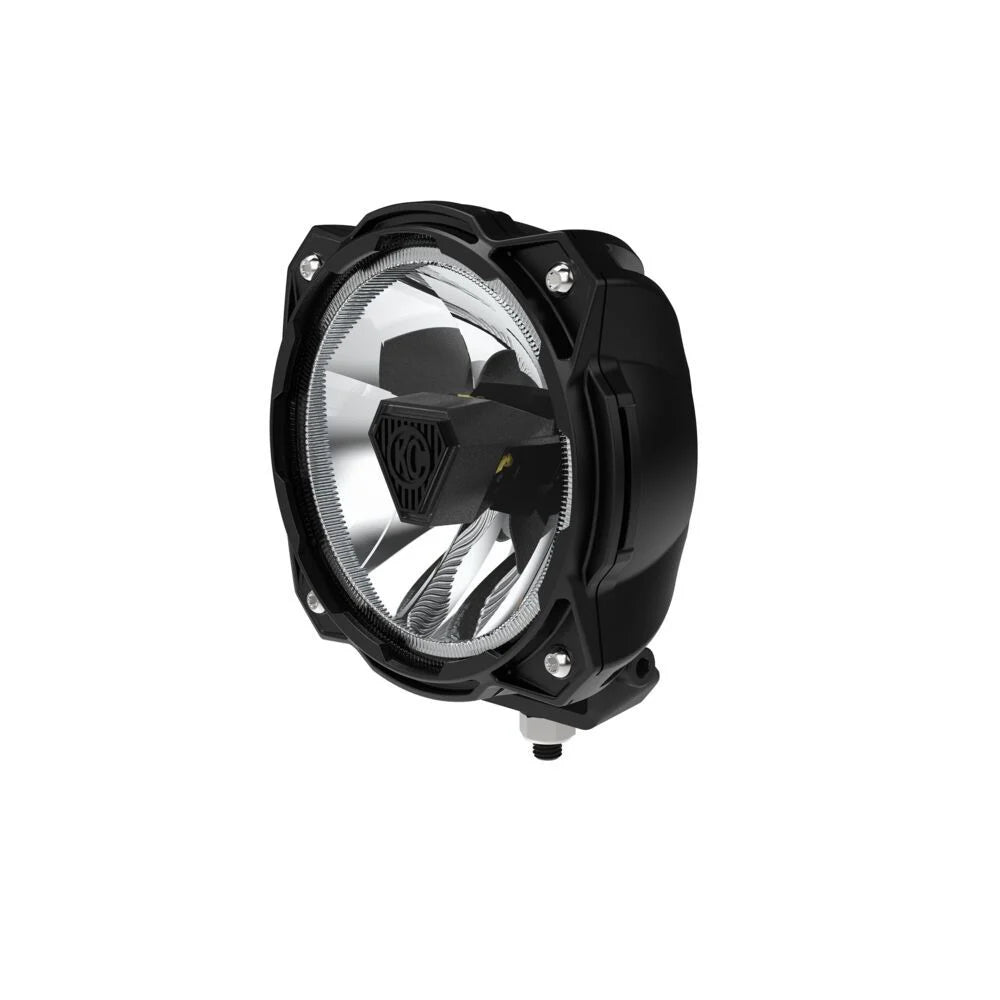

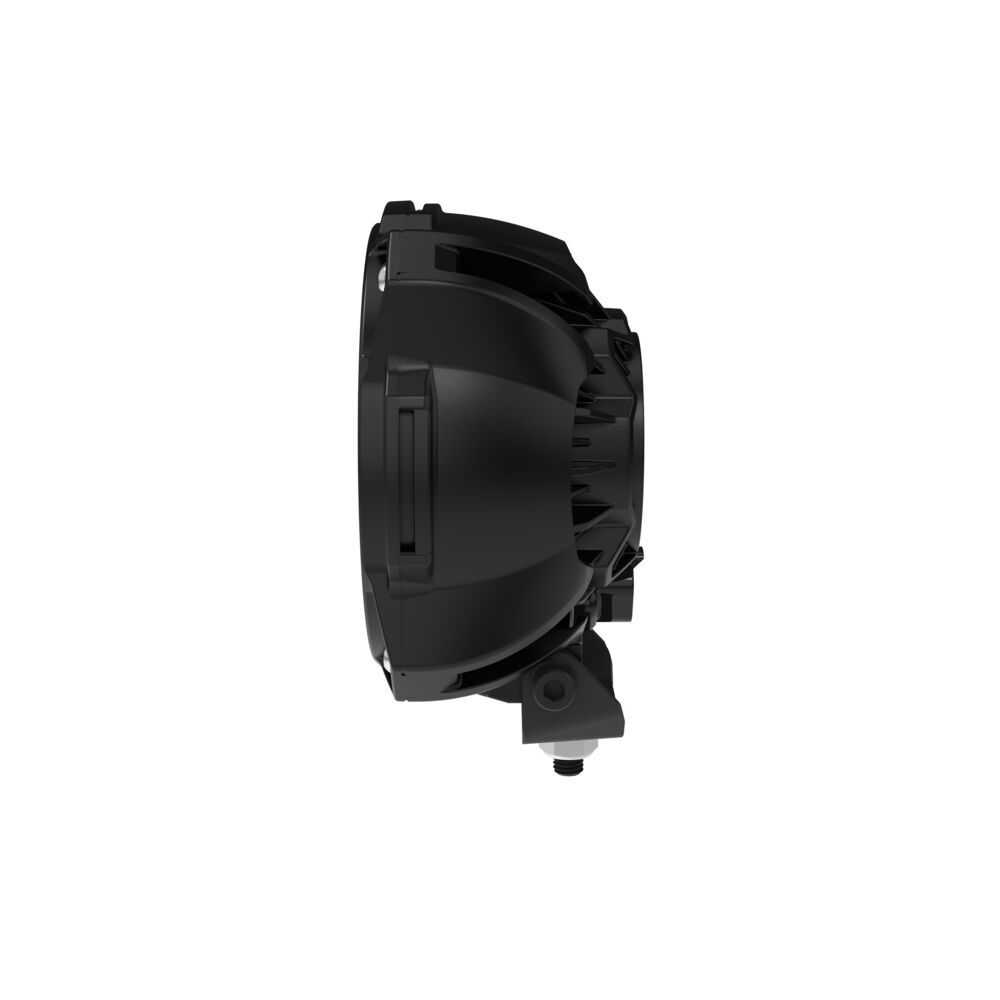

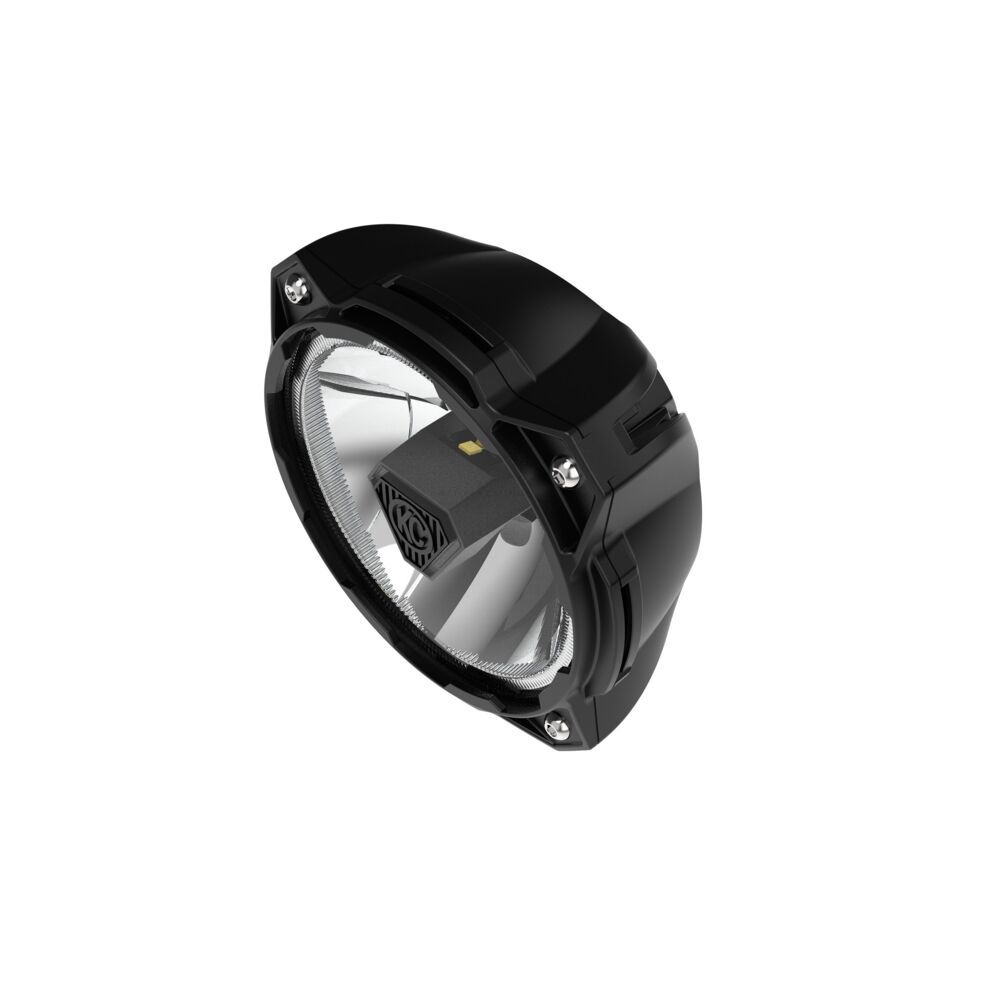

• (2) Gravity® Titan™ 6" LED lights (your chosen beam pattern)

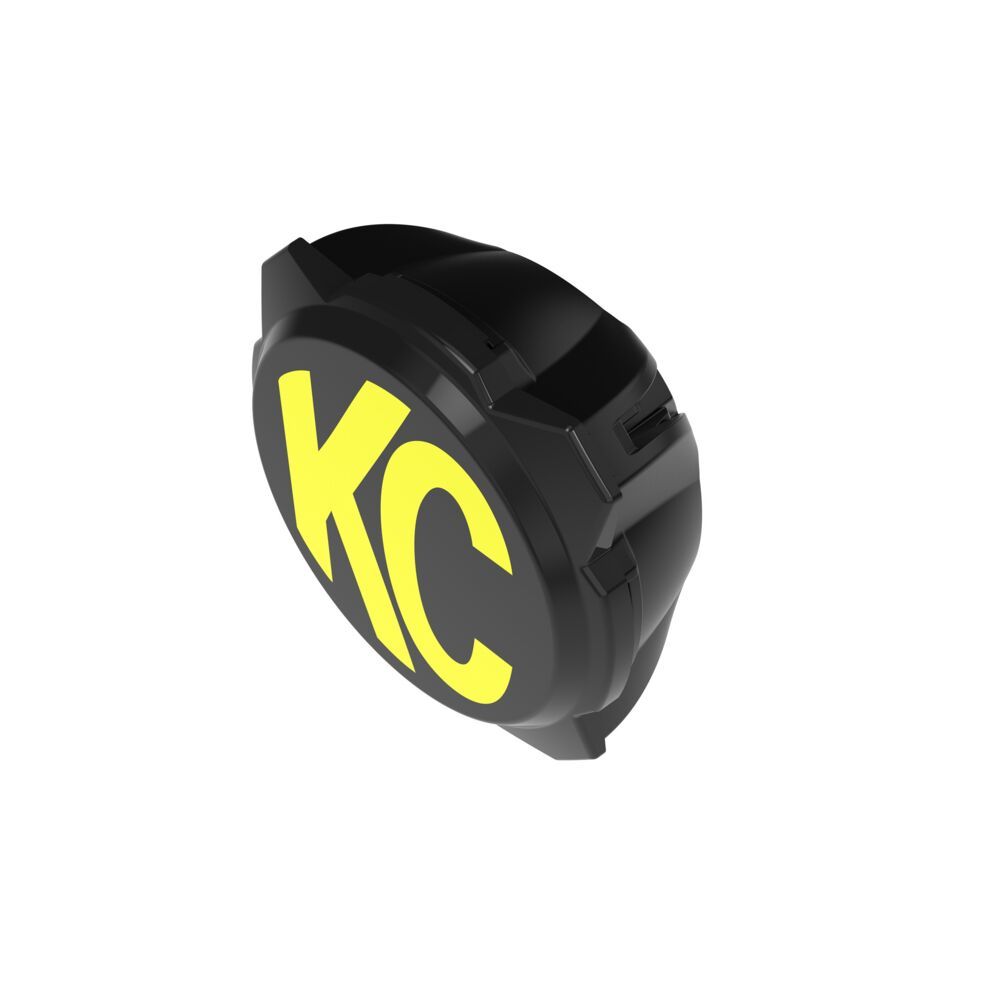

• (2) KC 6" black covers (yellow KC logo)
• Complete plug-and-play wiring harness with 3-position switch (Dust/Backlight • Off • High-Power)
• Cover removal tool, brackets, and mounting hardware

Performance & core specs (per light)

• Raw lumens: 2,972 lm • CCT: 5000K
• Power / draw: 39W, 3.29A @ 12V (pair: 79W, 6.58A)
• Voltage: 9–36V • Ingress: IP68
• Beam distance (by pattern): Spot 537 m, Wide-40 394 m, SAE Driving 341 m

Ideal uses

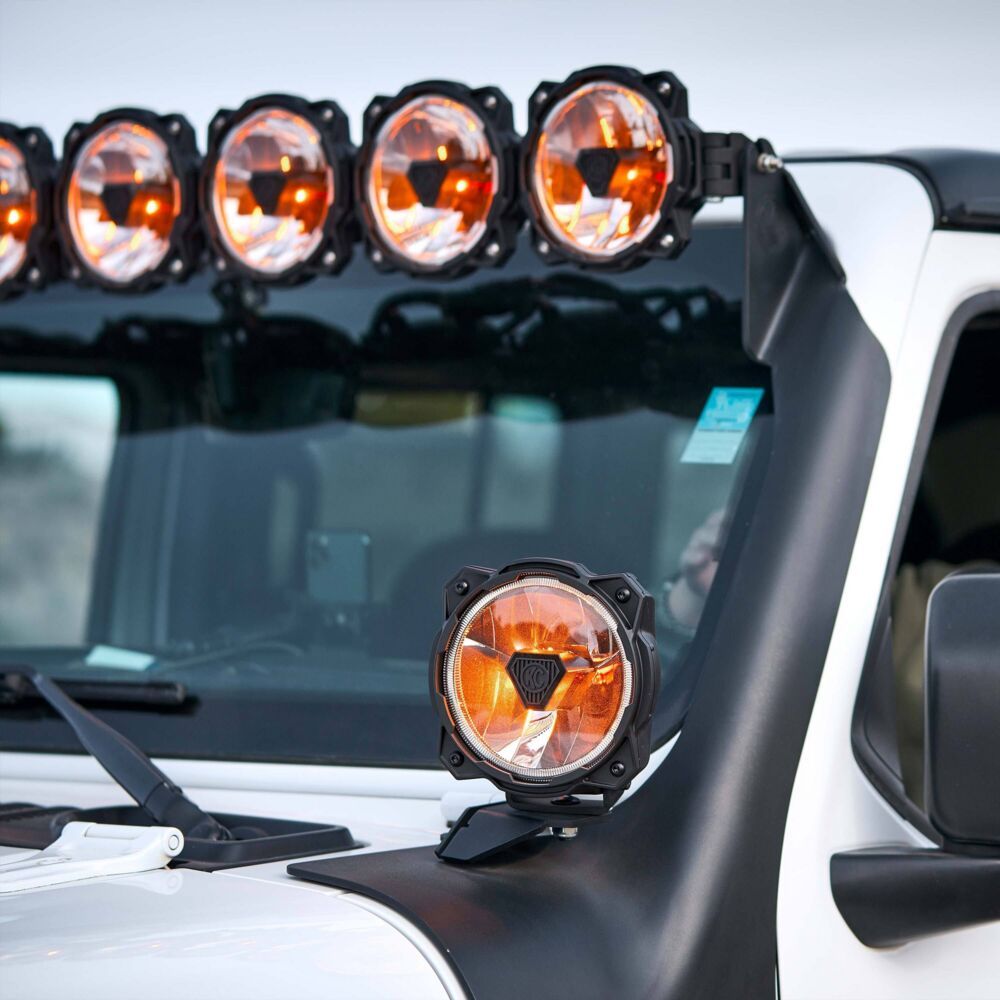

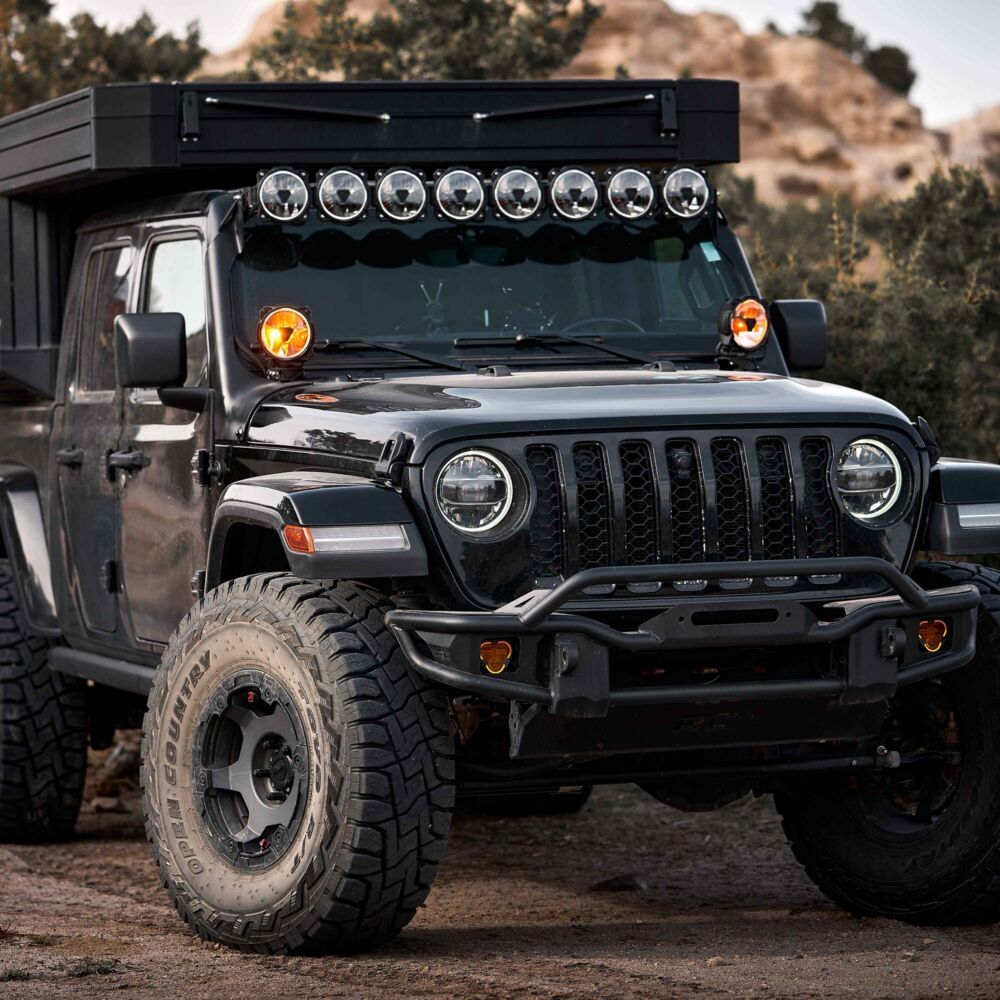

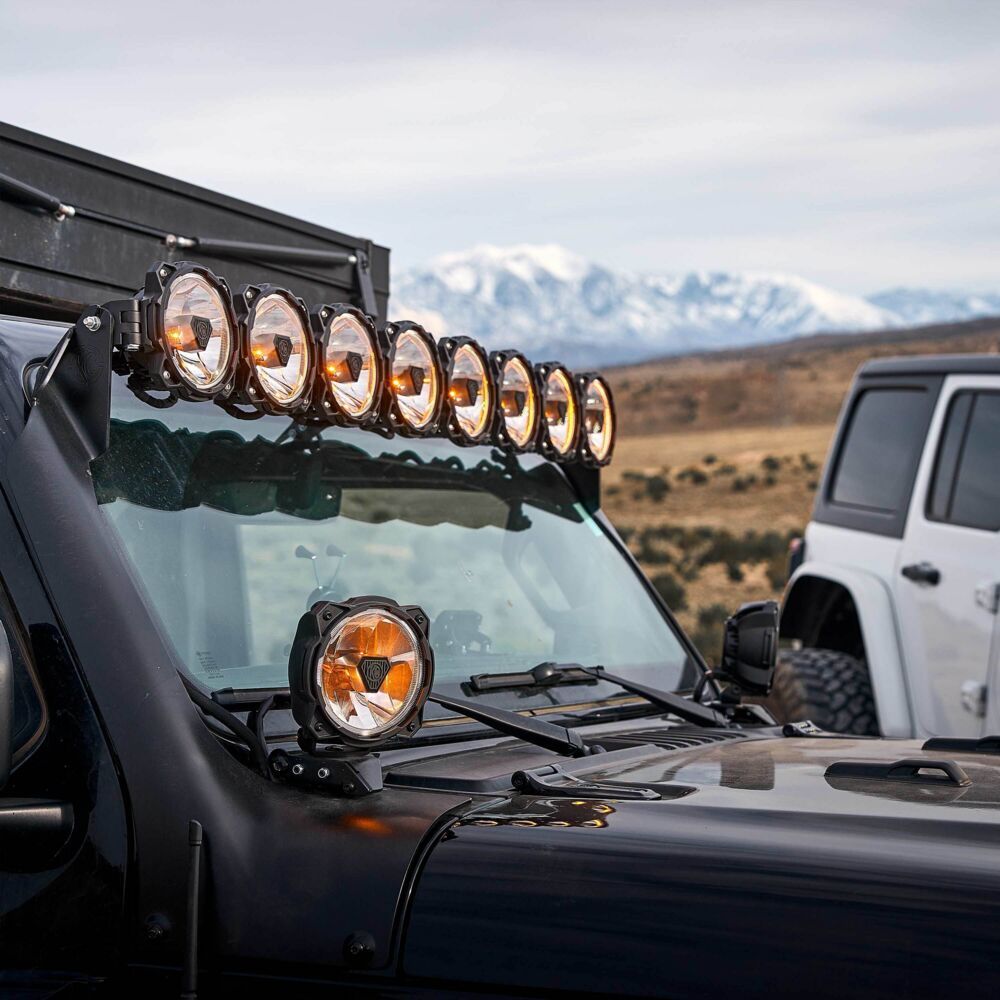

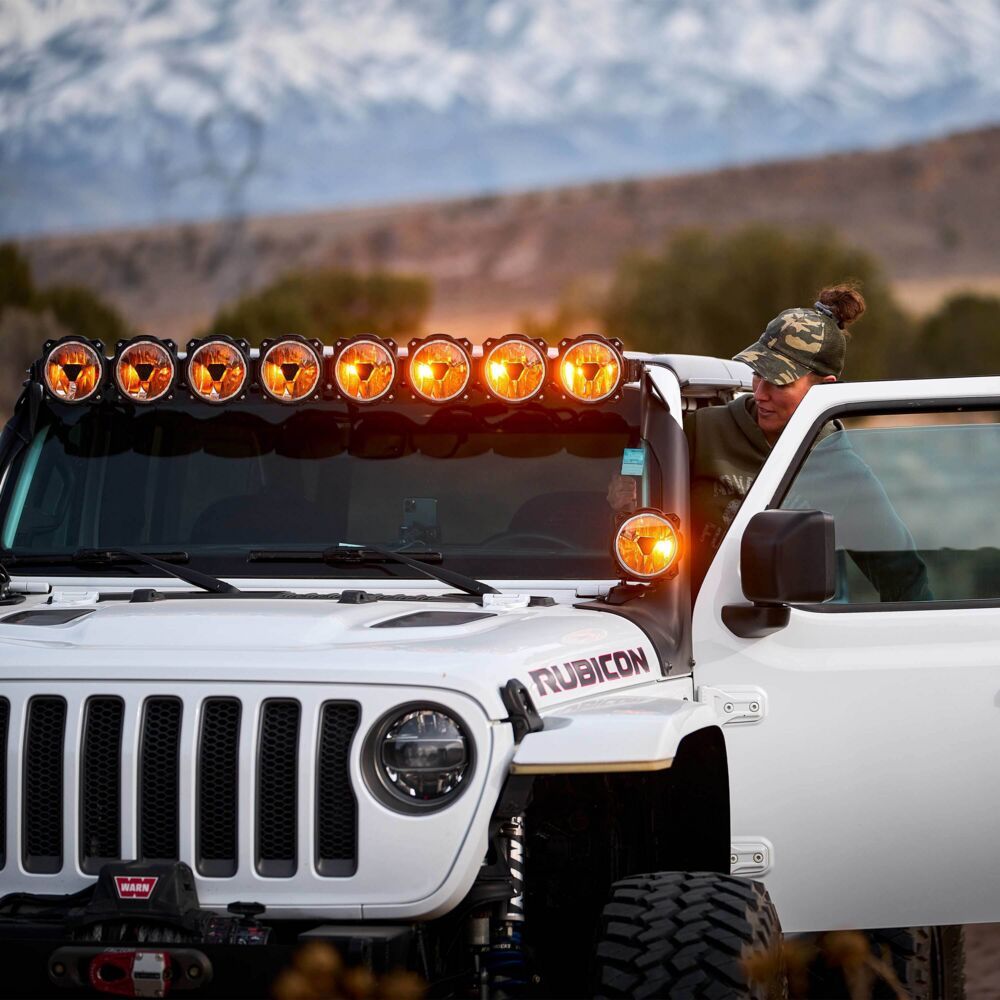

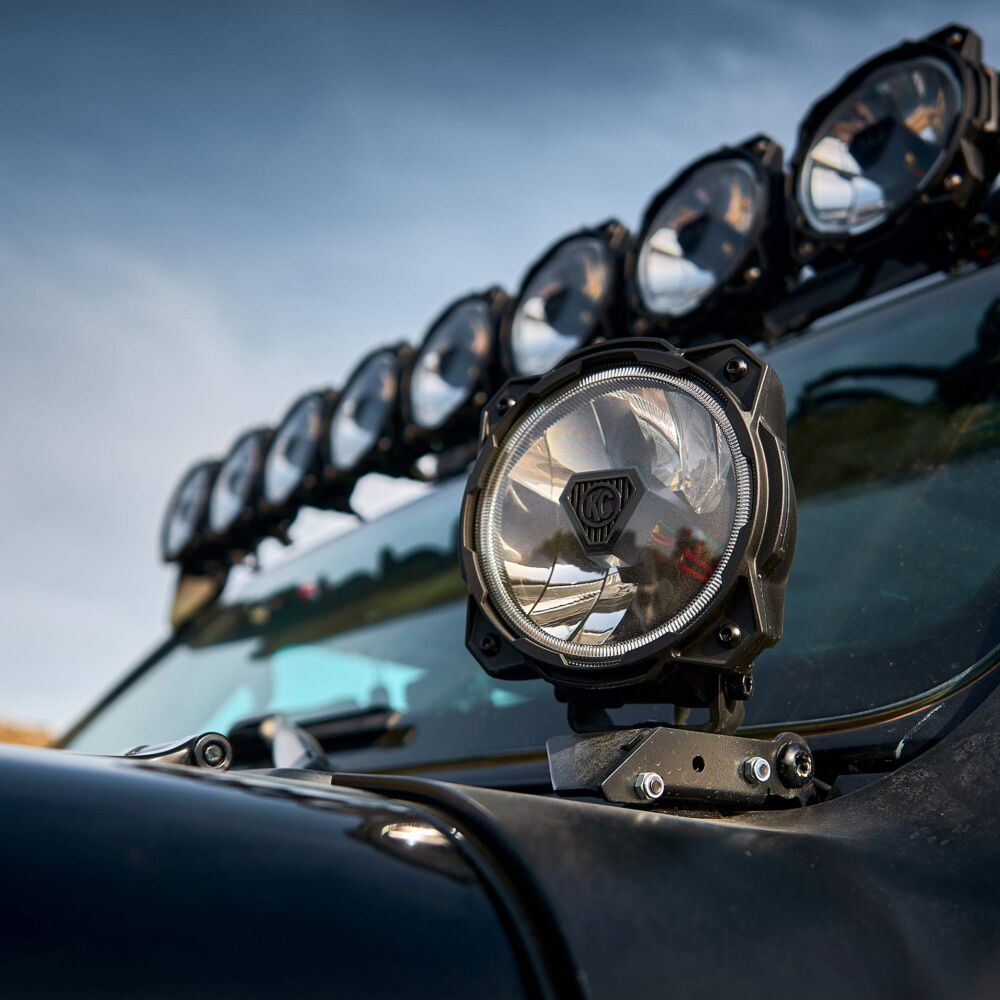

• A-pillar/ditch lights for width with Wide-40 or Driving

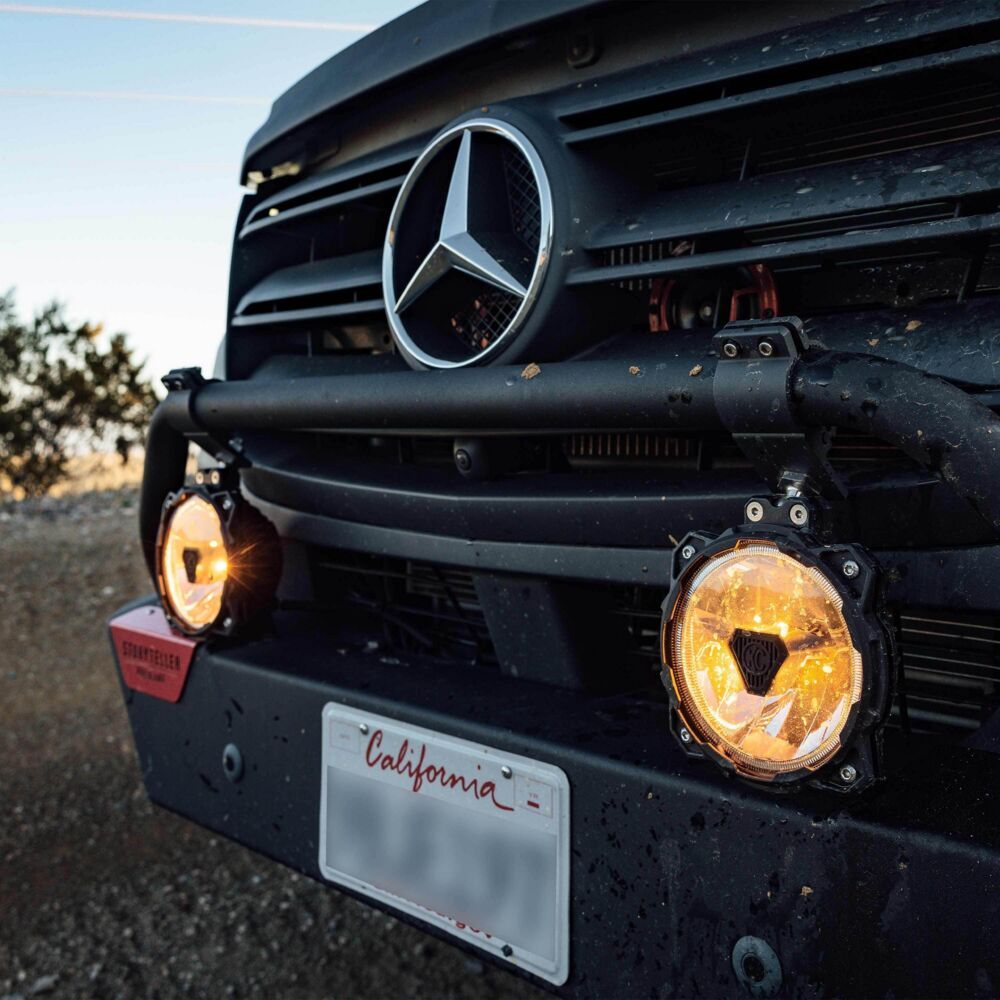

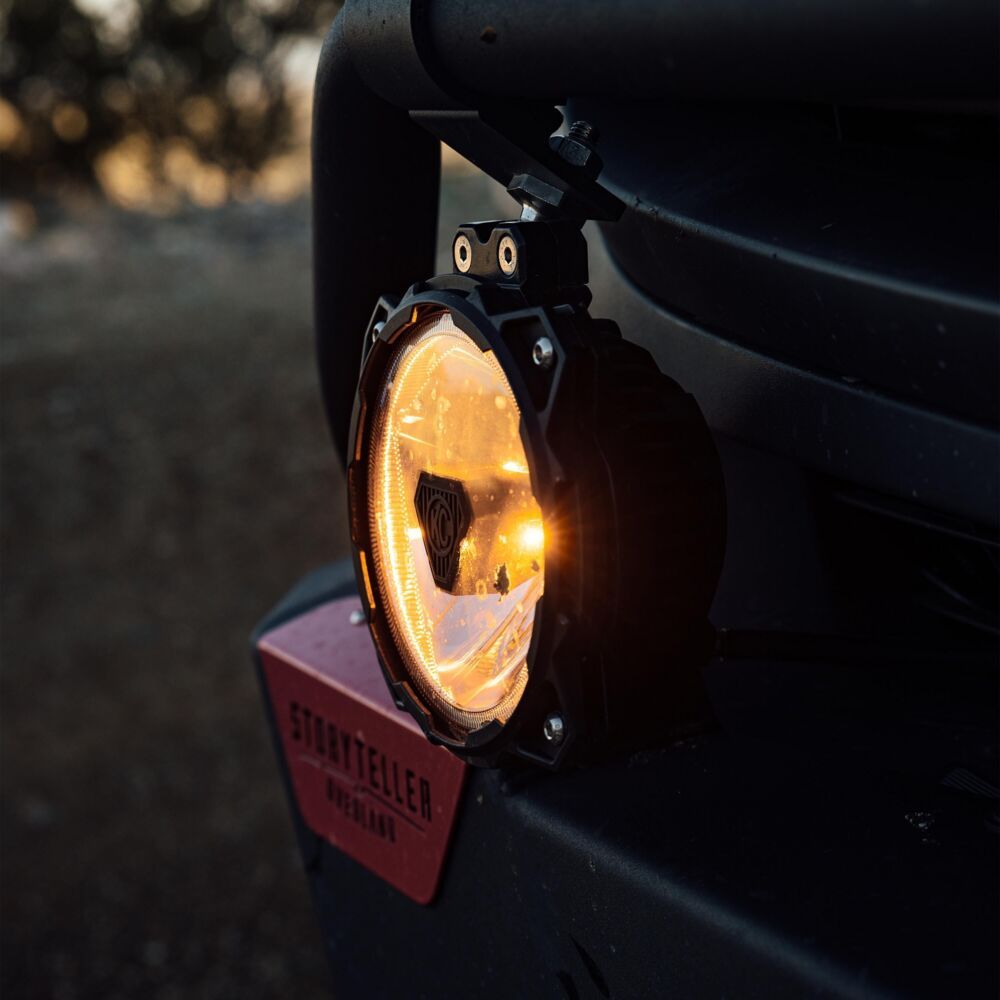

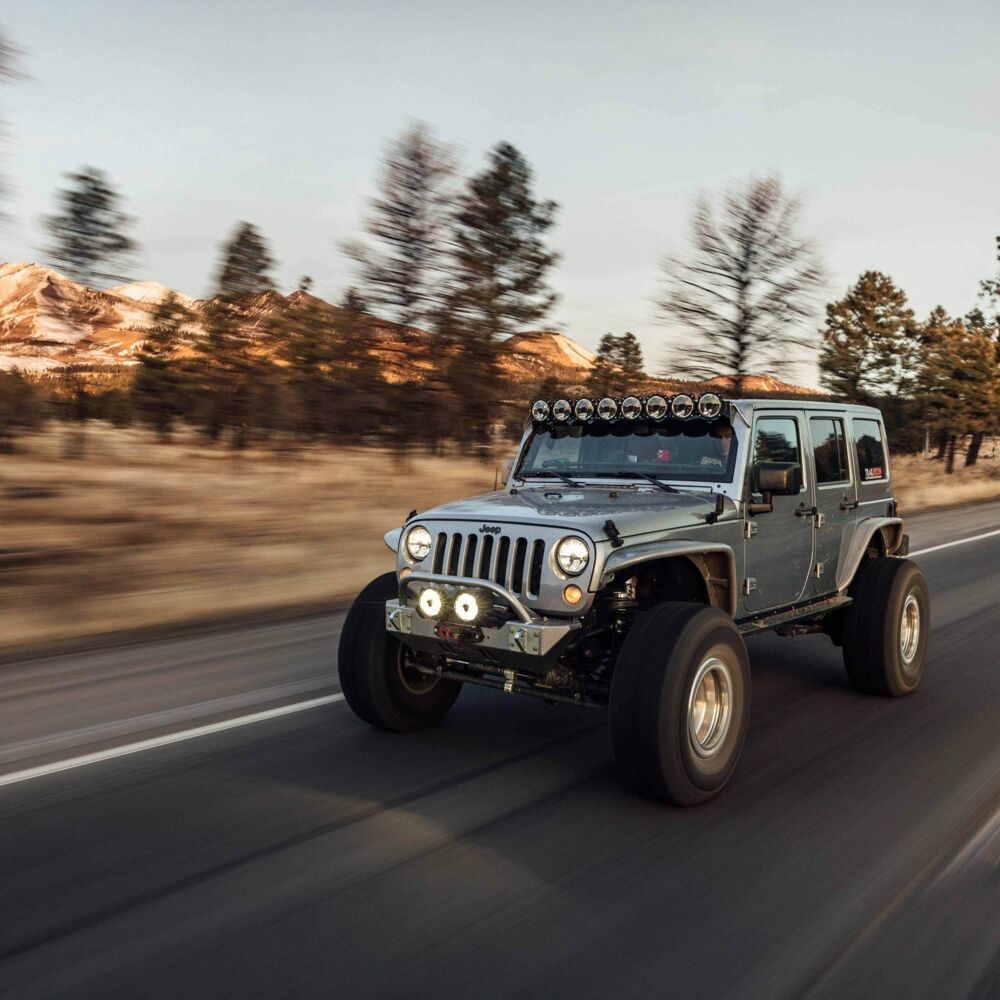

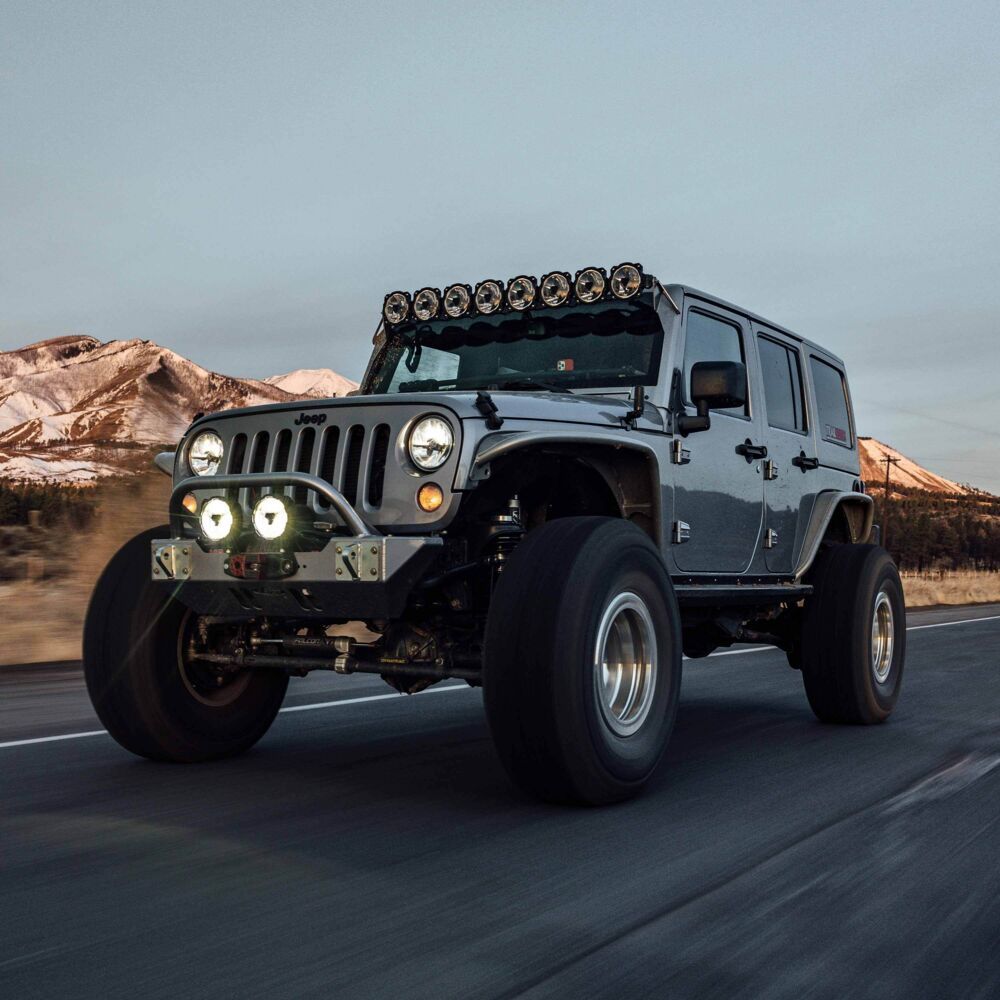

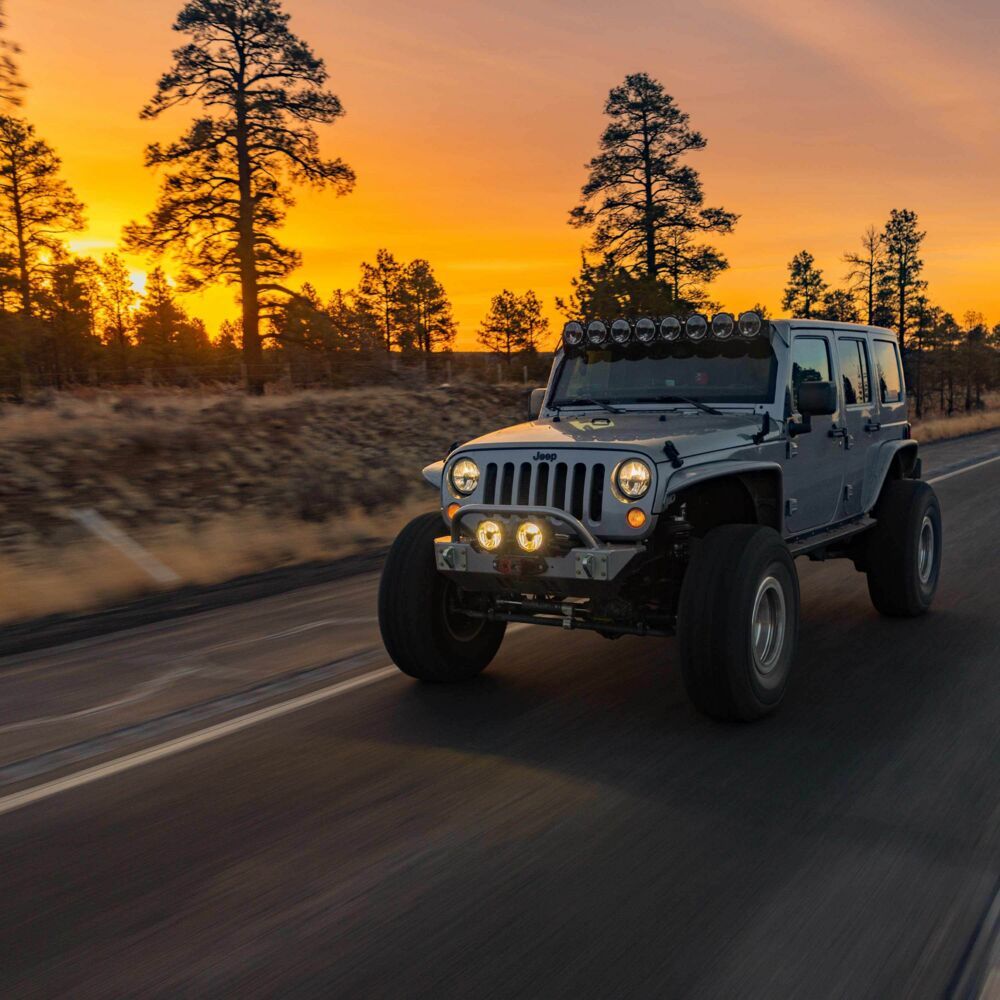

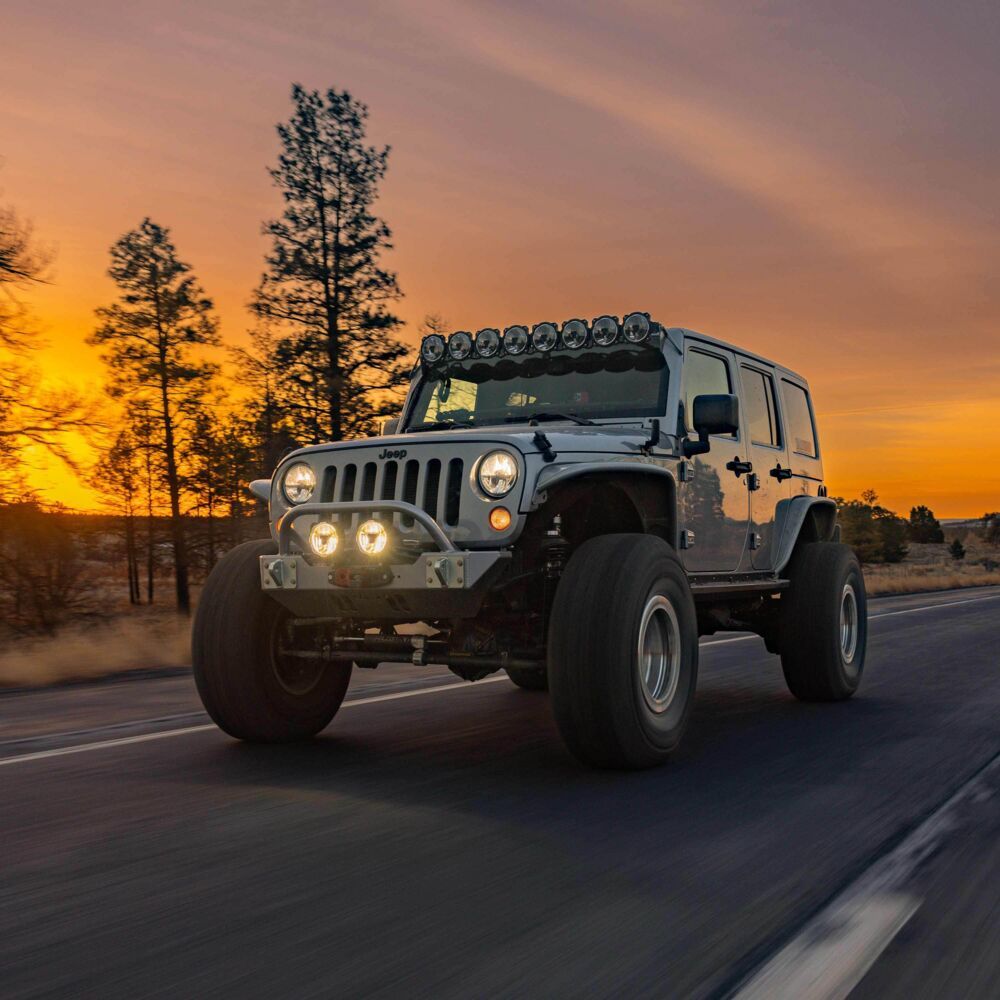

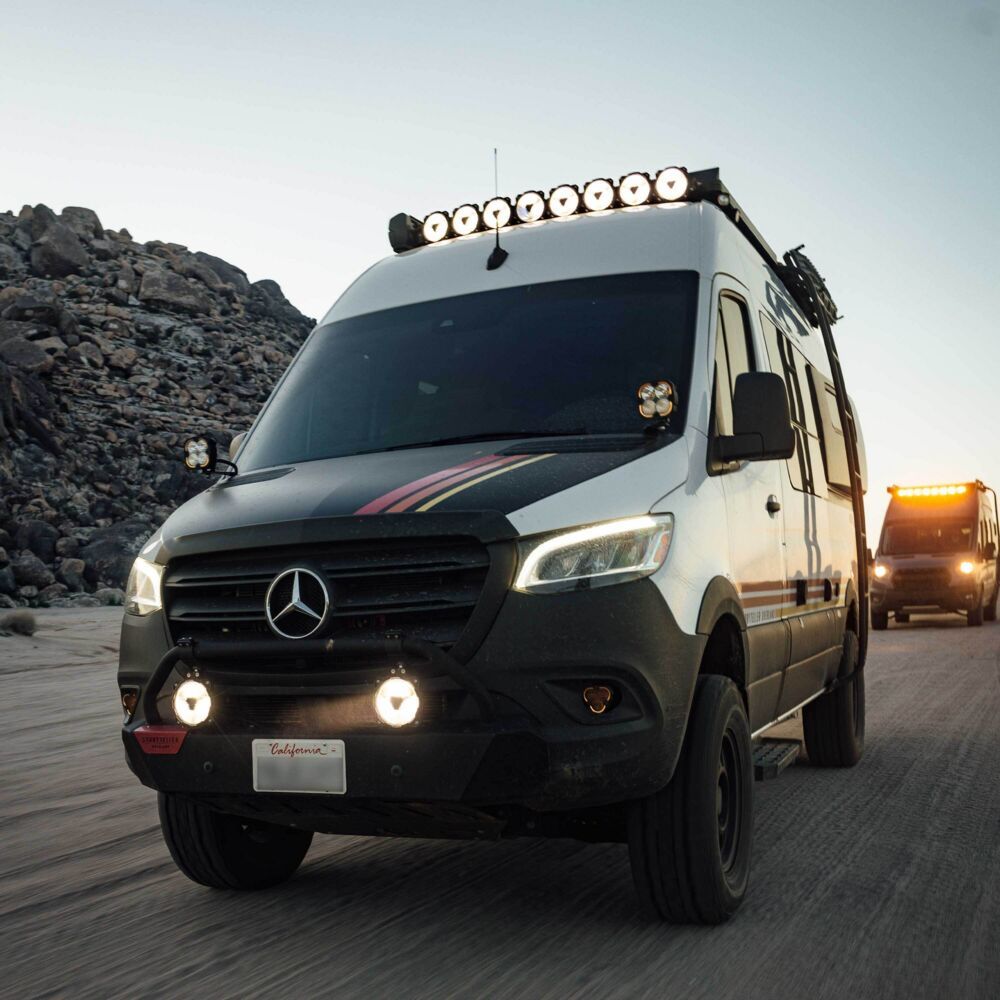

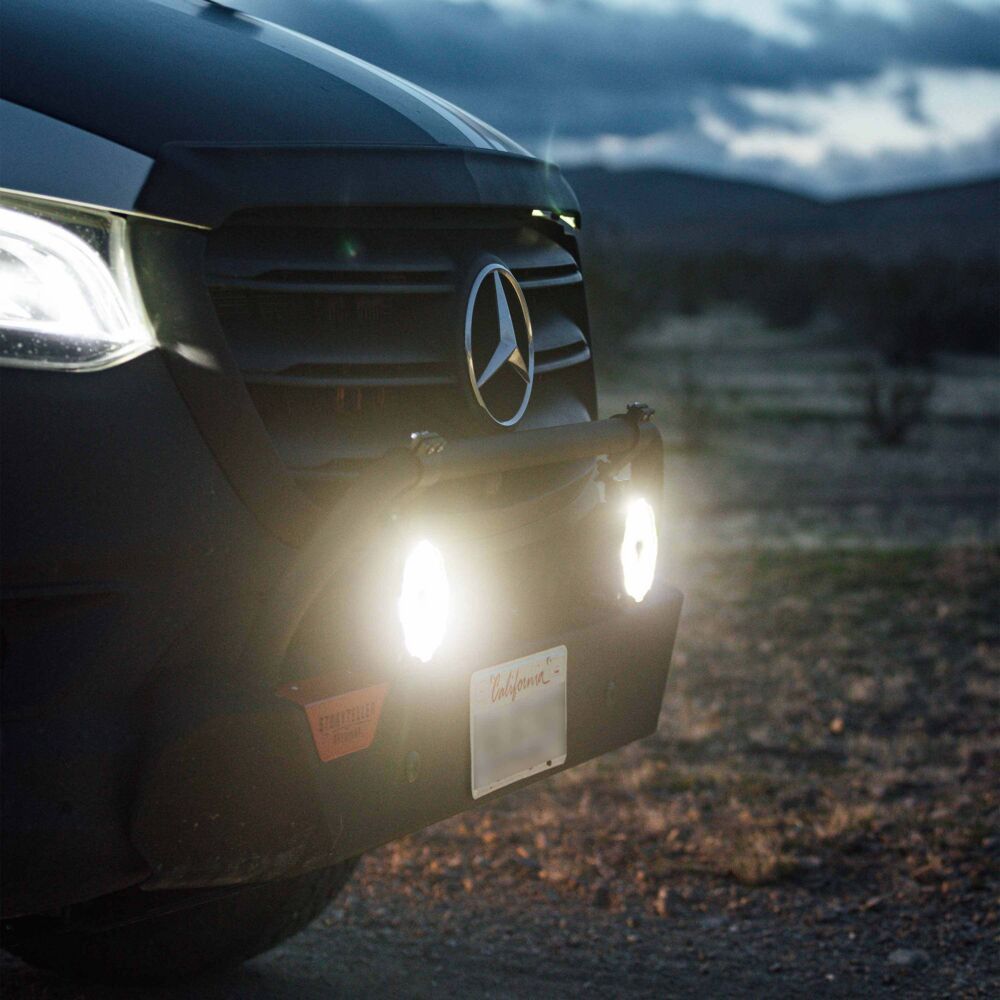

• Bumper pods to push distance with Spot

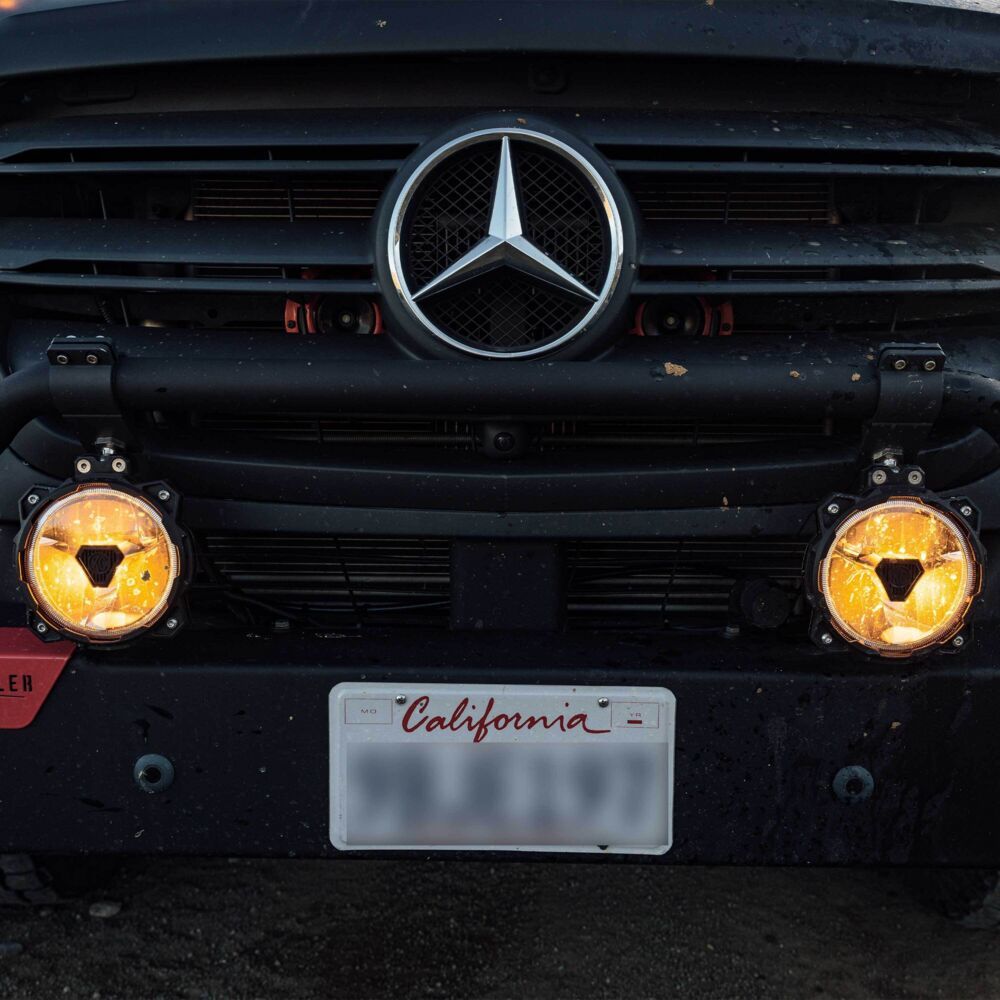

• Mixed-terrain overlanding where the Amber Dust Light improves convoy safety in poor visibility

Install notes

Use the included harness and 3-position switch to control Amber Dust Light and High-Power modes. Mount on common bumper or A-pillar brackets; aim and tighten per KC’s guidelines. For on-road use, select SAE Driving (where permitted) and verify local laws.
