KC HiLiTES 6" Gravity® Daylighter™ — Pair Pack System

Classic KC look, modern LED performance. The 6" Gravity Daylighter pair uses G6 LED optics with GRD (Gravity® Reflective Diode) tech to throw clean, controlled light exactly where you need it. Choose Spot for maximum reach or SAE-legal Driving for on-road manners and trail confidence. Tough black steel housings, hard-coated polycarbonate lenses, and an included plug-and-play harness make these a go-anywhere upgrade for bumpers, A-pillars, racks, and brush guards.

Why drivers choose it

• Real performance, smart optics — GRD reflector design focuses every lumen for distance and usable width. Driving beam is SAE J581/ECE-R112 compliant, so you can run it responsibly on-road (check local laws).
• Efficient power draw — 20W per light with only ~1.63A @ 12V means less strain on factory wiring and more headroom for other accessories.
• Trail-ready build — IP67 sealing, black powder-coated steel housings, and hard-coated poly lenses handle weather, washdowns, and vibration.
• Classic KC vibe — Iconic round housings with yellow-logo stone guards included.

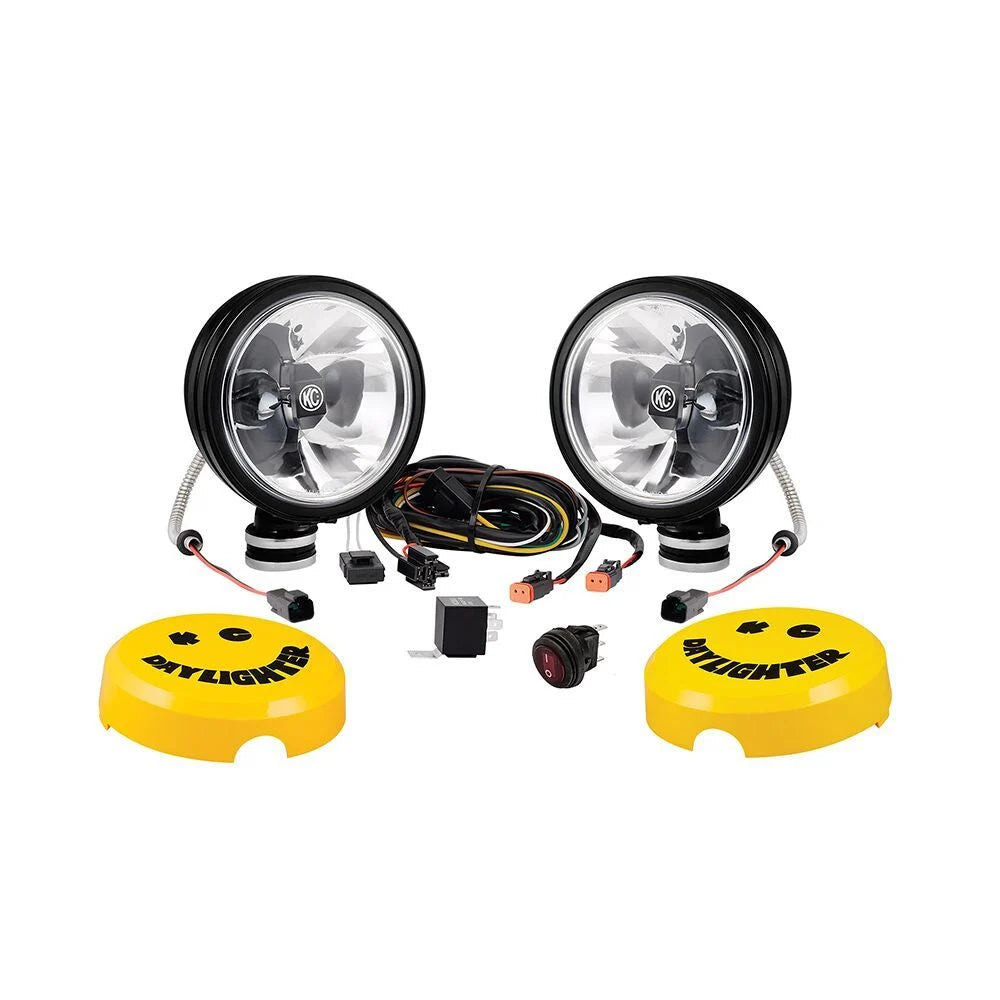

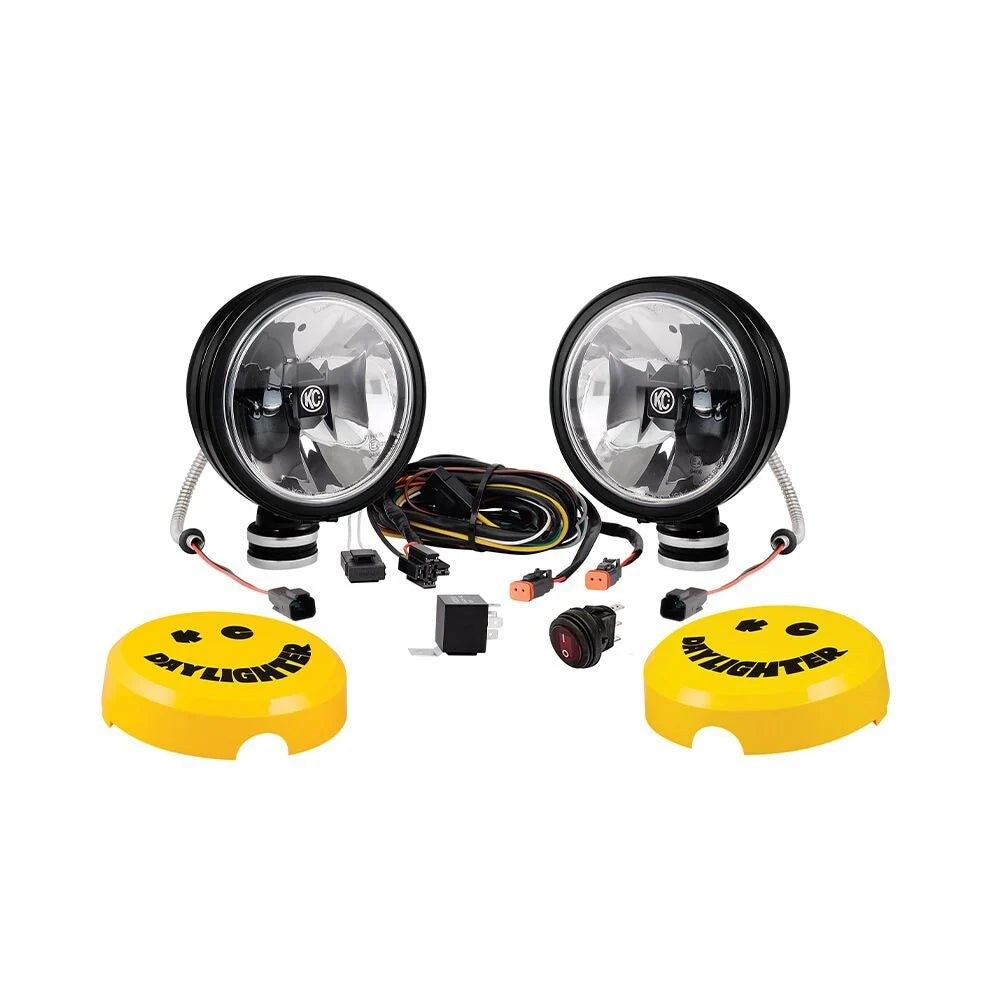

What’s in the box

• (2) 6" Gravity® Daylighter™ LED lights (choose Spot or Driving)
• Deluxe wiring harness with relay, fuse, and switch
• (2) KC stone guards/covers + mounting hardware

Light performance (per light)

• Raw lumens: ~2,300 lm (Spot or Driving)
• Lux @ 10 m: Spot ~2,150 lx • Driving ~1,310 lx
• Candela: Spot ~215,000 cd • Driving ~131,000 cd
• Beam distance (1 lx): Spot ~972 m • Driving ~724 mCCT: ~5000K (neutral
• white for contrast)

Core specs (per light)

• Wattage: 20W • Amp draw: ~1.63A @ 12V • Voltage: 9–32V
• Ingress rating: IP67
• Dimensions: 6.22" W × 8.42" H × 5.38" DLED source: CREE XPL HD (G6 optical insert)

Beam guide: Spot vs. SAE Driving

• Spot — Maximum throw for desert runs and open roads; pair with other lights for near-field fill.
• Driving (SAE/ECE) — Street-friendly forward pattern with balanced distance and width; ideal as primary auxiliary lights.

Ideal uses

• Front bumpers & brush guards on trucks/SUVs
• A-pillar/ditch mounts for added reach and edge visibility
• Rack mounts for classic looks with modern output

Install notes

Use the included pre-terminated harness for a clean, reliable hook-up—power, ground, relay, and a dash switch are in the kit. Aim lights per KC’s guidelines; run Driving pattern on-road where legal and Spot off-road. Always verify local auxiliary-lighting regulations.
