SKU: 42351

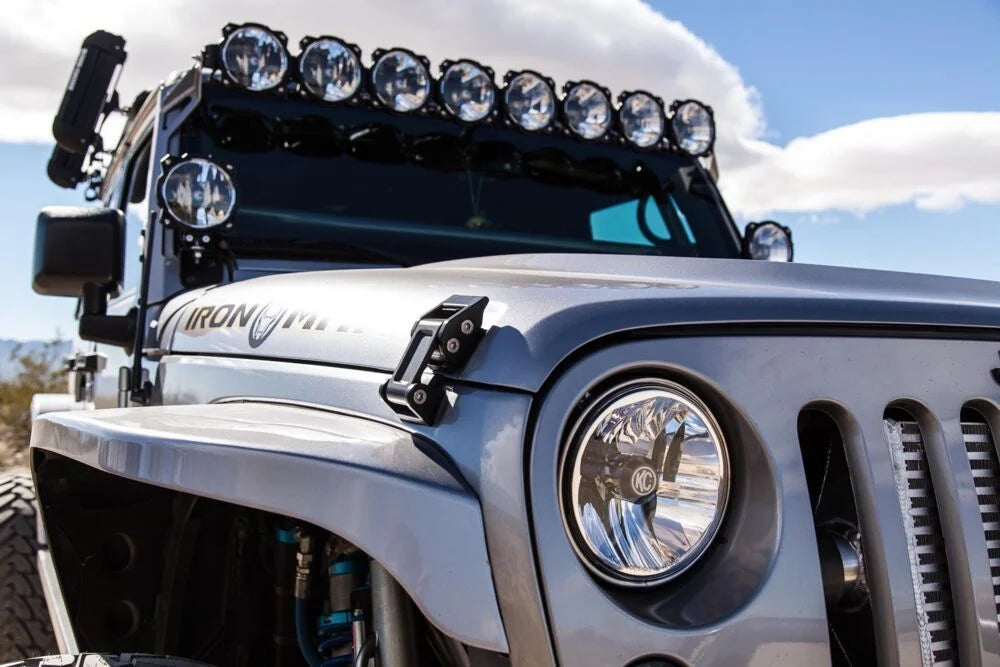

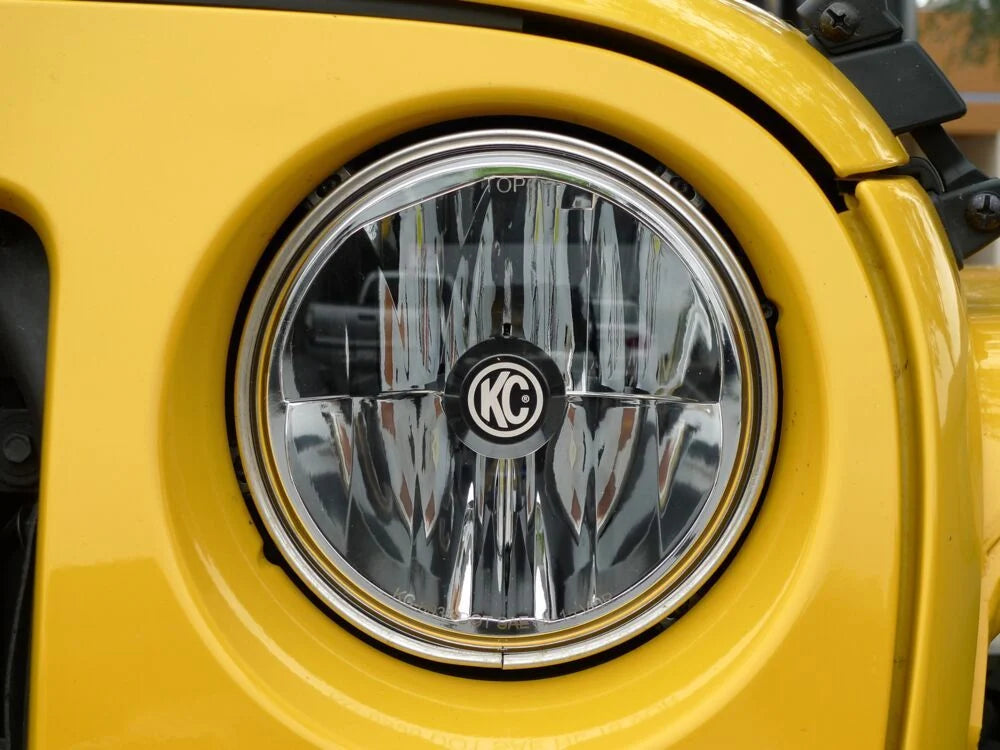

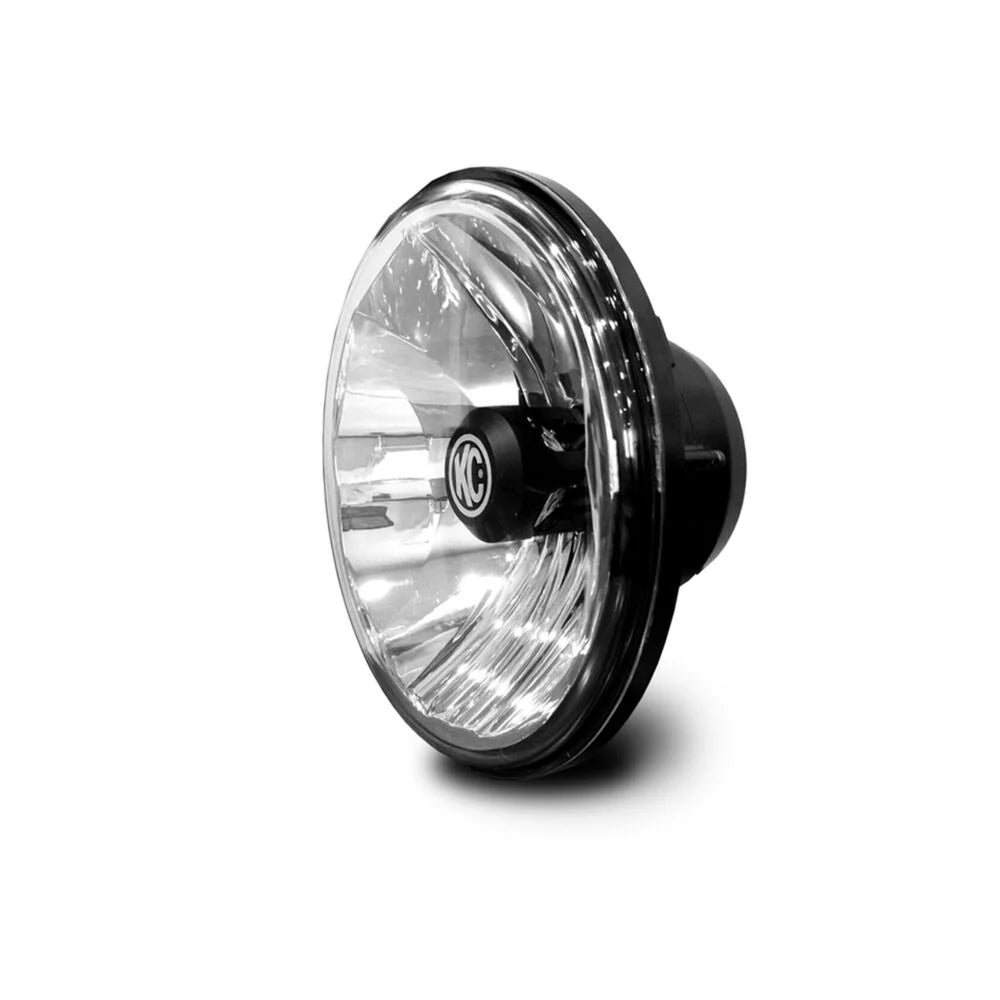

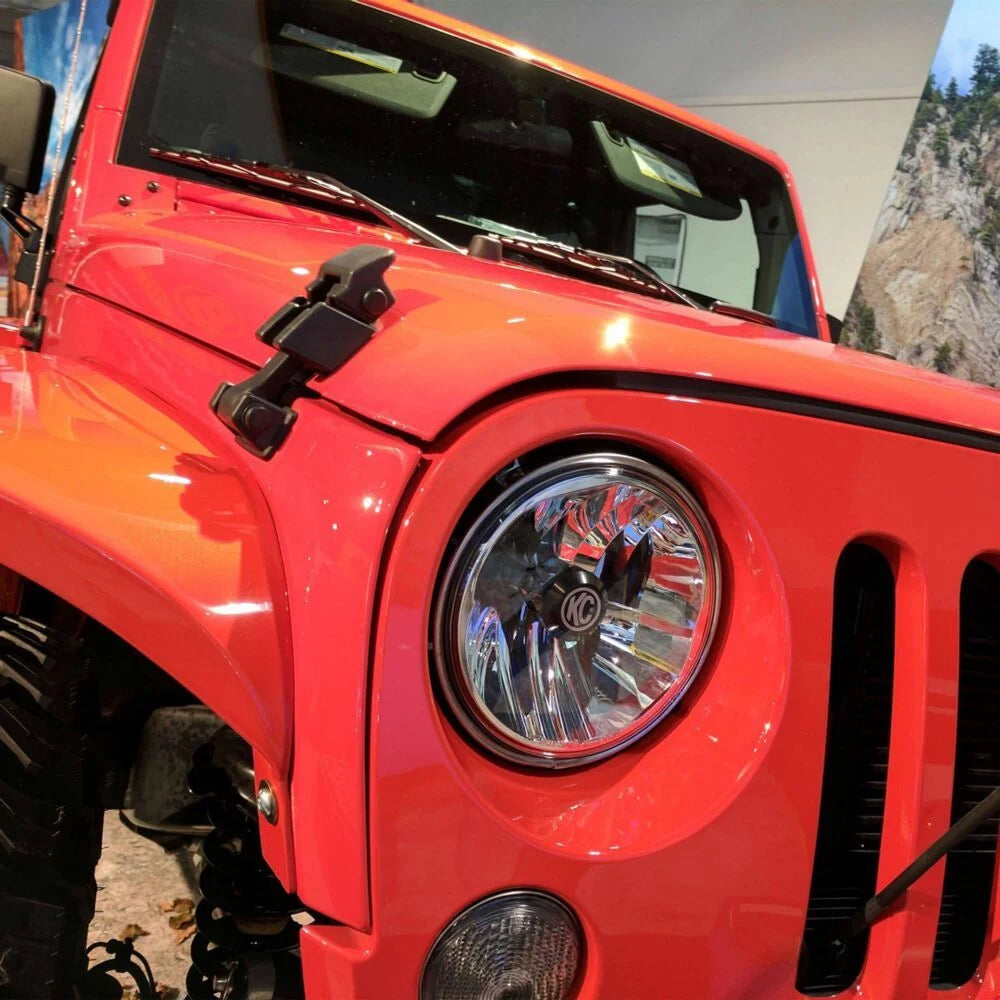

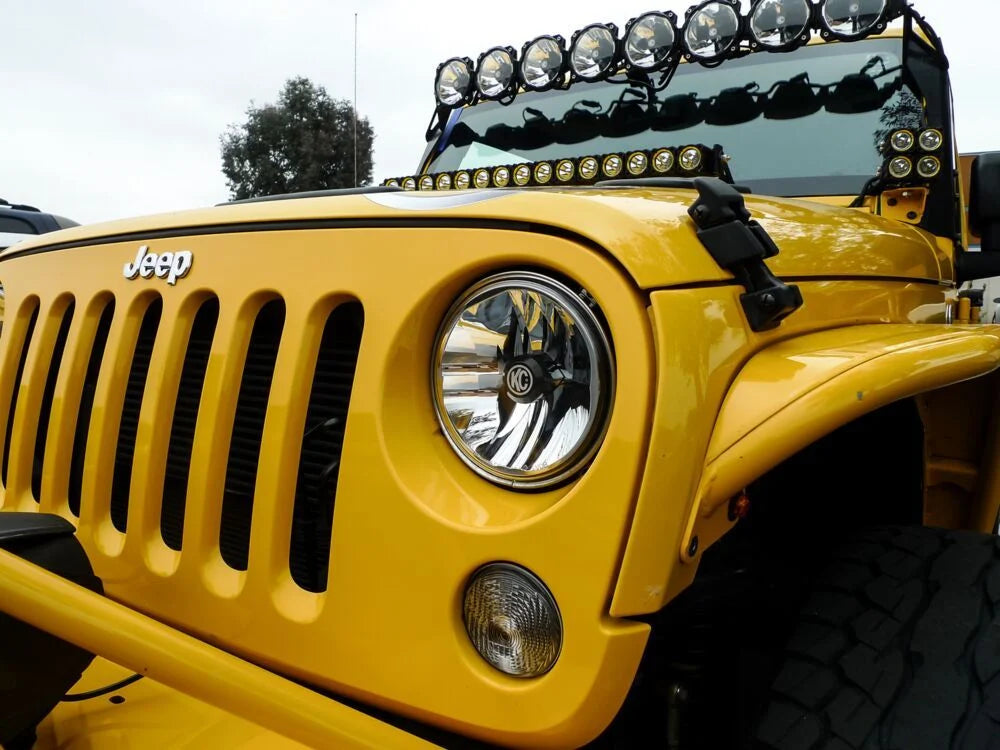

KC HiLiTES 7" Gravity® LED DOT Headlight - Driving Beam - Pair - 07-18 Jeep JK

Proveedor KC HiLiTES
$749.99


See farther with a clean, street-legal beam. KC 7" Gravity LED DOT headlights use GRD (Gravity® Reflective Diode) optics and premium CREE/Nichia LEDs to deliver crisp low and high beams at a natural 5000K. Built-in DRL and anti-flicker electronics make these a true plug-and-play upgrade for 2007–2018 Jeep Wrangler JK/JKU. Rugged IP68 sealing, die-cast housings, and hard-coated poly lenses keep you rolling after dark and on the trail.

Why JK owners choose Gravity

  • Street-legal performance: Fully DOT-compliant low/high beams provide focused distance and width without glare.
  • Real, measured output: Per light — Low 1,260 lm / 415 lx @10 m / 407 m, High 3,666 lm / 775 lx @10 m / 557 m. Efficient power draw (18–22 W) keeps loads in check.
  • Plug-and-play for JK: Integrated anti-flicker, DRL, and JK-friendly wiring for a clean, error-free install.
  • Built trail-tough: IP68 weather rating; die-cast aluminum housings with hard-coated polycarbonate lenses.

What’s in the box

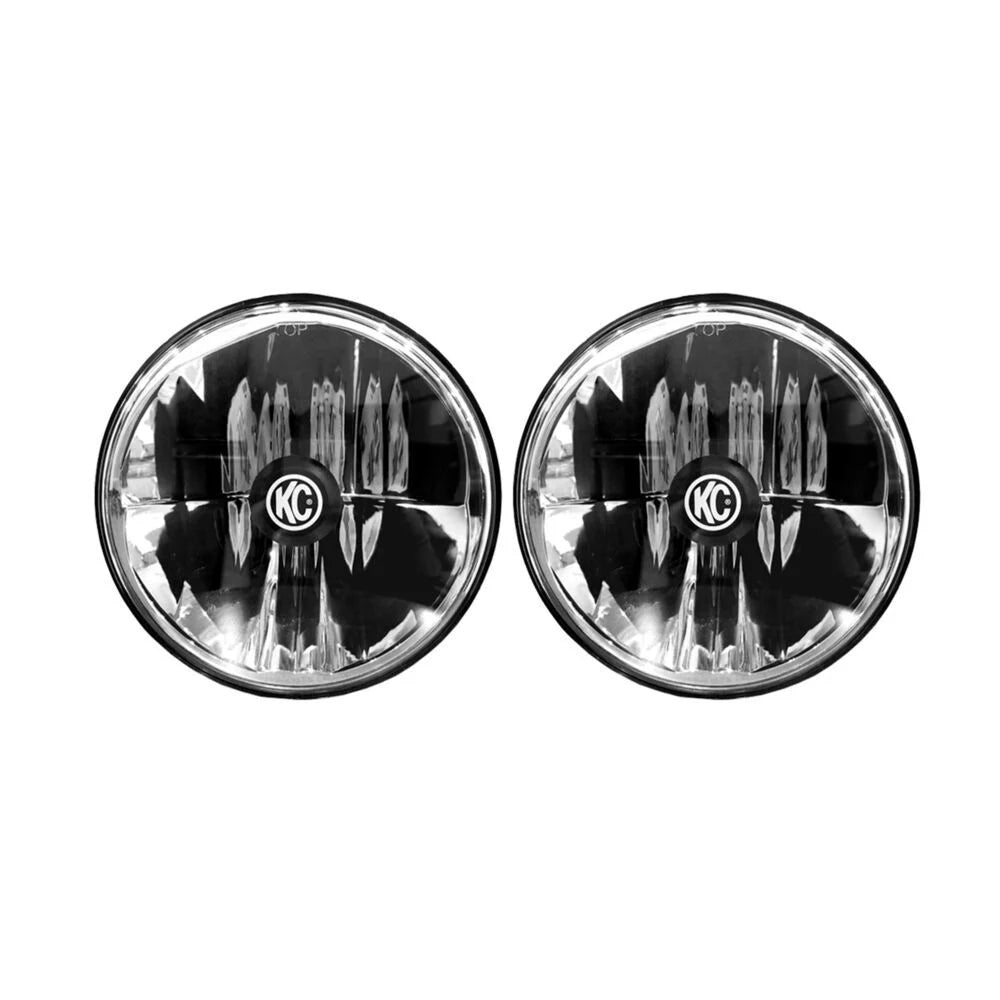

  • (2) 7" Gravity® LED headlights (DOT Driving beam; Low/High + DRL)
  • Plug-and-play adapters / anti-flicker electronics
  • Mounting instructions
    (Kit contents may vary slightly by distributor; JK sets are plug-and-play.)

Performance & key specs (per light)

  • Raw lumens: Low 1,260High 3,666
  • Lux @10 m: Low 415High 775
  • Beam distance (1 lx): Low 407 mHigh 557 m
  • Wattage: 18 W (Low)22 W (High)DRL 275 lm
  • LEDs: CREE XHP35 HI + NichiaCCT: 5000K
  • Voltage: 9–18 VIngress: IP68
    Numbers verified from KC dealer spec sheets for 42351

Fitment

  • Jeep Wrangler JK / JKU (2007–2018) — direct 7" round replacement. (Also fits other 7" round applications with appropriate wiring.)

Install notes

Pull the JK grille and bezels, swap the lamps, connect the plug-and-play harness, and aim per KC’s guide. The built-in anti-flicker module eliminates CAN-bus errors and flicker on JKs. Typical driveway install time: about an hour.
