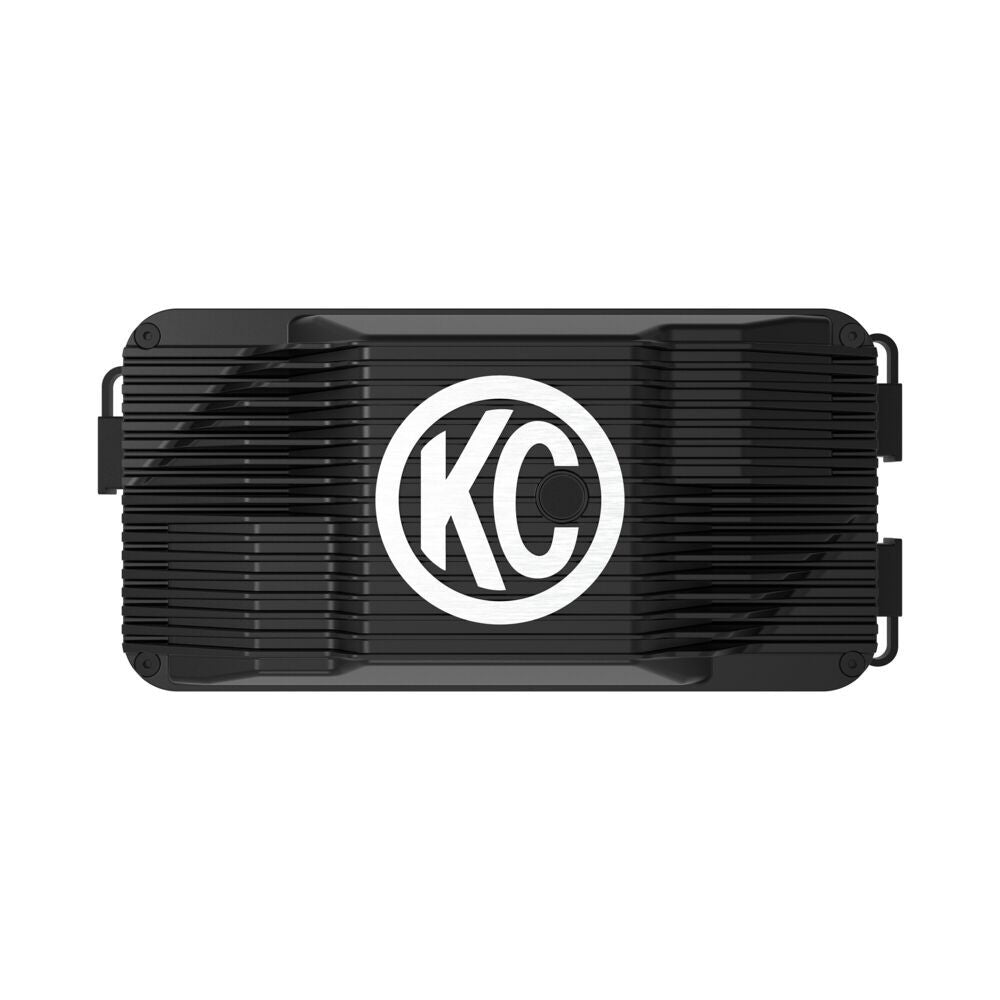

KC HiLiTES Solar Charge Hub

Keep your rig’s battery topped off—anywhere. The KC Solar Charge Hub is a rugged, plug-and-play 12V/24V MPPT solar charging system built around the Victron SmartSolar 75/15 controller with Bluetooth. Pair it with KC’s portable panels or your existing solar to harvest more power, protect your starter battery, and run accessories confidently at camp. IP67 housing, magnetic feet, and included cabling make it trail-ready from the box.

Why overlanders choose it

• Fast, smart charging: High-efficiency MPPT maximizes solar harvest and safely feeds your battery at up to 15A (up to 220W at 12V / 440W at 24V).

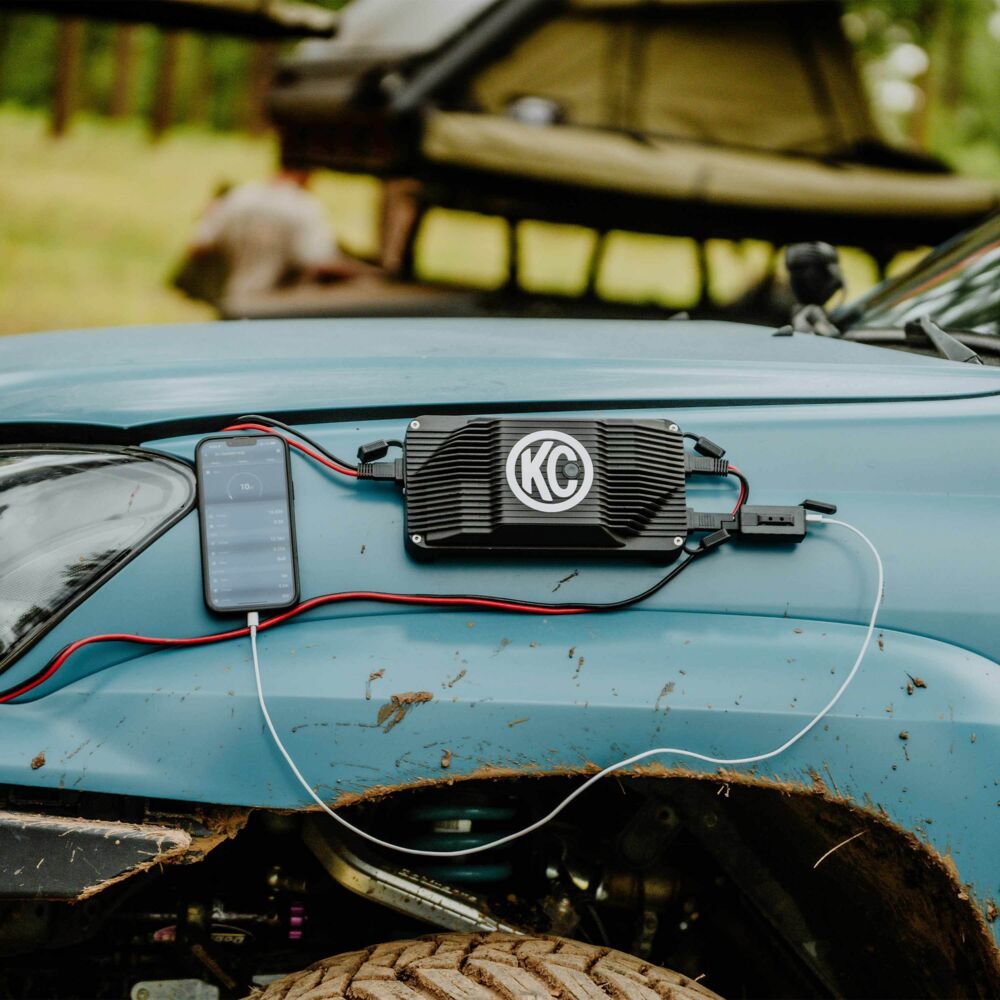

• Phone-based control: Built-in Bluetooth (VictronConnect app) lets you monitor voltage, current, and history and tweak settings from your iOS/Android device. Data logging up to 46 days helps you dial in your setup.
• Protects your battery: Automatic load disconnect prevents over-discharge of hub-connected accessories—peace of mind when you’re off-grid.

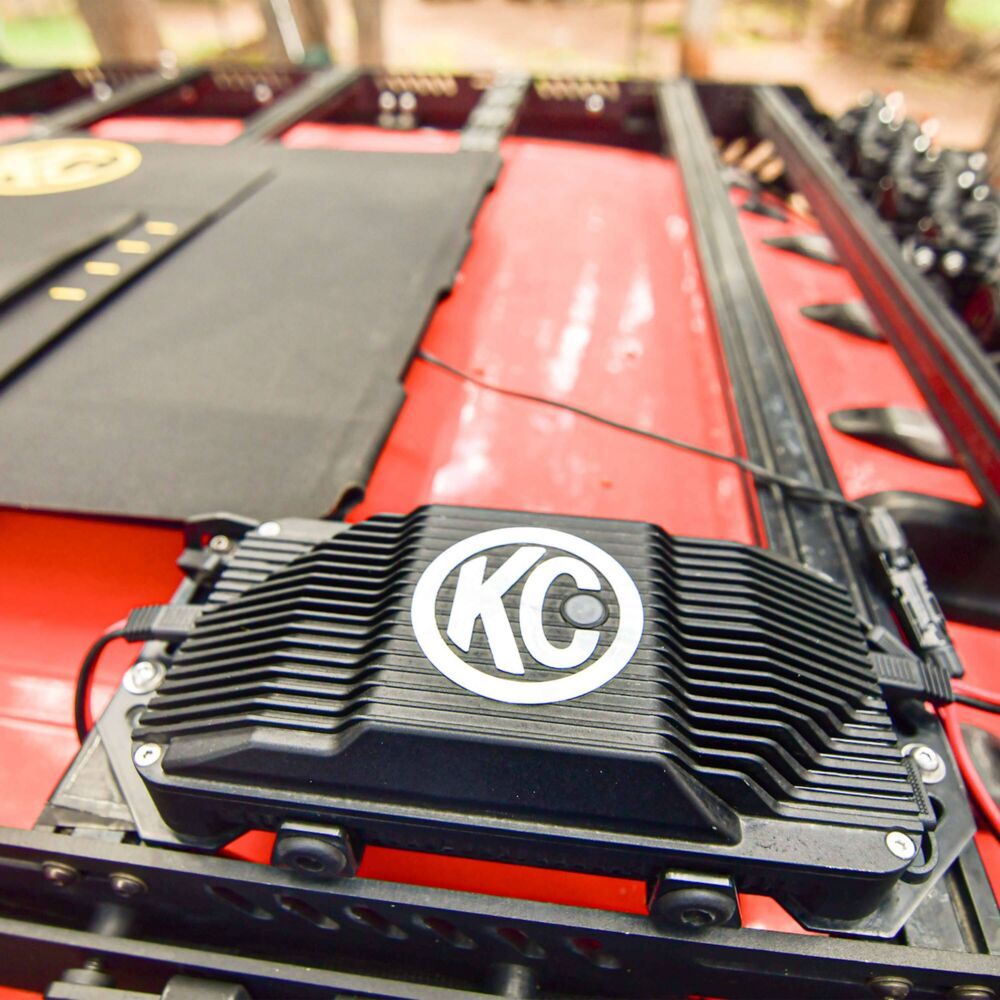

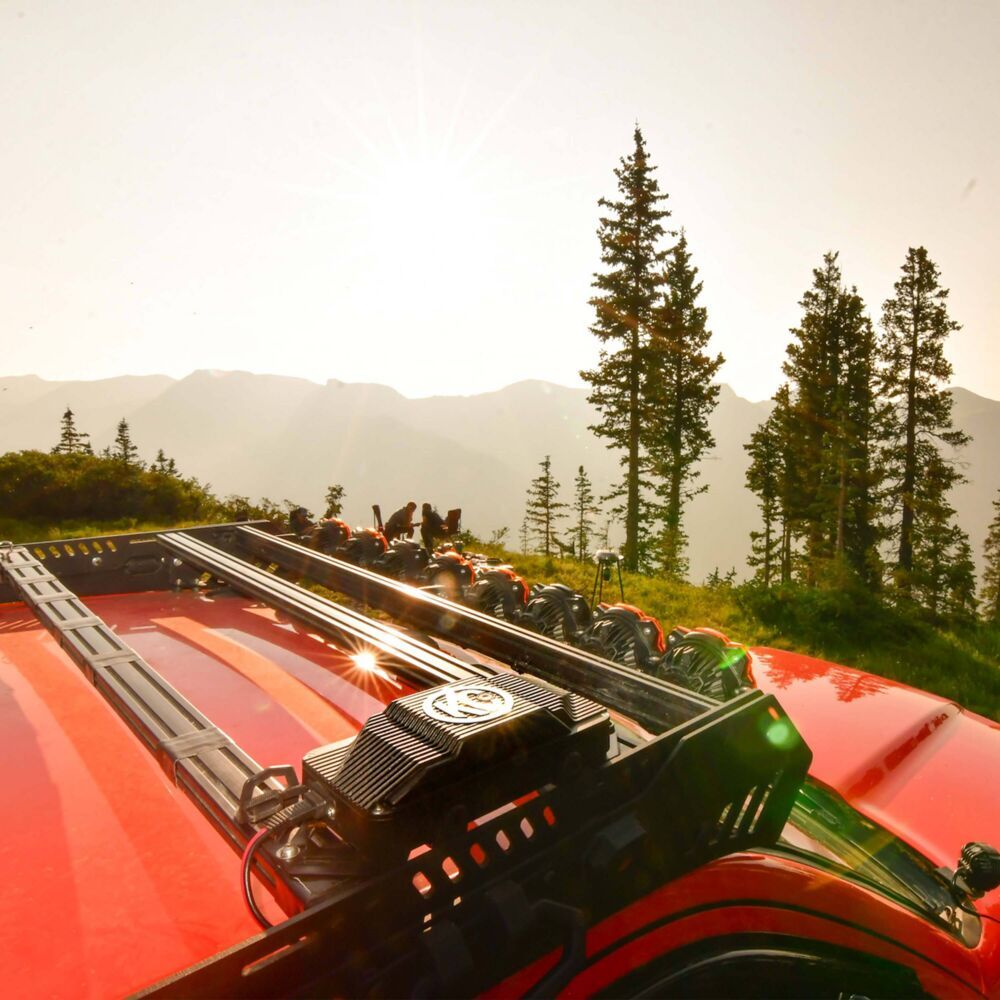

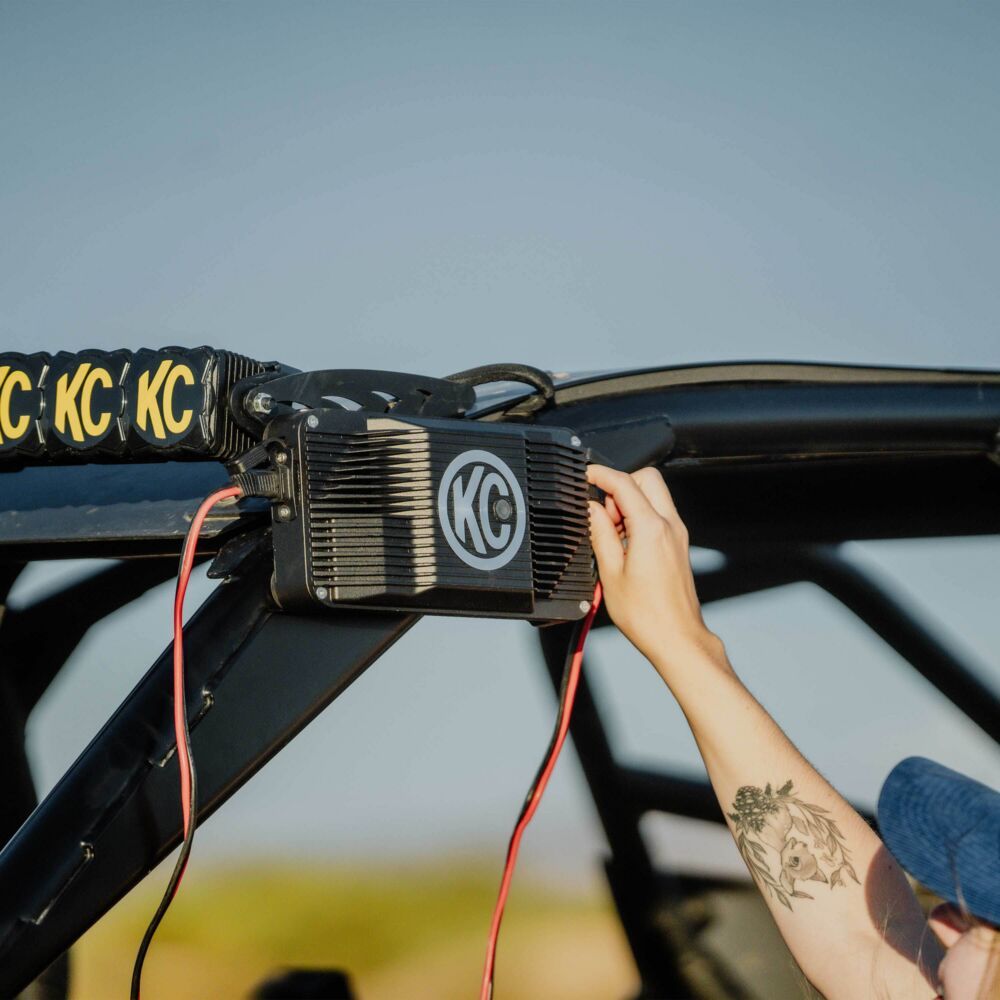

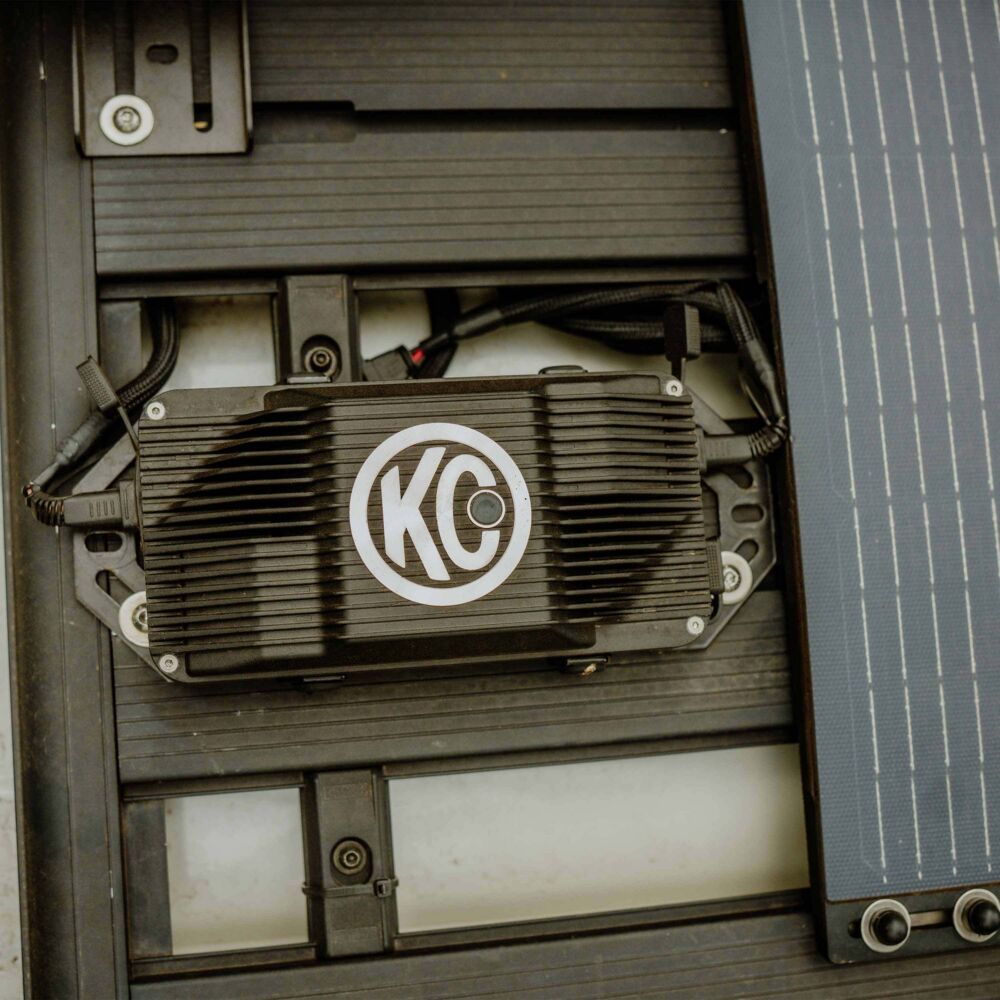

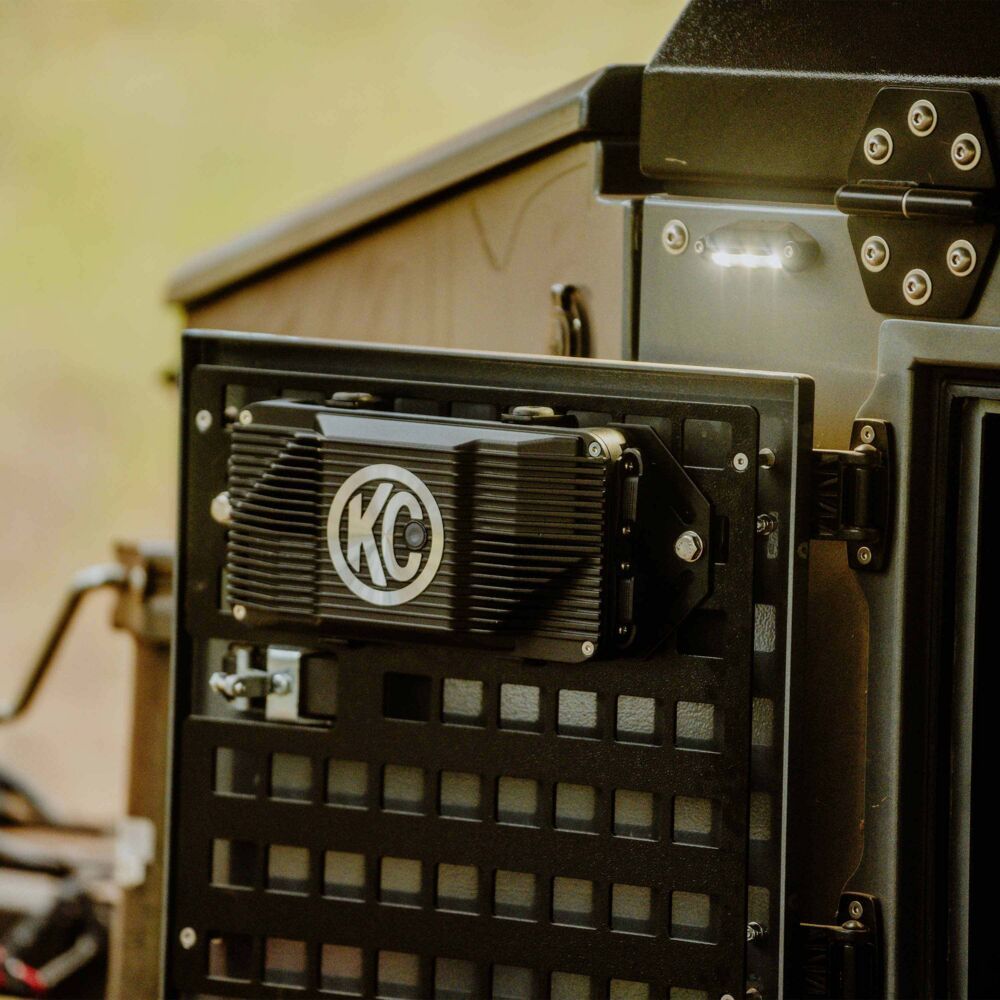

• Built for weather: IP67 aluminum housing shrugs off mud, dust, and rain; use it portably with magnetic feet or hard-mount it with the optional bracket.

What’s included (plug-and-play)

• Solar Charge Hub (Victron SmartSolar MPPT 75/15 inside)
• Solar panel connection kit: MC4→SAE adapter + (2) 20' SAE-to-SAE extensions
• Battery connector kit: ring-terminal lead (fused) + alligator-clip lead (fused)
  Everything you need for a clean, tool-light setup on trucks, SUVs, vans, trailers, or UTVs.

Key specs (at a glance)

• System: 12V / 24V; works with Lead Acid, AGM, Gel, Deep Cycle, Lithium
• Rated charge current: 15A
• Nominal PV power: 220W (12V) / 440W (24V)
• Max PV open-circuit (Voc): 75V
• I/O: SAE battery in, SAE solar in, 15A SAE 12V accessory out
• Internal data storage: 46 days

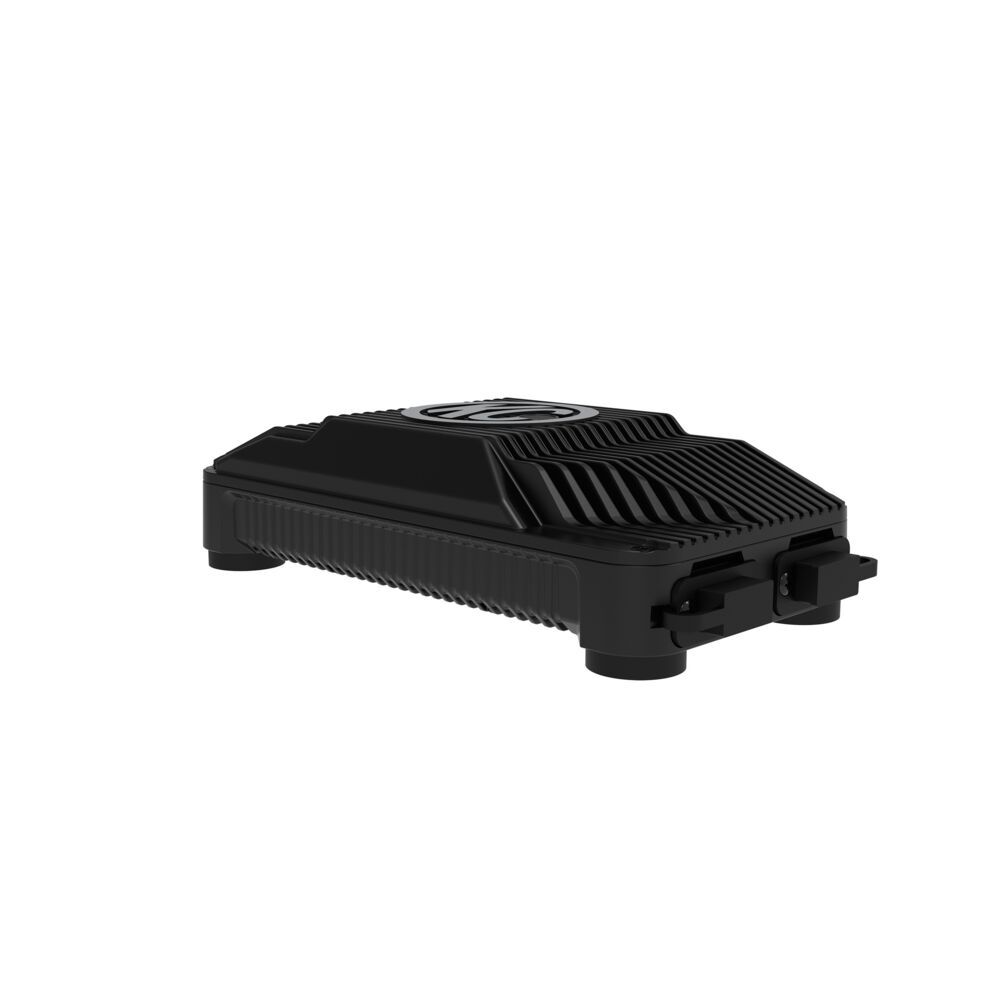

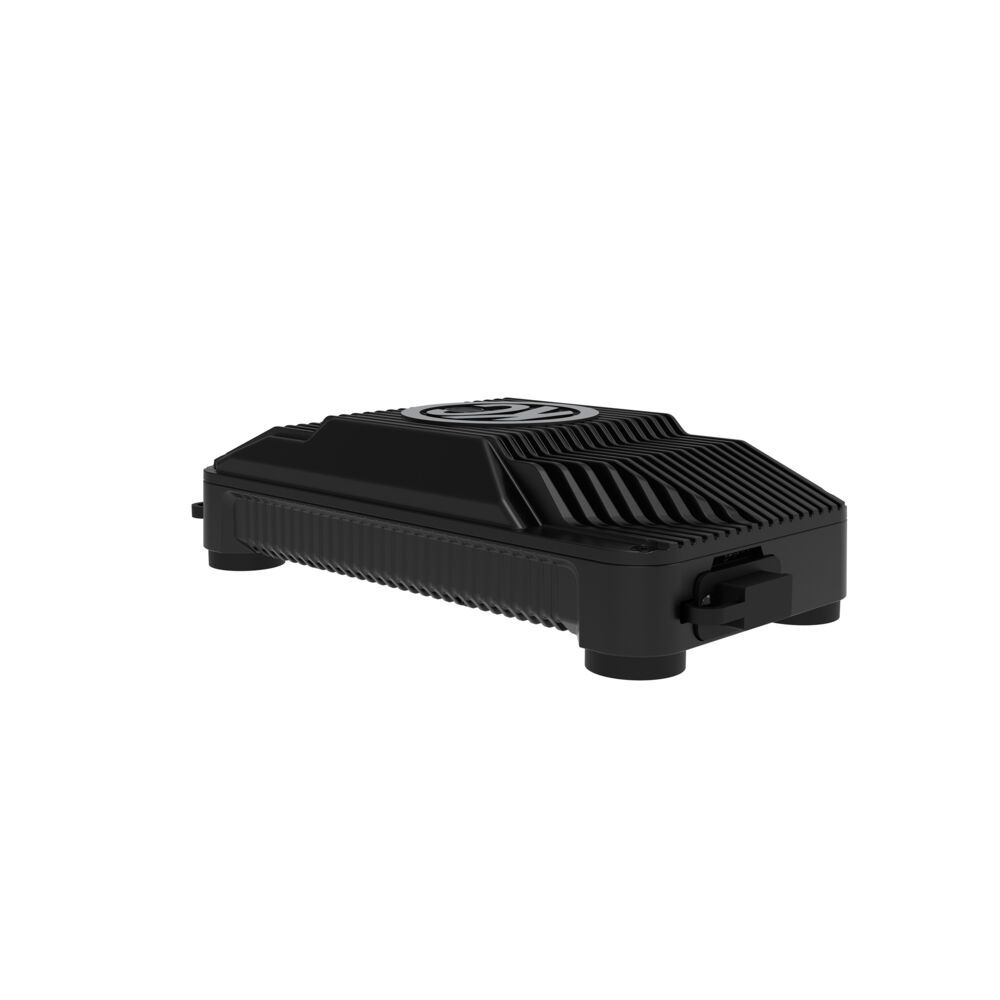

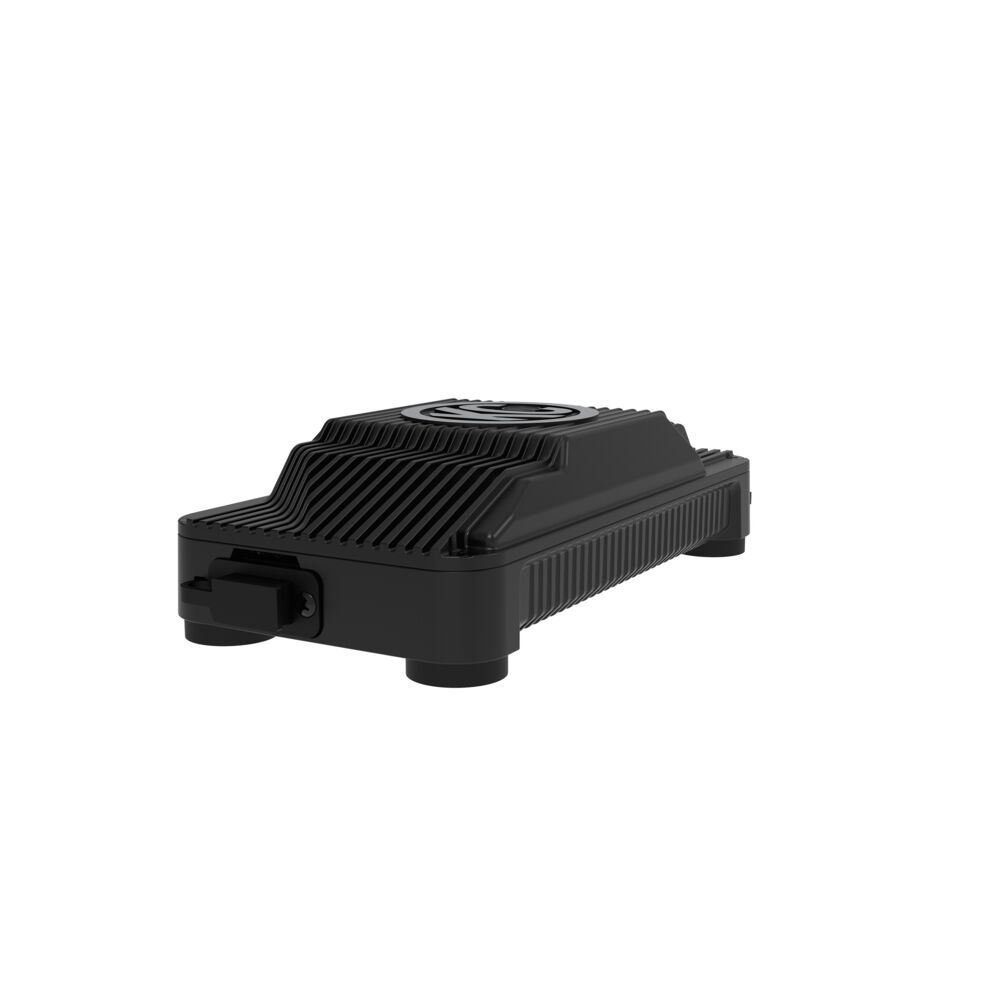

• Enclosure: IP67 aluminum; magnetic feet + bracket option
• Dimensions: 10.75" × 5" × 2.67"; Weight: ~8.5 lb
• App: VictronConnect (iOS/Android) via Bluetooth
  (See full spec details below.)

How you’ll use it

• Maintain your starter battery while parked at camp
• Power comms, lights, fridge, or a workstation without idling

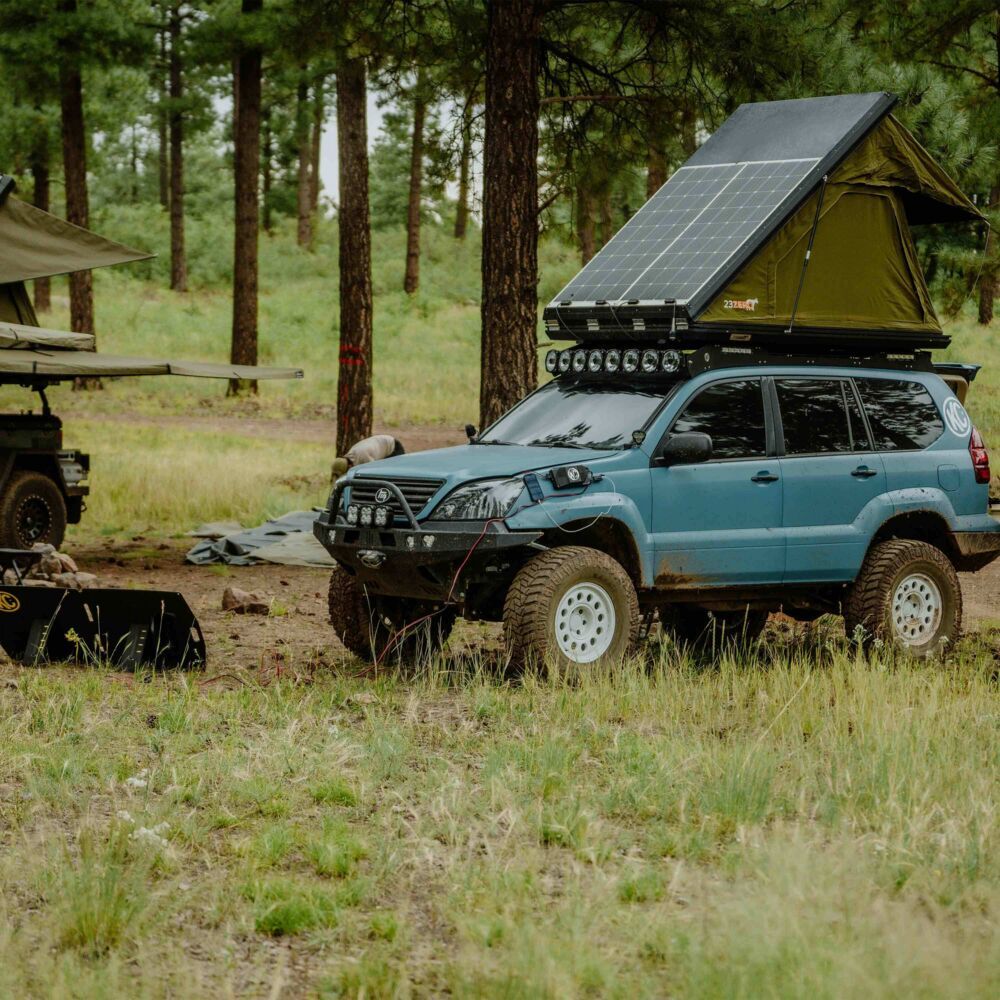

• Add portable solar to overland rigs, vans, trailers, and UTVs—no permanent wiring required

Tech details (for the spec-hungry)

• Controller core: Victron SmartSolar MPPT 75/15 with configurable low-voltage disconnect (load output protection) and adaptive multi-stage charging.
• Power handling: Up to 15A charge; 220W @ 12V / 440W @ 24V PV input; 75V max PV Voc.
• Ports & cabling: SAE in/out with MC4→SAE and fused ring/alligator battery leads included for fast setup.
