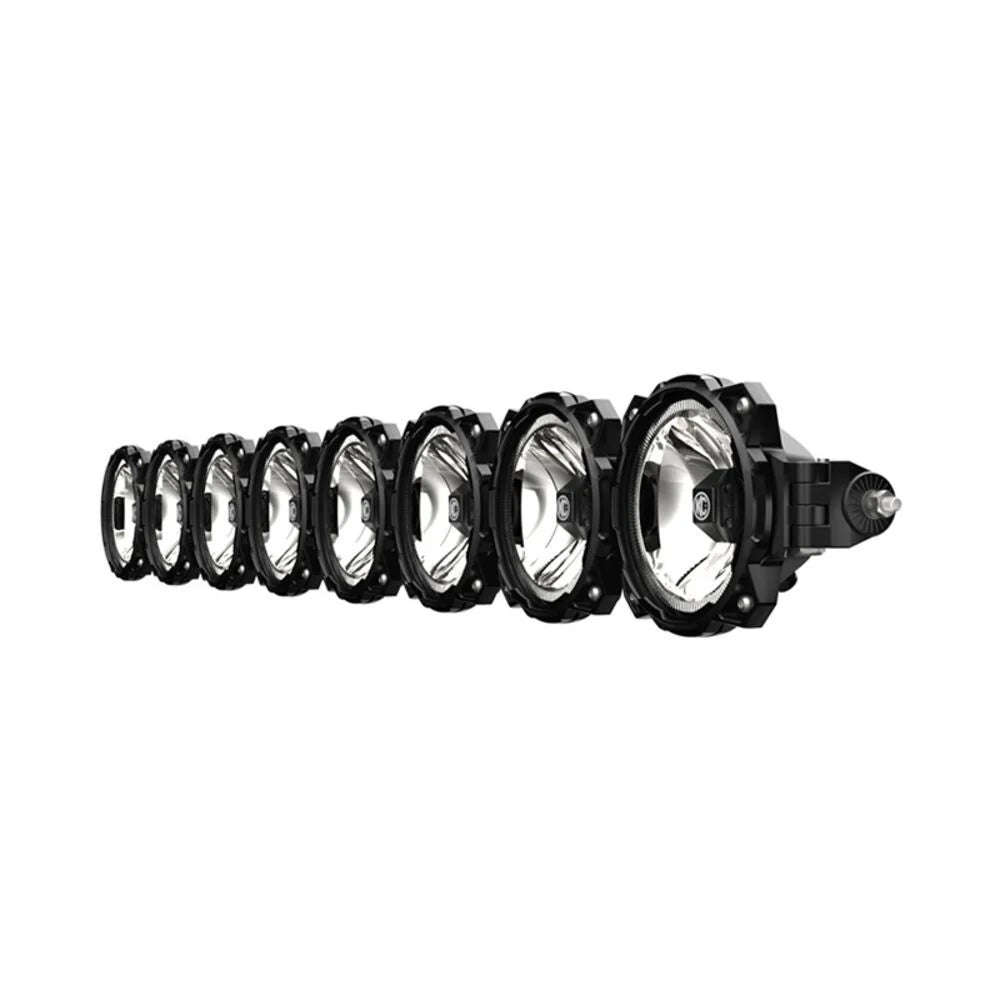

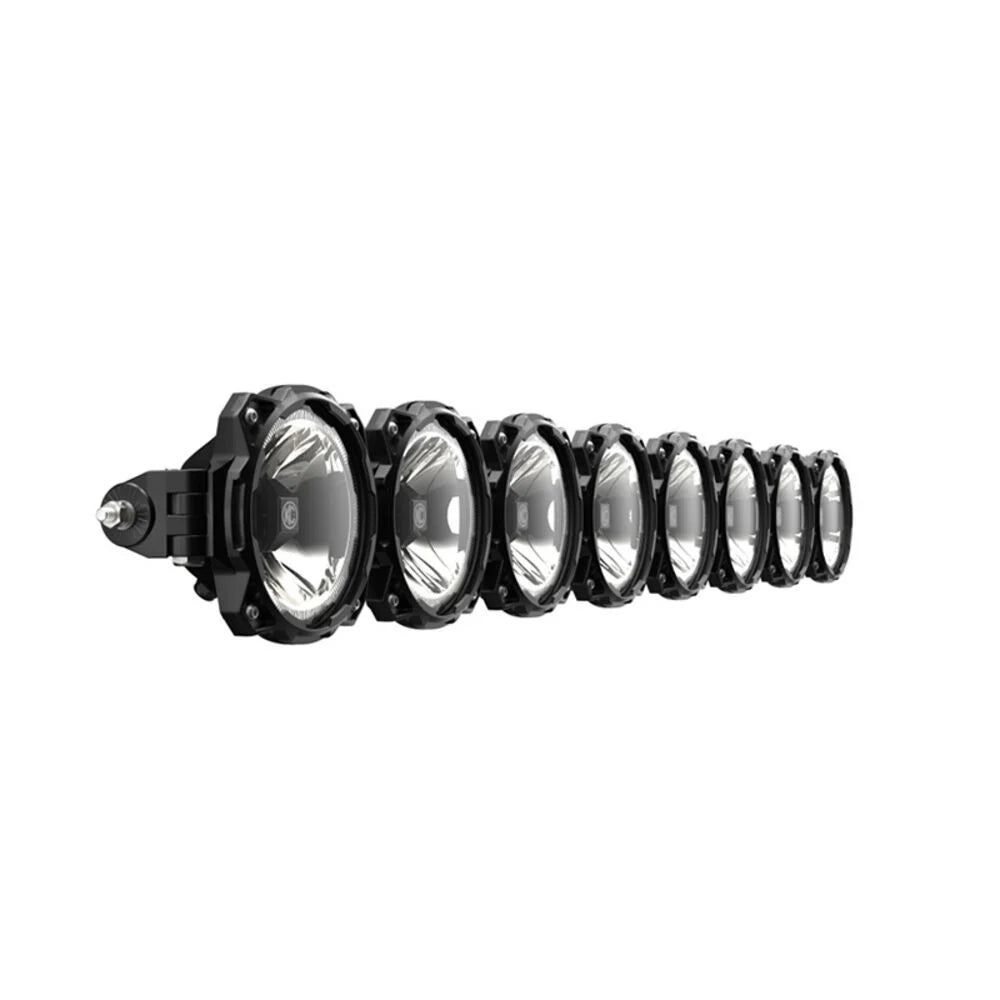

KC HiLiTES Gravity® Pro6 LED Light Bars

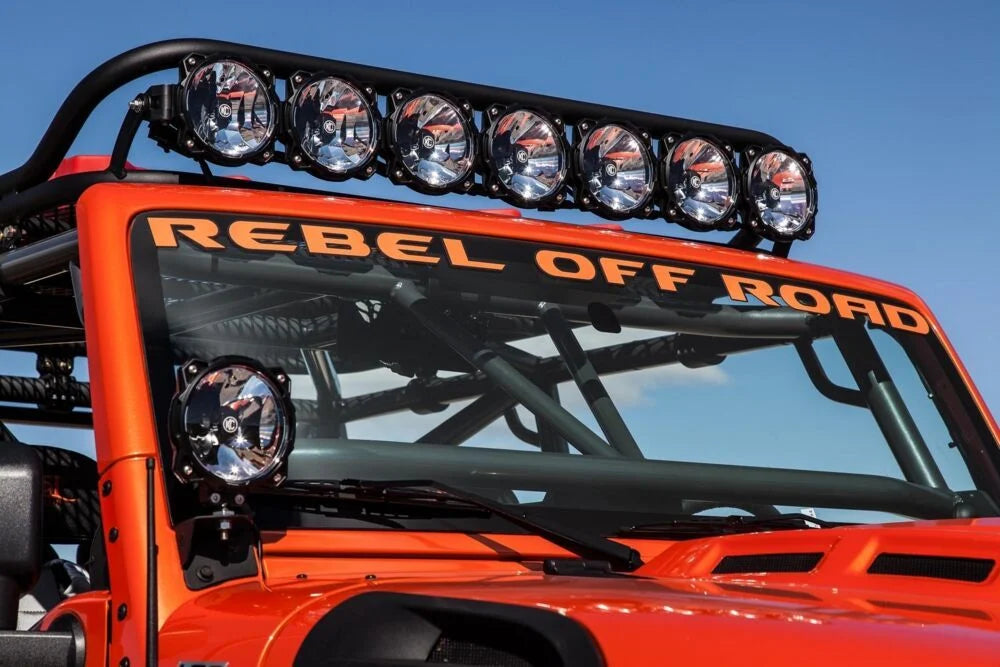

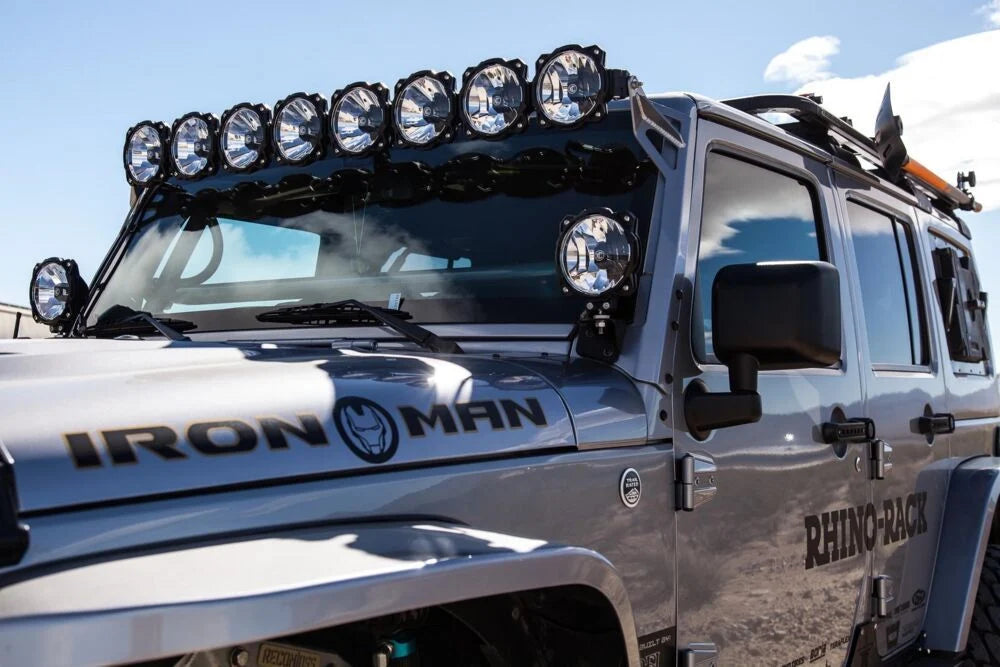

The original modular round light bar. KC’s Gravity Pro6 links 6" G6 optical inserts using the Infinity Ring™ system so you can run it straight or curved and tailor beam coverage with a Spot + Wide-40 Combo layout. It’s trail-proven, IP68 sealed, and ships with a deluxe plug-and-play harness and KC covers—ready for bumpers, racks, and roof lines on Jeeps, trucks, UTVs, and vans.

Why drivers choose it

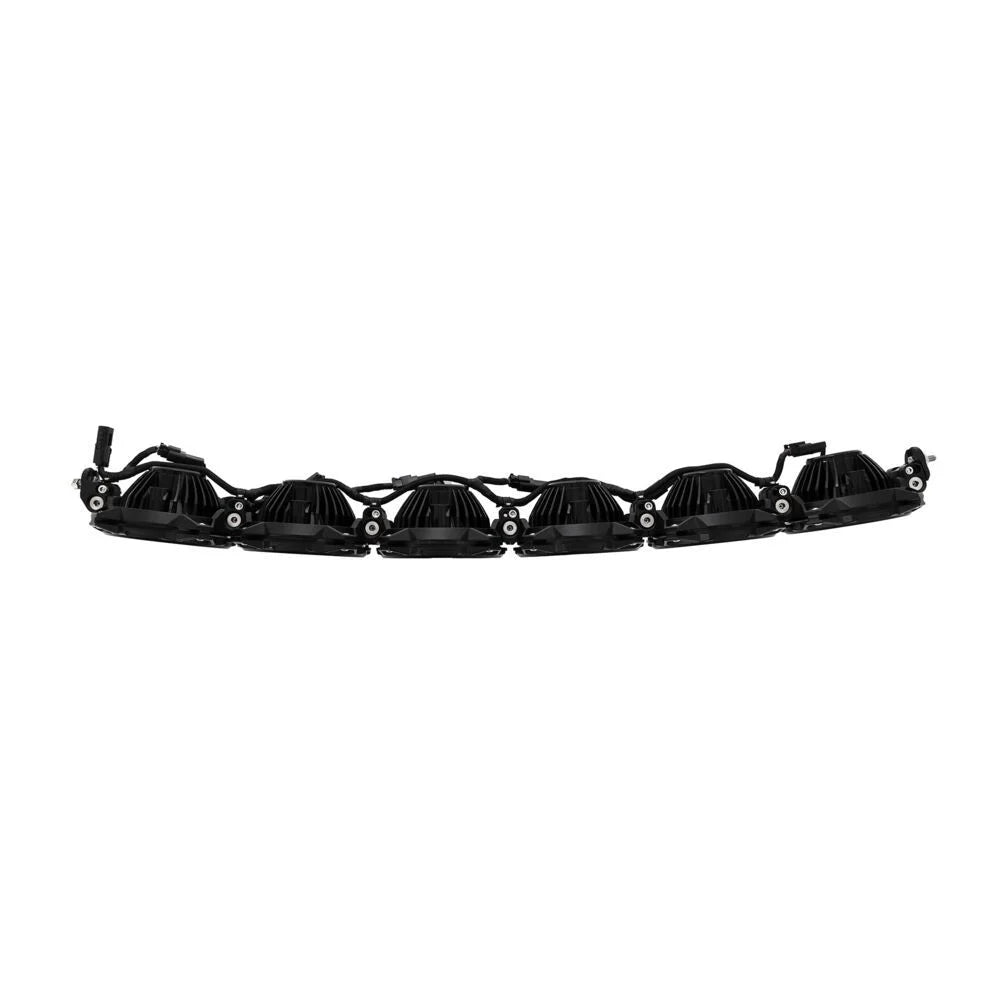

• Modular & configurable: Linkable Infinity Ring™ sections let you expand width, adjust from straight to radius, and service individual optics instead of a whole bar.
• Real trail coverage: Bars ship with a Combo of Spot + Wide-40 G6 inserts for distance down-trail with shoulder-to-shoulder spread—ideal for mixed terrain and speed.

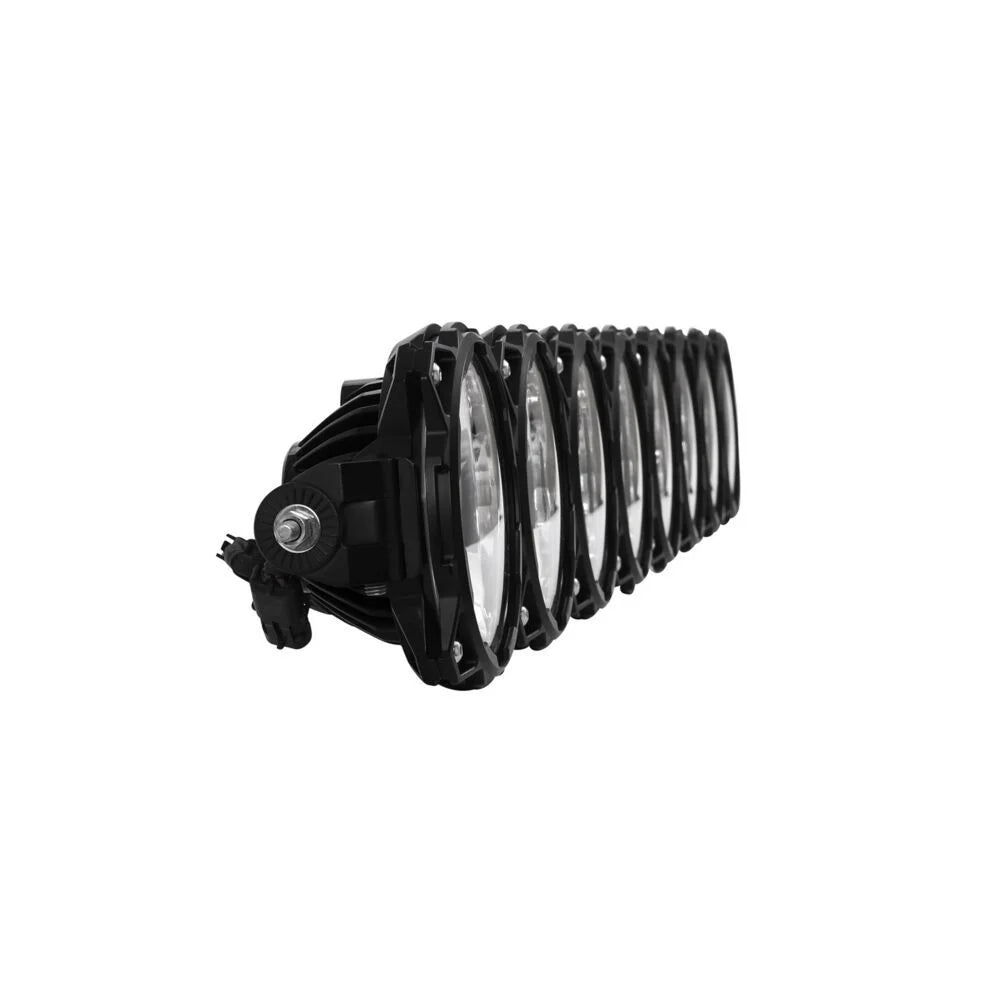

• High output, efficient draw: Class-leading performance with low amperage; e.g., the 50" (8-light) bar is rated ~18,400 lm / 160W.
• Built for weather & washdowns: IP68 sealing and robust housings endure dust, water, vibration, and heat.

What’s in the box

• Gravity® Pro6 LED Light Bar (choose size below)
• Black KC light covers (yellow KC logo)
• Deluxe plug-and-play wiring harness with 30A LED switch
  Vehicle-specific mounting brackets are not included with universal bars (bundles exist for certain vehicles).

Size & performance at a glance (Combo beam)

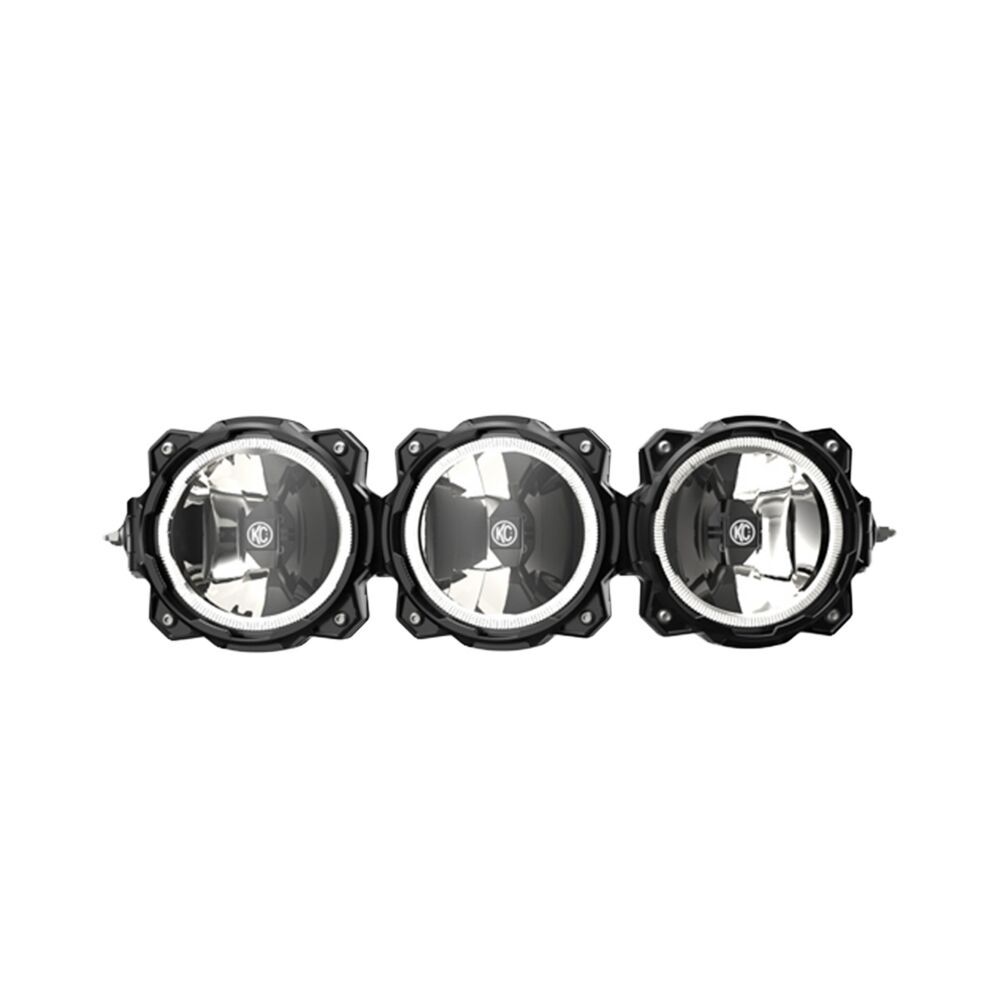

• 20" (3-light): 6,900 lm, 2,794 lx @10 m, 1,057 m beam, 60W

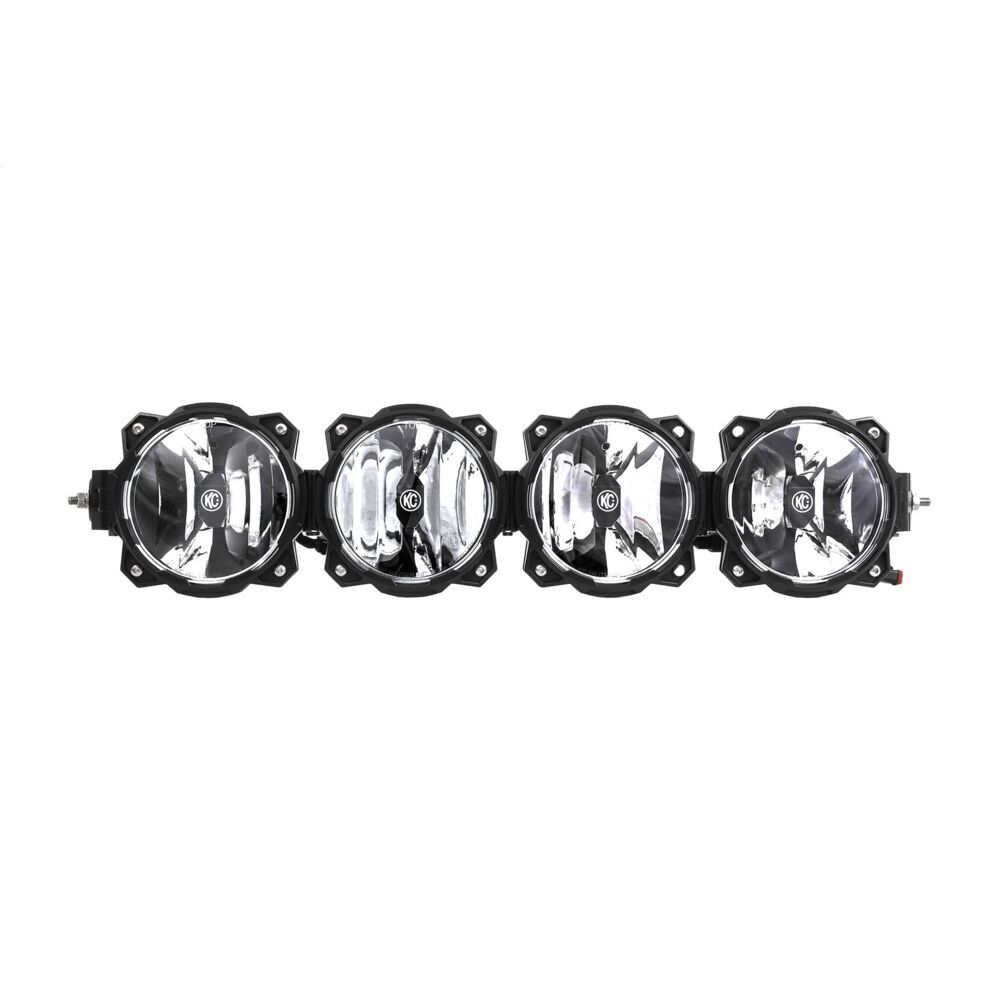

• 26" (4-light): 9,200 lm, 3,425 lx, 1,170 m, 80W

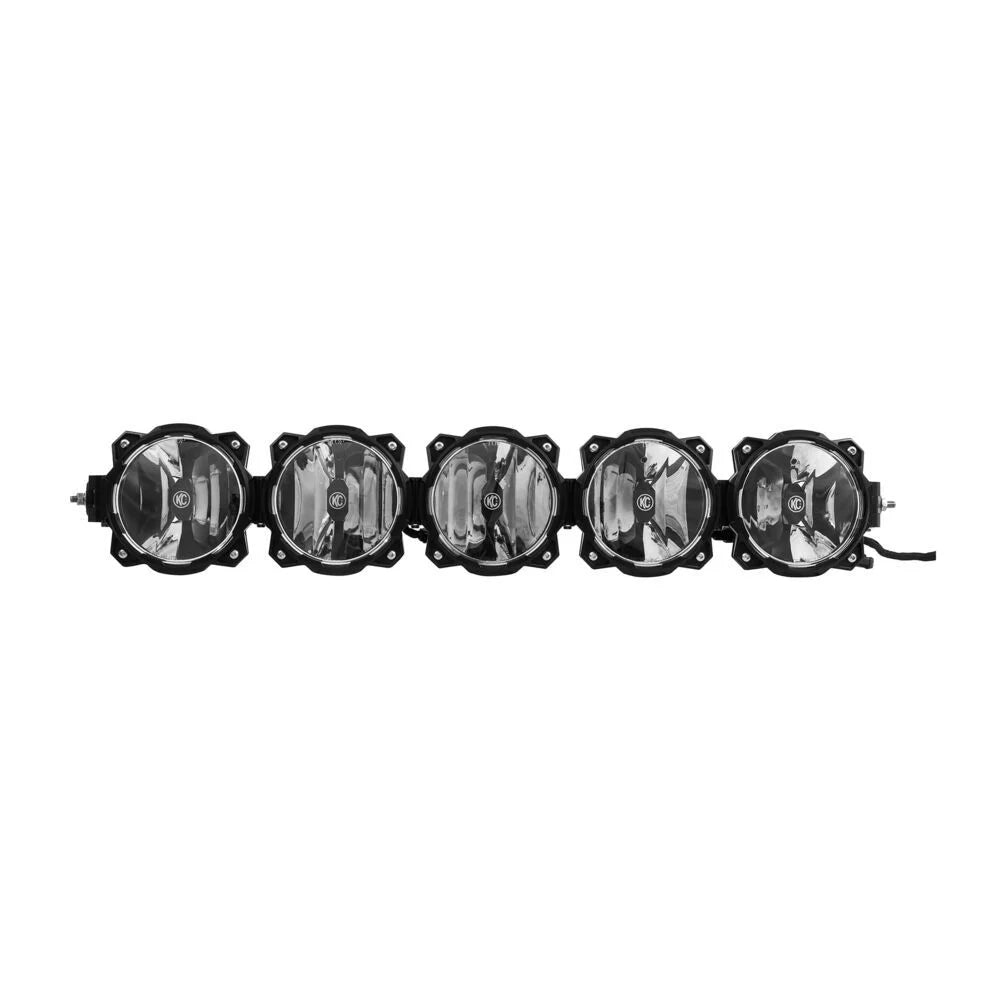

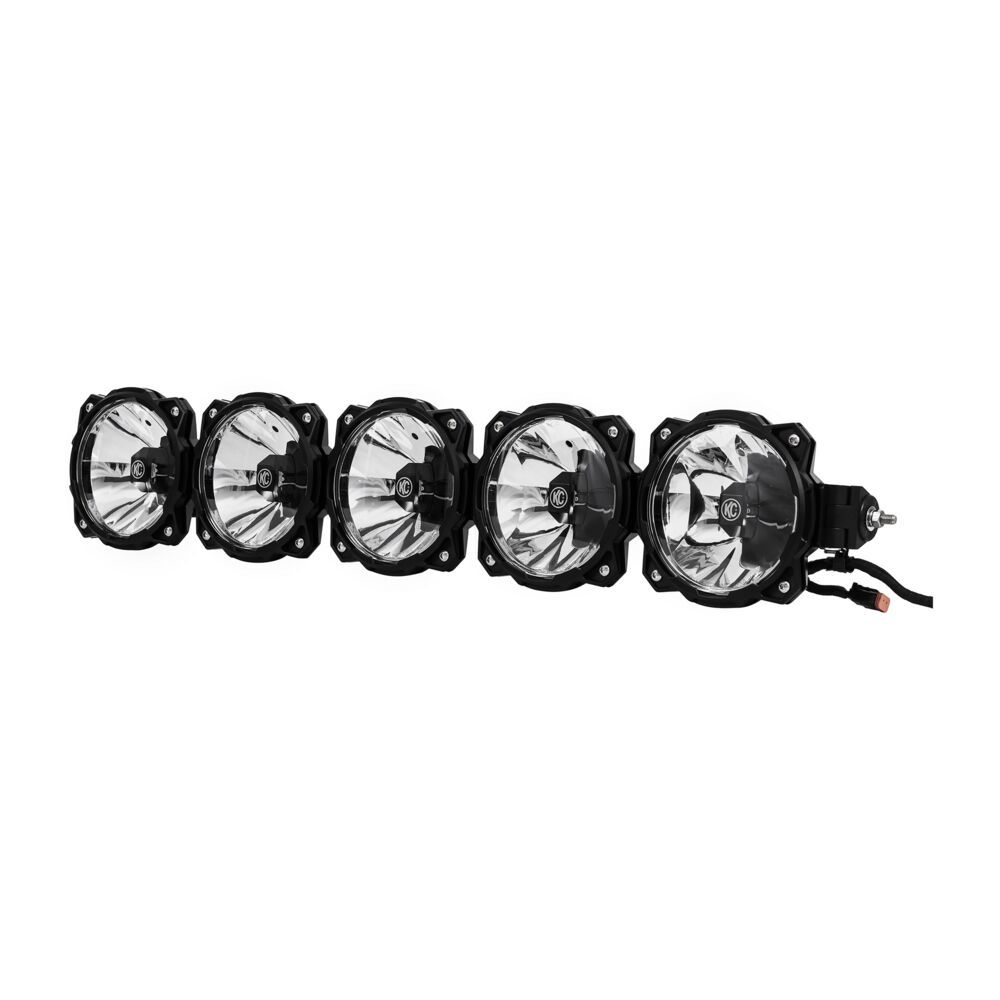

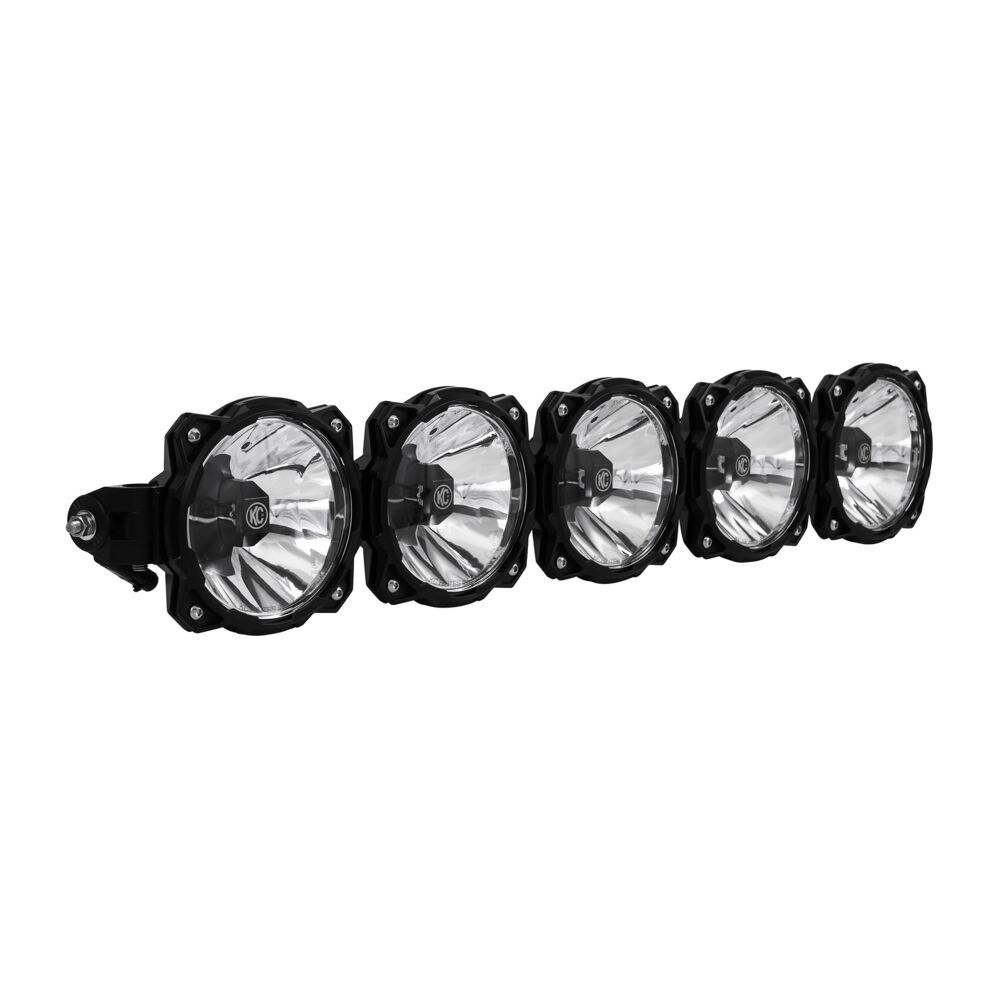

• 32" (5-light): 11,500 lm, 4,200 lx, 1,296 m, 100W

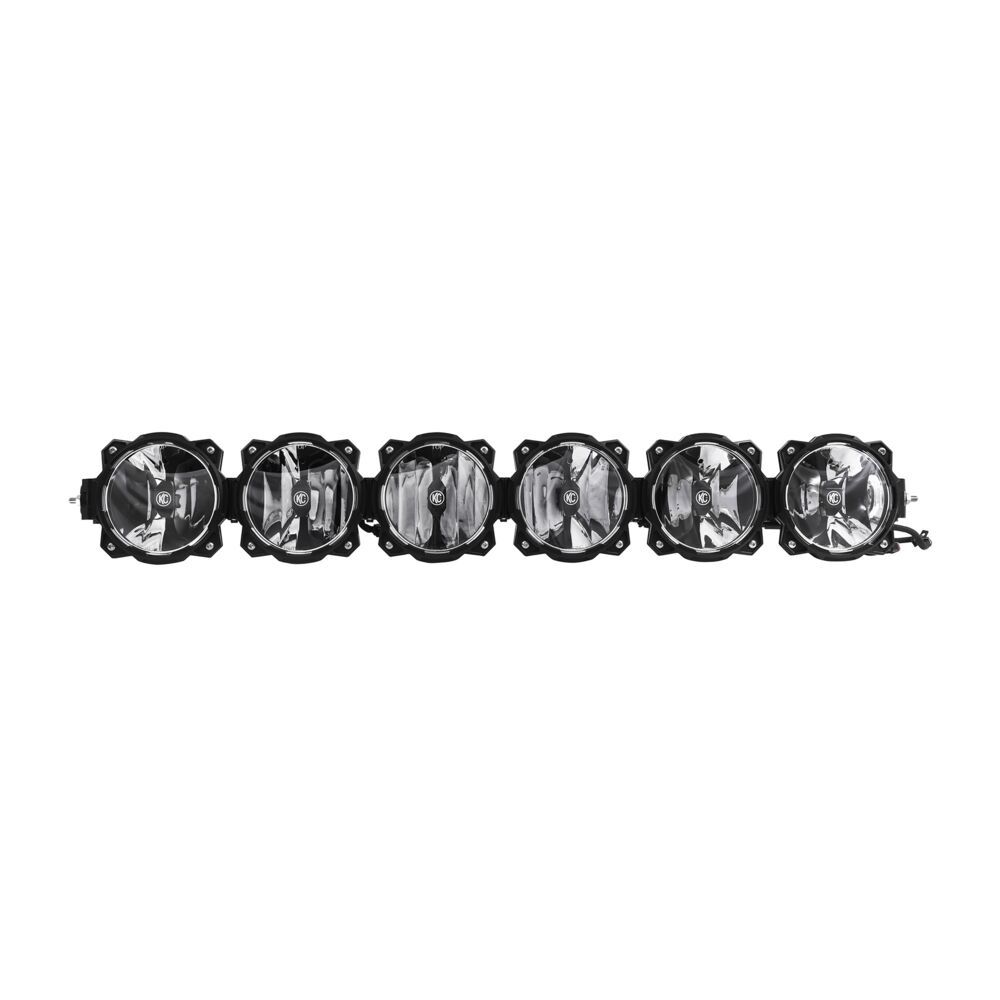

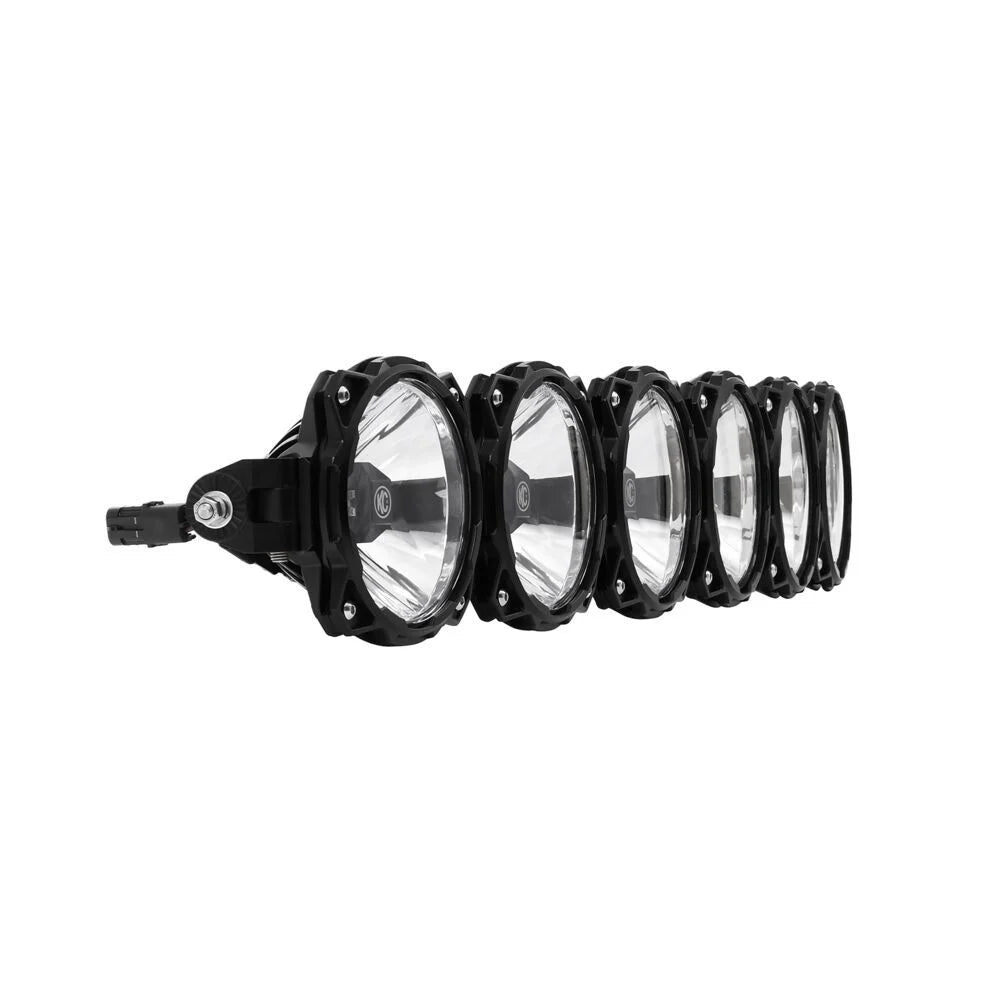

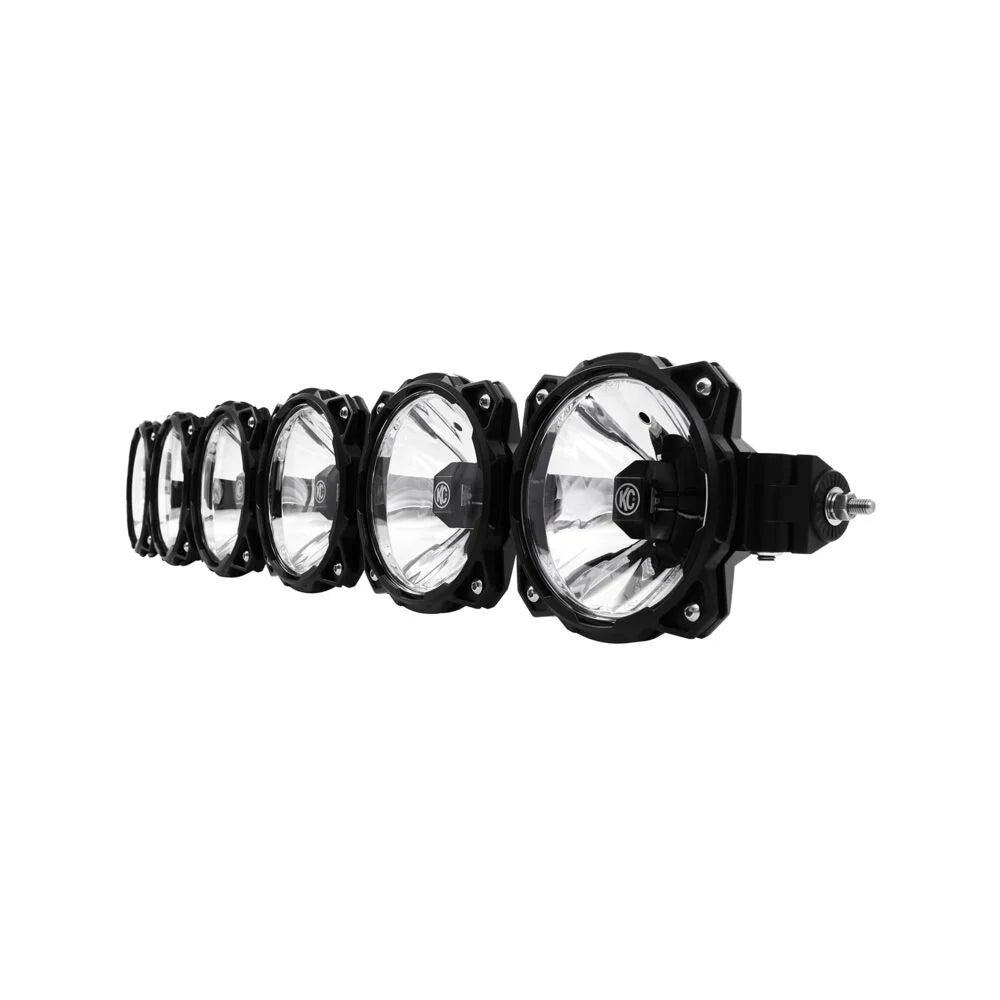

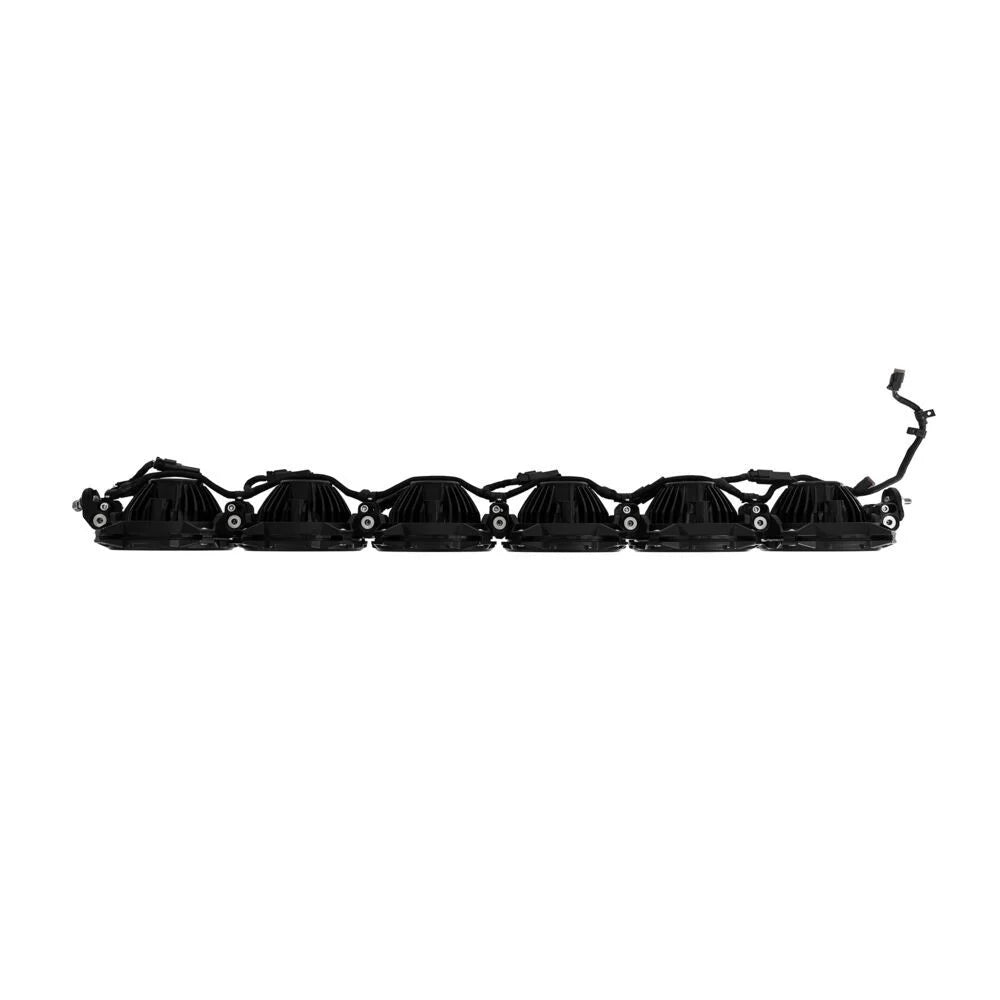

• 39" (6-light): 13,800 lm, 5,150 lx, 1,435 m, 120W

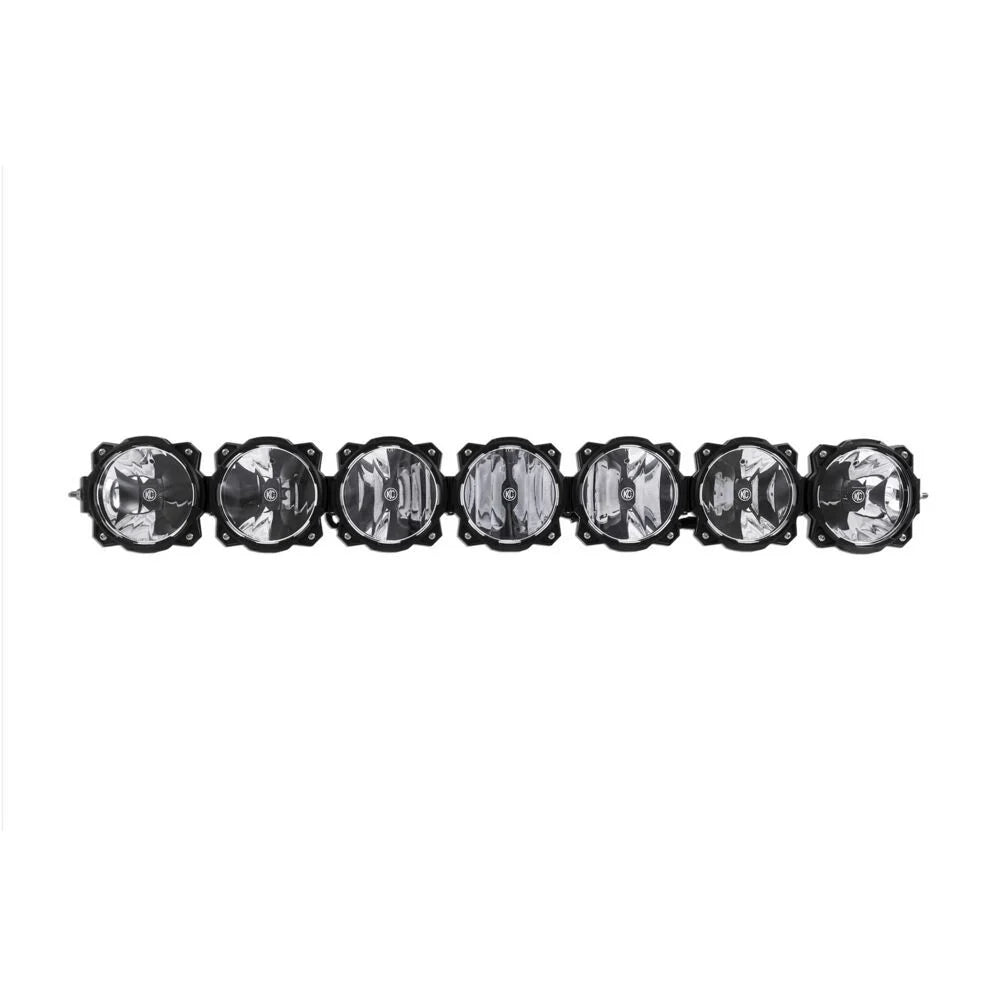

• 45" (7-light): 16,100 lm, 6,100 lx, 1,562 m, 140W

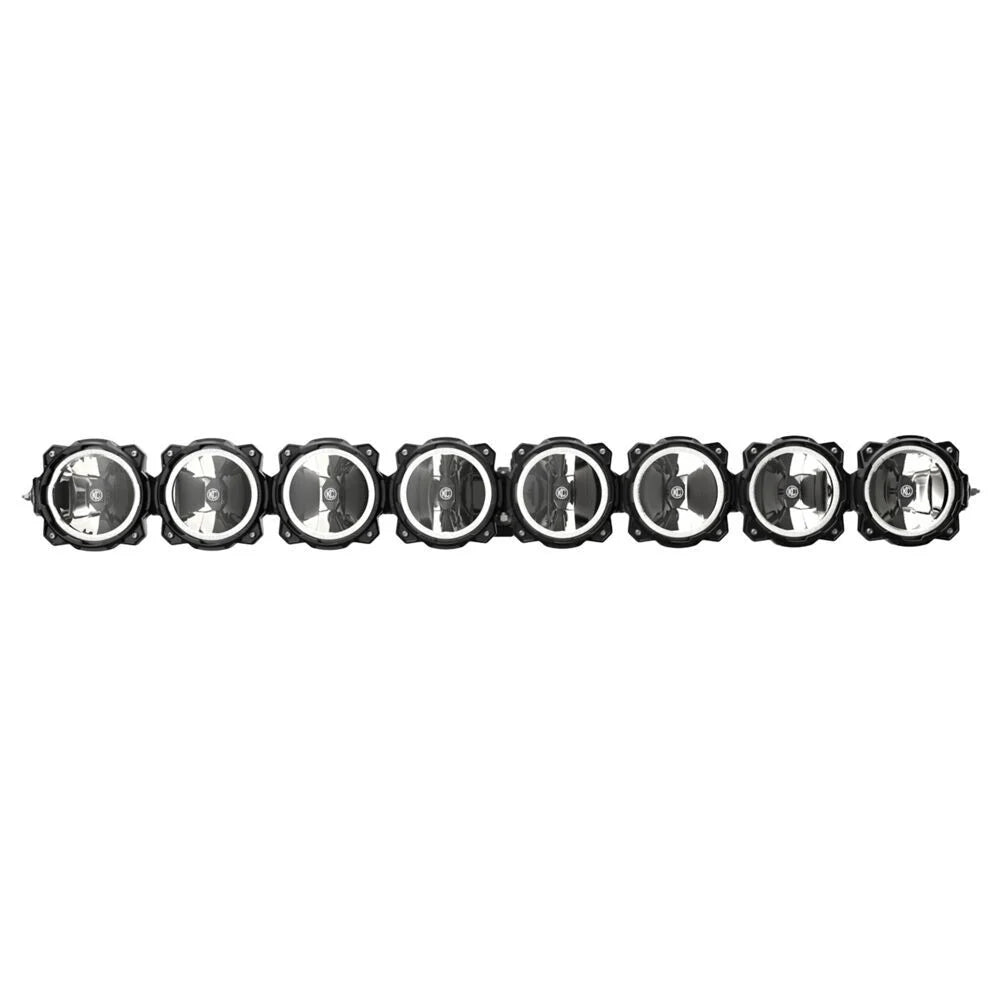

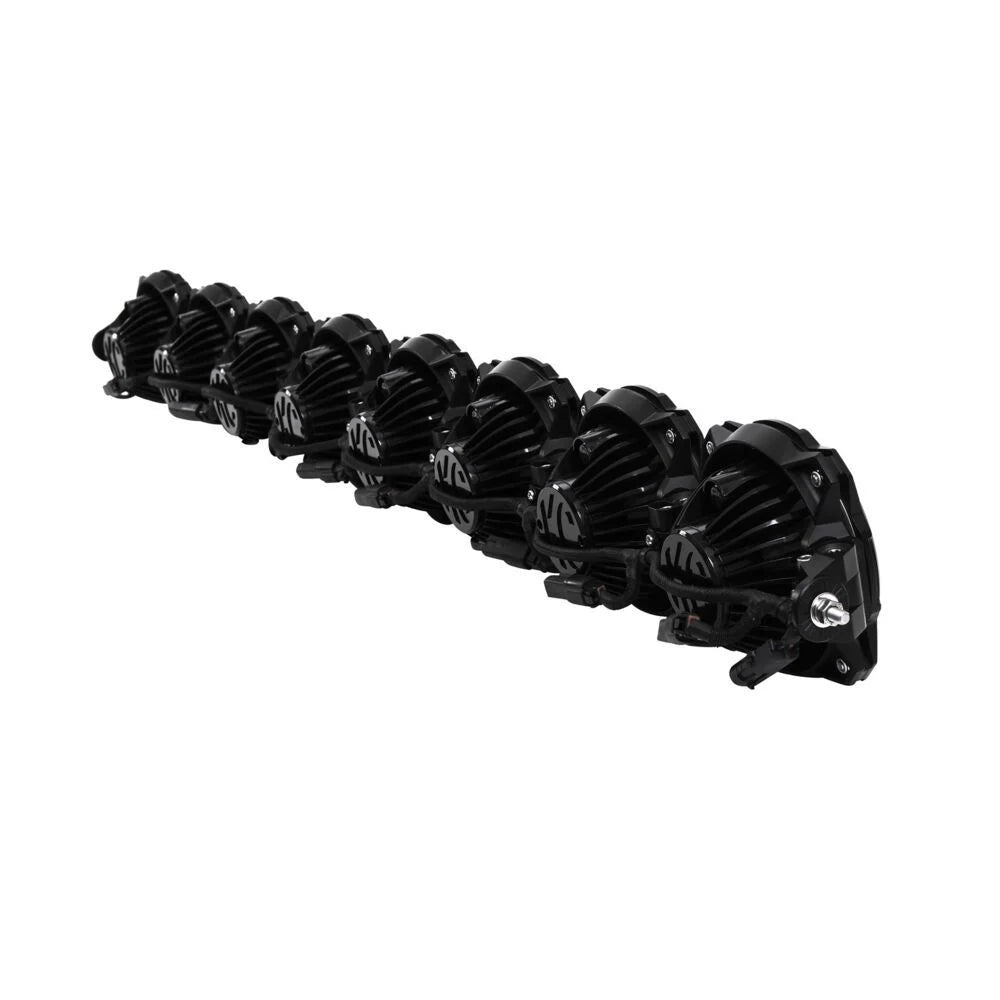

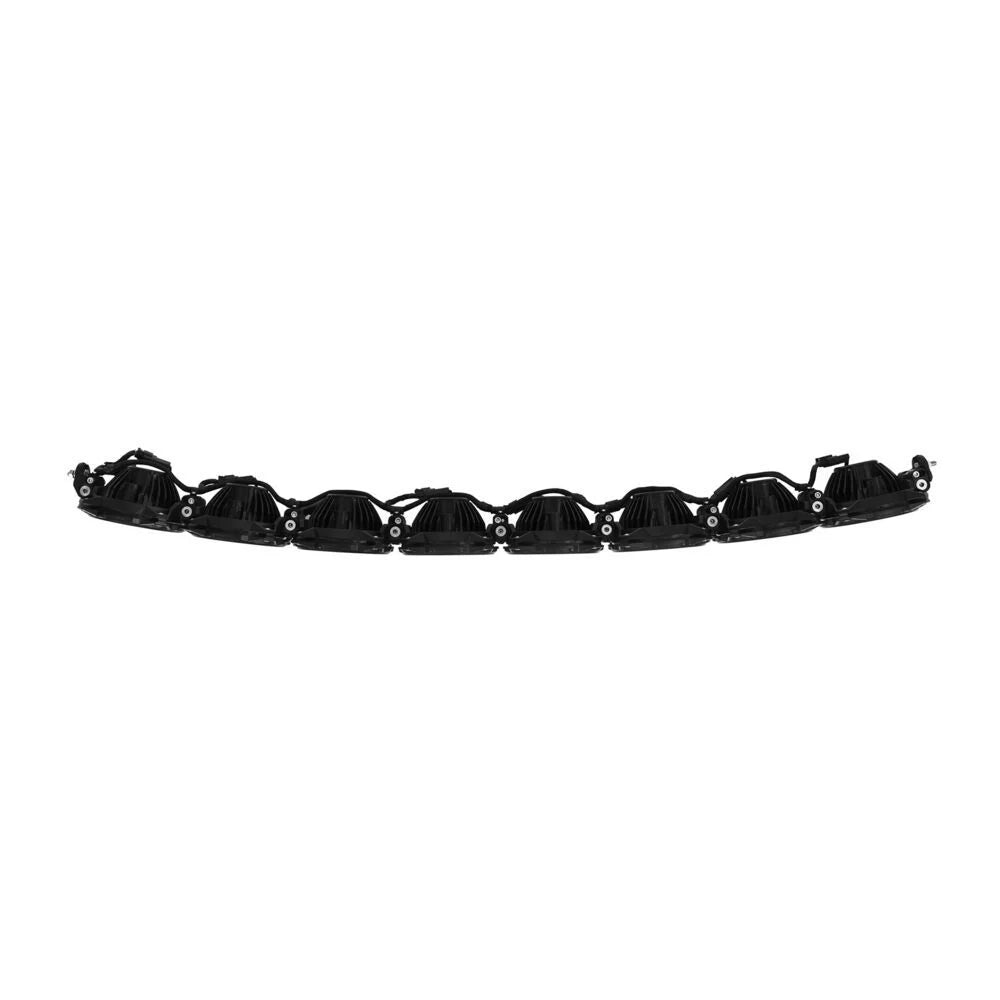

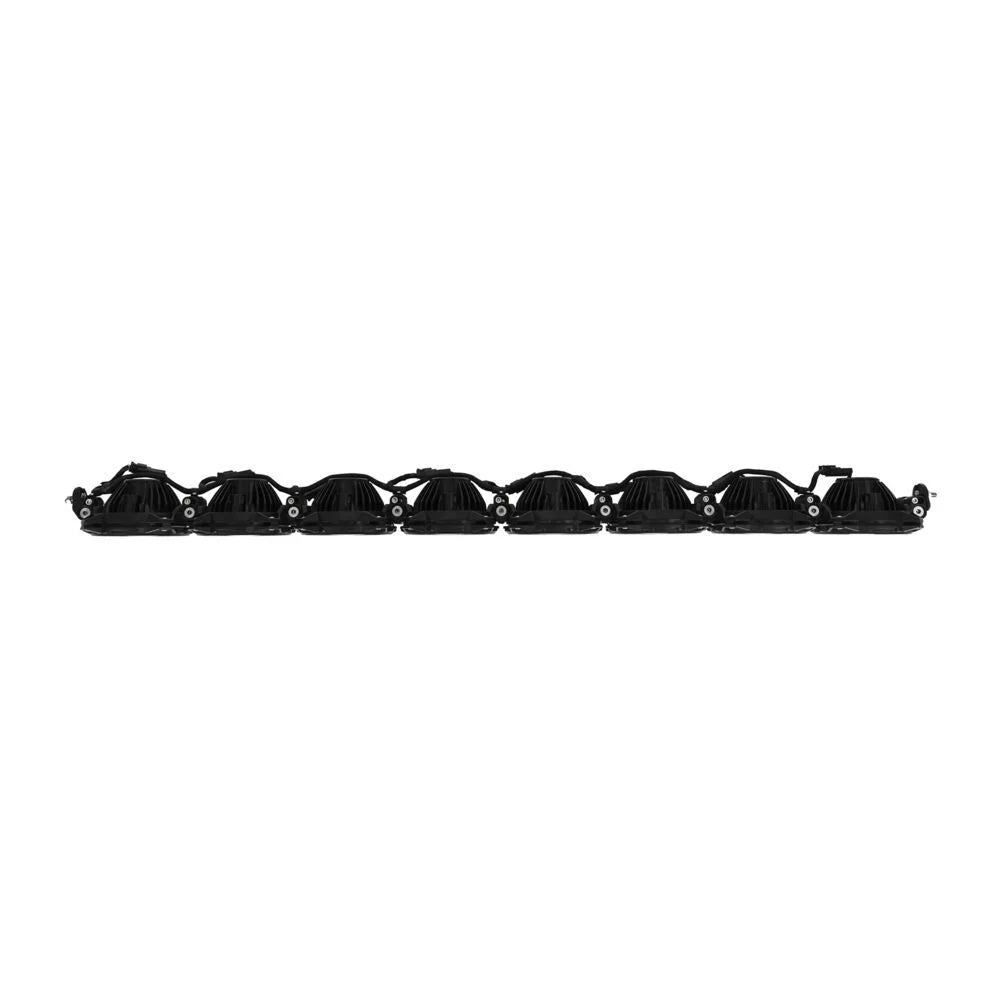

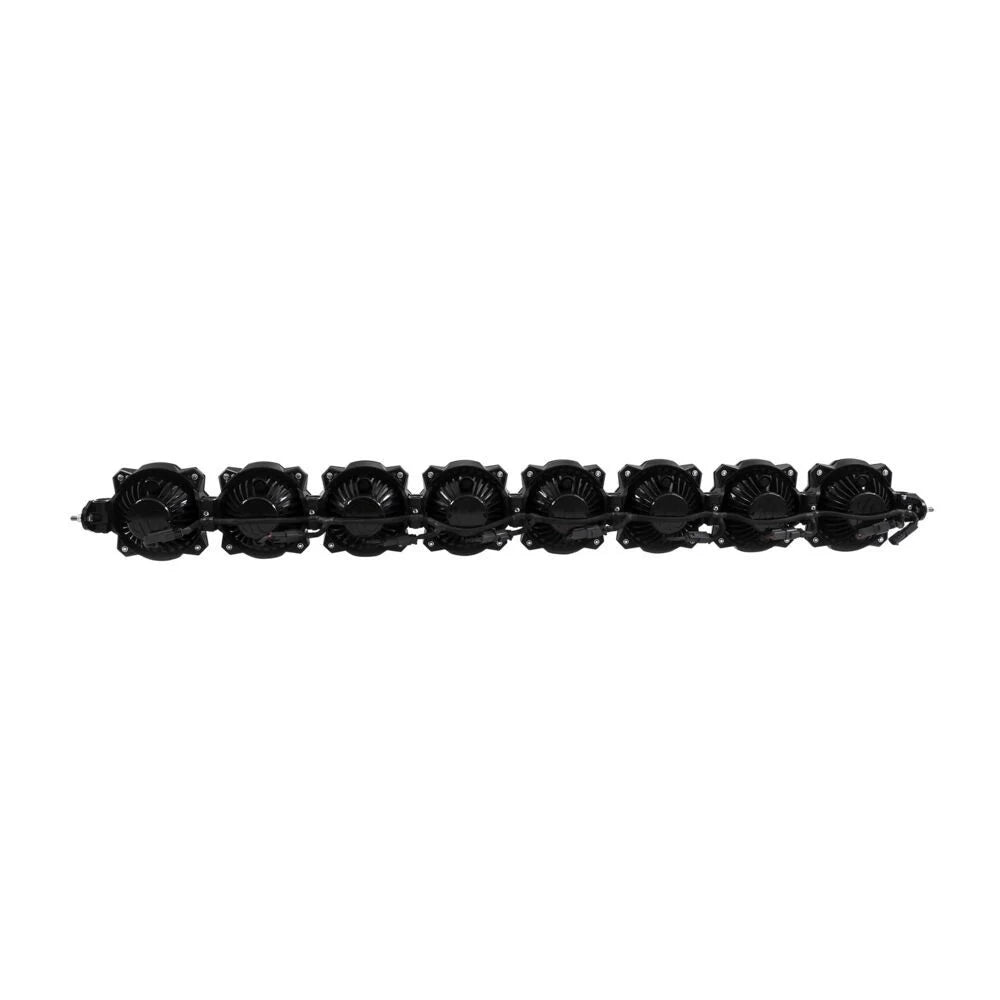

• 50" (8-light): 18,400 lm, 6,700 lx, 1,637 m, 160W

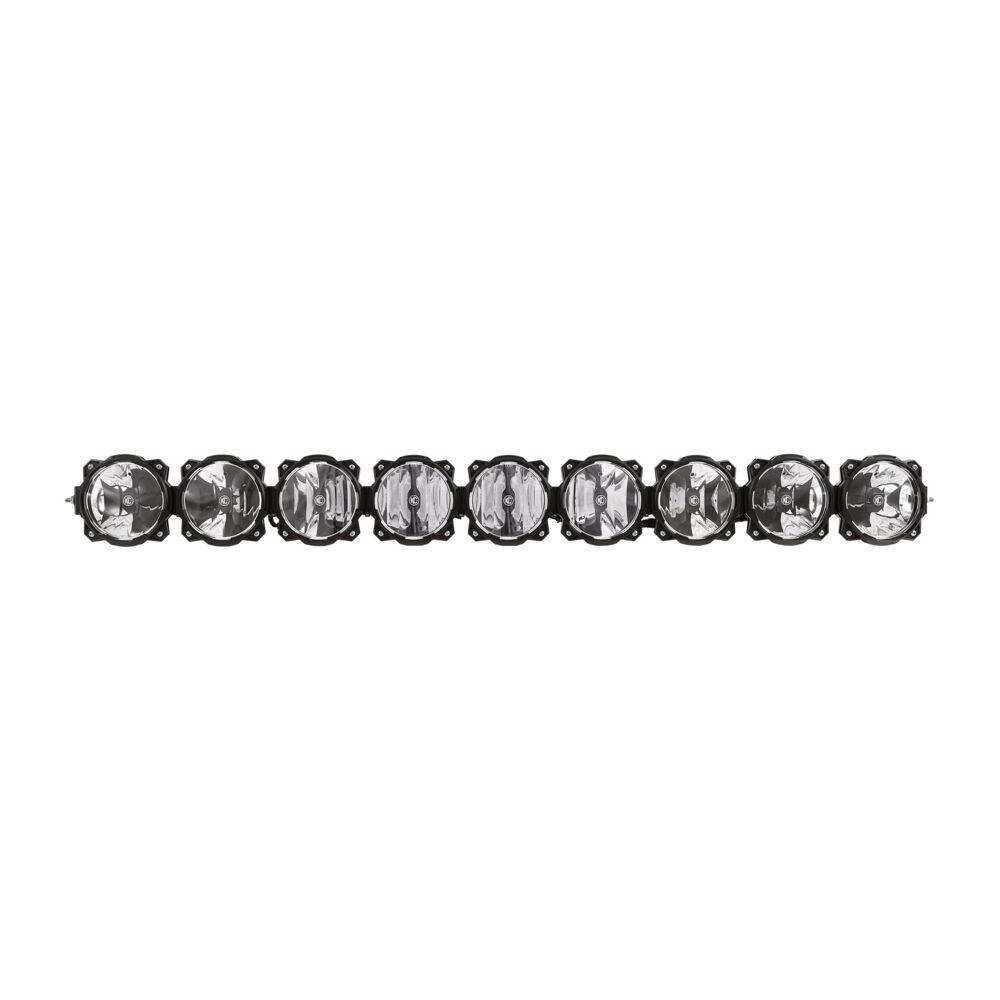

• 57" (9-light): ~23,000 lm, 7,500 lx, 1,732 m, 180W
  (5000K CCT; 9–32V; IP68.)

Core specs (by system)

• Optics: Gravity® G6 inserts using GRD (Gravity Reflective Diode) tech; Spot, Driving, Wide-40 patterns (Combo uses Spot + Wide-40).
• Electrical: 60–180W total depending on bar size; ~5.0–14.67A draw; 9–32V; 5000K color temp.
• Sealing: IP68; weather-resistant construction.

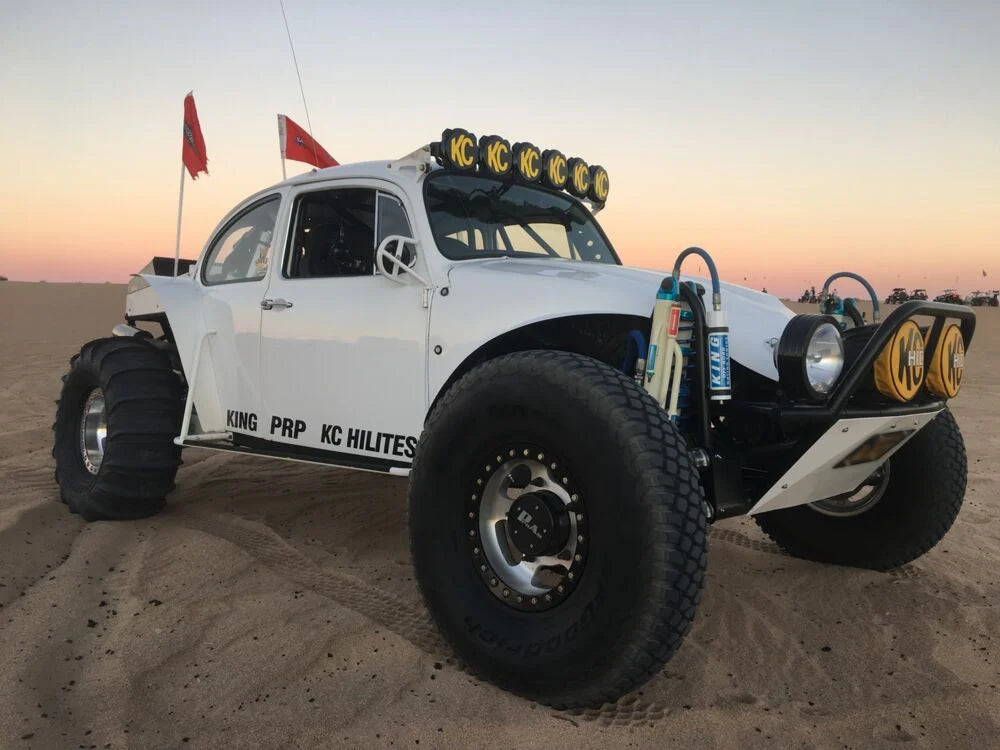

Ideal uses

• High-speed desert/open road: distance from Spot with Combo’s added width for peripheral hazards.
• Backroads & overland travel: balanced forward punch + near-to-mid fill without glare.
• Serviceability & upgrades: swap optics, add sections, or curve/straighten to fit new racks or bumpers.

Install notes

Use the included plug-and-play harness and 30A LED switch; mount via the universal end-mounts or vehicle-specific brackets (sold separately for most universal bars). For roof lines, confirm width and curvature, then aim and tighten per KC specs. Always verify local auxiliary-lighting regulations.
